324 SERVICE AND MAINTENANCE
At your dealer, you can be certain that
you will receive the highest level of
service available. Your dealer has
specially trained service technicians,
uses genuine replacement parts, as
well as, up-to-date tools and
equipment to ensure fast and accurate
diagnostics.
The proper replacement parts, fluids,
and lubricants to use are listed in
Recommended Fluids and Lubricants
0331 and Maintenance Replacement
Parts 0332. We recommend the use
of genuine parts from your dealer.
Rotation of New Tires
Tire rotation is not recommended if
the vehicle has different size tires on
the front and rear wheels. If tire
rotation is recommended for the
vehicle, to maintain ride, handling,
and performance of the vehicle, it is
important that the first rotation
service for new tires be performed.
Tires should be rotated every service.
See Tire Rotation 0296.Maintenance Schedule
Owner Checks and Services
At Each Fuel Stop
.
Check the engine oil level. See
Engine Oil 0257.
Once a Month
. Check the tire inflation pressures.
See Tire Pressure 0290.
. Inspect the tires for wear. See Tire
Inspection 0296.
. Check the windshield washer fluid
level. See Washer Fluid 0269.
Engine Oil Change
Change the engine oil and filter when
the CHANGE ENGINE OIL SOON
message displays, 12 000 km/7,500 mi,
or at one year, whichever comes first.
If driven under the best conditions,
the engine oil life system may not
indicate the need for vehicle service
for up to a year. The engine oil and
filter must be changed at least once a
year and the oil life system must be
reset. Your trained dealer technician
can perform this work. If the engine oil life system is reset accidentally,
service the vehicle within 5 000 km/
3,000 mi since the last service. Reset
the oil life system when the oil is
changed. See
Engine Oil Life
System 0259.
Tire Rotation and Required
Services Every 12 000 km/
7,500 mi
Rotate the tires, if recommended for
the vehicle, and perform the following
services. See Tire Rotation0296.
. Check engine oil level and oil
life percentage. If needed, change
engine oil and filter, and reset oil
life system. See Engine Oil0257
and Engine Oil Life System 0259.
. Check engine coolant level. See
Engine Coolant 0264.
. Check windshield washer fluid
level. See Washer Fluid 0269.
. Visually inspect windshield wiper
blades for wear, cracking,
or contamination. See Exterior
Care 0315. Replace worn or
damaged wiper blades. See Wiper
Blade Replacement 0274.

Cadillac CTS/CTS-V Owner Manual (GMNA-Localizing-MidEast-10293089) -
2017 - crc - 6/22/16
SERVICE AND MAINTENANCE 331

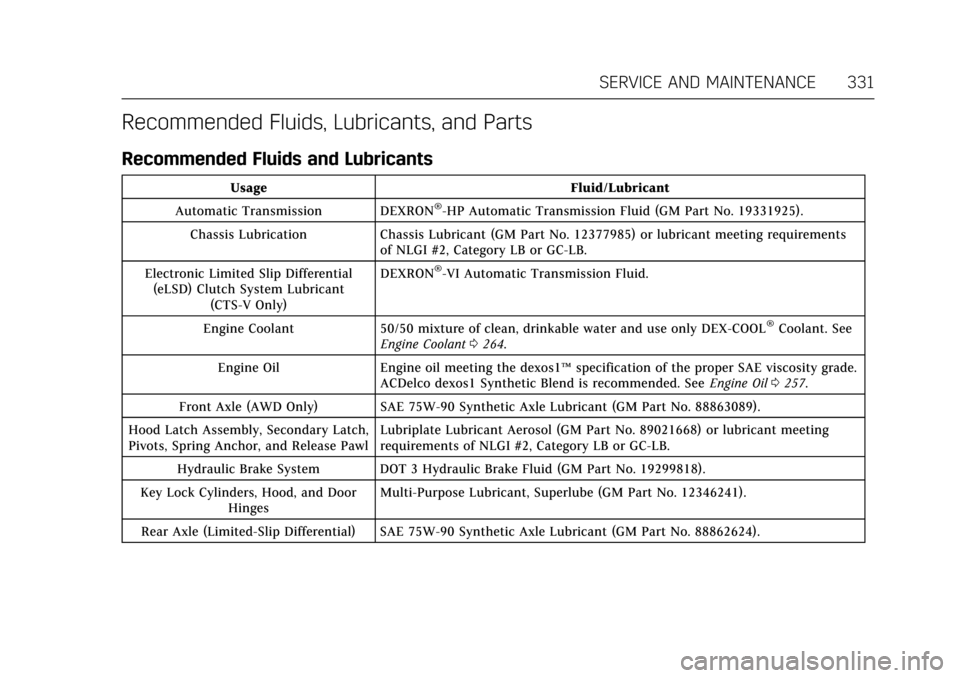

Recommended Fluids, Lubricants, and Parts
Recommended Fluids and Lubricants
UsageFluid/Lubricant
Automatic Transmission DEXRON
®-HP Automatic Transmission Fluid (GM Part No. 19331925).
Chassis Lubrication Chassis Lubricant (GM Part No. 12377985) or lubricant meeting requirements of NLGI #2, Category LB or GC-LB.
Electronic Limited Slip Differential (eLSD) Clutch System Lubricant (CTS-V Only) DEXRON
®-VI Automatic Transmission Fluid.
Engine Coolant 50/50 mixture of clean, drinkable water and use only DEX-COOL
®Coolant. See
Engine Coolant 0264.
Engine Oil Engine oil meeting the dexos1™ specification of the proper SAE viscosity grade.
ACDelco dexos1 Synthetic Blend is recommended. See Engine Oil0257.
Front Axle (AWD Only) SAE 75W-90 Synthetic Axle Lubricant (GM Part No. 88863089).
Hood Latch Assembly, Secondary Latch,
Pivots, Spring Anchor, and Release Pawl Lubriplate Lubricant Aerosol (GM Part No. 89021668) or lubricant meeting
requirements of NLGI #2, Category LB or GC-LB.
Hydraulic Brake System DOT 3 Hydraulic Brake Fluid (GM Part No. 19299818).
Key Lock Cylinders, Hood, and Door Hinges Multi-Purpose Lubricant, Superlube (GM Part No. 12346241).
Rear Axle (Limited-Slip Differential) SAE 75W-90 Synthetic Axle Lubricant (GM Part No. 88862624).

Cadillac CTS/CTS-V Owner Manual (GMNA-Localizing-MidEast-10293089) -
2017 - crc - 6/22/16
344 INDEX
Control of a Vehicle . . . . . . . . . . . . . . . . 182
Convenience Net . . . . . . . . . . . . . . . . . . . . 102
Convex Mirrors . . . . . . . . . . . . . . . . . . . . . . 43
CoolantEngine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 264
Engine Temperature Gauge . . . . . . 120
Engine Temperature WarningLight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
Cooling . . . . . . . . . . . . . . . . . . . . . . . . .172, 177
Cooling System . . . . . . . . . . . . . . . . . . . . . 263 Engine Messages . . . . . . . . . . . . . . . . . . 140
Courtesy Lamps . . . . . . . . . . . . . . . . . . . . . 162
Cruise Control . . . . . . . . . . . . . . . . . . . . . . . 218 Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
Messages . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Cruise Control, Adaptive . . . . . . . . . . . 220
Cupholders . . . . . . . . . . . . . . . . . . . . . . . . . . 101
D
Danger, Warning, and Caution . . . . . . . . 2
Data Collection
Infotainment System . . . . . . . . . . . . . 341
Data Recorder Performance . . . . . . . . . . . . . . . . . . . . . . . 165
Data Recorders, Event . . . . . . . . . . . . . . 340
Daytime Running Lamps (DRL) . . . 159
Defensive Driving . . . . . . . . . . . . . . . . . . . 182
Delayed Locking . . . . . . . . . . . . . . . . . . . . . 37
Differential, Limited-Slip . . . . . . . . . . . 217 Distracted Driving . . . . . . . . . . . . . . . . . . 182
Dome Lamps . . . . . . . . . . . . . . . . . . . . . . . . 162
Door
Ajar Light . . . . . . . . . . . . . . . . . . . . . . . . . 131
Ajar Messages . . . . . . . . . . . . . . . . . . . . . 139
Delayed Locking . . . . . . . . . . . . . . . . . . . . 37
Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Power Locks . . . . . . . . . . . . . . . . . . . . . . . . . 37
Rear Seat Pass-Through . . . . . . . . . . . . 64
Drive Belt Routing, Engine . . . . . . . . . 338
Drive Systems All-Wheel Drive . . . . . . . . . . . . . . 206, 272
Driver Assistance Systems . . . . . . . . . 227
Driver Information Center (DIC) . . . . . . . . . . . . . . . . . . . . . . . 132
Driver Mode Control . . . . . . . . . . . . . . . . 211
Driving
Assistance Systems . . . . . . . . . . . . . . . 235
Competitive . . . . . . . . . . . . . . . . . . . . . . . 214
Defensive . . . . . . . . . . . . . . . . . . . . . . . . . . 182
For Better Fuel Economy . . . . . . . . . . . 26
Hill and Mountain Roads . . . . . . . . 189
If the Vehicle is Stuck . . . . . . . . . . . . 191
Loss of Control . . . . . . . . . . . . . . . . . . . . 184
Off-Road Recovery . . . . . . . . . . . . . . . . 184
Track Events and Competitive . . . 185
Vehicle Load Limits . . . . . . . . . . . . . . 192
Wet Roads . . . . . . . . . . . . . . . . . . . . . . . . . 189 Driving (cont'd)
Winter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Dual Automatic Climate Control System . . . . . . . . . . . . . . . . . . . . 172
E
Electric Parking Brake . . . . . . . . . . . . . . 207
Electrical Equipment, Add-On . . . . . 246
Electrical SystemEngine Compartment Fuse
Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 279
Fuses and Circuit Breakers . . . . . . . 278
Instrument Panel Fuse Block . . . . 282
Overload . . . . . . . . . . . . . . . . . . . . . . . . . . . 278
Rear Compartment Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 284
Engine Air Cleaner/Filter . . . . . . . . . . . . . . . . . 261
Check and Service EngineSoon Light . . . . . . . . . . . . . . . . . . . . . . . 123
Compartment Overview . . . . . . . . . . 250
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . 264
Coolant Temperature Gauge . . . . . 120
Coolant Temperature Warning Light . . . . . . . . . . . . . . . . . . . 128
Cooling System . . . . . . . . . . . . . . . . . . . 263
Cooling System Messages . . . . . . . . 140
Drive Belt Routing . . . . . . . . . . . . . . . . 338
Exhaust . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202

Cadillac CTS/CTS-V Owner Manual (GMNA-Localizing-MidEast-10293089) -
2017 - crc - 6/22/16
INDEX 345
Engine (cont'd)Oil Life System . . . . . . . . . . . . . . . . . . . . 259
Oil Messages . . . . . . . . . . . . . . . . . . . . . . 140
Oil Pressure Light . . . . . . . . . . . . . . . . . 129
Overheating . . . . . . . . . . . . . . . . . . . . . . . 267
Power Messages . . . . . . . . . . . . . . . . . . 140
Running While Parked . . . . . . . . . . . 203
Starting . . . . . . . . . . . . . . . . . . . . . . . . 19, 198
Entry Lighting . . . . . . . . . . . . . . . . . . . . . . 163
Event Data Recorders . . . . . . . . . . . . . . 340
Exit Lighting . . . . . . . . . . . . . . . . . . . . . . . . 163
Extended Parking . . . . . . . . . . . . . . . . . . . 201
Exterior Lamp Controls . . . . . . . . . . . . 157
Exterior Lamps Off Reminder . . . . . . 159
Exterior Lighting Battery Saver . . . . 164
F
Features Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Filter, Engine Air Cleaner . . . . . . . . . . . . . . . . 261
Flash-to-Pass . . . . . . . . . . . . . . . . . . . . . . . . 159
Flashers, Hazard Warning . . . . . . . . . . 161
Flat Tire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 302
Floor Mats . . . . . . . . . . . . . . . . . . . . . . . . . . . 322
Fluid Automatic Transmission . . . . . . . . . 260
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 270
Washer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 269 Forward Automatic Braking . . . . . . . . 237
Forward Collision Alert (FCA)
System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 235
Front Seats Heated and Ventilated . . . . . . . . . . . . . 60
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 242 Additives . . . . . . . . . . . . . . . . . . . . . . . . . . 243
Economy Driving . . . . . . . . . . . . . . . . . . . 26
Filling a Portable Fuel
Container . . . . . . . . . . . . . . . . . . . . . . . . 245
Filling the Tank . . . . . . . . . . . . . . . . . . . 243
Gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Low Fuel Warning Light . . . . . . . . . 129
System Messages . . . . . . . . . . . . . . . . . 141
Fuses Engine Compartment Fuse
Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 279
Fuses and Circuit Breakers . . . . . . . 278
Instrument Panel Fuse Block . . . . 282
Rear Compartment Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 284
G
Gauges
Boost . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Engine Coolant Temperature . . . . 120
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Speedometer . . . . . . . . . . . . . . . . . . . . . . 118 Gauges (cont'd)
Tachometer . . . . . . . . . . . . . . . . . . . . . . . 118
Trip Odometer . . . . . . . . . . . . . . . . . . . . 118
Warning Lights and
Indicators . . . . . . . . . . . . . . . . . . . . . . . . 113
General Information Service and Maintenance . . . . . . . . 323
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 245
Vehicle Care . . . . . . . . . . . . . . . . . . . . . . . 248
Glove Box . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
H
Halogen Bulbs . . . . . . . . . . . . . . . . . . . . . . 275
Hazard Warning Flashers . . . . . . . . . . 161
Head Restraints . . . . . . . . . . . . . . . . . . . . . . 53
Head-up Display . . . . . . . . . . . . . . . . . . . . 135
Headlamps Adaptive ForwardLighting (AFL) . . . . . . . . . . . . . . . . . . . 160
Aiming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 275
Automatic . . . . . . . . . . . . . . . . . . . . . . . . . 160
Bulb Replacement . . . . . . . . . . . . . . . . 275
Daytime Running Lamps (DRL) . . . . . . . . . . . . . . . . . . . . 159
Flash-to-Pass . . . . . . . . . . . . . . . . . . . . . . 159
High Intensity Discharge (HID) Lighting . . . . . . . . . . . . . . . . . . . 276
High-Beam On Light . . . . . . . . . . . . . . 130
High/Low Beam Changer . . . . . . . . . 159

Cadillac CTS/CTS-V Owner Manual (GMNA-Localizing-MidEast-10293089) -
2017 - crc - 6/22/16
INDEX 347
Lights (cont'd)Engine Coolant Temperature
Warning . . . . . . . . . . . . . . . . . . . . . . . . . 128
Engine Oil Pressure . . . . . . . . . . . . . . . 129
Flash-to-Pass . . . . . . . . . . . . . . . . . . . . . . 159
High-Beam On . . . . . . . . . . . . . . . . . . . . 130
High/Low Beam Changer . . . . . . . . . 159
Low Fuel Warning . . . . . . . . . . . . . . . . 129
Safety Belt Reminders . . . . . . . . . . . . 121
Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
Service Electric Parking Brake . . . 126
StabiliTrak
®OFF . . . . . . . . . . . . . . . . . . 127
Tire Pressure . . . . . . . . . . . . . . . . . . . . . . 128
Traction Control System (TCS)/StabiliTrak
®. . . . . . . . . . . . . . 128
Traction Off . . . . . . . . . . . . . . . . . . . . . . . 127
Limited-Slip Differential . . . . . . . . . . . . 217
Locks Automatic Door . . . . . . . . . . . . . . . . . . . . . 38
Delayed Locking . . . . . . . . . . . . . . . . . . . . 37
Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Lockout Protection . . . . . . . . . . . . . . . . . 38
Power Door . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Loss of Control . . . . . . . . . . . . . . . . . . . . . . 184
Low Fuel Warning Light . . . . . . . . . . . 129
Low-Profile Tires . . . . . . . . . . . . . . . . . . . . 289 Lower Anchors and Tethers for
Children (LATCH System) . . . . . . . . . 89
Lumbar Adjustment . . . . . . . . . . . . . . . . . 56 Front Seats . . . . . . . . . . . . . . . . . . . . . . . . . . 56
M
MaintenanceRecords . . . . . . . . . . . . . . . . . . . . . . . . . . . . 334
Maintenance Schedule . . . . . . . . . . . . . 324 Recommended Fluids andLubricants . . . . . . . . . . . . . . . . . . . . . . . 331
Malfunction Indicator Lamp . . . . . . . 123
Manual Mode . . . . . . . . . . . . . . . . . . . . . . . 205
Memory Features . . . . . . . . . . . . . . . . . . . . 13
Memory Seats . . . . . . . . . . . . . . . . . . . . . . . . 58
Messages Airbag System . . . . . . . . . . . . . . . . . . . . . 146
Battery Voltage and Charging . . . . 138
Brake System . . . . . . . . . . . . . . . . . . . . . . 138
Door Ajar . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Engine Cooling System . . . . . . . . . . . 140
Engine Oil . . . . . . . . . . . . . . . . . . . . . . . . . 140
Engine Power . . . . . . . . . . . . . . . . . . . . . 140
Fuel System . . . . . . . . . . . . . . . . . . . . . . . 141
Key and Lock . . . . . . . . . . . . . . . . . . . . . . 141
Lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
Object Detection System . . . . . . . . . 142
Ride Control System . . . . . . . . . . . . . . 144
Safety Belt . . . . . . . . . . . . . . . . . . . . . . . . . 146 Messages (cont'd)
Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
Service Vehicle . . . . . . . . . . . . . . . . . . . . 146
Starting the Vehicle . . . . . . . . . . . . . . 147
Tire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Transmission . . . . . . . . . . . . . . . . . . . . . . 147
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
Vehicle Reminder . . . . . . . . . . . . . . . . . 148
Vehicle Speed . . . . . . . . . . . . . . . . . . . . . 148
Washer Fluid . . . . . . . . . . . . . . . . . . . . . . 148
Mirror Rear Camera . . . . . . . . . . . . . . . . . . . . . . . . 45
Mirrors Automatic Dimming . . . . . . . . . . . . . . . . 44
Automatic Dimming Rearview . . . . . 45
Convex . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Heated . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Tilt in Reverse . . . . . . . . . . . . . . . . . . . . . . 45
Mirrors, Interior Rearview . . . . . . . . . . . 45
Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211 Driver Control . . . . . . . . . . . . . . . . . . . . . 211
Monitor System, Tire Pressure . . . . . 292
N
Net, Convenience . . . . . . . . . . . . . . . . . . . 102
New Vehicle Break-In . . . . . . . . . . . . . . . 195
