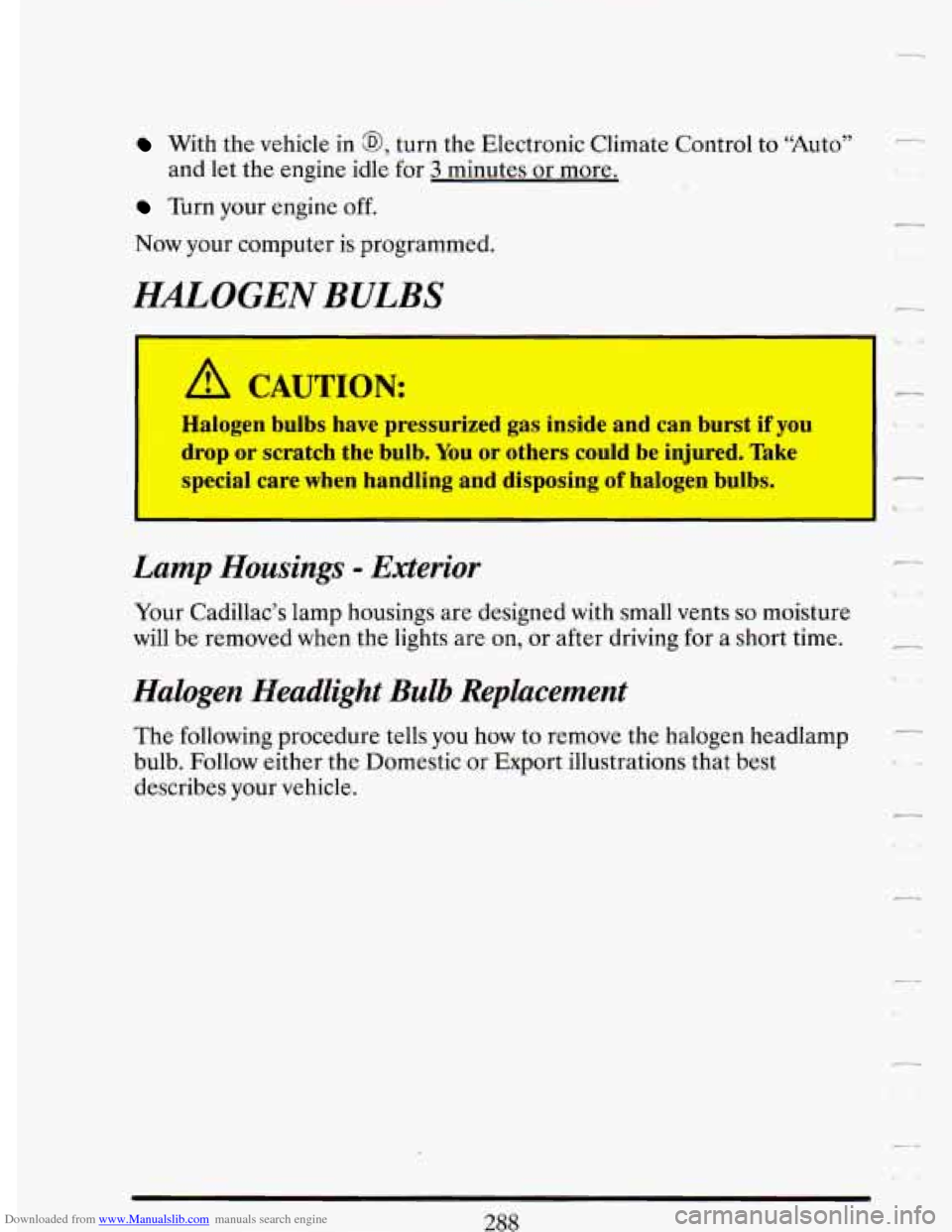

Downloaded from www.Manualslib.com manuals search engine With the vehicle in a, turn the Electronic Climate Control to “Auto”
Turn your engine off.
and let the engine idle for 3 minutes or more.
Now your computer is programmed.
HLOGEN BULBS
I
A CAUTION
I
Halogen bulbs have pressurized gas inside and can burst if you I
drop or scratch the bulb. You or others could be injured. Take
special care when handling and disposing of halogen bulbs.
I
r
r
Lamp Housings = Exterior c
U
Your Cadillac’s lamp housings are designed with small vents so moisture
will be removed when the lights are on, or after driving for
a short time.
Halogen Headlight Bulb Replacement
The following procedure tells you how to remove the halogen headlamp
bulb. Follow either the Domestic or Export illustrations that best
describes your vehicle. c_

Downloaded from www.Manualslib.com manuals search engine f
. ..
:.) ..

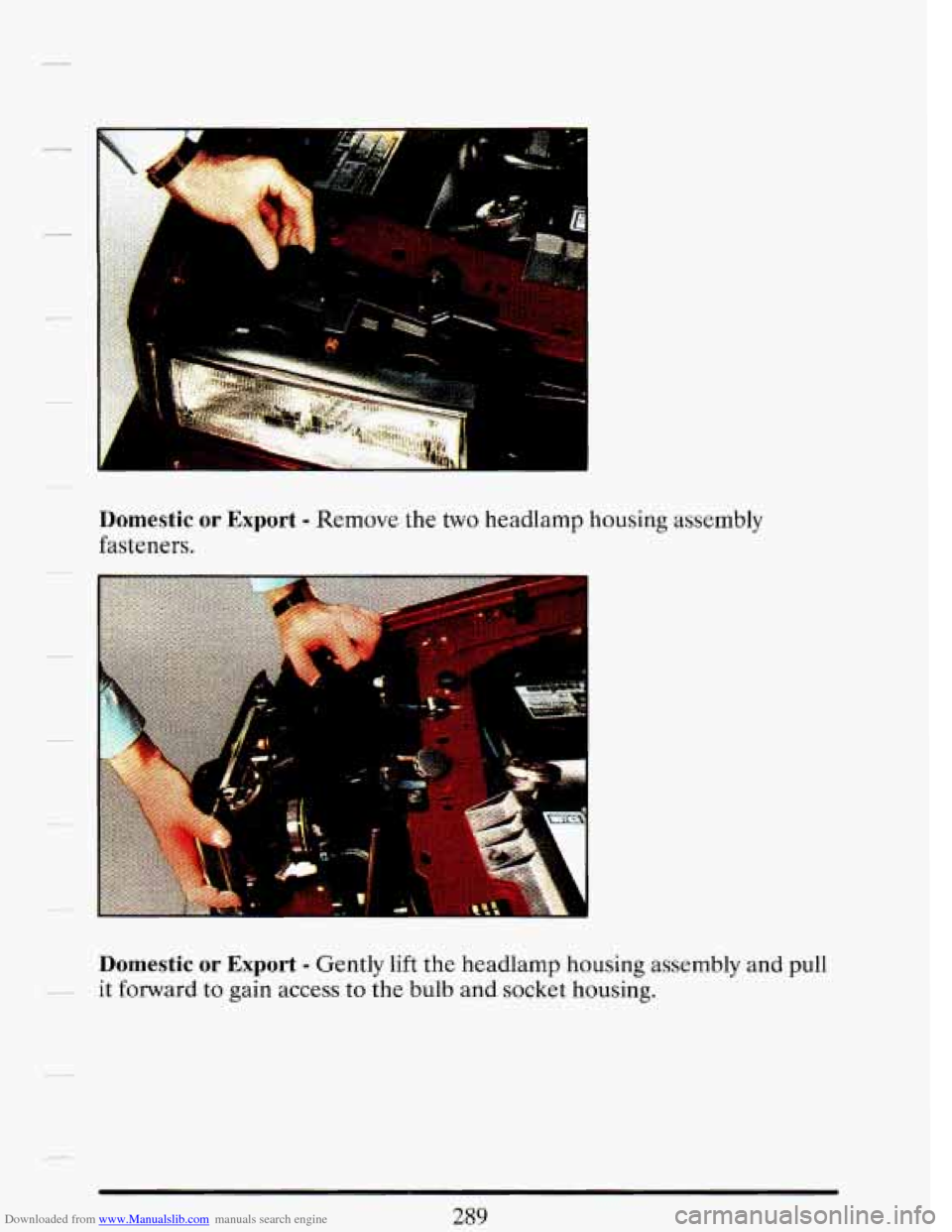

Domestic or Export - Remove the two headlamp housing assembly
fasteners.
Domestic or Export - Gently lift the headlamp housing assembly and pull
- it forward to gain access to the bulb and socket housing.

Downloaded from www.Manualslib.com manuals search engine f c.
-1 "
t
Domestic - Turn the housing socket 1/4 turn counterclockwise and
remove it from the headlamp housing.
A
Export - Remove the wiring harness plug.

Downloaded from www.Manualslib.com manuals search engine -
ST-

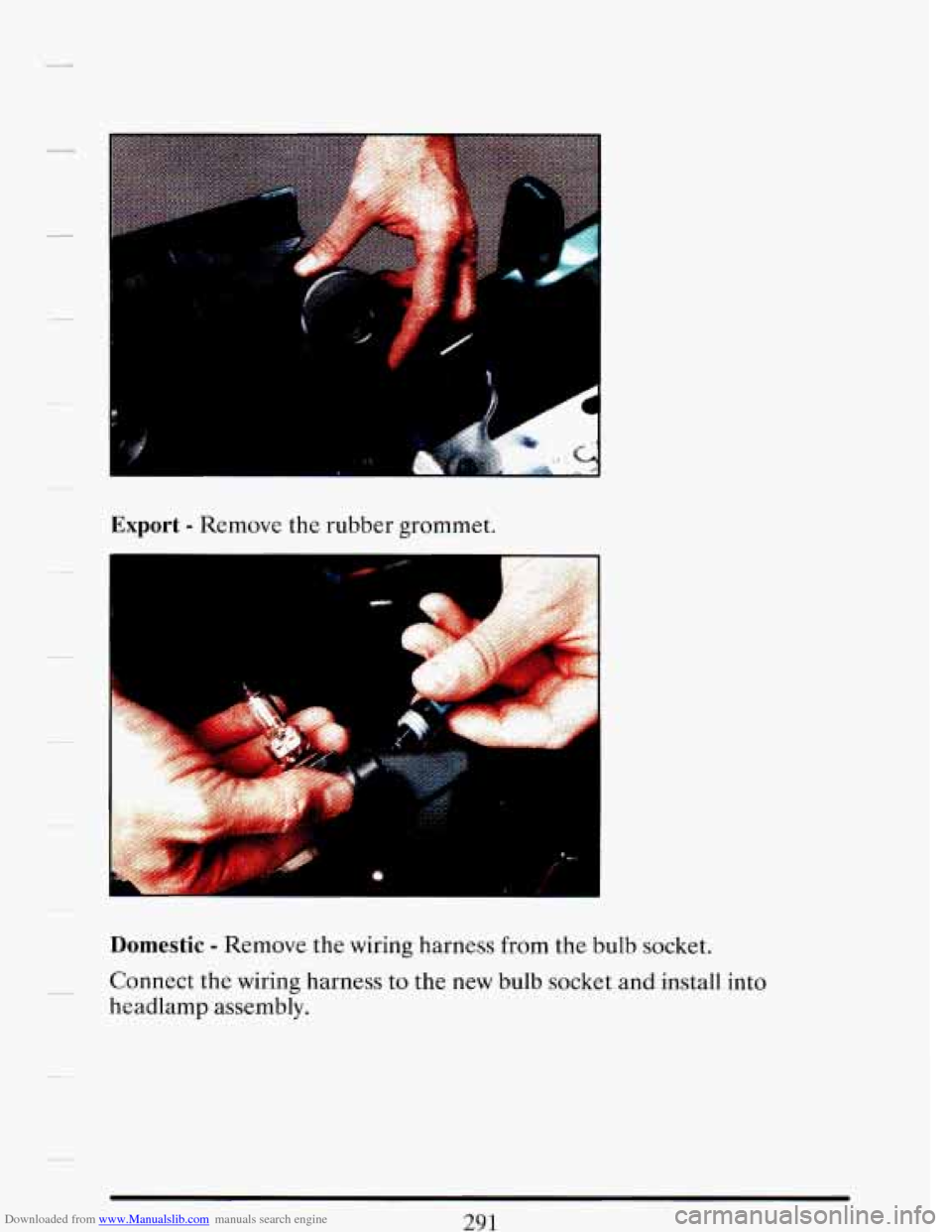

Export - Remove the rubber grommet.
L
Domestic - Remove the wiring harness from the bulb socket.
Connect the wiring harness to the new bulb socket and install into
headlamp assembly.

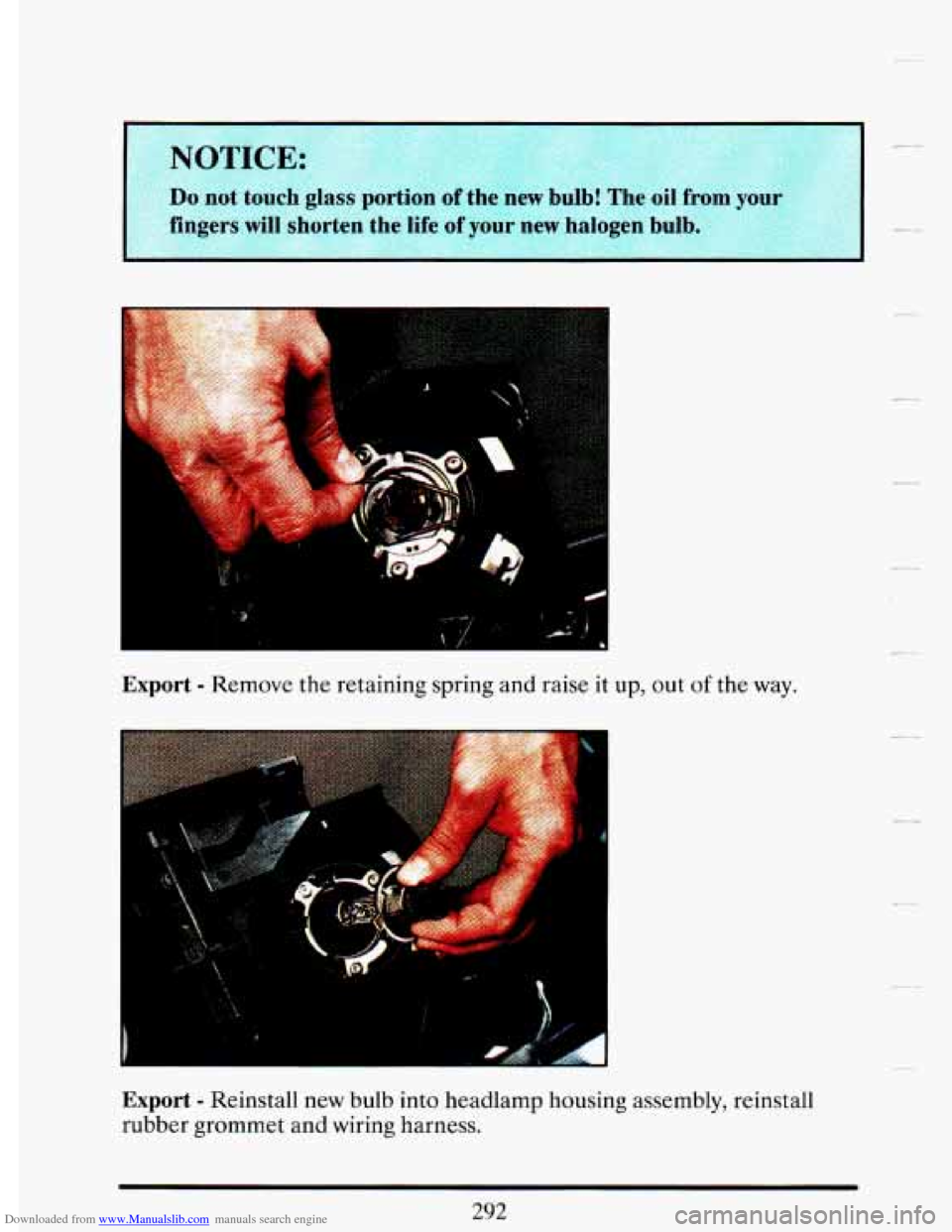

Downloaded from www.Manualslib.com manuals search engine Export - Remove the retaining spring and raise it up, out of the way.
Export - Reinstall new bulb into headlamp housing assembly, reinstall
rubber grommet and wiring harness.
292
_-

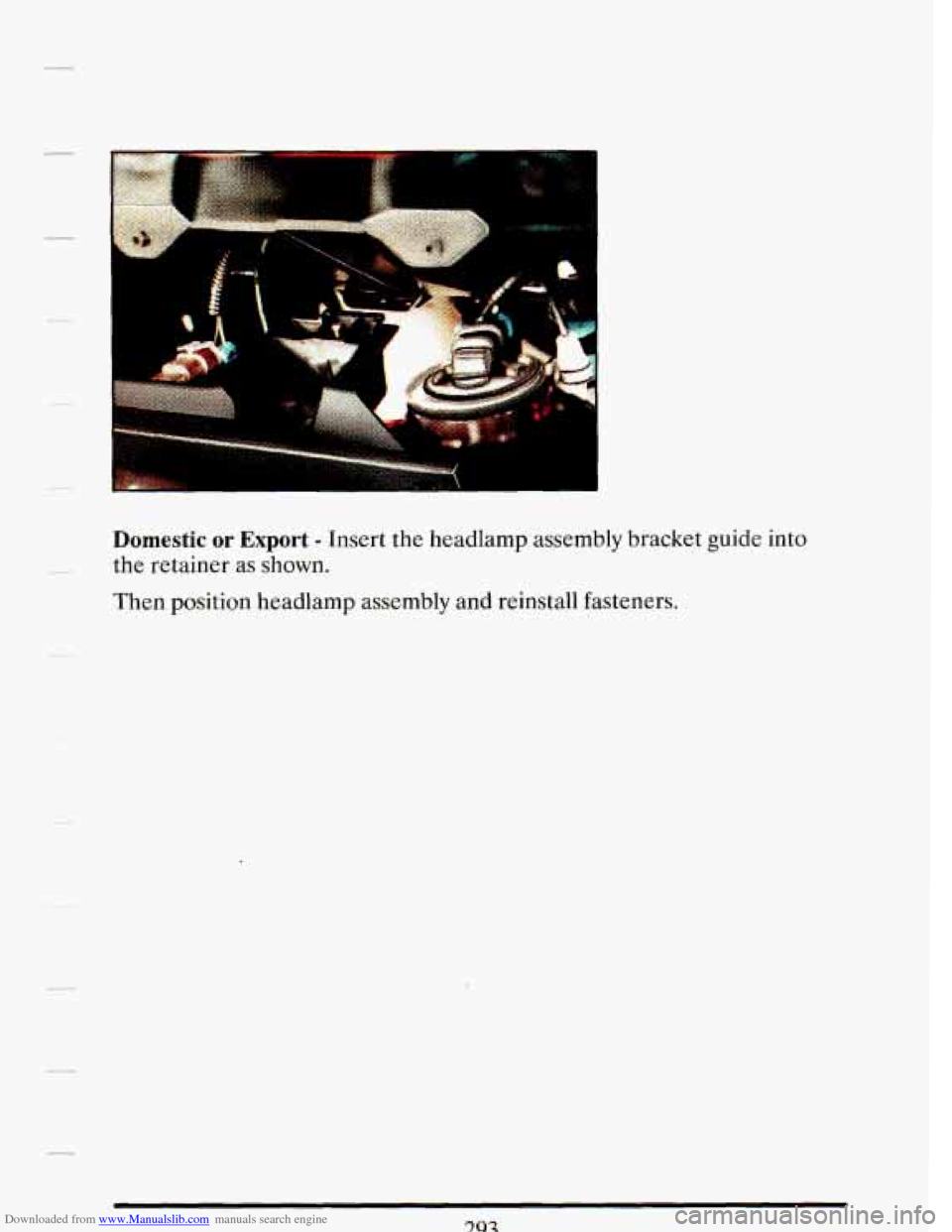

Downloaded from www.Manualslib.com manuals search engine Domestic or Export - Insert the headlamp assembly bracket guide into
the retainer as shown.
Then position headlamp assembly and reinstall fasteners.

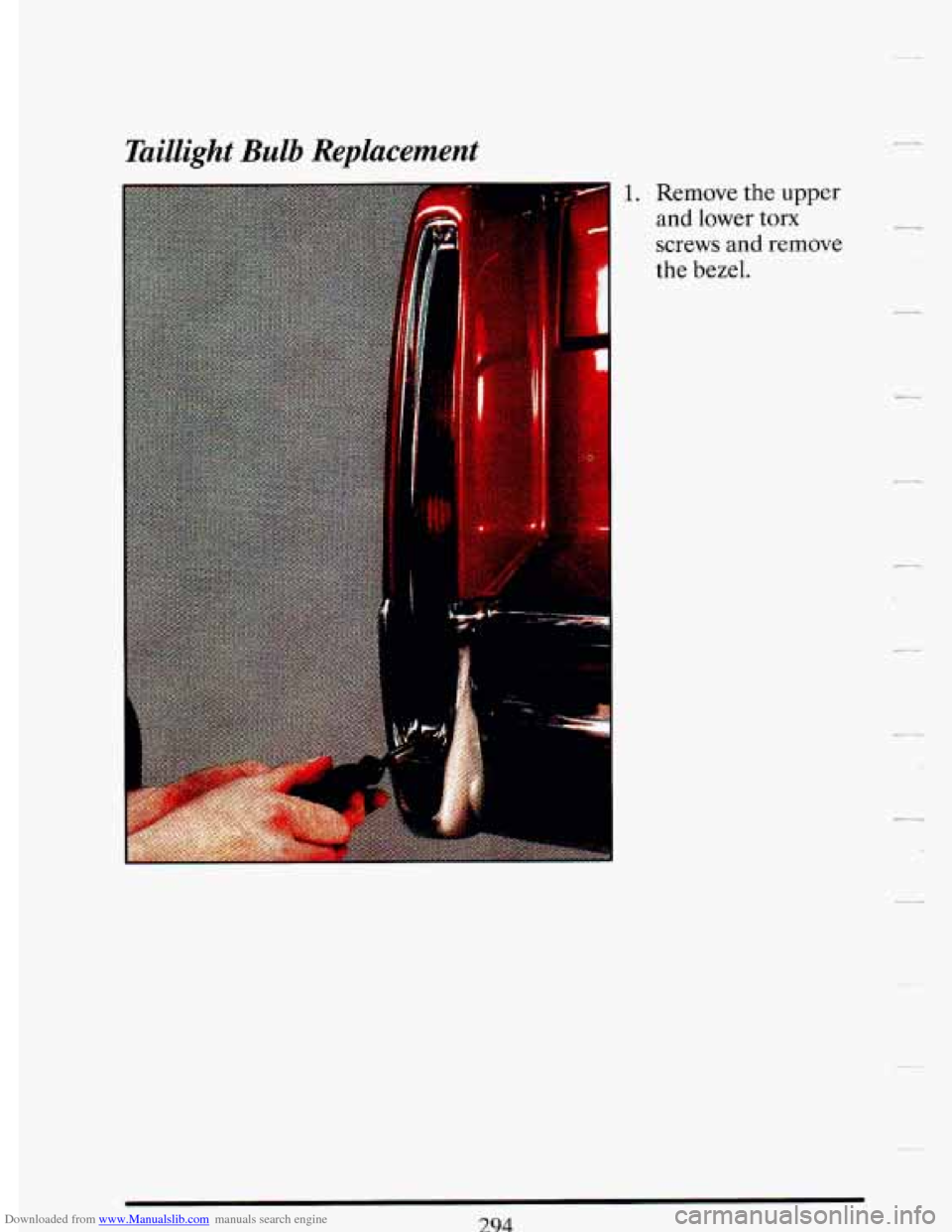

Downloaded from www.Manualslib.com manuals search engine Taillight Bulb Replacement
4. Remove the upper
I and lower tom
1
screws and remove
the bezel.

Downloaded from www.Manualslib.com manuals search engine 2. Push up on the
taillight housing and
gently remove
it.

Downloaded from www.Manualslib.com manuals search engine h
3. Press the bulb
housing lever,
rotate the housing
counterclockwise
1/6 turn and
remove it.
! ..: ’,
5
Y
4. Push and rotate bulb counterclockwise to remove bulb.
Once you have replaced the burned out bulb, just reverse the steps
to
reassemble the taillight.

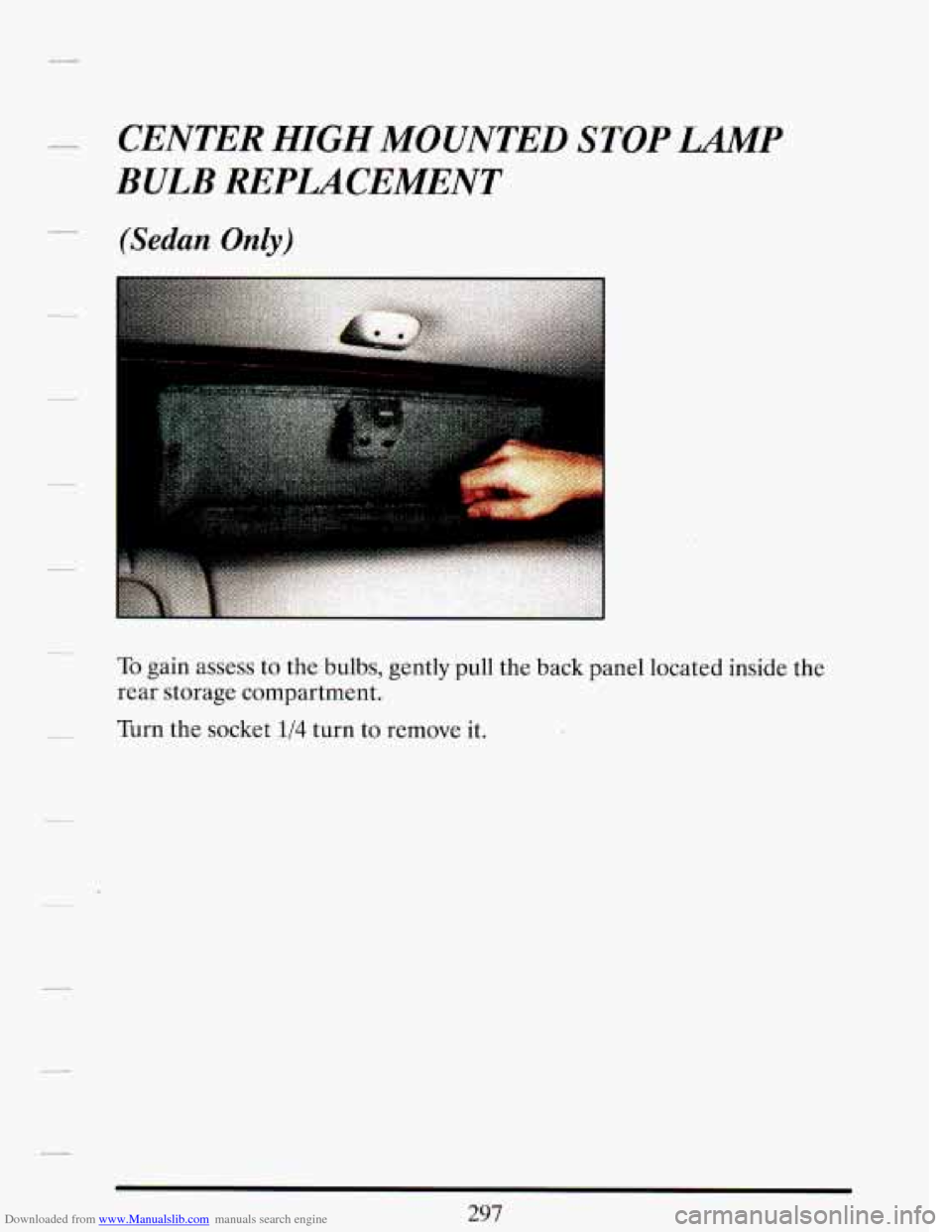

Downloaded from www.Manualslib.com manuals search engine CENTER HIGH MOUNTED STOP MP
BULB REPUCEMENT
(Sedan Only)
To gain assess to the bulbs, gently pull the back panel located inside the
rear storage compartment.
Turn the socket
1/4 turn to remove it.
