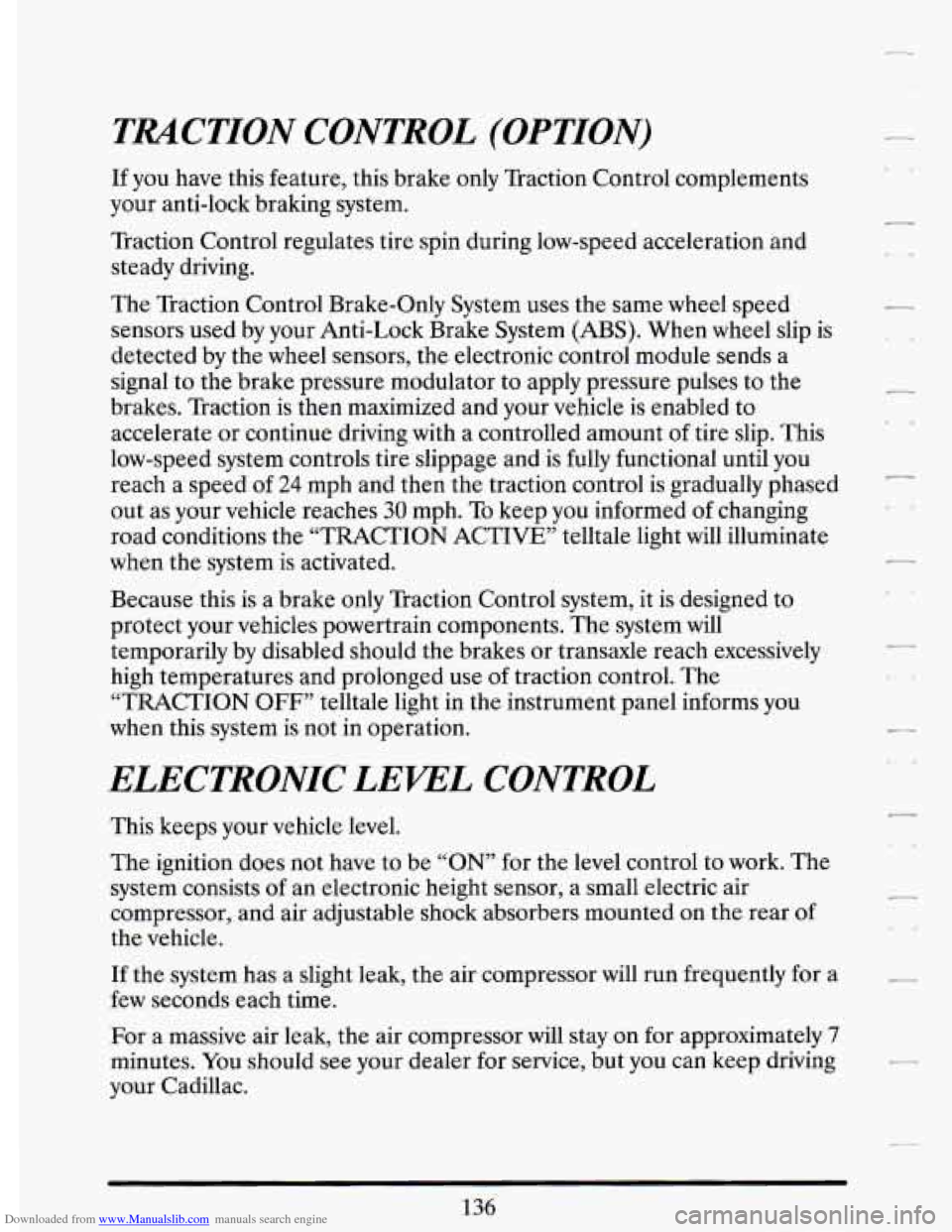

Downloaded from www.Manualslib.com manuals search engine TRACTION CONTROL (OPTION)
If you have this feature, this brake only Traction Control complements
your anti-lock braking system.
Traction Control regulates tire spin during low-speed acceleration and
steady driving.
The Traction Control Brake-Only System uses the same wheel speed
sensors used by your Anti-Lock Brake System
(ABS). When wheel slip is
detected by the wheel sensors, the electronic control module sends a
signal to the brake pressure modulator to apply pressure pulses to the
brakes. Traction is then maximized and your vehicle is enabled to
accelerate or continue driving with a controlled amount of tire slip. This
low-speed system controls tire slippage and is fully functional until you
reach
a speed of 24 mph and then the traction control is gradually phased
out as your vehicle reaches
30 mph. To keep you informed of changing
road conditions the “TRACTION
ACTIVE” telltale light will illuminate
when the system
is activated.
-
Because this is a brake only Traction Control system, it is designed to
protect your vehicles powertrain components. The system
will
temporarily by disabled should the brakes or transaxle reach excessively
high temperatures and prolonged use
of traction control. The
“TRACTION
OFF” telltale light in the instrument panel informs you
when this system is not in operation.
ELECTRONIC LEVEL CONTROL
This keeps your vehicle level.
The ignition does not have to be
“ON” for the level control to work. The
system consists
of an electronic height sensor, a small electric air
compressor, and air adjustable shock absorbers mounted on the rear
of
the vehicle.
If the system has a slight leak, the air compressor will run frequently for a
few seconds each time.
For a massive air leak, the air compressor will stay on
for approximately 7
minutes. You should see your dealer for service, but you can keep driving
your Cadillac.

Downloaded from www.Manualslib.com manuals search engine - 7
0-0 4 9
Ezl no 5 10
14 I!
15 20
24
1 25
1 - 10 AMP - CRANK - DIAG. ENERGY
RESERVE
MODULE
- STARTER ENABLE RELAY 2 - 10 AMP - SPARE 3 - 15 AMP - SPARE 4 - 10 AMP - RADIO - RADIO - BODY COMPUTER MODULE 5 - 25 AMP - WSHIELD
WIPE/WASH
- WIPER/WASHER SWITCH 6 - 10 AMP - COOLING FAN
RELAYS
- HIGH SPEED COOLANT FAN - LOW SPEED COOLANT FAN 7 - 20 AMP - AIR CONDITIONIN(; - A/C COMPRESSOR RELAY - BODY COMPUTER MODULE - ELECTRONIC CLIMATE
CONTROL
- CRUISE CONTROL SWITCH - ELEC. CLIMATE CTRL PROG. - ELEC. HEIGHT SENSOR - FUEL DATA CENTER - HEATED WlS CONTROL
MODULE
- INSTRUMENT CLUSTER - REAR DEFOGGER RELAY - WINDOW LOCKOUT SWITCH 8 - 10 AMP - AhTI-LOCK
BRAKE-CONTR
* - 20 AMP - VAC PUMP (H.D. CHASSIS ONLY)
MODULE - ELEC. BRAKE CONTROL
- BR.4KE PRESSURE MODULE - MAIN RELAY 9- BLAVK 10 - BLANK 11 - 20 AMP - CHIME/ClG LTH/RADIO/PWK ANT - POWER ANT. RELAY - FRONT CIGAR LIGHTER - LEFT HAND INFO. CENTER - GLOVE COMPARTMENT LIGHT - MULTIFUNCTION CHIME
MODULE
- RADIO
12 - 20 AMP - AUTO LEVEL
CONTROL
- ELEC. COMPRESSOR - ELEC. HEIGHT SENSOR - ELEC. RELAY 13 - 20 AMP - BRAKE & HAZARD LPS - BRAKE LIGHT SWITCH - HAZARD FLASHER
- INSTRUMENT CLUSTER
- TWILIGHT SENTINEL/DAYTIME
RUNNING LIGHTS MODULE
MIRROR
GARAGE DOOR OPENER - FRONT DOOR LOCK FIBER
OPTIC LIGHTS
- FRONTIREAR DOOR WARNING
LIGHTS
- FRONT/FLEET VANITY MIRROR
LIGHTS
- FRONT/REAR/QTR PANEL
COURTESY1READING LIGHTS
- TRUNK LIGHT - LT POWER SEAT SWITCH
14 - 20 AMP - PARK LAMPS
- LIGHT SWITCH
15 - 15 AMP - CTSY LP/PWR
- DOME/MAP LIGHTS AND
16 - 15 AMP - GAUCES/DR
LUCK/ILL ENT
- AUTO. DAY/NIGHT MIRROR - AUTO. DOOR LOCK MODULE - BODY COMPUTER MODULE - COMPUTER CONTROLLED
RIDE MODULE
MODULE
- DIAG. ENERGY RESERVE
- FUEL TANK UNIT - ILLUMINATED ENTRY - INSTRUMENT CLUSTER - POWER SEATS - KEYLESS ENTRY - L & R GO SPECIAL SEAT CTRLS - MULTIFUNCTION CHIME
- RIGHT SIDE INFO. CENTER - SEAT MEMORY MODULE - THEFT DETERRENT MODIJLE MODULE
I7 - 15 AMP - ENGINE CTRL MOD - POWER CONTROL MODULE - PASS KEY
DECODER MODULE 18 - 10 AMI' - SUP INFL REST - DIAGNOSTIC/ENERGY
RESERVE MODULE (DERM)
- DUAL SENSOR 19 - 20 AhW - TURN SIGN/BACK UP LPS
sw. - NEUTRAL SAFETY BACKUP
- TURN FLASHER - TURN/HAZARD SWITCH 20 - 20 AMP - SPARE
21 - 25 AMP - SPARE 22 - 20 AMP - TRULVK RELWEL
FILLER
- TRUNK LID RELEASE SWITCH - FUEL DOOR RELEASE SWITCH 23 - 30 AMP CB - PWR WDO/SUN
ROOF
MODULE
MODULE
AND LOCKOUT RELAY
DEFOG
- ASTROROOF CONTROL
- EXPRESS DOWN WINDOW
- POWER WINDOW SWITCHES
24 - 30 AMP CB - DR LKS/RR
- DOOR LOCK RELAY - LEFT & RIGHT SIDE RECLINER
- LEFT & RIGHT SEAT SWITCHES - L & R 60 SPECIAL SEAT CTRL
- REAR DEFOGGER - SEAT MEMORY MODULE
SWITCHES
sw.
- KEYLESS
ENTRY 25 - 10 AMP - INST PANEL LAMPS - ASHTRAY LIGHT - BODY COMPUTER MODULE - ENGINE COMPARTMENT LIGHT - I/P AND SWITCH BACK LIGHTS - RADIO DISPLAY DIMMING
INPUT
330
