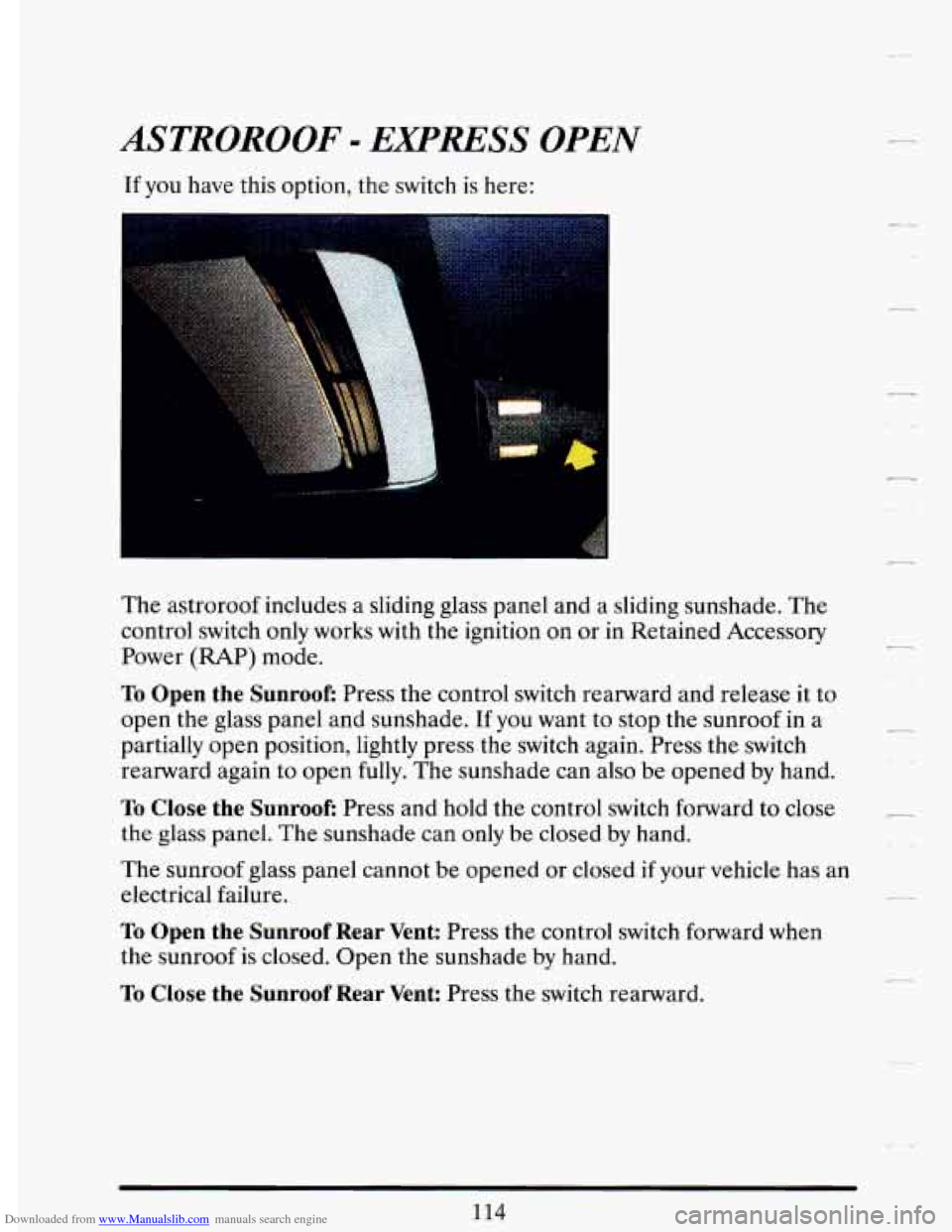

Downloaded from www.Manualslib.com manuals search engine ASTROROOF - EXPRESS OPEN
If you have this option, the switch is here:
I
The astroroof includes a sliding glass panel and a sliding sunshade. The
control switch only works with the ignition
on or in Retained Accessory
Power (RAP) mode.
To Open the Sunroof: Press the control switch rearward and release it to
open the glass panel and sunshade. If you want to stop the sunroof in a
partially open position, lightly press the switch again. Press the switch
rearward again to open fully. The sunshade can also be opened by hand.
To Close the Sunroof: Press and hold the control switch forward to close
the glass panel. The sunshade can only be closed by hand.
The sunroof glass panel cannot be opened or closed if your vehicle has an
electrical failure.
To Open the Sunroof Rear Vent: Press the control switch forward when
the sunroof is closed. Open the sunshade by hand.
To Close the Sunroof Rear Vent: Press the switch rearward.
114

Downloaded from www.Manualslib.com manuals search engine Retained Accessory Power
When you stop your Cadillac and turn the key to Off, you can use these
accessories for
10 more minutes:
Radio
-.
LLr
e Brake/Shift Interlock
Power Windows
Trunk Release
Astroroof
Windshield Wipers
If
you open a door, everything will go off. And, after 10 minutes
everything
will go off.
If you want this power for another
10 minutes, just turn the key to Run
and then back
to Off.
FUSES AND CIRCUIT BREAKERS
The wiring circuits in your car are protected from short circuits by a
combination of fuses and circuit breakers. This greatly reduces the chance
of fires caused by electrical problems.
If you ever have a problem
on the road and don’t have a spare fuse, you
can “borrow” one of the correct value. Just pick some feature of your car
that you can get along without
-- like the radio or cigarette lighter -- and
use its fuse,
if it is of the value you need. Be sure to use the correct fuse.
Replace it as soon as you can. There
is a fuse removal tool provided on
the fuse panel cover.
-.
328

Downloaded from www.Manualslib.com manuals search engine - 7
0-0 4 9
Ezl no 5 10
14 I!
15 20
24
1 25
1 - 10 AMP - CRANK - DIAG. ENERGY
RESERVE
MODULE
- STARTER ENABLE RELAY 2 - 10 AMP - SPARE 3 - 15 AMP - SPARE 4 - 10 AMP - RADIO - RADIO - BODY COMPUTER MODULE 5 - 25 AMP - WSHIELD
WIPE/WASH
- WIPER/WASHER SWITCH 6 - 10 AMP - COOLING FAN
RELAYS
- HIGH SPEED COOLANT FAN - LOW SPEED COOLANT FAN 7 - 20 AMP - AIR CONDITIONIN(; - A/C COMPRESSOR RELAY - BODY COMPUTER MODULE - ELECTRONIC CLIMATE
CONTROL
- CRUISE CONTROL SWITCH - ELEC. CLIMATE CTRL PROG. - ELEC. HEIGHT SENSOR - FUEL DATA CENTER - HEATED WlS CONTROL
MODULE
- INSTRUMENT CLUSTER - REAR DEFOGGER RELAY - WINDOW LOCKOUT SWITCH 8 - 10 AMP - AhTI-LOCK
BRAKE-CONTR
* - 20 AMP - VAC PUMP (H.D. CHASSIS ONLY)
MODULE - ELEC. BRAKE CONTROL
- BR.4KE PRESSURE MODULE - MAIN RELAY 9- BLAVK 10 - BLANK 11 - 20 AMP - CHIME/ClG LTH/RADIO/PWK ANT - POWER ANT. RELAY - FRONT CIGAR LIGHTER - LEFT HAND INFO. CENTER - GLOVE COMPARTMENT LIGHT - MULTIFUNCTION CHIME
MODULE
- RADIO
12 - 20 AMP - AUTO LEVEL
CONTROL
- ELEC. COMPRESSOR - ELEC. HEIGHT SENSOR - ELEC. RELAY 13 - 20 AMP - BRAKE & HAZARD LPS - BRAKE LIGHT SWITCH - HAZARD FLASHER
- INSTRUMENT CLUSTER
- TWILIGHT SENTINEL/DAYTIME
RUNNING LIGHTS MODULE
MIRROR
GARAGE DOOR OPENER - FRONT DOOR LOCK FIBER
OPTIC LIGHTS
- FRONTIREAR DOOR WARNING
LIGHTS
- FRONT/FLEET VANITY MIRROR
LIGHTS
- FRONT/REAR/QTR PANEL
COURTESY1READING LIGHTS
- TRUNK LIGHT - LT POWER SEAT SWITCH
14 - 20 AMP - PARK LAMPS
- LIGHT SWITCH
15 - 15 AMP - CTSY LP/PWR
- DOME/MAP LIGHTS AND
16 - 15 AMP - GAUCES/DR
LUCK/ILL ENT
- AUTO. DAY/NIGHT MIRROR - AUTO. DOOR LOCK MODULE - BODY COMPUTER MODULE - COMPUTER CONTROLLED
RIDE MODULE
MODULE
- DIAG. ENERGY RESERVE
- FUEL TANK UNIT - ILLUMINATED ENTRY - INSTRUMENT CLUSTER - POWER SEATS - KEYLESS ENTRY - L & R GO SPECIAL SEAT CTRLS - MULTIFUNCTION CHIME
- RIGHT SIDE INFO. CENTER - SEAT MEMORY MODULE - THEFT DETERRENT MODIJLE MODULE
I7 - 15 AMP - ENGINE CTRL MOD - POWER CONTROL MODULE - PASS KEY
DECODER MODULE 18 - 10 AMI' - SUP INFL REST - DIAGNOSTIC/ENERGY
RESERVE MODULE (DERM)
- DUAL SENSOR 19 - 20 AhW - TURN SIGN/BACK UP LPS
sw. - NEUTRAL SAFETY BACKUP
- TURN FLASHER - TURN/HAZARD SWITCH 20 - 20 AMP - SPARE
21 - 25 AMP - SPARE 22 - 20 AMP - TRULVK RELWEL
FILLER
- TRUNK LID RELEASE SWITCH - FUEL DOOR RELEASE SWITCH 23 - 30 AMP CB - PWR WDO/SUN
ROOF
MODULE
MODULE
AND LOCKOUT RELAY
DEFOG
- ASTROROOF CONTROL
- EXPRESS DOWN WINDOW
- POWER WINDOW SWITCHES
24 - 30 AMP CB - DR LKS/RR
- DOOR LOCK RELAY - LEFT & RIGHT SIDE RECLINER
- LEFT & RIGHT SEAT SWITCHES - L & R 60 SPECIAL SEAT CTRL
- REAR DEFOGGER - SEAT MEMORY MODULE
SWITCHES
sw.
- KEYLESS
ENTRY 25 - 10 AMP - INST PANEL LAMPS - ASHTRAY LIGHT - BODY COMPUTER MODULE - ENGINE COMPARTMENT LIGHT - I/P AND SWITCH BACK LIGHTS - RADIO DISPLAY DIMMING
INPUT
330

Downloaded from www.Manualslib.com manuals search engine Headlights
The headlight wiring is protected by a circuit breaker in the light switch.
An electrical overload
will cause the lights to go on and off, or in some
cases to remain off.
If this happens, have your headlight wiring checked
right away.
Windshield Wipers
r
The windshield wiper motor is protected by a circuit breaker and a fuse.
If the motor overheats due to heavy snow, etc., the wiper will stop until
the motor cools. If the overload is caused by some electrical problem and
not snow, etc.,
be sure to get it fixed.
I_
Power Windows and Other Power Options
Circuit breakers in the fuse panel protect the power windows and other
power accessories. When the current load is too heavy, the circuit breaker
-
opens and closes, protecting the circuit until the problem is fixed or goes
away.
BULB CHART
DESCRIPTION BULB NO.
Ash Tray Illumination .................................. 1445
Backup Lights.
........................................ 3057
Center High Mount Stop Light .......................... 1141
CorneringLight ........................................ 881
Courtesy Light
-Doors (White)
....................................... 12864
-Rear Courtesy/Reading
.............................. .562/561
-Doors Warning (Red)
................................. 12864
Courtesy/Maplight
-Without Astroroof
..................................... 906
-With Astroroof
........................................ 56'1
Cruise Control Illumination .............................. 194
Cruise
Control Indicator ................................. 141
ECC Head Illumination .................................. 37
Fuel Data Center Illumination ............................ 194
Glove Compartment Light
............................... 194
Headlights Composite
.-
c-

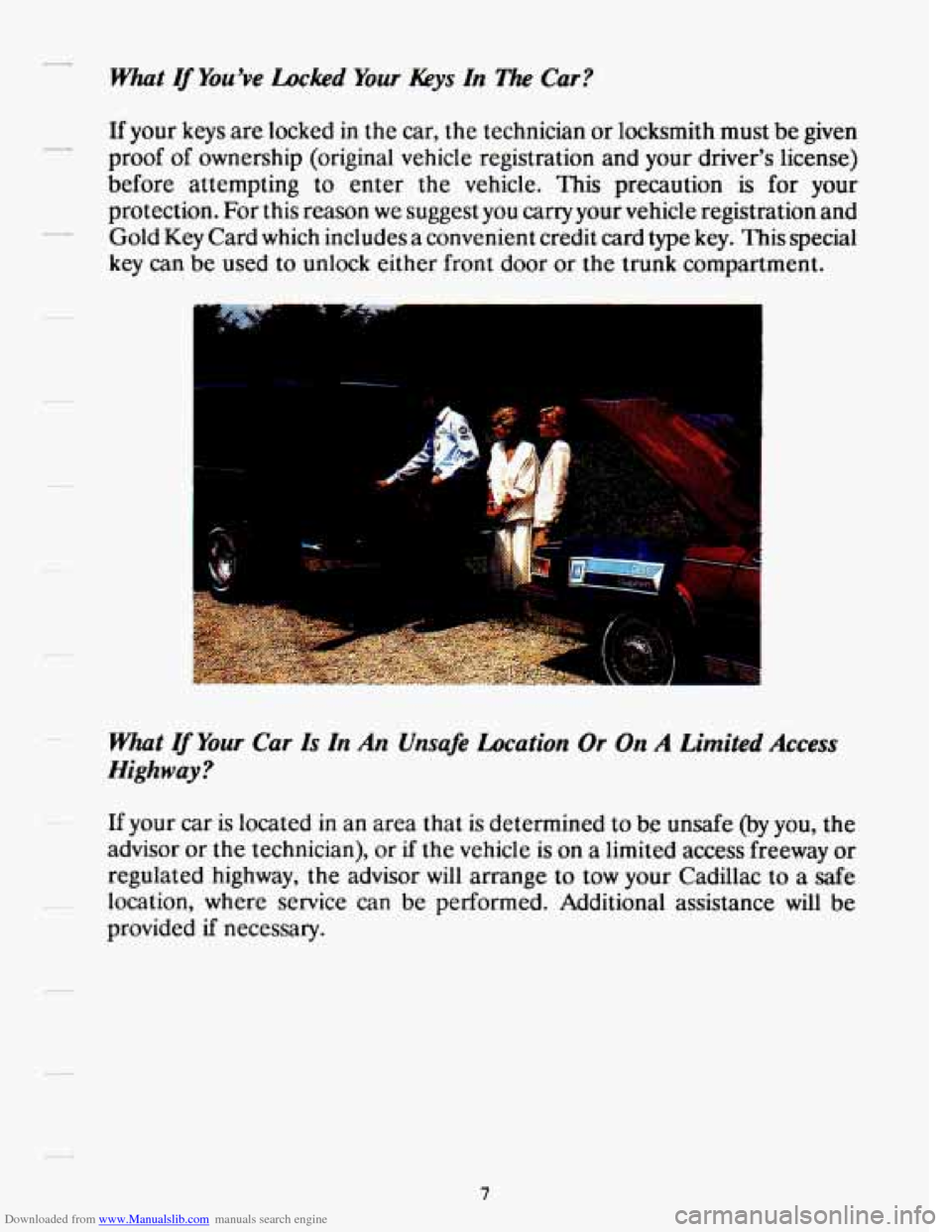

Downloaded from www.Manualslib.com manuals search engine What If You've Locked Your Kkys In The Car?
If your keys are locked in the car, the technician or locksmith must be given
proof
of ownership (original vehicle registration and your driver's license)
before attempting
to enter the vehicle. This precaution is for your
protection. For this reason we suggest you
carry your vehicle registration and
Gold
Key Card which includes a convenient credit card type key. This special
key
can be used to unlock either front door or the trunk compartment.
What If Your Car Is In An Unsafe Location Or On A Limited Access
Highway?
If your car is located in an area that is determined to be unsafe (by you, the
advisor or the technician), or
if the vehicle is on a limited access freeway or
regulated highway, the advisor
will arrange to tow your Cadillac to a safe
location, where service can be performed. Additional assistance will be
provided if necessary.
