trunk CADILLAC DEVILLE 1993 7.G Owners Manual

Downloaded from www.Manualslib.com manuals search engine These symbols are used on warning and indicator lights:
r3 BRAKE
ENGINE COOLANT
TEMPERATURE BAlTERY
CHARGING SYSTEM
93
U
ANTILOCK BRAKE I FUEL I ENGINE OIL
PRESSURE ENGINE OIL
TEMPERATURE
Here are some other symbols you may see:
U
RADIO VOLUME m RADIO SELECTOR E CONDITIONING
t
U
LIGHTER I SPEAKER TRUNK HATCHBACK
RELEASE
5

Downloaded from www.Manualslib.com manuals search engine You can also unlock
your doors from the
I
trunk by pushing this
button.
If your Cadillac has the Security Package option, you will not be able to
unlock your doors from the trunk.
Illuminated Entry System (Option)
When you push the door handle button, you’ll get a light around the door
lock cylinder.
You’ll be able to see where to put the door key when it’s dark.
And the lights inside your Cadillac will
go on. They’ll go off when you
start your engine, or when
20 seconds have passed.
KEYLESS ENTRY SYSTEM (OPTION)
If your Cadillac has this option, you can lock and unlock your doors or
unlock your trunk from
up to 30 feet (9 m) away using the key chain
transmitter supplied with your vehicle.
Your Keyless Entry System operates on a radio frequency subject to
Federal Communications Commission (FCC) Rules.
This device complies with Part
15 of the FCC Rules. Operation is subject
to the following
two conditions: (1) This device may not cause harmful
interference, and
(2) This device must accept any interference received,
including interference that may cause undesired operation.

Downloaded from www.Manualslib.com manuals search engine Should interference to this system occur, try this:
0 Check to determine if battery replacement is necessary. See the
instructions on battery replacement.
0 Check the distance. You may be too far from your vehicle. This
0 Check the location. Other vehicles or objects may be blocking the
product has
a maximum range.
signal.
See your Cadillac dealer or a qualified technician for service.
Changes or modifications to this system by other than an authorized
service facility could void authorization to use this equipment.
Operation
The driver’s door will unlock automatically when “UNLOCK” is pressed.
If “UNLOCK” is pressed twice, all doors will unlock. All doors will lock
when “DOOR” is pressed. The trunk will unlock
when the opened trunk -
symbol is pressed.
The Keyless Entry System allows a transmitter to be matched to as many
different vehicles as you own with this system. Each vehicle can
have only
two transmitters matched to it.
P-
The transmitter will arm the Theft Deterrent System whenever the doors
are closed and
you push the DOOR button. It will disarm the system
when you push the UNLOCK button.
-
,.
If your Cadillac is equipped with the Illuminated Entry System, you can
make it
work by pushing any button on the transmitter. The lights will
stay on for
20 seconds.
Matching Transmitter (s) To Your Vehicle
Each key chain transmitter is coded to prevent another transmitter mom
unlocking your vehicle.
If a transmitter is lost or stolen, a replacement --
can be purchased through your dealer. Remember to bring the remaining
transmitter with
you when you go to your dealer. When the dealer
matches the replacement transmitter to your vehicle, the remaining
transmitter must also be matched. Once the new transmitter is coded, the
lost transmitter will not unlock your vehicle.
-

Downloaded from www.Manualslib.com manuals search engine You’ll find the button
here
in the glove box.
Push the yellow button
to open your trunk.
It works when the ignition is
on. If you stop your vehicle and turn the
ignition
key to “Off”, you can still use the Remote Trunk Release. Your
vehicle has Retained Accessory Power
(RAP). The electrical power to the
Trunk Release will not shut off until
you open a door or 10 minutes has
passed. If you want this power for another 10 minutes, just turn the key to
“RUN” and then back to “OFF”.
-
AUTOiWTIC PULL-DOWN FEATURE
(OPTION)
I
I
I A CAUTION:
I Your car has an automatic pull-down feature that helps close
the trunk electronically. Your fingers can be trapped under the
trunk lid as it goes down. Your fingers could be injured, and you
would need someone to help you free them. Keep your fingers
away from the trunk lid as you close it and as it is goin1 -own. [I
I
-

Downloaded from www.Manualslib.com manuals search engine With this feature, a warning light will come on in the Information Center
if your trunk is not closed.
THEFT
Vehicle theft is big business, especially in some cities. Although your
Cadillac has a number
of theft deterrent features, we know that nothing
we put on it can make it impossible to steal. However, there
are ways you
can help.
Kev in the ignition: If you walk away from your vehicle with the keys
inside, it’s an easy target for joy riders or professional thieves
-- so don’t
do it.
When you park your Cadillac and open the driver’s door, you’ll hear
a
chime reminding you to remove your key from the ignition and take it
with you. Always do this. Your steering wheel will be locked, and
so will
your ignition and transaxle. And remember to lock the doors.
Parking at Night: Park in a lighted spot, close all windows and lock your
vehicle. Remember to keep your valuables out
of sight. Put them in a
storage area, or take them with you.
Parking Lots: If you park in a lot where someone will be watching your
vehicle, it’s best to lock it up and take your keys. But what if you have
to
leave your ignition key? What if you have to leave something valuable in
your vehicle?
Put your valuables in a storage area, like your trunk or glove box.
0 Lock the glove box.
0 Lock all the doors except the driver’s.
0 Then take the door key with you.
70

Downloaded from www.Manualslib.com manuals search engine UNmRSAL THEFT DETERRENT
(OPTION)
If your Cadillac has
this option, it has a
theft deterrent alarm
system. With this
system, tht “SECURITY” light
will flash
as you open
the door (if your
ignition
is off).
This light reminds you to arm the theft deterrent system. Here’s how to
do it:
1. Opcn the door.
2. Lock the door with the power door lock switch or Keyless Entry
System. The “SECURITY” light should come on and stay on.
3. Close all doors. The “SECURITY” light should go off.
If a door or the trunk is opened without the key or Keyless Entry System,
the alarm
will go off. It will also go off if a door lock or the trunk lock is
damaged. Your vehicle’s lights will flash and the horn will sound for 3
minutes, then will go off to save battery power. And, your vehicle will not
start.
Remember, the theft deterrent system won’t arm
if you lock the doors
with a
key or manual door lock. It arms only if you use a power door lock
switch or Keyless Entry System.
Here’s how
to avoid setting off the alarm by accident:
0 If you don’t want to arm the theft deterrent system, the vehicle should
be locked after the doors are closed.
71

Downloaded from www.Manualslib.com manuals search engine Electrochromic Outside Rearview Mirror (Option)
(Not available on Touring Sedan)
This mirror automatically dims to minimize glare for maximum rear
visibility.
As glare increases, the mirror darkens accordingly. When the
glare subsides, the mirror returns to its clear daytime state.
The mirror
is controlled by the same three position sensitivity switch that
controls the Electrochromic Inside Rearview mirror.
CONVENIENCE NET (OPTION)
a:’
Your vehicle may have a convenience net. You’ll see it just inside the back
wall of the trunk.
Put small loads, like grocery bags, behind the net. It can help keep them
from falling over during sharp turns or quick starts and stops.
The net isn’t
for larger, heavier loads. Store them in the trunk as far
forward as you can.
You can unhook the net
so that it will lie flat when you’re not using it.
113

Downloaded from www.Manualslib.com manuals search engine WINTER DRIITNG
Here are some tips for winter driving:
Have your Cadillac in good shape for winter. Be sure your engine
Snow tires can help in loose snow, but they may give you less traction
on ice than regular tires.
If you do not expect to be driving in deep
snow, but may have to travel over ice, you may not want to switch
to
snow tires at all.
coolant
mix is correct.
Cr
You may
want to put winter emergency supplies in your trunk.
212

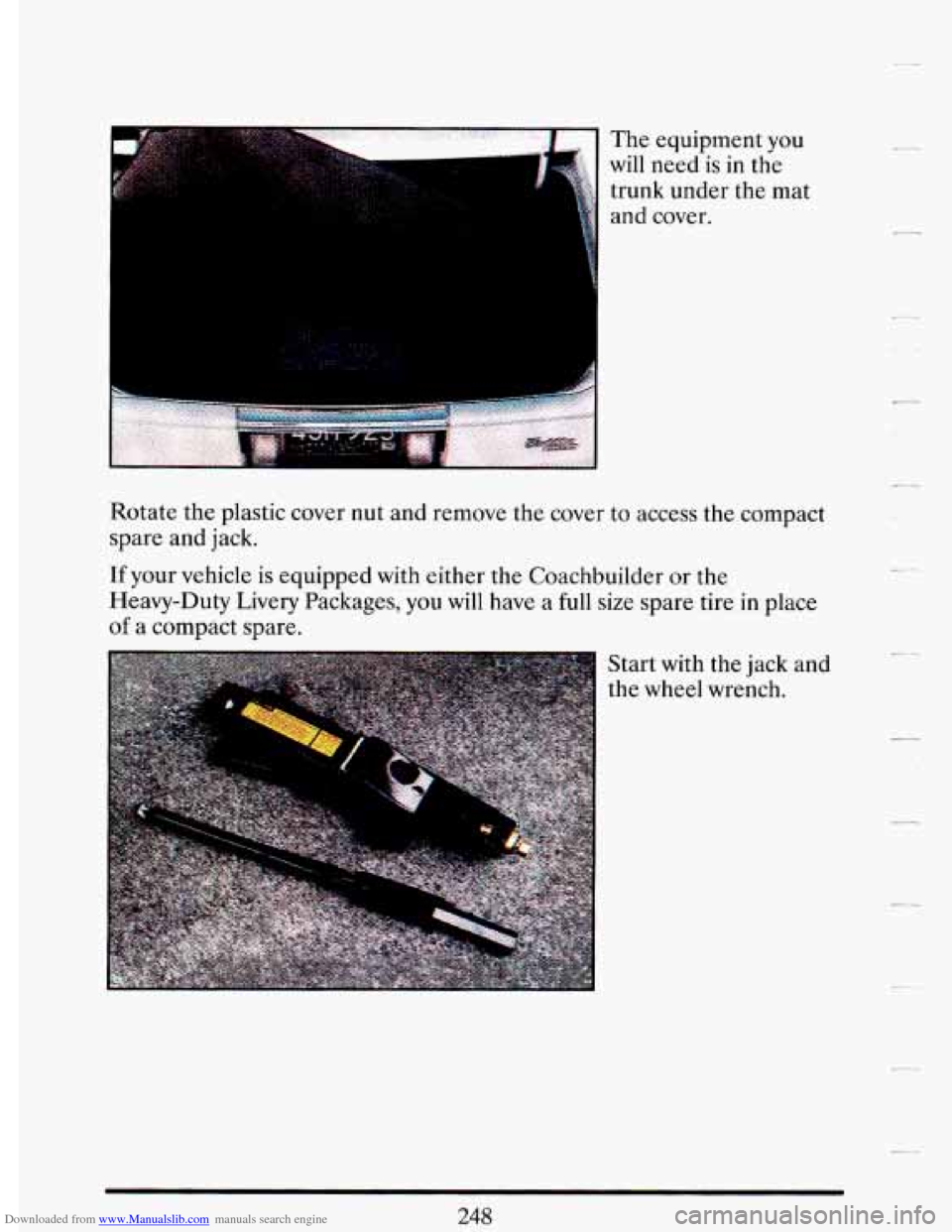

Downloaded from www.Manualslib.com manuals search engine The equipment you
will need is in the
trunk under the mat
and cover.
Rotate the plastic cover
nut and remove the cover to access the compact
spare and jack.
If your vehicle is equipped with either the Coachbuilder or the
Heavy-Duty Livery Packages,
you will have a full size spare tire in place
of a compact spare.
Start
with the jack and
the wheel wrench.
CI

Downloaded from www.Manualslib.com manuals search engine Tighten the wheel nuts firmly in a criss-cross sequence as shown.
A CAUTION:
Incorrect wheel nuts or improperly tightened wheel nuts can
cause the wheel to become loose and even come
off. This could
lead
to an accident. Be sure to use the correct wheel nuts. If you
have to replace them, be sure to get the right kind. Stop
somewhere
as soon as you can and have the nuts tightened with
a torque wrench to 140 N*m (100 ft. lbs.). I
Don’t try to put a wheel cover on your compact spare tire. It won’t fit.
Store the wheel cover in the trunk until you have the flat tire repaired or
replaced.
255
