clock CADILLAC DEVILLE 1994 7.G User Guide

Downloaded from www.Manualslib.com manuals search engine I /I CAUTION:
Getting under a-vehicle when it is jacked up is dangerous. If the
vehicle slips off the jack, you could be badly injured or killed.
Never get under
a vehicle when it is supported only by a jack.
Raise the vehicle by
rotating the wheel
wrench clockwise.
Raise the vehicle far
enough
off the
ground
so the tire can
be removed.
Remove all the wheel nuts and take
off the flat tire.
242

Downloaded from www.Manualslib.com manuals search engine Tighten the wheel nut
firmly in a criss-cross
sequence as shown. Lower
the vehicle
by
rotating the wheel
wrench
counterclockwise.
Lower the jack
completely.
244

Downloaded from www.Manualslib.com manuals search engine To take off the cap, turn it slowly to the left (counterclockwise).
When
you put the cap back on, turn it to the right until you hear a
clicking noise,. .I
NOTICE:
If you need a new cap, be sure to get the right type. Your dealer
can get one for you.
If you get the wrong type, it may not fit and
your fuel tank and emissims system might be damaged.
256
r
cc

Downloaded from www.Manualslib.com manuals search engine To remove, turn the oil fill cap counterclockwise.
Just
fill it enough to put the level somewhere in the proper operating
range. Push the dipstick all the way back in when you’re through.
What Kind of Oil to Use
Beginning midyear 1993, oils of the proper quality for your vehicle will be
identified
with this new “starburst” symbol. The “starburst” symbol
indicates that the oil has been certified by the American Petroleum
Institute
(API), and is preferred for use in your gasoline engine.
You should look for this on the front of the oil container, and use only
oils that display this
new symbol.
261

Downloaded from www.Manualslib.com manuals search engine HEmLIGHT BULB REMOVAL
Here is how to change the halogen headlight bulb.
Rotate the headlight
housing socket
clockwise
1/4 turn
and gently remove
the headlight housing
socket and bulb.
Disconnect the socket from the harness by separating the locking
clip.
.-
NOTICE:
Do not touch glass portion of the new halogen bulb! The oil
from your fingers will shorten the life of your new halogen bulb.

Downloaded from www.Manualslib.com manuals search engine 4. Remove the socket by rotating it counterclockwise slightly, then
replace the bulb and reinstall.
5. When instaliing the
cornering lamp
housing be sure
that the
two guide
pins are aligned
with the holes.

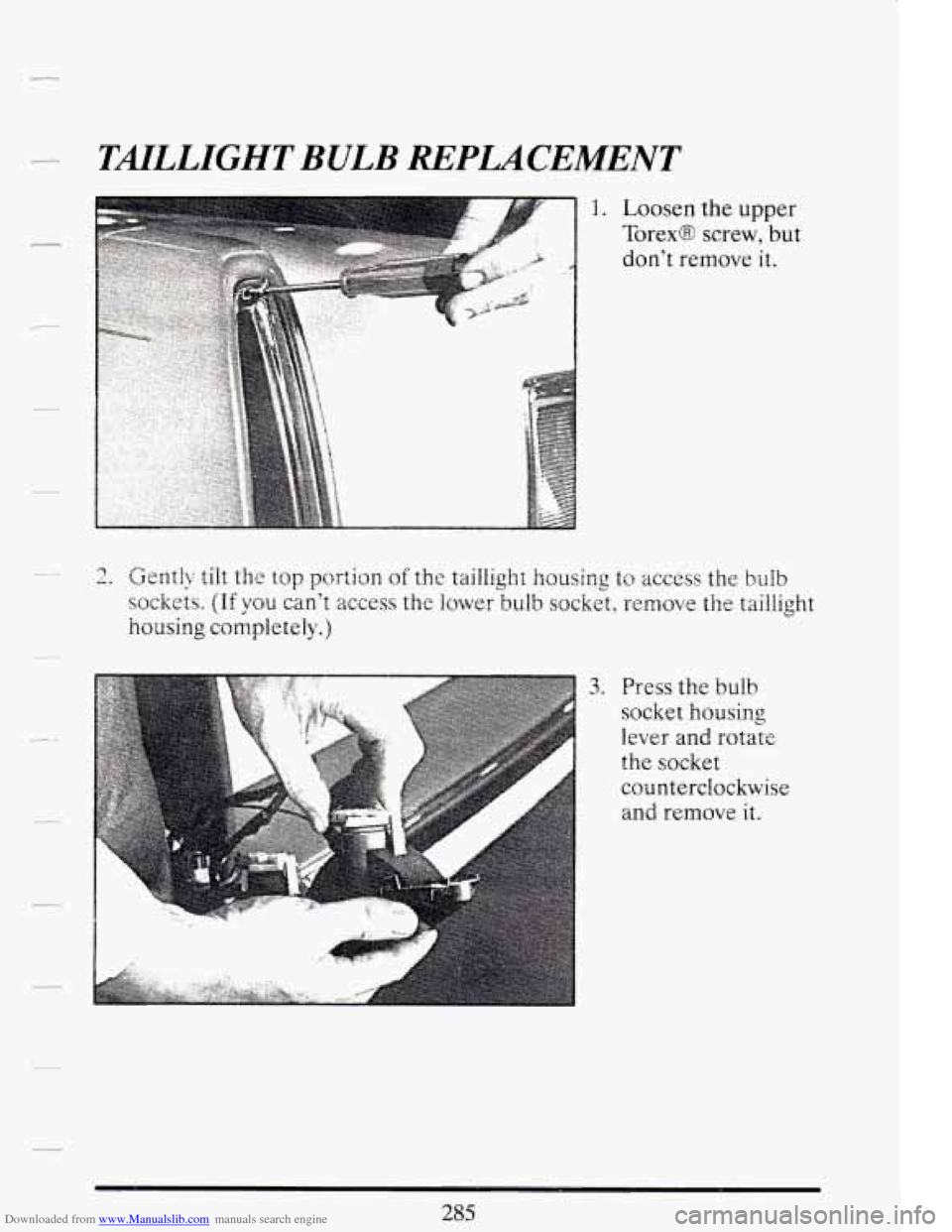

Downloaded from www.Manualslib.com manuals search engine TMLLIGHT BULB REPUCEMENT
1. Loosen the upper
Torex@ screw, but
don’t remove
it.
2, Gently tilt the top portion of the taillight h~using to access the bulb
sockets. (If you can’t access the lower bulb socket: remove the taillight
housing completely.)
.. ~~
3. Press the bulb
socket housing
lever and rotate
the socket
counterclockwise
and remove it.

Downloaded from www.Manualslib.com manuals search engine 4. Replace bulb by
pressing and
turning bulb
counterclockwise.
5. Reinstall taillamp housing. Be sure to insert tab (located on the lower
portion of the housing) into extension housing
if you have removed it
completely.
Center.High Mounted Stop Lamp Bulb Replacement
I
Gently pry up on the trim cover.
286

Downloaded from www.Manualslib.com manuals search engine ........... ................... ... .... -. .... I. ..................................... ...
............................... ...... . -. ..- ......... ^,._ _..,
...
.. .
Twist the socket counterclockwise and remove the socket and bulb
from the housing.
Replace the bulb, and reinstall. ...
Position the windshield wipers on the windshield in the “mid” wipe
position. To do this, turn the ignition key to Accessory and turn the wipers
--on. Then with the .door open,-turn-the ignition key to off.
Startwith the dr;iver side wiper blade,assembly.
287

Downloaded from www.Manualslib.com manuals search engine .
The Windshield and Wiper Blades .................. 306
Weatherstrips
................................... 308
Clock. Setting The
.............................. 167. 173
Climate Control. Electronic
.......................... 151
Closed-In Places. Don’t Idle In
....................... 101
Comfort Controls and Audio Systems .................. 150
Compact Disc Player. Care Of Your ................... 174
Compact Disc Sound Systems
........................ 167
Compact Spare Tire
................................ 245
Computer That Shows Fuel Economy
.................. 138
Contents. Table Of ........ See Front of Owner Info . Manual
Control Of A Vehicle
............................... 180
Control. Loss
Of ................................... 190
Controls. Features And ............................... 66
Convenience Net
.................................... 78
Convex Outside Mirror
.............................. 126
Coolant. Engine: Proper Solution
To Use ............... 270
Coolant. Safety Warnings About
...................... 226
Coolant Heater. Engine
.............................. 89
Cooling System .................................... 228
Cooling System Service
................... See Maint . Book
Cruise Control ..................................... 109
Cruise Control. Change Speed With
................... 112
Cruise Control. Get Out
Of .......................... 114
Cruise Control On Hills ............................. 113
Cruise Control. Turning Off .......................... 114
Curves. Driving
On ................................. 185
COInYourExhaust
................................ 100
D
Damage
To Finish .................................. 308
Damage To Sheet Metal ............................. 308
Damage Warnings .................................... 2
Daytime Running Lights (Canada Only)
............... 117
Dead Battery, What
To Do If You Have A .............. 217
Defensive Driving
.................................. 176
Defogger. Rear Window
............................. 155
Defroster ......................................... 154
Delco Sound Systems
............................... 156
DEXRON IIE@ and DEXRON 111s
.................. 269
Dimensions. Vehicle
................................ 329
Disc Brake Wear Indicators
.......................... 278
Disposal. Used Oil
................................. 265
DoorLocks
........................................ 68
Door, Security Lock, Rear ............................ 70
Driver Information Center
........................... 140
c-
.
.
.
.
.
.
