Downloaded from www.Manualslib.com manuals search engine 0 Don’t rub it roughly.
0 As soon as you’ve cleaned the section, use a sponge to remove the
suds.
Rinse the section with a clean, wet sponge.
0 Wipe off what’s left with a slightly damp paper towel or cloth.
Then dry it immediately with a blow dryer or a heat lamp.
NOTICE:
Be careful with a hair dryer or heat lamp. You could scorch the
fabric.
Wipe with a clean cloth.
Using Solvent-Type Cleaner on Fabric
.-
.-
First, see if you have to use solvent-type cleaner at all. Some spots and
stains
will clean off better with just water and mild soap.
If you need to use a solvent:
Gently scrape excess soil from the trim material with a clean, dull
knife or scraper. Use
very little cleaner, light pressure.and clean cloths
(preferably cheesecloth). Cleaning should start at the outside of the
stain, “feathering” toward
the center. Keep changing to a clean
section of the cloth.
When you clean a stain from fabric, immediately dry the area with an
air hose, hair dryer, or heat lamp
to help prevent a cleaning ring. (See
the previous NOTICE.)
303
Page 317 of 399
Downloaded from www.Manualslib.com manuals search engine Special Cleaning Problems
Greasy or Oily Stains
Such as grease, oil, butter, margarine, shoe polish, coffee with cream,
chewing gum, cosmetic creams, vegetable oils, wax crayon, tar and
asphalt.
0 Carefully scrape off excess stain.
0 Follow the solvent-type instructions described earlier.
0 Shoe polish, wax crayon, tar and asphalt will stain if left on a vehicle
seat fabric. They should be removed as soon as possible. Be careful,
because the cleaner
will dissolve them and may cause them to spread.
Non-Greasy Stains
Such as catsup, coffee (black), egg, fruit, fruit juice, milk, soft drinks,
wine, vomit, urine and blood.
Carefully scrape off excess stain, then sponge the soiled area with cool
If a stain remains, follow the foam-type instructions described earlier.
If an odor lingers after cleaning vomit or urine, treat the area with a
waterbaking soda solution:
1 teaspoon (5 ml) of baking soda to 1 cup
(250 ml) of lukewarm water.
water.
If needed,
clean lightly with solvent-type cleaner.
Combination Stains
Such as candy, ice cream, mayonnaise, chili sauce and unknown stains.
Carefully scrape off excess stain, then clean with cool water and allow
If a stain remains, clean it with solvent-type cleaner.
to
dry.
I.
c-r
t
r_
L.
Page 327 of 399
Downloaded from www.Manualslib.com manuals search engine FUSES AND CIRCUIT BREAKERS
The wiring circuits in your vehicle are protected from short circuits by a
combination
of Mini Fuses, Circuit Breakers, and Maxi Fuses. This
greatly reduces the chance of fires caused by electrical problems.
If you have a problem on the road and don’t have a spare fuse, you can
“borrow” one
of the same value. Select a feature that you can get along
without that is the same value you need
-- like the radio or cigarette
lighter
-- and use its fuse. Be sure to use a fuse with the same amperage
rating number on it (ie.
lOA, 20A, etc.) Replace it as soon as you can.
7
L
There is a fuse removal tool and some spare mini fuses in the glove box
door, just lift the cover
up.
Engine Compartment Fuse Block
To gain
cover. access,
lift the
Mmi FuseslRelay Center
The maxi fuse and relays are located next to the engine compartment fuse
block.
If a maxi fuse should blow, have your vehicle serviced by your
Cadillac dealer immediately.
314
Page 328 of 399
![CADILLAC DEVILLE 1994 7.G Manual Online Downloaded from www.Manualslib.com manuals search engine r I
r i
r‘ I
!- I
r
? ! i
!- i
I
r‘ L
DlSTR SIR PCM (IGN) INJ INJ IGN 1
]mmmmmmri
~mnmmmml
PCM (BAT) RTD BATT A/C COMP HD](/img/23/7981/w960_7981-327.png "CADILLAC DEVILLE 1994 7.G Manual Online Downloaded from www.Manualslib.com manuals search engine r I
r i
r‘ I
!- I
r
? ! i
!- i
I
r‘ L
DlSTR SIR PCM (IGN) INJ INJ IGN 1
]mmmmmmri
~mnmmmml
PCM (BAT) RTD BATT A/C COMP HD")
Downloaded from www.Manualslib.com manuals search engine r I
r i
r‘ I
!- I
r
? ! i
!- i
I
r‘ L
DlSTR SIR PCM (IGN) INJ INJ IGN 1
]mmmmmmri
~mnmmmml
PCM (BAT) RTD BATT A/C COMP HDLPS STOP LP TURN/HAZ
DRL
L HDLP LO
R HDLP LO L HDLP HI R HDLP HI IGN 3 COOL FAN TRANS
I FUSE CENTER IDENTIFICATION
ENGINE COMPARTMENT FUSE BLOCK
DISTR 20A TURN/HAZ 20A
SIR 20A - IGNITION CONTROL MODULE - HAZARD FLASHER
- DIAGNOSTIC/ENERGY RESERVE
- DUAL POLE ARMING SENSOR - DAYTIME RUNNING LIGHTS (CANADA)
- TURN FLASHER RELAY - TURN FLASHER MODULE
MODULE (DERM) DRL 10A (CANADA)
PCM IGN) 10A DRL 10A (CANADA)
- PASS-Key@ DECODER MODULE HTD W/S 1OA
INJ 1OA - HEATED WINDSHIELD CONTROL MODULE
INJ 1OA - LEFT REAR STRUT
IGN 1 10A
- P6WERTRAIN CONTROL MODULE (PCM) - LEFT AND RIGHT LO BEAM HEADLAMP
- 1,4,6, AND 7 FUEL INJECTORS LR STRUT 1OA
- 2,3,5, AND 8 FUEL INJECTORS RR STRUT 10A
- A/C REFRIGERANT PRESSURE SWITCH - TRANSAXLE RANGE SWITCH - STOP/BTSI/CRUISE BRAKE SWITCH - INSTRUMENT PANEL CLUSTER - KEYLESS ENTRY MODULE - DIAGNOSTIC/ENERGY RESERVE MODULE
- RIGHT REAR STRUT LF STRUT 1OA
RF STRUT 1OA
L HDLP LO 1OA
R HDLP LO 10A
L HDLP HI 1OA
R HDLP HI 1OA
IGN 3 10A
- LEFT FRONT STRUT
- RIGHT FRONT STRUT
- LEFT LO BEAM HEADLAMP
- RIGHT LO BEAM HEADLAMP
- LEFT HI BEAM HEADLAMP
- RIGHT HI BEAM HEADLAMP
- REAR DEFOGGER RELAY - ELECTRONIC LEVEL CONTROL (ELC) - HEATED WINDSHIELD - HEATER AND A/C PROGRAMMER - CRUISE CONTROL
LFR2RING
LIGHTS
-
- TURN/HAZARD SWITCH ASSY - CHIME MODULE - HEADLIGHT SWITCH - TWILIGHT SENTINEUDRL MODULE
- FUELPUMP - OIL PRESSURE SWITCH - POWERTRAIN CONTROL MODULE (PCM)
FUEL PUMP 20A
PCM BAT) 10A
RTD (BAT) 20A
A/C COMP 1OA
- POWERTRAIN CONTROL MODULE (PCM)
HDLPS 30A
- P6WERTRAIN CONTROL MODULE pCM) COOLING FAN 1OA - ROAD SENSING SUSPENSION (RSS) MODULE - EXTENDED TRAVEL BRAKE SWITCH
- A/C COMPRESSOR CLUTCH - COOLING FAN RELAYS 1,2, AND 3.
- HEADLIGHT DIMMER SWITCH - HEADLIGHT RELAY “D” (ENGINE COMP MICRO - OVERSPEED ALERT MODULE (EXPORT)
- DRL HEADLIGHT RELAY “E (WITH DAYTIME - POWER STEERING PRESSURE SWITCH - EXHAUST GAS RECIRCULATION (EGR) VALVE
- POWERS C13 - TRANSAXLE SHIFT SOLENOIDS A & B - EVAPORATIVE EMISSION CONTROL SOLENOID
- STOP/BTSI/CRUISE SWITCH - POWERTRAIN CONTROL MODULE (PCM)
- STOPLIGHT SWITCH CAPACITOR - TORQUE CONVERTER CLUTCH SOLENOID - TCC BRAKE SWITCH
- FRONT AND REAR HEATED OXYGEN SENSOR TRANS/ECS 1 OA
RELAY CENTER)
RUNNING LIGHTS)
STOP LP 20A
315
Page 329 of 399
Downloaded from www.Manualslib.com manuals search engine I 60A I
I I 30A
E "
I 60A I
60A
LH MAXI8 FUSE BLOCK
FUSE 1 (50 AMP) (STRG 1-2)
- RETAINED ACCESSORY POWER (RADIO/WIPERS)
- STARTER
- TRUNK COMF FUSES B11 AND 813
FUSE 2 (60 AMP) (BODY)
- ENGINE COMF! B11
- ROAD SENSING SUSPENSION
- FOG LIGHTS
- TRUNK COMF! FUSE C1, C3, C5, C7, C9, AND
c11
- TRUNK COMI? FUSE C13 (EXPORT)
- REAR FOG LIGHT (EXPORT)
CIRCUIT BREAKER 3 (30 AMP) (SEAT)
- LEFT AND RIGHT POWER SEAT SWITCHES
- LEFT AND RIGHT LUMBAR RELAYS
- POWER DOOR LOCKS
- KEYLESS ENTRY MODULE
- HORNS
- FUEL DOOR RELEASE SWITCH
- TRUNK RELEASE SWITCH
FUSE 4 (30 AMP) (IPC)
- POWERTRAIN CONTROL MODULE (PCM)
- ELECTRONIC CLIMATE CONTROL
'- RAPALLUMINATED ENTRY MODULE
- INSTRUMENT PANEL CLUSTER
- PASS-Key@ DECODER MODULE - THEFT DETERRENT
FUSE 5 (SO AMP) (HVAC) - LEFT AND RIGHT HEATED SEATS
- ELECTRONIC LEVEL CONTROL (ELC)
- TRUNK LID PULL DOWN
- POWER ANTENNA
- REAR DEFOGGER - LEFT AND RIGHT MIRROR DEFOGGERS
FUSE 6 (60 AMP) (STRG 3)
- RETAINED ACCESSORY POWER
(SUNROOF/POWER WINDOWS)
- ENGINE COMF! FUSES Dl, D3, D5
- TRUNK COMI? FUSES A1 , A3, A5, A7, A9
RH MAXI8 FUSE BLOCK
CIRCUIT BREAKER 1 (30 AMP) (DAB)
- RETAINED ACCESSORY POWER (RAP)
(SUNROOF/POWER WINDOWS)
FUSE 2 (30 AMP) (RADIO)
- DELCO-BOSEB SPEAKERS
- RADIO CONTROL HEAD
- REMOTE RADIO RECEIVER
FUSE 3 (50 AMP) (COOL)
FUSE
4 (40 AMP) HVAC BLOWER (BLOWER)
- COOLING FANS
- HVAC POWER MOTOR
- A/C COMPRESSOR
FUSE 5 (50 AMP) ABS (BRAKES)
FUSE
6 (50 AMP) (LAMPS)
- BRAKE PRESSURE MODULATOR VALVE
- TURN FLASHER MODULE
- HAZARD FLASHER
- STOP/BTSI/CRUISE BRAKE SWITCH
- PARKING LIGHTS
- DAY TIME RUNNING LIGHTS (CANADA)
- ENGINE COME FUSES 61, B3 AND B5
- TRUNK COMF! FUSES Dl 1, Dl3
316
Page 331 of 399
Downloaded from www.Manualslib.com manuals search engine IGN 1 HDLP WASH IPC (IGN) RTD
~~l~~~mm
WIPER RAD (IGN) R DEFOG HTD MlRR IPC (BATT) THEFT HVAC/DABIE
CIGAR BODY
2 BODY 1 READ LP
L PRK LP
R PRK LP RAD (BAT) TRUNK PLD R HTD SEAT L HTD SEAT
DEVILLE TRUNK COMPARTMENT FUSE BLOCK
CRANK (10 AMP)
- DlAGNOSTlClENERGY RESERVE
- TRANSAXLE RANGE SWITCH (NSSS)
- RAP/ILLUMINATED ENTRY MODULE
MODULE (DERM)
ION 1 (10 AMP) - TRUNWFUEL DOOR RELEASE INHIBIT RELAY "E" - FUEL LEVER SENSOR - ELECTROCHROMIC MIRROR - RAP/ILLUMINATED ENTRY MODULE - THEFT DETERRENT MODULE - KEYLESS ENTRY MODULE - TURN FLASHER RELAY "F TRUNK COMP.
HDLP WASH (30 AMP) EXPORT ONLY
IPC
(ION) (10 AMP) - INSTRUMENT PANEL CLUSTER RTD SUSP (10 AMP)
- ENGINE COMP MICRO REL4Y CENTER
ABS (IO AMP) - ELECTRONIC BRAKE AND TRACTION CONTROL MODULE
(EBTCM)
WIPER (30 AMP) - WIPERMASHER SWITCH RAD (IGN) (10 AMP)
R DEFOG (30 AMP) - REAR DEFOGGER HTD MlRR (10 AMP) - LTAND RT OUTSIDE MIRROR DEFOGGERS IPC (BATr) (10 AMP)
THEFT
(10 AMP) - PASS-Key@ DECODER MODULE - THEFT DETERRENT RELAY "D" (TRUNK COMP.
- THEFT DETERRENT MODULE HVAC/DABIE (10 AMP) - HEATER AND A/C PROGRAMMER
RADIO (30 AMP) - ACTIVE AUDIO AMPLIFIER TRAILER (20 AMP)
ANT
I10 AMP)
MICRO RELAY CENTER
- NOT EQUIPPED
- SPEED SENSITIVE SUSPENSION
RSS DAMPER RELAY "F"
- REMOTE RADIO RECEIVER
- INSTRUMENT PANEL CLUSTER
RELAY CENTER)
- RAP/ILLUMINATED ENTRY MODULE
- NOT EQUIPPED
CIGAR (20 AMP) - LT AND RT REAR CIGARETTE LIGHTERS - FRONT CIGARETTE LIGHTER - CHIME MODULE BODY 2 (10 AMP) - POWER MIRROR SWITCH - RAPRELAY - LOCK-OUT INHIBIT RELAY "A" (TRUNK COMP 1 MICRO
- COURTESY LIGHTS RELAY "C" (TRUNK COME 2 MICRO
RELAY CENTER)
RELAY CENTER)
- RAP RELAY "E (TRUNK COMP. 2 MICRO
RELAY CENTER) - KEYLESS ENTRY MODULE - TRUNKLAMP
- FRONT DOOR LOCK SWITCHES BODY 1 (10 AMP)
- FRONT DOOR COURTESY LAMP - GLOVE BOX LAMP - HEADLIGHT SWITCH READ LP (10 AMP) - LTAND AT FRONT HEADER LAMP - GARAGE DOOR OPENER - LT AND RT REAR HEADER LAMPS L PRK LP (10 AMP) - LT REAR TAlUSTOPrURN LAMPS
- FRONT AND REAR LEFT SIDE MARKER LAMPS - RT REAR MARKER LAMP - HEADLIGHT SWITCH - INSTRUMENT PANEL CLUSTER R PRK LP (10 AMP) - RADIO CONTROL HEAD - RT TAIUSTOP TURN LAMPS - RT FRONT AND REAR SIDE MARKER LAMPS - RT FRONT PARK AND TURN LAMPS - ENGINE COME LAMP - LICENSE PLATE LAMPS RAD (BAT) (10 AMP) - RADIO TRUNK PLD (20 AMP) - TRUNK LID PULL DOWN MOTOR ELC (30 AMP) - ELECTRONIC LEVEL CONTROL (ELC) R HTD SEAT (10 AMP) - PASSENGERS HEATED SEAT
- LT FRONT PARWURN LAMPS
L HTD SEAT (10 AMP) - ANTENNA MOTOR - DRIVER'S HEATED SEAT
318
,
Page 332 of 399
Downloaded from www.Manualslib.com manuals search engine - Headlights
The headlight wiring is protected by a circuit breaker in the light switch.
An electrical overload will cause the lights to go on and off, or in some
cases to remain off.
If this happens, have your headlight wiring checked
right away.
Windshield Wipers
The windshield wiper motor is protected by a circuit breaker and a fuse.
If the motor overheats due to heavy snow, etc., the wiper will stop until
the motor cools. If the overload is caused by some electrical problem and
not snow, etc., be sure to get it fixed.
Power Windows and Other Power Options
Circuit breakers in the fuse panel protect the power windows and other
opens and closes, protecting the circuit until the problem is fixed or goes
away.
__ power accessories. When the current load is too heavy, the circuit breaker
--
BULB CH4RT
DESCRIPTION BULB NO.
Backup Lights ......................................... 2057
Cornering Light ..................................... 3156 52
Ash Tray Illumination .................................. 1445
Courtesy Reading Light
................................. 168
Glove Compartment Light
............................... 194
-Inner High Beam
................................. 9005 HB3
Headlights Composite
-Outer Low Beam
................................. 9006 HB4
License Plate Light
..................................... 194
Park and Turn Signal
................................ 3157 K2
Side Marker Lights ..................................... 194
Stop/Tail/Turn Signal
................................ 2057 NA
Trunk Light
........................................... 1003
Vanity Mirror Illumination
............................... 124
319
Page 372 of 399
Downloaded from www.Manualslib.com manuals search engine 7

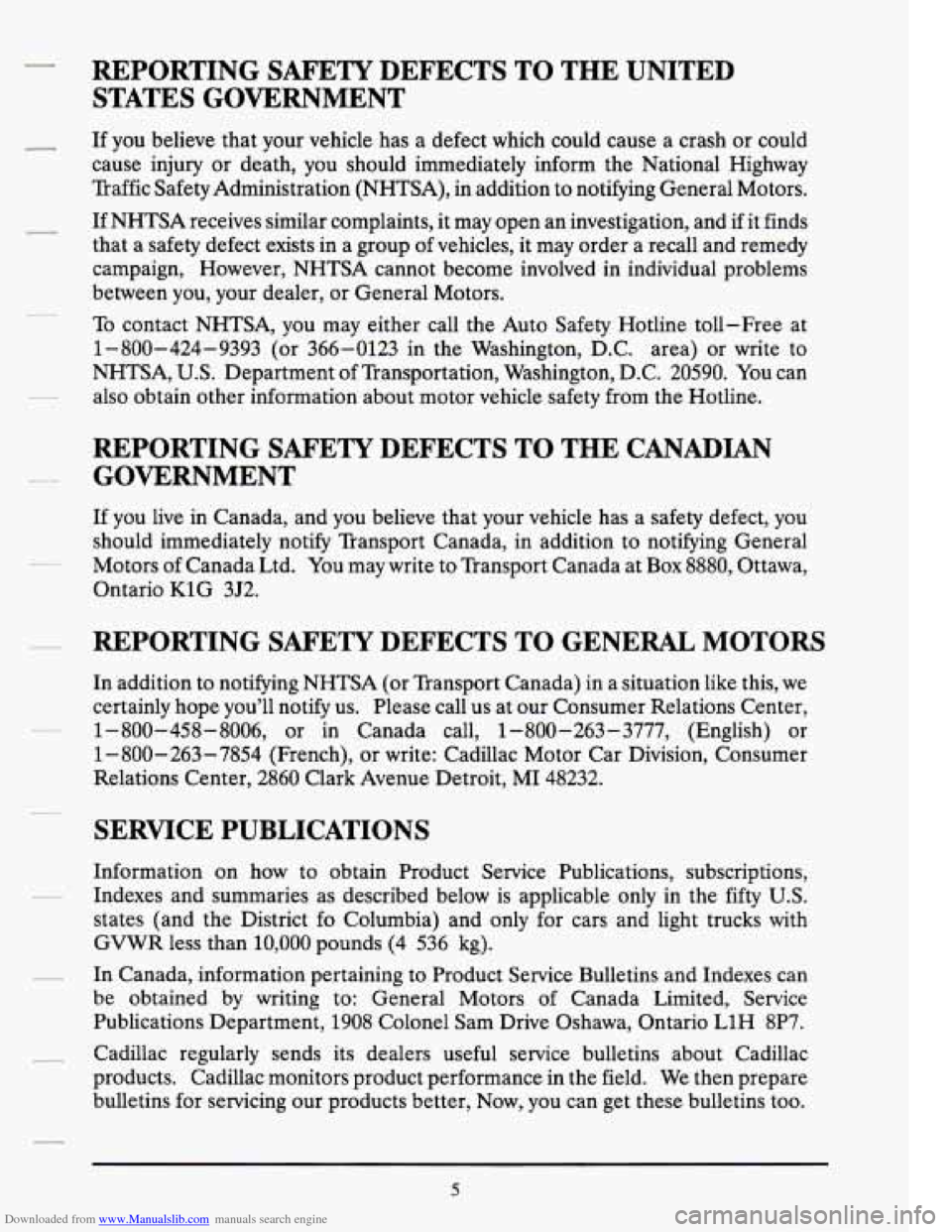

REPORTING SAFETY DEFECTS TO THE UNITED
STATES GOVERNMENT
If you believe that your vehicle has a defect which could cause a crash or could
cause injury or death, you should immediately inform the National Highway
Traffic Safety Administration (NHTSA), in addition to notifying General Motors.
If NHTSA receives similar complaints, it may open an investigation, and if it finds
that a safety defect exists in a group of vehicles, it may order a recall and remedy
campaign, However, NHTSA cannot become involved in individual problems
between you, your dealer, or General Motors.
To contact NHTSA, you may either call the Auto Safety Hotline toll-Free at
1-800-424-9393 (or 366-0123 in the Washington, D.C. area) or write to
NHTSA, U.S. Department of Transportation, Washington, D.C. 20590. You can
also obtain other information about motor vehicle safety from the Hotline.
REPORTING SAFETY DEFECTS TO THE CANADIAN
GOVERNMENT
If you live in Canada, and you believe that your vehicle has a safety defect, you
should immediately notify Transport Canada, in addition to notifying General
Motors of Canada Ltd. You may write to Transport Canada at Box 8880, Ottawa,
Ontario K1G 352.
REPORTING SAFETY DEFECTS TO GENERAL MOTORS
In addition to notifying NHTSA (or Transport Canada) in a situation like this, we
certainly hope you’ll notify us. Please call us at our Consumer Relations Center,
1-800-458-8006, or in Canada call, 1-800-263-3777, (English) or
1-800- 263-7854 (French), or write: Cadillac Motor Car Division, Consumer
Relations Center, 2860 Clark Avenue Detroit, MI 48232.
SERVICE PUBLICATIONS
Information on how to obtain Product Service Publications, subscriptions,
Indexes and summaries as described below is applicable only in the
fifty U.S.
states (and the District fo Columbia) and only for cars and light trucks with
GVWR less than
10,000 pounds (4 536 kg).
In Canada, information pertaining to Product Service Bulletins and Indexes can
be obtained by writing to: General Motors
of Canada Limited, Service
Publications Department, 1908 Colonel Sam Drive Oshawa, Ontario
L1H 8P7.
Cadillac regularly sends its dealers useful service bulletins about Cadillac
products. Cadillac monitors product performance in the field. We then prepare
bulletins for servicing our products better, Now, you can get these bulletins too.
5
Page 382 of 399
Downloaded from www.Manualslib.com manuals search engine 1
F
i-
.F .
F
f
c
l e
DEVILLE INDEX
A
Acc (Ignition Key Position) ........................... 86
Accessory Power. Retained
.......................... 313
Active Audio Music System
...................... 163. 167
Adding Brake Fluid
..................................... 276
Electrical Equipment
.......................... 158. 313
Engine Coolant
.................................. 270
Engine Oil
...................................... 259
Power Steering Fluid
............................. 273
Transaxle Fluid
.................................. 266
Additives. Engine Oil
............................... 264
Adjustment. Brake
................................. 279
Adult Safety Belt Usage
.............................. 18
Air Bag
............................................ 30
Air Cleaner
....................................... 265
Air Cleaner Filter Replacement ...................... 265
Air Conditioner
.................................... 150
Air Outlets
........................................ 150
Air System ........................................ 150
Alarm. How
To Turn Off Theft ........................ 83
Alcohol. Driving Under The Influence Of .............. 177
Alcohol in Gasoline
................................. 249
Aluminum Wheels. Cleaning
......................... 302
AMAX@ .......................................... 157
AM Radio Reception ............................... 157
AM Stereo Radio Reception ......................... 158
Antenna. Cleaning Radio
............................. 175
Antifreeze
........................................ 270
Anti-LockBrakes
.................................. 182
Anti-Lock Brake System Warning Light
............ 133. 182
Anti-Lockout Tips
................................... 72
Anti-Theft Tips
..................................... 82
Appearance Care
................................... 300
Arm. Wearing A Safety Belt Under Your ................ 28
Armrest. Storage
.................................... 76
Ashtrays and Lighters
............................... 127
Air Cleaner
Replace
..................... See Maint . Book
P
1
Page 383 of 399
Downloaded from www.Manualslib.com manuals search engine Astroroof ......................................... 126
Automatic Air Conditioning System
................... 151
Automatic Door Lock
................................ 71
Automatic Overdrive
................................ 93
Automatic Pull-Down Feature
......................... 80
Automatic Transaxle ................................. 90
Automatic Transaxle Fluid
........................... 269
B
Baby Restraint ...................................... 47
Battery Cables. Starting With
......................... 217
Battery Charge Light
............................... 137
Battery Power Loss
................................. 280
Beam. Headlight. High-Low Switch
................... 106
Lap
............................................ 40
Lap-Shoulder .................................... 19
Rear Seat
....................................... 40
Blizzard.
If You’re Caught In A ....................... 205
Block Heater. Engine
................................ 89
“Blowout.
.. Tire .................................... 249
Boat. Towing A
.................................... 207
Adjustment
..................................... 279
Fluid
.......................................... 277
Master Cylinder
................................. 276
Parking
......................................... 95
Pedal Travel
.................................... 279
Brake System. Anti.Lock. Warning Light
............... 133
Brake System Warning Light
......................... 133
Brake Wear Indicators. Disc
......................... 278
Brakes. Anti-Lock
.................................. 182
Brakes. Trailer
..................................... 210
Braking in Emergencies
............................. 185
Braking If Your Engine Stops ........................ 181
“Break.1n”. New Vehicle ............................. 85
Break-In Schedule. When Towing A Trailer ............. 208
Buckling Up
........................................ 18
Bulbs. Halogen. Removal
............................ 282
Bulbs. Taillight Replacement
......................... 285
Bulbs. Turn Signal
.................................. 319
Battery
........................................... 280
Belt
BloodAlcoholLevel
................................ 177
Brake
Braking
........................................... 181
Bulbchart
........................................ 319
t4
2
