CADILLAC DEVILLE 1995 7.G Owners Manual

Downloaded from www.Manualslib.com manuals search engine In addition to the four stations set as above, up to three additional
stations
mav be present on each band by pressing two adjoining buttons at
the same time.
1. Tune in a desired station.
2. Press the SET button.
3. Press any two adjoining pushbuttons at the same timc within five
seconds.
(The station will return when the same two buttons are
pressed again. j
Five Band Graphic Equalizer
The equalizer lets you set the bass, midrange and treble to sound just the
way
you want. The 60 and 350 controls work the bass sidc. Thc nlidrangc
is the 1K. The 3.5K and 1OK arc thc treble sound controls.
Wc suggest that you start with the midrange ( 1K) control lever in the
center. Then move the other controls until you c get the sound you want.
Moving the control levcrs
up gives you more sound in that range. Moving
it down gives you less.
If the 1OK control levcr is near the top, you nlav hear ;I hissing sound. To
eliminate it, move thc IOK control lever down htil the hiss disappcars.
Your Cassette Tape Player
If you look at the tape, or on its label or box, it should say whethcr its bias,
“equalization,“ is 70 microseconds (70 1~) or 120 microseconds (120 11).
Chrome (CRO?) and rnctal tapes are 70 11 scc and standard iron tapes arc:
120 p sec. For the best perfornlance when playing chrome tapes, press the
CRO? button.
CR02: This button sets tape bias. When playing high bias chrome or
metal tapes, press CR07 to turn the feature on. When playing standard
tapes, press the button again to turn thc feature off.
-
.-
3-12 --

Downloaded from www.Manualslib.com manuals search engine To Play a Cassette Tape
1. T&-n the radio on.
c
2. Insert the cassette through the tape door. (The "TAPE" indicator in
If you hear nothing or hear just a garbled sound. thc cassette may not be
in sc~uarely. Press the STOP- EJC? butron to remove the tape and start
over. The tape equalization is automatically sensed
and set. Inserting the
cassette also automatically disables DNR"::: and activates DOLBY ',noise
reduction.
DNR' is the Dynmic Noise Reduction. It hclps remove background hiss
noisc
from the radio.
the display will light.)
:i:DNR !!. is a rcgistered tr;tdetnark of National Semiconductor
Corporation.
3. Once the tapc is piaving. -c use the upper and lower knobs to adjust the
volunle and balance, just as you do for the radio. Prcss the upper knob
to changc tape direction. The arrow in thc display shows which
direction thc tape is being played.
Forward: To rapidly advance the tapc, press the right arrow button and
the. tape
will rapidly go Fo1uw-d until you press the STOP button.
Reverse: To rapidlv reverse the tape, press the left arrow button and the
tapc
will rapidly Reverse until you press thc STOP button.
SEARCH: When your are plaving a tapc, the se;lrch feature lets you
advance ahead tohe start of ;he next selection or rewind to the beginning
of the sclection being plaved. Prcssing the right (Forward) or left
(Reverse) arrow button
iill then advance or rewind to the bcginlling or
end of the selection being played.
.
NOTICE:
There must be at least a five second pause between selections on
the tape for the SEARCH feature to operate properly.
3- 13

Downloaded from www.Manualslib.com manuals search engine PUSH-PROG: Press this button (upper knob) to switch from playing one
side
of the tape to the other.
STOP-EJECT Press this button to stop or remove the tape.
The Delco% Active Audio Music System with Cassette
Player (Option)
I
This optional music system is the Delco" Active Audio System with dual
playback. The system includes an AM and FM stereo elcctronically tuned
radio receiver
with an integral cassette, and eleven Delco custom
designed speakers
with very specific frequency ranges. It includes a digital
clock.
The Upper. Knob
The upper knob does the following:
0 It turns the radio on and off.
It controls the volume.
It lets you see what station you have. (When the radio is on, press the
It tells you the time. (When the ignition is off, press the RCL/PROG
RCL/PROG
knob to display
the station.)
knob
to display the time.)

Downloaded from www.Manualslib.com manuals search engine 1.
c

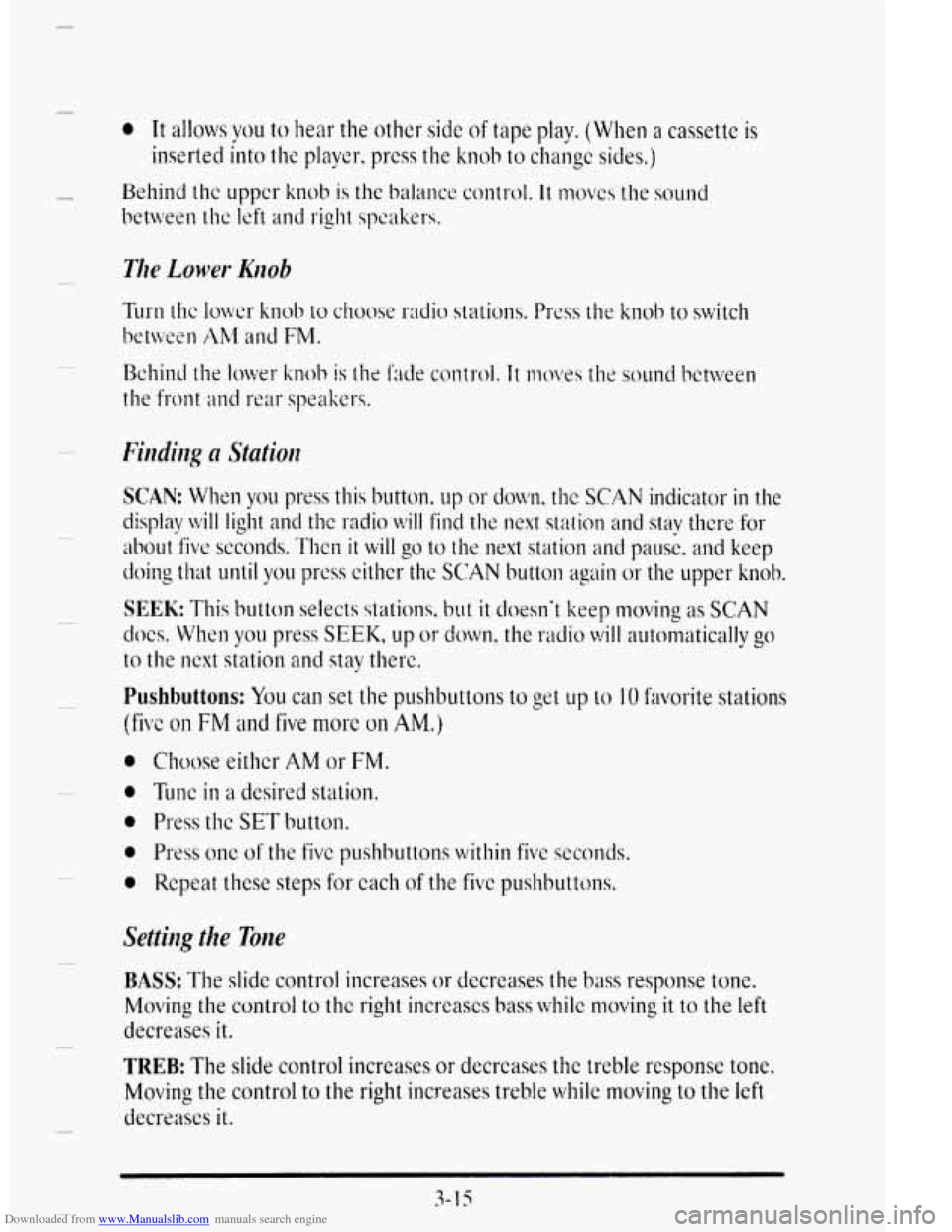

The Lower Knob
Setting the Torte
BASS: The slide control increases 01- decreases the bass response tons.
Moving the control to thc right increases bass while moving it to the left
decreases it.
TREB: The slide control increases or decrcases the treble response tone.
Moving the control to the right increases treble while moving to the left
decreases
it.

Downloaded from www.Manualslib.com manuals search engine Your Cassette Tape Player
Your cassette tape player works best with tapes that are 30 to 45 minutes
long on each side.
%pes Longer than that are so thin that they may not
work well in this player.
If you look at the tape. or on its label or box, it should say whether its bias,
“equalization,”
is 70 rnicrosoconds (70 p) or 120 microseconds (120 It,:).
Chrome and metal tapes are 70 p, sec and standard iron tapes are 120 11
sec. Your tape player will adjust automatically for either type of cassette
tape.
To Play a Cassette Tape
2. Insert the cassette through the tape door. (The TAPE indicator in the
display
will light.)
If you hear nothing or I~ear just a garbled sound, the cassette may not be
in squarely. Press the EJCT button to remove the tape and start over. The
tape equalization is automatically sensed and set. Inserting the cassette
also activates DOLBY’? noise reduction.
3. Once the tape is playing, use the upper and lower knobs to adjust the
volume and balance, just as
you do for the radio. Press thc upper knob
to change tape direction. The arrow in the display shows which
direction
the tape is being played.
FWD: Press this button to go fonvard rapidly to another part of the tape.
REV: Press this button to reverse the tape.
PREV: Press this button to go back to the beginning of the track. Pressing
this button
when in the pause period between tracks will take it back to
the start of the track preceding the pause.
NEXT Press this button to advance to the next selection.
ST/PL Press this button and the tape will stop without ejecting it and the
radio will start to play. Press it again and the tape will start to play again.
EJCE Press this button to remove the tape.
c.
3
L-
u

Downloaded from www.Manualslib.com manuals search engine I
r
!
r
1
I
r
r
P
The Delco'g;8 Active Audio Music System with Cassette
and
CD Player (Option)
This optional music system is the Delco" Active Audio System with dual
playback. The system includes an AM and
FM Stereo el&tronically tuned
radio rece,ivsr
with an integral cassette and compact disc (CD) player and
eleven Delco", custom designed speakers with
very specific frequency
ranges.
It includes a digital clock.
?.
The Upper Knob
The upper knob does the following:
0 It turns the radio on and off.
It controls the volume.
It lets you see what station you have. (When the radio is on, press the
It tells you the time. (When the ignition is off, press the RCL/PROG
0 It allows you to hear the other side of tape play. (Whe.n a cassette is
RCLPROG knob to display the station.)
knob to display the time.)
inserted
into the player, press the knob to change sides.)
3-17

Downloaded from www.Manualslib.com manuals search engine The Lower Knob
Tbrn the lowcr knob to choose radio stations. Press the knob to switch
between AM and FM.
Behind the lower knob is the kdc control. It moves the sound between
the front and rear spcakcrs.
Finding a Station
SEEK: This button selects stations, but it doesn't keep moving as SCAN
does. When you press SEEK. up or down, the radio will automatically go
to the next station and stay there.
2. Tune in the station.
3. Press the SET button.
Setting the Tone
BASS: The slide control increases or decreases the bass response tone.
Moving the control
to the right increases bass while moving it tu the lct't
decreases it.
TREBLE: The slide control increascs or decreases the treble respmse
tone. Moving the control to the right increases the treble while moving it
to the left decreases it.
3-18

Downloaded from www.Manualslib.com manuals search engine Your Cassette Tape Player
c
Your cassette tape player works best with tapes that are 30 to 15 minutes
long
on cach side. Thpes longer than that are so thin that they may not
work
well in this player.
If vou look at the tape, or on its label or box. it should say whether its bias,
b’~qualization,” is
70 microseconds (70 p.) or 120 microseconds ( 120 p).
Chrome and metal tapes arc 70 It ssc and standard iron tapes are 120 p.
sec. Your tapc player will adjust automatically for either type of cassette
kIPC.
To Play a Cassette Tape
2. Insert thc cassetle through the tape door. (Thc TAPE indicator in the
display
will light.)
If vou hcar nothing or 11c;lr just a garbled sound, the cassette may not
beh squarely. PI-& the
EJCT button to removc the tape and start
over. Thc tape equalization is automaticallv sensed and set. Inserting
the cassette also activates
DOLBY,?, noise ;*eduction.
3. Use the upper and lower knobs to adjust the volume and balance, once
the tape
is playing, just as you do for the radio. Press the upper knob
to change tape direction. The arrow in the display shows which
dircction the tape is being
played.
FWD and REV: Press the FWD button to go fonvard rapidly to another
part
of the tape. Press the REV button to rcverse the tape.
ST/PL: Press this button in either SEEK, SCAN, FWD or REV to stop
tape movement and switch
to radio without ejecting the tape. (In ST/PL
the radio may be tuned by the tuner knob only.)
EJCT Press this button to remove the tape. EJCT is operational even
when
the ignition or the radio is off.
3- 19

Downloaded from www.Manualslib.com manuals search engine To Play a Compact Disc
NOTICE:
Before you begin, please note: don’t use the mini-discs that are
called “singles” (even with an adapter). They won’t eject. Use
full-size compact discs only.
1. Turn the radio on.
2. Insert the CD (label side up) partway into the slot. The player will pull
it in. Wait a few seconds and the CD will play. Then only the time of
day and CD will display.
If the CD comes back out. chcck to see if
The disc is upside down.
The disc is dirty, scratched or wet.
0 There is too much moisture in the air. If there is, wait about an hour
and try
it again.
ERR: This error message is displayed if you have a condition of either
extreme temperature, moisture
or an incorrect CD. The CD will
automatically be ejected. When conditions are back to normal the CD
should play again.
RCLIPROG: Press the recall/program button once to see what track is
being plaved. Within five seconds press it a second time to see how long
the track-has been playing. Press
it a third time to see thc time of day.
REV: Press and hold the reverse button to return rapidly within a track.
Release
it to play the passage. The elapsed time will be displayed to show
the reverse progress of the CD.
FWD: Press and hold this forward button to advance rapidly within a
track. Release it to resume playing. Elapsed time will be displayed to show
the forward progress
of the CD.
3-20
H
U
I
L-
c- .
c

Downloaded from www.Manualslib.com manuals search engine LI
PREY Press this button to go back to the beginning of the track. Pressing
this button
when in the pause period between tracks will take it back to
the start of the track preceding the pause.
NEXT: Press this button to advance to the next track.
ST/PL: Press this button and the tape or CD will stop without ejecting and
the radio will start to play. Press it again and the tape or CD will start to
play again.
EJCT Press this button to remove the CD or tapc. If you nave both a
CD and tape in the player, then the other playback media will start to
play. Press
it again and the other media will eject.
COILIP: Pressing COMP makes soft and loud passages more equal in
volume. For example, classical and jazz music have vety quiet and very
loud passages in the same tune. The COMP display will light as long as
COMP is on.
TAPE and CD Operation
With both a tape and a CD inserted, both the TP and CD indicators in the
display will be lit and either the TP or CD (LED) wjll also be lit,
depending on which has the current priority.
TP-CD: Press the lower knob to switch between tape and CD.
3-21
