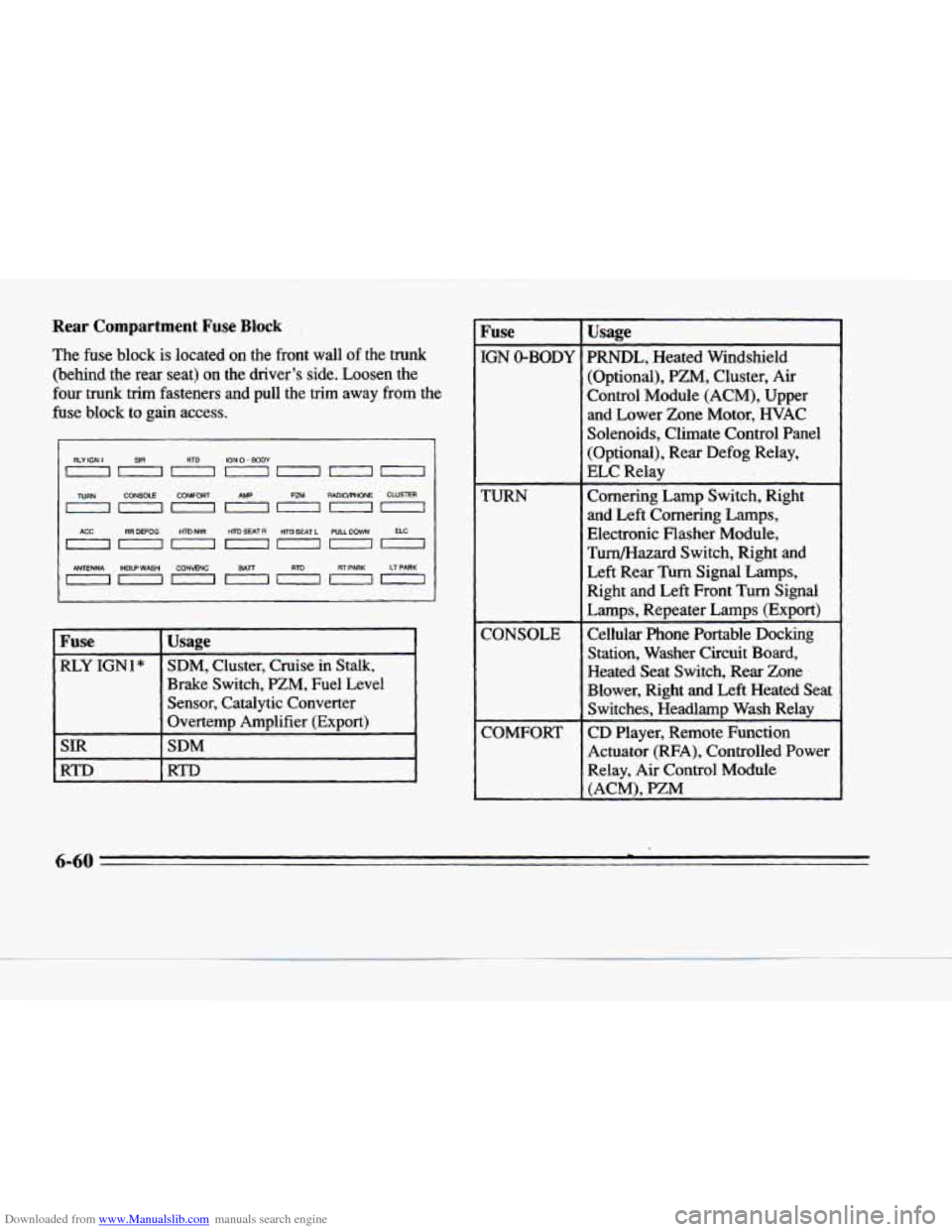

Downloaded from www.Manualslib.com manuals search engine Rear Compartment Fuse Block
The fuse block is located on the front wall of the trunk
(behind the
rear seat) on the driver’s side. Loosen the
four trunk trim fasteners and pull the trim away from the
fuse block to gain access.
RLY IGN i GN 0 - BODY
CONSOLE COMFORT AMP PZM RAOlOjPHONE CLUSTER
ACC RR DEFOG trrOMIR HTDSEATR HTDSEATL PULLDOWN ELC
ANTENNA
HDLP WASH CONMNC RT PARK LT PARK
I Fuse I Usage I
I RLY IGN 1 * SDM, Cluster, Cruise in Stalk,
Brake Switch,
PZM, Fuel Level
Sensor, Catalytic Converter
I
Overtemp Amplifier (Export)
SIR SDM t- COMFORT
Usage
PRNDL, Heated Windshield
(Optional),
PZM, Cluster, Air
Control Module (ACM), Upper
and Lower Zone Motor, HVAC
Solenoids, Climate Control Panel
(Optional), Rear Defog Relay,
ELC Relay
Cornering Lamp Switch, Right
and Left Cornering
Lamps,
Electronic Flasher Module,
Turn/Hazard Switch, Right and
Left Rear
Turn Signal Lamps,
Right and Left Front
Turn Signal
Lamps, Repeater Lamps (Export)
Cellular Phone Portable
Docking
Station, Washer Circuit Board,
Heated Seat Switch, Rear Zone Blower, Right
and Left Heated Seat
Switches, Headlamp Wash Relay
CD Player, Remote Function
Actuator (RFA), Controlled Power
Relay, Air Control Module
(ACM),
PZM

Downloaded from www.Manualslib.com manuals search engine I Fuse I Usage -1 Fuse Usage -
Headlamp Wash Relay (Export), HDLP WASH
AMP
(Optional) Right and Left Hand Bose Relay,
Right Front and Rear Speaker
(On Door), Left Front and Rear
Speaker {On Door) Headlamp
Wash Motor
CONVENC Trunk Release Relay, Trunk
Release Solenoid,
Fuel Door
Release Relay, Fuel Filler Door
Release Solenoid, Door Lock Relay, Right and Left Front Door
Motors, Right and Left Rear Door
Motors, Door Unlock Relav
PZM
PZM
Radio Receiver, Radio Interface
Module (RIM)(Bose Only),
Phone, DAB Relay, Trunk Release
Relay, Fuel Door Release Relay,
High Beam Relay
Steering Wheel Controls, Cluster
EM, Electrwhromic Minor,
Rain
Sensor (Optional), Accessory Relay
RADIO/
PHONE
BATT Driver and Passenger
Seat Lumbar
Switch, Lumbar Switch (Driver
Seat Only), Memory Seat Module
RTD Module
CLUSTER-
ACC RTD
Front and Rear Park Lamps, Right
Front and Rear Sidemarker
Lamps, Headlamp Switch
(Export), Rear Fog Lamp Relay
(Export), HeadlamD Switch I RR DEFOG I Rear Defog I I -
HTD MIR I Right and Left Outside Heated 1
I I Mirror I
HTD SEAT R Passenger Heated Seat Relay
HTD SEAT
L Driver Heated Seat Relay RK Left Front and Rear Sidemarker
Lamps, Right and Left Parking Lamps, License Lamp, Underhood
L~D
I PULLDOWN Trunk Pull-Down Motor
ELC Relav and Motor
I ELC I d
ANTENNA I Power Mast Antenna * Do not alter OBD Ii related fuses or circuit breakers.
6-6 1

Downloaded from www.Manualslib.com manuals search engine Replacement Bulbs
Application Number
* Ashtray ............................... 161
* Back-up ............................. 2057
Center High-Mounted Stoplamp ........... 1156’
Cornering
............................ 3156
* Courtesy/Reading ....................... 168
* Glove Compartment ..................... 194
Headlamps, Composite Inner High Beam
..................... 9005
Outer Low Beam ..................... 9006
Application Number
* License Plate ........................... 194
* Park and Turn Signal ................. 3 157 NA
* Sidemarker ............................ 194
Stop/’Tail/Turn Signal ................... 2057
*Trunk................................. 561
“Underhood............................. 561
* Vanity Mirror .......................... 124
-.
