I-
BATTERY VOLTS HIGH - 08: This message shows
that the electrical charging system is overcharging (more
than
16 volts). To avoid being stranded, have the
electrical system checked by your Cadillac dealership.
You can reduce the charging overload by using the
accessories.
Turn on the lamps and radio, set the climate
control on
AUTO and the fan speed on HI, and turn the
rear window defogger on. You can monitor battery
voltage on the DIC by pressing the INFORMATION
button. The normal range is
11.5 to 15.5 volts when the
engine
is running.
BATTERY VOLTS LOW - 06: This message will .
appear when the electrical system is charging less than
10 volts or if the battery has been drained. If this
message appears immediately after starting, it is possible that the generator can stili recharge
the battery. The
battery should recharge after driving a few miles and the
message should go out.
If this message appears while
driving or after starting your vehicle and stays on, have
it checked immediately to determine the cause of this
problem.
To help the generator recharge the battery
quickly
you can reduce the load on the electrical system
by turning off the accessories. You can monitor battery voltage on the
DIC by pressing the INFORMATION
button. The normal range is
11.5 to 15.5 volts.
BRAKE.VACUUM PROBLEM - 108: The circurr in
the brake booster vacuum has shorted or is loose when
this message appears. Your vehicle may lose power
brakes but you will still have the use
of manual brakes.
The power brakes will not be affected if the problem is
caused by a failed sensor. Have your vehicle serviced
immediately at your Cadillac dealership.
CHANGE ENGINE OIL - 82: This means that the life
of the engine oil has expired and it should be changed
within
200 miles. See “Engine Oil” and “Filter
Recommendations” in the Maintenance Schedule. After
an’oil change, the Oil Life Indicator must be reset. See
“Oil Life Indicator’’ in the Index on how to reset
it.
CHANGE TRANS FLUID - 47: This message WUI
appear when it is time to replace the transaxle fluid
(system has determined that the transaxle fluid has
reached
0%). See the Maintenance Schedule booklet for
the proper fluid and change intervals.
’
CHECK BRAKE FLUID LEVEL - 37: This message
will display if the ignition is in the RUN position to
inform the driver that the brake fluid level is low. Check
the brake reservoir level and add fluid as needed. Have the brake system serviced by a Cadillac technician as soon as possible. If the brake warning light is
on, follow
the directions in that part.
3-77
Page 221 of 354
Downloaded from www.Manualslib.com manuals search engine Maintenance When Trailer Towing
Your vehicle will need service more often when you’re
pulling a trailer. See the Maintenance Schedule for more
on this. Things that are especially important in trailer
operation are automatic transaxle fluid (don’t overfill),
engine oil, belt, cooling system and brake adjustment.
Each
of these is covered in this manual, and the Index
will help you find them quickly.
If you’re trailering, it’s
a good idea to review these sections before you start
your trip.
Check periodically
to see that all hitch nuts and bolts
are tight.
-4
Page 262 of 354
Downloaded from www.Manualslib.com manuals search engine c
Section 6 Service and Appearance Care
Here you will find information about the care of your
Cadillac. This section begins with service and fuel
information, and then it shows how to check important
fluid and lubricant levels. There is also technical
information about your vehicle, and a part devoted
to its appearance care.
Service
Your Cadillac dealer knows your vehicle best and wants
you
to be happy with it. We hope you’ll go to your
dealer €or all your service needs. You’ll get genuine GM \
parts
and GM-trained and supported service people.
We hope you’ll want to keep your GM vehicle all GM.
Genuine GM parts have one of these marks:
Doing Your Own Service Work
If you want to do some of your own service work, you’ll
want to get the proper Cadillac service manual. It tells
you much more about how to service your Cadillac
than
this manual can. To order the proper service manual, see
“Service and Owner Publications” in the Index.
Your vehicle has an air bag system. Before attempting to
do your own service work, see “Servicing Your Air
Bag-Equipped Cadillac” in the Index.
You should keep a record with all parts receipts and
list the mileage and the date
of any service work you
perform. See “Maintenance Record” in the Maintenance
Schedule booklet.
6-1
Page 277 of 354
Downloaded from www.Manualslib.com manuals search engine Follow these steps to reinstall the air cleaner assembly:
1.
2.
3.
4.
5.
Slide the air cleaner lid into the slots in the front
edge of the
air cleaner base.
Pivot the air cleaner cover and the
air duct assembly
downward. Make sure that both latches are secure
and fully engaged.
Reinstall the clean air duct
over the mass airflow
sensor. Make sure that the duct is secure around the
entire outer edge of the sensor.
Tighten the air duct clamp. Reconnect the
IAT sensor.
Refer to the Maintenance Schedule
to determine when to
replace the air filter.
See “Scheduled Maintenance Services”
in the
Maintenance Schedule booklet.
I A CAUTION:
Operating the engine with the air cleaner off can
cause you or others to be burned. The
air cleaner
not only cleans the air, it stops flames if the
engine backfires.
If it isn’t there, and the engine
backfires, you could be burned. Don’t drive with
it
off, and be careful working on the engine with
the
air cleaner off.
NOTICE:
If the air cleaner is off, a backfire can cause a
damaging engine fire. And, dirt can easily get
into your engine, which will damage it.
Always
have the air cleaner in place when you’re driving.
6-16
Page 278 of 354
Downloaded from www.Manualslib.com manuals search engine rc
c
c
c
Automatic Transaxle Fluid
When to Check and Change
A good time to check your automatic transaxle fluid
level is when the engine oil is changed.
Change
both the fluid and filter every 50,000 miles
(83 0oO km) if the vehicle is mainly driven under one or
more of these conditions:
In heavy city traffic where the outside temperature
In hilly or mountainous terrain.
regularly reaches
90°F (32°C) or higher.
0 When doing frequent trailer towing.
0 Uses such
as found in taxi, police or delivery service.
If you do not use your vehicle under any of these
conditions, the fluid
and filter do not require changing.
See “Scheduled Maintenance Services” in the
Maintenance Schedule booklet.
How to Check
Because this operation can be a little difficult, you may
choose to have this done at
your Cadillac dealership
service department.
If you do it yourself, be sure to follow all the instructions
here,
or you could get a false reading on the dipstick.
I NOTICE:
Too much or too little fluid can damage your
transaxle.
Too much can mean that some of the
fluid could come out and fall on hot engine parts
or exhaust ,system parts, starting a fire. Be sure to
get an accurate reading if
you check your
transaxle fluid.
6-17
c
Page 299 of 354
Downloaded from www.Manualslib.com manuals search engine I I
I I
The purpose of regular rotation is to achieve more
uniform wear
for all tires on the vehicle. The first
rotation is the most important. See “Scheduled
Maintenance Services”
in the Maintenance Schedule
booklet for scheduled rotation intervals.
When rotating
your tires, always use the correct rotation
pattern
shown here.
Don’t include the compact spare
tire in your tire rotation. After
the tires have been rotated, adjust the front and
rear inflation pressures as shown on the Tire-Loading
Information label. Make certain that all wheel nuts are
properly tightened. See “Wheel
Nut Torque” in
the Index.
A CAUTION:
Rust or dirt on a wheel, or on the parts to which
it is fastened,
can make wheel nuts become loose
after
a time. The wheel could come off and cause
an accident. When
you change a wheel, remove
any rust
or dirt from places where the wheel
attaches to the vehicle. In an emergency,
you can
use a cloth or a paper towel to do this; but be I
sure to use a scraper or wire brush later, if you
need to, to get
all the rust or dirt off. (See I
“Changing a Flat Tire” in the Index.)
I
.. .
6-38
Page 334 of 354
Downloaded from www.Manualslib.com manuals search engine d

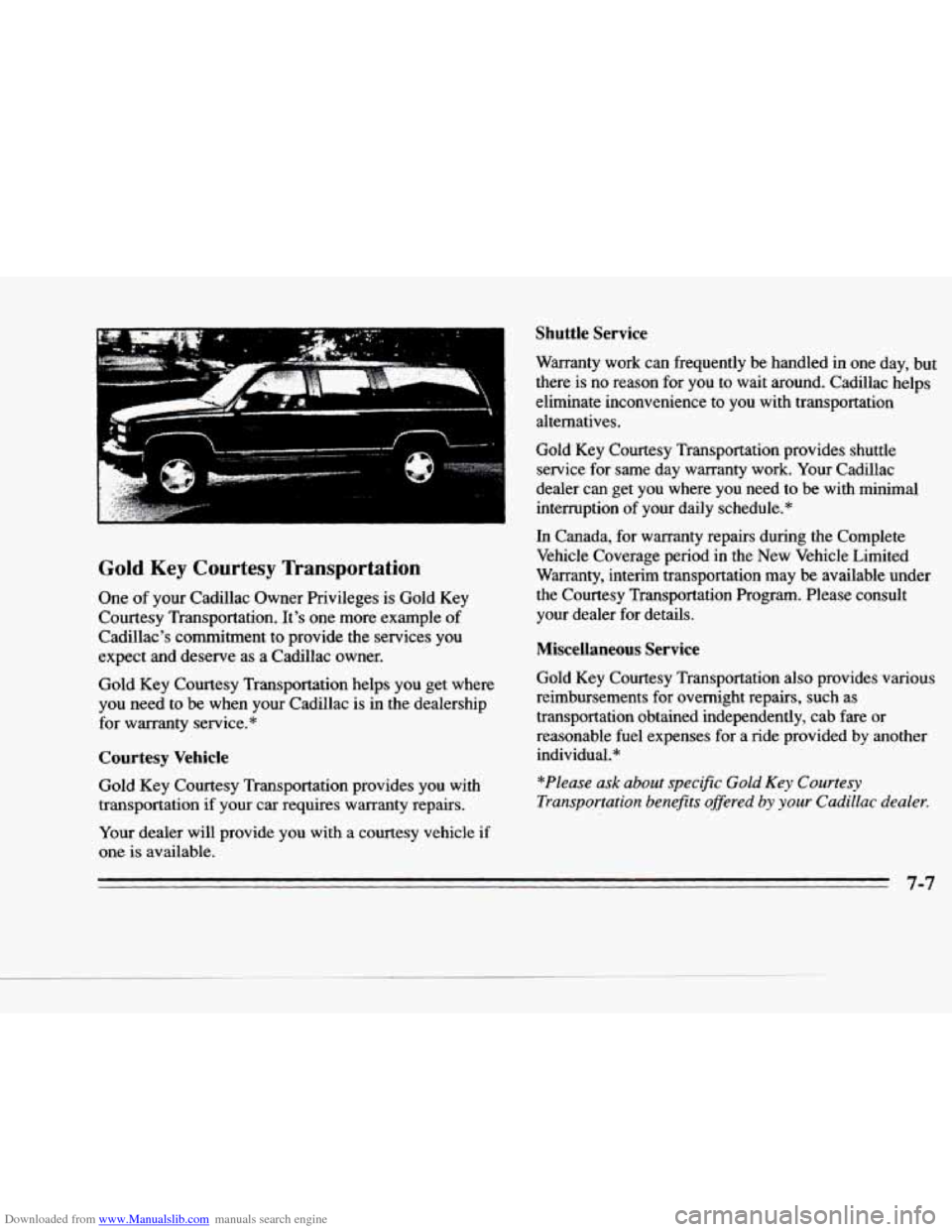

Gold Key Courtesy Transportation
c
One of your Cadillac Owner Privileges is Gold Key
Courtesy Transportation. It's one more example of
Cadillac's commitment to provide the services you
expect and deserve as a Cadillac owner.
Gold Key Courtesy Transportation helps you get where
you need to be when your Cadillac is in the dealership
for warranty service.*
Courtesy Vehicle
Gold Key Courtesy Transportation provides you with
transportation if your car requires warranty repairs.
Shuttle Service
Warranty work can frequently be handled in one day, but
there is no reason
for you to wait around. Cadillac helps
eliminate inconvenience to you with transportation alternatives.
Gold Key Courtesy Transportation provides shuttle
service for same day warranty
work. Your Cadillac
dealer can get you where you need
to be with minimal
interruption
of your daily schedule.*
In Canada, for warranty repairs during the Complete
Vehicle Coverage period in the New Vehicle Limited
Warranty, interim transportation may be available under
the Courtesy Transportation Program. Please consult your dealer for details.
Miscellaneous Service
Gold Key Courtesy Transportation also provides various
reimbursements for overnight repairs, such as
transportation obtained independently, cab fare
or
reasonable fuel expenses for a ride provided by another
individual.*
*Please ask about specific Gold Key Courtesy
Transportation be rtefits ofered by your Cadillac dealer.
Your dealer will provide you with a courtesy vehicle if
one is available.
7-7
Page 335 of 354

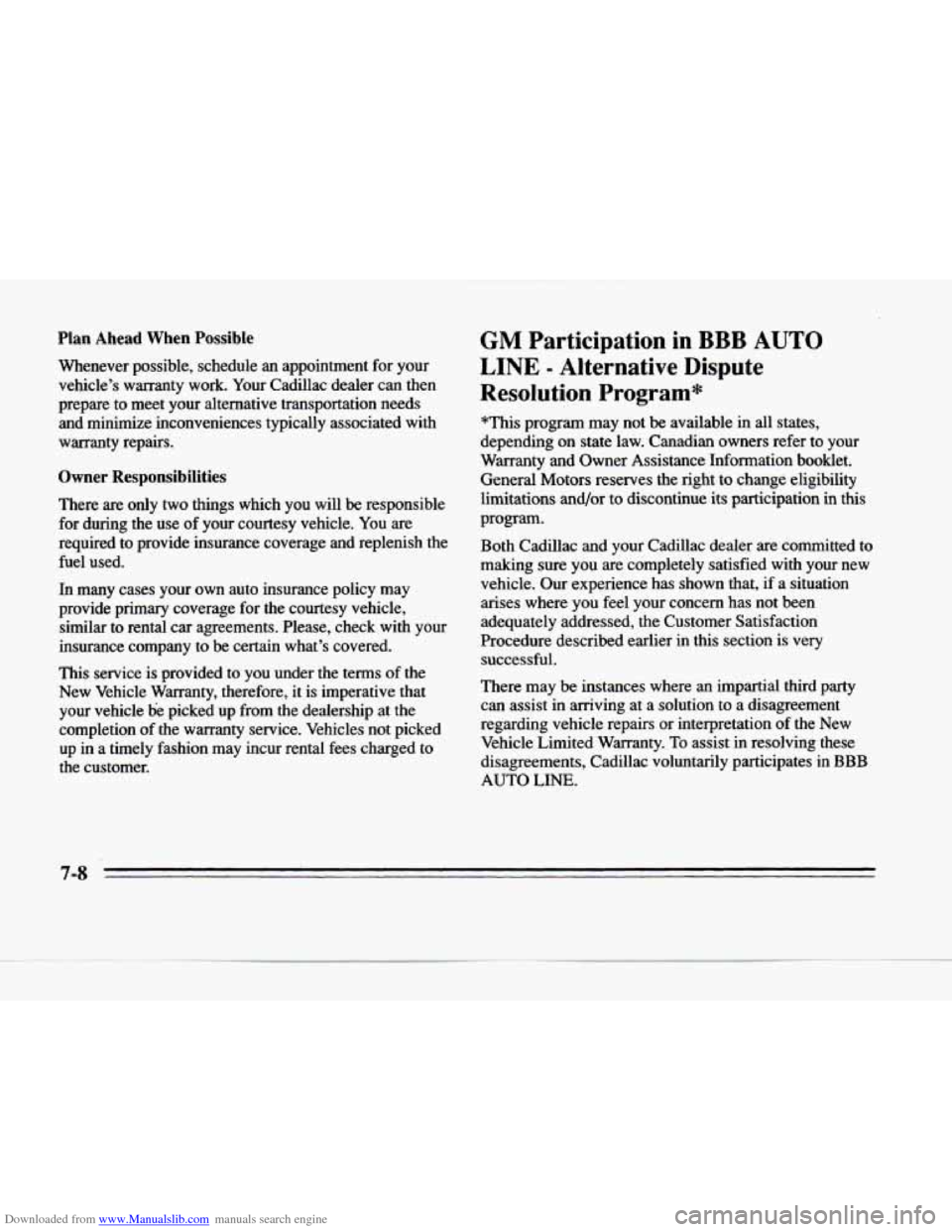

Downloaded from www.Manualslib.com manuals search engine Plan Ahead When Possible
Whenever possible, schedule an appointment for your
vehicle’s warranty work. Your Cadillac dealer can then
prepare
to meet your alternative transportation needs
and minimize inconveniences typically associated with
warranty repairs.
Owner Responsibilities
There are only two things which you will be responsible
for during the use
of your courtesy vehicle. You are
required to provide insurance coverage and replenish the
fuel used.
In many cases your own auto insurance policy may
provide primary coverage for the courtesy vehicle, similar to rental car agreements. Please, check
with your
insurance company to be certain what’s covered.
This service is provided to
you under the terms of the
New Vehicle Warranty, therefore, it is imperative that
your vehicle 6e picked up from the dealership at the
completion
of the warranty service. Vehicles not picked
up in a timely fashion may incur rental fees charged to
the customer.
GM Participation in BBB AUTO
LINE - Alternative Dispute
Resolution
Program*
*This program may not be available in all states,
depending
on state law. Canadian owners refer to your
Warranty and Owner Assistance Information booklet.
General Motors reserves the right to change eligibility limitations and/or to discontinue its participation
in this
program.
Both Cadillac and your Cadillac dealer are committed to
making sure you are completely satisfied with your new
vehicle. Our experience has shown that,
if a situation
arises where you feel your concern has not been
adequately addressed, the Customer Satisfaction
Procedure described earlier in this section is very successful.
There may be instances where an impartial third party can assist in arriving at a solution to a disagreement
regarding vehicle repairs or interpretation of the New
Vehicle Limited Warranty.
To assist in resolving these
disagreements, Cadillac voluntarily participates
in BBB
AUTO LINE.
7-8
