CADILLAC DEVILLE 1997 7.G Owner's Guide

Downloaded from www.Manualslib.com manuals search engine Shoulder Belt Tightness Adjustment
Your car has a shoulder belt tightness adjustment
feature. If the shoulder belt
seems too tight, adjust it
before you begin to drive.
1. Sit well back in the seat.
2. Start pulling the shoulder belt out.
3. Just before it reaches the end, give it a quick pull.
4. Let the belt go back all the way. You should hear a
slight clicking sound.
If you don’t, the adjustment
feature won’t set, and you’ll have to
start again.
5. Now you can add a small amount of slack. Lean forward slightly, then sit back.
If you’ve added more
than
1 inch (25 mm) of slack, pull the shoulder belt
out as you did before and
start again.
If
you move around in the vehicle enough, or if you pull
out the shoulder belt, the belt will become tight again. If
this happens, you can reset it.
1-16 ~
~

Downloaded from www.Manualslib.com manuals search engine @ What’s wrong with this?
A: The shoulder belt is too loose. It won’t give nearly
as much protection this way.
You can be seriously hurt if your shoulder belt is
too loose. In a crash, you would move forward too much, which could increase injury.
The
shoulder belt should fit against your body. Don’t
allow more than
1 inch (25 mm) of slack.

Downloaded from www.Manualslib.com manuals search engine Q.' What's wrong with this?
A: The belt is buckled in the wrong place.
You can be seriously injured if your belt is
buckled in the wrong place like
this. In a crash,
the belt would
go up over your abdomen. The belt
forces would be there, not at the pelvic bones. This
could cause serious internal injuries. Always
buckle your belt into the buckle nearest you.

Downloaded from www.Manualslib.com manuals search engine @ What's wrong with this?
A: The shoulder belt is worn under the arm. It should
be worn over the shoulder at all times. You
can be seriously injured if you
wear the
shoulder belt under your arm.
In a crash, your
body would move too
far forward, which would
increase the chance of head and neck injury.
Also, the belt would apply too much force to the
ribs, which aren't as strong as shoulder bones.
You could also severely injure internal organs
like your liver or spleen.

Downloaded from www.Manualslib.com manuals search engine @ what’s wrong with this?
A: The belt is twisted across the body.
You can be seriously injured by a twisted belt. In
a crash, you wouldn’t have the full width of the
belt to spread impact forces. If a belt
is twisted,
make it straight
so it can work properly, or ask
your dealer
to fix it.
1-20

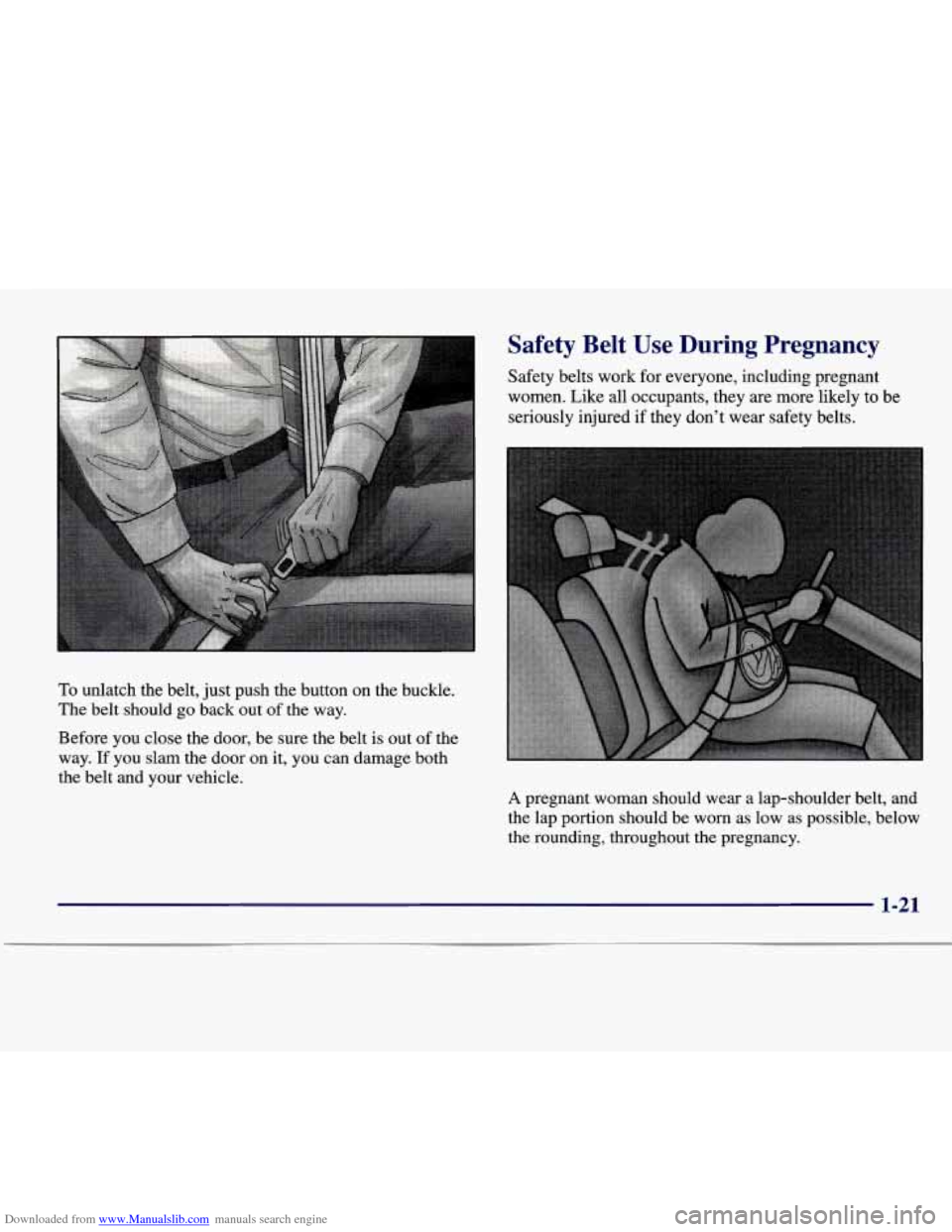

Downloaded from www.Manualslib.com manuals search engine I I Safety Belt Use During Pregnancy
Safety belts work for everyone, including pregnant
women. Like all occupants, they are more likely to be
seriously injured if they don’t wear safety belts.
To unlatch the belt, just push the button on the buckle.
The belt should
go back out of the way.
Before you close the door, be sure the belt is out of the
way.
If you slam the door on it, you can damage both
the belt and your vehicle.
A pregnant woman should wear a lap-shoulder belt, and
the lap portion should be worn as low as possible, below
the rounding, throughout the pregnancy.
1-21

Downloaded from www.Manualslib.com manuals search engine The best way to protect the fetus is to protect the
mother. When a safety belt is worn properly, it’s more
likely that the fetus won’t be hurt in a crash. For
pregnant women, as for anyone, the key to making
safety belts effective is wearing them properly.
Right Front Passenger Position
The right front passenger’s safety belt works the same
way as the driver’s safety belt. See “Driver Position,”
earlier in this section.
When the lap portion of the belt is pulled out
all the
way, it will lock.
If it does, let it go back all the way
and start again.
Supplemental Inflatable Restraint
(SIR) Systems
This part explains the frontal and side impact
Supplemental Inflatable Restraint
(SIR) systems or air
bag systems.
Your Cadillac has four
air bags -- a frontal air bag for
the driver, another frontal
air bag for the right front
passenger, a side impact air bag for the driver, and
another side impact air bag for the right front passenger.
Here are the most important things to know about the air bag systems:
A --
You can be severely injured or killed in a crash if
you aren’t wearing your safety belt
-- even if you
have an air bag. Wearing your safety belt during
a crash helps reduce your chance of hitting things
inside the vehicle or being ejected from it. Air
bags are “supplemental restraints” to the safety
belts. All air bags are designed to work with
safety belts but don’t replace them.
Frontal
air bags for the driver and right front
passenger are designed
to work only in moderate
to severe crashes where the front of your vehicle
hits something. They aren’t designed to inflate at
all in rollover, rear, side or low-speed frontal
crashes. The side impact
air bags for the driver
and right front passenger are designed to inflate
only
in moderate to severe crashes where
something
bits the side of your vehicle. They aren’t
designed
to inflate in frontal, or in a rollover or in
rear crashes. Everyone in your vehicle should wear
a safety belt properly -- whether or not there’s an
air bag for that person.
1-22

Downloaded from www.Manualslib.com manuals search engine I /11 CAUTION:
I
Both frontal and side impact air bags inflate with
great force, faster than the blink
of an eye. If
you’re too close to an inflating air bag, it could
seriously injure you. Safety belts help keep you in
position for air bag inflation before and during
a
crash. Always wear your safety belt, even with air
bags. The driver should sit as far back as possible
while still maintaining control of the vehicle.
Front occupants should not lean on or sleep
against the door.
I /i CAUTION:
An inflating air bag can seriously injure small
children. Always secure children properly in your
vehicle. To read how, see the part of this manual
called “Children” and the caution label on the
right front passenger’s safety belt.
AIR BAG
There is an air bag readiness light on the instrument
panel, which shows AIR BAG.
The system checks the
air bag electrical system for
malfunctions. The light tells you if there is an electrical
problem. See “Air Bag Readiness Light” in the Index
for more information.
1-23

Downloaded from www.Manualslib.com manuals search engine How the Air Bag Systems Work
Where are the air bags?
-
The right front passenger’s frontal air bag is in the
instrument panel on the passenger’s side.
The driver’s frontal air bag is in the middle
of the
steering wheel.
1-24

Downloaded from www.Manualslib.com manuals search engine The driver’s side impact air bag is in the driver’s door.
The right
front passenger’s side impact air bag is in the
passenger’s door.
If something is between an occupant and an
air bag, the bag might not inflate properly or
it might force the object into that person. The
path
of an inflating air bag must be kept clear.
Don’t put anything between an occupant and an
air bag, and don’t attach or put anything on the
steering wheel hub or on
or near any other air
bag covering.
1-25
..
