Downloaded from www.Manualslib.com manuals search engine Some cleaning cassettes or CD adapter kits may appear
as a broken tape. If the cleaning cassette is ejected
immediately from the tape player, follow these steps for
the TAPE CLEAN OVERRIDE feature:
1. Turn the ignition to RUN or ACC.
2. Turn the radio off.
3. Press and hold the SOURCE button for three
seconds. After three seconds, the tape icon will flash
indicating the cut tape feature is now turned
off.
4.
Turn the radio on and insert the cleaning cassette (or
the CD adapter
kit).
5. Eject the tape after the tape player has been cleaned.
When the cleaning cassette has been ejected, the broken
tape detection feature is active again.
You may also choose a non-scrubbing action, wet-type
cleaner which uses a cassette with a fabric belt to clean
the tape head.
This type of cleaning cassette will not
eject and, it may not clean as thoroughly as the
scrubbing type cleaner.
Cassettes
are subject to wear and the sound quality
may degrade over time. Always make sure the cassette
tape is
in good condition before you have your tape
player serviced.
Care of Your Compact Discs
Handle discs carefully. Store them in their original cases
or other protective cases and away from direct sunlight
and dust. If the surface of a disc
is soiled, dampen a
clean, soft cloth in a mild, neutral detergent solution and
clean it, wiping from the center to the edge.
Be sure never to touch the signal surface when handling
discs. Pick up discs by grasping the outer edges or the
edge of the hole and the outer edge.
Power Antenna Mast Care
Your power antenna will look its best and work well
if it’s cleaned from time to time. To clean the
antenna mast:
1. Turn on the ignition and radio to raise the antenna.
2. Dampen a clean cloth with mineral spirits or
equivalent solvent.
3. Wipe the cloth over the mast sections, removing any dirt.

Downloaded from www.Manualslib.com manuals search engine When you put the cap back on, turn it to the right
(clockwise) until you hear
a clicking sound. Make sure
you fully install the cap.
NOTICE:
If you need a new cap, be sure to get the right
type. Your dealer can get one
for you. If you get
the wrong type, it may not
fit or have proper
venting, and your fuel tank and emissions system
might be damaged.
Checking Thiw~s Under the Hood
A CAU I ION: I
r- - I
An electric fan under the hood can start up and
injure you even when the engine is not running.
Keep hands, clothing and tools away from any
underhood electric fan.
Things that burn can get on hot engine parts and
start a fire. These include liquids like gasoline,
oil, coolant, brake fluid, windshield washer and
other fluids, and plastic or rubber. You or others
could be burned. Be careful not to drop or spill
things that will burn onto a hot engine.
6-7
I

Downloaded from www.Manualslib.com manuals search engine Using Solvent-Type Cleaner on Fabric
First, see if you have to use solvent-type cleaner at all.
Some spots and stains will clean off better with just
water and mild soap.
If you need to use a solvent:
1. Gently scrape excess soil from the trim material with
a clean, dull knife or scraper.
2. Use very little cleaner, light pressure and clean cloths
(preferably cheesecloth). Cleaning should start at
the
outside of the stain, “feathering” toward the center.
3. Keep changing to a clean section of the cloth.
4. When you clean a stain from fabric, immediately
dry the area with a blow dryer to help prevent
a
cleaning ring.
Special Cleaning Problems
Greasy or Oily Stains
Stains caused by grease, oil, butter, margarine, shoe
polish, coffee with cream, chewing gum, cosmetic
creams, vegetable oils, wax crayon, tar and asphalt can
be removed as follows:
1. Carefully scrape off excess stain.
2. Follow the solvent-type instructions described earlier.
Shoe polish, wax crayon, tar and asphalt will stain if left
on a vehicle’s seat fabric. They should be removed as soon as possible.
Be careful, because the cleaner will
dissolve them and may cause them to spread.
Non-Greasy Stains
Stains caused by catsup, coffee (black), egg, fruit, fruit
juice,
milk, soft drinks, wine, vomit, urine and blood can
be removed
as follows:
1.
2.
3.
4.
Carefully scrape off excess stain, then sponge the
soiled area with cool water.
If a stain remains, follow the foam-type instructions
described earlier.
If an odor lingers after cleaning vomit or urine,
treat the area with a waterhaking soda solution:
1 teaspoon (5 ml) of baking soda to 1 cup (250 ml)
of lukewarm water.
If needed, clean lightly with solvent-type cleaner.
6-50

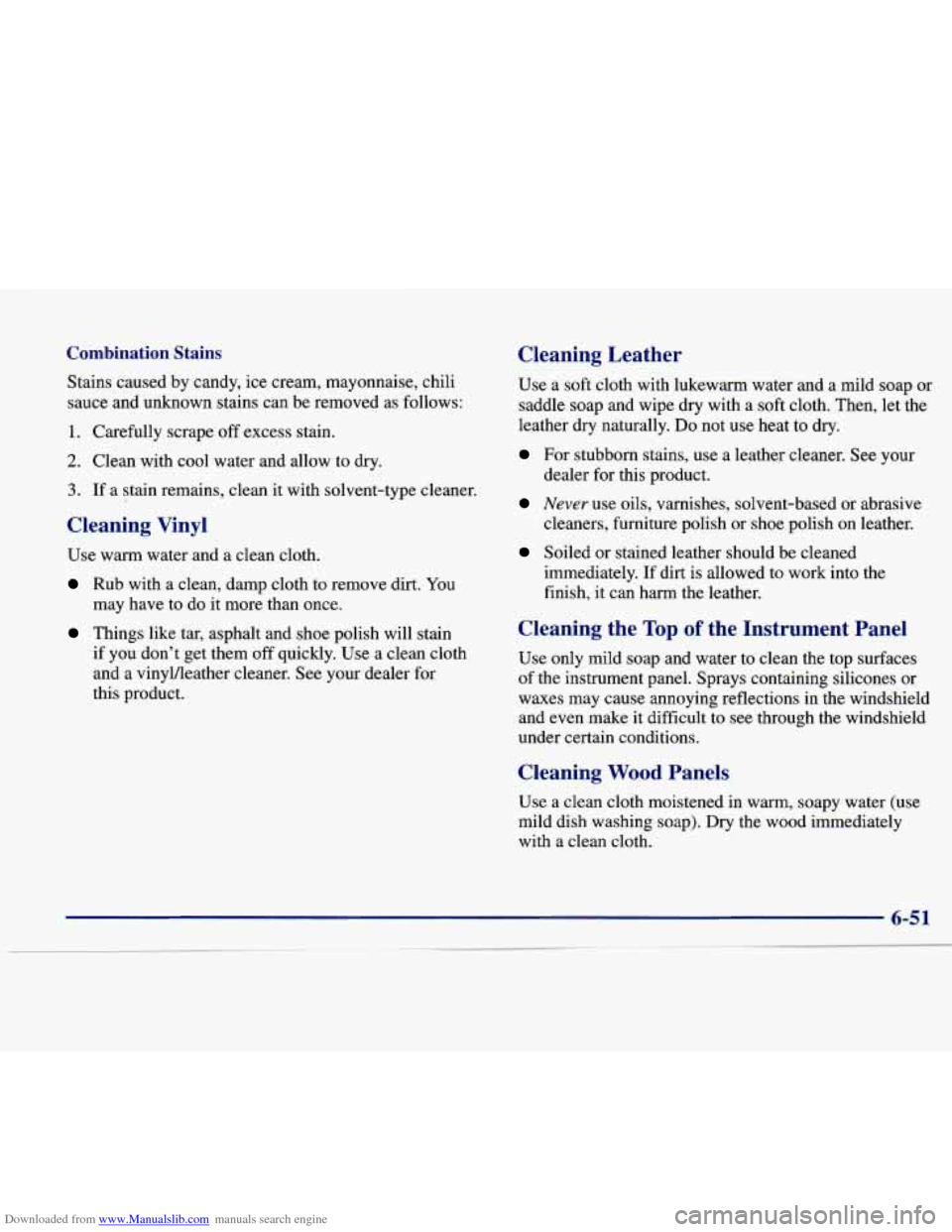

Downloaded from www.Manualslib.com manuals search engine Combination Stains Cleaning Leather
Stains caused by candy, ice cream, mayonnaise, chili
sauce and unknown stains can be removed as follows:
1. Carefully scrape off excess stain.
2. Clean with cool water and allow to dry.
3. If a stain remains, clean it with solvent-type cleaner.
Cleaning Vinyl
Use warm water and a clean cloth.
Rub with a clean, damp cloth to remove dirt. You
Things like tar, asphalt and shoe polish will stain
if you don’t get them
off quickly. Use a clean cloth
and a vinylAeather cleaner.
See your dealer for
this product. may have to do
it more than once. Use a soft cloth with lukewarm water and a mild
soap or
saddle soap and wipe dry with a soft cloth. Then, let the
leather dry naturally.
Do not use heat to dry.
For stubborn stains, use a leather cleaner. See your
dealer for this product.
Never use oils, varnishes, solvent-based or abrasive
cleaners, furniture polish or shoe polish on leather.
immediately. If dirt is allowed to work into the
finish,
it can harm the leather.
Soiled or stained leather should be cleaned
Cleaning the Top of the Instrument Panel
Use only mild soap and water to clean the top surfaces
of the instrument panel. Sprays containing silicones or
waxes may cause annoying reflections in the windshield
and even make
it difficult to see through the windshield
under certain conditions.
Cleaning Wood Panels
Use a clean cloth moistened in warm, soapy water (use
mild dish washing soap).
Dry the wood immediately
with a clean cloth.

Downloaded from www.Manualslib.com manuals search engine Replacement Bulbs
Application Number
Headlamps, Composite Inner High Beam
....................... 9005
Outer
Low Beam ....................... 9006
Front Turn Signal
..................... 3157 NA
Rear Turn Signal and Taillamp ............. 2057
Center
High-Mounted Stoplamp (CHMSL)
... 1156
Capacities and Specifications
Engine Specifications
Displacement ......... 279 cubic inches (4.565 cc)
Type
......................... 4.6 L DOHC VS
DeVille and DeVille d’Elegance .............. Y
VIN Engine Code
Concours
................................ 9
Horsepower DeVille and DeVille d’Elegance
. ~ - . . 275 (bhp) @ 5600 rpm
205
(kW) @ 5600 rpm
224
(kW) @ 6000 rpm
Concours ............... 300 (bhp) @ 6000 rpm Torque
DeVille and DeVille d’Elegance
.... 300 (lb-ft) @ 4000 rpm
407 (N-m)
@ 4000 rpm
400
(N-m) @ 4400 rpm
Concours
.............. 295
(lb-ft) @ 4400 rpm
Firing Order
................... 1-2-7-3-4-5-6-8
To Open..
.............. 177-184°F (81-85°C)
Thermostat Starts
Capacities
Transaxle (4TSO-E) ............ 15 quarts (14.2 L)
Crankcase (Engine Oil with
Engine Cooling System
...... 10.68 quarts (10.1 L)
R- 134a Refrigerant ............. 2.0 lbs. (0.9 1 kg)
Filter
Change)
.............. 7.0 quarts (6.62 L)
Fuel Tank .................. 20 gallons (75.7 L)
6-69

Downloaded from www.Manualslib.com manuals search engine Vehicle Dimensions
Wheel Base ............ 113.8 inches (289.1 cm)
Length
................ 209.8 inches (532.9 cm)
Height
.................. 56.4 inches (143.3 cm)
Width
.................. 76.5 inches (194.3 cm)
Front Tread
.............. 60.9 inches (154.7 cm)
Rear Tread
.............. 60.9 inches (154.7 cm)
Wheel Nut Torque ......... 100 lb-ft (140 N-m)
Air Conditioning Refrigerants
Not all air conditioning refrigerants are the same. If the
air conditioning system in your vehicle needs
refrigerant, be sure the proper refrigerant is used. If
you’re not sure; ask your Cadillac dealer.
Normal Maintenance
Replacement Parts
Air Filter Element ............. AC Type A1096C
25096932
Fuel Filter Element ............ AC Type GF-624
25121801
Engine
Oil Filter ................ AC Type PF-58 25014377
PCV Valve
.................. AC Type CV-774C 6487779
Spark Plugs
................... AC Type 41-900
5614236
Thermostat
.................... AC Type 13 1-66
3531407
Windshield Wiper Blade (Pin Type)
................ .22 inches (56.5 cm)
