CADILLAC DEVILLE 1998 7.G Owners Manual

Downloaded from www.Manualslib.com manuals search engine Checking Coolant
L
The surge tank is located next to the engine block on the
passenger's side of the engine.
The cooling system is under a lot of pressure when it is
hot.
If the CHECK COOLANT LEVEL message
appears on the Driver Information Center (DIC), you
will need to add coolant.
l'brning the surge tank pressure cap when the
engine and radiator are hot can allow steam and
scalding liquids to blow
out and burn you badly.
Never turn
the surge tank pressure cap -- even a
little
-- when the engine and radiator are hot.
When your engine is cold, the coolant level should be
at the
FULL COLD mark, which is 2.5 inches (6.4 cm)
below the base
of the fill neck. Use a flashlight as
necessary to
see into the tank.
~MIUM UNLEADED -
-
FUEL ONLY IJIJ DJ DJ MK
HHrnrnrnrn
If the CHECK COOLANT LEVEL message comes on,
it means you're low on engine coolant.
For more information, see "Check Coolant Level"
message in the Index.

Downloaded from www.Manualslib.com manuals search engine Adding Coolant
If you need more coolant, add the proper DEX-COOL@
coolant mixture at the surge tank, but only when the
engine
is cool.
r-
You can be burned if you spill coolant on hot
engine parts. Coolant contains ethylene glycol, and it will burn if the engine parts are hot
enough. Don’t spill coolant on
a hot engine.
Surge Tank Pressure Cap
I NOTICE:
The surge tank cap is a 15 psi (105 kPa)
pressure-type cap and must be tightly installed to
prevent coolant loss and possible engine damage
from overheating. Be sure the arrows on the cap
line up.
If the surge tank pressure cap needs to be replaced, a
GM cap is recommended.
Thermostat When replacing the pressure cap, make sure it is tight.
Engine coolant temperature is controlled by a thermostat
in the engine coolant system. The thermostat stops the
flow of coolant through the radiator until the coolant
reaches a preset temperature.
If your thermostat needs to be replaced, a GM
thermostat is recommended.
6-25

Downloaded from www.Manualslib.com manuals search engine Power Steering Fluid
The power steering fluid
reservoir is located next to
the coolant surge.tank on
the passenger’s side of
the engine.
When to Check Power Steering Fluid
It is not necessary to regularly check power steering
fluid unless you suspect there is a leak in the system or
you hear an unusual noise. A fluid loss in this system
could indicate a problem. Have the system inspected
and repaired.
How To Check Power Steering Fluid
When the engine compartment is cool, wipe the cap
and the top
of the reservoir clean, then unscrew the cap
and wipe the dipstick with a clean rag. Replace the cap
and completely tighten it. Then remove the cap again
and look at the fluid level on the dipstick.
The level should be at the
FULL COLD mark. If
necessary, add only enough fluid to bring the level up
to the mark.
What to Use
To determine what kind of fluid to use, see
“Recommended Fluids and Lubricants” in the
Maintenance Schedule booklet. Always use the
proper fluid. Failure to use the proper fluid can cause
leaks and damage hoses and seals.
Windshield Washer Fluid
What to Use
When you need windshield washer fluid, be sure to read
the manufacturer’s instructions before use.
If you will be
operating your vehicle in an area where the temperature
may fall below freezing, use a fluid that has sufficient
protection against freezing.
6-26
I

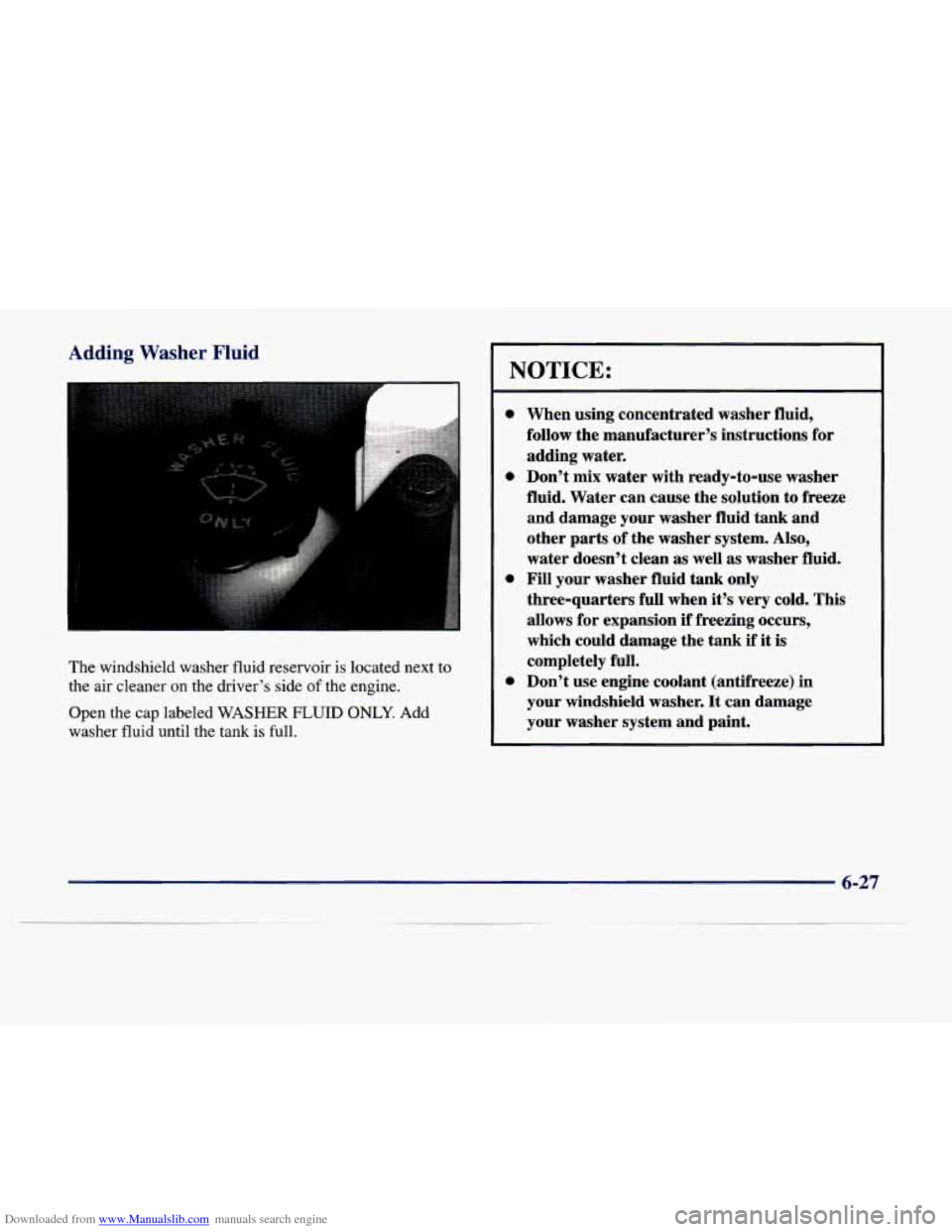

Downloaded from www.Manualslib.com manuals search engine Adding Washer Fluid
NOTICE:
I
The windshield washer fluid reservoir is located next to
the air cleaner on the driver's side of the engine.
Open the cap labeled
WASHER FLUID ONLY. Add
washer fluid until the tank is full.
0
0
0
0
When using concentrated washer fluid,
follow the manufacturer's instructions for
adding
water.
Don't mix water with ready-to-use washer
fluid. Water can cause the solution to freeze
and damage your washer fluid tank and
other parts of the washer system. Also,
water doesn't clean
as well as washer fluid.
Fill your washer fluid tank only
three-quarters full when
it's very cold. This
allows for expansion if freezing occurs,
which could damage the tank
if it is
completely full.
Don't use engine coolant (antifreeze) in
your windshield washer.
It can damage
your washer system and paint.
6-27

Downloaded from www.Manualslib.com manuals search engine Brakes
Brake Fluid
Your brake master cylinder reservoir is here. It is filled
with
DOT-3 brake fluid.
There are only two reasons why the brake fluid level
in the
reservoir might go down. The first
is that the brake fluid
goes down to
an acceptable level during normal brake
lining wear. When new linings are put in, the fluid level
goes back up. The other reason is that fluid is leaking out of the brake system.
If it is, you should have your brake
system fixed,
since a leak means that sooner or later your
brakes won’t work well, or won’t work at all.
So, it isn’t a good idea to “top off’ your brake fluid.
Adding brake fluid won’t correct a leak.
If you add fluid
when your linings are worn, then you’ll have too much
fluid when you get new brake linings. You should add
(or remove) brake fluid, as necessary, only when work is
done on the brake hydraulic system.
If you have too much brake fluid, it can spill
on the engine. The fluid will burn if the engine
is hot enough.
You or others could be burned,
and your vehicle could be damaged. Add brake
fluid only when work is done on the brake
hydraulic system.
When your brake fluid falls to a low level, your brake warning light will come on. See “Brake System Warning
Light” in the Index.
6-28

Downloaded from www.Manualslib.com manuals search engine What to Add
When you do need brake fluid, use only DOT-3 brake
fluid
-- such as Delco Supreme 11’ (GM Part
No. 12377967). Use new brake fluid from a sealed
container only.
Always clean the brake fluid reservoir cap and the
area around the
cap before removing it. This will help
keep dirt from entering the reservoir.
With the wrong kind
of. fluid in your brake
system, your brakes may not work well, or they
may not even work at
all. This could cause a
crash. Always use the proper brake fluid.
NOTICE:
Using the wrong fluid can badly damage
brake system parts. For example,
just a few
drops
of mineral-based oil, such as engine
oil, in your brake system can damage brake
system parts
so badly that they’ll have to be
replaced. Don’t let someone put in the
wrong kind of fluid.
If you spill brake fluid on your vehicle’s
painted surfaces, the paint finish can be damaged. Be careful not to spill brake fluid
on your vehicle.
If you do, wash it off
immediately. See “Appearance Care” in
the Index.
6-29

Downloaded from www.Manualslib.com manuals search engine Brake Wear
Your vehicle has four-wheel disc brakes.
Disc brake pads have built-in wear indicators that
make a high-pitched warning sound when the brake
pads’are worn and new pads are needed.
The sound
may come and go or be heard all
the time your vehicle
is moving (except when you are pushing on the brake
pedal firmly).
r
The brake wear warning sound means that soon
your brakes won’t work well. That could lead to
an accident. When you hear the brake wear
warning sound, have your vehicle serviced.
NOTICE:
Continuing to drive with worn-out brake pads
could result in costly brake repair.
Some driving conditions or climates may cause a brake
squeal when the brakes are first applied or lightly
applied. This does not mean something is wrong with
your brakes.
Properly torqued wheel nuts are necessary to help
prevent brake pulsation. When tires
are rotated, inspect
brake pads for wear and evenly torque wheel nuts in
the proper sequence to
GM specifications.
Brake linings should always be replaced as complete axle sets.
See “Brake System Inspection” in the Maintenance
Schedule booklet under Part
C “Periodic Maintenance
Inspections.”
Brake Pedal Travel
See your dealer if the brake pedal does not return to
normal height, or
if there is a rapid increase in pedal
travel. This could be a sign of brake trouble.
Brake Adjustment
Every time you apply the brakes, with or without the
vehicle moving, your brakes adjust for wear.
6-30

Downloaded from www.Manualslib.com manuals search engine Replacing L - -‘;e System Parts
The braking system on a modem vehicle is complex.
Its many parts have to be of top quality and work well
together if the vehicle is to have really good braking.
Your vehicle was designed and tested with top-quality
GM brake parts. When you replace parts of your braking system
-- for example, when your brake linings wear
down and you have to have new ones put in
-- be sure
you get new approved GM replacement parts. If you
don’t, your brakes may no longer work properly. For
example,
if someone puts in brake linings that are wrong
for your vehicle, the balance between your front and
rear brakes can change
-- for the worse. The braking
performance you’ve come to expect can change in many
other ways if someone puts in the wrong replacement
brake parts.
Battery
Every new Cadillac has an ACDelco Freedom@ battery.
You never have to add water to one
of these. When it’s
time for a new battery, we recommend an ACDelco
Freedom battery. Get one that has the replacement
number shown on the original battery’s label.
--‘-icle ~~~ Storage
lr’ you’re not going to drive your vehicle for 25 days
or more, remove the black, negative
(-) cable from
the battery. This will help keep your battery from
running down.
Batteries have acid that can burn you and gas
that can explode. You can be badly hurt if you
aren’t careful. See “Jump Starting” in the Index
for tips
on working around a battery without
getting hurt.
Contact your dealer to learn how to prepare your vehicle
for longer storage periods.
Also, for
your audio system, see “Theft-Deterrent
Feature” in the Index.
6-31
~~

Downloaded from www.Manualslib.com manuals search engine Bulb Replacer3
For any bulb changing procedure not listed in this
section, contact
your dealer's service department.
Hnlogen Bulbs
A CAUdC J:
Halogen bulbs have pressurized gas inside and
can burst if
you drop or scratch the bulb. You or
others could
be injured. Be sure to read and
follow
the instructions on the bulb package.
Headlamps
A
A
A
1. To access the headlamps, lift the cover as shown.
6-32

Downloaded from www.Manualslib.com manuals search engine 2. Turn the headlamp housing socket to the left to
unlock the socket from the lamp housing.
L
3. Disconnect the socket from the harness by separating
4. Install the new bulb and socket to the wiring harness
the locking clip.
connector. Make
sure that
the harness is locked to the
bulb socket.
6-33
