1-60

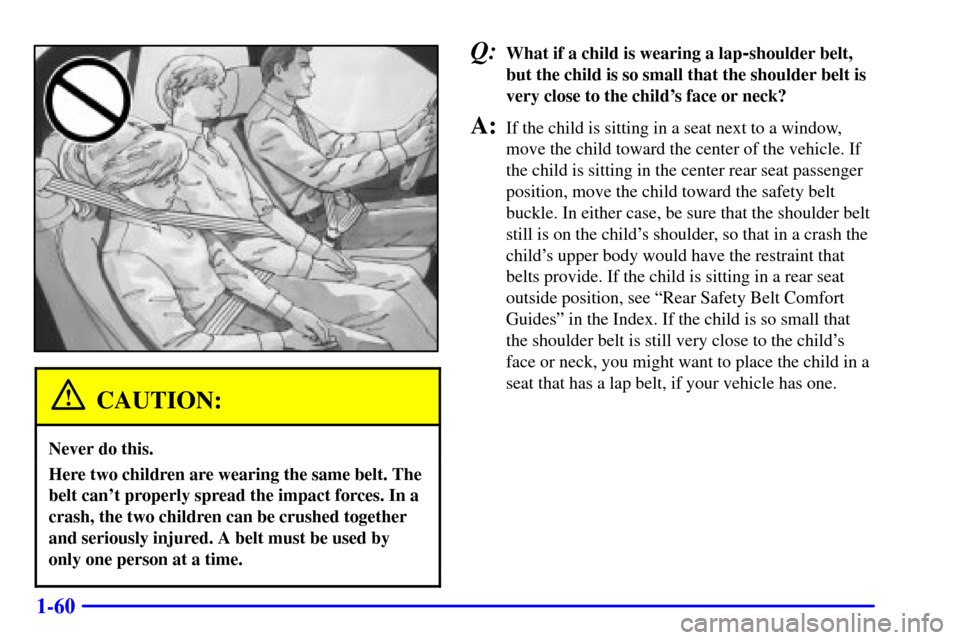

CAUTION:
Never do this.
Here two children are wearing the same belt. The
belt can't properly spread the impact forces. In a
crash, the two children can be crushed together
and seriously injured. A belt must be used by
only one person at a time.
Q:What if a child is wearing a lap-shoulder belt,
but the child is so small that the shoulder belt is
very close to the child's face or neck?
A:If the child is sitting in a seat next to a window,
move the child toward the center of the vehicle. If
the child is sitting in the center rear seat passenger
position, move the child toward the safety belt
buckle. In either case, be sure that the shoulder belt
still is on the child's shoulder, so that in a crash the
child's upper body would have the restraint that
belts provide. If the child is sitting in a rear seat
outside position, see ªRear Safety Belt Comfort
Guidesº in the Index. If the child is so small that
the shoulder belt is still very close to the child's
face or neck, you might want to place the child in a
seat that has a lap belt, if your vehicle has one.

2-3
Power Windows
The power window switches are located on the armrest
near each window. Press the up or down arrows on the
switches to raise or lower the windows.
Your vehicle has Retained Accessory Power (RAP) that
allows you to use the power windows once the ignition
has been turned off. For more information, see
ªRetained Accessory Powerº in the Index.Express
-Down Window
This feature is on all power windows. Press the down
arrow on the switch to the second position to activate the
express
-down feature. If you want to stop the window as
it is lowering, press the up arrow on the switch once.
Express
-Up Window
This feature is on both front power windows. Press the
up arrow on the switch to the second position to activate
the express
-up feature. If you want to stop the window
as it is raising, press the down arrow on the switch once.

2-6
Master Key Valet Key
There is a master key that works all of the lock cylinders
(driver's door, trunk, ignition and glove box).
There is also a VALET key which only operates the
driver's door and the ignition.
Your vehicle has the PASS
-Key
III vehicle theft
system. Both the master and VALET key have a
transponder in the key head that matches a decoder in
the vehicle's steering column. If a replacement key or
any additional key is needed, you must purchase this key
from your dealer. The key will have PK3 stamped on it.Keep the bar code tag that came with the original keys.
Give this tag to your dealer if you need a new key made.
Any new PASS
-Key III key must be programmed
before it will start your vehicle. See ªPASS
-Key IIIº
in the Index for more information on programming your
new key.
NOTICE:
Your vehicle has a number of new features that
can help prevent theft. You can have a lot of
trouble getting into your vehicle if you ever
lock your keys inside. You may even have to
damage your vehicle to get in. So be sure you
have extra keys.
In an emergency, contact Cadillac Roadside Assistance.
See ªRoadside Assistanceº in the Index.
If your vehicle is equipped with the OnStar system with
an active subscription and you lock your keys inside the
vehicle, OnStar may be able to send a command to
unlock your vehicle. See ªOnStarº in the Index for
more information.

2-8
Central Door Unlocking System
Your vehicle has a central door unlocking mode and a
theft
-deterrent system. When unlocking the driver's
door, you can unlock the other doors by holding the key
in the turned position for a few seconds or by quickly
turning the door key twice in the lock cylinder.
Power Door Locks
The power door lock
switches are located
on the door panels
near the windows.
Press the bottom part of the power door lock switch
located on either front door to lock all the doors at once.
Press the top of the switch to unlock all the doors at once.The power door lock switches located on the rear doors
can also lock all the doors at once by pressing the
bottom part of them, but they cannot unlock the doors.
Automatic Door Locks
Your vehicle is programmed so that when the doors are
closed, the ignition is on and the shift lever is moved out
of PARK (P), all the doors will lock. The doors will
unlock every time you stop the vehicle and move the
shift lever back into PARK (P).
If someone needs to get out while your vehicle is not in
PARK (P), have that person use the manual lever or
power door lock switch. When the door is closed again,
it will not lock automatically. Use the manual lever or
power lock switch to lock the door.
Programmable Automatic Door Locks
With the vehicle in PARK (P) and the ignition in ON,
the door locks can be programmed through prompts
displayed on the Driver Information Center (DIC).
These prompts allow the driver to choose various lock
and unlock settings. For programming information, see
ªVehicle Programming and Personalization Featuresº in
the Index.

2-11
Operation
(Lock): When you press
this symbol to lock the
doors, the parking lamps
will flash once and the horn
will sound. This arms the
theft
-deterrent system.
The parking lamps will not flash, however, if the manual
parking lamps are left on. Remote confirmation is not
operational if a door is open.
You can program your vehicle so the parking lamps
will not flash and the horn will not sound. For more
information, see ªLock/Unlock Confirmationº in
the Index.
(Unlock): When you press this symbol to unlock
the driver's door, the parking lamps on your vehicle will
flash twice. The parking lamps will not flash if they
have been turned on manually. Remote confirmation is
not operational if a door is open.Press this button again within one to five seconds
to unlock the other doors. It will also disarm the
theft
-deterrent system and turn on the interior
lamps at night.
You can program your vehicle so the parking lamps will
not flash. For more information, see ªLock/Unlock
Confirmationº in the Index.
(Panic Alarm): The remote keyless entry
transmitter comes equipped with an instant panic alarm.
To use the alarm, press the horn symbol when the
ignition is turned off. The horn will sound and the
exterior lamps will flash for up to 30 seconds. To stop
the instant panic alarm, press the symbol again or turn
the ignition to ON.
(Trunk): Press this button to open the trunk. The
valet lockout switch must be off for this feature to work.
The remote keyless entry transmitter can be used to
recall the memory settings for up to two drivers. For
more information, see ªVehicle Programming and
Personalization Featuresº and ªMemory Seat, Mirrors
and Steering Wheelº in the Index.

2-14
Trunk
CAUTION:
It can be dangerous to drive with the trunk lid
open because carbon monoxide (CO) gas can
come into your vehicle. You can't see or smell
CO. It can cause unconsciousness and even death.
If you must drive with the trunk lid open or if
electrical wiring or other cable connections must
pass through the seal between the body and the
trunk lid:

Make sure all other windows are shut.

Turn the fan on your heating or cooling
system to its highest speed with the setting
on AUTO and the temperature between
65F (18C) and 85F (29C). That will
force outside air into your vehicle. See
ªComfort Controlsº in the Index.

If you have air outlets on or under the
instrument panel, open them all the way.
See ªEngine Exhaustº in the Index.
Trunk Lock Release
The trunk lock release
button is located to the left
of the steering wheel on the
instrument panel.
Press the button to open the trunk. To use this feature,
your vehicle must be in PARK (P) or NEUTRAL (N)
and the valet lockout switch must be off.
You can also press the button with the trunk symbol on
the remote keyless entry transmitter to open the trunk.
To disable this feature, see ªValet Lockout Switchº in
the Index.

2-19
Remember, the theft-deterrent system won't arm if you
lock the doors with a key or use the manual door lock. It
activates only if you use a power door lock with the
door open or the remote keyless entry transmitter.
To avoid activating the alarm by accident do
the following:

The vehicle should be locked with the door key or
the manual door lock after the doors are closed if
you don't want to arm the theft
-deterrent system.

Always unlock a door with a key or use the remote
keyless entry transmitter system. Pressing the unlock
button on the remote keyless entry transmitter
disables the theft
-deterrent system. Unlocking a door
any other way will activate the alarm when a door or
the trunk is opened.
If you activate the alarm by accident, unlock the driver's
door with your key. You can also turn off the alarm
by using the unlock button on the remote keyless
entry transmitter system, or by starting the car with a
valid key.
Changes or modifications made to this system by other
than an authorized service facility could void
authorization to use the theft system.
Testing the Alarm
1. From inside the vehicle, roll down the window, then
get out of the vehicle, keeping the door open.
2. From outside of the vehicle, with the door open,
lock the vehicle using the power door lock or the
remote keyless entry system and close the door.
Wait 30 seconds until the SECURITY lamp goes off.
3. Reach in and unlock the door using the manual lock
and open the door. The horn will sound and the
hazard lights will flash.
You can turn off the alarm by unlocking the driver's
door with your key, using the unlock button on the
remote keyless entry transmitter or by starting the car
with a valid key.
If the alarm does not sound when it should, check to see
if the horn works. The horn fuse may be blown. To
replace the fuse, see ªFuses and Circuit Breakersº in the
Index. If the fuse does not need to be replaced, you may
need to have your vehicle serviced.
To reduce the possibility of theft, always arm the
theft
-deterrent system when leaving your vehicle.

2-21
This device complies with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation of
the device.
Changes or modifications to this system by other than
an authorized service facility could void authorization to
use this equipment.
PASS
-Key III uses a radio frequency transponder in
the key that matches a decoder in your vehicle.
When the PASS
-Key III system senses that someone is
using the wrong key, it shuts down the vehicle's starter
and fuel systems. The starter will not work and fuel will
stop being delivered to the engine. Anyone using a
trial
-and-error method to start the vehicle will be
discouraged because of the high number of electrical
key codes.
When trying to start the vehicle, if the engine does not
start and the SECURITY light comes on, the key may
have a damaged transponder. Turn the ignition off and
try again.If the engine does not start, and the key appears to be
undamaged, try another ignition key. At this time, you
may also want to check the fuse. See ªFuses and Circuit
Breakersº in the Index. If the engine still does not start
with the other key, your vehicle needs service. If your
vehicle does start, the first key may be faulty. See your
dealer who can service the PASS
-Key III to have a new
key made.
It is possible for the PASS
-Key III decoder to learn the
transponder value of a new or replacement key. Up to
10 additional keys may be programmed for the vehicle.
This procedure is for learning additional keys only.
Canadian Owners: If you lose or damage your keys,
only a GM dealer can service PASS
-Key III to have new
keys made. To program additional keys you will require
two current driver's keys (black in color). You must add
a step to the following procedure. After Step 2, repeat
Steps 1 and 2 with the second current driver's key.
Then continue with Step 3.
To program the new key do the following:
1. Verify that the new key has PK3 stamped on it.
2. Insert the current driver's key in the ignition and
start the engine. If the engine will not start see your
dealer for service.

2-22
3. After the engine has started, turn the key to OFF, and
remove the key.
4. Insert the key to be programmed and turn it to ON
within ten seconds of removing the previous key.
5. The SECURITY light will turn off once the key has
been programmed. It may not be apparent that the
SECURITY light went on due to how quickly the
key is programmed.
6. Repeat the Steps 1 through 4 if additional keys are to
be programmed.
If you are ever driving and the SECURITY light
comes on and stays on, you will be able to restart your
engine if you turn it off. Your PASS
-Key III system,
however, is not working properly and must be serviced
by your dealer. Your vehicle is not protected by the
PASS
-Key III system at this time.
If you lose or damage a PASS
-Key III key, see your
dealer to have a new key made.
In an emergency, contact Cadillac Roadside Assistance.
See ªRoadside Assistanceº in the Index.
New Vehicle ªBreak-Inº
NOTICE:
Your vehicle doesn't need an elaborate
ªbreak
-in.º But it will perform better in the long
run if you follow these guidelines:

Don't drive at any one speed -- fast or
slow
-- for the first 500 miles (805 km).
Don't make full
-throttle starts.

Avoid making hard stops for the first
200 miles (322 km) or so. During this time
your new brake linings aren't yet broken
in. Hard stops with new linings can mean
premature wear and earlier replacement.
Follow this breaking
-in guideline every
time you get new brake linings.

Don't tow a trailer during break
-in.
See ªTowing a Trailerº in the Index for
more information.

2-23
Ignition Positions
With the key in the ignition switch, you can turn the key
to four different positions.
If you cannot start your vehicle and you are unable to
remove your key from the ignition, see ªShift Lock
Releaseº in the Index.NOTICE:
If your key seems stuck in OFF and you can't
turn it, be sure you are using the correct key;
if so, is it all the way in? If it is, then turn the
steering wheel left and right while you turn the
key hard. But turn the key only with your hand.
Using a tool to force it could break the key or the
ignition switch. If none of this works, then your
vehicle needs service.
A (OFF): This is the only position in which you can
insert or remove the key. This position locks the
ignition, steering wheel and transaxle. It's a
theft
-deterrent feature.
