HomeLink®Wireless Control
System Operation
Do not use the HomeLink®Transmitter with any garage
door opener that does not have the “stop and reverse”
feature. This includes any garage door opener model
manufactured before April 1, 1982. If you have a newer
garage door opener with rolling codes, please be
sure to follow Steps 6 through 8 to complete the
programming of your HomeLink
®Transmitter.
Read the instructions completely before attempting to
program the HomeLink
®Transmitter. Because of
the steps involved, it may be helpful to have another
person available to assist you in programming the
transmitter.Keep the original transmitter for use in other vehicles as
well as for future HomeLink
®programming. It is also
recommended that upon the sale of the vehicle,
the programmed HomeLink
®buttons should be erased
for security purposes. Refer to “Erasing HomeLink®
Buttons” or, for assistance, contact HomeLink®on the
Internet at: www.homelink.com or by calling
1-800-355-3515.
Be sure that people and objects are clear of the garage
door or gate operator you are programming. When
programming a garage door, it is advised to park outside
of the garage.
It is recommended that a new battery be installed in
your hand-held transmitter for quicker and more
accurate transmission of the radio frequency.
2-45

Programming HomeLink®
Your vehicle’s engine should be turned off while
programming the transmitter. Follow these steps to
program up to three channels:
1. Press and hold down the two outside buttons,
releasing only when the indicator light begins to
ash, after 20 seconds. Do not hold down the
buttons for longer than 30 seconds and do not
repeat this step to program a second and/or third
transmitter to the remaining two HomeLink
®buttons.
2. Position the end of your hand-held transmitter about
1 to 3 inches (3 to 8 cm) away from the HomeLink
®
buttons while keeping the indicator light in view.
3. Simultaneously press and hold both the desired
button on HomeLink
®and the hand-held transmitter
button. Do not release the buttons until Step 4
has been completed.
Some entry gates and garage door openers may
require you to substitute Step 3 with the procedure
noted in “Gate Operator and Canadian
Programming” later in this section.4. The indicator light will ash slowly at rst and then
rapidly after HomeLink
®successfully receives the
frequency signal from the hand-held transmitter.
Release both buttons.
5. Press and hold the newly-trained HomeLink
®button
and observe the indicator light.
If the indicator light stays on constantly, programming
is complete and your device should activate when the
HomeLink
®button is pressed and released.
To program the remaining two HomeLink®buttons,
begin with Step 2 under “Programming HomeLink®.”
Do not repeat Step 1 as this will erase all of the
programmed channels.
If the indicator light blinks rapidly for two seconds
and then turns to a constant light, continue with
Steps 6 through 8 following to complete the
programming of a rolling-code equipped device
(most commonly, a garage door opener).
2-46

6. Locate in the garage, the garage door opener
receiver (motor-head unit). Locate the “Learn”
or “Smart” button. This can usually be found where
the hanging antenna wire is attached to the
motor-head unit.
7. Firmly press and release the “Learn” or “Smart”
button. The name and color of the button may
vary by manufacturer.
You will have 30 seconds to start Step 8.
8. Return to the vehicle. Firmly press and hold the
programmed HomeLink
®button for two seconds,
then release. Repeat the press/hold/release
sequence a second time, and depending on the
brand of the garage door opener (or other rolling
code device), repeat this sequence a third time
to complete the programming.
HomeLink
®should now activate your rolling-code
equipped device.
To program the remaining two HomeLink
®buttons,
begin with Step 2 of “Programming HomeLink®.”
You do not want to repeat Step 1, as this will erase all
previous programming.
Gate Operator and Canadian
Programming
Canadian radio-frequency laws require transmitter
signals to “time out” or quit after several seconds of
transmission. This may not be long enough for
HomeLink
®to pick up the signal during programming.
Similarly, some U.S. gate operators are manufactured
to “time out” in the same manner.
If you live in Canada, or you are having difficulty
programming a gate operator by using the
“Programming HomeLink
®” procedures (regardless of
where you live), replace Step 3 under “Programming
HomeLink
®” with the following:
Continue to press and hold the HomeLink
®button while
you press and release every two seconds (cycle)
your hand-held transmitter until the frequency signal has
been successfully accepted by HomeLink
®. The
indicator light will ash slowly at rst and then rapidly.
Proceed with Step 4 under “Programming HomeLink
®”
to complete.
2-47

Using HomeLink®
Press and hold the appropriate HomeLink®button for
at least half of a second. The indicator light will come on
while the signal is being transmitted.
Erasing HomeLink®Buttons
To erase programming from the three buttons do the
following:
1. Press and hold down the two outside buttons until
the indicator light begins to ash, after 20 seconds.
Do not hold the two outside buttons for longer
than 30 seconds.
2. Release both buttons.
HomeLink
®is now in the train (learning) mode and can
be programmed at any time beginning with Step 2
under “Programming HomeLink
®” shown earlier in
this section.
Individual buttons cannot be erased, but they can be
reprogrammed. See “Reprogramming a Single
HomeLink
®Button” following this section.
Reprogramming a Single HomeLink®
Button
To program a device to HomeLink®using a HomeLink®
button previously trained, follow these steps:
1. Press and hold the desired HomeLink
®button.
Do not release the button.
2. The indicator light will begin to ash after
20 seconds. While still holding the HomeLink
®
button, proceed with Step 2 under “Programming
HomeLink®” shown earlier in this section.
Resetting Defaults
To reset HomeLink®to default settings do the following:
1. Hold down the two outside buttons for about
20 seconds until the indicator light begins to ash.
2. Continue to hold both buttons until the HomeLink
®
indicator light turns off.
3. Release both buttons.
For questions or comments, contact HomeLink
®
at 1-800-355-3515, or on the Internet at
www.homelink.com.
2-48

Storage Areas
Glove Box
To open the glove box, lift up on the lever. The glove
box has a light inside.
Instrument Panel Storage Area
This storage compartment is located in the center of the
instrument panel below the radio. Pull the door out to
reveal the accessory power outlet and storage
compartment. To clean the storage compartment,
lift out while pulling on the sides.
Front Storage Area
If your vehicle is equipped with the front storage area,
it comes with a coinholder, a storage compartment,
an optional cellular telephone and a dual cupholder.
Full Floor Console Storage Area
If your vehicle is equipped with the full oor console,
it has an upper and lower storage area. The upper
storage area is available for the optional cellular
telephone. The lower storage area has two removable
bins that can hold tapes and/or CDs.
To open the console, pull up on either lever to open the
upper or lower storage area.
There is also a removable coinholder that attaches to
the side of one of the bins. A dual cupholder is located in
front of the console. Open and close by pressing on
the cupholder.
Center Console Storage Area
If your vehicle is equipped with the center console,
it comes with a storage tray, a storage compartment for
CDs or tapes, a dual cupholder that unfolds, a
coinholder, an optional phone and an armrest.
The cupholder can be opened by pressing on the
surface panel located in front of the armrest and
unfolding it. Close the lid to secure it.
2-49

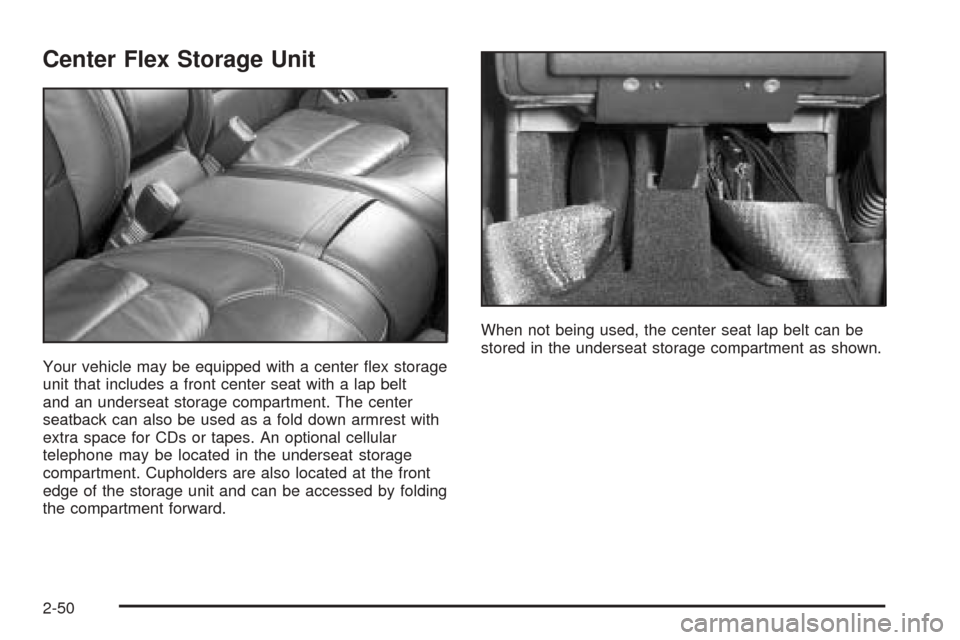

Center Flex Storage Unit
Your vehicle may be equipped with a center ex storage
unit that includes a front center seat with a lap belt
and an underseat storage compartment. The center
seatback can also be used as a fold down armrest with
extra space for CDs or tapes. An optional cellular
telephone may be located in the underseat storage
compartment. Cupholders are also located at the front
edge of the storage unit and can be accessed by folding
the compartment forward.When not being used, the center seat lap belt can be
stored in the underseat storage compartment as shown.
2-50

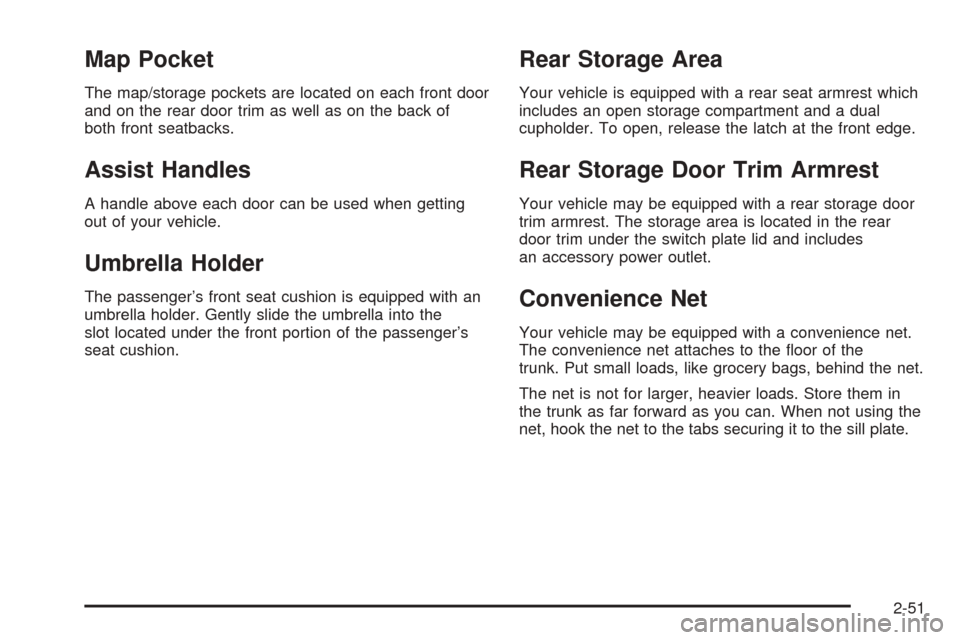

Map Pocket
The map/storage pockets are located on each front door
and on the rear door trim as well as on the back of
both front seatbacks.
Assist Handles
A handle above each door can be used when getting
out of your vehicle.
Umbrella Holder
The passenger’s front seat cushion is equipped with an
umbrella holder. Gently slide the umbrella into the
slot located under the front portion of the passenger’s
seat cushion.
Rear Storage Area
Your vehicle is equipped with a rear seat armrest which
includes an open storage compartment and a dual
cupholder. To open, release the latch at the front edge.
Rear Storage Door Trim Armrest
Your vehicle may be equipped with a rear storage door
trim armrest. The storage area is located in the rear
door trim under the switch plate lid and includes
an accessory power outlet.
Convenience Net
Your vehicle may be equipped with a convenience net.
The convenience net attaches to the oor of the
trunk. Put small loads, like grocery bags, behind the net.
The net is not for larger, heavier loads. Store them in
the trunk as far forward as you can. When not using the
net, hook the net to the tabs securing it to the sill plate.
2-51

Sunroof
Your vehicle may have a sunroof. The switches that
operate the sunroof are located on the overhead
console. The sunroof will only operate when the ignition
is on, or in accessory, or while Retained Accessory
Power (RAP) is active. SeeRetained Accessory Power
(RAP) on page 2-25.
Press and hold the ROOF switch rearward to the
rst position to open the glass panel and sunshade.
The sunshade also can be opened or closed manually.
To close the glass panel, press and hold the ROOF
switch forward. As the sunroof reaches the closedposition, it will open slightly toward the vent position
and then drop down to the closed position to provide a
better seal.
Press and release the ROOF switch rearward to the
second position to express-open the glass panel to the
comfort stop position, approximately half-way open.
The comfort stop position is designed to help reduce
noise and make the rear seat passengers more
comfortable.
The glass panel may then be fully opened by pressing
the ROOF switch again.
If you press and hold the ROOF switch in the
express-open position for more than one second,
the express-open operation will be over-ridden and the
sunroof will stop when the switch is released.
To stop the glass panel when express opening,
press the ROOF or VENT switch forward or rearward
and release.
To vent the glass panel, press and hold the VENT
switch in the open position. The sunshade must
be opened manually when using the vent position.
To close the glass panel, press and hold the VENT
switch in the close position.
The ROOF and VENT switches work only when the
ignition is on or when RAP is active. SeeRetained
Accessory Power (RAP) on page 2-25.
2-52

Vehicle Personalization
Memory Seat, Mirrors and
Steering Wheel
Your vehicle may be equipped with the memory
package.
The controls for these
features are located on the
driver’s door panel, and
are used to program
and recall memory settings
for the driver’s seat,
outside mirror, and
steering wheel positions,
if equipped with a power tilt
wheel and telescopic
steering column.To save your positions in memory, do the following:
1. Adjust the driver’s seat, including the seatback
recliner and lumbar, both outside mirrors, and
the steering wheel to a comfortable driving position.
2. Press and hold button 1 until a beep sounds through
the driver’s side front speaker to let you know that
the position has been stored.
A second seating, mirror, and steering wheel position
can be programmed by repeating the above steps
and pressing button 2 for driver 2.
To recall your memory positions while the vehicle is in
PARK (P), push and briey hold either button 1 or
button 2 corresponding to the desired driving position.
Then release the button. You will hear a single beep.
The seat, outside mirrors, and steering wheel will
then move to the position previously stored for the
identied driver.
If you use the remote keyless entry transmitter to enter
your vehicle while the remote recall memory feature is on,
then automatic seat and mirror movement will occur.
The numbers on the back of the transmitters, 1 and 2,
correspond to the numbers on the buttons on the driver’s
door panel.
2-53

If you enter the vehicle without using the remote keyless
entry transmitter, the key is in OFF, and the remote
recall memory feature is on, then the seat, mirrors, and
steering wheel will automatically adjust to the
programmed position of the last driver.
To stop recall movement of the memory feature at any
time, press one of the power seat controls.
To store the exit position for an easy exit, do the
following:
1. Recall the driver position by pressing button 1, or
by pressing the unlock button on the remote
keyless entry transmitter 1.
2. Adjust the driver’s seat and steering wheel to the
desired exit positions.
3. Press and hold the EXIT button until a beep sounds
through the driver’s side front speaker to let you
know that the position has been stored.
An exit position for driver position 2 can be programmed
by repeating the above steps, pressing button 2 for
driver 2, and using remote keyless entry transmitter
number 2.With the vehicle in PARK (P), the exit position for the
previously set driver can be recalled by pressing
the EXIT button. You will hear a single beep.
The mirrors and power lumbar positions will not be
stored or recalled.
Further programming for automatic seat and steering
wheel movement can be done using the Driver
Information Center (DIC). You can select or not select
the following:
Automatic seat and steering wheel movement when
the vehicle is unlocked with the remote keyless
entry transmitter.
Automatic seat and steering wheel movement when
the key is placed in the ignition.
For programming information, seeDIC Vehicle
Personalization on page 3-68.
2-54
