h(AUTO RECIRCULATION):If the AUTO position
is selected on either the fan or mode control, the
system will automatically control the air inlet to supply
fresh outside air or recirculate the interior air to cool
the car faster. The indicator light on the recirculation
button will light whenever the system switches to
recirculation. You may force outside air by pressing the
button when the light is lit. The next time AUTO fan
or mode is selected, the air inlet will reset back to
AUTO operation.
Manual Operation
9(Fan):Turn the left knob either to the left or right to
adjust the fan speed. Turning this control completely
counterclockwise will turn on the automatic fan
operation. Turning this control to the “O” position will
turn the climate control system off. If the airow seems
low when the fan speed is at the highest setting, the
passenger compartment air lter may need to be
replaced. SeePassenger Compartment Air Filter on
page 3-53.
9(Off):Turn the left control to this position to turn
the entire climate control system off.
To change the current mode, select one of the following
positions using the right control:
AUTO:Turn the control to this position to turn on the
automatic delivery mode operation.
F(Vent):Turn the control to this mode to direct air to
the instrument panel outlets.
*(Bi-Level):Turn the control to this mode to direct
approximately half of the air to the instrument panel
outlets and most of the remaining air to the oor outlets.
In automatic operation, cooler air is directed to the
upper outlets and warmer air to the oor outlets.
7(Floor):Turn the control to this mode to direct most
of the air to the oor outlets with some air directed to
the side window outlets and the windshield.
The mode control can also be used to select the
oor/defog mode. Information on defogging and
defrosting can be found later in this section.
3-46

In order to prevent false temperature readings at
startup, the displayed temperature will not change until
the following occurs:
Vehicle speed is above 10 mph (16 kmh) for
5 minutes.
Vehicle speed is above 32 mph (51 kmh) for
2 and a half minutes.
The climate control system uses the information from
these sensors to maintain your comfort setting by
adjusting the outlet temperature, fan speed, and the air
delivery mode. The system may also supply cooler
air to the side of the vehicle facing the sun. The
recirculation mode will also be used as needed to
maintain cool outlet temperatures.
Defogging and Defrosting
Fog on the inside of windows is a result of high humidity
(moisture) condensing on the cool window glass. This
can be minimized if the climate control system is
used properly. There are two modes to clear fog from
your windshield. Use the oor/defog mode to clear
the windows of fog or moisture and warm the
passengers. Use the defrost mode to remove fog or
frost from the windshield more quickly.
W(Floor/Defog):Turning the control to this mode
directs approximately half of the air to the oor outlets
and the remaining air is directed to the side window
outlets and to the windshield. When you select
this mode, the system turns off recirculation and runs
the air-conditioning compressor unless the outside
temperature is at or below freezing. The recirculation
mode cannot be selected while in the oor/defog mode.
0(Defrost):Turning the control to this mode directs
most of the air to the windshield and the side window
outlets. In this mode, the system will automatically turn
off recirculation and run the air-conditioning compressor,
unless the outside temperature is at or below freezing.
Recirculation cannot be selected while in the defrost
mode. Do not drive the vehicle until all the windows
are clear.
For professional vehicles, air will be allowed to ow
through the rear outlets. For quicker defrost, press the
AUX button on the front climate control system so
that the light is not lit.
3-49

This light tells you if there
could be a problem with
your engine oil pressure.
This light will come on briey when you start your
engine. That is a check to be sure the light works. If it
does not come on, be sure to have it xed so it will
be there to warn you if something goes wrong.
When the light comes on and stays on, it means that oil
is not owing through your engine properly. You
could be low on oil and you might have some other
system problem.
Security Light
For information regarding
this light, see
Theft-Deterrent Systems
on page 2-19.
Fog Lamp Light
The fog lamps light will
come on when the fog
lamps are in use.
The light will go out when the fog lamps are turned off.
SeeFog Lamps on page 3-35for more information.
Rear Fog Lamp Light
This light will come on
when the rear fog lamps
are in use. For more
information seeFog Lamps
on page 3-35.
Canada Only
3-69

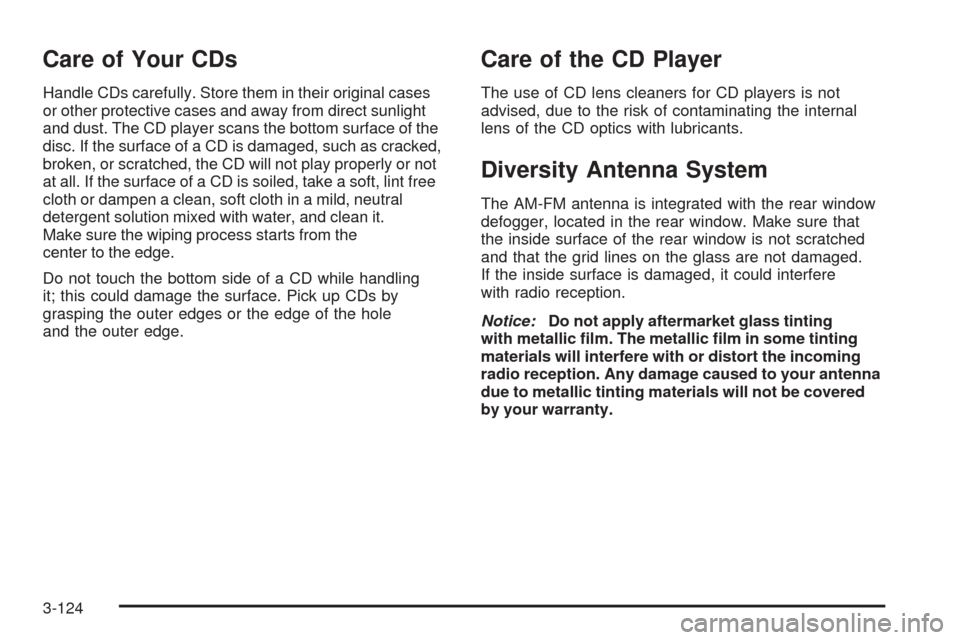

Care of Your CDs
Handle CDs carefully. Store them in their original cases
or other protective cases and away from direct sunlight
and dust. The CD player scans the bottom surface of the
disc. If the surface of a CD is damaged, such as cracked,
broken, or scratched, the CD will not play properly or not
at all. If the surface of a CD is soiled, take a soft, lint free
cloth or dampen a clean, soft cloth in a mild, neutral
detergent solution mixed with water, and clean it.
Make sure the wiping process starts from the
center to the edge.
Do not touch the bottom side of a CD while handling
it; this could damage the surface. Pick up CDs by
grasping the outer edges or the edge of the hole
and the outer edge.
Care of the CD Player
The use of CD lens cleaners for CD players is not
advised, due to the risk of contaminating the internal
lens of the CD optics with lubricants.
Diversity Antenna System
The AM-FM antenna is integrated with the rear window
defogger, located in the rear window. Make sure that
the inside surface of the rear window is not scratched
and that the grid lines on the glass are not damaged.
If the inside surface is damaged, it could interfere
with radio reception.
Notice:Do not apply aftermarket glass tinting
with metallic lm. The metallic lm in some tinting
materials will interfere with or distort the incoming
radio reception. Any damage caused to your antenna
due to metallic tinting materials will not be covered
by your warranty.
3-124

After installing the spare tire on your vehicle, you should
stop as soon as possible and make sure the spare is
correctly inated. Have the damaged or at road tire
repaired or replaced as soon as you can and installed
back onto your vehicle. This way, a spare tire will be
available in case you need it again.
Your vehicle may have a different size spare tire
than the road tire originally installed on your vehicle.
This spare tire was developed for use on your vehicle,
so it is all right to drive on it.
If your vehicle has a spare tire that does not match your
vehicle’s original road tires and wheels in size and
type, do not include the spare in the tire rotation.
Appearance Care
Cleaning the Inside of Your Vehicle
Your vehicle’s interior will continue to look its best if
it is cleaned often. Although not always visible, dust and
dirt can accumulate on your upholstery. Dirt can
damage carpet, fabric, leather, and plastic surfaces.
Regular vacuuming is recommended to remove particles
from your upholstery. It is important to keep your
upholstery from becoming and remaining heavily soiled.
Soils should be removed as quickly as possible. Your
vehicle’s interior may experience extremes of heat
that could cause stains to set rapidly.Lighter colored interiors may require more frequent
cleaning. Use care because newspapers and garments
that transfer color to your home furnishings may also
transfer color to your vehicle’s interior.
When cleaning your vehicle’s interior, only use cleaners
specically designed for the surfaces being cleaned.
Permanent damage may result from using cleaners on
surfaces for which they were not intended. Use glass
cleaner only on glass. Remove any accidental over-spray
from other surfaces immediately. To prevent over-spray,
apply cleaner directly to the cleaning cloth.
Notice:If you use abrasive cleaners when cleaning
glass surfaces on your vehicle, you could scratch
the glass and/or cause damage to the integrated
radio antenna and the rear window defogger. When
cleaning the glass on your vehicle, use only a
soft cloth and glass cleaner.
Many cleaners contain solvents that may become
concentrated in your vehicle’s breathing space. Before
using cleaners, read and adhere to all safety
instructions on the label. While cleaning your vehicle’s
interior, maintain adequate ventilation by opening
your vehicle’s doors and windows.
Dust may be removed from small buttons and knobs
using a small brush with soft bristles.
Your GM dealer has a product for cleaning your
vehicle’s glass. Should it become necessary, you can
also obtain a product from your GM dealer to remove
odors from your vehicle’s upholstery.
5-83

E
Electrical System
Add-On Equipment......................................5-92
Fuses and Circuit Breakers...........................5-93
Headlamp Wiring.........................................5-92
Power Windows and Other Power Options.........5-93
Rear Underseat Fuse Block..........................5-96
Underhood Fuse Block.................................5-93
Windshield Wiper Fuses...............................5-92
Engine
Air Cleaner/Filter.........................................5-18
Battery.......................................................5-37
Check and Service Engine Soon Light............3-66
Coolant......................................................5-22
Coolant Heater............................................2-25
Coolant Temperature Gage...........................3-65
Coolant Temperature Warning Light................3-65
Engine Compartment Overview......................5-12
Exhaust.....................................................2-33
Oil .............................................................5-13
Oil Life System...........................................5-16
Overheated Protection Operating Mode...........5-27
Overheating................................................5-25
Starting......................................................2-24
Entry Lighting.................................................3-36
Event Data Recorders (EDR)............................. 7-9
Extender, Safety Belt.......................................1-29Exterior Lamps...............................................3-30
Exterior Lighting Battery Saver..........................3-35
F
Filter
Engine Air Cleaner......................................5-18
Finish Damage...............................................5-89
Flashers, Hazard Warning.................................. 3-6
Flash-to-Pass.................................................3-13
Flat Tire........................................................5-71
Flat Tire, Changing.........................................5-72
Flat Tire, Storing.............................................5-81
Fluid
Automatic Transaxle.....................................5-19
Power Steering...........................................5-33
Windshield Washer......................................5-34
Fog Lamp Light..............................................3-69
Fog Lamp Light, Rear.....................................3-69
Fog Lamps....................................................3-35
Forward Collision Alert (FAC) System.................. 3-9
Fuel............................................................... 5-5
Additives...................................................... 5-6
California Fuel.............................................. 5-6
Filling a Portable Fuel Container....................5-10
Filling Your Tank........................................... 5-8
Fuels in Foreign Countries.............................. 5-7
5

I
Ignition Positions.............................................2-23
Inadvertent Power Battery Saver.......................3-37
Infants and Young Children, Restraints...............1-33
Ination - Tire Pressure...................................5-56
Instrument Panel
Overview..................................................... 3-4
Instrument Panel (I/P)
Brightness..................................................3-36
Cluster.......................................................3-56
J
Jump Starting.................................................5-39
K
Keyless Entry System....................................... 2-4
Keys............................................................... 2-3
L
Labeling, Tire Sidewall.....................................5-50
Lamps
Battery Load Management............................3-37
Cornering...................................................3-35
Courtesy....................................................3-36
Exterior......................................................3-30
Exterior Lighting Battery Saver......................3-35
Fog ...........................................................3-35
Inadvertent Power Battery Saver....................3-37
Reading.....................................................3-37
LATCH System
Child Restraints...........................................1-41
Light
Airbag Readiness........................................3-58
Anti-Lock Brake System Warning...................3-63
Brake System Warning.................................3-62
Charging System.........................................3-61
Cruise Control.............................................3-70
Engine Coolant Temperature Warning.............3-65
Fog Lamp..................................................3-69
Fog Lamp, Rear..........................................3-69
Highbeam On.............................................3-70
Lights On Reminder.....................................3-70
Low Tire Pressure Warning Light...................3-63
Malfunction Indicator....................................3-66
Oil Pressure...............................................3-68
7

P
Paint, Damage...............................................5-89
Panic Brake Assist..........................................4-11
Parade Dimming.............................................3-36
Park Aid........................................................3-38
Park (P)
Shifting Into................................................2-30
Shifting Out of............................................2-32
Parking
Assist........................................................3-38
Brake........................................................2-30
Over Things That Burn.................................2-33
Passenger Airbag Status Indicator.....................3-59
Passenger Compartment Air Filter.....................3-53
Passenger Sensing System..............................1-65
Passing.........................................................4-14
PASS-Key
®III+..............................................2-21
PASS-Key®III+ Operation................................2-21
Performance Shifting.......................................2-29
Power
Accessory Outlet(s)......................................3-42
Door Locks.................................................2-11
Electrical System.........................................5-93
Inadvertent Battery Saver.............................3-37
Lumbar Controls........................................... 1-2
Rear Lumbar Controls.................................... 1-8
Reclining Seatbacks...................................... 1-4
Retained Accessory (RAP)............................2-24
Seat............................................................ 1-2Power (cont.)
Steering Fluid.............................................5-33
Tilt Wheel and Telescopic Steering Column......... 3-7
Windows....................................................2-16
Pretensioners, Safety Belt................................1-29
Programmable Automatic Door Locks.................2-11
Q
Questions and Answers About Safety Belts.........1-13
R
Radios..........................................................3-97
Care of Your CD Player..............................3-124
Care of Your CDs......................................3-124
Navigation/Radio System, see
Navigation Manual..................................3-121
Radio with CD...........................................3-102
Setting the Time................................3-98, 3-100
Theft-Deterrent..........................................3-121
Understanding Reception............................3-123
Rainsense™ II Wipers.....................................3-14
Reading Lamps..............................................3-37
Rear Climate Control System............................3-51
Rear Door Security Locks................................2-12
Rear Fog Lamp Light......................................3-69
Rear Heated Seats........................................... 1-7
Rear Safety Belt Comfort Guides......................1-27
10
