(j)Drain, flush, and refill cooling system. This service
can be complex; you should have your dealer/retailer
perform this service. See Engine Coolant on page 5-24
for what to use. Inspect hoses. Clean radiator,
condenser, pressure cap, and filler neck. Pressure
test the cooling system and pressure cap.
(k)A fluid loss in any vehicle system could indicate a
problem. Have the system inspected and repaired
and the fluid level checked. Add fluid if needed.
(l)Visually inspect belt for fraying, excessive cracks, or
obvious damage. Replace belt if necessary.
(m)If you drive regularly under dusty conditions, inspect
the filter at each engine oil change.
Owner Checks and Services
These owner checks and services should be performed
at the intervals specied to help ensure the safety,
dependability, and emission control performance of your
vehicle. Your dealer/retailer can assist you with these
checks and services.
Be sure any necessary repairs are completed at once.
Whenever any uids or lubricants are added to your
vehicle, make sure they are the proper ones, as shown
inRecommended Fluids and Lubricants on page 6-13.
At Each Fuel Fill
It is important to perform these underhood checks at
each fuel fill.
Engine Oil Level Check
Notice:It is important to check the engine oil
regularly and keep it at the proper level. Failure to
keep the engine oil at the proper level can cause
damage to the engine not covered by your warranty.
Check the engine oil level and add the proper oil if
necessary. SeeEngine Oil on page 5-15.
Engine Coolant Level Check
Check the engine coolant level and add DEX-COOL®
coolant mixture if necessary. SeeEngine Coolant
on page 5-24.
Windshield Washer Fluid Level Check
Check the windshield washer uid level in the windshield
washer uid reservoir and add the proper uid if
necessary.
6-9

At Least Once a Month
Tire Ination Check
Inspect your vehicle’s tires and make sure they are
inated to the correct pressures. Do not forget to
check the spare tire. SeeInflation - Tire Pressure on
page 5-60. Check to make sure the spare tire is stored
securely. SeeChanging a Flat Tire on page 5-79.
Tire Wear Inspection
Tire rotation may be required for high mileage highway
drivers prior to the Engine Oil Life System service
notication. Check the tires for wear and, if necessary,
rotate the tires. SeeTire Inspection and Rotation on
page 5-68.
At Least Once a Year
Starter Switch Check
{CAUTION:
When you are doing this inspection, the
vehicle could move suddenly. If the vehicle
moves, you or others could be injured.
1. Before you start, be sure you have enough room
around the vehicle.
2. Firmly apply both the parking brake and the regular
brake. SeeParking Brake on page 2-30.
Do not use the accelerator pedal, and be ready to
turn off the engine immediately if it starts.
3. Try to start the engine in each gear. The vehicle
should start only in PARK (P) or NEUTRAL (N).
If the vehicle starts in any other position, contact
your dealer/retailer for service.
6-10

Automatic Transmission Shift Lock
Control System Check
{CAUTION:
When you are doing this inspection, the
vehicle could move suddenly. If the vehicle
moves, you or others could be injured.
1. Before you start, be sure you have enough room
around the vehicle. It should be parked on a level
surface.
2. Firmly apply the parking brake. SeeParking Brake
on page 2-30.
Be ready to apply the regular brake immediately if
the vehicle begins to move.
3. With the engine off, turn the ignition to ON/RUN,
but do not start the engine. Without applying the
regular brake, try to move the shift lever out
of PARK (P) with normal effort. If the shift lever
moves out of PARK (P), contact your dealer/retailer
for service.
Ignition Transmission Lock Check
While parked, and with the parking brake set, try to turn
the ignition to LOCK/OFF in each shift lever position.
The ignition should turn to LOCK/OFF only
when the shift lever is in PARK (P).
The ignition key should come out only in
LOCK/OFF.
Contact your dealer/retailer if service is required.
6-11

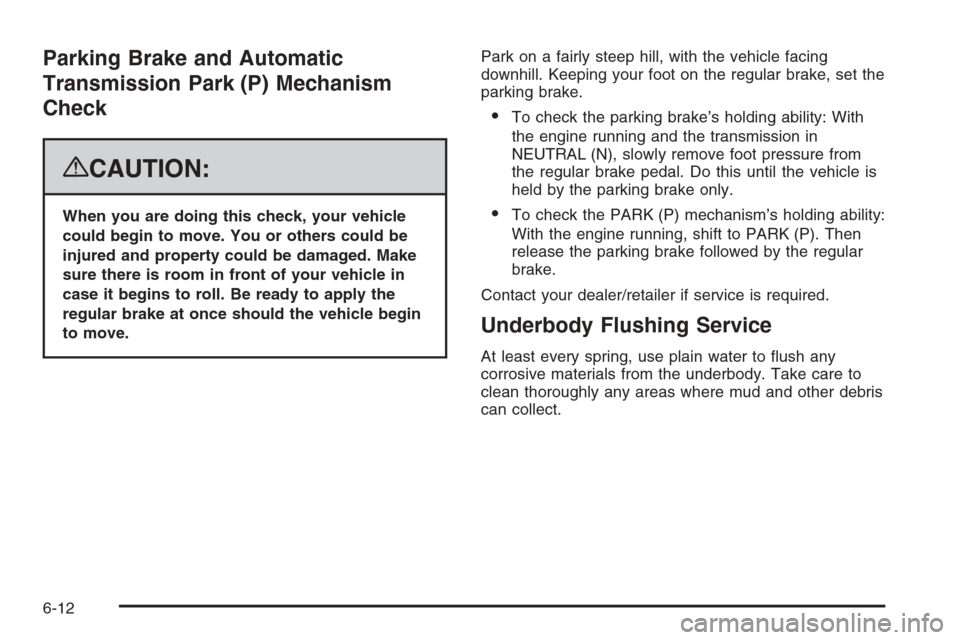

Parking Brake and Automatic
Transmission Park (P) Mechanism
Check
{CAUTION:
When you are doing this check, your vehicle
could begin to move. You or others could be
injured and property could be damaged. Make
sure there is room in front of your vehicle in
case it begins to roll. Be ready to apply the
regular brake at once should the vehicle begin
to move.Park on a fairly steep hill, with the vehicle facing
downhill. Keeping your foot on the regular brake, set the
parking brake.
To check the parking brake’s holding ability: With
the engine running and the transmission in
NEUTRAL (N), slowly remove foot pressure from
the regular brake pedal. Do this until the vehicle is
held by the parking brake only.
To check the PARK (P) mechanism’s holding ability:
With the engine running, shift to PARK (P). Then
release the parking brake followed by the regular
brake.
Contact your dealer/retailer if service is required.
Underbody Flushing Service
At least every spring, use plain water to ush any
corrosive materials from the underbody. Take care to
clean thoroughly any areas where mud and other debris
can collect.
6-12

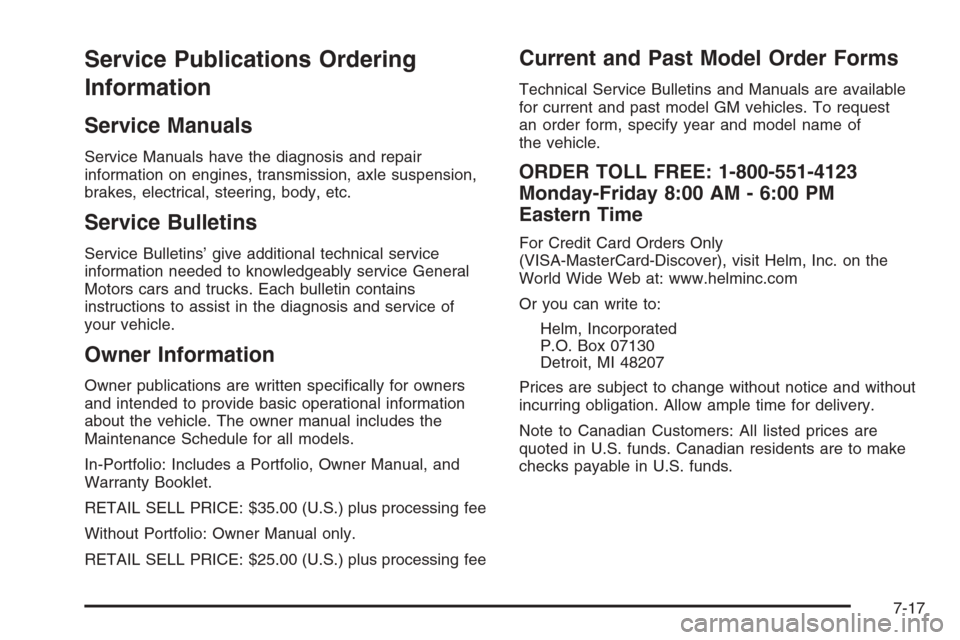

Service Publications Ordering
Information
Service Manuals
Service Manuals have the diagnosis and repair
information on engines, transmission, axle suspension,
brakes, electrical, steering, body, etc.
Service Bulletins
Service Bulletins’ give additional technical service
information needed to knowledgeably service General
Motors cars and trucks. Each bulletin contains
instructions to assist in the diagnosis and service of
your vehicle.
Owner Information
Owner publications are written specically for owners
and intended to provide basic operational information
about the vehicle. The owner manual includes the
Maintenance Schedule for all models.
In-Portfolio: Includes a Portfolio, Owner Manual, and
Warranty Booklet.
RETAIL SELL PRICE: $35.00 (U.S.) plus processing fee
Without Portfolio: Owner Manual only.
RETAIL SELL PRICE: $25.00 (U.S.) plus processing fee
Current and Past Model Order Forms
Technical Service Bulletins and Manuals are available
for current and past model GM vehicles. To request
an order form, specify year and model name of
the vehicle.
ORDER TOLL FREE: 1-800-551-4123
Monday-Friday 8:00 AM - 6:00 PM
Eastern Time
For Credit Card Orders Only
(VISA-MasterCard-Discover), visit Helm, Inc. on the
World Wide Web at: www.helminc.com
Or you can write to:
Helm, Incorporated
P.O. Box 07130
Detroit, MI 48207
Prices are subject to change without notice and without
incurring obligation. Allow ample time for delivery.
Note to Canadian Customers: All listed prices are
quoted in U.S. funds. Canadian residents are to make
checks payable in U.S. funds.
7-17

Audio System (cont.)
Theft-Deterrent Feature...............................3-118
XM™ Satellite Radio Antenna System...........3-120
Audio System(s)............................................3-100
Automatic Transmission
Fluid..........................................................5-21
Operation...................................................2-27
B
Backglass Antenna........................................3-120
Battery..........................................................5-40
Electric Power Management..........................3-39
Exterior Lighting Battery Saver......................3-37
Inadvertent Power Saver..............................3-40
Load Management.......................................3-38
Run-Down Protection...................................3-40
Brake
Emergencies................................................ 4-5
Brakes..........................................................5-37
Panic Assist................................................. 4-7
System Warning Light..................................3-60
Braking........................................................... 4-3
Braking in Emergencies..................................... 4-5
Break-In, New Vehicle.....................................2-22
Bulb Replacement...........................................5-50
Headlamp Aiming........................................5-47
High Intensity Discharge (HID) Lighting...........5-50
Buying New Tires...........................................5-71
C
Calibration...............................................1-9, 2-36
California Fuel.................................................. 5-6
California Perchlorate Materials Requirements....... 5-4
California Proposition 65 Warning....................... 5-4
Canadian Owners................................................ ii
Capacities and Specications..........................5-109
Carbon Monoxide...........................2-12, 2-34, 4-16
Care of
Safety Belts................................................5-93
CD, MP3 .....................................................3-111
Center Console Storage Area...........................2-59
Center Flex Storage Unit.................................2-60
Center Seat..................................................... 1-8
Chains, Tire...................................................5-77
Charging System Light....................................3-60
Check
Engine Light...............................................3-65
Checking Things Under the Hood......................5-12
Chemical Paint Spotting...................................5-98
Child Restraints
Child Restraint Systems...............................1-38
Infants and Young Children...........................1-34
Lower Anchors and Tethers for Children..........1-41
Older Children.............................................1-31
Securing a Child Restraint in a
Rear Seat Position...................................1-47
2

Electronic Immobilizer Operation
PASS-Key®III+...........................................2-21
Engine
Air Cleaner/Filter.........................................5-20
Check and Service Engine Soon Light............3-65
Coolant......................................................5-24
Coolant Heater............................................2-26
Coolant Temperature Gage...........................3-64
Coolant Temperature Warning Light................3-63
Drive Belt Routing.......................................6-15
Engine Compartment Overview......................5-14
Exhaust.....................................................2-34
Oil .............................................................5-15
Oil Life System...........................................5-18
Overheated Protection Operating Mode...........5-29
Overheating................................................5-27
Starting......................................................2-24
Entry Lighting.................................................3-37
Event Data Recorders.....................................7-18
Extender, Safety Belt.......................................1-30
Exterior Lamps...............................................3-32
Exterior Lighting Battery Saver..........................3-37F
Filter
Engine Air Cleaner......................................5-20
Finish Damage...............................................5-97
Flashers, Hazard Warning.................................. 3-6
Flash-to-Pass.................................................3-13
Flat Tire........................................................5-78
Flat Tire, Changing.........................................5-79
Flat Tire, Storing.............................................5-87
Floor Mats.....................................................2-60
Fluid
Automatic Transmission................................5-21
Power Steering...........................................5-35
Windshield Washer......................................5-36
Fog Lamp
Fog ...........................................................3-36
Fog Lamp Light..............................................3-68
Footwell Lamps..............................................3-38
Forward Collision Alert (FAC) System................3-10
Front Storage Area.........................................2-59
5

Fuel............................................................... 5-5
Additives...................................................... 5-6
California Fuel.............................................. 5-6
Filling a Portable Fuel Container....................5-11
Filling the Tank............................................. 5-8
Fuels in Foreign Countries.............................. 5-7
Gage .........................................................3-69
Gasoline Octane........................................... 5-5
Gasoline Specications.................................. 5-5
Running Out of...........................................2-35
Fuses
Fuses and Circuit Breakers.........................5-101
Rear Underseat Fuse Block.........................5-104
Underhood Fuse Block...............................5-101
Windshield Wiper.......................................5-100
G
Gage
Engine Coolant Temperature.........................3-64
Fuel..........................................................3-69
Speedometer..............................................3-55
Tachometer.................................................3-55
Garage Door Opener.......................................2-52
Gasoline
Octane........................................................ 5-5
Specications............................................... 5-5
Glove Box.....................................................2-59
GM Mobility Reimbursement Program.................. 7-7
H
Hazard Warning Flashers................................... 3-6
Head Restraints............................................... 1-7
Headlamp
Aiming .......................................................5-47
Headlamp Wiring...........................................5-100
Headlamps
Bulb Replacement.......................................5-50
Daytime Running Lamps...............................3-35
Exterior Lamps............................................3-32
Flash-to-Pass..............................................3-13
High Intensity Discharge (HID) Lighting...........5-50
High/Low Beam Changer................................ 3-9
On Reminder..............................................3-35
Wiper Activated...........................................3-35
Heated Seats................................................... 1-3
Heated Steering Wheel..................................... 3-7
Heater...........................................................3-42
Engine Coolant...........................................2-26
Highbeam On Light.........................................3-69
High-Speed Operation, Tires.............................5-62
Highway Hypnosis...........................................4-14
Hill and Mountain Roads..................................4-15
Hood
Checking Things Under................................5-12
Release.....................................................5-12
Horn ............................................................... 3-6
How to Wear Safety Belts Properly...................1-16
6

Message
DIC Warnings and Messages........................3-75
Mirrors
Automatic Dimming Rearview........................2-36
Manual Rearview Mirror with Compass and
Temperature.............................................. 1-9
Outside Automatic Dimming Mirror.................2-39
Outside Convex Mirror.................................2-39
Outside Heated Mirrors................................2-39
Outside Power Foldaway Mirrors....................2-38
Park Tilt .....................................................2-39
MP3 ............................................................3-111
MyGMLink.com................................................ 7-5
N
Navigation System, Privacy..............................7-19
Navigation/Radio System,
see Navigation Manual...............................3-118
New Vehicle Break-In......................................2-22
O
Odometer......................................................3-55
Off-Road Recovery..........................................4-10
Oil
Engine.......................................................5-15
Pressure Light.............................................3-67
Oil, Engine Oil Life System..............................5-18
Older Children, Restraints................................1-31
Online Owner Center........................................ 7-5
OnStar, Privacy..............................................7-19
OnStar
®System, see OnStar®Manual...............2-49
Operation, Universal Home Remote System........2-52
Other Warning Devices...................................... 3-6
Outlet Adjustment............................................3-48
Outlets
Accessory Power.........................................3-40
Outside
Automatic Dimming Mirror.............................2-39
Convex Mirror.............................................2-39
Heated Mirrors............................................2-39
Power Foldaway Mirrors...............................2-38
Overheated Engine Protection Operating Mode....5-29
Owner Checks and Services.............................. 6-9
Owners, Canadian............................................... ii
9

Rearview Mirror, Automatic Dimming..................2-36
Rearview Mirror with Compass and Temperature . . . 1-9
Reclining Seatbacks, Power............................... 1-6
Recommended Fluids and Lubricants.................6-13
Recreational Vehicle Towing.............................4-26
Remote Keyless Entry (RKE) System.................. 2-4
Remote Keyless Entry (RKE) System, Operation . . . 2-5
Remote Vehicle Start........................................ 2-8
Removing the Flat Tire and Installing the
Spare Tire..................................................5-81
Removing the Spare Tire and Tools...................5-80
Replacement Parts, Maintenance......................6-14
Reporting Safety Defects
Canadian Government..................................7-16
General Motors...........................................7-16
United States Government............................7-16
Restraint System Check
Checking the Restraint Systems....................1-70
Replacing Restraint System Parts
After a Crash..........................................1-71
Retained Accessory Power (RAP)......................2-24
Roadside
Service........................................................ 7-8
Rocking Your Vehicle to Get it Out....................4-20
Routing, Engine Drive Belt...............................6-15
Running Out of Fuel........................................2-35S
Safety Belt
Reminder Light............................................3-56
Safety Belts
Care of ......................................................5-93
How to Wear Safety Belts Properly................1-16
Lap Belt.....................................................1-29
Lap-Shoulder Belt........................................1-24
Safety Belt Extender....................................1-30
Safety Belt Use During Pregnancy.................1-29
Safety Belts Are for Everyone.......................1-10
Safety Warnings and Symbols.............................. iii
Scheduled Maintenance..................................... 6-4
Seats
Center Seat.................................................. 1-8
Head Restraints............................................ 1-7
Heated and Cooled Seats.............................. 1-3
Heated Seats - Rear..................................... 1-9
Massaging Lumbar........................................ 1-3
Memory, Mirrors............................................ 1-4
Power Lumbar .............................................. 1-2
Power Lumbar, Rear....................................1-10
Power Reclining Seatbacks............................. 1-6
Power Seats................................................. 1-2
11
