CADILLAC DTS 2008 1.G Owners Manual

Seats and Restraint Systems........................... 1-1
Front Seats
............................................... 1-2
Rear Seats
............................................... 1-9
Safety Belts
.............................................1-10
Child Restraints
.......................................1-31
Airbag System
.........................................1-53
Restraint System Check
............................1-70
Features and Controls..................................... 2-1
Keys
........................................................ 2-3
Doors and Locks
......................................2-10
Windows
.................................................2-14
Theft-Deterrent Systems
............................2-18
Starting and Operating Your Vehicle
...........2-22
Mirrors
....................................................2-36
Object Detection Systems
..........................2-40
OnStar
®System
......................................2-49
Universal Home Remote System
................2-52
Storage Areas
.........................................2-59
Sunroof
..................................................2-61
Instrument Panel............................................. 3-1
Instrument Panel Overview
.......................... 3-4
Climate Controls
......................................3-42
Warning Lights, Gages, and Indicators
........3-53
Driver Information Center (DIC)
..................3-70
Audio System(s)
.......................................3-96Driving Your Vehicle....................................... 4-1
Your Driving, the Road, and the Vehicle
....... 4-2
Towing
...................................................4-26
Service and Appearance Care.......................... 5-1
Service
..................................................... 5-3
Fuel
......................................................... 5-5
Checking Things Under the Hood
...............5-12
Headlamp Aiming
.....................................5-47
Bulb Replacement
....................................5-50
Windshield Wiper Blade Replacement
.........5-50
Tires
......................................................5-52
Appearance Care
.....................................5-90
Vehicle Identication
.................................5-99
Electrical System
....................................5-100
Capacities and Specications
...................5-109
Maintenance Schedule..................................... 6-1
Maintenance Schedule
................................ 6-2
Customer Assistance Information.................... 7-1
Customer Assistance and Information
........... 7-2
Reporting Safety Defects
...........................7-16
Vehicle Data Recording and Privacy
...........7-18
Index................................................................ 1
2008 Cadillac DTS Owner ManualM

GENERAL MOTORS, GM, the GM Emblem, CADILLAC,
the CADILLAC Crest & Wreath, and the name DTS
are registered trademarks of General Motors
Corporation.
This manual includes the latest information at the time it
was printed. GM reserves the right to make changes
after that time without notice. For vehicles rst sold
in Canada, substitute the name “General Motors
of Canada Limited” for Cadillac Motor Car Division
wherever it appears in this manual.
This manual describes features that may or may not be
on your specic vehicle.
Keep this manual in the vehicle for quick reference.
Canadian Owners
A French language copy of this manual can be obtained
from your dealer/retailer or from:
Helm, Incorporated
P.O. Box 07130
Detroit, MI 48207
1-800-551-4123
www.helminc.com
Propriétaires Canadiens
On peut obtenir un exemplaire de ce guide en français
auprès de concessionnaire ou à l’adresse suivante:
Helm Incorporated
P.O. Box 07130
Detroit, MI 48207
1-800-551-4123
www.helminc.com
Using this Manual
Read this owner manual from beginning to end to learn
about the vehicle’s features and controls. Pictures
and words work together to explain things.
Litho in U.S.A.
Part No. 15870508 B Second Printing
©2007 General Motors Corporation. All Rights Reserved.
ii

Index
To quickly locate information about the vehicle use the
Index in the back of the manual. It is an alphabetical
list of what is in the manual and the page number where
it can be found.
Safety Warnings and Symbols
There are a number of safety cautions in this book. A
box with the word CAUTION is used to tell about things
that could hurt you or others if you were to ignore the
warning.
{CAUTION:
These mean there is something that could hurt
you or other people.
Cautions tell what the hazard is and what to do to avoid
or reduce the hazard. Read these cautions.A circle with a slash
through it is a safety
symbol which means “Do
Not,” “Do Not do this”
or “Do Not let this happen.”
iii

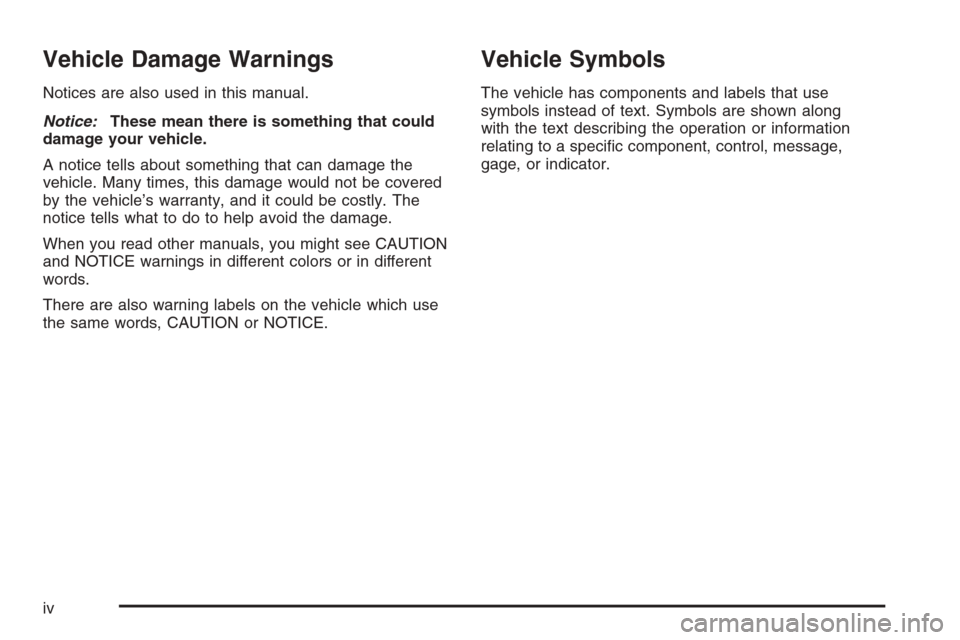

Vehicle Damage Warnings
Notices are also used in this manual.
Notice:These mean there is something that could
damage your vehicle.
A notice tells about something that can damage the
vehicle. Many times, this damage would not be covered
by the vehicle’s warranty, and it could be costly. The
notice tells what to do to help avoid the damage.
When you read other manuals, you might see CAUTION
and NOTICE warnings in different colors or in different
words.
There are also warning labels on the vehicle which use
the same words, CAUTION or NOTICE.
Vehicle Symbols
The vehicle has components and labels that use
symbols instead of text. Symbols are shown along
with the text describing the operation or information
relating to a specic component, control, message,
gage, or indicator.
iv

Front Seats......................................................1-2
Power Seats..................................................1-2
Power Lumbar ...............................................1-2
Massaging Lumbar.........................................1-3
Heated and Cooled Seats................................1-3
Memory Seat, Mirrors and Steering Wheel.........1-4
Power Reclining Seatbacks..............................1-6
Head Restraints.............................................1-7
Center Seat...................................................1-8
Rear Seats.......................................................1-9
Heated Seats.................................................1-9
Rear Seat Pass-Through Door.........................1-9
Power Lumbar ..............................................1-10
Safety Belts...................................................1-10
Safety Belts: They Are for Everyone................1-10
How to Wear Safety Belts Properly.................1-16
Lap-Shoulder Belt.........................................1-24
Safety Belt Use During Pregnancy..................1-29
Lap Belt......................................................1-29
Safety Belt Extender.....................................1-30
Child Restraints.............................................1-31
Older Children..............................................1-31
Infants and Young Children............................1-34Child Restraint Systems.................................1-38
Where to Put the Restraint.............................1-40
Lower Anchors and Tethers for Children
(LATCH)..................................................1-41
Securing a Child Restraint in a
Rear Seat Position....................................1-47
Securing a Child Restraint in the
Center Front Seat Position..........................1-49
Securing a Child Restraint in the
Right Front Seat Position............................1-50
Airbag System...............................................1-53
Where Are the Airbags?................................1-56
When Should an Airbag Inate?.....................1-59
What Makes an Airbag Inate?.......................1-61
How Does an Airbag Restrain?.......................1-61
What Will You See After an Airbag Inates?.....1-62
Passenger Sensing System............................1-63
Servicing Your Airbag-Equipped Vehicle...........1-68
Adding Equipment to Your Airbag-Equipped
Vehicle....................................................1-69
Restraint System Check..................................1-70
Checking the Restraint Systems......................1-70
Replacing Restraint System Parts
After a Crash............................................1-71
Section 1 Seats and Restraint Systems
1-1

Front Seats
Power Seats
The power seat controls
are located on the
outboard side of the seats.
Move the seat forward or rearward by sliding the
control forward or rearward.
Raise or lower the front part of the seat cushion by
moving the front of the control up or down.
Raise or lower the rear part of the seat cushion by
moving the rear of the control up or down.
The front seats also have power reclining seatbacks.
SeePower Reclining Seatbacks on page 1-6.
If your vehicle has the memory feature, you can program
and recall memory settings for seat positions. See
Memory Seat, Mirrors and Steering Wheel on page 1-4.
Power Lumbar
The power lumbar controls
are located on the outboard
side of the front seats.
Press the lumbar control forward to increase support
and rearward to decrease support. Press the top
or bottom of the control to raise or lower the support
mechanism.
The ignition does not need to be on for the power
lumbar feature to work.
Keep in mind that as your seating position changes, as
it may during long trips, so should the position of
your lumbar support. Adjust the seat as needed.
1-2

Massaging Lumbar
If your vehicle has this
feature, the switch is
located on the outboard
side of the front seats
behind the lumbar switch.
Press the switch to
turn the massaging lumbar
feature on. The ignition
must be on.
The massage cycle will run for up to 10 minutes. To
stop massage, press the massaging lumbar switch
again, or press the power lumbar switch.
Heated and Cooled Seats
Your vehicle may have heated and cooled front seats.
To operate the heated or cooled seats, the ignition must
be on.
The buttons are located on
the front doors.
I(Heated Seatback):Press to turn on the heated
seatback.
H(Cooled Seat):Press to turn on the cooled seat.
J(Heated Seat and Seatback):Press to turn on the
heated seat and seatback.
Driver’s Side Buttons
Shown, Passenger’s
Side Buttons Similar
1-3

Press a button to turn on the desired feature. A light on
that button will display to show which feature is on.
There are three temperature settings for each feature.
A column of three lights next to the buttons will
display which setting the feature is in: high, medium or
low. Three lights indicate the highest setting, two
lights for medium and one light for the lowest setting.
When you press a button, the feature will turn on at the
highest setting. Each time you press the button, the
feature will go down one temperature setting.
To turn the feature off, keep pressing the button until
the display lights turn off.
If your vehicle has remote vehicle start and is started
using the remote keyless entry transmitter, the front
heated seats will be turned on to the high setting if it is
cold outside. See “Remote Vehicle Start” under
Remote Keyless Entry (RKE) System Operation on
page 2-5. When the key is inserted into the ignition and
the ignition is turned on, this feature will turn off.
To turn it back on, press the desired button.Memory Seat, Mirrors and Steering
Wheel
Your vehicle may have the memory package.
The controls for this feature are located on the driver’s
door panel, and are used to program and recall
memory settings for the driver’s seat, outside mirror,
and the steering wheel position if the vehicle has
the power tilt wheel and telescopic steering feature.
To save your positions in memory, do the following:
1. Adjust the driver’s seat, including the seatback
recliner and lumbar, both outside mirrors, and
the steering wheel to a comfortable position.
2. Press and hold button 1 until two beeps sound
through the driver’s side front speaker to let you
know that the position has been stored.
1-4

A second seating, mirror, and steering wheel position
can be programmed by repeating the above steps
and pressing button 2 for a second driver.
To recall your memory positions, the vehicle must be in
PARK (P). Press and release either button 1 or
button 2 corresponding to the desired driving position.
The seat, outside mirrors, and steering wheel will move
to the position previously stored for the identied
driver. You will hear a single beep.
If you use the remote keyless entry transmitter to enter
your vehicle and the remote recall memory feature
is on, automatic seat and mirror movement will occur.
See “MEMORY SEAT RECALL” underDIC Vehicle
Customization on page 3-87for more information.
To stop recall movement of the memory feature at any
time, press one of the power seat controls, memory
buttons, power tilt wheel control, or power mirror
buttons.
If something has blocked the driver’s seat and/or the
steering column while recalling a memory position, the
driver’s seat and/or the steering column recall may
stop. If this happens remove the obstruction, then press
the appropriate control for the area that is not recalling
for two seconds. Try recalling the memory position again
by pressing the appropriate memory button. If the
memory position is still not recalling, see your dealer for
service.Easy Exit Recall
The control for this feature is located on the driver’s
door panel between buttons 1 and 2.
With the vehicle in PARK (P), the exit position can be
recalled by pressing the exit button. You will hear
a single beep. The driver’s seat will move back, and if
the vehicle has the power tilt wheel and telescopic
steering feature, the power telescopic steering column
will move up and forward.
If the easy exit seat feature is on in the DIC, automatic
seat and power telescopic steering column movement
will occur when the key is removed from the ignition.
See “EASY EXIT RECALL” underDIC Vehicle
Customization on page 3-87for more information.
Further programming for automatic seat and steering
wheel movement can be done using the Driver
Information Center (DIC). You can select or not select
the following:
The easy exit recall feature
The memory seat recall feature
For programming information, seeDIC Vehicle
Customization on page 3-87.
1-5

Power Reclining Seatbacks
Your seats have power
reclining seatbacks. Use
the vertical power seat
control located on the
outboard side of the seat.
To recline the seatback, press the control toward the
rear of the vehicle.
To raise the seatback, press the control toward the
front of the vehicle.
1-6
