Seats and Restraint System............................. 1-1
Head Restraints
......................................... 1-2
Front Seats
............................................... 1-3
Rear Seats
..............................................1-10
Safety Belts
.............................................1-12
Child Restraints
.......................................1-33
Airbag System
.........................................1-55
Restraint System Check
............................1-70
Features and Controls..................................... 2-1
Keys
........................................................ 2-3
Doors and Locks
......................................2-10
Windows
.................................................2-15
Theft-Deterrent Systems
............................2-20
Starting and Operating Your Vehicle
...........2-24
Mirrors
....................................................2-38
Object Detection Systems
..........................2-42
OnStar
®System
......................................2-51
Universal Home Remote System
................2-55
Storage Areas
.........................................2-62
Sunroof
..................................................2-64
Instrument Panel............................................. 3-1
Instrument Panel Overview
.......................... 3-4
Climate Controls
......................................3-40
Warning Lights, Gages, and Indicators
........3-50Driver Information Center (DIC)
..................3-67
Audio System(s)
.......................................3-95
Driving Your Vehicle....................................... 4-1
Your Driving, the Road, and the Vehicle
....... 4-2
Towing
...................................................4-26
Service and Appearance Care.......................... 5-1
Service
..................................................... 5-3
Fuel
......................................................... 5-5
Checking Things Under the Hood
...............5-10
Headlamp Aiming
.....................................5-43
Bulb Replacement
....................................5-46
Windshield Wiper Blade Replacement
.........5-46
Tires
......................................................5-48
Appearance Care
.....................................5-86
Vehicle Identi cation
.................................5-94
Electrical System
......................................5-94
Capacities and Speci cations
...................5-103
Maintenance Schedule..................................... 6-1
Maintenance Schedule
................................ 6-2
Customer Assistance Information.................... 7-1
Customer Assistance and Information
........... 7-2
Reporting Safety Defects
...........................7-15
Vehicle Data Recording and Privacy
...........7-17
Index................................................................ 1
2009 Cadillac DTS Owner ManualM
Page 2 of 462
GENERAL MOTORS, GM, the GM Emblem, CADILLAC,
the CADILLAC Crest & Wreath, and the name DTS are
registered trademarks of General Motors Corporation.
This manual includes the latest information at the time it
was printed. GM reserves the right to make changes
after that time without notice. For vehicles rst sold
in Canada, substitute the name “General Motors
of Canada Limited” for Cadillac Motor Car Division
wherever it appears in this manual.
This manual describes features that may or may not be
on your speci c vehicle.
Read this manual from beginning to end to learn about
the vehicle’s features and controls. Pictures, symbols,
and words work together to explain vehicle operation.
Keep this manual in the vehicle for quick reference.
Canadian Owners
A French language copy of this manual can be obtained
from your dealer/retailer or from:
Helm, Incorporated
P.O. Box 07130
Detroit, MI 48207
1-800-551-4123
www.helminc.com
Propriétaires Canadiens
On peut obtenir un exemplaire de ce guide en français
auprès de concessionnaire ou à l’adresse suivante:
Helm, Incorporated
P.O. Box 07130
Detroit, MI 48207
1-800-551-4123
www.helminc.com
Index
To quickly locate information about the vehicle, use the
index in the back of the manual. It is an alphabetical
list of what is in the manual and the page number where
it can be found.
Litho in U.S.A.
Part No. 25793159 B Second Printing
©2008 General Motors Corporation. All Rights Reserved.
ii
Page 3 of 462
Safety Warnings and Symbols
A circle with a slash
through it is a safety
symbol which means
“Do Not,” “Do not do this,”
or “Do not let this happen.”
A box with the word CAUTION is used to tell about
things that could hurt you or others if you were to ignore
the warning.
{CAUTION:
These mean there is something that could hurt
you or other people.
Cautions tell what the hazard is and what to do to avoid
or reduce the hazard. Read these cautions.A notice tells about something that can damage the
vehicle.
Notice:These mean there is something that could
damage your vehicle.
Many times, this damage would not be covered by the
vehicle’s warranty, and it could be costly. The notice
tells what to do to help avoid the damage.
There are also warning labels on the vehicle which use
the same words, CAUTION or Notice.
Vehicle Symbols
The vehicle has components and labels that use symbols
instead of text. Symbols are shown along with the text
describing the operation or information relating to a
speci c component, control, message, gage, or indicator.
M:This symbol is shown when you need to see your
owner manual for additional instructions or information.
*:This symbol is shown when you need to see a
service manual for additional instructions or information.
iii
Page 4 of 462
Vehicle Symbol Chart
Here are some additional symbols that may be found on
the vehicle and what they mean. For more information
on the symbol, refer to the index.
9:Airbag Readiness Light
#:Air Conditioning
!:Antilock Brake System (ABS)
g:Audio Steering Wheel Controls or OnStar®
$:Brake System Warning Light
":Charging System
I:Cruise Control
B:Engine Coolant Temperature
O:Exterior Lamps
#:Fog Lamps
.:Fuel Gage
+:Fuses
i:Headlamp High/Low-Beam Changer
j:LATCH System Child Restraints
*:Malfunction Indicator Lamp
::Oil Pressure
g:Outside Power Foldaway Mirrors
}:Power
/:Remote Vehicle Start
>:Safety Belt Reminders
7:Tire Pressure Monitor
F:Traction Control
M:Windshield Washer Fluid
iv
Page 5 of 462
Head Restraints...............................................1-2
Front Seats......................................................1-3
Power Seats..................................................1-3
Power Lumbar ...............................................1-4
Massaging Lumbar.........................................1-4
Heated and Cooled Seats................................1-5
Memory Seat, Mirrors and Steering Wheel.........1-6
Power Reclining Seatbacks..............................1-8
Center Seat.................................................1-10
Rear Seats.....................................................1-10
Heated Seats...............................................1-10
Rear Seat Pass-Through Door........................1-11
Power Lumbar ..............................................1-11
Safety Belts...................................................1-12
Safety Belts: They Are for Everyone................1-12
How to Wear Safety Belts Properly.................1-17
Lap-Shoulder Belt.........................................1-26
Safety Belt Use During Pregnancy..................1-31
Lap Belt......................................................1-31
Safety Belt Extender.....................................1-32
Child Restraints.............................................1-33
Older Children..............................................1-33
Infants and Young Children............................1-36Child Restraint Systems.................................1-39
Where to Put the Restraint.............................1-42
Lower Anchors and Tethers for
Children (LATCH)......................................1-43
Securing a Child Restraint in a
Rear Seat Position....................................1-49
Securing a Child Restraint in the
Center Front Seat Position..........................1-51
Securing a Child Restraint in the
Right Front Seat Position............................1-52
Airbag System...............................................1-55
Where Are the Airbags?................................1-57
When Should an Airbag In ate?.....................1-60
What Makes an Airbag In ate?.......................1-61
How Does an Airbag Restrain?.......................1-62
What Will You See After an Airbag In ates?.....1-62
Passenger Sensing System............................1-64
Servicing Your Airbag-Equipped Vehicle...........1-68
Adding Equipment to Your
Airbag-Equipped Vehicle.............................1-69
Restraint System Check..................................1-70
Checking the Restraint Systems......................1-70
Replacing Restraint System Parts
After a Crash............................................1-71
Section 1 Seats and Restraint System
1-1
Page 6 of 462

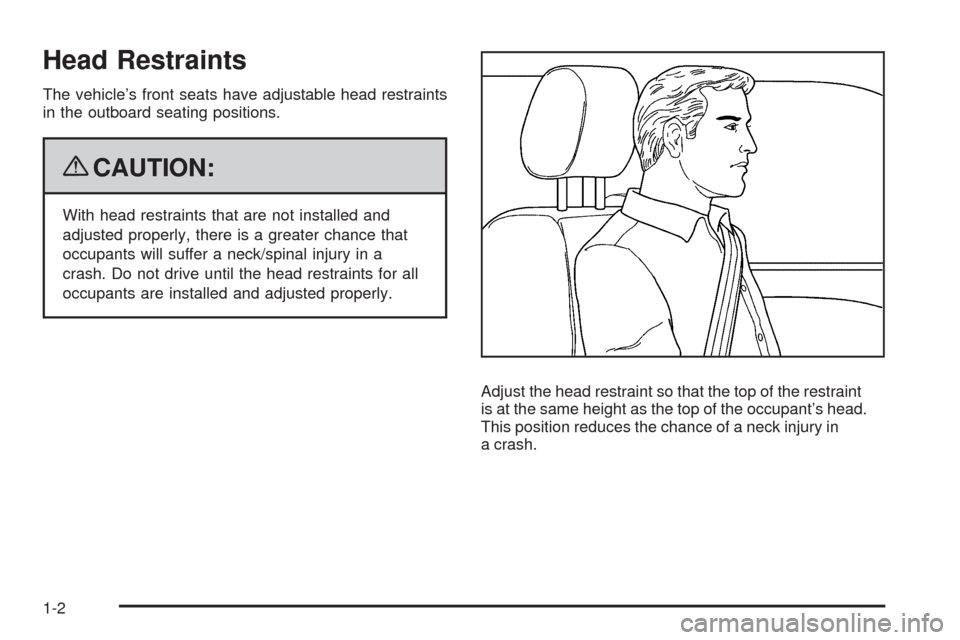

Head Restraints
The vehicle’s front seats have adjustable head restraints
in the outboard seating positions.
{CAUTION:
With head restraints that are not installed and
adjusted properly, there is a greater chance that
occupants will suffer a neck/spinal injury in a
crash. Do not drive until the head restraints for all
occupants are installed and adjusted properly.
Adjust the head restraint so that the top of the restraint
is at the same height as the top of the occupant’s head.
This position reduces the chance of a neck injury in
a crash.
1-2
Page 7 of 462
Pull the head restraint up to raise it. To lower the
head restraint, press the button, located on the top
of the seatback, and push the restraint down.
Push down on the head restraint after the button is
released to make sure that it is locked in place.
The head restraints are not designed to be removed.
Front Seats
Power Seats
The power seat
controls are located
on the outboard side
of the seats.
Move the seat forward or rearward by sliding
the control forward or rearward.
Raise or lower the front part of the seat cushion
by moving the front of the control up or down.
Raise or lower the rear part of the seat cushion
by moving the rear of the control up or down.
The front seats also have power reclining seatbacks.
SeePower Reclining Seatbacks on page 1-8.
On vehicles with the memory feature, memory settings
can be programmed and recalled for seat positions. See
Memory Seat, Mirrors and Steering Wheel on page 1-6.
1-3
Page 8 of 462
Power Lumbar
The power lumbar
controls are located
on the outboard side
of the front seats.
Press the lumbar control forward to increase support
and rearward to decrease support. Press the top
or bottom of the control to raise or lower the support
mechanism.
Keep in mind that as a seating position changes,
as it may during long trips, so should the position
of the lumbar support. Adjust the seat as needed.
Massaging Lumbar
On vehicles with this
feature, the switch is
located on the outboard
side of the front seats
behind the lumbar switch.
Press the switch to turn the massaging lumbar feature
on. The ignition must be on for this feature to work.
The massage cycle will run for up to 10 minutes.
To stop massage, press the massaging lumbar
switch again or press the power lumbar switch.
1-4
Page 9 of 462
Heated and Cooled Seats
The vehicle may have heated and cooled front seats.
To operate the heated or cooled seats, the ignition
must be on.
The buttons are located
on the front doors.
H(Cooled Seat):Press to turn on the cooled seat.
J(Heated Seat and Seatback):Press to turn on the
heated seat and seatback.
A light on the button shows the feature is on.Each feature has three temperature settings indicated by
three lights next to the buttons. The highest setting shows
three lights, two is medium and one is the lowest.
When you press a button, the feature will turn on at the
highest setting. Each time the button is pressed, the
feature will go down one temperature setting.
To turn the feature off, keep pressing the button until
the display lights turn off.
If the vehicle has remote vehicle start and it is started
using the RKE transmitter, the front heated seats will
be turned on to the high setting if it is cold outside.
See “Remote Vehicle Start” underRemote Keyless Entry
(RKE) System Operation on page 2-5. When the key
is inserted into the ignition and the ignition is turned on,
this feature will turn off. To turn it back on, press the
desired button.
Drive Side Buttons
shown, Passenger Side
Buttons similar
1-5
Page 10 of 462
Memory Seat, Mirrors and Steering
Wheel
On vehicles with the memory package, the controls are
located on the driver door panel. The controls are
used to program and recall memory settings for the
driver seat, outside mirror, and steering wheel position
if the vehicle has the power tilt wheel and telescopic
steering feature.To save positions in memory:
1. Adjust the driver seat, including the seatback
recliner and lumbar, both outside mirrors, and
the steering wheel to a comfortable position.
2. Press and hold button 1 until two beeps sound
through the driver side front speaker to let you
know that the position has been stored.
A second seating, mirror, and steering wheel position
can be programmed by repeating the previous steps and
pressing button 2 for a second driver.
1-6
