headlamp CADILLAC DTS 2009 1.G Owner's Guide

Bulb Replacement
It is recommended that all bulbs be replaced by your
dealer/retailer.
High Intensity Discharge (HID)
Lighting
{CAUTION:
The low beam high intensity discharge lighting
system operates at a very high voltage. If you try to
service any of the system components, you could
be seriously injured. Have your dealer/retailer or a
qualied technician service them.
The vehicle may have HID headlamps. After an HID
headlamp bulb has been replaced, you may notice that
the beam is a slightly different shade than it was
originally. This is normal.
Windshield Wiper Blade
Replacement
Windshield wiper blades should be inspected for wear
or cracking. SeeScheduled Maintenance on page 6-4
for more information on wiper blade inspection.
Replacement blades come in different types and are
removed in different ways. Here is how to remove
the wiper blade:
1. Turn the engine off.
2. Lift the windshield wiper arm and blade away from
the windshield.
3. Pull the clip up from the blade connecting point and
pull the blade assembly down toward the windshield
to remove it from the wiper arm.
4. Install the new wiper blade onto the wiper arm and
rmly press down on the clip to snap it into place.
5-46

Your GM dealer/retailer will know the kind of wheel
you need.
Each new wheel should have the same load-carrying
capacity, diameter, width, offset and be mounted the
same way as the one it replaces.
If you need to replace any of your wheels, wheel bolts,
wheel nuts, or Tire Pressure Monitor System (TPMS)
sensors, replace them only with new GM original
equipment parts. This way, you will be sure to have the
right wheel, wheel bolts, wheel nuts, and TPMS sensors
for your vehicle.
{CAUTION:
Using the wrong replacement wheels, wheel bolts,
or wheel nuts on your vehicle can be dangerous.
It could affect the braking and handling of your
vehicle, make your tires lose air and make you
CAUTION: (Continued)
CAUTION: (Continued)
lose control. You could have a collision in which
you or others could be injured. Always use the
correct wheel, wheel bolts, and wheel nuts for
replacement.
Notice:The wrong wheel can also cause problems
with bearing life, brake cooling, speedometer or
odometer calibration, headlamp aim, bumper height,
vehicle ground clearance, and tire or tire chain
clearance to the body and chassis.
If your vehicle is a professional model, the wheels have
a unique offset and bolt hole diameter. Each of the
wheels on the professional vehicle have eight wheels
nuts. The wheels on the non-professional vehicle
have ve wheel nuts. SeeChanging a Flat Tire on
page 5-74for more information.
5-72

The vehicle has an airbag system. Before attempting to
add anything electrical to the vehicle, seeServicing
Your Airbag-Equipped Vehicle on page 1-68.
Headlamp Wiring
The headlamp wiring system has four individual fuses. An
electrical overload will cause the lamps to go on and off,
or in some cases to remain off. If this happens, have the
headlamp wiring checked right away.
Windshield Wiper Fuses
The windshield wiper motor is protected by an internal
circuit breaker. If the wiper motor overheats due to
heavy snow, the wipers will stop until the motor cools
and will then restart.
A fuse powers the wiper motor. If the fuse blows, there
is an electrical problem. Be sure to have it xed.
Power Windows and Other Power
Options
Circuit breakers in the fuse block protect the power
windows and other power accessories. When the
current load is too heavy, the circuit breaker opens and
closes, protecting the circuit until the problem is xed or
goes away.
Fuses and Circuit Breakers
The wiring circuits in the vehicle are protected from
short circuits by a combination of fuses and circuit
breakers. This greatly reduces the chance of res
caused by electrical problems.
Look at the silver-colored band inside the fuse. If the
band is broken or melted, replace the fuse. Be sure you
replace a bad fuse with a new one of the identical size
and rating.
If you ever have a problem on the road and don’t have
a spare fuse, you can borrow one that has the same
amperage. Just pick some feature of the vehicle that you
can get along without — like the radio or cigarette
lighter — and use its fuse, if it is the correct amperage.
Replace it as soon as you can.
Underhood Fuse Block
The underhood fuse block is located on the passenger
side of the engine compartment. Remove the fuse cover
and secondary service cover to access the fuse block.
Notice:Spilling liquid on any electrical components
on the vehicle may damage it. Always keep the
covers on any electrical component.
5-95

Fuses Usage
6 Oxygen Sensor
7 Emission Device
8 Transmission, Ignition 1
9Engine Control Module (ECM),
Powertrain Control Module (PCM)
10Climate Control System, Instrument
Panel Cluster Ignition 1
11 Airbag System
12 Horn
13 Windshield Wiper
14 Fog Lamps
15 Right High-Beam Headlamp
16 Left High-Beam Headlamp
17 Left Low-Beam Headlamp
18 Right Low-Beam Headlamp
19 Windshield Washer Pump Motor
20 Left Front Cornering Lamp
21 Right Front Cornering Lamp
22 Air Pump (J-Case)Fuses Usage
23Antilock Brake System (ABS)
(J-Case)
24 Starter (J-Case)
25Antilock Brake System (ABS) Motor
(J-Case)
26 Cooling Fan 2 (J-Case)
27 Cooling Fan 1 (J-Case)
28 Windshield Washer Heater (J-Case)
Relays Usage
29 Powertrain
30 Starter
31 Cooling Fan 2
32 Cooling Fan 3
33 Cooling Fan 1
34 Air Conditioning Clutch
35 Air Injection Reactor (AIR) Solenoid
36 Ignition
37 Air Pump
5-97

Audio System.................................................3-95
Audio Steering Wheel Controls....................3-127
Navigation/Radio System,
see Navigation Manual............................3-116
Setting the Clock.........................................3-96
XM™ Satellite Radio Antenna System...........3-129
Audio System(s).............................................3-99
Audio Systems
Radio Reception........................................3-128
Theft-Deterrent Feature...............................3-127
Automatic Transmission
Fluid..........................................................5-19
Operation...................................................2-29
B
Backglass Antenna........................................3-129
Battery..........................................................5-36
Electric Power Management..........................3-36
Exterior Lighting Battery Saver......................3-34
Inadvertent Power Saver..............................3-37
Load Management.......................................3-36
Run-Down Protection...................................3-37
Belt Routing, Engine.......................................6-14
Bluetooth
®....................................................3-116
Brake
Emergencies................................................ 4-5
Brake Fluid....................................................5-33Brakes..........................................................5-33
Antilock....................................................... 4-4
Parking......................................................2-32
System Warning Light..................................3-56
Braking........................................................... 4-4
Braking in Emergencies..................................... 4-5
Break-In, New Vehicle.....................................2-24
Bulb Replacement
Fog Lamp ..................................................3-34
Headlamp Aiming........................................5-43
Headlamps.................................................5-46
High Intensity Discharge (HID) Lighting...........5-46
Buying New Tires...........................................5-68
C
Calibration.............................................1-11, 2-38
California
Perchlorate Materials Requirements................. 5-4
California Fuel.................................................. 5-5
California Proposition 65 Warning....................... 5-4
Canadian Owners................................................ ii
Capacities and Specications..........................5-103
Carbon Monoxide
Engine Exhaust...........................................2-36
Trunk.........................................................2-13
Winter Driving.............................................4-16
2

Driving (cont.)
Highway Hypnosis.......................................4-14
Hill and Mountain Roads..............................4-15
In Rain and on Wet Roads...........................4-12
Loss of Control...........................................4-10
Off-Road Recovery......................................4-10
Rocking Your Vehicle to Get it Out.................4-19
Winter........................................................4-16
Driving for Better Fuel Economy......................... 4-2
Dual Climate Control System............................3-40
E
EDR .............................................................7-17
Electrical Equipment
Add-On Equipment......................................5-94
Electrical System
Fuses and Circuit Breakers...........................5-95
Headlamp Wiring.........................................5-95
Power Windows and Other Power Options......5-95
Rear Underseat Fuse Block..........................5-98
Underhood Fuse Block.................................5-95
Windshield Wiper Fuses...............................5-95
Electronic Immobilizer
PASS-Key
®III+...........................................2-22Electronic Immobilizer Operation
PASS-Key
®III+...........................................2-23
Engine
Air Cleaner/Filter.........................................5-17
Check and Service Engine Soon Lamp...........3-61
Compartment Overview................................5-12
Coolant......................................................5-23
Coolant Heater............................................2-28
Coolant Temperature Gage...........................3-60
Coolant Temperature Warning Light................3-59
Cooling System...........................................5-22
Drive Belt Routing.......................................6-14
Exhaust.....................................................2-36
Oil .............................................................5-13
Oil Life System...........................................5-16
Overheated Protection Operating Mode...........5-30
Overheating................................................5-28
Starting......................................................2-26
Entry Lighting.................................................3-35
eporting Safety Defects to the
United States Government............................7-15
Event Data Recorders.....................................7-18
Extender, Safety Belt.......................................1-32
Exterior Lamps...............................................3-29
Exterior Lighting Battery Saver..........................3-34
5

H
Hazard Warning Flashers................................... 3-6
Head Restraints............................................... 1-2
Headlamp
Aiming .......................................................5-43
Headlamp Wiring............................................5-95
Headlamps
Bulb Replacement.......................................5-46
Daytime Running Lamps (DRL).....................3-33
Exterior Lamps............................................3-29
Flash-to-Pass..............................................3-13
High Intensity Discharge (HID) Lighting...........5-46
High/Low Beam Changer................................ 3-9
On Reminder..............................................3-33
Wiper Activated...........................................3-32
Heated
Steering Wheel............................................. 3-7
Heated Seats................................................... 1-5
Heater
Engine Coolant...........................................2-28
Highbeam On Light.........................................3-66
High-Speed Operation, Tires.............................5-59
Highway Hypnosis...........................................4-14Hill and Mountain Roads..................................4-15
Hood
Checking Things Under................................5-10
Release.....................................................5-11
Horn ............................................................... 3-6
How to Wear Safety Belts Properly...................1-17
I
Ignition Positions.............................................2-25
Inadvertent Power Battery Saver.......................3-37
Infants and Young Children, Restraints...............1-36
Ination - Tire Pressure...................................5-57
Instrument Panel
Brightness..................................................3-34
Cluster.......................................................3-51
Overview..................................................... 3-4
Introduction...................................................... 6-2
J
Jump Starting.................................................5-38
7

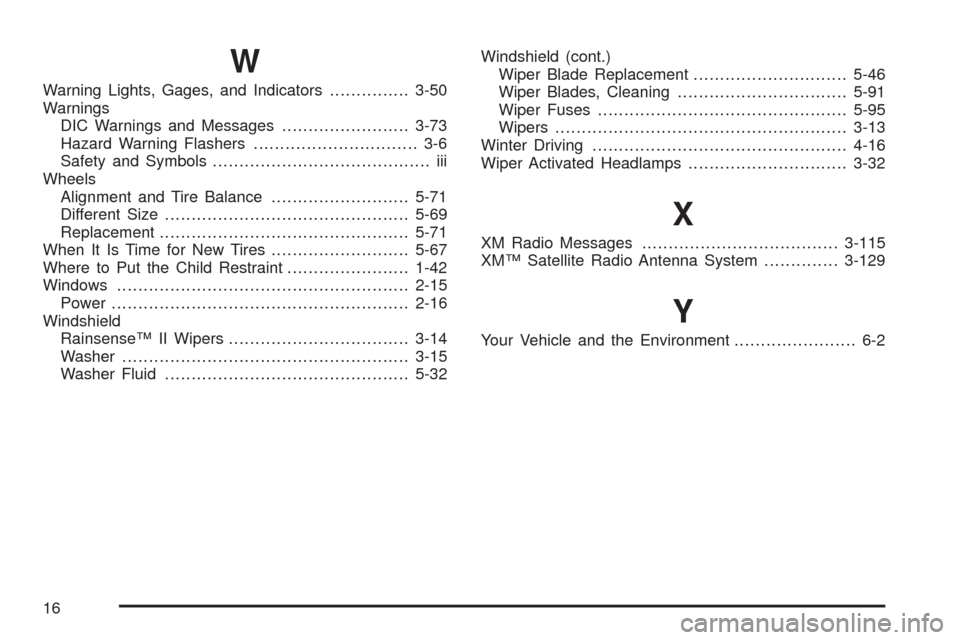

W
Warning Lights, Gages, and Indicators...............3-50
Warnings
DIC Warnings and Messages........................3-73
Hazard Warning Flashers............................... 3-6
Safety and Symbols......................................... iii
Wheels
Alignment and Tire Balance..........................5-71
Different Size..............................................5-69
Replacement...............................................5-71
When It Is Time for New Tires..........................5-67
Where to Put the Child Restraint.......................1-42
Windows.......................................................2-15
Power ........................................................2-16
Windshield
Rainsense™ II Wipers..................................3-14
Washer......................................................3-15
Washer Fluid..............................................5-32Windshield (cont.)
Wiper Blade Replacement.............................5-46
Wiper Blades, Cleaning................................5-91
Wiper Fuses...............................................5-95
Wipers.......................................................3-13
Winter Driving................................................4-16
Wiper Activated Headlamps..............................3-32
X
XM Radio Messages.....................................3-115
XM™ Satellite Radio Antenna System..............3-129
Y
Your Vehicle and the Environment....................... 6-2
16
