Fuses Usage
42 OnStar®Module
43 Body Modules
44 Radio
45 Door Unlatch (optional)
46 Rear Defogger (J-Case)
47Electronic Leveling Control
Compressor (J-Case)
48 Blower (J-Case) (optional)
49 Blower (J-Case) (optional)
Resistor Usage
50 Terminating Resistor
Relays Usage
51 Front Blower (optional)
52 Rear Defogger
53Electronic Leveling Control
Compressor
58 Park Lamps
Relays Usage
59 Fuel Pump
60 License Plate Lamp (optional)
61 Right Park Lamp (optional)
62 Unlock
63 Lock
64 Run
65 Not Used
66 Door Unlatch (optional)
67 Trunk Release
68 Stoplamp (optional)
69 Overhead Lamps (optional)
70 Retained Accessory Power (RAP)
Circuit
BreakersUsage
54 Right Front Seat
55 Left Front Power Seat
56 Power Windows
57 Power Tilt Steering Wheel
5-102

Scheduled Maintenance
To maintain the ride, handling, and performance of
the vehicle, it is important that the rst tire rotation
service be performed when the vehicle has 5,000 to
8,000 miles (8 000 to 13 000 km). Check tires for
ination pressures and wear. SeeTires on page 5-48.
Rotate tires. SeeTire Inspection and Rotation on
page 5-65and “Tire Wear Inspection” inAt Least Once
a Month on page 6-9.
When the CHANGE ENGINE OIL SOON message
displays in the Driver Information Center (DIC), service
is required for the vehicle. Have the vehicle serviced
as soon as possible within the next 600 miles
(1 000 km). It is possible that, if driving under the best
conditions, the engine oil life system may not indicate
that vehicle service is necessary for over a year.
However, the engine oil and lter must be changed at
least once a year and at this time the system must
be reset. Your dealer/retailer has trained service
technicians who will perform this work using genuine
parts and reset the system.
If the engine oil life system is ever reset accidentally,
service the vehicle within 3,000 miles (5 000 km)
since the last service. Remember to reset the oil life
system whenever the oil is changed. SeeEngine Oil Life
System on page 5-16for information on the Engine
Oil Life System and resetting the system.When the CHANGE ENGINE OIL SOON message
appears, the following services, checks, and inspections
are required:
❑Change engine oil and lter. SeeEngine Oil on
page 5-13. Reset oil life system. SeeEngine Oil Life
System on page 5-16.An Emission Control Service.
❑Visually check for any leaks or damage.
See footnote (k).
❑Inspect engine air cleaner lter. If necessary, replace
lter. SeeEngine Air Cleaner/Filter on page 5-17.
See footnote (m).
❑Rotate tires and check ination pressures and wear.
SeeTire Inspection and Rotation on page 5-65and
“Tire Wear Inspection” inAt Least Once a Month on
page 6-9.
❑Inspect brake system.See footnote (a).
❑Check engine coolant and windshield washer uid
levels and add uid as needed.
❑Perform any needed additional services.
See “Additional Required Services” in this section.
❑Inspect suspension and steering components.
See footnote (b).
❑Inspect engine cooling system.See footnote (c).
❑Inspect wiper blades.See footnote (d).
❑Inspect restraint system components.See footnote (e).
❑Lubricate body components.See footnote (f).
❑Check transmission uid level and add uid
as needed.
6-4

Maintenance Footnotes
(a)Visually inspect brake lines and hoses for proper
hook-up, binding, leaks, cracks, chafing, etc. Inspect disc
brake pads for wear and rotors for surface condition.
Inspect other brake parts, including calipers, parking
brake, etc.
(b)Visually inspect front and rear suspension and
steering system for damaged, loose, or missing parts or
signs of wear. Inspect power steering lines and hoses
for proper hook-up, binding, leaks, cracks, chafing, etc.
(c)Visually inspect hoses and have them replaced if they
are cracked, swollen, or deteriorated. Inspect all pipes,
fittings and clamps; replace with genuine parts as
needed. To help ensure proper operation, a pressure test
of the cooling system and pressure cap and cleaning the
outside of the radiator and air conditioning condenser is
recommended at least once a year.
(d)Inspect wiper blades for wear, cracking, or
contamination. Clean the windshield and wiper blades,
if contaminated. Replace wiper blades that are worn
or damaged. See Windshield Wiper Blade Replacement
on page 5-46 and Windshield and Wiper Blades on
page 5-91 for more information.
(e)Make sure the safety belt reminder light and safety
belt assemblies are working properly. Look for any
other loose or damaged safety belt system parts.If you see anything that might keep a safety belt system
from doing its job, have it repaired. Have any torn or
frayed safety belts replaced. Also see Checking the
Restraint Systems on page 1-70.
(f)Lubricate all key lock cylinders. Lubricate all hinges
and latches, including those for the hood, rear
compartment, glove box door, and console door.
More frequent lubrication may be required when exposed
to a corrosive environment. Applying silicone grease on
weatherstrips with a clean cloth will make them last
longer, seal better, and not stick or squeak.
(g)If driving regularly under dusty conditions, the filter
may require replacement more often.
(h)Change automatic transmission fluid and filter if the
vehicle is mainly driven under one or more of these
conditions:
In heavy city traffic where the outside temperature
regularly reaches 90°F (32°C) or higher.
In hilly or mountainous terrain.
When doing frequent trailer towing.
Professional vehicle uses, such as limousine
service.
Uses such as high performance operation.
6-7

Usage Fluid/Lubricant
Hydraulic Brake
SystemDOT 3 Hydraulic Brake Fluid
(GM Part No. U.S. 88862806,
in Canada 88862807).
Windshield
WasherOptikleen
®Washer Solvent.
Parking Brake
Cable GuidesChassis Lubricant
(GM Part No. U.S. 12377985,
in Canada 88901242) or lubricant
meeting requirements of NLGI #2,
Category LB or GC-LB.
Power Steering
SystemGM Power Steering Fluid
(GM Part No. U.S. 89021184,
in Canada 89021186).
Automatic
TransmissionDEXRON
®-VI Automatic
Transmission Fluid.
Key Lock
CylindersMulti-Purpose Lubricant, Superlube
(GM Part No. U.S. 12346241,
in Canada 10953474).
Usage Fluid/Lubricant
Hood Latch
Assembly,
Secondary
Latch, Pivots,
Spring
Anchor, and
Release PawlLubriplate Lubricant Aerosol
(GM Part No. U.S. 12346293,
in Canada 992723) or lubricant
meeting requirements of NLGI #2,
Category LB or GC-LB.
Hood and
Door HingesMulti-Purpose Lubricant, Superlube
(GM Part No. U.S. 12346241,
in Canada 10953474).
Weatherstrip
ConditioningWeatherstrip Lubricant
(GM Part No. U.S. 3634770,
in Canada 10953518) or
Dielectric Silicone Grease
(GM Part No. U.S. 12345579,
in Canada 992887).
6-12

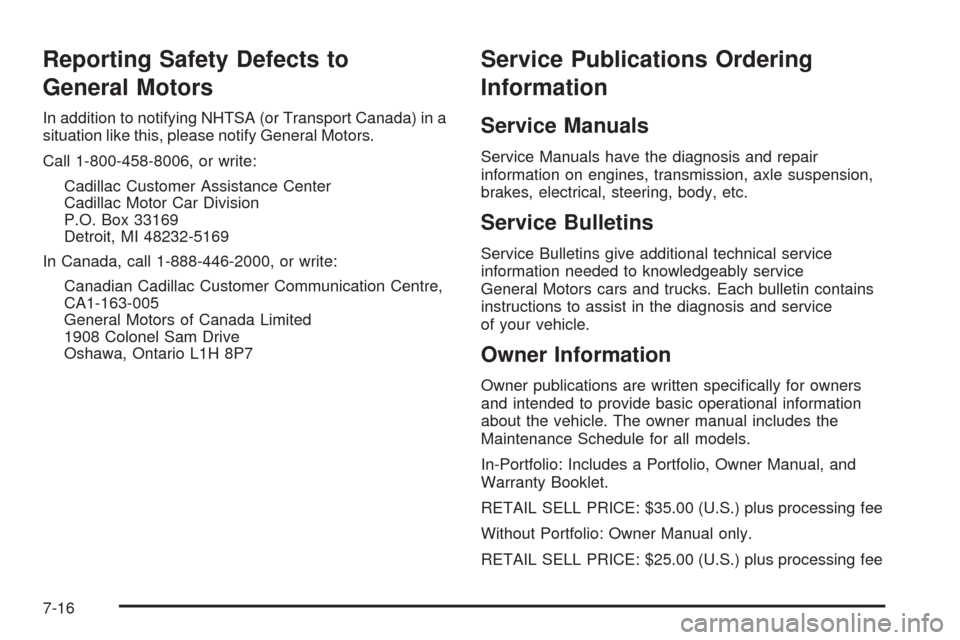

Reporting Safety Defects to
General Motors
In addition to notifying NHTSA (or Transport Canada) in a
situation like this, please notify General Motors.
Call 1-800-458-8006, or write:
Cadillac Customer Assistance Center
Cadillac Motor Car Division
P.O. Box 33169
Detroit, MI 48232-5169
In Canada, call 1-888-446-2000, or write:
Canadian Cadillac Customer Communication Centre,
CA1-163-005
General Motors of Canada Limited
1908 Colonel Sam Drive
Oshawa, Ontario L1H 8P7
Service Publications Ordering
Information
Service Manuals
Service Manuals have the diagnosis and repair
information on engines, transmission, axle suspension,
brakes, electrical, steering, body, etc.
Service Bulletins
Service Bulletins give additional technical service
information needed to knowledgeably service
General Motors cars and trucks. Each bulletin contains
instructions to assist in the diagnosis and service
of your vehicle.
Owner Information
Owner publications are written specically for owners
and intended to provide basic operational information
about the vehicle. The owner manual includes the
Maintenance Schedule for all models.
In-Portfolio: Includes a Portfolio, Owner Manual, and
Warranty Booklet.
RETAIL SELL PRICE: $35.00 (U.S.) plus processing fee
Without Portfolio: Owner Manual only.
RETAIL SELL PRICE: $25.00 (U.S.) plus processing fee
7-16

Audio System.................................................3-95
Audio Steering Wheel Controls....................3-127
Navigation/Radio System,
see Navigation Manual............................3-116
Setting the Clock.........................................3-96
XM™ Satellite Radio Antenna System...........3-129
Audio System(s).............................................3-99
Audio Systems
Radio Reception........................................3-128
Theft-Deterrent Feature...............................3-127
Automatic Transmission
Fluid..........................................................5-19
Operation...................................................2-29
B
Backglass Antenna........................................3-129
Battery..........................................................5-36
Electric Power Management..........................3-36
Exterior Lighting Battery Saver......................3-34
Inadvertent Power Saver..............................3-37
Load Management.......................................3-36
Run-Down Protection...................................3-37
Belt Routing, Engine.......................................6-14
Bluetooth
®....................................................3-116
Brake
Emergencies................................................ 4-5
Brake Fluid....................................................5-33Brakes..........................................................5-33
Antilock....................................................... 4-4
Parking......................................................2-32
System Warning Light..................................3-56
Braking........................................................... 4-4
Braking in Emergencies..................................... 4-5
Break-In, New Vehicle.....................................2-24
Bulb Replacement
Fog Lamp ..................................................3-34
Headlamp Aiming........................................5-43
Headlamps.................................................5-46
High Intensity Discharge (HID) Lighting...........5-46
Buying New Tires...........................................5-68
C
Calibration.............................................1-11, 2-38
California
Perchlorate Materials Requirements................. 5-4
California Fuel.................................................. 5-5
California Proposition 65 Warning....................... 5-4
Canadian Owners................................................ ii
Capacities and Specications..........................5-103
Carbon Monoxide
Engine Exhaust...........................................2-36
Trunk.........................................................2-13
Winter Driving.............................................4-16
2

F
Filter
Engine Air Cleaner......................................5-17
Finish Damage...............................................5-93
Flashers, Hazard Warning.................................. 3-6
Flash-to-Pass.................................................3-13
Flat Tire........................................................5-74
Flat Tire, Changing.........................................5-74
Flat Tire, Storing.............................................5-83
Floor Mats.....................................................2-63
Fluid
Automatic Transmission................................5-19
Power Steering...........................................5-31
Windshield Washer......................................5-32
Fog Lamp
Fog ...........................................................3-34
Fog Lamp Light..............................................3-65
Footwell Lamps..............................................3-36
Forward Collision Alert (FCA) System.................. 3-9
Front Storage Area.........................................2-62
Fuel............................................................... 5-5
Additives...................................................... 5-6
California Fuel.............................................. 5-5
Economy Driving........................................... 4-2
Filling a Portable Fuel Container..................... 5-9Fuel (cont.)
Filling the Tank............................................. 5-7
Fuels in Foreign Countries.............................. 5-7
Gage .........................................................3-66
Gasoline Octane........................................... 5-5
Gasoline Specications.................................. 5-5
Fuses
Fuses and Circuit Breakers...........................5-95
Rear Underseat Fuse Block..........................5-98
Underhood Fuse Block.................................5-95
Windshield Wiper.........................................5-95
G
Gage
Speedometer..............................................3-52
Tachometer.................................................3-52
Gages
Engine Coolant Temperature.........................3-60
Fuel..........................................................3-66
Garage Door Opener.......................................2-55
Gasoline
Octane........................................................ 5-5
Specications............................................... 5-5
Glove Box.....................................................2-62
GM Mobility Reimbursement Program.................. 7-7
6

H
Hazard Warning Flashers................................... 3-6
Head Restraints............................................... 1-2
Headlamp
Aiming .......................................................5-43
Headlamp Wiring............................................5-95
Headlamps
Bulb Replacement.......................................5-46
Daytime Running Lamps (DRL).....................3-33
Exterior Lamps............................................3-29
Flash-to-Pass..............................................3-13
High Intensity Discharge (HID) Lighting...........5-46
High/Low Beam Changer................................ 3-9
On Reminder..............................................3-33
Wiper Activated...........................................3-32
Heated
Steering Wheel............................................. 3-7
Heated Seats................................................... 1-5
Heater
Engine Coolant...........................................2-28
Highbeam On Light.........................................3-66
High-Speed Operation, Tires.............................5-59
Highway Hypnosis...........................................4-14Hill and Mountain Roads..................................4-15
Hood
Checking Things Under................................5-10
Release.....................................................5-11
Horn ............................................................... 3-6
How to Wear Safety Belts Properly...................1-17
I
Ignition Positions.............................................2-25
Inadvertent Power Battery Saver.......................3-37
Infants and Young Children, Restraints...............1-36
Ination - Tire Pressure...................................5-57
Instrument Panel
Brightness..................................................3-34
Cluster.......................................................3-51
Overview..................................................... 3-4
Introduction...................................................... 6-2
J
Jump Starting.................................................5-38
7

Locks
Central Door Unlocking System.....................2-11
Door ..........................................................2-10
Lockout Protection.......................................2-12
Power Door ................................................2-11
Programmable Automatic Door Locks.............2-11
Rear Door Security Locks.............................2-12
Loss of Control...............................................4-10
Lower Anchors and Tethers for Children.............1-43
Lumbar
Massaging Controls....................................... 1-4
Power Controls............................................. 1-4
Lumbar Controls, Rear Power...........................1-11
M
Magnetic Ride Control....................................... 4-8
Maintenance
Footnotes..................................................... 6-7
Maintenance Schedule
Additional Required Services........................... 6-5
At Each Fuel Fill........................................... 6-8
At Least Once a Month.................................. 6-9
At Least Once a Year.................................... 6-9Maintenance Schedule (cont.)
Maintenance Record....................................6-15
Maintenance Replacement Parts....................6-13
Maintenance Requirements............................. 6-2
Owner Checks and Services........................... 6-8
Recommended Fluids and Lubricants.............6-11
Scheduled Maintenance................................. 6-4
Using.......................................................... 6-2
Your Vehicle and the Environment................... 6-2
Malfunction Indicator Lamp...............................3-61
Massaging Lumbar Controls............................... 1-4
Memory Seat, Mirrors, Steering Wheel Controls.... 1-6
Message
DIC Warnings and Messages........................3-73
Mirrors
Automatic Dimming Rearview........................2-38
Manual Rearview Mirror with Compass and
Temperature............................................1-11
Outside Automatic Dimming Mirror.................2-40
Outside Convex Mirror.................................2-41
Outside Heated Mirrors................................2-41
Outside Power Foldaway Mirrors....................2-40
Park Tilt.....................................................2-41
MP3 ............................................................3-110
9

PASS-Key®III+ Electronic Immobilizer
Operation...................................................2-23
Perchlorate Materials Requirements, California...... 5-4
Performance Shifting.......................................2-32
Phone
Bluetooth
®................................................3-116
Power
Door Locks.................................................2-11
Electrical System.........................................5-95
Lumbar Controls........................................... 1-4
Rear Lumbar Controls..................................1-11
Reclining Seatbacks...................................... 1-8
Retained Accessory (RAP)............................2-26
Seat ............................................................ 1-3
Steering Fluid.............................................5-31
Tilt Wheel and Telescopic Steering Column....... 3-7
Windows....................................................2-16
Pregnancy, Using Safety Belts..........................1-31
Privacy..........................................................7-17
Navigation System.......................................7-19
OnStar.......................................................7-19
Radio Frequency Identication (RFID).............7-19
Programmable Automatic Door Locks.................2-11
Proposition 65 Warning, California....................... 5-4
R
Radio Frequency Identication (RFID), Privacy....7-19
Radio(s)........................................................3-99
Radios
Navigation/Radio System,
see Navigation Manual............................3-116
Reception.................................................3-128
Setting the Clock.........................................3-96
Theft-Deterrent..........................................3-127
Rainsense™ II Wipers.....................................3-14
Reading Lamps..............................................3-35
Rear Climate Control System............................3-46
Rear Door Security Locks................................2-12
Rear Heated Seats.........................................1-10
Rear Seat Armrest..........................................2-63
Rearview Mirror, Automatic Dimming..................2-38
Rearview Mirror with Compass and
Temperature...............................................1-11
Reclining Seatbacks, Power............................... 1-8
Recommended Fluids and Lubricants.................6-11
Recreational Vehicle Towing.............................4-26
Reimbursement Program, GM Mobility................. 7-7
Remote Keyless Entry (RKE) System.................. 2-4
11
