CADILLAC ELDORADO 1993 10.G Owners Manual

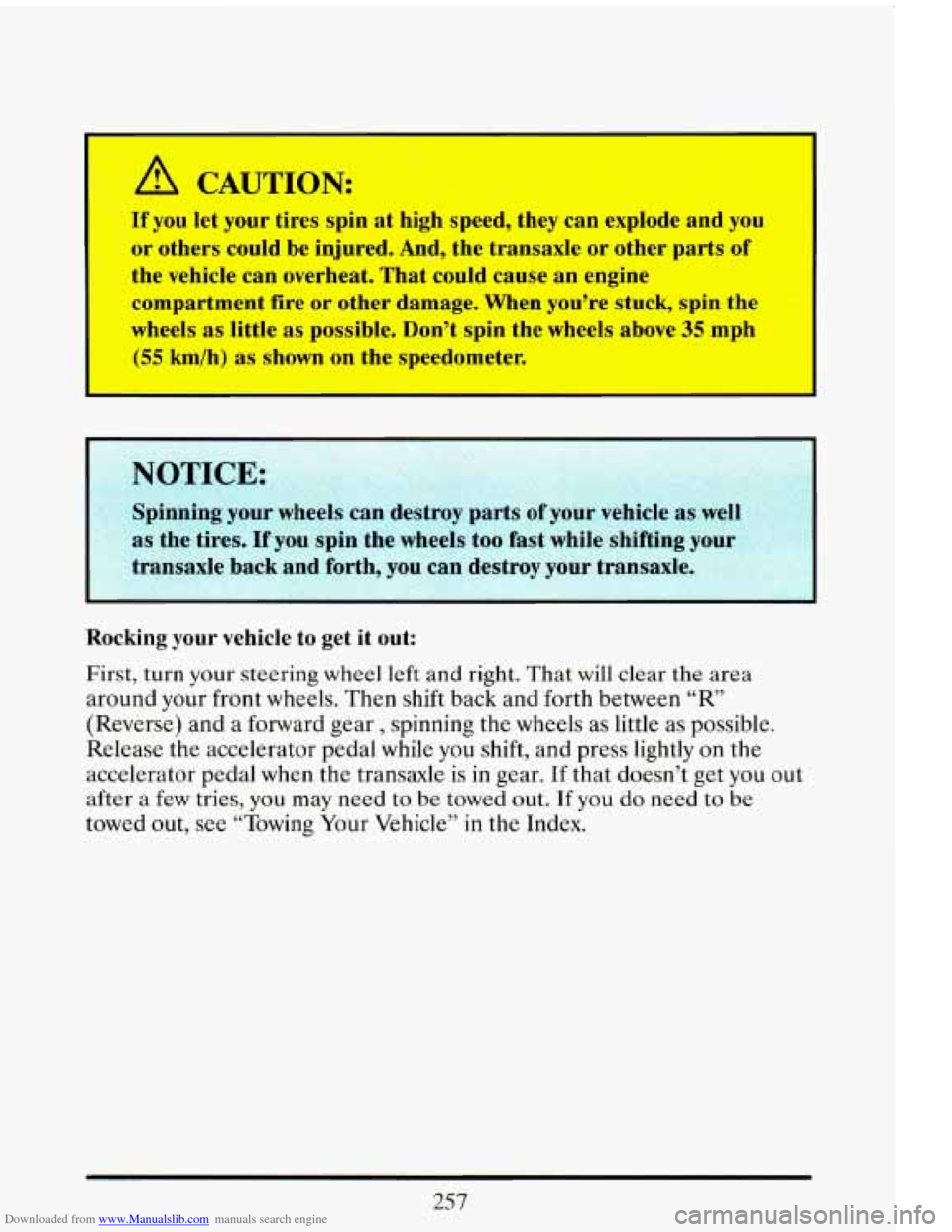

Downloaded from www.Manualslib.com manuals search engine If you let your tires spin at high speed, they can explode and you
or others could be injured. And, the transaxle or other parts of
the vehicle can overheat. That could cause an engine
compartment fire or other damage. When you’re stuck, spin the
wheels as little as possible. Don’t spin the wheels above
35 mph
(55 km/h) as shown on the speedometer.
-3pannmg your
H ; can destroy parts of your v( cle as well
I as the tires. If you spin the wheels too fast while shifting your
transaxle back and forth, you can destroy your transarj
.
Rocking your vehicle to get it out:
First, turn your steering wheel left and right. That will clear the area
around your front wheels. Then shift back and forth between
“R’
(Reverse) and a forward gear, spinning the wheels as little as possible.
Release the accelerator pedal while you shift, and press lightly on the
accelerator pedal when the transaxle is in gear.
If that doesn’t get you out
after
a few tries, you may need to be towed out. If you do need to be
towed out, see “Towing
Your Vehicle” in the Index.
257

Downloaded from www.Manualslib.com manuals search engine rd

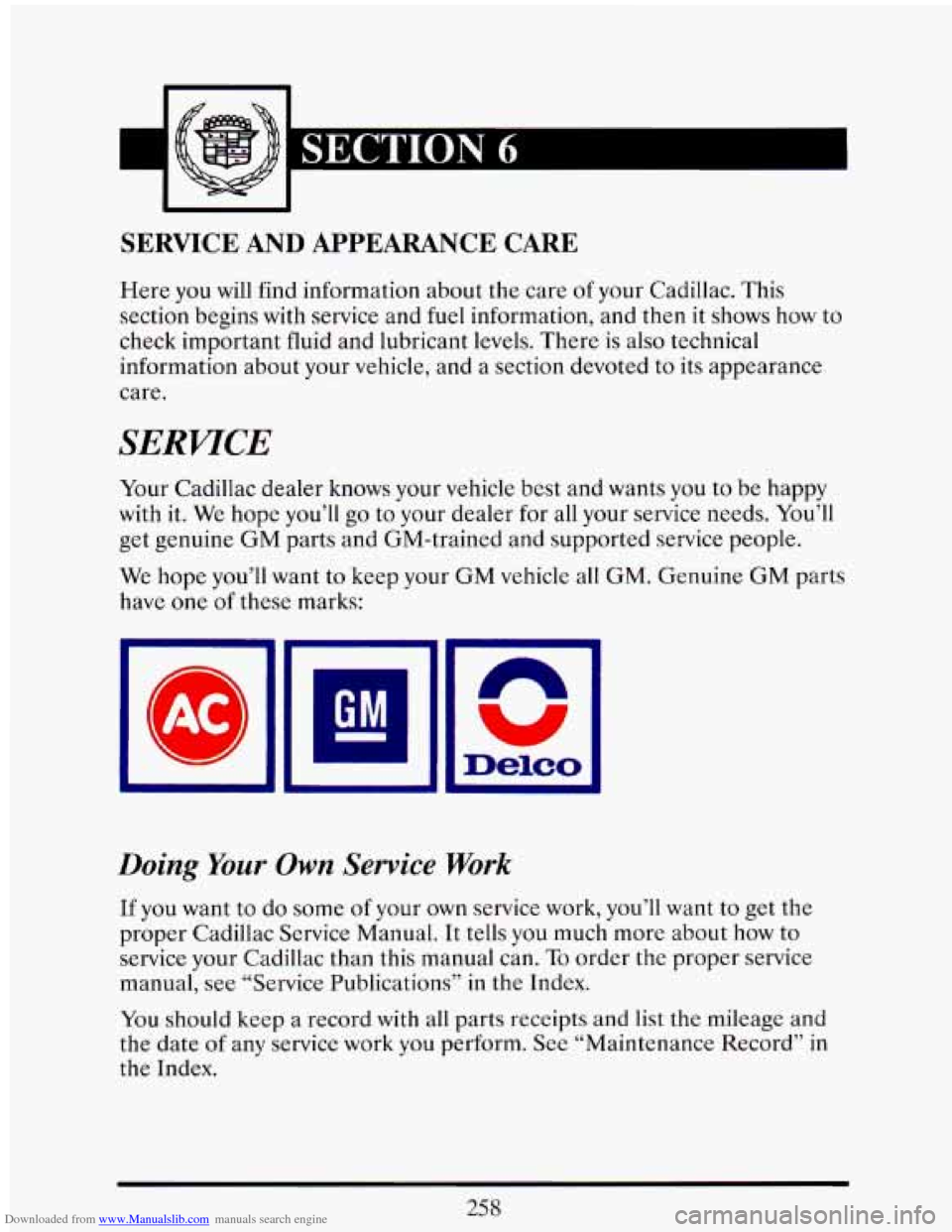

SERVICE AND APPEARANCE CARE
Here you will find information about the care of your Cadillac. This
section begins
with service and fuel information, and then it shows how to
check important fluid and lubricant levels. There is also technical
information about your vehicle, and a section devoted to its appearance
care.
SERWCE
Your Cadillac dealer knows your vehicle best and wants you to be happy
with it.
Wc hopc you’ll go to your dealer for all your service needs. You’ll
get genuine GM parts and GM-trained and supported service people.
We hope you’ll want to keep your GM vehicle all GM. Genuine GM parts
have one
of these marks:
Doing Your Own Service Work
If you want to do some of your own service work, you’ll want to get the
proper Cadillac Service Manual. It tells you much more about
how to
service your Cadillac than this manual can.
To order the proper service
manual, see “Service Publications’’ in the Index.
You should keep a record
with all parts receipts and list the mileage and
the date of any service work you perform. See “Maintenance Record” in
the Index.
258

Downloaded from www.Manualslib.com manuals search engine r
P

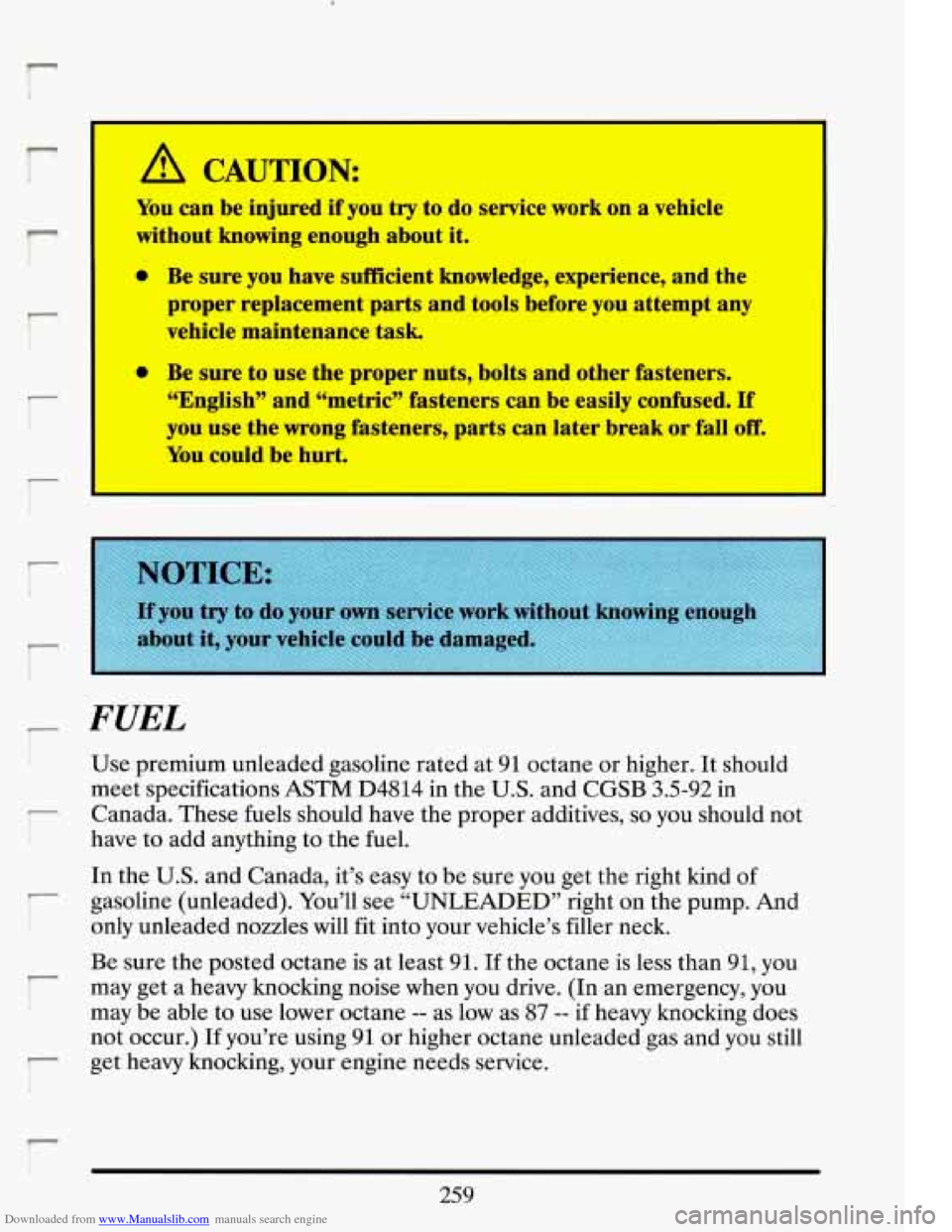

A CAUTION
You can be iqjnred if you try to do service work on a vehicle
without knowing enough about it.
Be sure you have sdlicient knowledge, experience, and the
proper replacement parts and tools before you attempt any
vehicle maintenance task,
@ Be sure to use the proper nuts, bolts and other fasteners.
“k@sh” and ccmetricm fasteners can be easily eonffrsed. If
you use the mng fasteners, parts can later break or fall off.
You could be hurt.
1_ FUEL
!-
Use premium unleaded gasoline rated at 91 octane or higher. It should
meet specifications
ASTM D4814 in the US. and CGSB 3.5-92 in
Canada. These fuels should have the proper additives,
so you should not
have to add anything to the fuel.
In the U.S. and Canada, it’s easy to be sure you get the right kind of
only unleaded nozzles will fit into your vehicle’s filler neck.
T- gasoline (unleaded). You’ll see “UNLEADED” right on the pump. And
Be sure the posted octane is at least 91.
If the octane is less than 91, you
may get a heavy knocking noise when you drive. (In an emergency, you
may be able to use lower octane
-- as low as 87 -- if heavy knocking does
not occur.)
If you’re using 91 or higher octane unleaded gas and you still
get heavy knocking, your engine needs service.
I
259

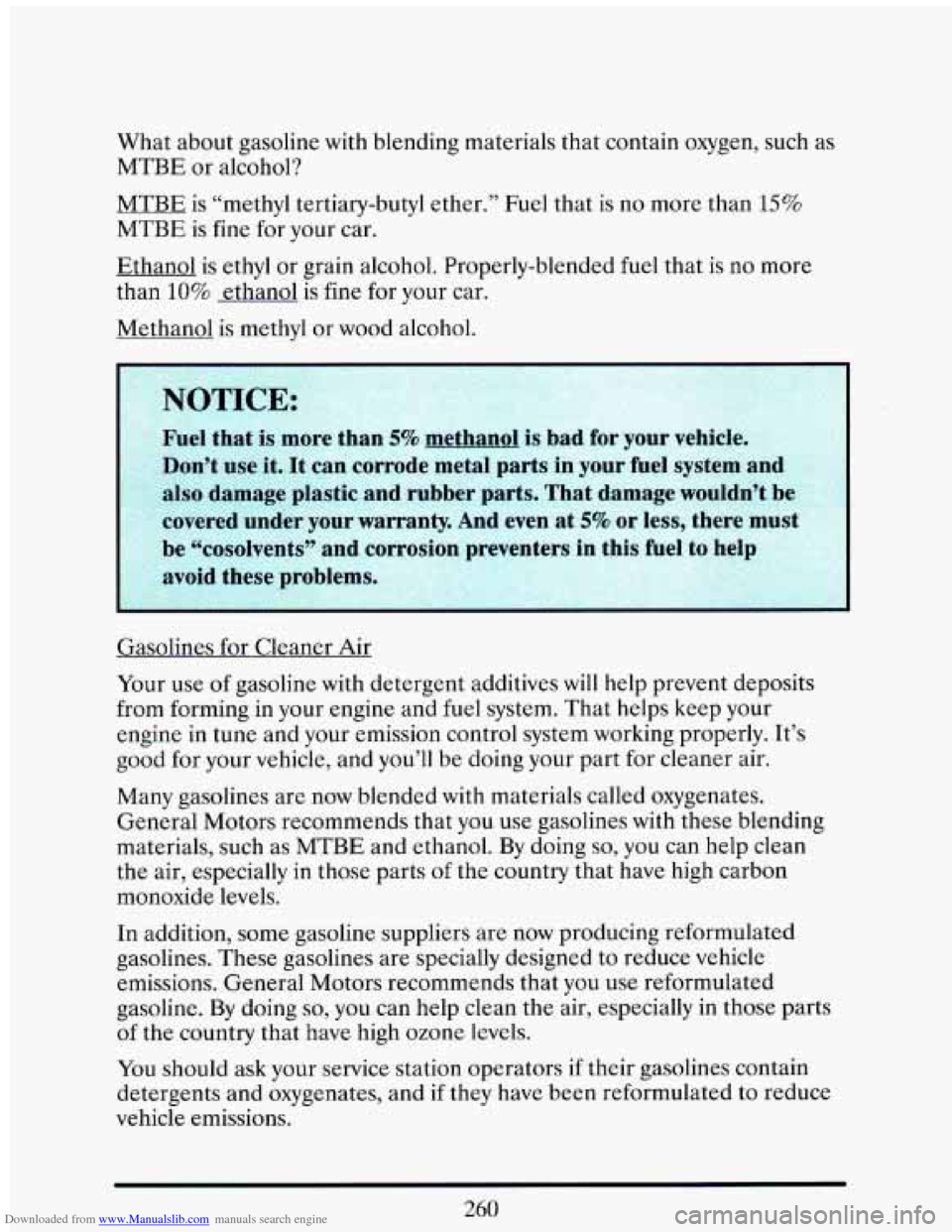

Downloaded from www.Manualslib.com manuals search engine What about gasoline with blending materials that contain oxygen, such as
MTBE or alcohol?
MTBE is “methyl tertiary-butyl ether.” Fuel that is no more than
15%
MTBE is fine for your car.
Ethanol is ethyl or grain alcohol. Properly-blended fuel that is no more
than
10% ethanol is fine for your car.
Methanol
is methyl or wood alcohol.
r 1
NOTICE:
Fuel that is more than 5% methanol is bad for your vehicle.
Don’t use it. It can corrode metal parts in your fuel system and
also damage plastic and rubber parts. That damage wouldn’t be
covered under your warranty. And even at
5% or less, there must
be 6Ccosolvents” and corrosion preventers in this fuel to help
avoid these Droblems.
Gasolines for Cleaner Air
Your use
of gasoline with detergent additives will help prevent deposits
from forming in your engine and fuel system. That helps keep your
engine
in tune and your emission control system working properly. It’s
good for your vehicle, and you’ll be doing your part for cleaner air.
Many gasolines are now blended with materials called oxygenates.
General Motors recommends that you use gasolines
with these blending
materials, such as
MTBE and ethanol. By doing so, you can help clean
the air, especially in those parts
of the country that have high carbon
monoxide levels.
In addition, some gasoline suppliers are now producing reformulated
gasolines. These gasolines are specially designed to reduce vehicle
emissions. General Motors recommends that you use reformulated
gasoline. By doing
so, you can help clean the air, especially in those parts
of the country that have high ozone levels.
You should ask your service station operators if their gasolines contain
detergents and oxygenates, and
if they have been reformulated to reduce
vehicle emissions.
260

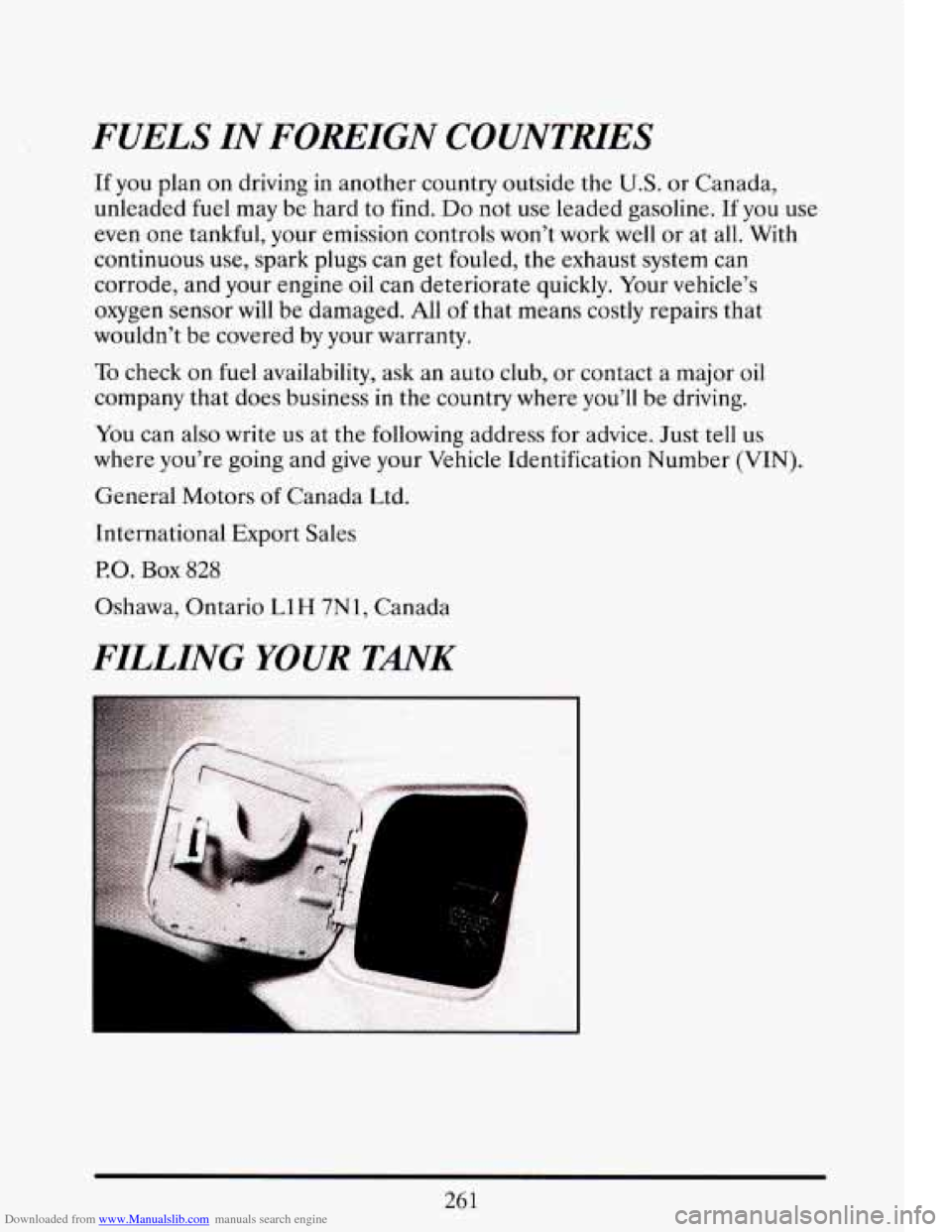

Downloaded from www.Manualslib.com manuals search engine FUELS IN FOREIGN COUNTNES
If you plan on driving in another country outside the U.S. or Canada,
unleaded fuel may be hard to find.
Do not use leaded gasoline. If you use
even one tankful, your emission controls won't work well or at all. With
continuous use, spark plugs can get fouled, the exhaust system can
corrode, and your engine
oil can deteriorate quickly. Your vehicle's
oxygen sensor will be damaged. All of that means costly repairs that
wouldn't be covered by your warranty.
To check on fuel availability, ask an auto club, or contact a major oil
company that does business in the country where you'll be driving.
You can also write us at the following address
for advice. Just tell us
where you're going and give your Vehicle Identification Number (VIN).
General Motors of Canada Ltd.
International Export Sales
EO. Box 828
Oshawa, Ontario L1H 7N1, Canada
FILLING YOUR TANK
261

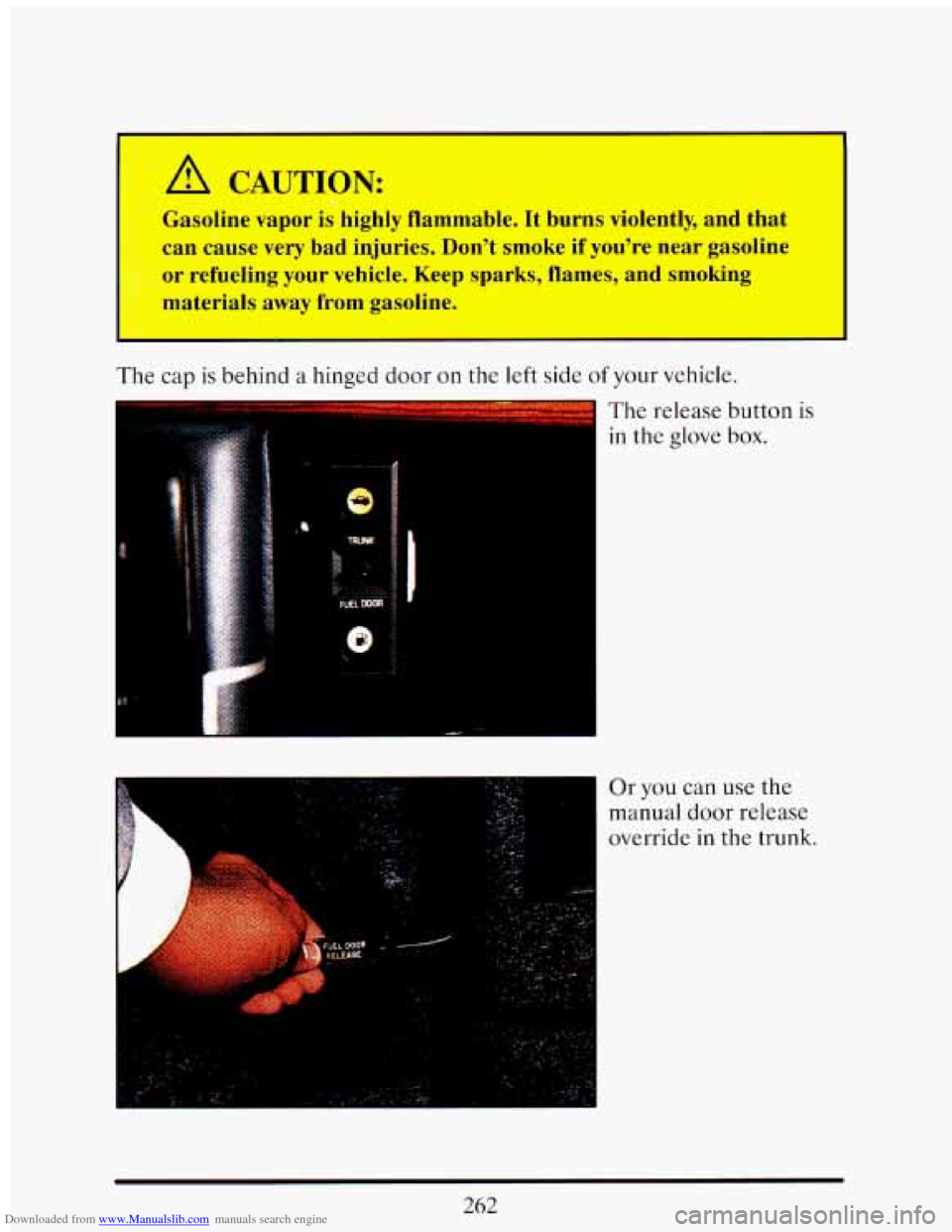

Downloaded from www.Manualslib.com manuals search engine A CAUTION:
Gasoline vapor is highly flammable. It burns violently, and that
can cause very bad injuries. Don't smoke if you're near gasoline
pr refueling your vehicle. Keep sparks, flames, and smoking
;materials away from gasoline.
The cap is behind a hinged door on the left side of your vehicle.
The release button is
in the glove
box.
Or you can use the
manual
door release
override in the trunk.
262

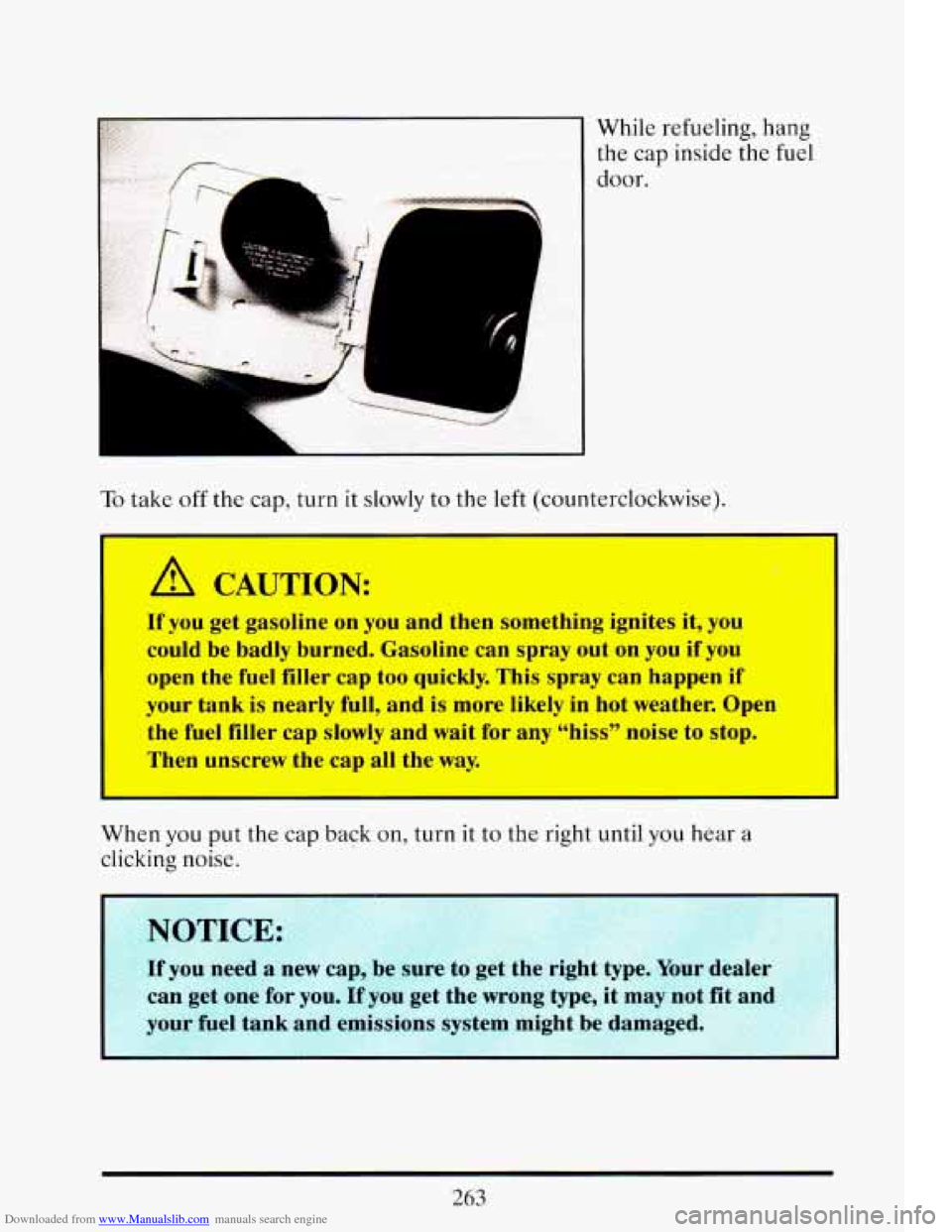

Downloaded from www.Manualslib.com manuals search engine While refueling, hang
the cap inside the fuel
door.
To take off the cap, turn it slowly to the left (counterclockwise).
I
A CAUTION:
If you get gasoline on you and then something ignites it, you
could be badly burned. Gasoline can spray out
on you if you
open the fuel filler cap too quickly. This spray can happen if
your tank is nearly full, and
is more likely in hot weather. Open
the fuel filler cap slowly and wait for any “hiss” noise to stop.
Then unscrew tht ap all the
1 y.
When you put the cap back on, turn it to the right until you hear a
clicking noise.
263

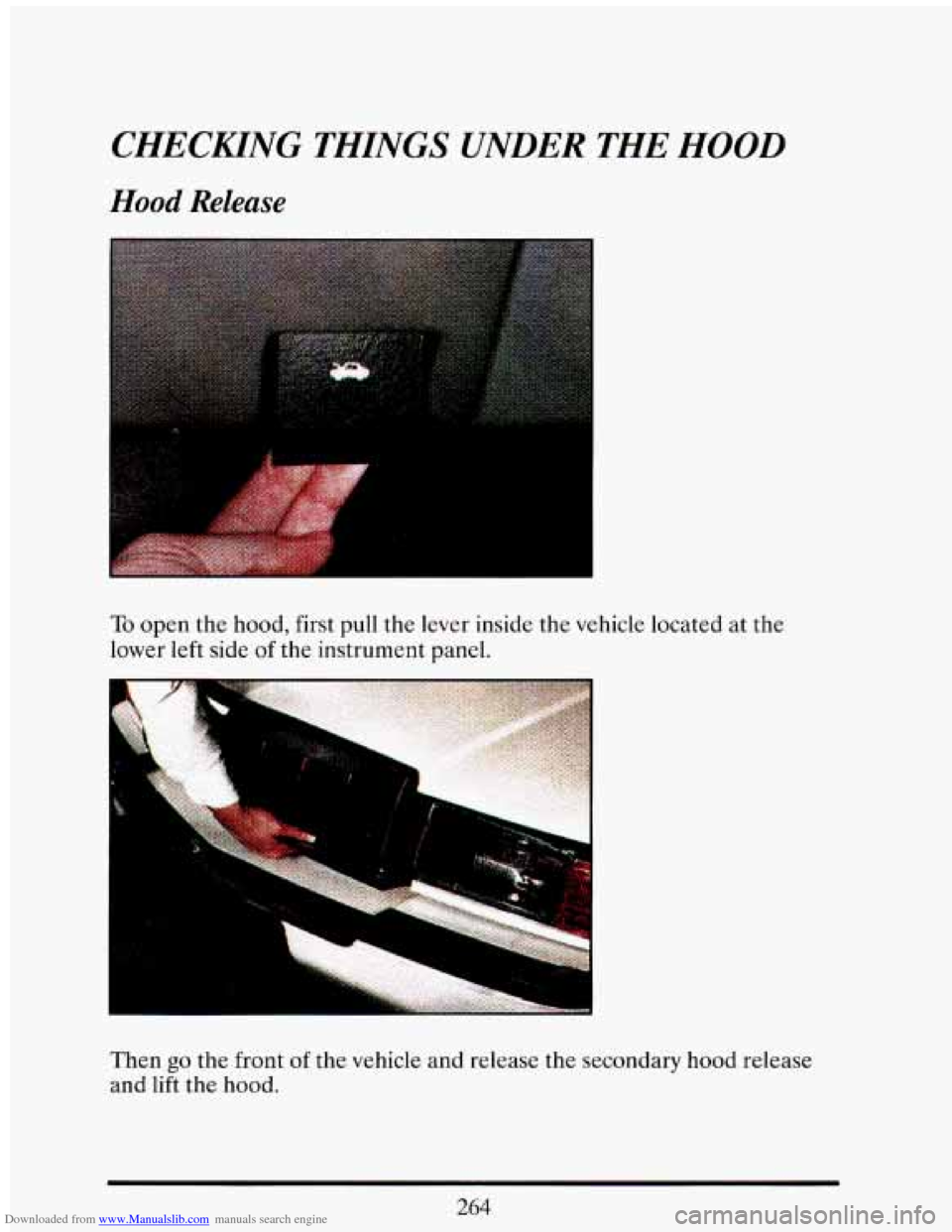

Downloaded from www.Manualslib.com manuals search engine CHECKZNG TH%NGS UNDER THE HOOD
Hood Release
I
. ..
I
To open the hood, first pull the lever inside the vehicle located at the
lower
left side of the instrument panel.
.- I
. .I
-
Then go the front of the vehicle and release the secondary hood release
and
lift the hood.
264

Downloaded from www.Manualslib.com manuals search engine n
l-
1
'i
R
q"

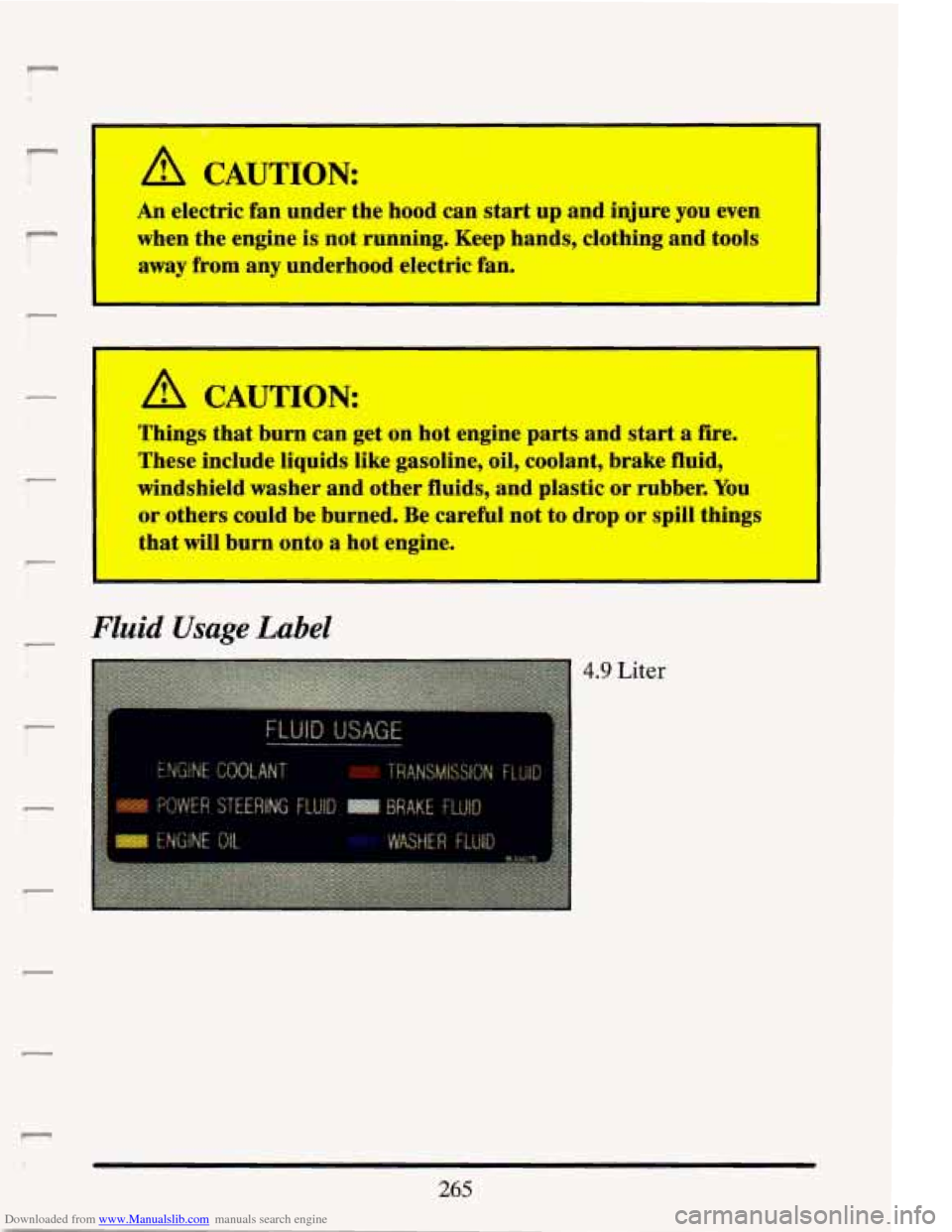

I A CAUTION:
An electric fan under the hood can start up and injure you even
when the engine
is not running. Keep hands, clothing and tools
away from any underhood electric fan.
I A CAUTION:
Things that burn can get on hot engine parts and start a fire.
These include liquids like gasoline, oil, coolant, brake fluid,
windshield washer and other fluids, and plastic or rubber. You
or others could be burned. Be careful not to drop or spill things
that will burn onto
a hot engine.
I
Fluid Usage Label
265

Downloaded from www.Manualslib.com manuals search engine 4.6 Liter (Northstar)
Use the fluid usage label to identify the correct fluid
you want to check.
ENGINE OIL
It's a good idea to check your engine oil every time you get fuel. In order
to get an accurate reading, the
oil must be warm and the vehicle must be
on
level ground.
c -,
