r

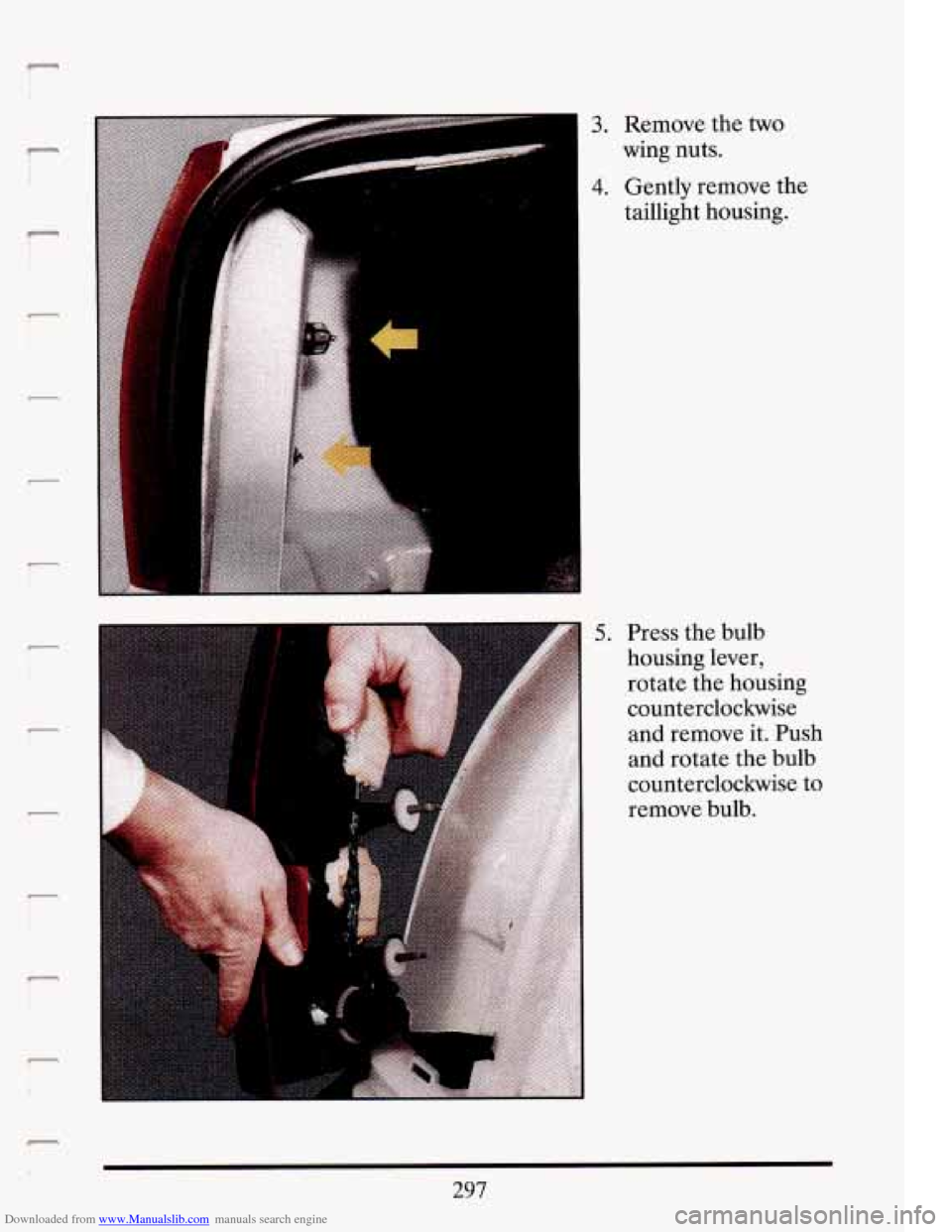

3. Remove me two
wing nuts.
4. Gently remove the
taillight housing.
9.
297

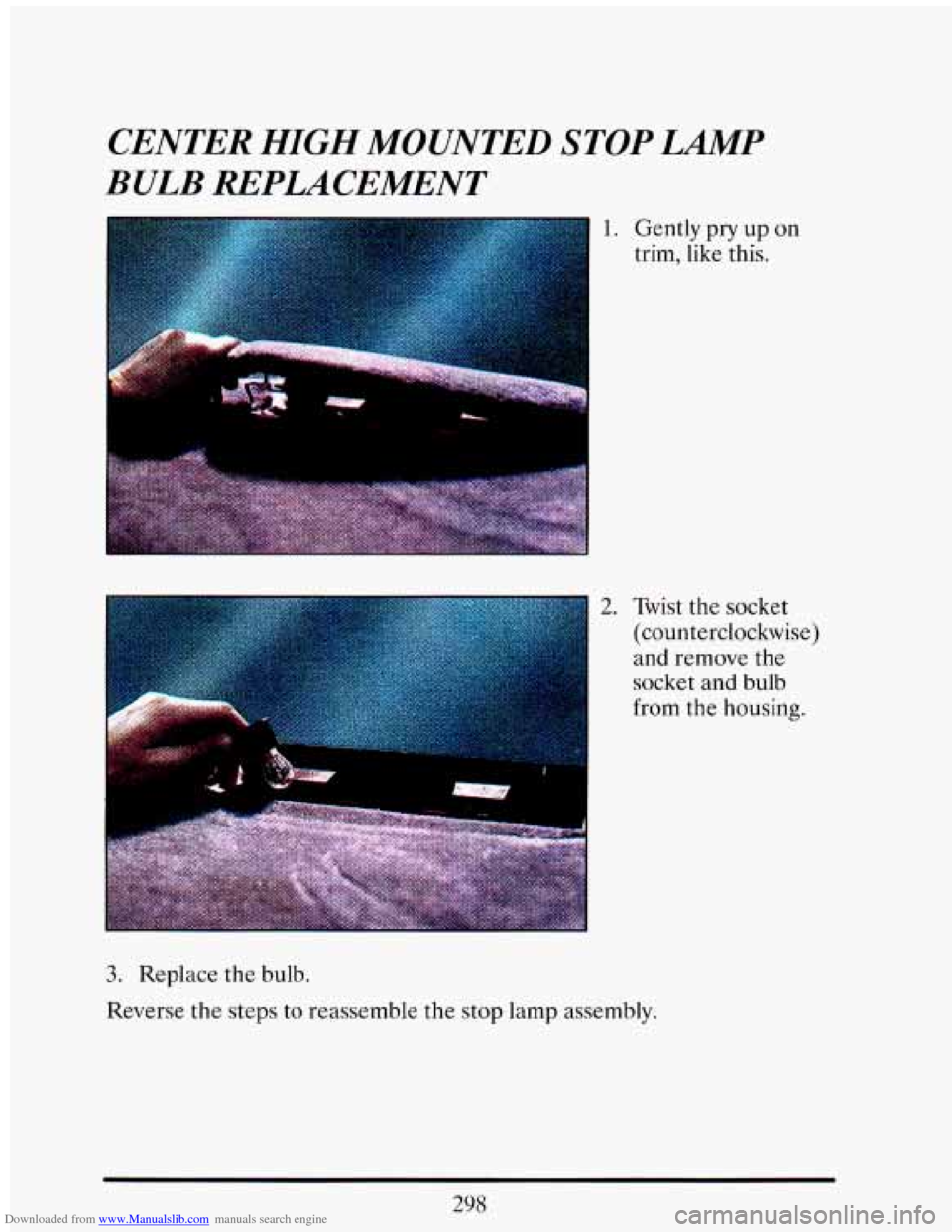

Downloaded from www.Manualslib.com manuals search engine CENTER HIGH MOUNTED STOP LMP
BULB REPLACEMENT
I
2. Twist the socket
(counterclockwise)
and remove the
socket
and bulb
from the housing.
3. Replace the bulb.
Reverse
the steps to reassemble the stop lamp assembly.
298

Downloaded from www.Manualslib.com manuals search engine WIPER BLADE REPLACEMENT
Position the windshield wipers on the windshield in the “mid” wipe
position.
To do this, turn the ignition key to Accessory and turn the wipers
on. Then with the door open, turn the ignition
key to off.
Start with the driver side wiper blade assembly.
I
Using a small
screwdriver
or your
finger, gently lift the
release lever up while
at the same time
pulling
the blade
assembly from the
wiper arm.
Do the same with the passenger side wiper blade assembly.
To install the wiper
blade, align the wiper
arm pin with the hole
on the wiper blade
assembly and snap it
into place.
The arrow on the
wiper blade
is to point
toward the upper arm.
299

Downloaded from www.Manualslib.com manuals search engine -:

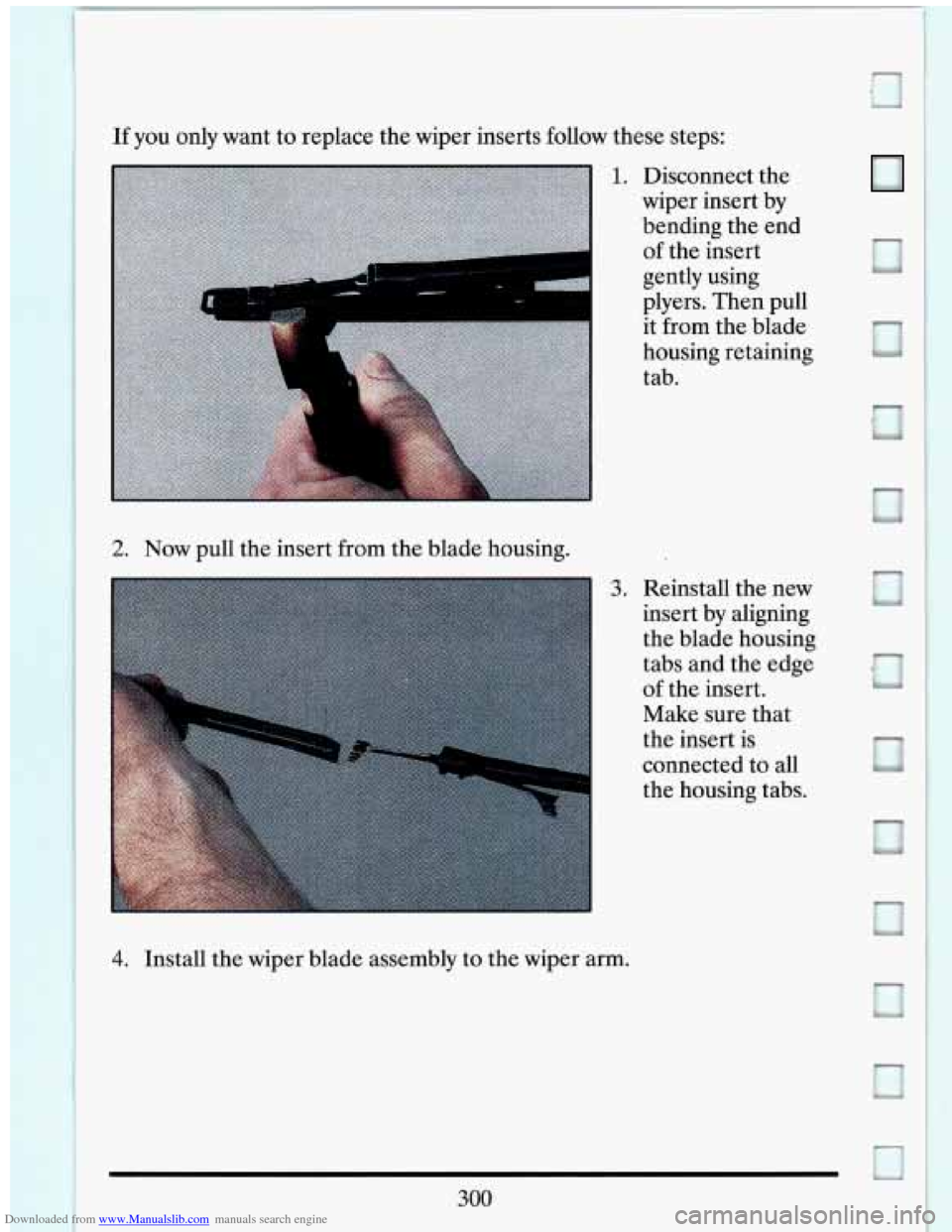

If you only want to replace the wiper inserts follow these steps:
1. Disconnect the
wiper insert by
bending the end
of the insert
gently using
plyers. Then pull
it from the blade
housing retaining
tab.
2. Now pull the insert from the blade housing.
3. Reinstall the new
insert by aligning
the blade housing
tabs and the edge
of the insert.
Make sure that
the insert is
connected to all
the housing tabs. Q
4. Install the wiper blade assembly to the wiper arm.

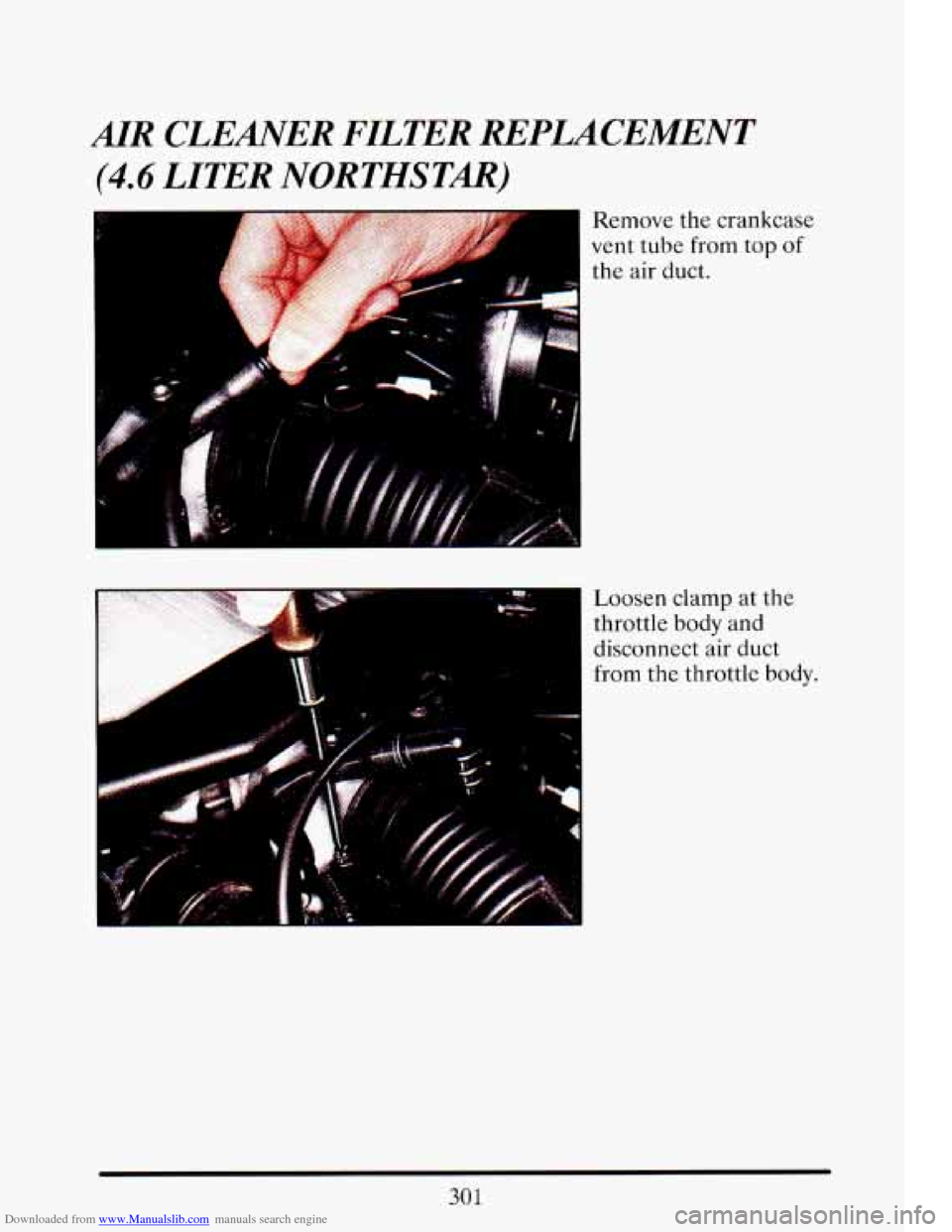

Downloaded from www.Manualslib.com manuals search engine Loosen clamp at the
throttle
body and
disconnect
air duct
from the throttle body.
301

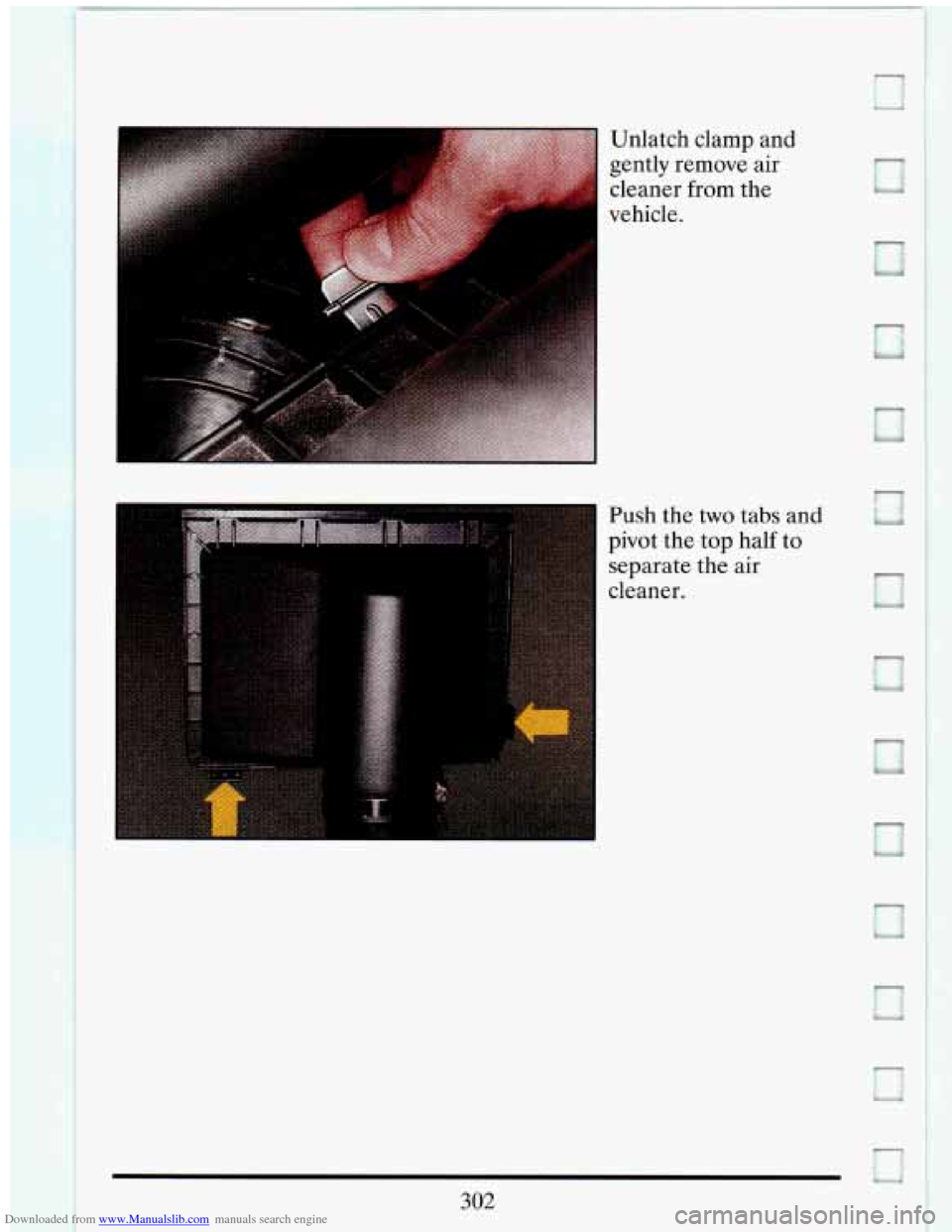

Downloaded from www.Manualslib.com manuals search engine Push the two tabs and
pivot the top half to
separate the air
302

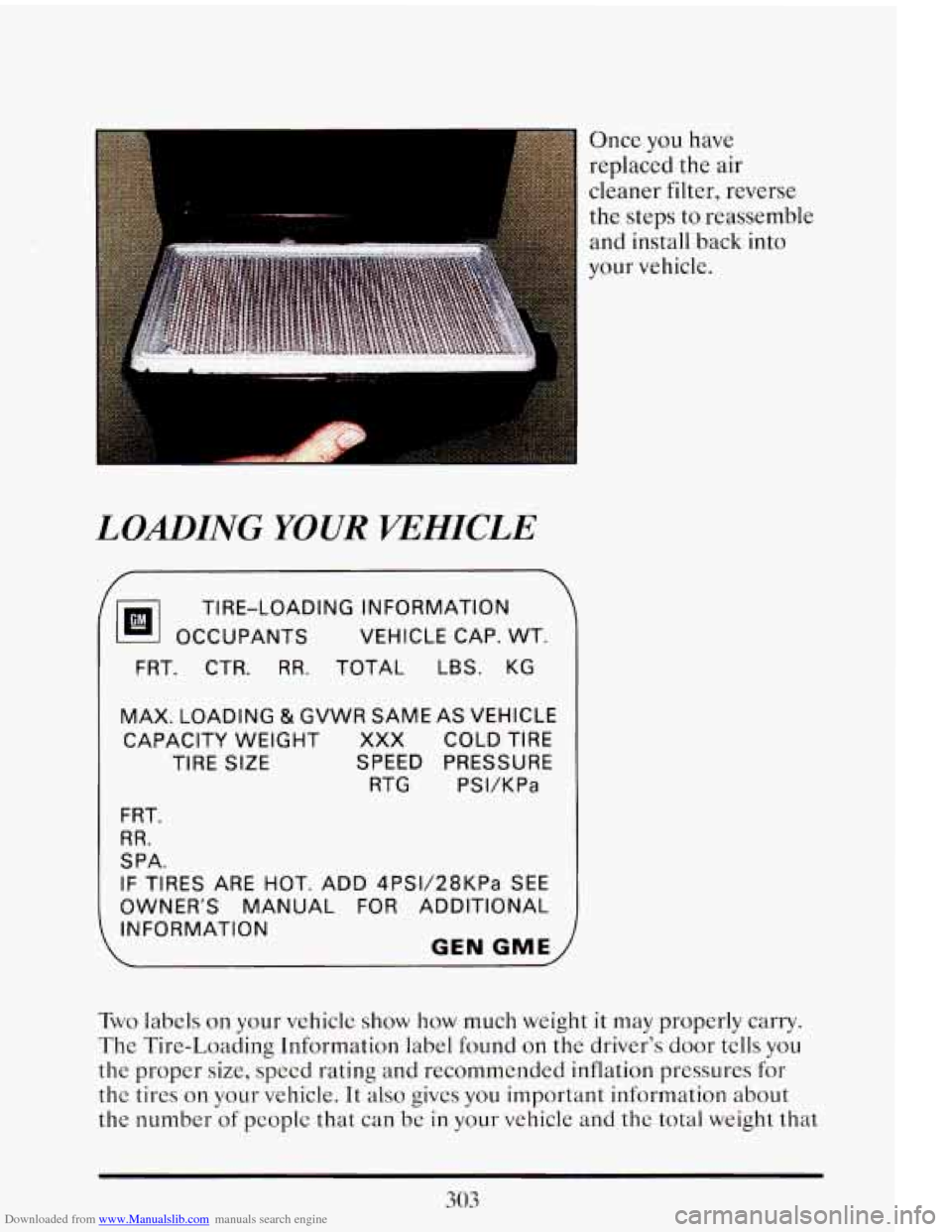

Downloaded from www.Manualslib.com manuals search engine Once you have
replaced
the air
cleaner filter, reverse the steps to reassemble and install back into
your vehicle.
LOADING YOUR VEHICLE
OCCUPANTS VEHICLE
CAP. WT.
TIRE-LOADING
INFORMATION
FRT. CTR.
RR. TOTAL LBS. KG
MAX. LOADING
& GVWR SAME AS VEHICLE
CAPACITY WEIGHT XXX COLD TIRE
TIRE
SIZE SPEED PRESSURE
RTG
PS VKPa
FRT.
RR.
SPA.
IF TIRES ARE HOT. ADD 4PSV28KPa SEE
OWNER'S MANUAL FOR ADDITIONAL
GEN GME \INFORMATION
Two labels on your vehiclc show how much weight it may properly carry.
The Tire-Loading Information label found on the driver's door tells you
the proper size, speed rating and recommended inflation pressures for
the tires on your vehicle.
It also gives you important information about
the number of people that can be in your vehicle and thc total weight that
303

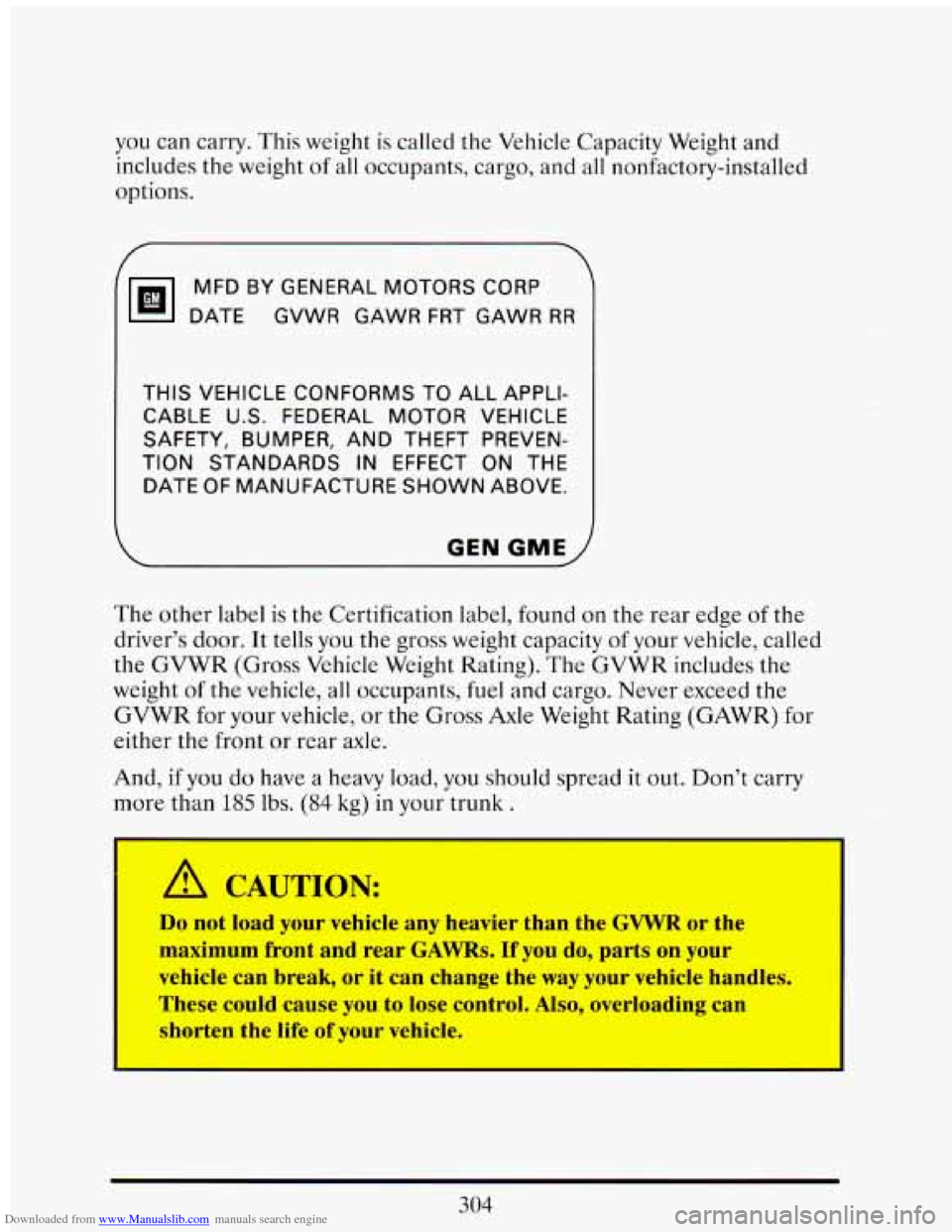

Downloaded from www.Manualslib.com manuals search engine you can carry. This weight is called the Vehicle Capacity Weight and
includes the weight
of all occupants, cargo, and all nonfactory-installed
options.
MFD BY GENERAL MOTORS CORP
DATE GVWR GAWR FRT GAWR
RR

THIS VEHICLE CONFORMS TO ALL APPLI-
CABLE
U.S. FEDERAL MOTOR VEHICLE
TION STANDARDS IN EFFECT ON THE
DATE OF MANUFACTURE SHOWN ABOVE.
SAFETY, BUMPER,
AND THEFT PREVEN-
GEN GME I
The other label is the Certification label, found on the rear edge of the
driver’s door. It tells you the gross weight capacity of your vehicle, called
the GVWR
(Gross Vehicle Weight Rating). The GVWR includes the
weight of the vehicle, all occupants, fuel and cargo. Never exceed the
GVWR
for your vehicle, or the Gross Axle Weight Rating (GAWR) for
either the front or rear axle.
And, if you do have a heavy load, you should spread it out. Don’t carry
more than
185 lbs. (84 kg) in your trunk.
A CAUTION:
Do not load your vehicle any heavier than the GVVVR or the
maximum front and rear GAWRs. If
you do, parts on your
vehicle can break, or it can change the way your vehicle handles.
These could cause
you to lose control. Also, overloading can
shorten the life of your vehicle.
304

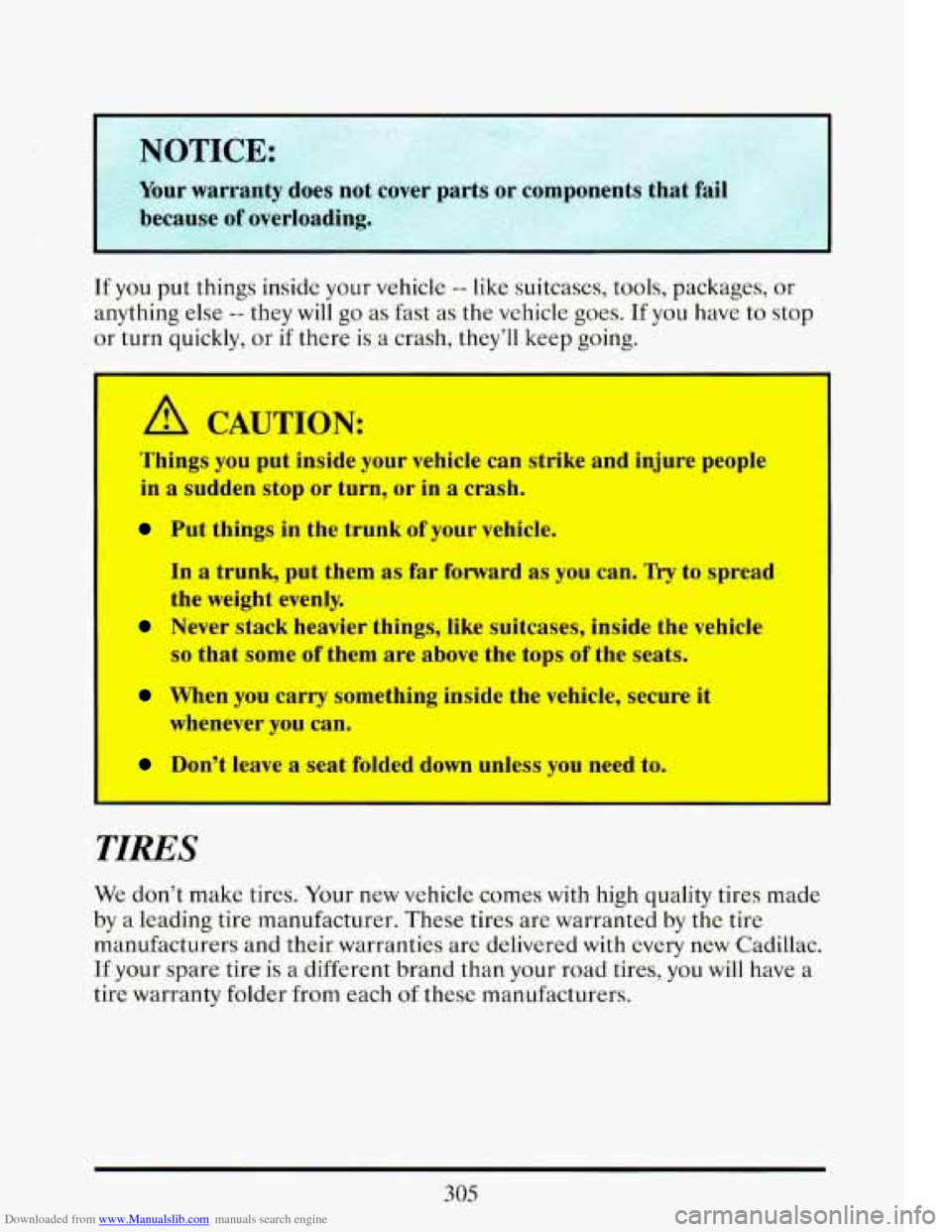

Downloaded from www.Manualslib.com manuals search engine If you put things inside your vehicle -- like suitcases, tools, packages, or
anything
else -- they will go as fast as the vehicle goes. If you have to stop
or turn quickly, or if there is a crash, they’ll keep going.
I
A CAUTION:
Things you put inside your vehicle can strike and injure people
in
a sudden stop or turn, or in a crash.
Put things in the trunk of your vehicle.
In
a trunk, put them as far forward as you can. Try to spread
the weight evenly.
so that some of them are above the tops of the seats.
When you carry something inside the vehic’ , ~ ~ ~ re it
Never stack heavier things, like suitcases, inside the vehicle
whenever you can.
Don’t leave a seat folded down unless you need to.
TIRES
We don’t make tires. Your new vehicle comes with high quality tires made
by a leading tire manufacturer. These tires are warranted by the tire
manufacturers and their warranties are delivered with
every new Cadillac.
If your spare tire is a different brand than your road tires, you will have a
tire warranty folder from each
of these manufacturers.

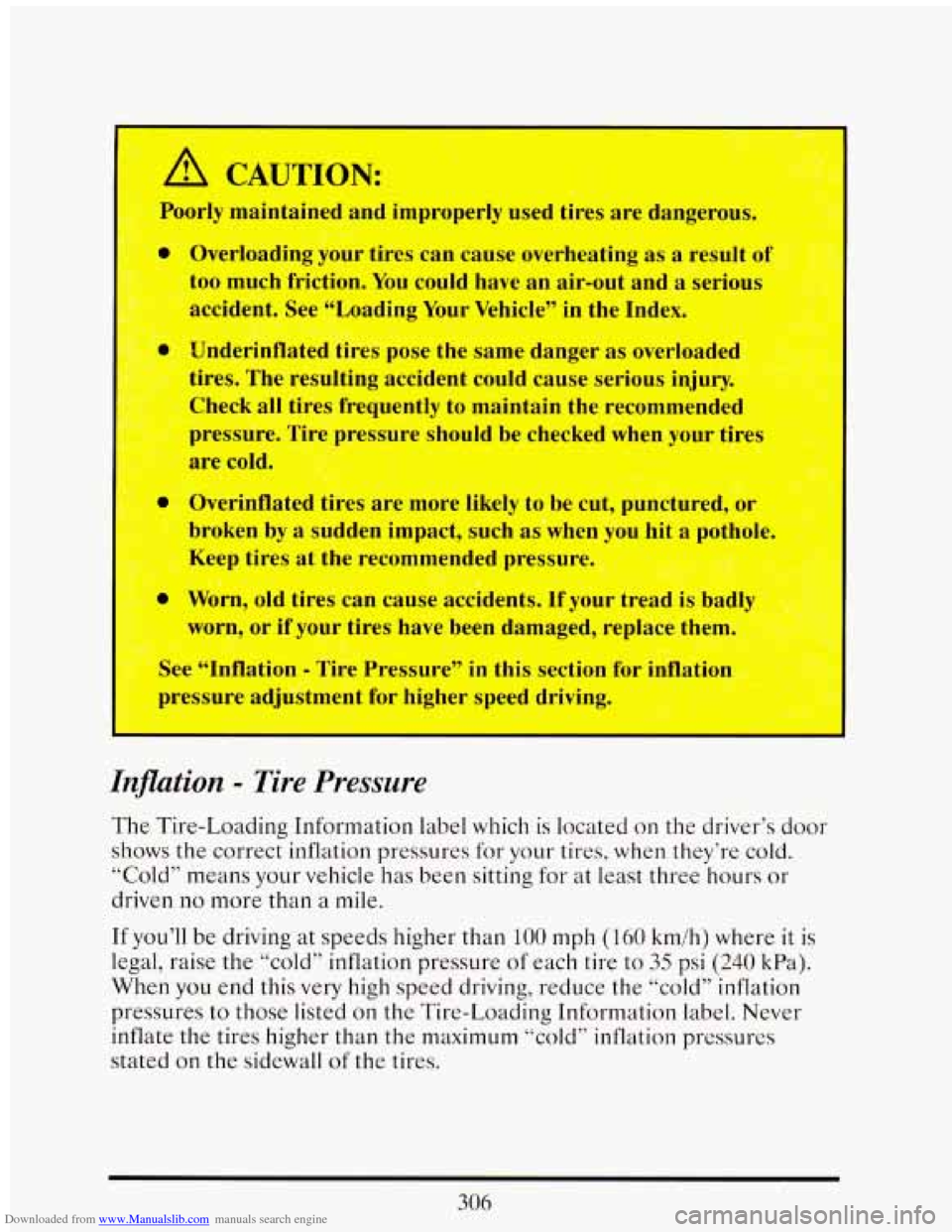

Downloaded from www.Manualslib.com manuals search engine Inflation = Tire Pressure
The Tire-Loading Information label which is located on the driver’s door
shows
the correct inflation pressures for your tires, when they’re cold.
“Cold” means your
vehicle has been sitting for at least three hours or
driven
no more than a mile.
If you’ll be driving at speeds higher than 100 mph (160 km/h) where it is
legal, raise the “cold” inflation pressure of each tire to 35 psi (240 kPa).
When you end this very high speed driving, reduce the “cold” inflation
pressures to those listed
on the Tire-Loading Information label. Never
inflate
the tires higher than the maximum “cold” inflation pressures
stated on the sidewall
of the tires.
306
