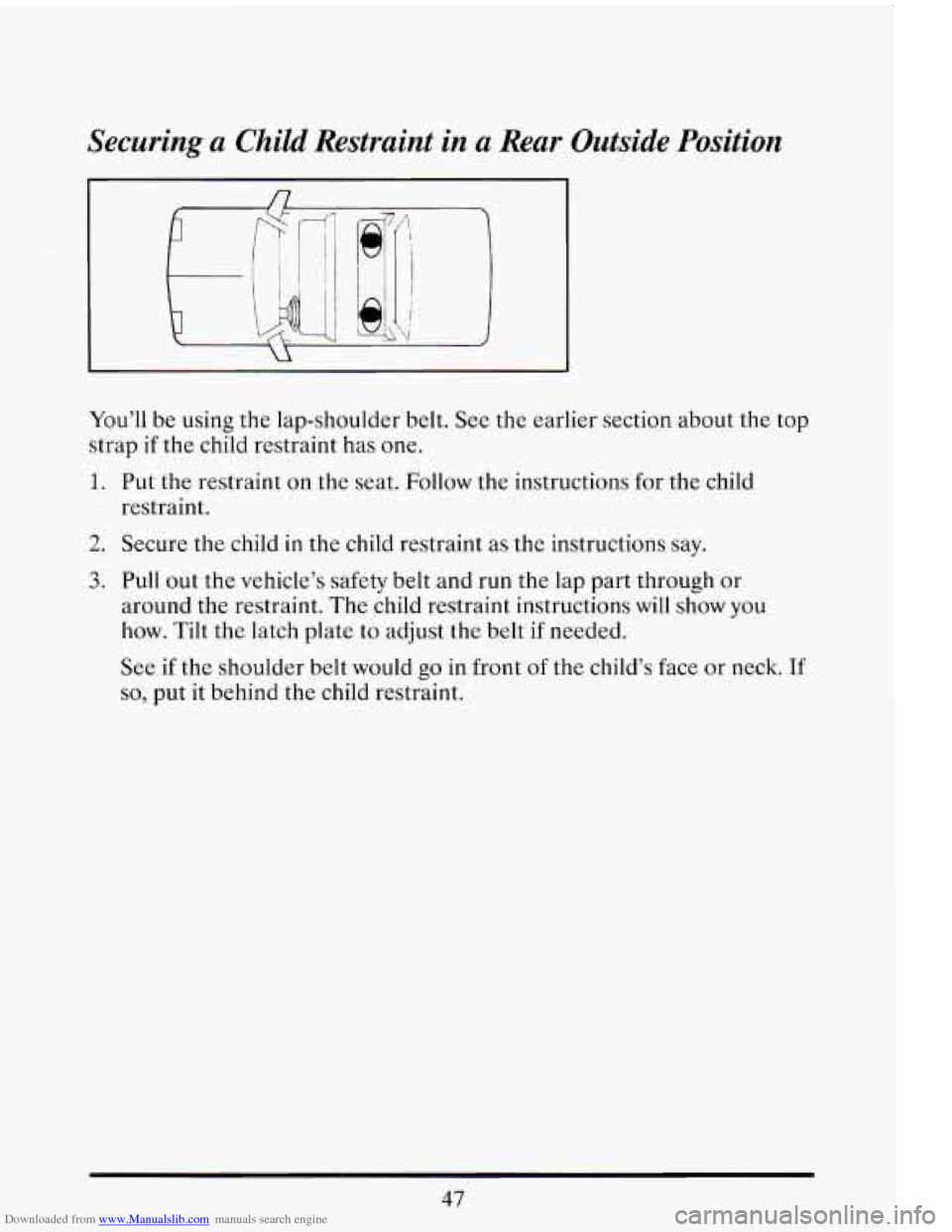

Downloaded from www.Manualslib.com manuals search engine Securing a Child Restraint in a Rear Outside Position
/l I
You’ll be using the lap-shoulder belt. See the earlier section about the top
strap
if the child restraint has one.
1. Put the restraint on the seat. Follow the instructions for the child
restraint.
2. Secure the child in the child restraint as the instructions say.
3. Pull out the vehicle’s safety belt and run the lap part through or
around the restraint.
The child restraint instructions will show you
how. Tilt the latch plate to adjust the belt
if needed.
See if the shoulder belt would go in front of the child’s face or neck. If
so, put it behind the child restraint.
47

Downloaded from www.Manualslib.com manuals search engine A

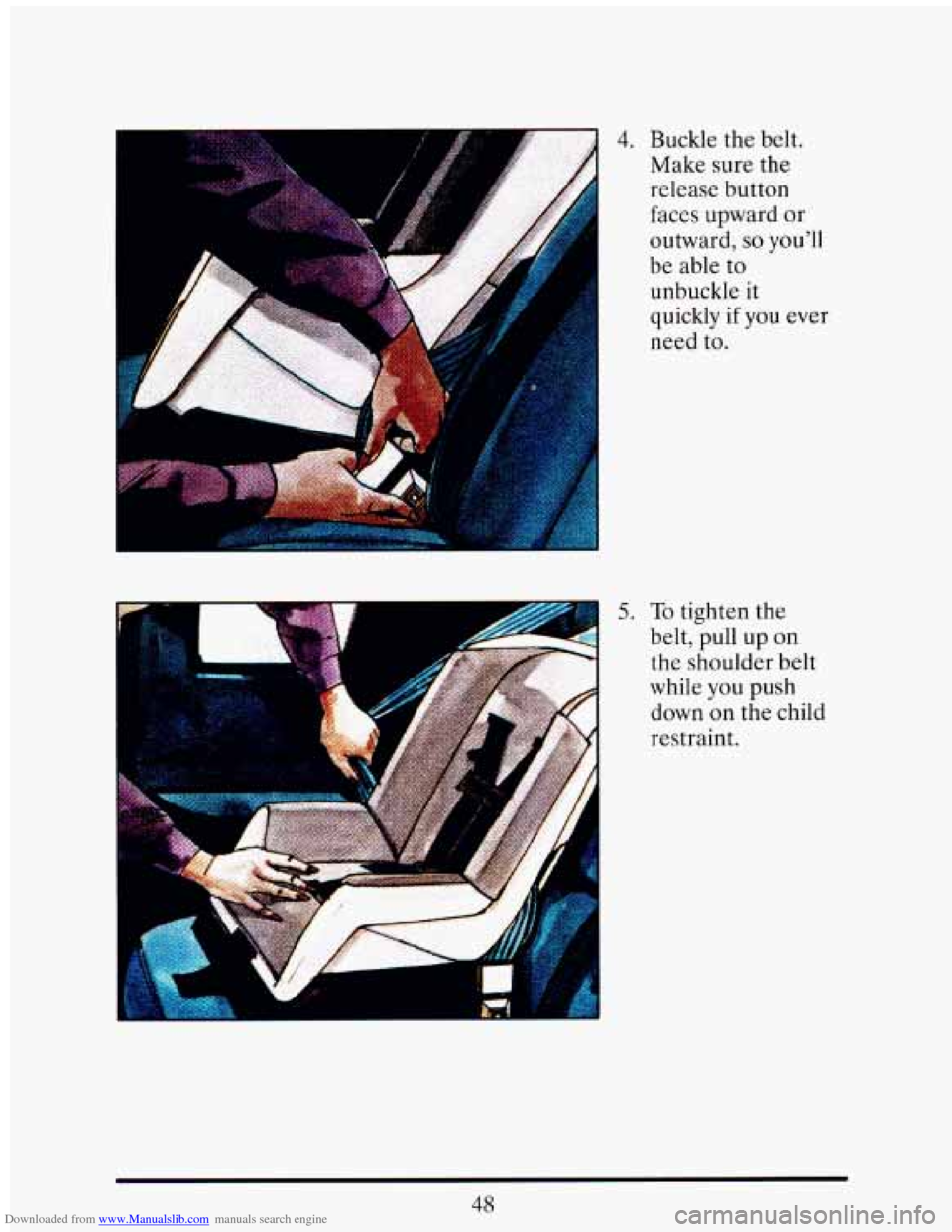

4. Buckle the belt.
Make sure the
5.
release button
faces upward or
outward,
so you’ll
be able to
unbuckle it
quickly
if you ever
need to.
To tighten the
belt, pull
up on
the shoulder belt
while
you push
down on the child
restraint.
48

Downloaded from www.Manualslib.com manuals search engine I
* .k .~ .
..a -.

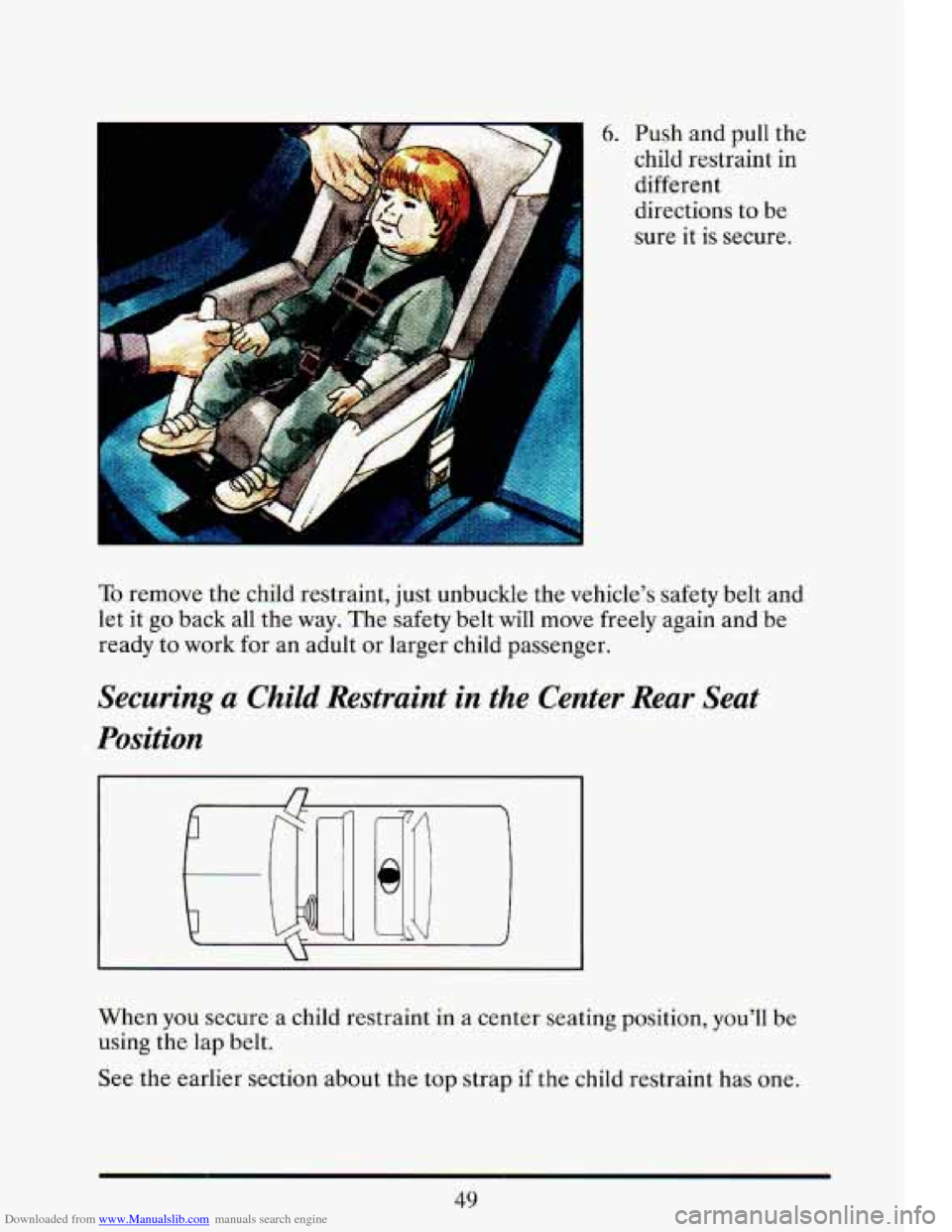

6. Push and pull the
child restraint in
different
directions to be
sure it
is secure.
To remove the child restraint, just unbuckle the vehicle’s safety belt and
let it
go back all the way. The safety belt will move freely again and be
ready to work for an adult
or larger child passenger.
Securing a Child Restraint in the Center Rear Seat
Position
When you secure a child restraint in a center seating position, you’ll be
using the lap belt.
See the earlier section about the top strap if the child restraint has one.
49

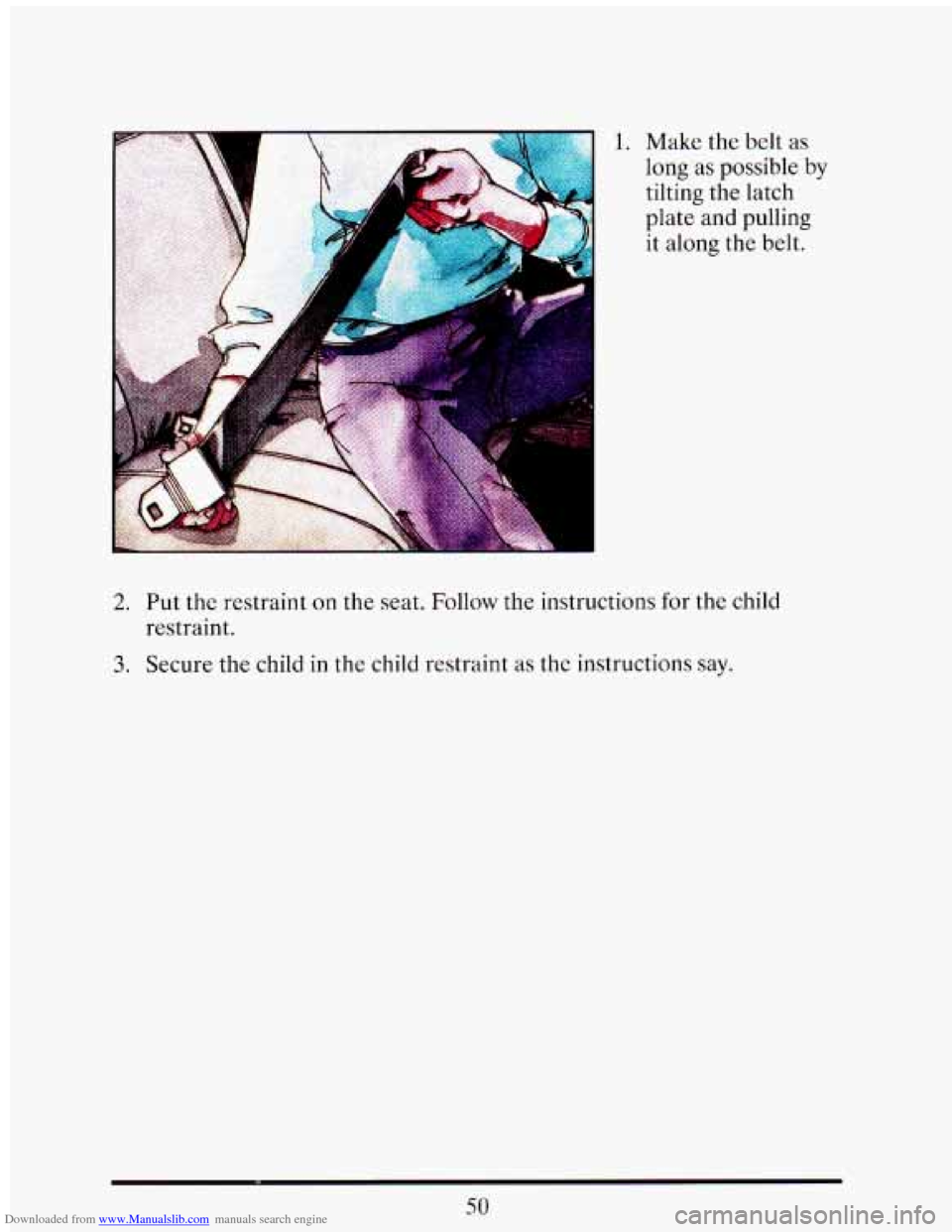

Downloaded from www.Manualslib.com manuals search engine 1. Make the belt as
long as possible by
tilting the latch
plate and pulling
it along the belt.
2. Put the restraint on the seat. Follow the instructions for the child
restraint.
3. Secure the child in the child restraint as the instructions say.

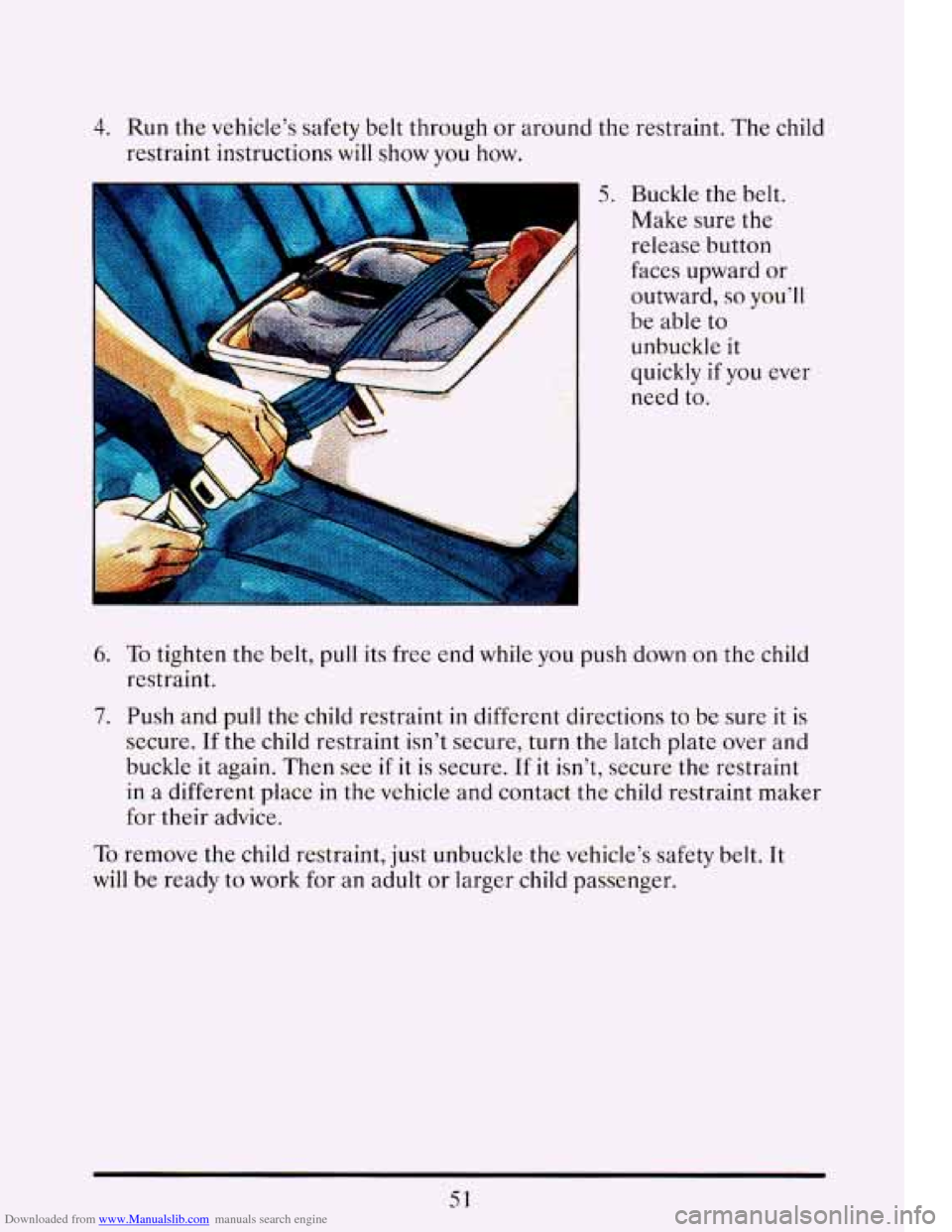

Downloaded from www.Manualslib.com manuals search engine 4. Run the vehicle's safety belt through or around the restraint. The child
restraint instructions will show you how.
5. Buckle the belt.
Make sure the
release button
faces upward or
outward,
so you'll
be able
to
unbuckle it
quickly if you ever
need to.
6. To tighten the belt, pull its free end while you push down on the child
restraint.
7. Push and pull the child restraint in different directions to be sure it is
secure. If the child restraint isn't secure, turn the latch plate over and
buckle it again. Then see
if it is secure. If it isn't, secure the restraint
in a different place in the vehicle and contact the child restraint maker
for their advice.
To remove the child restraint, just unbuckle the vehicle's safety belt. It
will be ready to work for an adult
or larger child passenger.

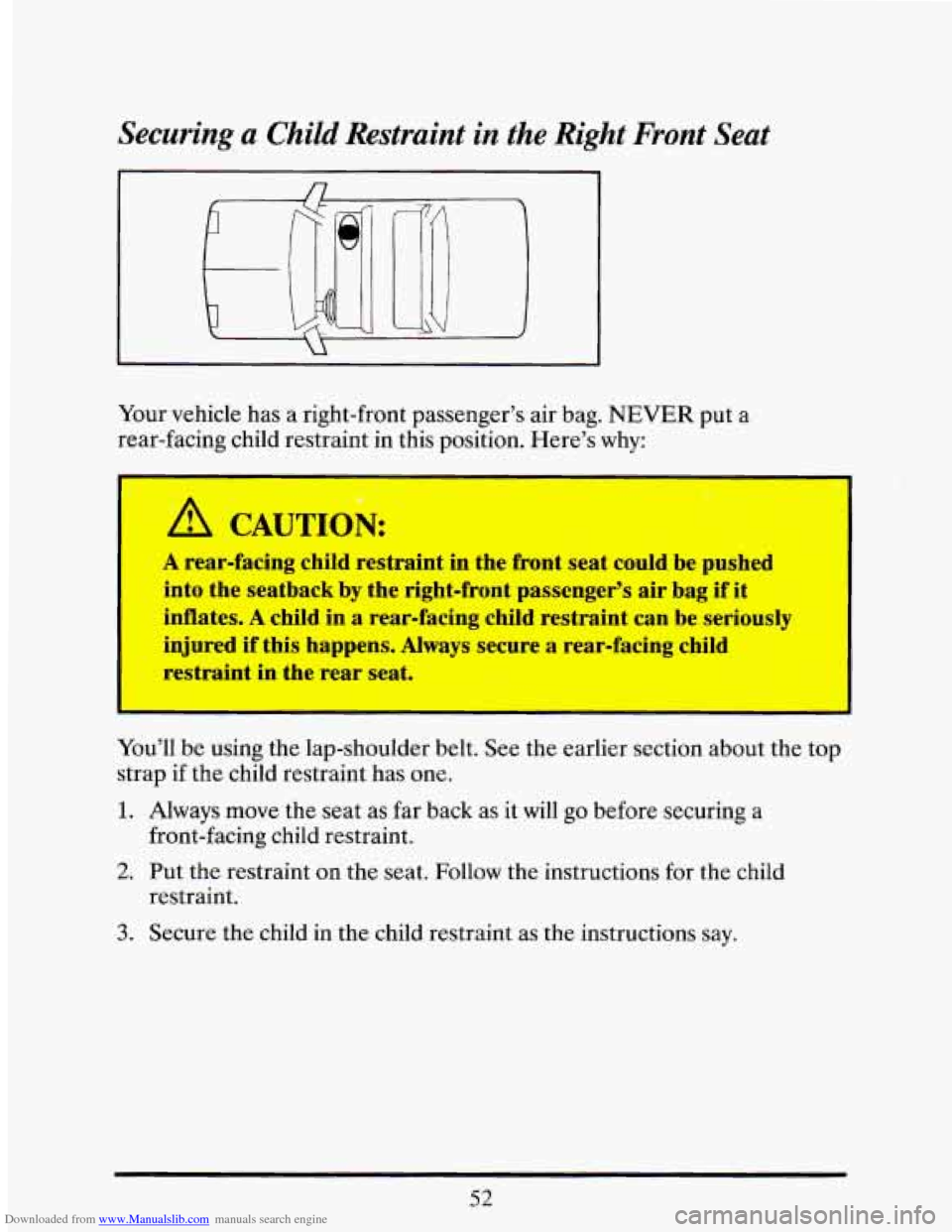

Downloaded from www.Manualslib.com manuals search engine Securing a Child Restraint in the Right Front Seat
Your vehicle has a right-front passenger's air bag. NEVER put a
rear-facing child restraint in this position. Here's
why:
I
-. ... ' -- ..- . . F. . ,. *. ..- -? .. v- *- -;- && -1
A CAUTZON:
'T.l *
A rear-facing child restraint in the front seat could be pushed
into the seatback by the right-front passenger's air bag if it
inflates.
A child in a rear-facing child restraint can be seriously
injured if this happens. Always secure a rear-facing child
restraint in the rear seat.
You'll be using the lap-shoulder belt. See the earlier section about the top
strap if the child restraint has one.
1. Always move the seat as far back as it will go before securing a
front-facing child restraint.
2. Put the restraint on the seat. Follow the instructions for the child
restraint.
3. Secure the child in the child restraint as the instructions say.
52

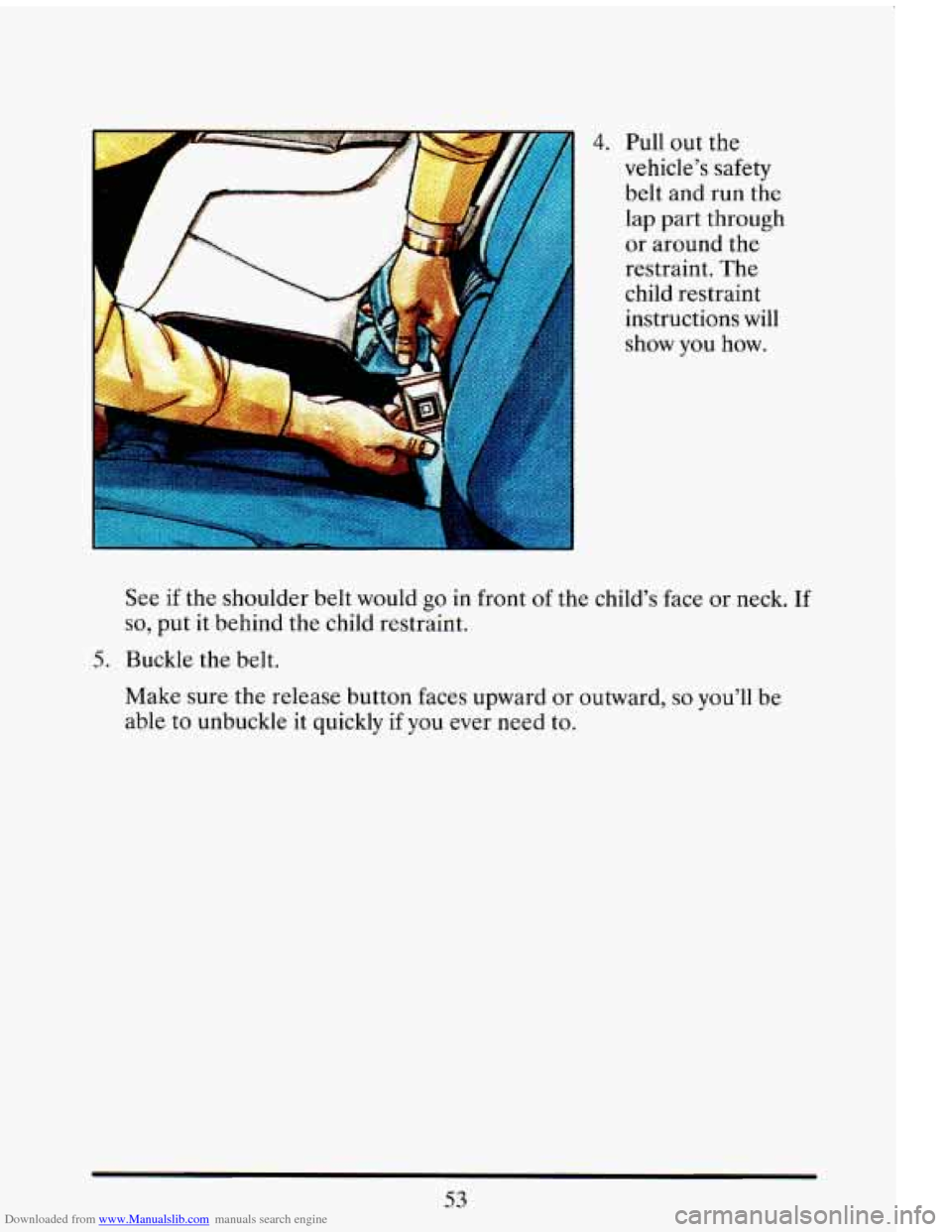

Downloaded from www.Manualslib.com manuals search engine 4. Pull out the
vehicle’s
safety
belt and run the
lap part through
or
around the
restraint. The
child restraint
instructions will
show you how.
See if the shoulder belt would
go in front of the child’s face or neck. If
SO, put it behind the child restraint.
5. Buckle the belt.
Make sure the release button faces upward
or outward, so you’ll be
able
to unbuckle it quickly if you ever need to.
53

Downloaded from www.Manualslib.com manuals search engine I
I

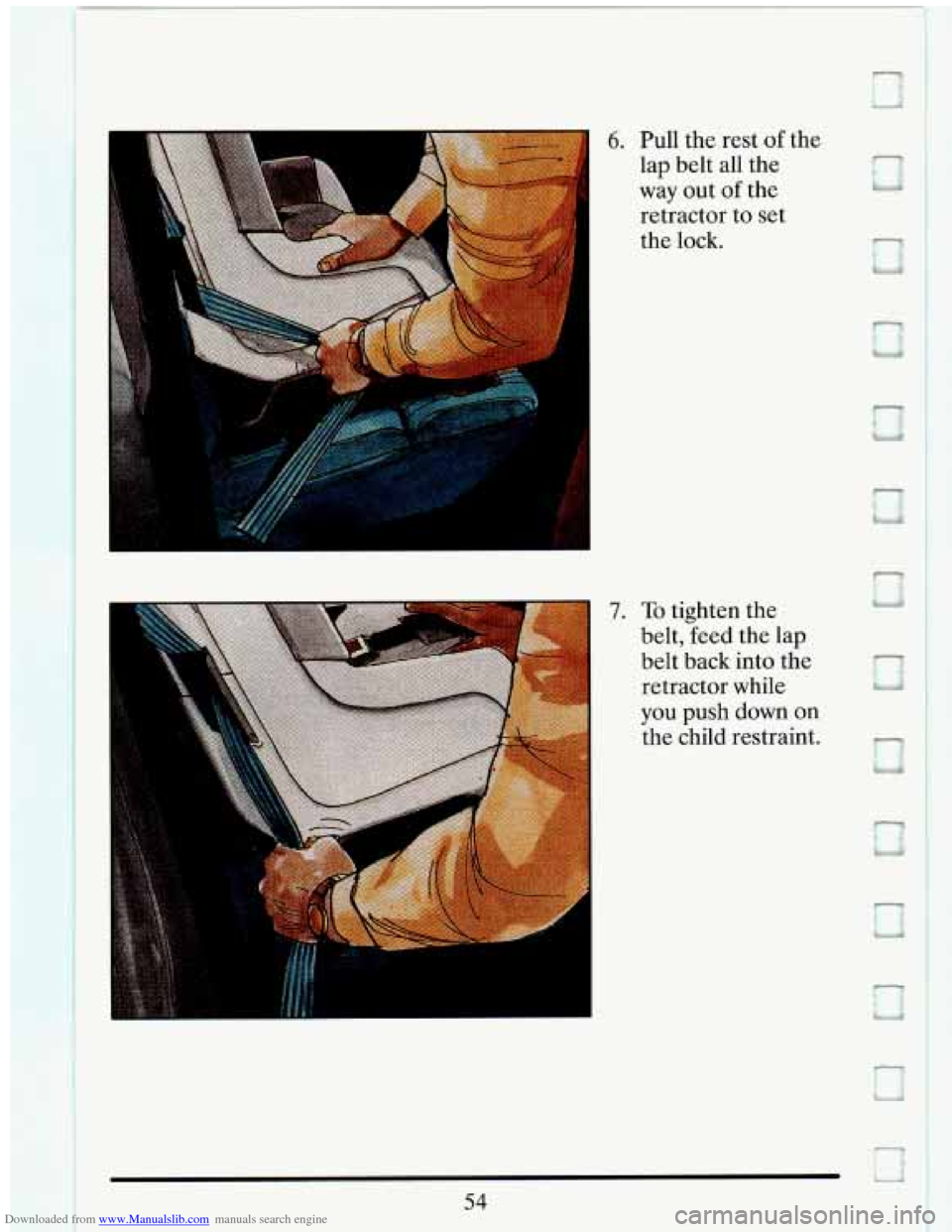

6. Pull the rest of
lap belt all the
way out
of the
retractor to set
the lock. the
a
54
I

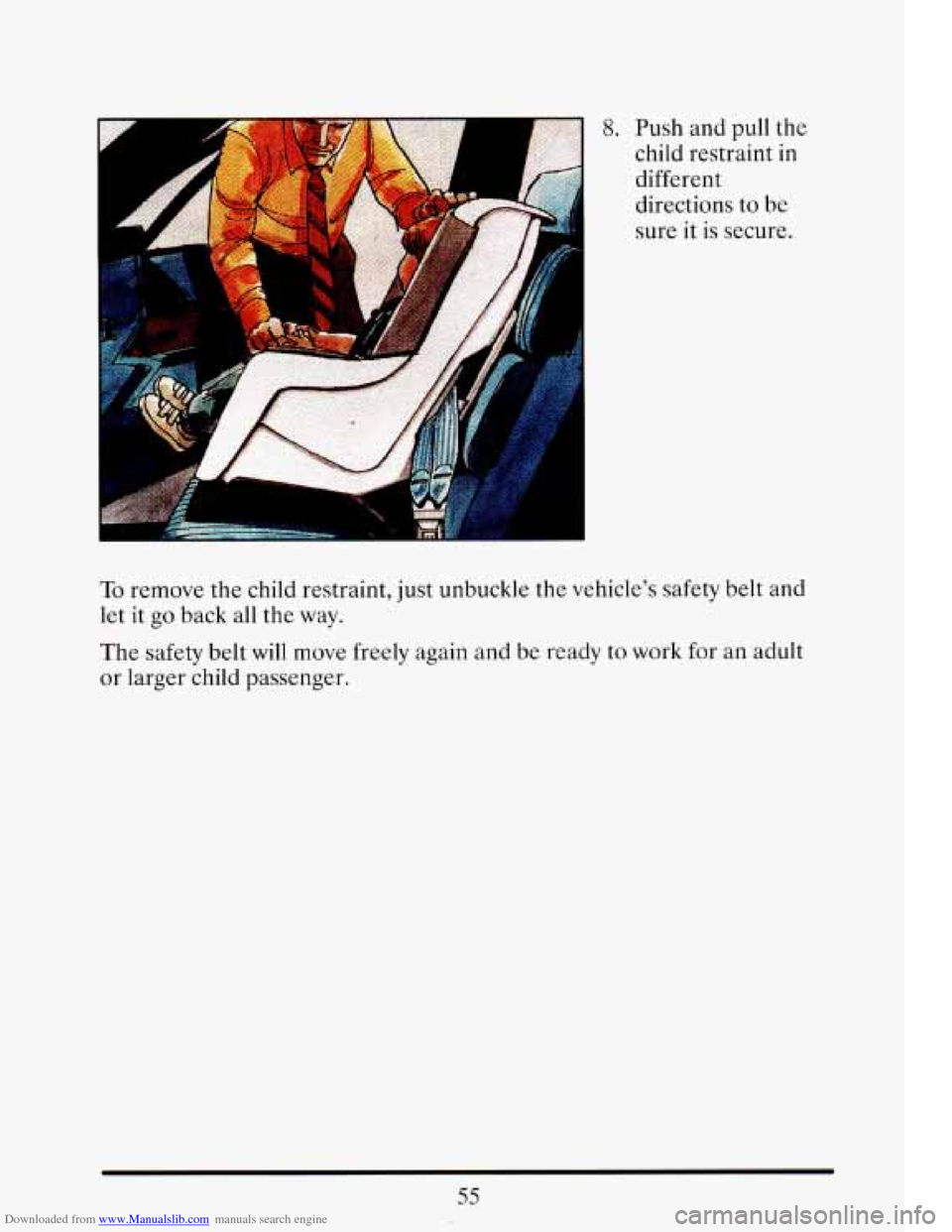

Downloaded from www.Manualslib.com manuals search engine To remove the child restraint, just unbuckle the vehicle’s safety belt and
let
it go back all the way.
The safety belt
will move freely again and be ready to work for an adult
or larger child passenger.
55

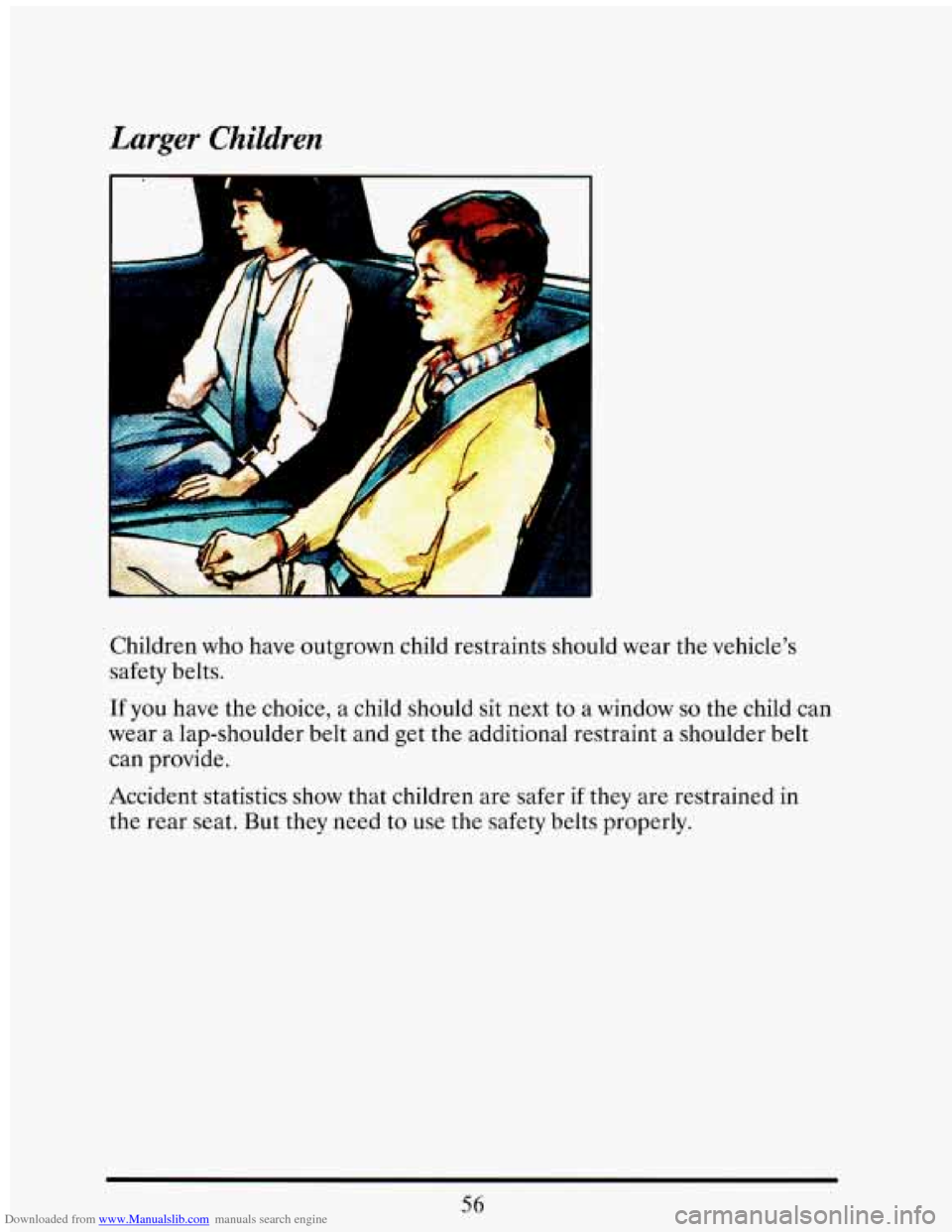

Downloaded from www.Manualslib.com manuals search engine Larger Children
-
Children who have outgrown child restraints should wear the vehicle's
safety belts.
If you have the choice, a child should sit next to a window so the child can
wear a lap-shoulder belt and get the additional restraint a shoulder b\
elt
can provide.
Accident statistics show that children are safer
if' they are restrained in
the rear seat. But they need
to use the safety belts properly.
