CADILLAC ELDORADO 1994 10.G Owners Manual

Downloaded from www.Manualslib.com manuals search engine r
I
e

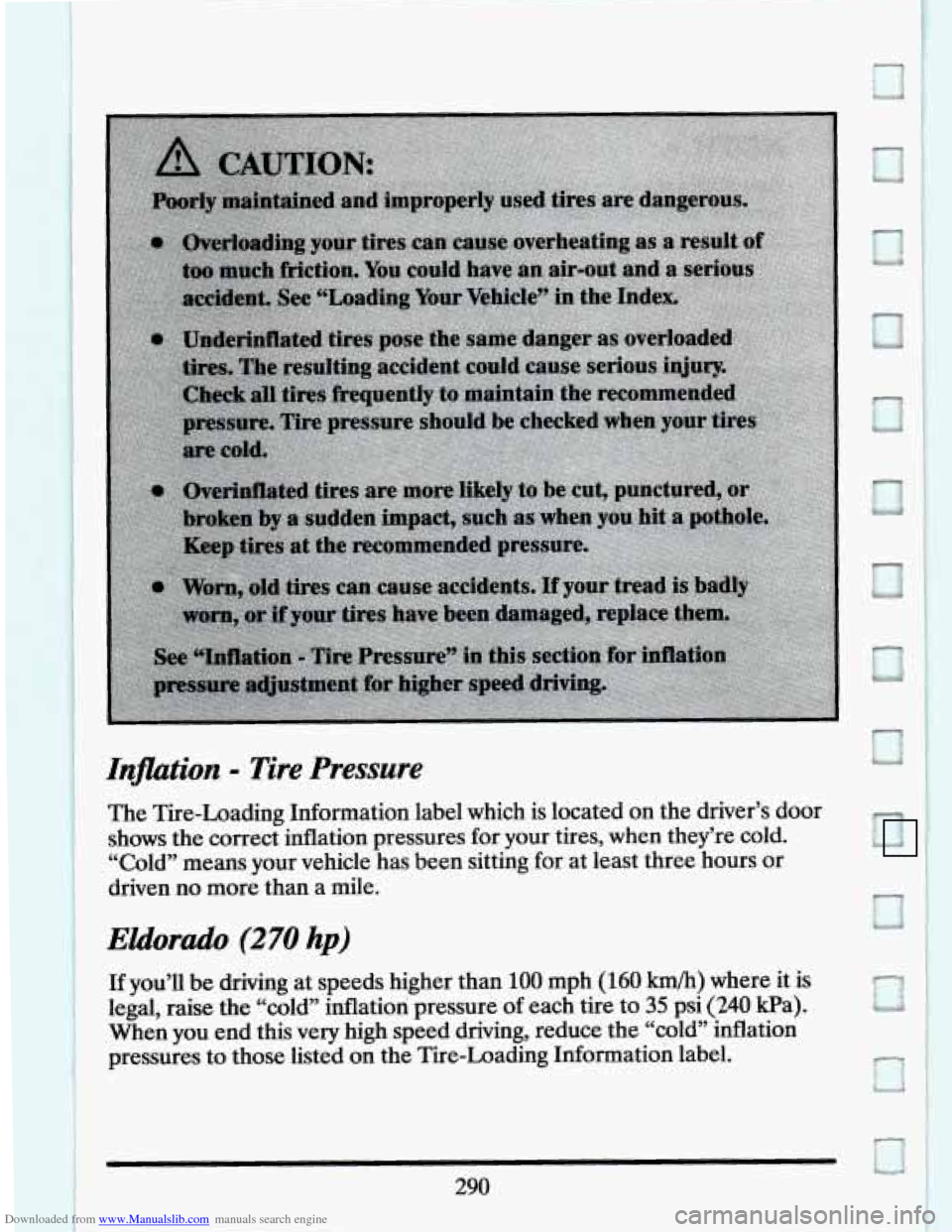

Downloaded from www.Manualslib.com manuals search engine Ii@ktion - Tire Pressure
The Tire-Loading Information label which is located on the driver’\
s door
shows the correct inflation pressures for your tires, when they’re cold\
.
“Cold” means your vehicle has been sitting for at least three hours or
driven
no more than a mile.
Eldorudo (270 hp)
k€ you’ll be driving at speeds higher than 100 mph (160 km/h) where it is
legal, raise the ‘‘mldYy inflation pressure of each tire to 35 psi (240 Wa).
When you end this very high speed driving, reduce the “cold” inflation
pressures to those listed on the Tire-Loading Information label.
290
a
0
0
a

Downloaded from www.Manualslib.com manuals search engine i

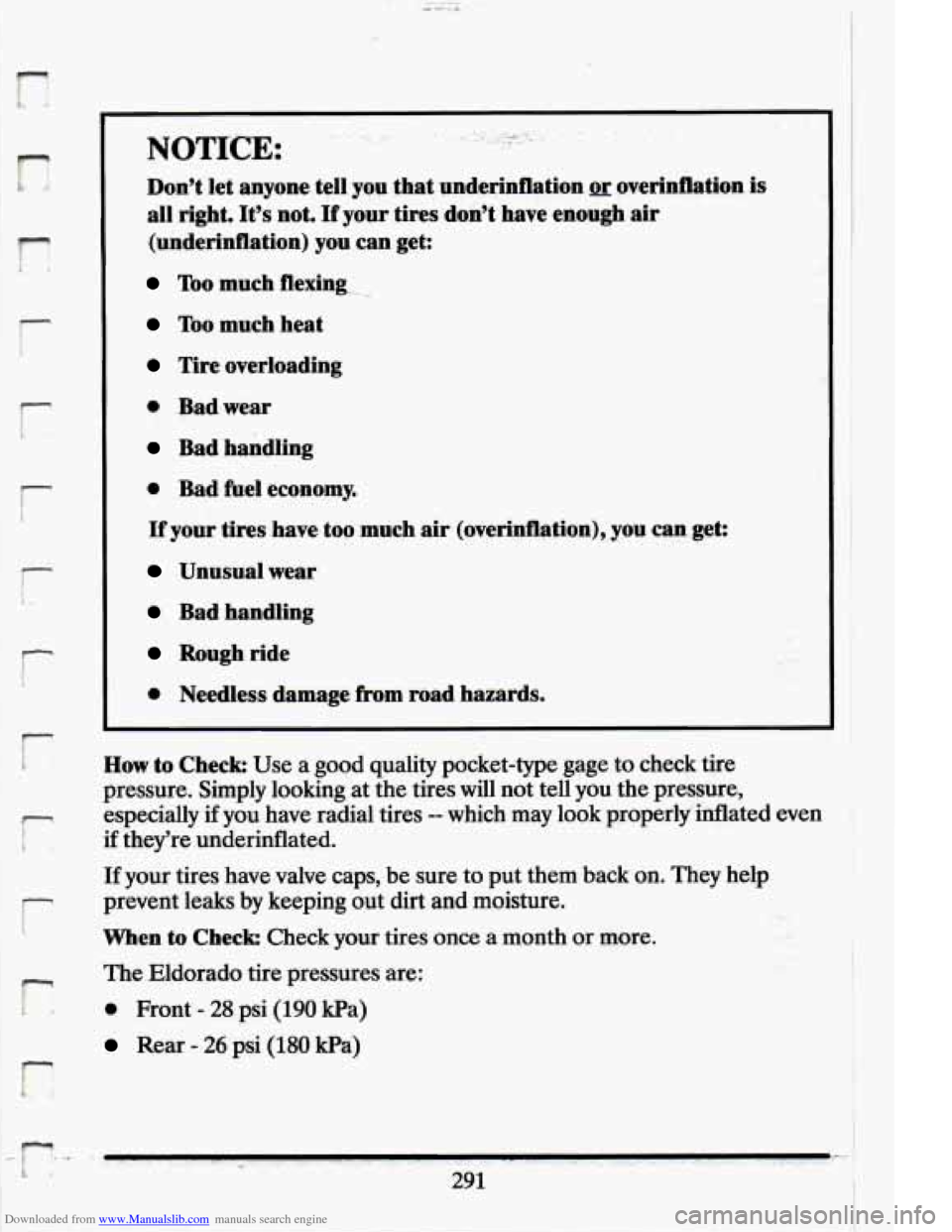

NOTICE:
.. - , .., .. . **:. 7 ' . ..._ ^ . ,
Don't let anyone tell you that underinflation or overinflation is
all right. It's not. If your tires don't have enough air
(underinflation) you can get:
Too much flexing.,
Too much heat
Tire overloading
0 Badwear
Bad handling
0 Bad fuel economy.
If your tires have too much air (overinflation), you can ger:
Unusual wear
Bad handling
Rough ride
0 Needless damage from road hazards.
How to Check
Use a good quality pocket-type gage to check tire
pressure. Simply looking at the tires will not tell
you the pressure,
especially
if you have radial tires -- which may look properly' inflated even
if they're underinflated.
If your tires have valve caps, be sure to put them back on. They help
prevent leaks by keeping out dirt and moisture.
When to Check Check your tires once a month or more.
The Eldorado tire pressures are:
0 Front - 28 psi (190 Pa)
Rear - 26 psi (180 kPa)

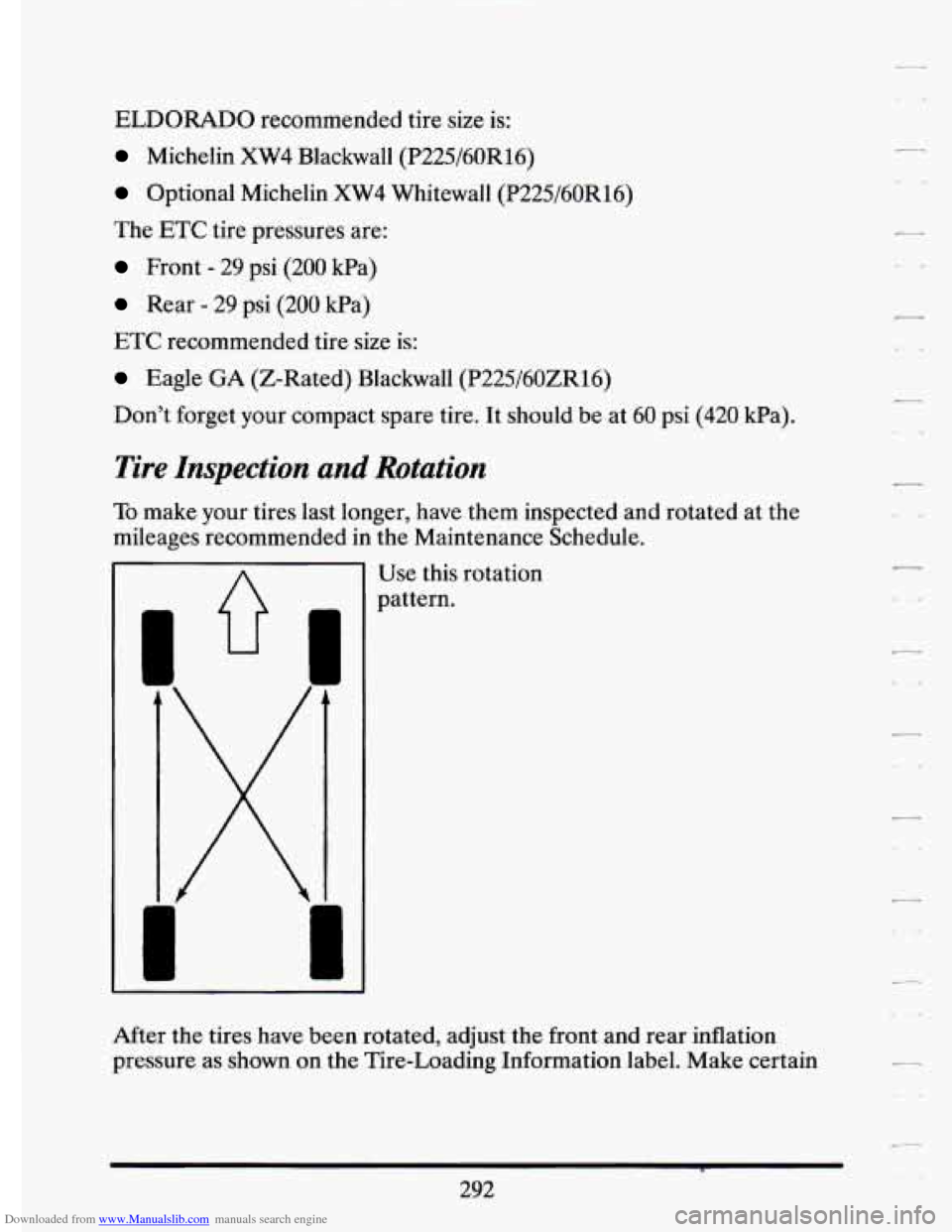

Downloaded from www.Manualslib.com manuals search engine ELDORADO recommended tire size is:
Michelin XW4 Blackwall (P225/60R16)
Optional Michelin XW4 Whitewall (P225/60R16)
The ETC tire pressures are:
Front - 29 psi (200 kPa)
Rear - 29 psi (200 kPa)
ETC recommended tire size is:
Eagle GA (Z-Rated) Blackwall (P225/60ZR16)
Don’t forget your compact spare tire. It should be at
60 psi (420 kPa).
Tire Inspection and Rotation
To make your tires last longer, have them inspected and rotated at the
mileages recommended in the Maintenance Schedule.
I
Use this rotation
pattern.
After the tires have been rotated, adjust
the front and rear inflation
pressure
as shown on the Tire-Loading Information label. Make certain
292

Downloaded from www.Manualslib.com manuals search engine r,
1
r
r
f
I,
I-
r
r

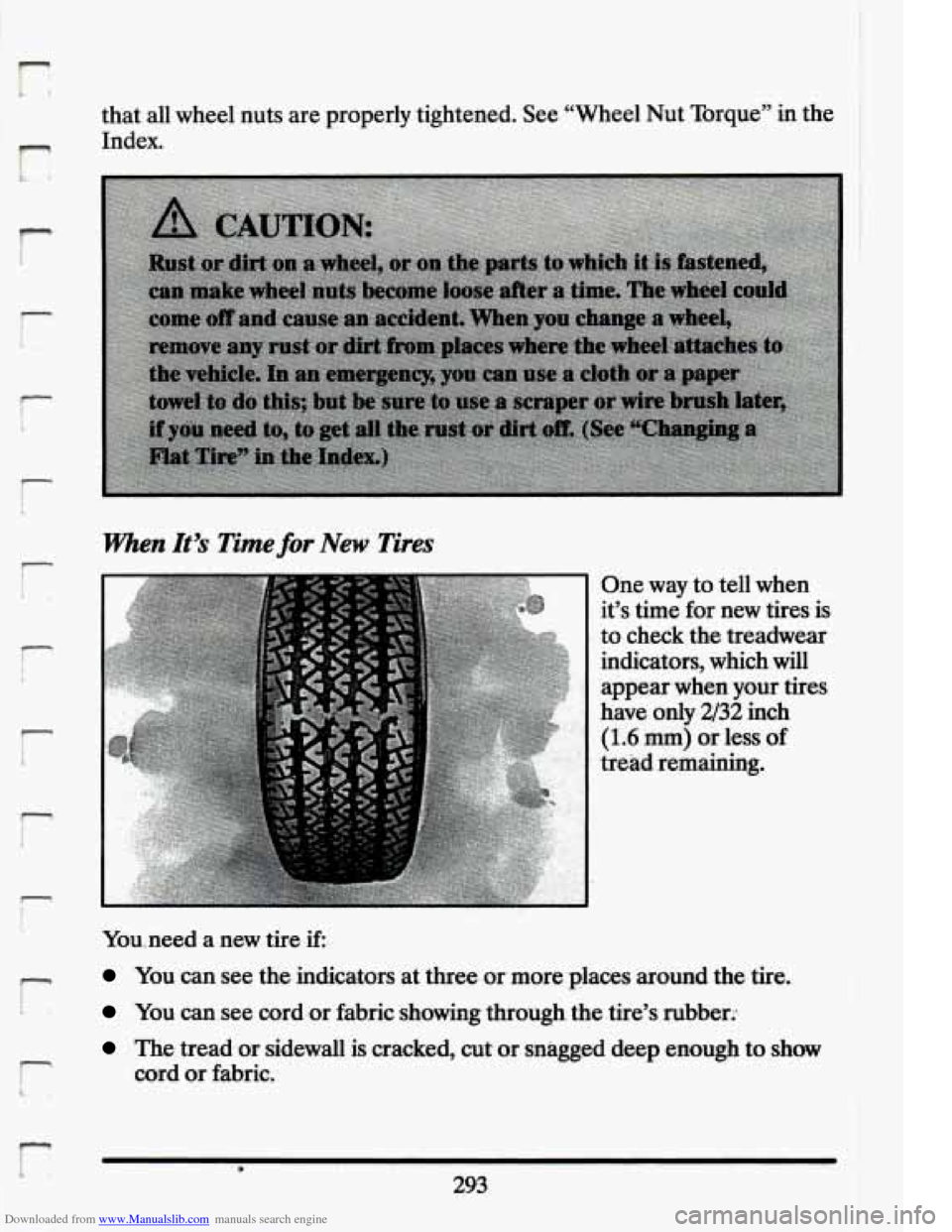

that all wheel nuts are properly tightened. See “Wheel Nut Torque” in the
Index.
men It’s Time for New Tires
One way to tell when
it’s time for new tires is
to check
the treadwear
indicators, which
will
appear when your tires
have
only,2/32 inch
(1.6 mm) or less of
tread remaining.
Youneed a new
tire if:.
You can see the indicators at three or more -places around the tire.
You can .see cord or fabric showing through the tire’s rubber.;
The tread-or sidewall is cracked, cut or snagged deep enough to show
cord or fabric.
293 r

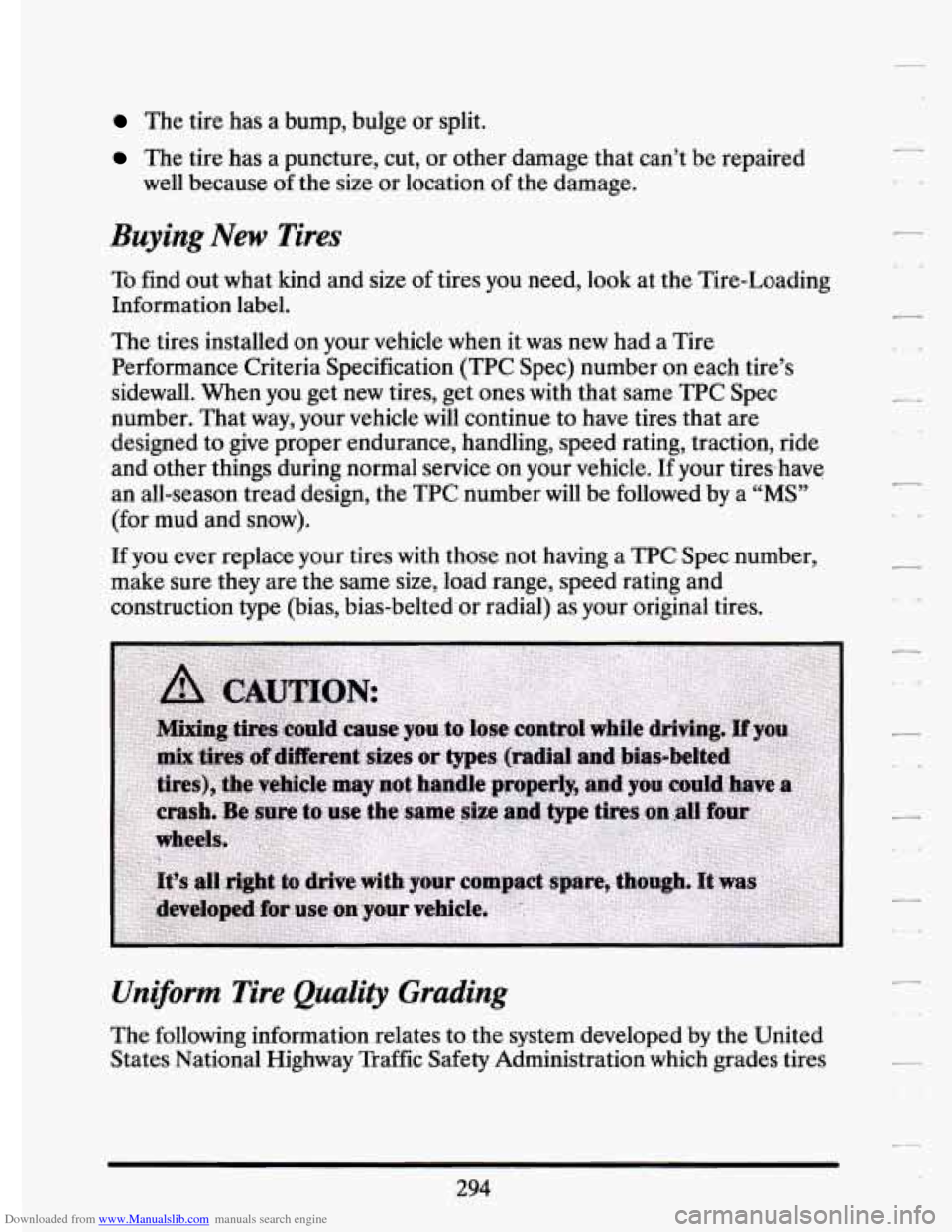

Downloaded from www.Manualslib.com manuals search engine The tire has a bump, bulge or split.
The tire has a puncture, cut, or other damage that can’t be repaired
well because
of the size or location of the damage.
Buying New Tires
To find out what kind and size of tires you need, look at the Tire-Loading
Information label.
The tires installed on your vehicle when it was new had a Tire
Performance Criteria Specification (TPC Spec) number on each tire’s
sidewall. When you get new tires, get ones with that same
TPC Spec
number. That way, your vehicle
will continue to have tires that are
designed to give proper endurance, handling, speed rating, traction, ride
and other things during normal service
on your vehicle. If your tireshave
an all-season tread design, the TPC number will be followed by a
“MS”
(for mud and snow).
If you ever replace your tires with those not having a TPC Spec number,
make sure they are the same size, load range, speed rating and
construction type (bias, bias-belted or radial) as your original tires.
Uniform Tire Quality Grading
The following information relates to the system developed by the United
States National Highway Traffic Safety Administration which grades tires
294

Downloaded from www.Manualslib.com manuals search engine E

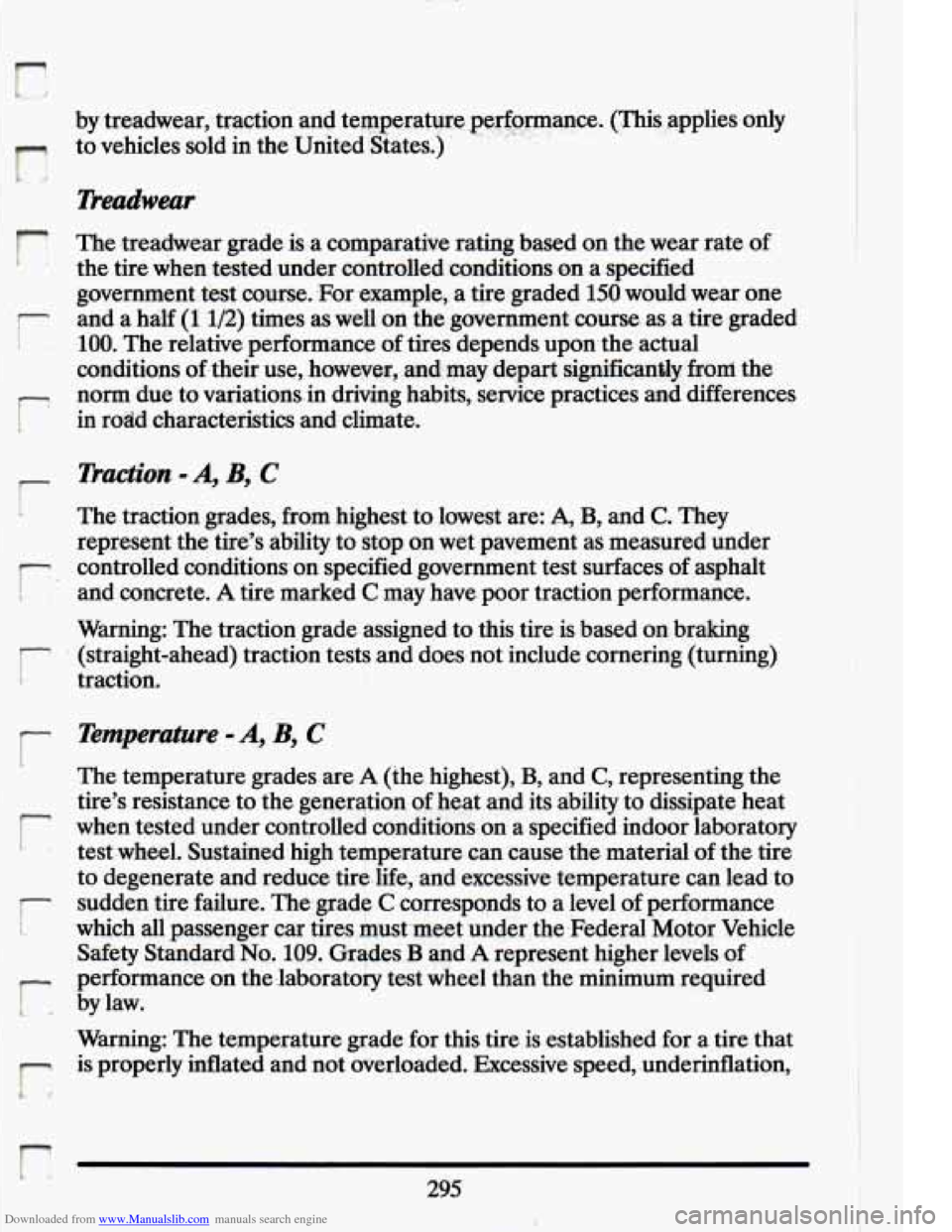

l by treadwear,-traction and teqqerature gwfQrmance. (This applies only
r
to vehicles sold in the United (States.)
Treadweat
. . , .--, . .
r The treadwear grade is .a comparative rating based on the wear rate of
the tire when tested .under controlled -conditions on a specified
.government test course. .For example, a tire graded 150 would \
wear one
and a half
(I 1/2) times as well on the government course-as a tire graded
’ 100. The relative performance of tires depends uponthe .actual
conditions of.their use, however, and may depart significant@
frorri the
norm due to variationsin driving habits, service practices and differences
in rodd characteristics and climate.
.r Daction -A, B, C
t The traction grades, from highest to lowest are: A, B, and C. They
represent the tire’s ability to stop on wet-pavement as measured under
controlled conditionson specified government test surfaces of asphalt
’ and concrete. A tire marked C may have poor traction p.erformance.
Warning: The traction. grade assigned to this tire is based on braking
(straight-ahead) traction tests and doemot include cornering (turning)
r traction.
r Temperature -A, B, C
I I
The temperature grades. are A (the. highest), B, and C, representing the
tire’s resistance to the generation of heat and its ability to dissipate heat
when tested under controlled conditions.on a specified indoor laborato\
ry
test .wheel. Sustained
high tevperature can cause the material of the tire
to degenerate and reduce tire.life, and excessive temperature can lead to
- sudden tire failure. The.gradq C corresponds to a level of performance
1- which all passenger car tires mustmeet under the,Federal Motor Vehicle
Safety Standard
No. 109. Grades €3 and A represent higher levels of
performance on thelaboratory test wheel than the.minimum required\

e- bylaw.
Warning: The temperature grade for this tire is established for a tire that
is. properly inflate.d and not overloaded. Excessive speed, unde\
rinflation,
I
r
295

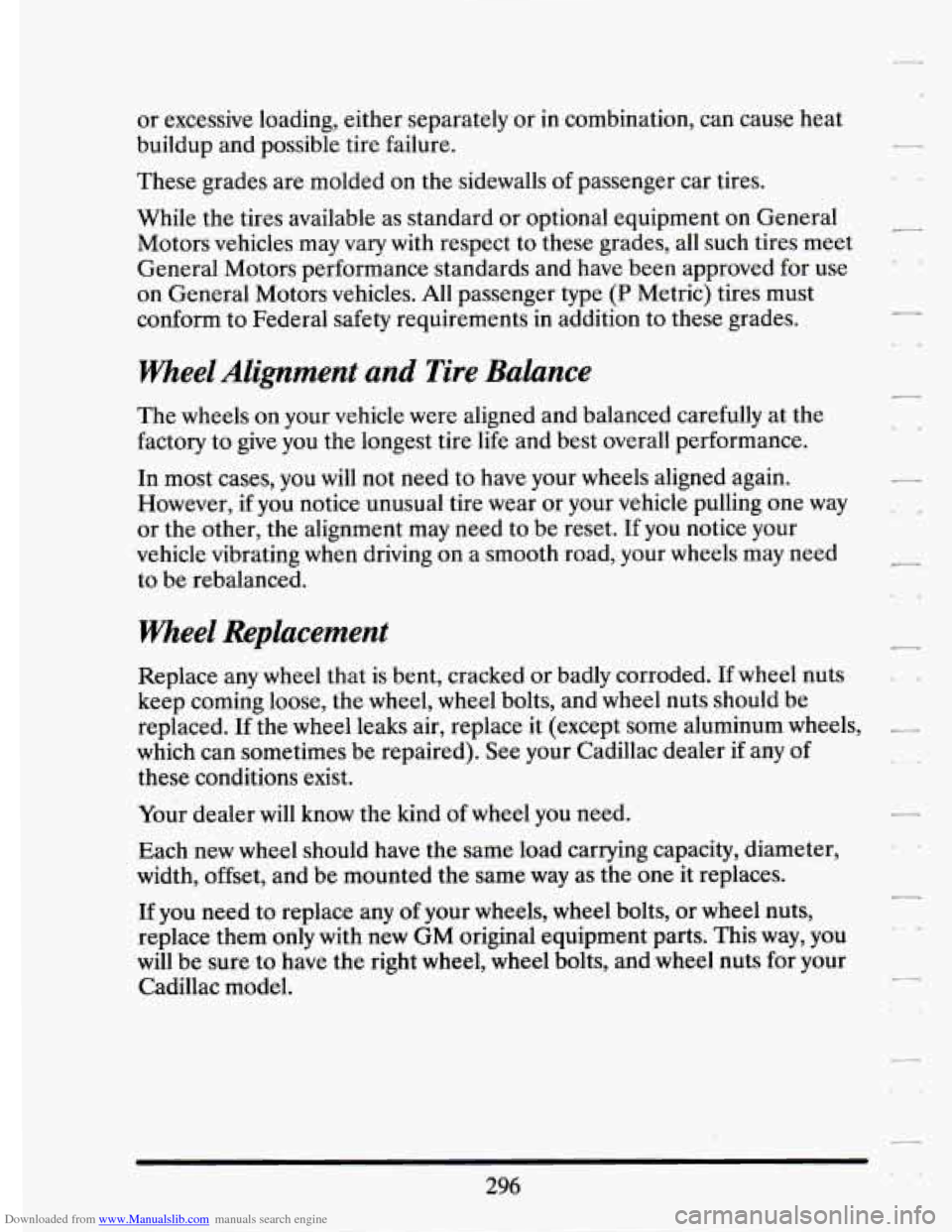

Downloaded from www.Manualslib.com manuals search engine or excessive loading, either separately or in combination, can cause heat
buildup and possible tire failure.
These grades are molded on
the sidewalls of passenger car tires.
While the tires available as standard or optional equipment on General
Motors vehicles may vary with respect to these grades, all such tires meet
General Motors performance standards and have been approved for use
on General Motors vehicles. All passenger type
(P Metric) tires must
conform to Federal safety requirements
in addition to these grades.
Wheel Alignment and Tire Balance
The wheels on your vehicle were aligned and balanced carefully at the
factory to give you the longest tire life and best overall performance.
In most cases, you
will not need to have your wheels aligned again.
However,
if you notice unusual tire wear or your vehicle pulling one way
or the other, the alignment may need to be reset. If you notice your
vehicle vibrating when driving
on a smooth road, your wheels may need
to be rebalanced.
Wheel Replacement
Replace any wheel that is bent, cracked or badly corroded. If wheel nuts
keep coming loose, the wheel, wheel bolts, and wheel nuts should be
replaced. If the wheel leaks air, replace it (except some aluminum wheels,
__
which can sometimes be repaired). See your Cadillac dealer if any of
these conditions exist.
Your dealer will know the kind
of wheel you need.
Each new wheel should have the same load carrying capacity, diameter,
width, offset, and be mounted the same way as the one it replaces.
If you need to replace any of your wheels, wheel bolts, or wheel nuts,
replace them
only with new GM original equipment parts. This way, you
will be sure to have the right wheel, wheel bolts, and
wheel nuts for your
Cadillac model.
296

Downloaded from www.Manualslib.com manuals search engine i
rl . . :l

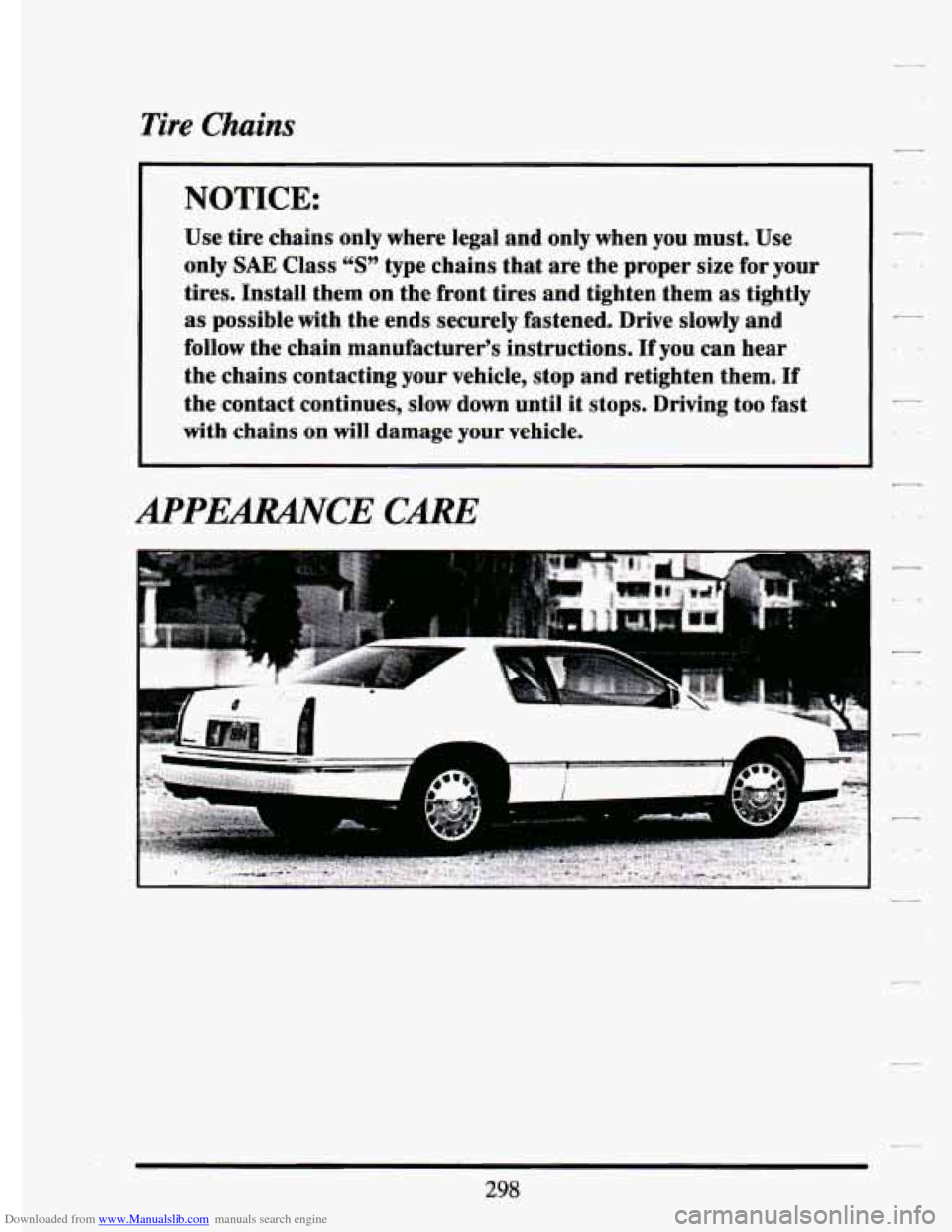

Downloaded from www.Manualslib.com manuals search engine Tire Chains
NOTICE:
Use tire chains only where legal and only when you must. Use
only
SAE Class “S” type chains that are the proper size for your
tires. Install them on the front tires and tighten them as tightly
as possible with the ends securely fastened. Drive slowly and
follow the chain manufacturer’s instructions.
If you can hear
the chains contacting your vehicle, stop and retighten them.
If
the contact continues, slow down until it stops. Driving too fast
with chains on will damage your vehicle.
APPERACE CARE
298
