odometer CADILLAC ELDORADO 1994 10.G Owners Manual

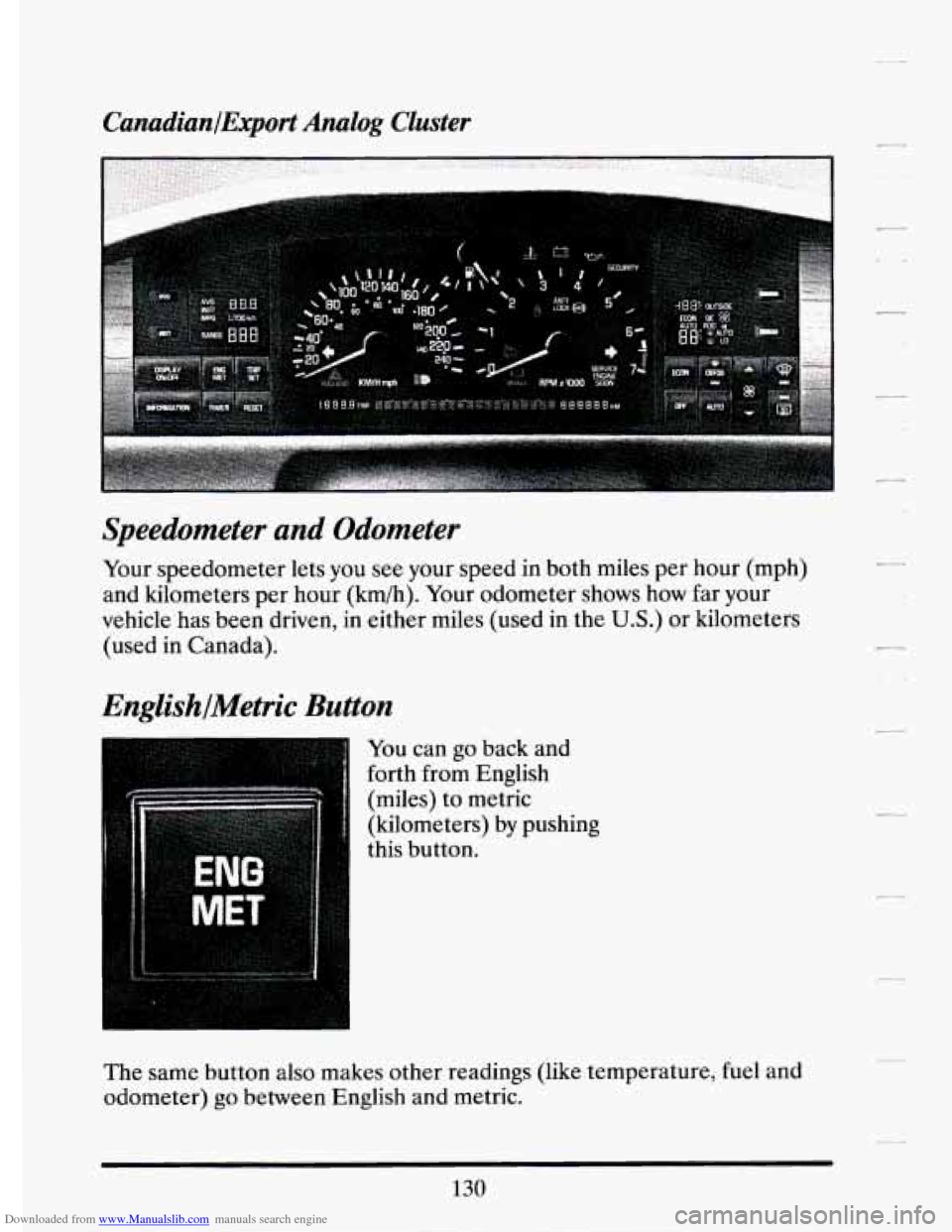

Downloaded from www.Manualslib.com manuals search engine Canadian/Export Analog Cluster -
Speedometer and Odometer
Your speedometer lets you see your speed in both miles per hour (mph)
and kilometers per hour (km/h). Your odometer shows
how far your
vehicle has been driven, in either miles (used in the
U.S.) or kilometers
(used in Canada).
EnglishlMetric Button
You can go back and
forth from English
(miles) to metric
(kilometers)
by pushing
this button.
The same button also makes other readings (like temperature, fuel and
odometer)
go between English and metric.
130
-
d

Downloaded from www.Manualslib.com manuals search engine ,- -
r
r
r
i-
c
i
P
r
t
c

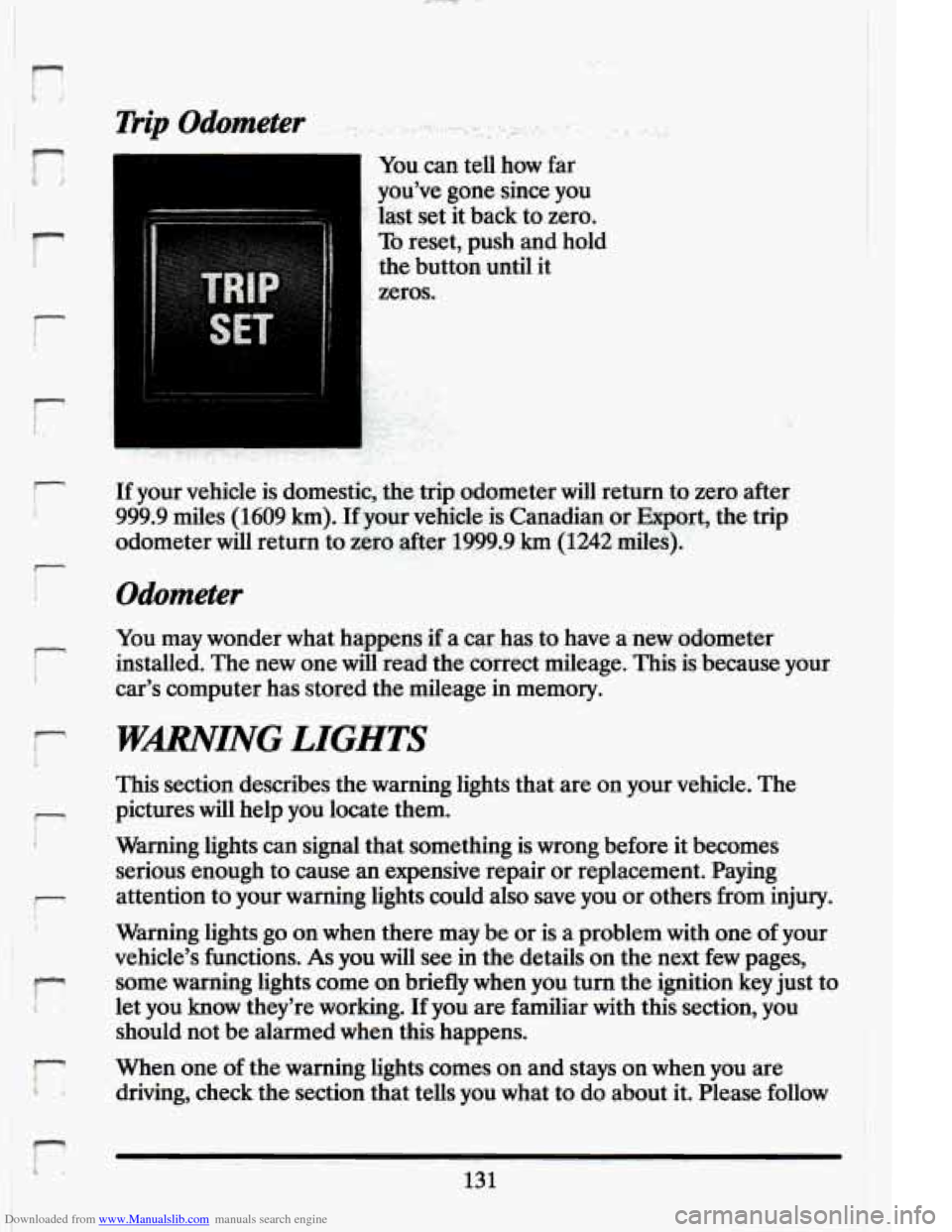

You can tell how far
you’ve gone since you
last set it back to zero.
To reset, push and hold
the button until it
zeros.
If your vehicle is domestic, the trip odometer will return to zero after
999.9 miles (1609
km). If your vehicle. is Canadian or Export, the trip
odometer will return to zero after 1999.9
km (1242 miles).
Odometer
You may wonder what happens if a car has to have a new odometer
installed. The new one will read the correct mileage. This is because your
car’s computer has stored the mileage in memory.
WARNING LIGHTS
This section describes the warning lights that are on your vehicle. The
pictures will help you locate them.
Warning lights can signal that something is wrong before it becomes
serious enough to cause an expensive repair or replacement. Paying
attention to your warning lights could also save you or others
from injury.
Warning lights go on when there may be or is a problem with one of your
vehicle’s functions.
As you will see in the details on the next few pages,
some warning lights come on briefly when you turn the ignition key just to
let
you know they’re working. If you are familiar with this section, you
should not be alarmed when this happens.
When one
of the warning lights comes on and stays on when you are
driving, check the section that tells you what to do about it. Please follow
131

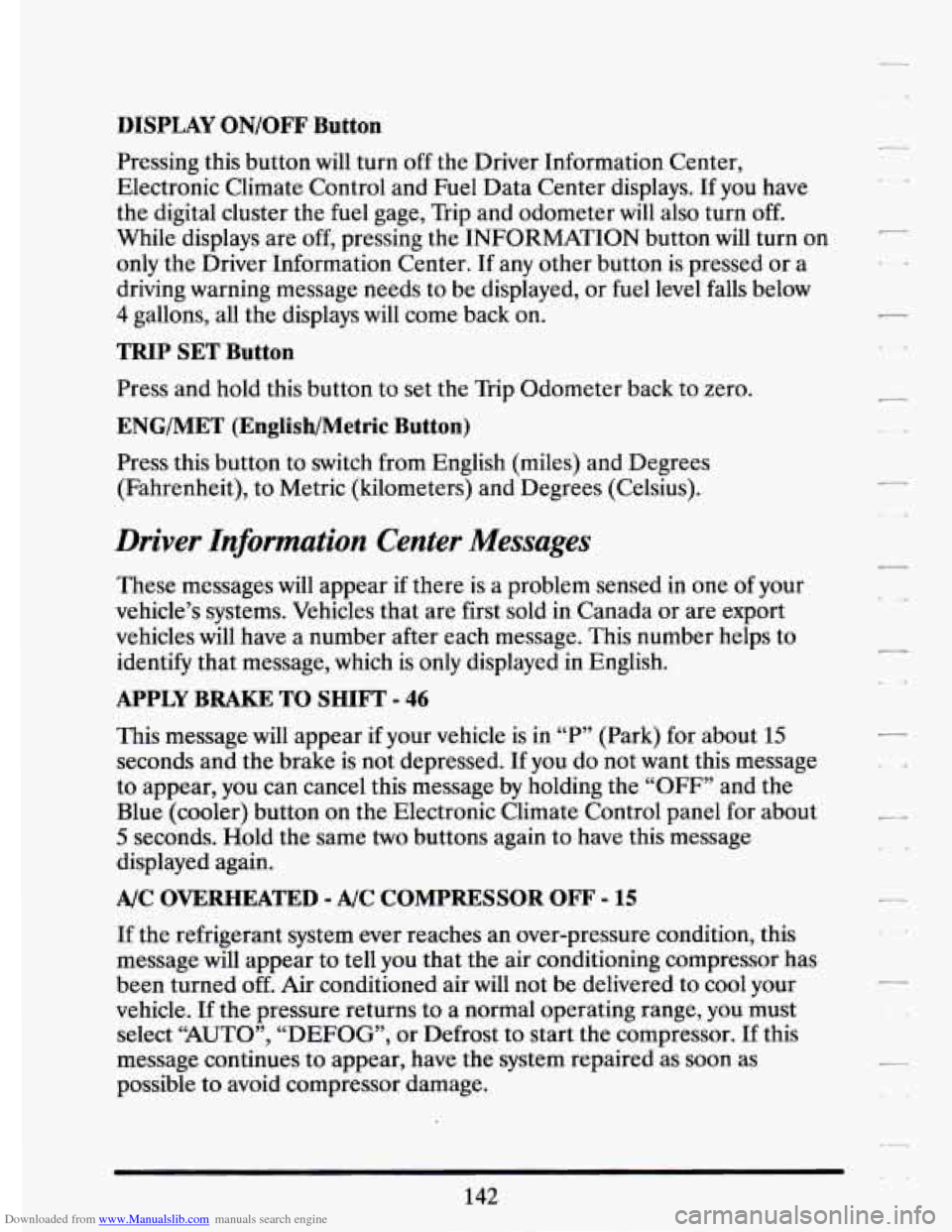

Downloaded from www.Manualslib.com manuals search engine DISPLAY ON/OFF Button
Pressing this button will turn off the Driver Information Center,
Electronic Climate Control and Fuel Data Center displays. If
you have
the digital cluster the
fuel gage, Trip and odometer will also turn off.
While displays are off, pressing the INFORMATION button will turn on
only the Driver Information Center. If any other button is pressed or a
driving warning message needs to be displayed, or fuel level falls below
4 gallons, all the displays will come back on.
TRIP SET Button
Press and hold this button to set the Trip Odometer back to zero.
ENG/MET (English/Metric Button)
Press this button to switch from English (miles) and Degrees
(Fahrenheit), to Metric (kilometers) and Degrees (Celsius).
Driver Information Center Messages
These messages will appear if there is a problem sensed in one of your
vehicle’s systems. Vehicles that are first sold
in Canada or are export
vehicles will have a number after each message. This number he\
lps to
identify that message, which is only displayed
in English.
APPLY BRAKE TO SHIFT - 46
This message will appear if your vehicle is in “P” (Park) for about 15
seconds and the brake is not depressed. If you do not want this message
to appear,
you can cancel this message by holding the “OFF” and the
Blue (cooler) button on the Electronic Climate Control panel for about
5 seconds. Hold the same two buttons again to have this message
displayed again.
A/C OVERHEATED - A/C COMPRESSOR OFF - 15
If the refrigerant system ever reaches an over-pressure condition, this \
message will appear to tell you that the air conditioning compressor has
been turned off. Air conditioned air will not be delivered to cool your
vehicle. If the pressure returns to a normal operating range,
you must
select
“AUTO”, “DEFOG”, or Defrost to start the compressor. If this
message continues to appear, have the system repaired as
soon as
possible to avoid compressor damage.
142

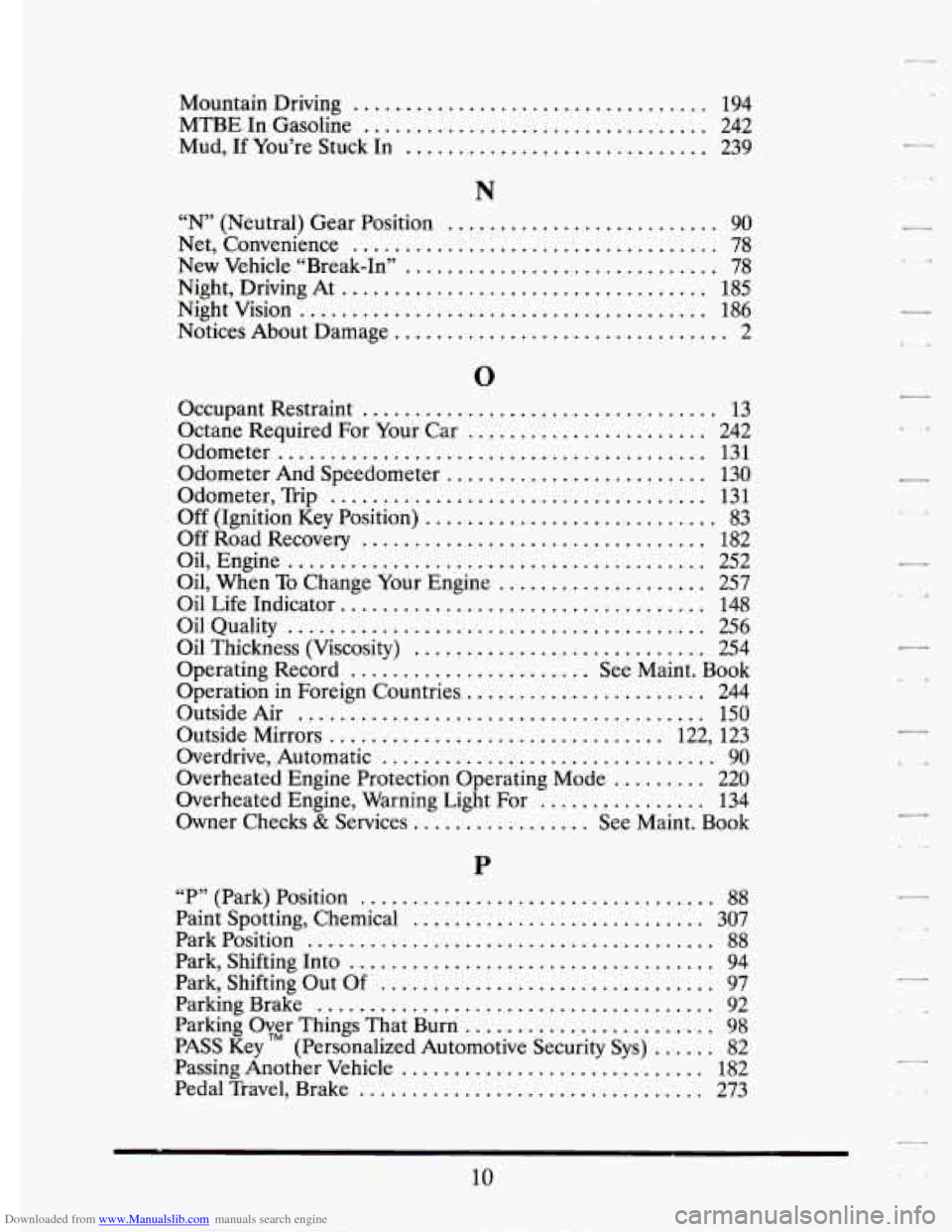

Downloaded from www.Manualslib.com manuals search engine Mountain Driving .................................. 194
MTBE In Gasoline
................................. 242
Mud.
If You’re Stuck In ............................. 239
N
“N” (Neutral) Gear Position .......................... 90
Net. Convenience
................................... 78
New Vehicle “Break-Iny’ .............................. 78
Night. Driving At ................................... 185
Nightvision
....................................... 186
Notices About Damage
................................ 2
Occupant Restraint
.................................. 13
Octane Required For Your Car
....................... 242
Odometer
......................................... 131
Odometer And Speedometer
......................... 130
Odometer. Trip
.................................... 131
Off (Ignition Key Position) ............................ 83
Off Road Recovery
................................. 182
Oil. Engine
........................................ 252
Oil. When
To Change Your Engine .................... 257
Oil Thickness (Viscosity)
............................ 254
Operating Record
....................... See Maint . Book
Operation
in Foreign Countries., ...................... 244
Outside Air
....................................... 150
Outside Mirrors
................................ 122. 123
Overdrive, Automatic
................................ 90
Overheated Engine Protection Operating Mode
......... 220
Overheated Engine, Warning Light For
................ 134
Owner Checks
& Services ................. See Maint . Book
Oil Life
Indicator
................................... 148
OilQuality
........................................ 256
“P” (Park) Position
.................................. 88
Paint Spotting. Chemical ............................ 307
Park. Shifting Into
................................... 94
Park. Shifting Out Of
................................ 97
Parking Over Things That Bum ........................ 98
Passing Another Vehicle ............................. 182
Pedal Travel. Brake
................................. 273
ParkPosition
....................................... 88
ParkingBrake ...................................... 92
PASS Key
TM (Personalized Automotive Security Sys) ...... 82
10
.
.
1
.
*L -.a
.
.
.
.
b4
.
L- 1
K.4
.
-1

Downloaded from www.Manualslib.com manuals search engine r:
:r
r
1
r

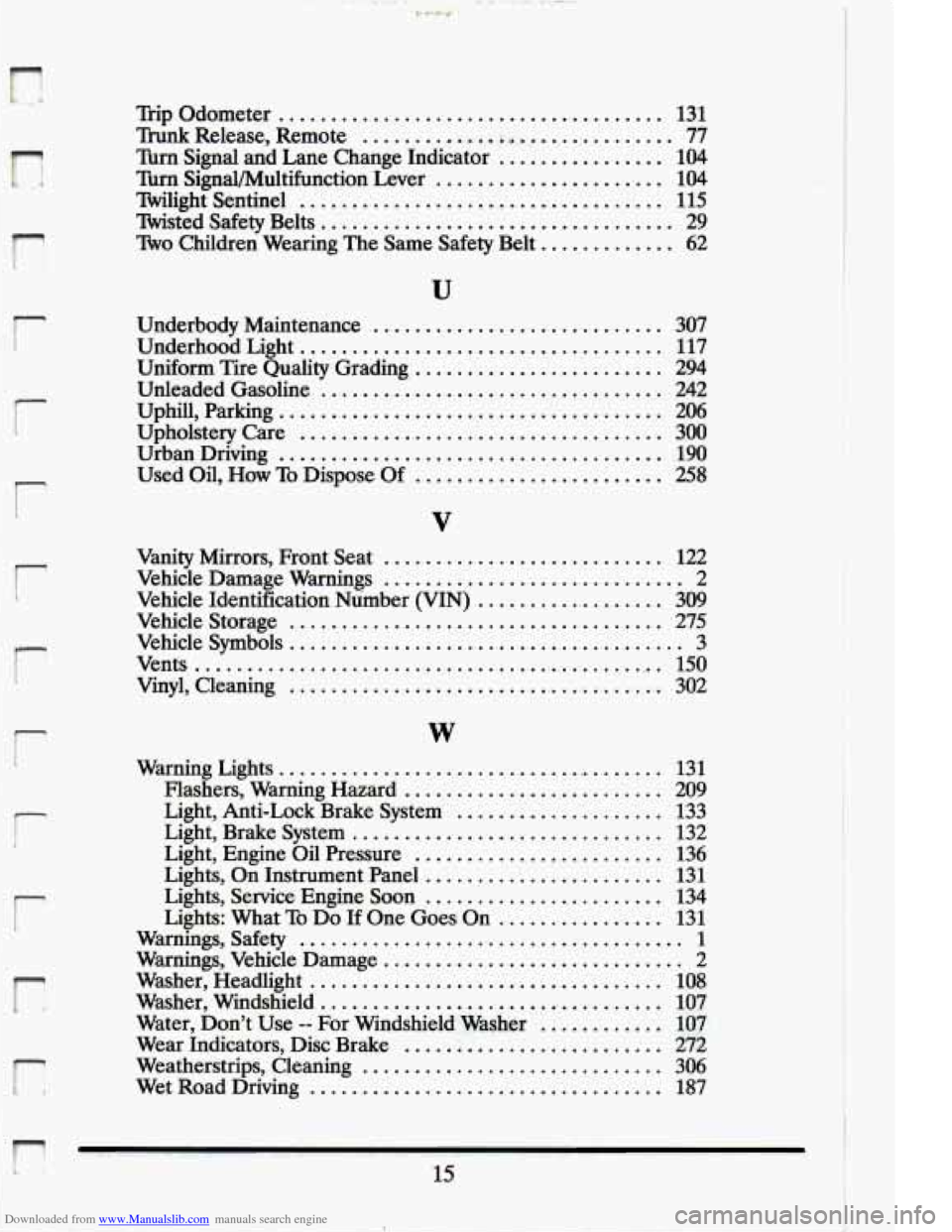

Trip Odometer ..................................... 131
Trunk Release. Remote ............. .. .. ............... 77
Signal and Lane Change Indicator 104
Thn Signal/Multifunction Lever ...................... 104
Wght Sentinel ................................... 115
Wsted Safety Belts .................................. 29
live Children Wearing The Same Safety Belt ............. 62
..
................
U
Underbody Maintenance ............................. 307
UnderhoodLight ................................... 117
Uniform Tire Quality Grading ........................ 294
Unleaded Gasoline ................................. 242
Uphill. Parking ..................................... 206
Upholstery Care ................................... 300
Urban Driving ..................................... 190
Used Oil. How To Dispose Of ........................ 258
V
Vanity Mirrors. Front Seat ........................... 122
Vehicle Damage Warnings ............................. 2
Vehicle Identification Number (VIN) .................. 309
Vehicle Storage .................................... 275
Vehicle Symbols ...................................... 3
Vents .............................................. 150
Vinyl. Cleaning .................................... 302
W
Warning Lights ...................................... 131
Flashers. Warning Hazard ......................... 209
Light. Anti-Lock Brake System .................... 133
Light. Brake System .............................. 132
Light. Engine Oil Pressure ........................ 136
Lights. On Instrument Panel ....................... 131
Lights. Service Engine Soon ....................... 134
Warnings. Safety ..................................... 1
Warnings. Vehicle Damage ............................. 2
Washer. Headlight .................................. 108
Washer. Windshield ................................. 107
Water. Don’t Use .. For Windshield Washer ............ 107
Wear Indicators. Disc Brake ......................... 272
Weatherstrips. Cleaning ............................. 306
Wet Road Driving .................................. 187
Lights: What To Do If One Goes On ................ 131
f
