CADILLAC ELDORADO 1995 10.G Owners Manual

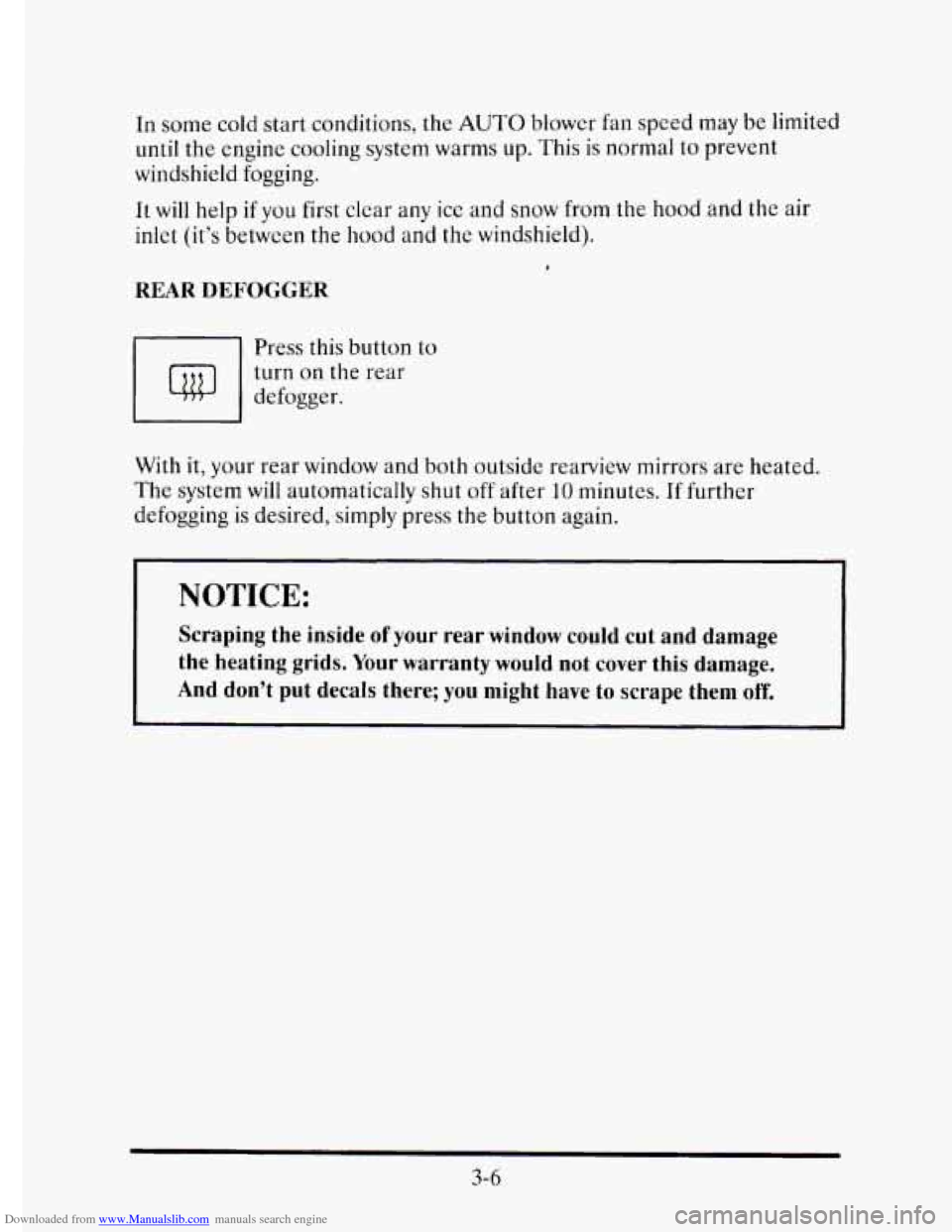

Downloaded from www.Manualslib.com manuals search engine In some cold start conditions, the AUTO blower fan speed may be limited
until the engine cooling system warms up. This is normal to prevent
windshield fogging.
It will help if you first clear any ice and snow from the hood and the air
inlet (it’s between the hood and the windshield).
REAR DEFOGGER
-1 Press this button to
turn on the rear
defogger.
With it, your rear window and both outside rearview mirrors are heated.
The system will automatically shut off after 10 minutes. If further
defogging is desired, simply press the button again.
NOTICE:
Scraping the inside of your rear window could cut and damage
the heating grids. Your warranty would not cover this damage.
And don’t put decals there; you might have
to scrape them off.
3-6

Downloaded from www.Manualslib.com manuals search engine c
c

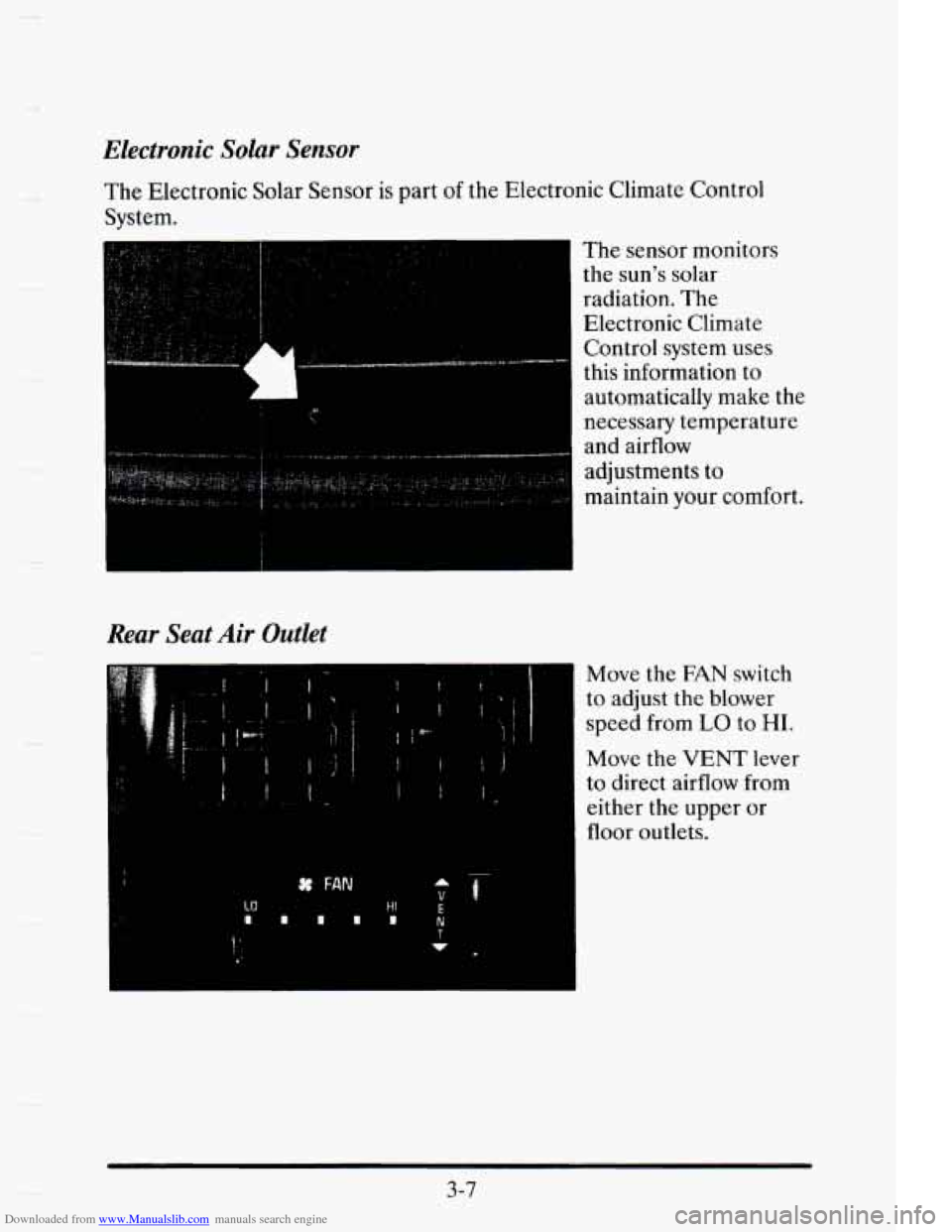

Electronic Solur Sensor
The Electronic Solar Sensor is part of the Electronic Climate Control
System.
Rear Seat Air Outlet
. .. f ,I i
The sensor monitors
the
sun's solar
radiation. The Electronic Climate Control system uses
this information to
automatically make the
necessary temperature
and airflow
adjustments to
maintain your comfort.
- Move the FAN switch
to adjust the blower
' speed from LO to HI.
Move the VENT lever
to direct airflow from
floor outlets.
I either the upper or
HI ts
I E N T
-.
3-7

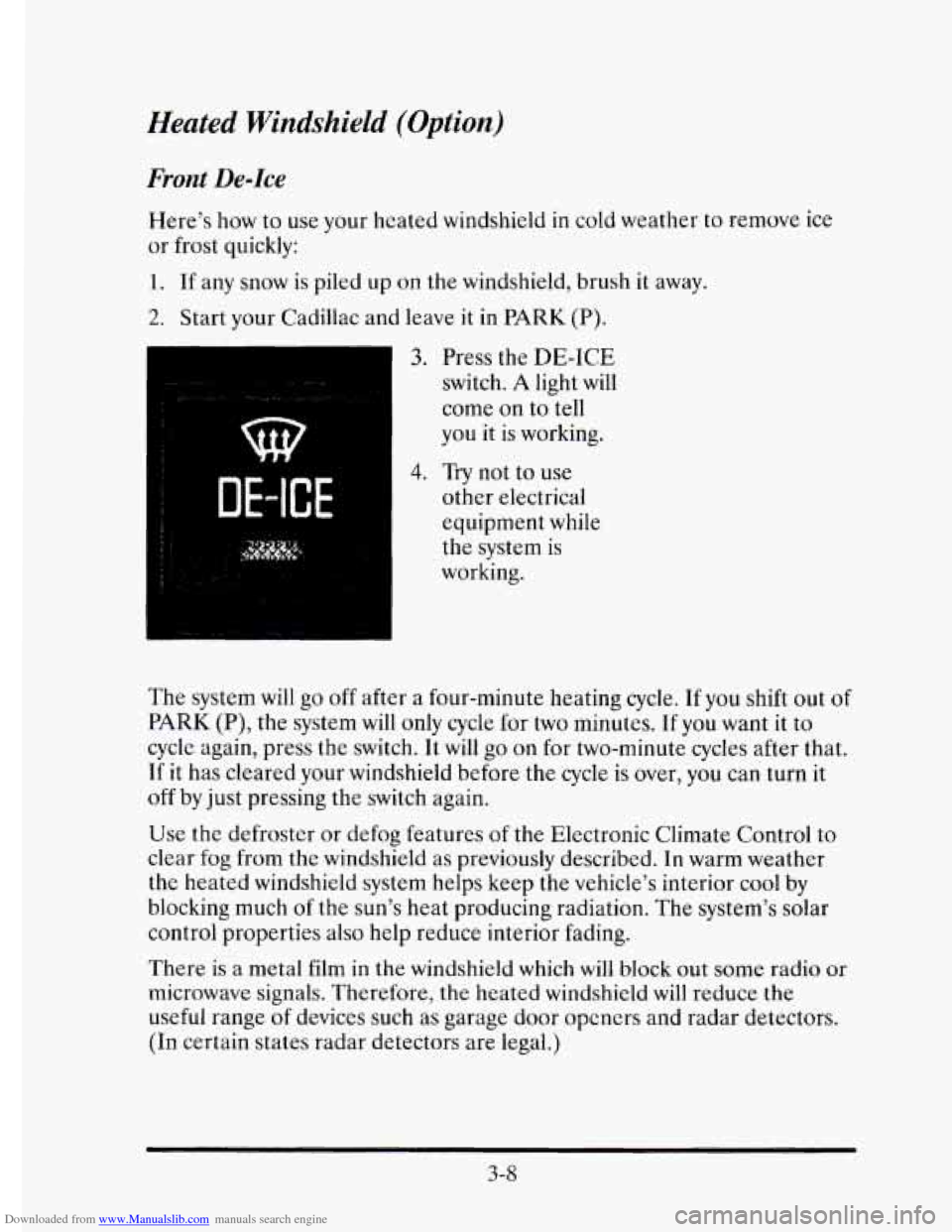

Downloaded from www.Manualslib.com manuals search engine Heated Windshield (Option)
Front De-Ice
Here’s how to use your heated windshield in cold weather to remove ice
or frost quickly:
1. If any snow is piled up on the windshield, brush it away.
2. Start your Cadillac and leave it in PARK (P).
3. Press the DE-ICE
switch. A light will
come on to tell
you it is working.
DE-ICE
4. Try not to use
other electrical
equipment while
the system
is
working.
The system will
go off after a four-minute heating cycle. If you shift out of
PARK (P), the system will only cycle for two minutes. If you want it to
cycle again, press the switch. It will go on for two-minute cycles after that.
If it has cleared your windshield before the
cycle is over, you can turn it
off by just pressing the switch again.
Use the defroster or defog features of the Electronic Climate Control to
clear fog from the windshield as previously described. In warm weather
the heated windshield system helps keep the vehicle’s interior cool by
blocking much
of the sun’s heat producing radiation. The system’s solar
control properties also
help reduce interior fading.
There
is a metal film in the windshield which will block out some radio or
microwave signals. Therefore, the heated windshield
will reduce the
useful range
of devices such as garage door opcners and radar detectors.
(In certain states radar detectors are legal.)
3-8

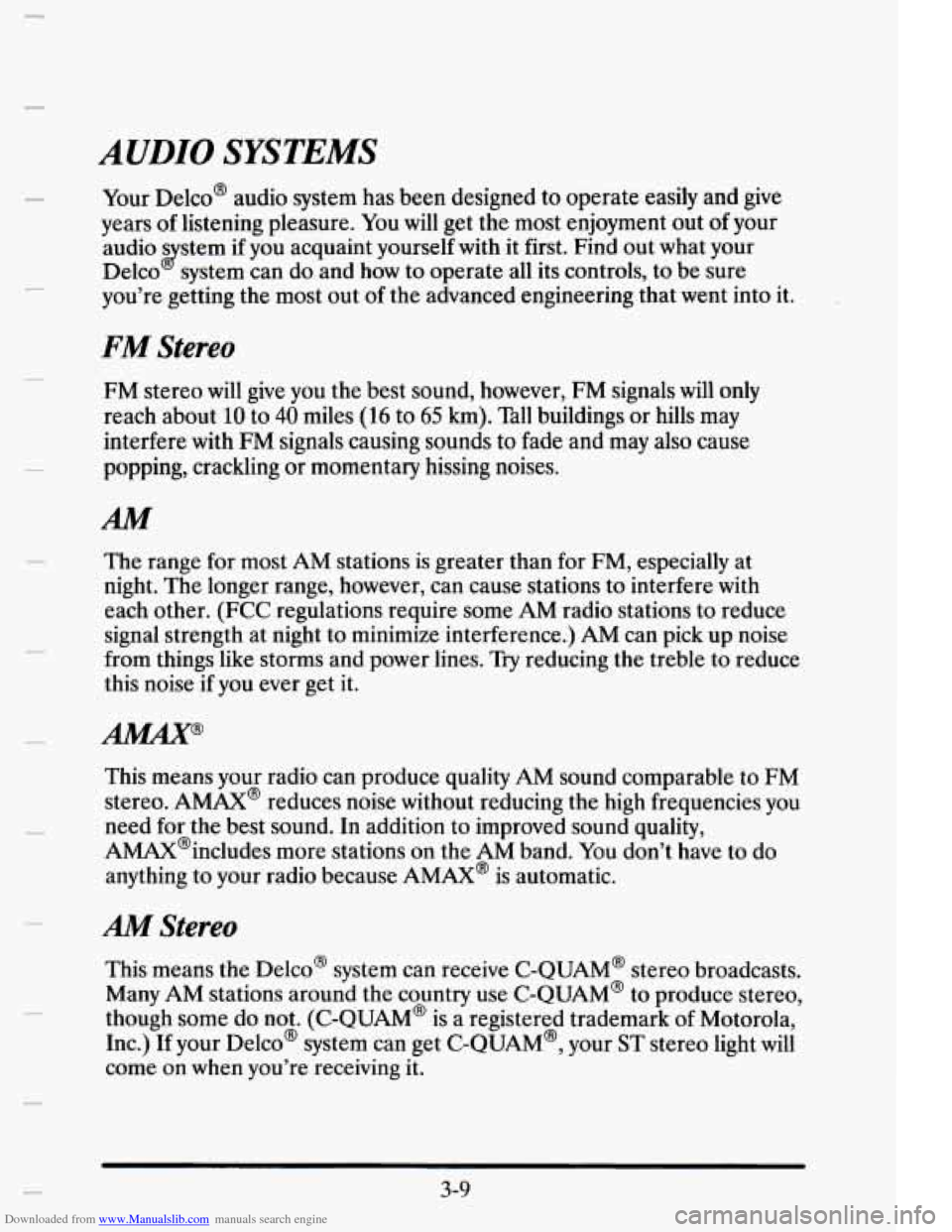

Downloaded from www.Manualslib.com manuals search engine AUDIO SYSTEMS
c
Your Delco@ audio system has been designed to operate easily and give
years
of listening pleasure. You will get the most enjoyment out of your
audio
s stem if you acquaint yourself with it first. Find out what your
Delco system can
do and how to operate all its controls, to be sure
you’re getting the most out
of the advanced engineering that went into it.
d
FM Stereo
FM stereo will give you the best sound, however, FM signals will only
reach about
10 to 40 miles (16 to 65 km). Tall buildings or hills may
interfere with FM signals causing sounds to fade and may also cause
popping, crackling or momentary hissing noises.
AM
The range for most AM stations is greater than for FM, especially at
night. The longer range, however, can cause stations
to interfere with
each other. (FCC regulations require some AM radio stations to reduce
signal strength at night to minimize interference.)
AM can pick up noise
from things
like storms and power lines. Try reducing the treble to reduce
this noise
if you ever get it.
This means your radio can produce quality
AM sound comparable to FM
stereo.
AMAX@ reduces noise without reducing the high frequencies you
need for the best sound. In addition to improved sound quality,
AMAX@includes more stations
on the AM band. You don’t have to do
anything to your radio because AMAX’ is automatic.
AM Stereo
This means the Delco’ system can receive C-QUAM@ stereo broadcasts.
Many AM stations around the country use C-QUAM@
to produce stereo,
though some do not. (C-QUAM@ is a registered trademark of Motorola,
Inc.) If your Delco@ system can get C-QUAM@, your
ST stereo light will
come on when you’re receiving it.
3-9

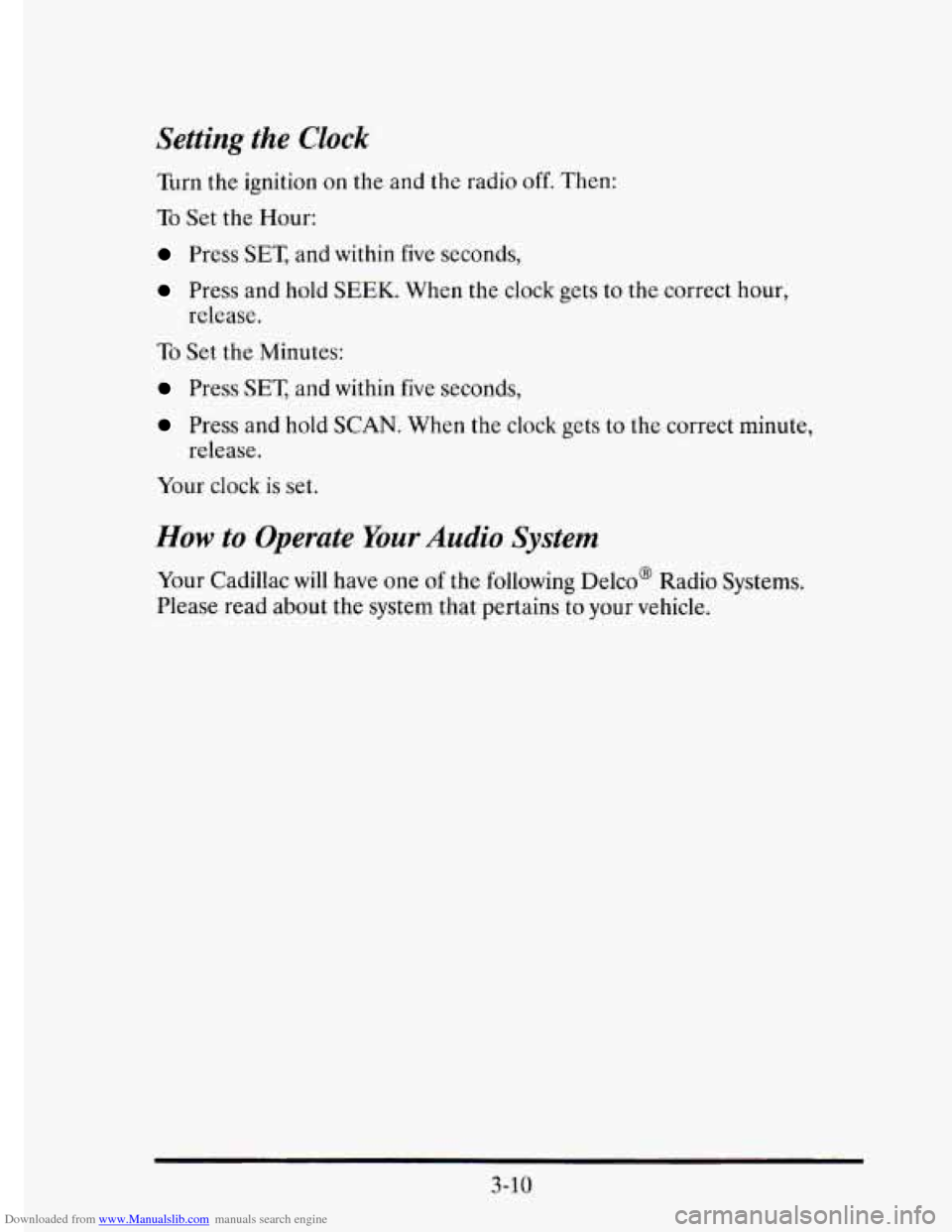

Downloaded from www.Manualslib.com manuals search engine Setting the Clock
Turn the ignition on the and the radio off. Then:
To Set the Hour:
Press SET, and within five seconds,
Press and hold SEEK. When the clock gets to the correct hour,
To Set the Minutes:
Press SET, and within five seconds,
release.
Press and
hold SCAN. When the clock gets to the correct minute,
Your clock
is set.
release.
How to
Operate Your Audio System
Your Cadillac will have one of the following Delco@ Radio Systems.
Please read about the system that pertains to
your vehicle.
3-10

Downloaded from www.Manualslib.com manuals search engine e-
c

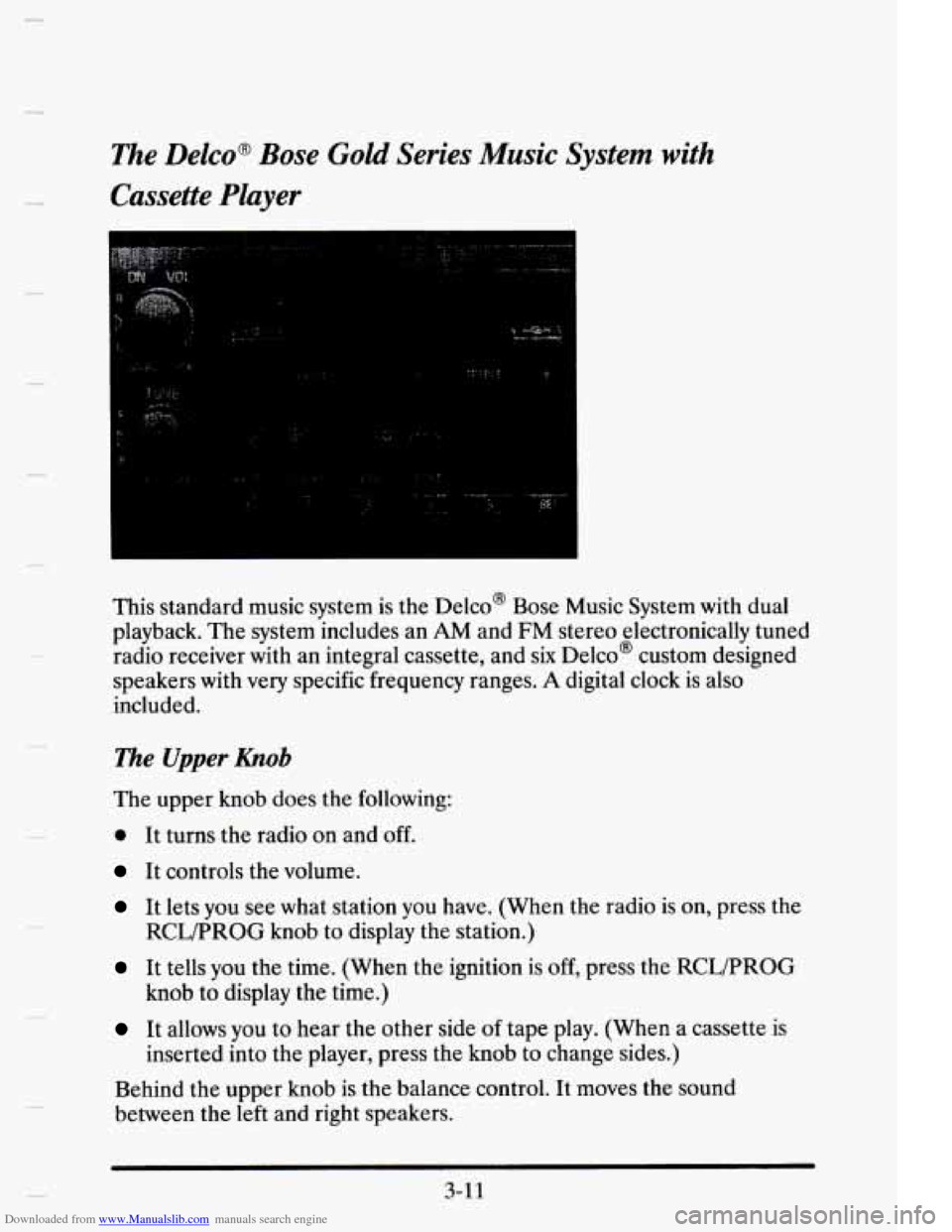

The Delco@ Bose Gold Series Music System with
Cassette Player
.......
This standard music system is the Delco@ Bose Music System with dual
playback. The system includes an
AM and FM stereo electronically tuned
radio receiver with an integral cassette, and
six Delco@ custom designed
speakers with
very specific frequency ranges. A digital clock is also
included.
The Upper hob
The upper knob does the following:
0 It turns the radio on and off.
It controls the volume.
It lets you see what station you have. (When the radio is on, press the
It tells you the time. (When the ignition is off, press the RCWPROG
It allows you to hear the other side of tape play. (When a cassette is
Behind the upper knob is the balance control. It moves the sound
between the left and right speakers.
RCLPROG knob to display the station.)
knob to display the time.)
inserted into the player, press the knob to change sides.)
3-1 1

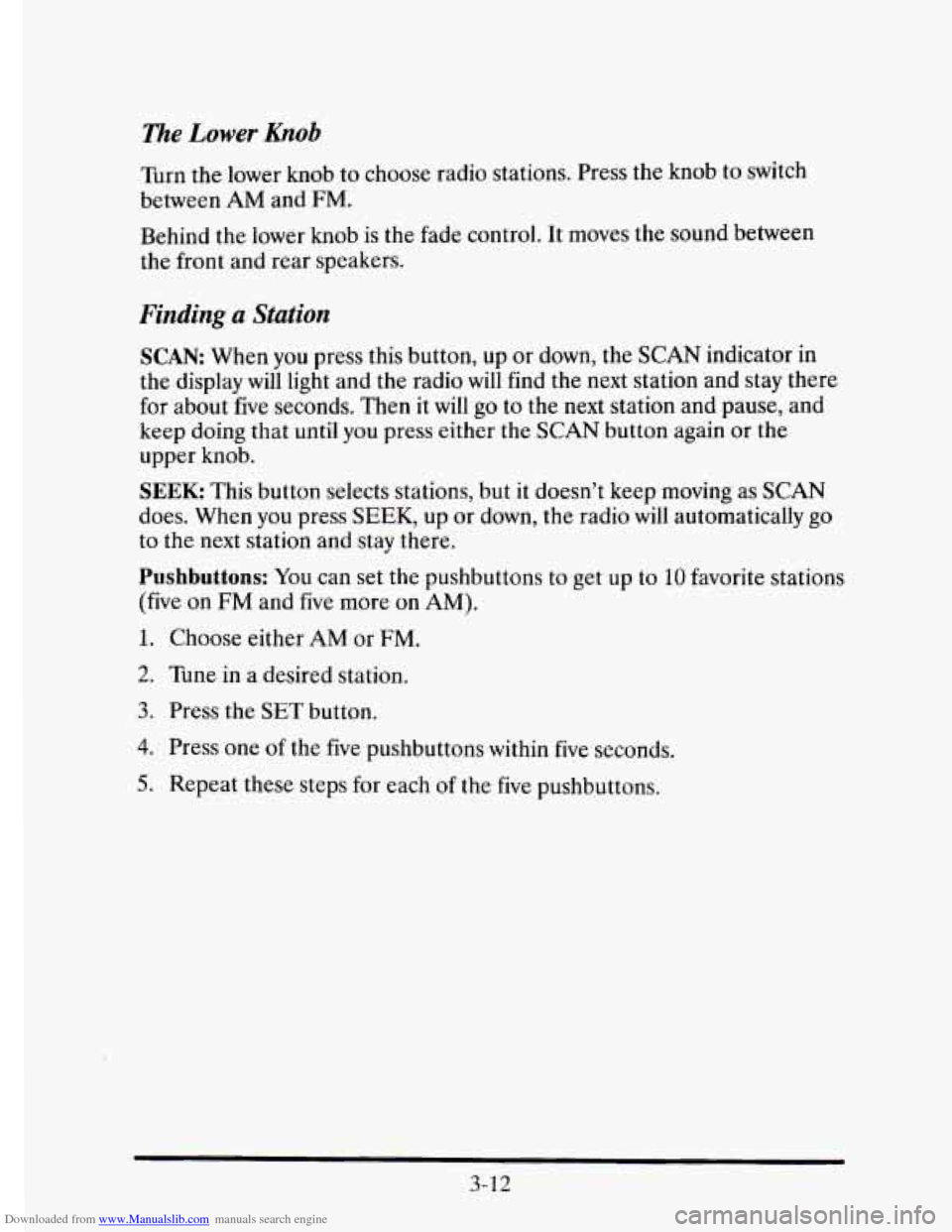

Downloaded from www.Manualslib.com manuals search engine me Lower hob
Turn the lower knob to choose radio stations. Press the knob to switch
between
AM and FM.
Behind the lower knob is the fade control. It moves the sound between
the front and rear speakers.
Finding a Station
SCAN: When you press this button, up or down, the SCAN indicator in
the display will light and the radio will find
the next station and stay there
for about five seconds. Then it
will go to the next station and pause, and
keep doing
that until you press either the SCAN button again or the
upper knob.
SEEK This button selects stations, but it doesn’t keep moving as SCAN
does. When you press SEEK, up or down, the radio will automatically go
to the next station and stay there.
Pushbuttons: You can set the pushbuttons to get up to 10 favorite stations
(five
on FM and five more on AM).
1. Choose either AM or FM.
2. Tune in a desired station.
3. Press the SET button.
4. Press one of the five pushbuttons within five seconds.
3-12
5. Repeat these steps for each of the five pushbuttons.

Downloaded from www.Manualslib.com manuals search engine Setting the Tone
c

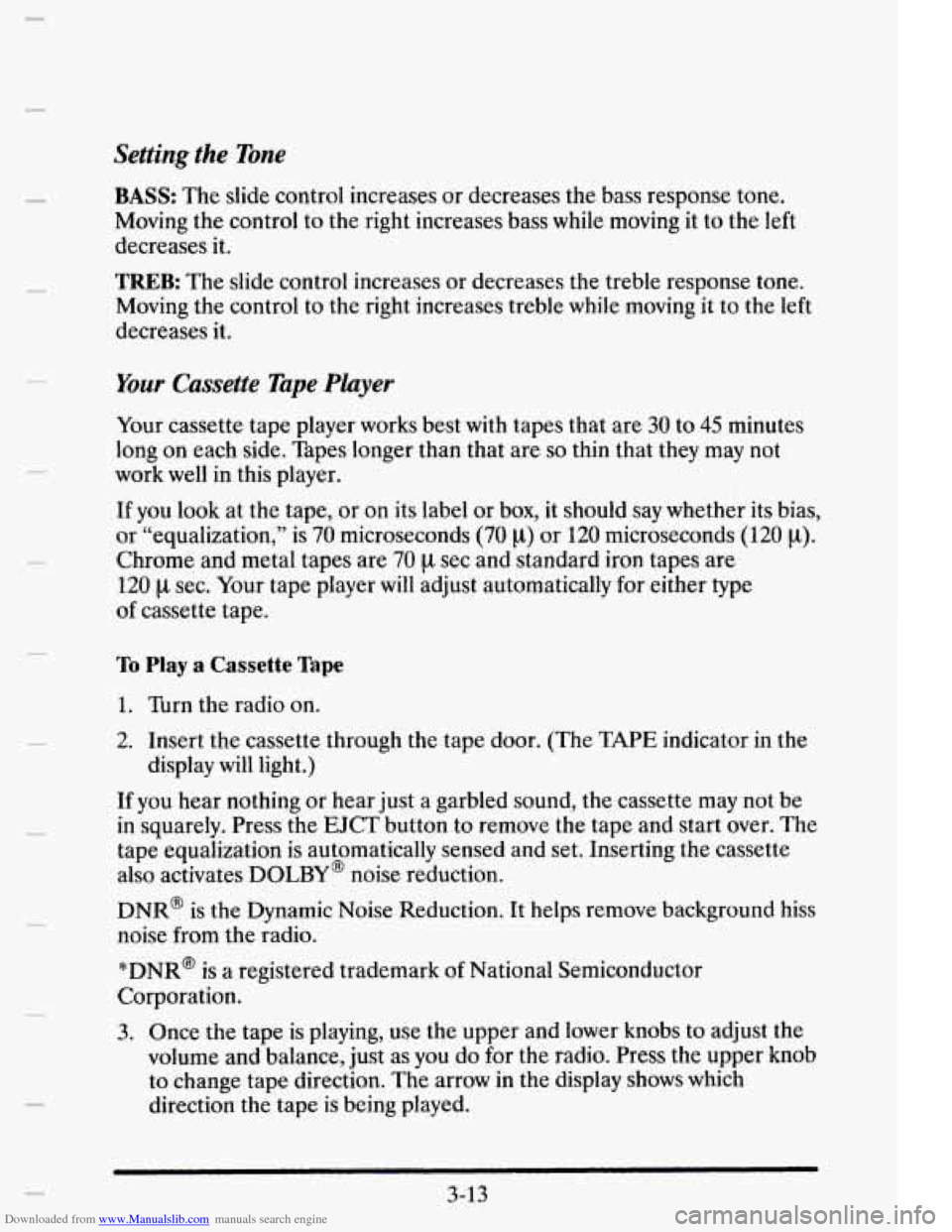

BASS: The slide control increases or decreases the bass response tone.
Moving the control
to the right increases bass while moving it to the left
decreases it.
TREB: The slide control increases or decreases the treble response tone.
Moving the control to
the right increases treble while moving it to the left
decreases it.
lour Cassette Tape Player
Your cassette tape player works best with tapes that are 30 to 45 minutes
long on each side. Tapes longer than that are
so thin that they may not
work
well in this player.
If you look at the tape, or on its label or box, it should say whether its bias,
or “equalization,” is
70 microseconds (70 p) or 120 microseconds (120 p).
Chrome and metal tapes are 70 ~1 sec and standard iron tapes are
120 p sec. Your tape player will adjust automatically for either type
of cassette tape.
To Play a Cassette Tape
1. Turn the radio on.
2. Insert the cassette through the tape door. (The TAPE indicator\
in the
If you hear nothing or hear just a garbled sound, the cassette may not be
in squarely. Press the
EJCT button to remove the tape and start over. The
tape equalization is automatically sensed and set. Inserting the cassette
also activates
DOLBY @ noise reduction.
DNR@ is the Dynamic Noise Reduction. It helps remove background hiss
noise from the radio.
*DNR@ is a registered trademark of National Semiconductor
Corporation. display
will light.)
3. Once the tape is playing, use
the upper and lower knobs to adjust the
volume and balance, just as
you do for the radio. Press the upper knob
to change tape direction. The arrow in the display shows which
direction the tape is being played.
3-13

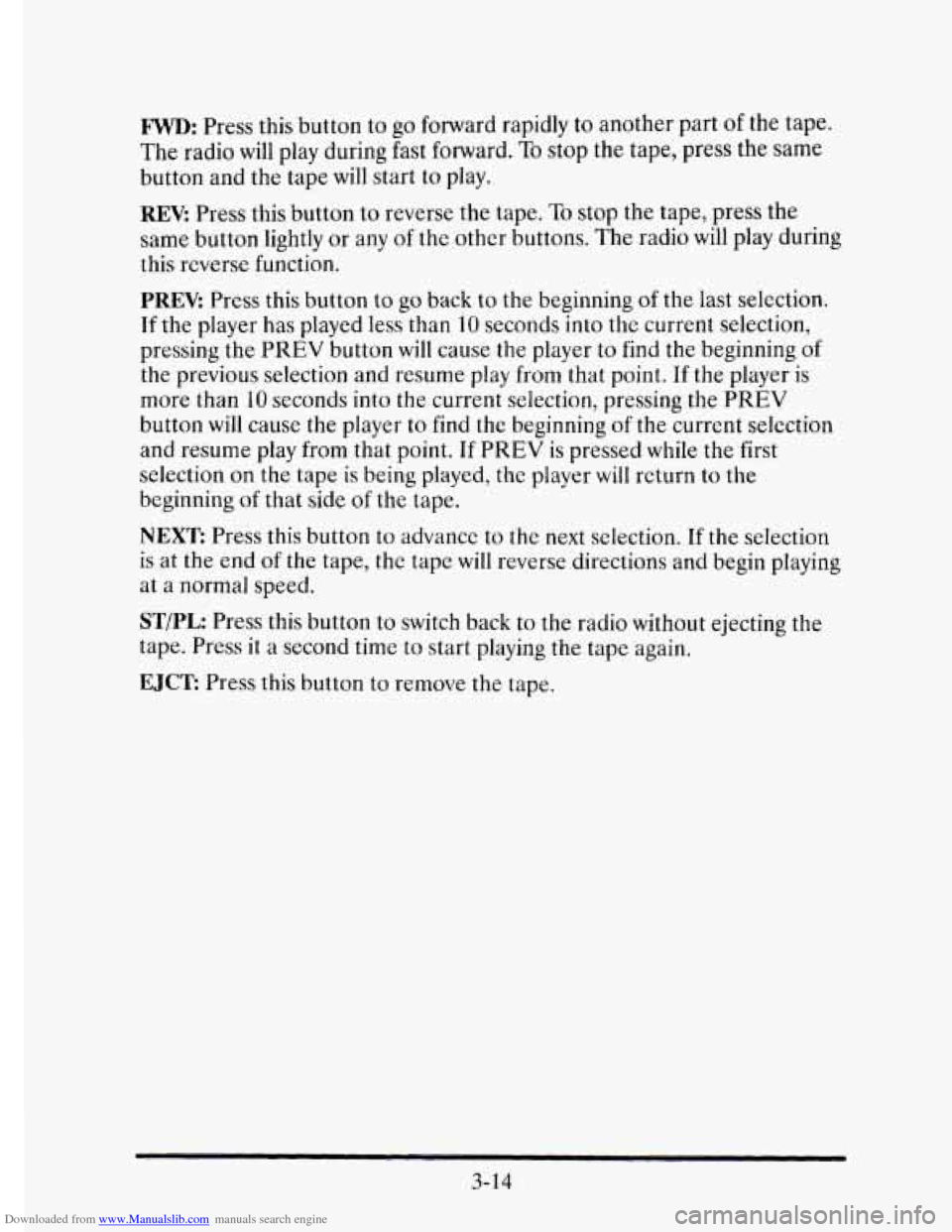

Downloaded from www.Manualslib.com manuals search engine FWD: Press this button to go forward rapidly to another part of the tape.
The radio
will play during fast forward. To stop the tape, press the same
button and the tape
will start to play.
REV: Press this button to reverse the tape. To stop the tape, press the
same button lightly or
any of the other buttons. The radio will play during
this reverse function.
PREV: Press this button to go back to the beginning of the last selection.
If the player has played less than 10 seconds into the current selection,
pressing the
PREV button will cause the player to find the beginning of
the previous selection and resume play from that point. If the player is
more than
10 seconds into the current selection, pressing the PREV
button will cause the player to find the beginning of the current selection
and resume play from that point.
If PREV is pressed while the first
selection
on the tape is being played, the player will return to the
beginning
of that side of the tape.
NEXT: Press this button to advance to the next selection. If the selection
is at the end
of the tape, the tape will reverse directions and begin playing
at a normal speed.
ST/PL Press this button to switch back to the radio without ejecting the
tape. Press it a second time
to start playing the tape again.
EJCT: Press this button to remove the tape.
3-14

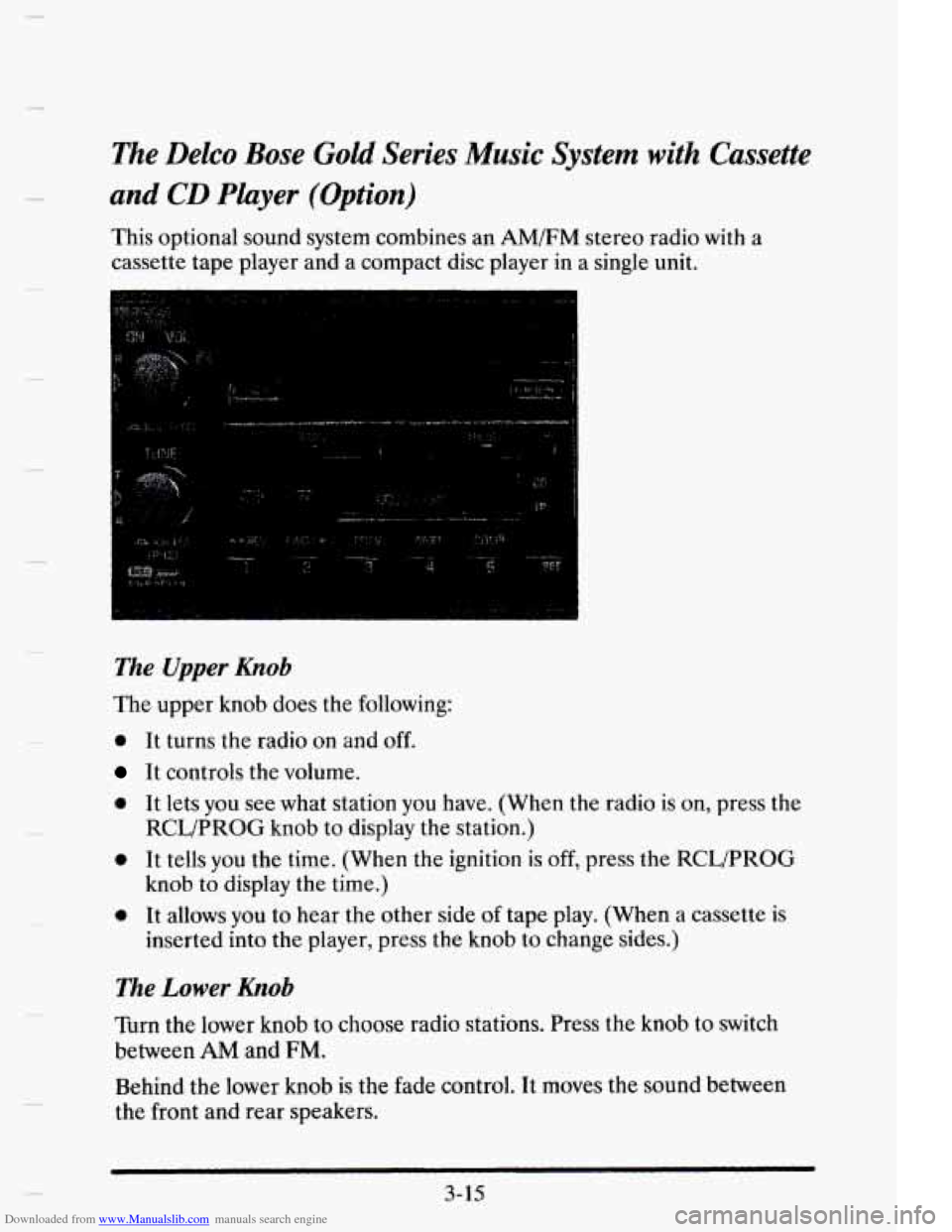

Downloaded from www.Manualslib.com manuals search engine me Delco Bose Gold Series Music System with Cassette
and CD Player (Option)
This optional sound system combines an AM/FM stereo radio with a
cassette tape player and a compact disc player in a single unit.
The Upper Knob
The upper knob does the following:
0 It turns the radio on and off.
It controls the volume.
0 It lets you see what station you have. (When the radio is on, press the
0 It tells you the time. (When the ignition is off, press the RCLPROG
0 It allows you to hear the other side of tape play. (When a cassette is
RCL/PROG knob to display the station.)
knob to display the time.)
inserted into the player, press the knob to change sides.)
The Lower Knob
Turn the lower knob to choose radio stations. Press the knob to switch
between
AM and FM.
Behind the lower knob is the fade control. It moves the sound between
the front and rear speakers.
3-15
