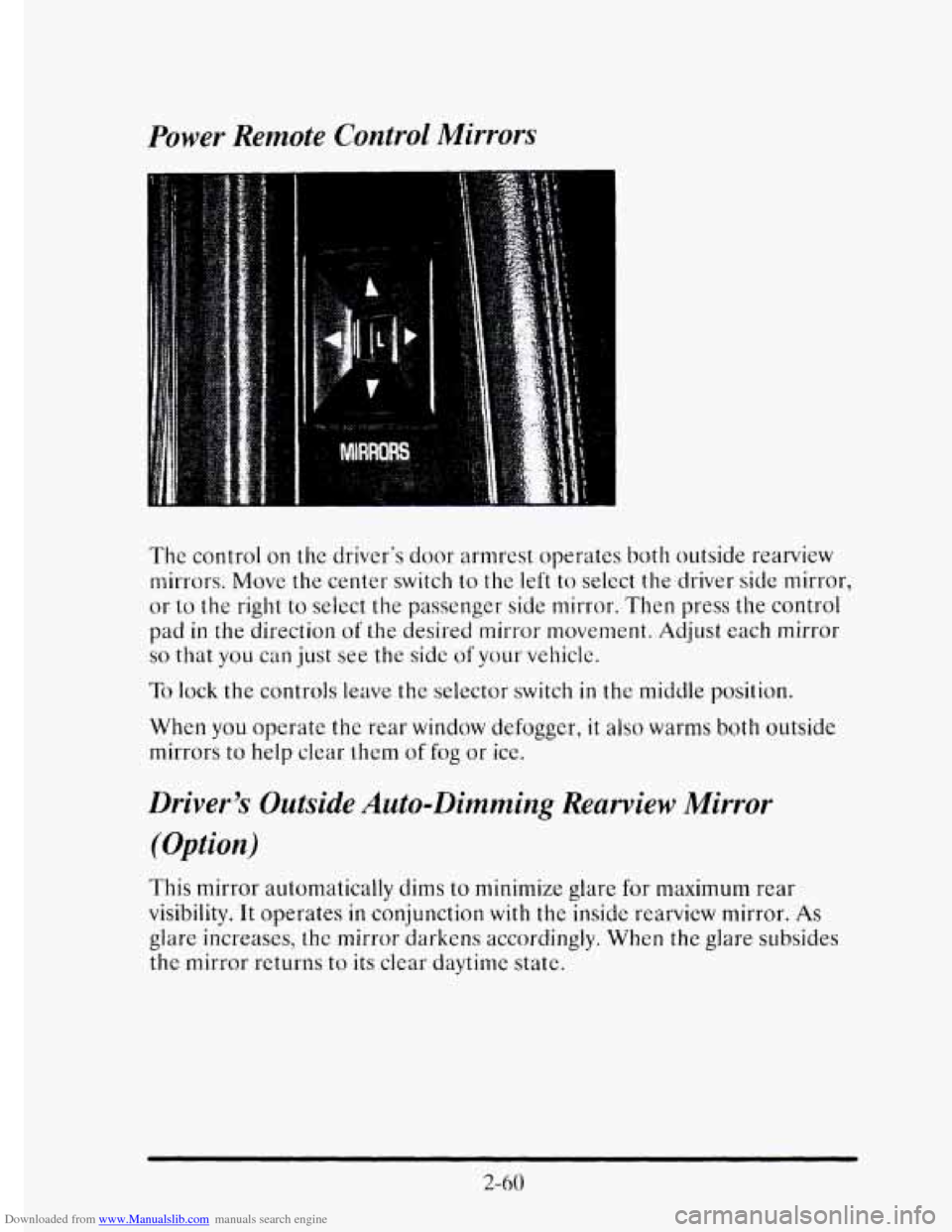

Downloaded from www.Manualslib.com manuals search engine Power Remote Control Mirrors
The control on the driver's door armrest operates both outside rearview
mirrors. Move
the center switch to the left to select the driver side mirror,
or to the right to select the passenger side mirror. Then press the control
pad
in the direction of the desired mirror movement. Adjust each mirror
so that you can just see the side of your vehicle.
To lock the controls leave the selector switch in the middle position.
When you operate the rear window defogger,
it also warms both outside
mirrors to help clear
them of fog or ice.
Driver's Outside Auto-Dimming Rearview Mirror
(Option)
This mirror automatically dims to minimize glare for maximum rear
visibility. It operates
in conjunction with the insidc rearview mirror. As
glare increases, the mirror darkens accordingly. When the glare subsides
the mirror returns to its clear daytime state.
2-60

Downloaded from www.Manualslib.com manuals search engine m

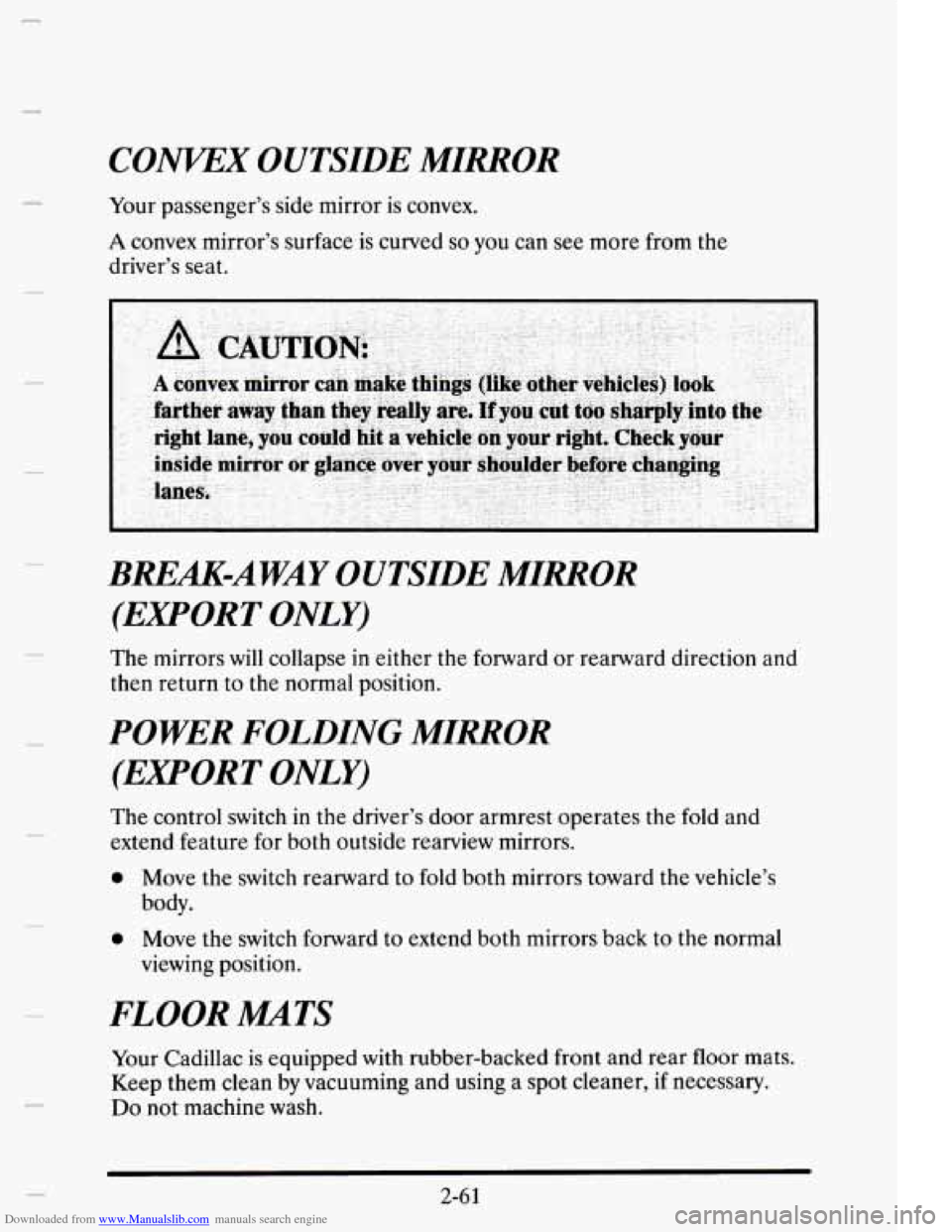

COWEX OUTSIDE MIRROR
Your passenger’s side mirror is convex.
A convex mirror’s surface is curved so you can see more from the
driver’s seat.
BREAK-AWAY OUTSIDE MIRROR
(EXPORT
ONLY)
The mirrors will collapse in either the forward or rearward direction and
then return
to the normal position.
POWER FOLDING MIRROR
(EXPORT
ONLY)
The control switch in the driver’s door armrest operates the fold and
extend feature for both outside rearview mirrors.
0 Move the switch rearward to fold both mirrors toward the vehicle’s
body.
0 Move the switch forward to extend both mirrors back to the normal
viewing position.
FLOOR MTS
Your Cadillac is equipped with rubber-backed front and rear floor mats.
Keep them clean by vacuuming and using a spot cleaner,
if necessary.
Do not machine wash.
2-6 1

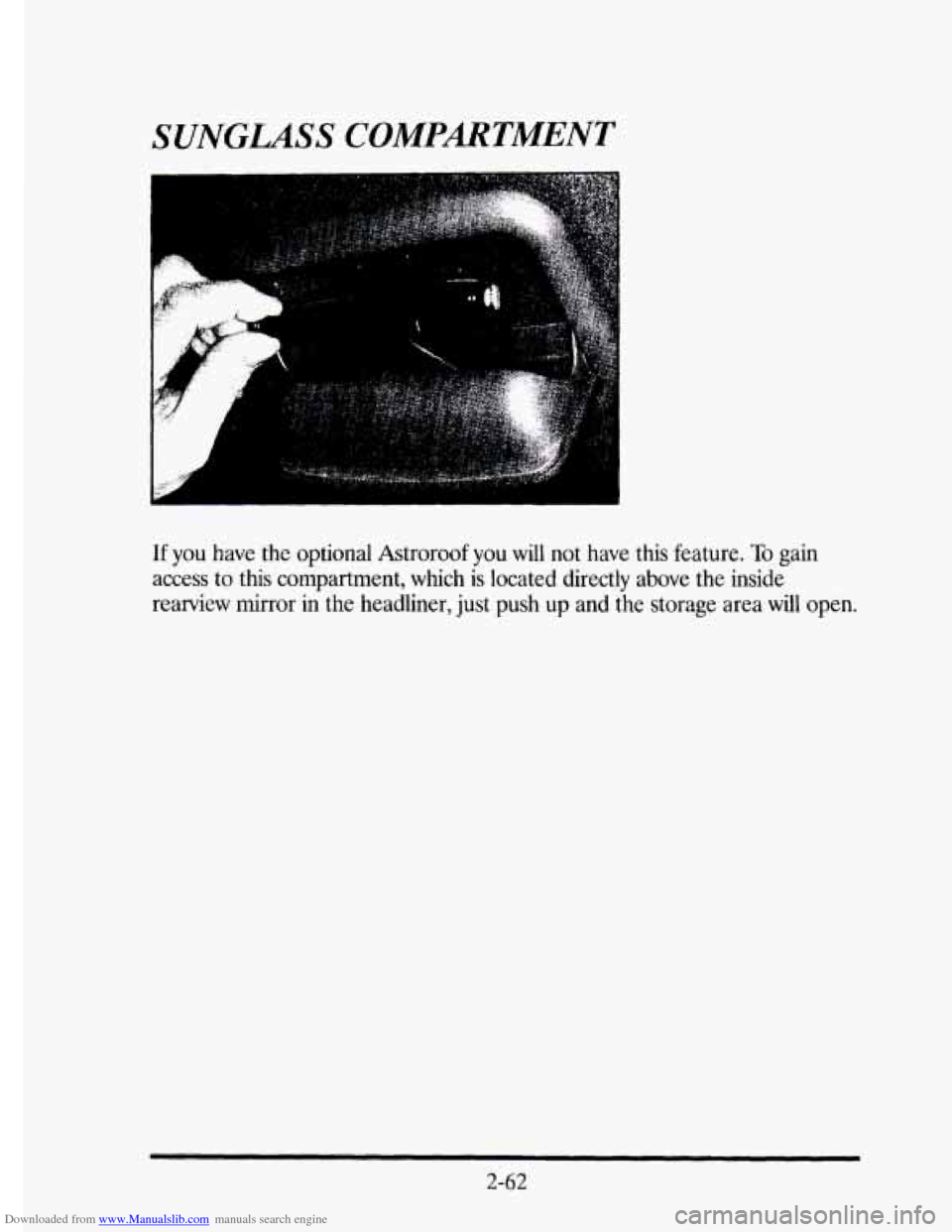

Downloaded from www.Manualslib.com manuals search engine SUNGLASS COMPMTMENT
If you have the optional Astroroof you will not have this feature. To gain
access
to this compartment, which is located directly above the inside
rearview mirror in
the headliner, just push up and the storage area will open.
2-62

Downloaded from www.Manualslib.com manuals search engine a

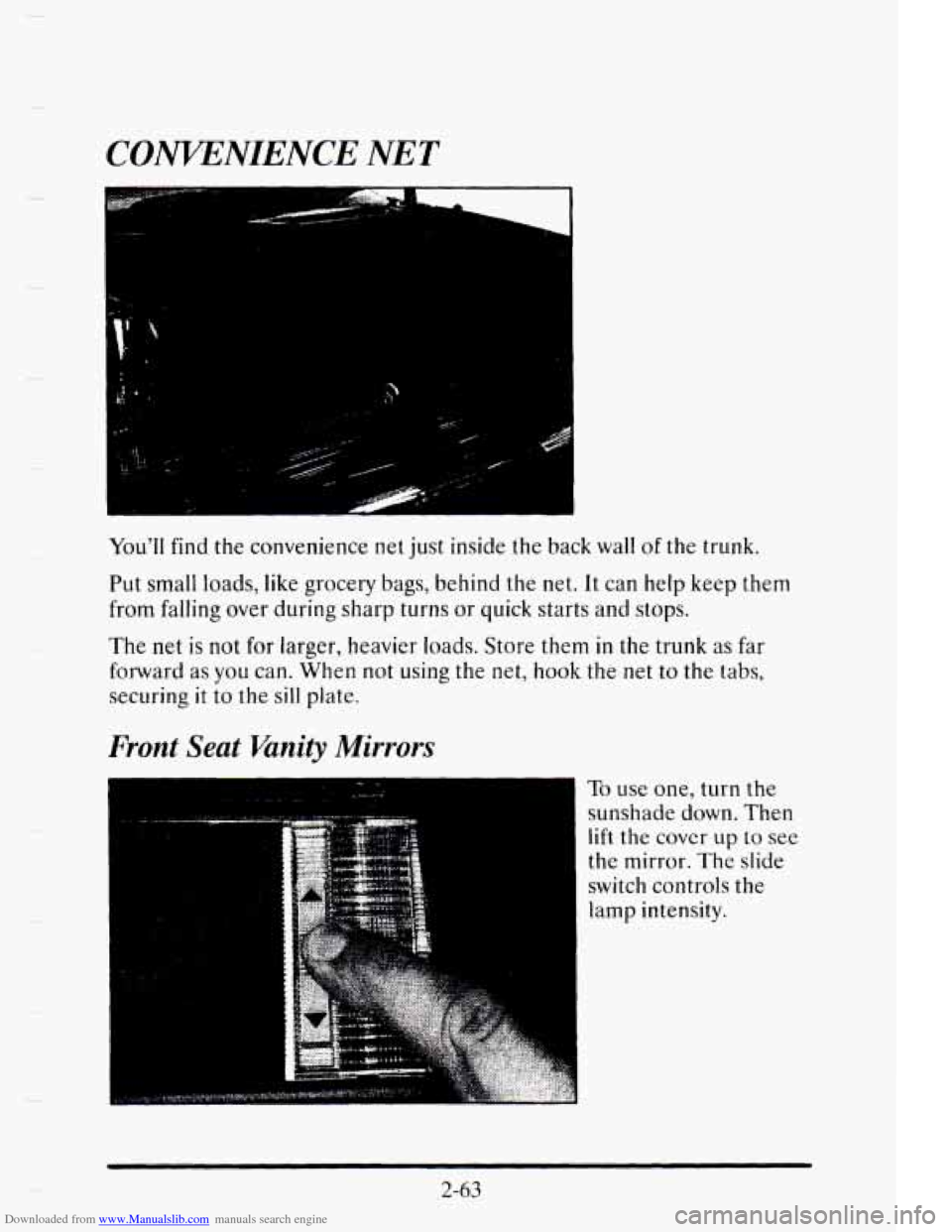

CONVENIENCE NET
You'll find the convenience net just inside the back wall of the trunk.
Put small loads, like grocery
bags, behind the net. It can help keep them
from falling over during sharp turns or quick starts and stops.
The net
is not for larger, heavier loads. Store them in the trunk as far
forward
as you can. When not using the net, hook the net to the tabs,
securing it to the sill plate.
Front Seat Vanity Mirrors
To use one, turn the
sunshade
down. Then
lift the cover up to see
the mirror. The slide
switch controls the
lamp
intensity.
2-63

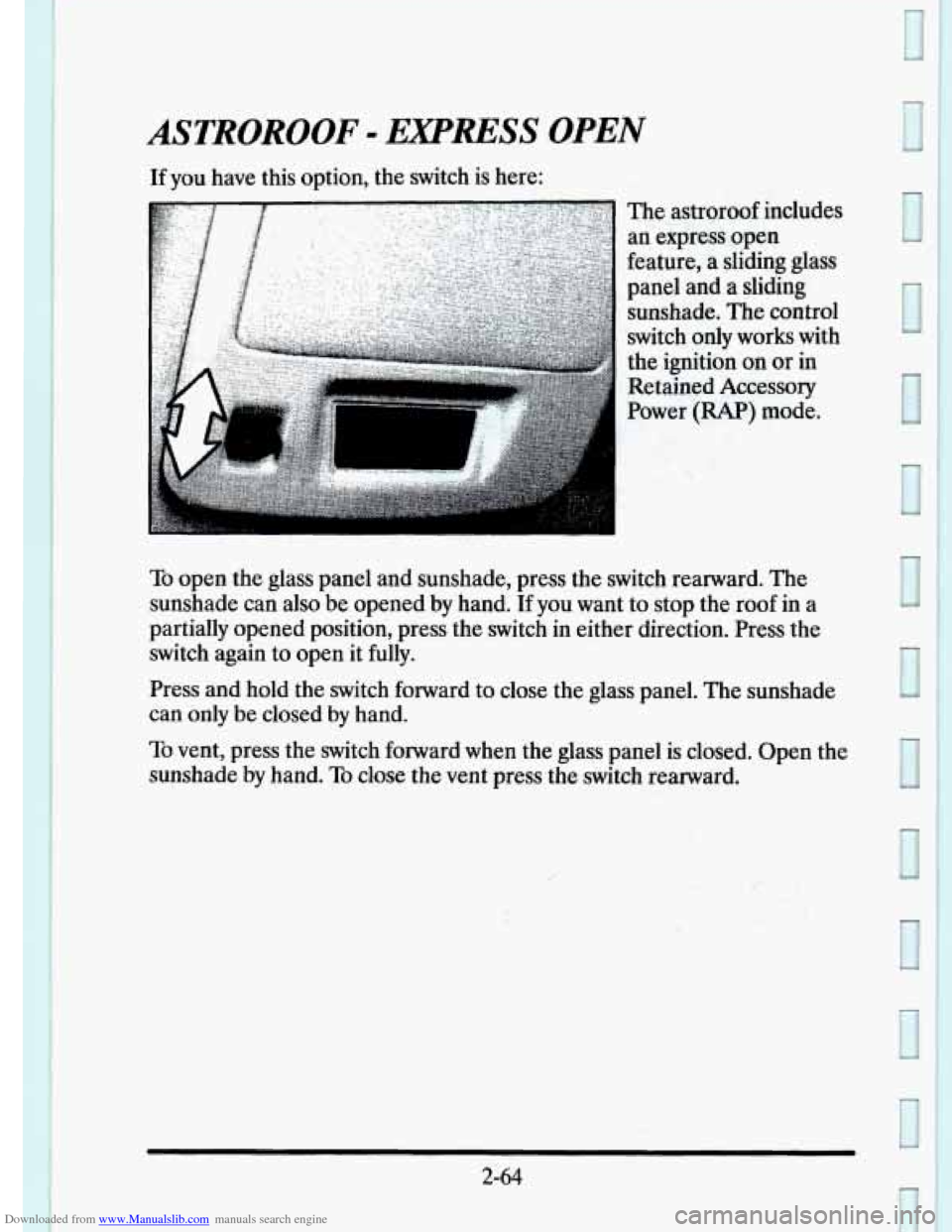

Downloaded from www.Manualslib.com manuals search engine ASTROROOF - EXPRESS OPEN
If you have this option, the switch is here:
The astroroof includes
an express open
feature,
a sliding glass
panel and a sliding
sunshade. The control
switch only works with
the ignition on or in
Retained Accessory
Power
(RAP) mode.
To open the glass panel and sunshade, press the switch rearward. The
sunshade can also be opened by hand.
If you want to stop the roof in a
partially opened position, press the switch in either direction. Press the
switch again
to open it fully.
Press and hold the switch forward to close the glass panel. The sunshade
can only be closed
by hand.
To vent, press the switch forward when the glass panel is closed. Open the
sunshade by hand.
To close the vent press the switch rearward.
.,: . i. . . ...
2-64

Downloaded from www.Manualslib.com manuals search engine C.
-.
-.

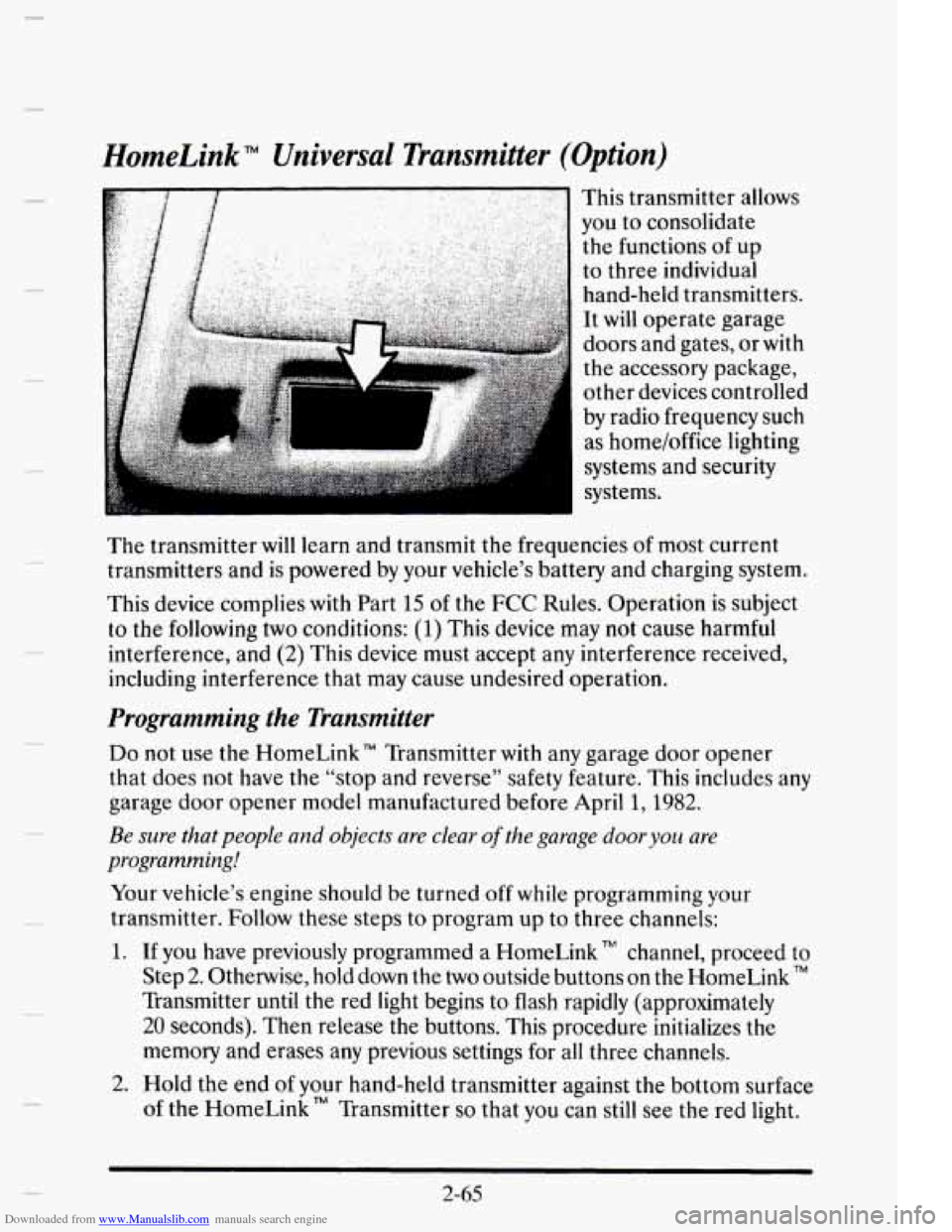

HomeLink Universal Transmitter (Option)
This transmitter allows
you to consolidate
the functions of up
to three individual
hand-held transmitters.
It will operate garage
doors and gates, or
with
the accessory package,
other devices controlled
by radio frequency such
as home/office lighting
systems and security
systems.
The transmitter
will learn and transmit the frequencies of most current
transmitters and
is powered by your vehicle’s battery and charging system.
This device complies with Part
15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and
(2) This device must accept any interference received,
including interference that may cause undesired operation.
Programming the Transmitter
Do not use the HomeLink” Transmitter with any garage door opener
that does not have
the “stop and reverse” safety feature. This includes any
garage door opener model manufactured before April 1,1982.
Be sure that people and objects are clear of the garage door you are
programming!
Your vehicle’s engine should be turned off while programming your
transmitter. Follow these steps to program
up to three channels:
1. If you have previously programmed a HomeLink TM channel, proceed to
Step
2. Otherwise, hold down the two outside buttons on the HomeLink TM
Transmitter until the red light begins to flash rapidly (approximately
20 seconds). Then release the buttons. This procedure initializes the
memory and erases any previous settings for all three channels.
2. Hold the end of your hand-held transmitter against the bottom surface
of the HomeLink” Transmitter
so that you can still see the red light.
2-65

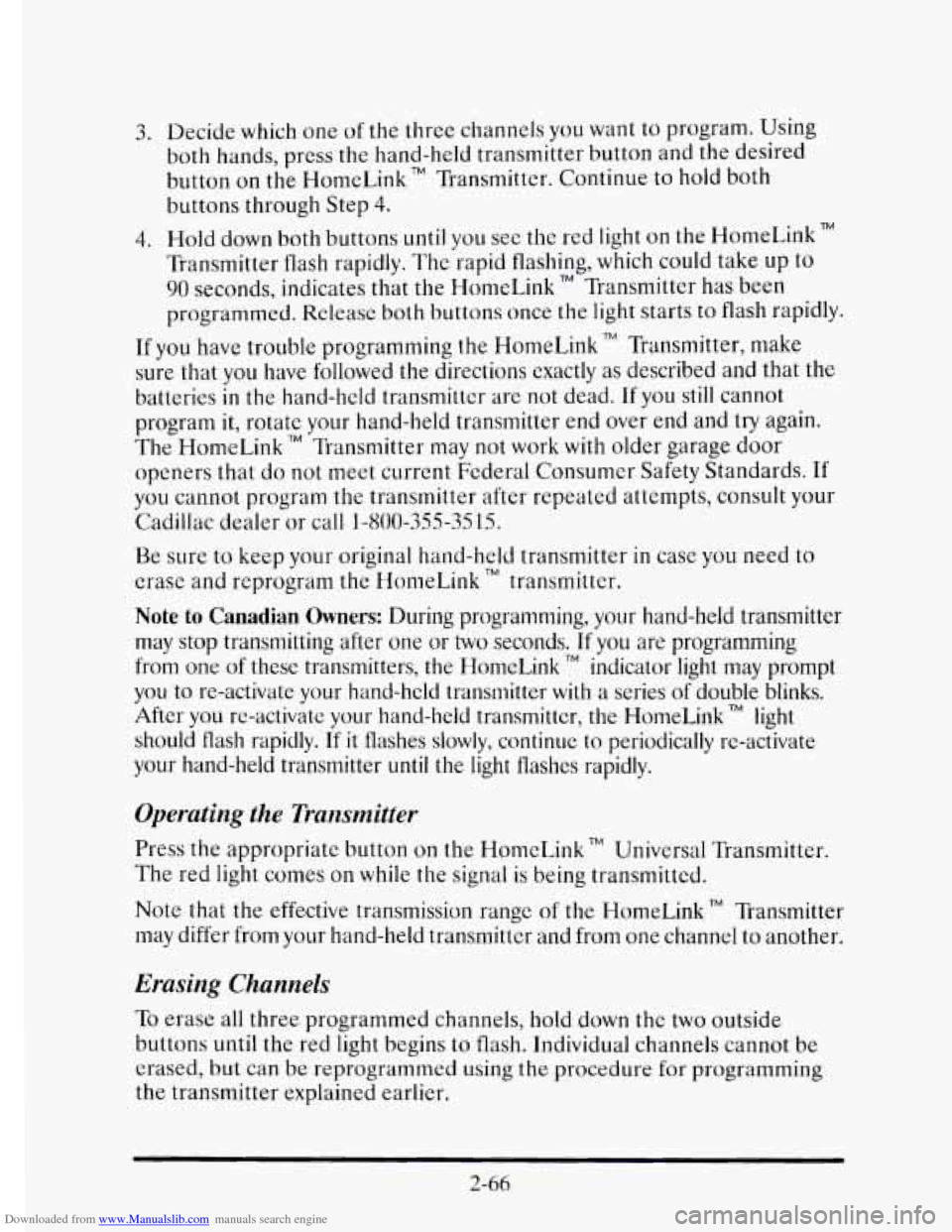

Downloaded from www.Manualslib.com manuals search engine 3. Decide which one of the three channels you want to program. Using
both hands, press the hand-held transmitter button and the desired
button on the HomeLink
TM Transmitter. Continue to hold both
buttons through Step
4.
4.
Hold down both buttons until you see the red light on the HomeLink
Transmitter flash rapidly. The rapid flashing, which could take
up to
90 seconds, indicates that the HomeLink TM Transmitter has been
programmed.
Release both buttons once the light starts to flash rapidly.
If you have trouble programming the HomeLink
TM Transmitter, make
sure that
you have followed the directions exactly as described and that the
batteries in the hand-held transmitter are not dead. If you still cannot
program
it, rotate your hand-held transmitter end over end and try again.
The HomeLink TM Transmitter may not work with older garage door
openers that do not meet current Federal Consumer Safety Standards. If
you cannot program the transmitter after repeated attempts, consult your
Cadillac dealer or call
1-800-355-35 15.
Be sure to keep your original hand-held transmitter in case you need to
erase and reprogram the HomeLink TM transmitter.
Note to Canadian Owners: During programming, your hand-held transmitter
may stop transmitting after one or two seconds. If you are programming
from one
of these transmitters, the HorneLink TM indicator light may prompt
you to re-activate your hand-held transmitter
with a series of double blinks.
After you reactivate your hand-held transmitter, the HolneLink
TM light
should flash rapidly. If
it flashes slowly, continue to periodically rc-activate
your hand-held transmitter
until the light flashes rapidly.
Operating the Transmitter
Press the appropriate button on the HomcLink TM Universal Transmitter.
The red light comes on while the signal is being transmitted.
Note that the effective transmission range
of the HomeLink" Transmitter
may differ from your hand-held transmitter and from one channel to another.
Erasing Channels
To erase all three programmed channels, hold down the two outside
buttons until the red light begins
to flash. Individual channels cannot be
erased,
but can be reprogrammed using the procedure for programming
the transmitter explained earlier.
2-66

Downloaded from www.Manualslib.com manuals search engine -

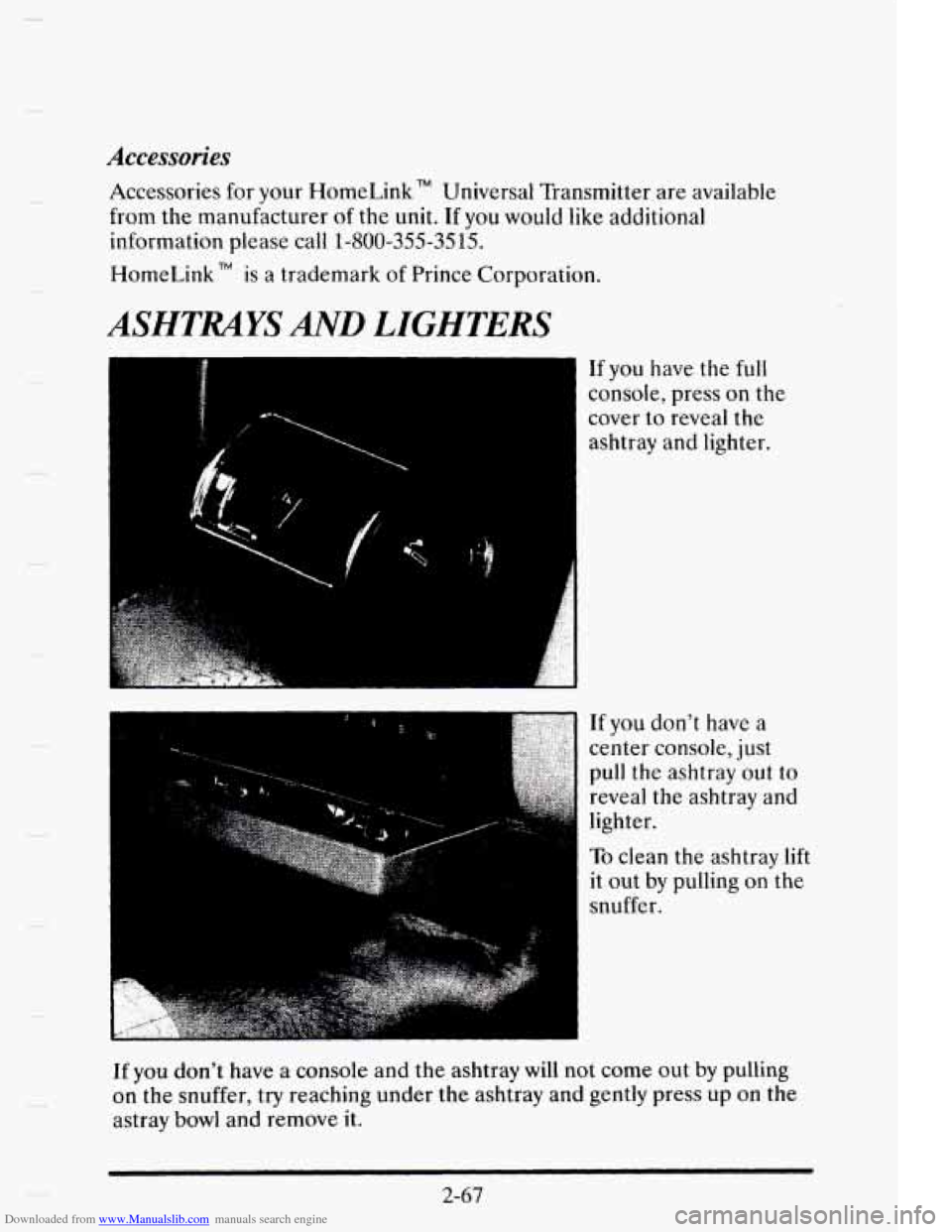

Accessories
Accessories for your HomeLink Universal Transmitter are available
from the manufacturer of the
unit. If you would like additional
information please call 1-800-355-3515.
HorneLink
TM is a trademark of Prince Corporation.
ASHTRAYS AND LIGHTERS
If you have the full
console, press on the
cover to reveal the
ashtray and lighter.
$7 - ...*.
If you don't have a
center console, just
pull the ashtray
out to
reveal the ashtray and
lighter.
To clean the ashtray lift
it out by pulling on the
snuffer.
If you don't have a console and the ashtray will not come out by pulling
on the snuffer,
try reaching under the ashtray and gently press up on the
astray bowl and remove
it.
2-67

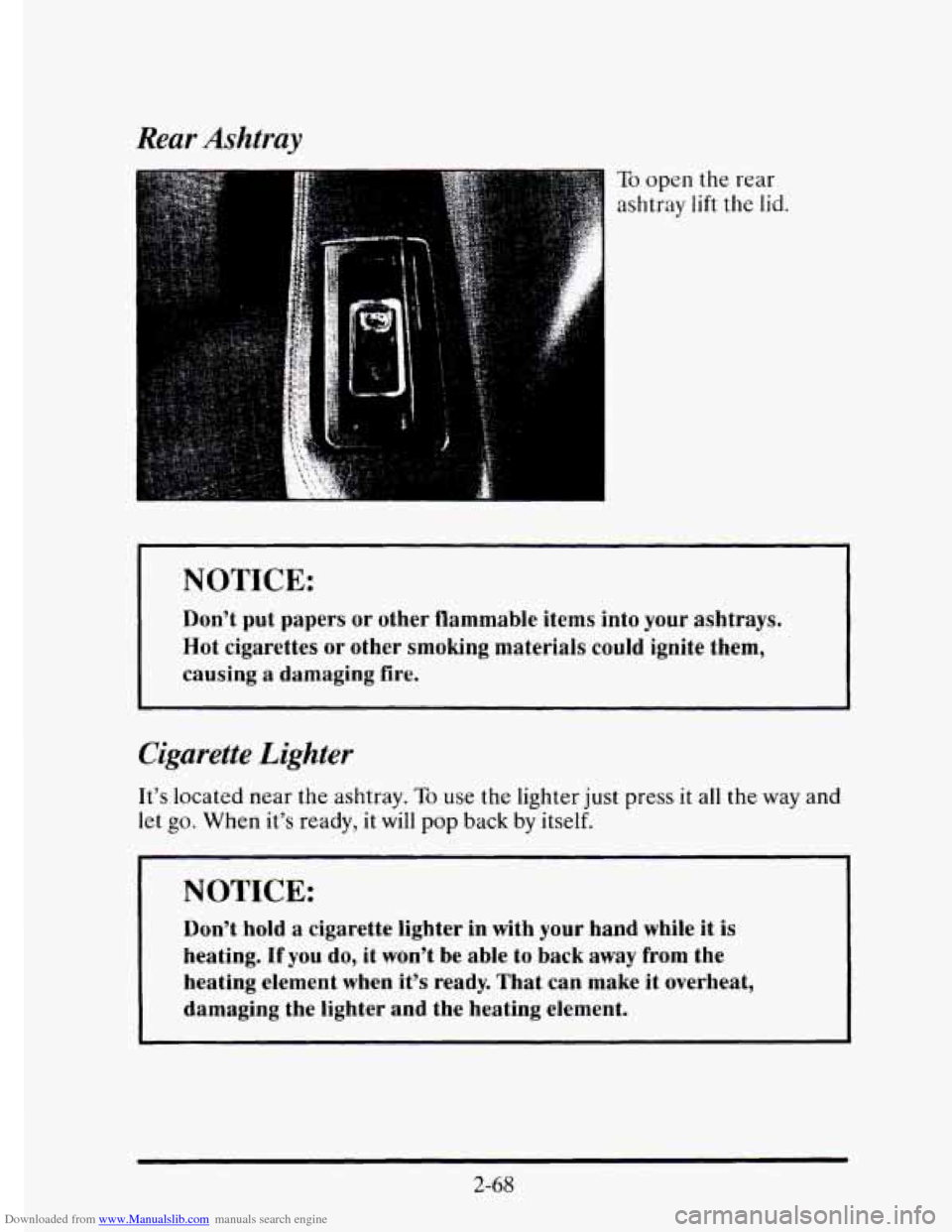

Downloaded from www.Manualslib.com manuals search engine Rear Ashtray
To open the rear
ashtray
lift the lid.
~
NOTICE:
Don’t put papers or other flammable items into your ashtrays.
Hot cigarettes
or other smoking materials could ignite them,
causing
a damaging fire.
Cigarette Lighter
It’s located near the ashtray. To use the lighter just press it all the way and
let go. When it’s ready, it will pop back by itself.
NOTICE:
Don’t hold a cigarette lighter in with your hand while it is
heating. If you do, it won’t be able to back away from the
heating element when it’s ready. That can make it overheat,
damaging the lighter and the heating element.
2-68

Downloaded from www.Manualslib.com manuals search engine -

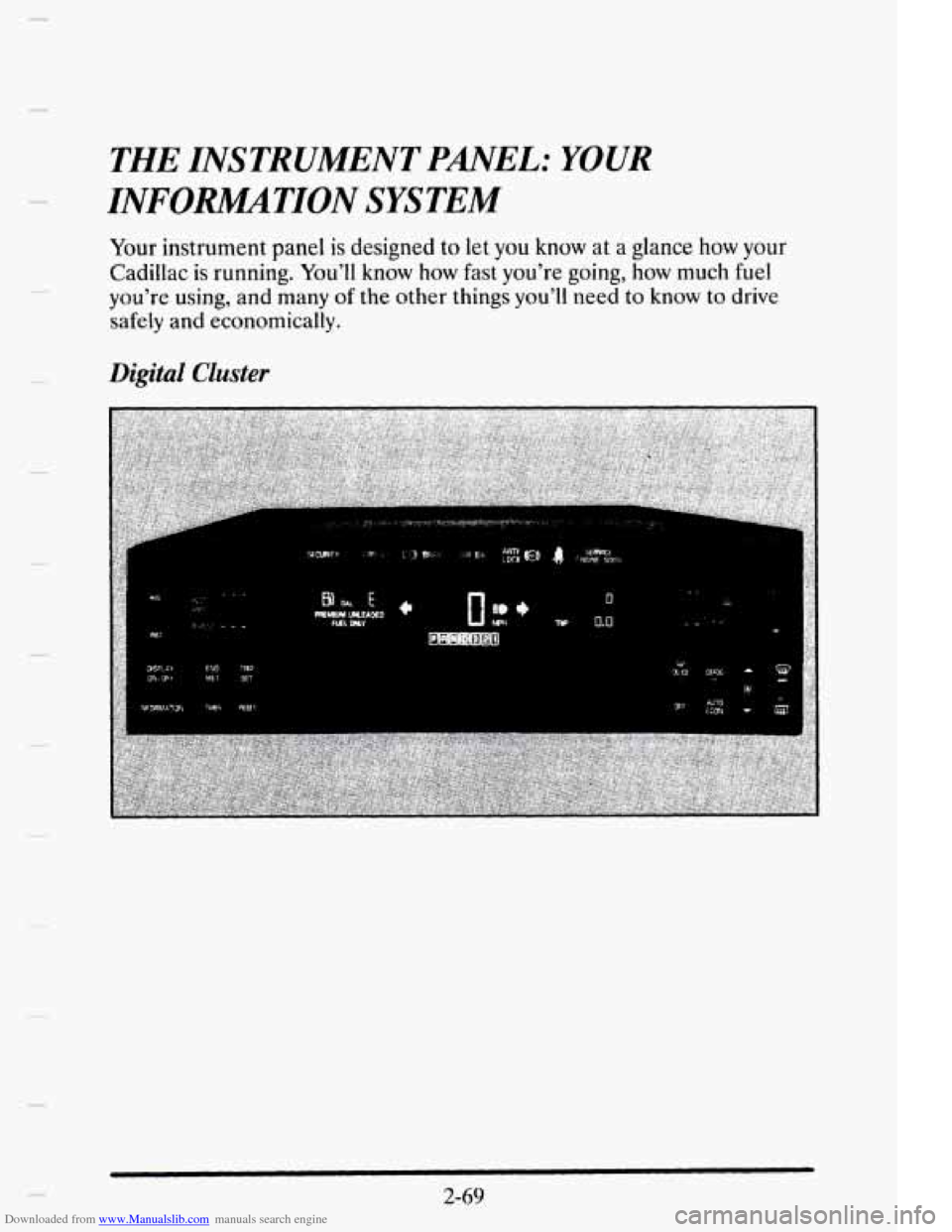

THE INSTRUMENT PANEL: YOUR
INFORMATION SYSTEM
Your instrument panel is designed to let you know at a glance how your
Cadillac is running. You'll know how fast you're going, how much fuel
you're using, and many of the other things you'll need to know to drive
safely and economically.
Digital Cluster
