torque CADILLAC ELDORADO 1995 10.G Owners Manual

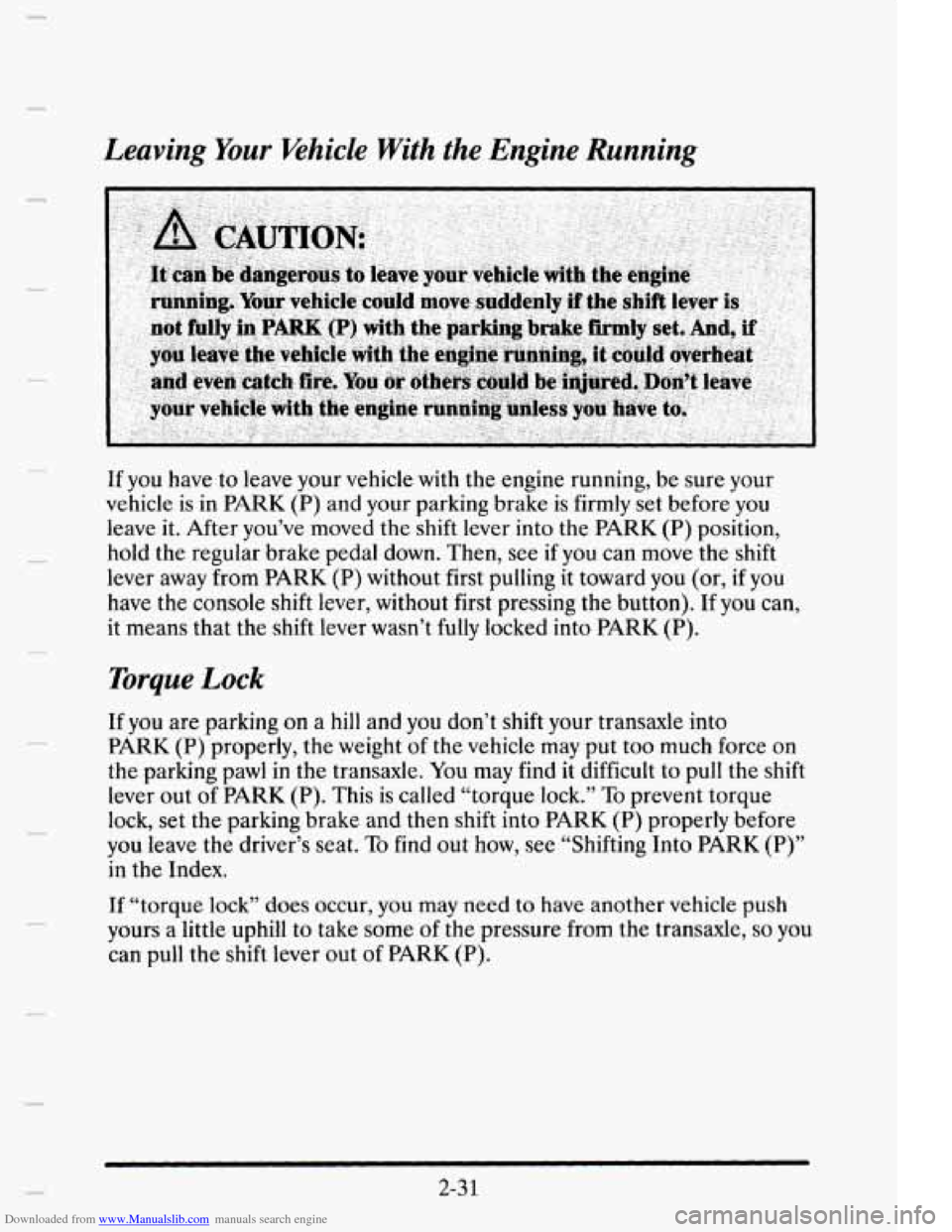

Downloaded from www.Manualslib.com manuals search engine Leaving Your khicle With the Engine Running
If you have to leave your vehicle with the engine running, be sure your
vehicle is in
PARK (P) and your parking brake is firmly set before you
leave it. After you’ve moved the shift lever into the PARK (P) position,
hold the regular brake pedal down. Then, see
if you can move the shift
lever away from
PARK (P) without first pulling it toward you (or, if you
have the console shift lever, without first pressing the button). If you can,
it means that the shift lever wasn’t fully locked into
PARK (P).
Torque Lock
If you are parking on a hill and you don’t shift your transaxle into
PARK (P) properly, the weight of the vehicle may put too much force on
the parking pawl in the transaxle. You may find it difficult to pull the shift
lever out
of PARK (P). This is called “torque lock.” To prevent torque
lock, set the parking brake and then shift into
PARK (P) properly before
you leave the driver’s seat.
To find out how, see “Shifting Into PARK (P)”
in the Index.
If “torque lock” does occur, you may need to have another vehicle push
yours a little uphill
to take some of the pressure from the transaxle, so you
can pull the shift lever out
of PARK (P).
2-3 1

Downloaded from www.Manualslib.com manuals search engine When to Check
Check your tires once a month or more.
Don’t forget your compact sparc tire.
It should be at 60 psi (420 kPa).
How to Check
Use a good quality pocket-type gage to check tire pressure. Simply
looking at the tires
will not tell you the pressure, especially ii you have
radial tires
-- which may look properly inflated even if they’re
underinflated.
If your tires have valve caps, be sure to put them back on. They help
prevent leaks
by keeping out dirt and moisture.
Tire Inspection and Rotation
Tires should be inspected every 6,000 to 8,000 miles (10 000 to ‘13 000 km)
for any signs
of unusual wear. If unusual wear is present, rotate your tires
as
soon as possible and check wheel alignment. Also check for damaged
tires or wheels. See “When it’s Time for
New Tires” and “Wheel
Replacement” later in this section
for more information.
The purpose of regular rotation is to achieve more uniform wear for all tires
on the vehicle. The first rotation is the most important. See “Scheduled
Maintenance Services”
in the Index for scheduled rotation intervals.
When rotating your
tires, always use
the
correct rotation pattern
shown here.
Don’t include the compact spare tire
in your tire rotation.
After the tires have been rotated, adjust
the front and rear inflation
pressures as
shown on the Tire-Loading Information label. Make certain that
all wheel nuts are properly tightened. See “Wheel Nut Torque” in the Index.
6-44

Downloaded from www.Manualslib.com manuals search engine [Engine Compartment Fuse Block
~~~
E DISTR
USAGE I
INJ
IGN 1
FUEL PUMP
PCM (BAT) RTD (BAT)
F
A/C COMP
HDLPS
TURN/HAZ
DRL
DRL
HTD W/S
IGN OFF
L HDLP
LO
I R HDLP LO Ignition
Control Module
I
L HDLP HI
R HDLP HI
I
I
TRANSECS Sensing
& Diagnostic Module
Powertrain Control Module (PCM); PASS-KeymII Decode llodule
1,4,6 and 7 Fuel Injectors
2,3,5 and 8 Fuel Injectors
A/C Refrigerant Pressure Switch; Transaxle Range Switch;
Stop/BTSI/Cruise Brake Switch; Instrument Panel Cluster; Keyless
Entry Module; DiagnosticEnergy Reserve Module (Derm);
Cornering Lamps; Tbrn/Hazard Switch Assy; Chime Module;
Headlamp Switch; Twilight Sentinel/DRL Module
Fuel Pump; Oil Pressure Switch; Powertrain Control Module
Powertrain Control Module (PCM)
Road Sensing Suspension (RSS) Module
NC Compressor Clutch
Headlamp Dimmer Switch; Headlamp Relay “D” (Engine Comp.
Micro Relay Center); DRL Headlamp Relay
“E’ (with Daytime
Running Lamps); Powers C13
Stop/BTSI/Cruise Switch; Sto lamp Switch Capacitor; Anti-Slip
Regulation (ASR)S Traction 8ontrol
Hazard Flasher; Turn Flasher Relay; Turn Flasher Module
Daytime Running Lamps (Canada)
Left and Right Lo-Beam Headlamp (Canada)
Heated Windshield Control Module
Instrument Panel Cluster
Left Lo-Beam Headlamu
(PCM)
Right Lo-Beam Headlamp
Left Hi-Beam Headlamp
Right Hi-Beam Headlamp
Rear Defogger Relay; Electronic Level Control (ELC); Heated
Windshield; Heater and A/C Programmer; Cruise Control
Extended Travel Brake Switch; Powertrain Control Module (PCM); \
Cooling Fan Relays
1,2 and 3; Front and Rear Heated Oxygen Sensor
Power Steering Pressure Switch; Exhaust Gas Recirculation (EGR)
Valve; Transaxle Shift Solenoids A
& B; Evaporative Emission
Control Solenoid; Powertrain Control Module (PCM); Torque
Converter Clutch Solenoid; TCC Brake Switch
6-65

Downloaded from www.Manualslib.com manuals search engine SPECIFICATIONS
4.6 Liter Engine
Displacement ................................ 4.6L (279 cu. in.)
No. of Cylinders ................. 32-valve DOHC 8 - 90 Degree V
Power (ACC. to
SAE 51349) ................ 275 (bhp) @ 5600 rpm
Torque (ACC. to
SAE 51349) .............. 300 (lbs. ft.) @ 4000 rpm
Power (ACC.
to SAE 51349) ............... .300 (bhp) @ 6000 rpm
Torque-(Acc. to
SAE J1349) .............. 295 (lbs. ft.) @ 4400 rpm
ELDORADO
205 (kW) @ 5600 rpm
407 (N-m)
@ 4000 rpm
ETC
224 (kW) @ 6000 rpm
400 (N-m)
@ 4400 rpm
Bore
........................................ 92mm (3.66 in.)
Stroke
....................................... 84mm (3.31 in.)
Compression Ratio
..................................... 10.3:l
Cylinder Block
....... Die Cast Aluminum with Iron Cylinder Liners
Cylinder Heads
............................... Cast Aluminum
Intake Manifold
........................ Nylon 66/ Thermoplastic
Valve System
................... Direct Acting Hydraulic Tappets
Intake Valve
.................................. 33mm (1.29 in.)
Exhaust Valve
................................ 29mm (1.14 in.)
Pistons
...................................... Cast Aluminum
Firing Order
................................... 1-2-7-3-4-5-6-8
Left Bank ............................................ 2-4-6-8
Air
Induction Tubes
Right Bank
........................................... 1-3-5-7
Camshaft
................... Induction Hardened Cast Grey Iron
Main Bearings
.......................................... Five
Drive
5pe .......... Single Row / Staged Drive 8
mm Roller Chain
6-71

Downloaded from www.Manualslib.com manuals search engine Engine Lubrication System
Type of Intake ....................................... Stationary
Filter System
......................................... Full-Flow
Engine Cooling System
Surge Tank/Radiator Cap Relief Pressure .......... 15.0 psi (103 kPa)
Thermostat Starts To Open
................. 192-199' F (89-93' C)
Water Pump Type
................................... Centrifugal
Drive Belt
.......................................... Serpentine
Radiator Core
....................................... Aluminum
Radiator Cooling Fans (2) ............................... Electric
Fuel System
Induction Type ............... Sequential Port Fuel Injection (SPFI)
System Pressure
....................... 33.4-43.5 psi (230-300 kPa)
Idle Speed
..................................... PCM Controlled
Filter Type
.................................. Paper Type Element
Fuel Pump .................................... Electric (In Tank)
Fuel Required
............ Premium Unleaded (91 Octane or Higher)
Automatic Transaxle
Eldorado (Trade Name) ..................... Hydra- Matic 4T80E
Type ....................................... .4-Speed Automatic
Viscous Converter Clutch
ETC (Trade Name)
.......................... Hydra-Matic 4T8OE
Type
....................................... .4-Speed Automatic
Torque Converter Clutch
Fluid Required .................................. DEXRON@-I11
Axle Ratio (Eldorado) .................................... 3.11:1
Axle Ratio (ETC) ........................................ 3.71:l
6-72

Downloaded from www.Manualslib.com manuals search engine Tighten Torque
Spark Plugs .................................. 15 N-m (11 lbs. ft.)
Oil Pan Drain Plug
(4.6 L) ..................... 20 N-m (15 lbs. ft.)
EldbrcadolETC
Shipping Weight (Eldorado) ................. 3773.8 lbs. (1711.8 kg)
Shipping Weight (ETC)
...................... .3818.4 lbs. (1732 kg)
Wheel Base
................................. 108 in. (2 2743 mm)
Length ..................................... 202.2 in. (5136 mm)
Height .................................... 53.9 in. (1369.5 mm)
Width ..................................... 75.5 in. (1 918.4 mm)
Front Tread .................................. 60’.9 in. (1546 mm)
Rear Tread .................................. 60.9 in. (1546 mm)
AIR CONDITIONING mFNGEWTS
Not all air conditioning refrigerants are the same. If the air conditioning
system in your vehicle needs refrigerant, be sure the proper refrigerant is
used.
If you’re not sure, ask your Cadillac dealer. For additional
information, see your “Warranty and Owner Assistance Informati\
on”
booklet.
6-74
I

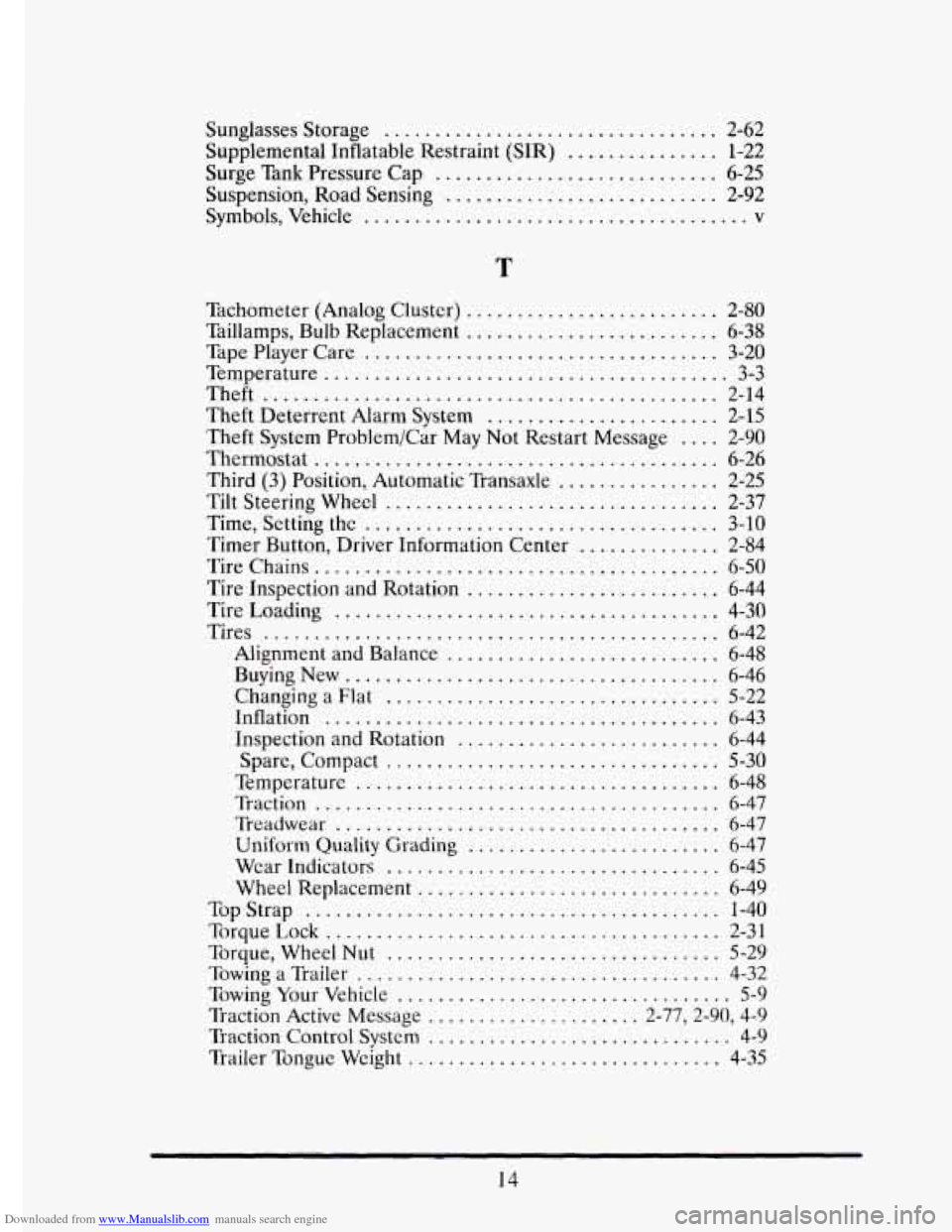

Downloaded from www.Manualslib.com manuals search engine Sunglasses Storage ................................. 2-62
Supplemental Inflatable Restraint (SIR)
............... 1-22
Surge Tank Pressure Cap
............................ 6-25
Suspension. Road Sensing
........................... 2-92
Symbols. Vehicle
...................................... v
T
Fdchometer (Analog Cluster) ......................... 2-80
Taillamps. Bulb Replacement ......................... 6-38
Temperature
........................................ 3-3
Theft
............................................. 2-14
Theft Deterrent Alarm System
....................... 2-15
Theft System Problem/Car May Not Restart Message .... 2-90
Thermostat
........................................ 6-26
Third (3) Position. Automatic Transaxle
................ 2-25
Tilt Steering Wheel ................................. 2-37
Time. Setting the
................................... 3-10
Epe
Player Care
................................... 3-20
Timer Button. Driver Information Center .............. 2-84
Tire Chains
........................................ 6-50
Tire Inspection and Rotation
......................... 6-44
Tires
............................................. 6-42
Tire Loading
...................................... 4-30
Alignment and Balance
........................... 6-48
Buying New
..................................... 6-46
Changing
a Flat ................................. 5-22
Inspection and Rotation
.......................... 6-44
Sparc. Compact
................................. 5-30
Temperature
.................................... 6-48
Traction
........................................ 6-47
Treadwear ...................................... 6-47
Uniform Quality Grading
......................... 6-47
Wear lndicators
................................. 6-45
Wheel Replacement .............................. 6-49
Top Strap
......................................... 1-40
Torque. Wheel Nut ................................. 5-29
Towing a Trailer
.................................... 4-32
Towing
Your Vehicle ................................. 5-9
Traction Active Message
..................... 2-77. 2-90. 4-9
Traction Control System .............................. 4-9
Trailer Tongue Weight
............................... 4-35
Inflation
....................................... 6-43
Torque Lock
....................................... 2-31
14

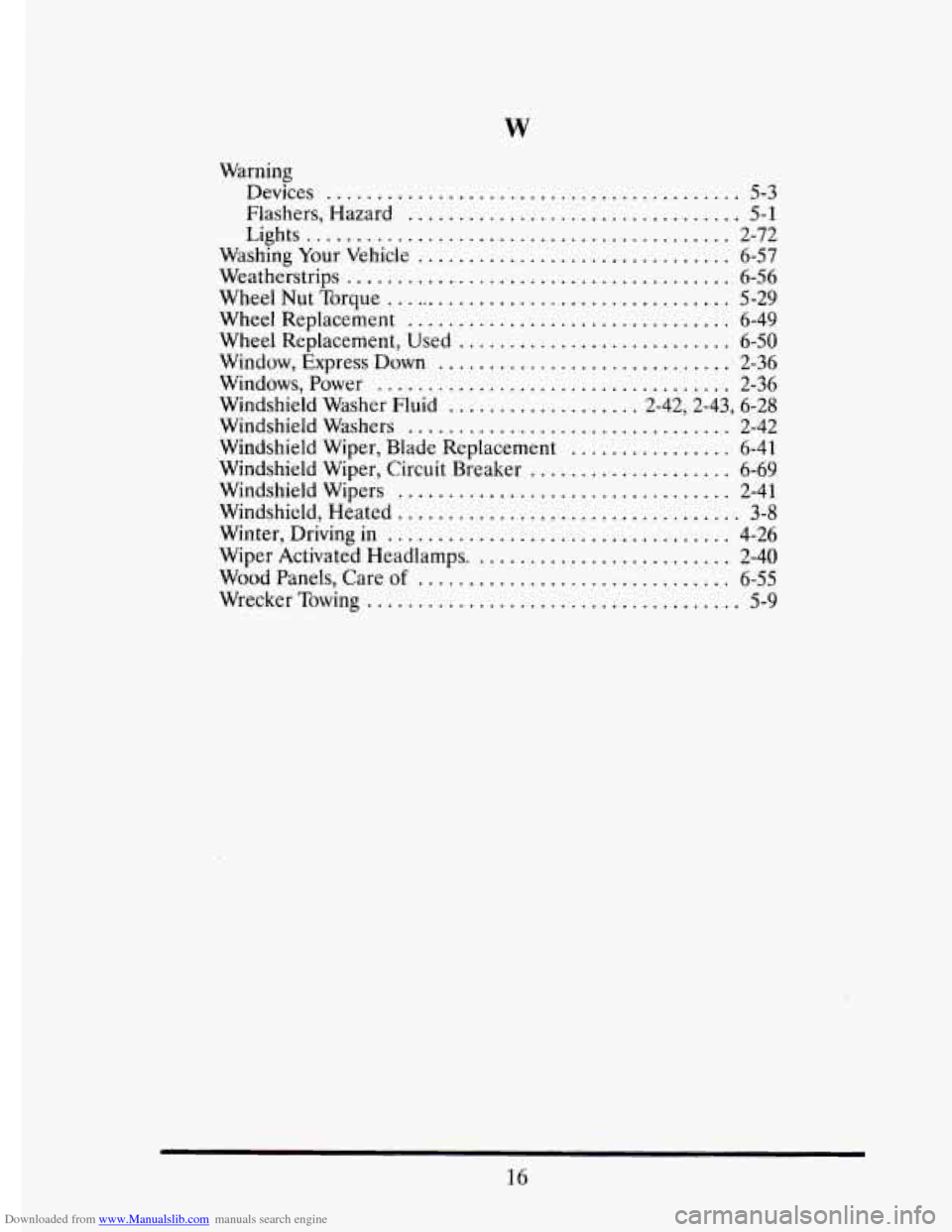

Downloaded from www.Manualslib.com manuals search engine W
Warning Devices
......................................... 5-3
Lights .......................................... 2-72
Flashers.
Hazard
................................. 5-1
washing Your Vehicle ............................... 6-57
Weatherstrips
....................................... 6-56
Wheel
Nut Torque ................................... 5-29
Wheel Replacement
................................ 6-49
Wheel Replacement. Used
........................... 6-50
Window. Express Down
............................. 2-36
Windows. Power
................................... 2-36
Windshield Washer Fluid ................... 2-42. 2-43. 6-28
Windshield Washers ................................ 2-42
Windshield Wiper. Blade Replacement ................ 6-41
Windshield Wiper. Circuit Breaker .................... 6-69
Windshield Wipers
................................. 2-41
Windshield. Heated
.................................. 3-8
Winter. Driving in .................................. 4-26
Wiper Activated Headlamps
......................... 2-40
Wood Panels. Care
of ............................... 6-55
Wrecker Towing
..................................... 5-9
16
