CADILLAC ELDORADO 1996 10.G Owners Manual

Downloaded from www.Manualslib.com manuals search engine Lamps On Reminder
You will hear a warning chime if you pull the key from
the ignition while leaving the lamps on,
if the manual
headlamp control is activated. An exception to this
is
when you’re using twilight sentinel.
Daytime Running Lamps
Daytime Running Lamps (DRL) can make it easier for
others to see the front of your vehicle during
the day.
DRL can be helpful in many different driving
conditions, but they can be especially helpful
in the
short periods after dawn and before sunset.
A light sensor on top of the instrument panel makes the
DRL work,
so be sure it isn’t covered.
The DRL system will make the high-beam headlamps
come on at reduced brightness when:
the ignition is on,
0 the headlamp switch is off and
0 the transaxle is not in PARK (P).
When DRL are on, only your high-beam headlamps (at
reduced brightness) will be on.
No other exterior lamps
such as the parking lamps, taillamps, etc. will be on
when the DRL are being used. Your instrument panel
won’t be
lit up either.
When it’s dark enough outside, the high-beam
headlamps (at reduced intensity) will change to
low-beam headlamps. When it’s bright enough outside,
the regular lamps will go off, and the high-beam
headlamps change to the reduced brightness of DRL.
To idle your vehicle with the DRL off, turn off the
twilight sentinel switch and shift the transaxle into
PARK (P). Placing your vehicle in PARK
(P) disables
the
DRL. The DRL will stay off until you shift out of
PARK (P).
As with any vehicle, you should turn on the regular
headlamp system when you need
it.

Downloaded from www.Manualslib.com manuals search engine Fog Lamps
Use the fog lamps for better
vision in foggy or misty
conditions. When you press
the fog lamp button, a small
indicator light will tell you
the fog lamps are on. Press
the button again to turn
them off. When the twilight sentinel is
on and
the fog lamp switch
is turned off, the headlamps and parking lamps will
deactivate.
Also note that using fog lamps during the
day will cancel the
DRL feature.
Cornering Lamps
The cornering lamps come on when the headlamps or
parking lamps are on and you signal a turn. They
provide more light for cornering.
Underhood Lamp
Turn the parking lamps on to operate the underhood
lamp. The underhood lamp will come on when the hood
If you switch on the high-beam headlamps, the fog is open.
lamps will turn off. They’ll turn back on again when you
switch to low-beam headlamps.
When the twilight sentinel is
on and the fog lamp switch is
activated,
only the headlamps will turn off automatically.
The fog lamps and parking lamps will remain on.
2-41

Downloaded from www.Manualslib.com manuals search engine Twilight Sentinei Light Sensor
The control is next to the
headlamp knob. It
automatically switches the
lamps on and off by sensing
how dark it
is outside.
To operate the twilight sentinel, leave the lamp knob
off and move the TWILIGHT control to any position
but
OFF.
If you move the control all the way to the right, the
lamps will remain on for approximately three minutes
after the ignition has been turned to the
OFF or LOCK
position.
If you move the control so it is just on, the
lamps will go off quickly when you turn the ignition
switch out
of RUN. You can adjust the delay time from
only a few seconds to three minutes. The light sensor for the DRL and the twilight sentinel
is
located in the center
ofthe front defogger grille. If you cover
the sensor,
it will read "dark" and the lamps will come on.
Exterior Lighting Battery Saver
The exterior lamps will turn off approximately
10 minutes after the ignition is turned to LOCK or ACC,
if the manual park lamp control is on. This protects
draining the battery in case
you have left the headlamps
or parking lamps on. Use the control knob to turn the
lamps back
on indefinitely. (The control knob must be
cycled
off and then on to turn the lamps back on.) To
delay the lamps from turning off. see "Twilight
Sentinel" earlier
in this section.
2-42

Downloaded from www.Manualslib.com manuals search engine Interior Lamps Reading Lamps
Instrument Panel Intensity Control
As you turn the headlamp knob clockwise, the
instrument panel lights will brighten.
Turning the headlamp knob all the way clockwise will
turn on the interior lamps.
Illuminated Entry System
The illuminated entry system turns on the courtesy
lamps and the backlighting to the door switches and
headlamp knob control when a door is opened or if you
press the Remote Keyless Entry (RKE) button. Note that
the illuminated entry system is photocell which means
that
it must be dark outside in order for the courtesy
lamps
to turn on. The courtesy lamps will turn off
approximately
20 seconds after the last door is closed. The reading lamps are
located in the roof. These lamps
and the interior courtesy lamps come on when either
door is opened and it
is dark outside. Press the button to
turn them on. Press
it again to turn them off.
If
the reading lamps are left on, they automatically shut
off 10 minutes after the ignition has been turned off.

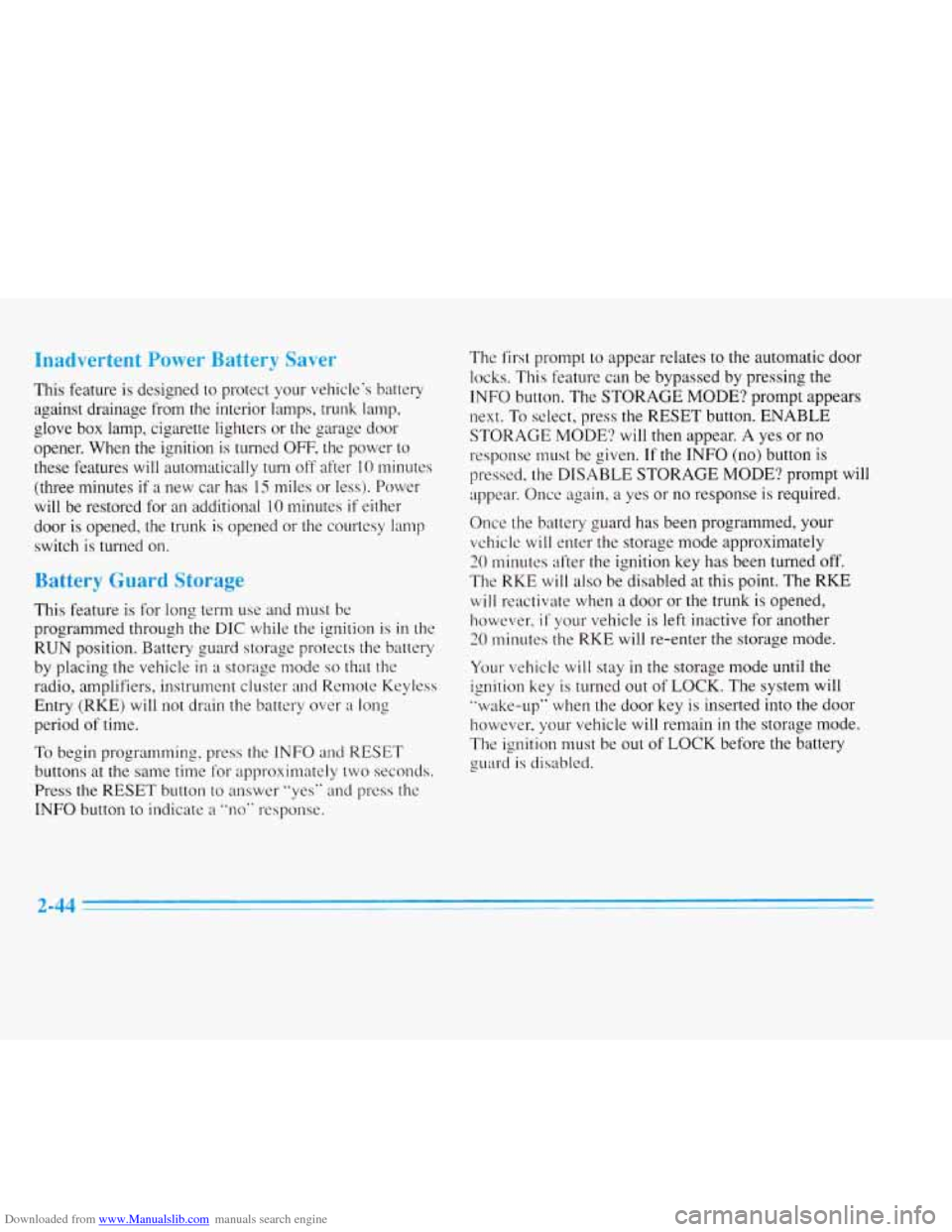

Downloaded from www.Manualslib.com manuals search engine Inadvertent Power Battery Saver
This feature is designed to protect your vehicle's battery against drainage from the interior lamps, trunk lamp,
glove
box lamp, cigarette lighters or the garage door
opener. When the ignition is turned
OFF, the power to
these features will automatically
turn off' after 10 minutes
(three minutes if a new car has 15 miles or less). Power
will be restored for an additional
10 minutes if either
door is opened, the trunk
is opened or the courtesy lamp
switch is turned
on.
Battery Guard Storage
This feature is for long term use and must be
programmed through the
DIC while the ignition is in the
RUN position. Battery guard storage protects the battery
by placing the vehicle in a storage mode so that the
radio, amplifiers, instrument cluster
and Remote Keyless
Entry
(RKE) will not drain the battery over a long
period of time.
To begin programming, press the INFO and RESET
buttons at the same time for approximately two seconds.
Press the RESET button to answer "yes" and press the
INFO button to indicate
a "no" response. The first prompt
to appear relates to the automatic
door
locks.
This feature can be bypassed by pressing the
INFO button. The STORAGE MODE? prompt appears
next.
To select, press the RESET button. ENABLE
STORAGE
MODE? will then appear. A yes or no
response must be give.n. If the
INFO (no) button is
pressed, the DISABLE STORAGE MODE? prompt will
appear. Oncc again,
a yes or no response is required.
Once the battery guard has been programmed, your
vehicle
will enter the storage mode approximately
20 minutes after the ignition key has been turned off.
The RKE will also be disabled at this point. The RKE
will reactivate when a door or the trunk is opened,
however.
if your vehicle is left inactive for another
20 minutes the RKE will re-enter the storage mode.
Your vehicle will stay in the storage mode until the
ignition
key is turned out of LOCK. The system will
"wake-up" when the door key is inserted into the door
however, your vehicle
will remain in the storage mode.
The ignition must
5 ~~~ard is disabled. be
out of LOCK before the battery
2-44

Downloaded from www.Manualslib.com manuals search engine Mirrors
Electrochromic Day/Night Rearview Mirror
Your Cadillac has an electrochromic dayhight
rearview mirror.
This mirror automatically changes to reduce glare from
headlamps behind you. A photocell on the'back
of the
'mirror senses when it is becoming dark outside. Another
photocell built into the mirror surface senses when
,
headlamps are behind you.
At night, when the glare is too high, the mirror will
gradually darken to reduce glare (this change may take a
few seconds). The mirror will return to its clear daytime
state when the glare is reduced.
On/Off Switch
Press the button at the base of the mirror to turn on the
automatic feature. The button has an indicator light to
show it is on. Press the button to turn the automatic
feature
off.
2-45

Downloaded from www.Manualslib.com manuals search engine Time Delay
This feature prevents rapid changing of the mirror from
the night mode to the day mode as you drive under
lights and through traffic.
Reverse Gear Day Mode.
The reverse mode is another important feature of the
automatic mirror. When the
shift lever is placed in
' REVERSE (R), the mirror changes to the day mode.
This gives you a bright image in the mirror as you
back up.
Cleaning Photocells
Electrochromic Day/Night Rearview Mirror
with Compass (Option)
Use a cotton swab and glass cleaner to clean the front
and rear photocells that make the auto-dimming
feature work.
This mirror automatically changes to reduce glare when
set
in the M (Mirror) or C/M (Compass/Mirror) positions.
One photocell on the back
of the mirror senses when it is
becoming
dark outside. Another photocell is built into the
mirror surface to sense headlamps behind
you.
2-46

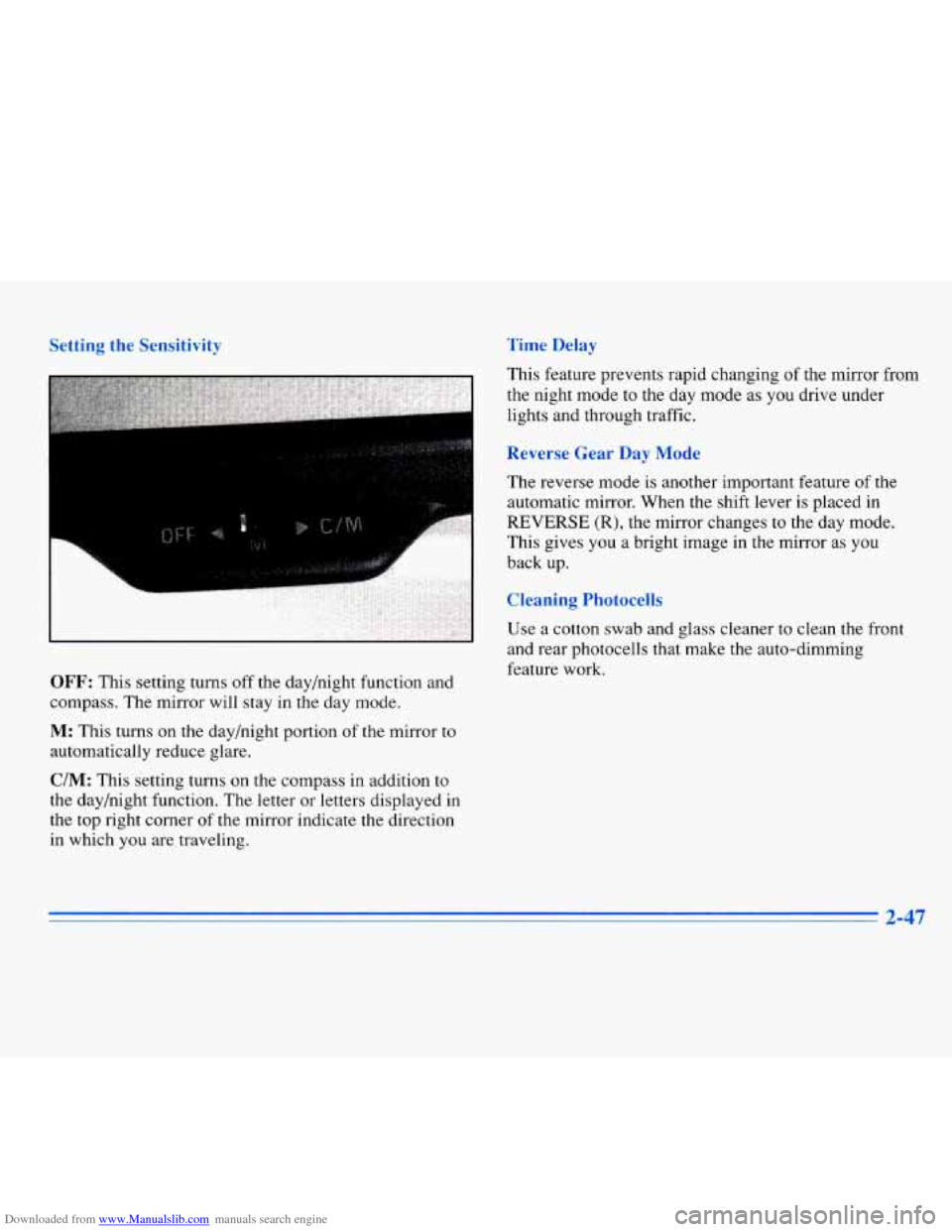

Downloaded from www.Manualslib.com manuals search engine 3ru rne Ben 1v1
OFF: This setting turns off the day/night function and
compass.
The mirror will stay in the day mode,
M: This turns on the day/night portion of the mirror to
automatically reduce glare.
C/M: This setting turns on the compass in addition to
the day/night function. The letter or letters displayed
in
the top right corner of the mirror indicate the direction
in which you are traveling.
L Ime uelaJ
This feature prevents rapid changing of the mirror from
the night mode to the day mode as you drive under
lights and through traffic.
ear D; Modc
The reverse mode is another important feature of the
automatic mirror. When the shift lever is placed in
REVERSE
(R), the mirror changes to the day mode.
This gives you a bright image in the mirror as you
back up.
C u ’ho
Use a cotton swab and glass cleaner to clean the front
and rear photocells that make the auto-dimming
feature work.

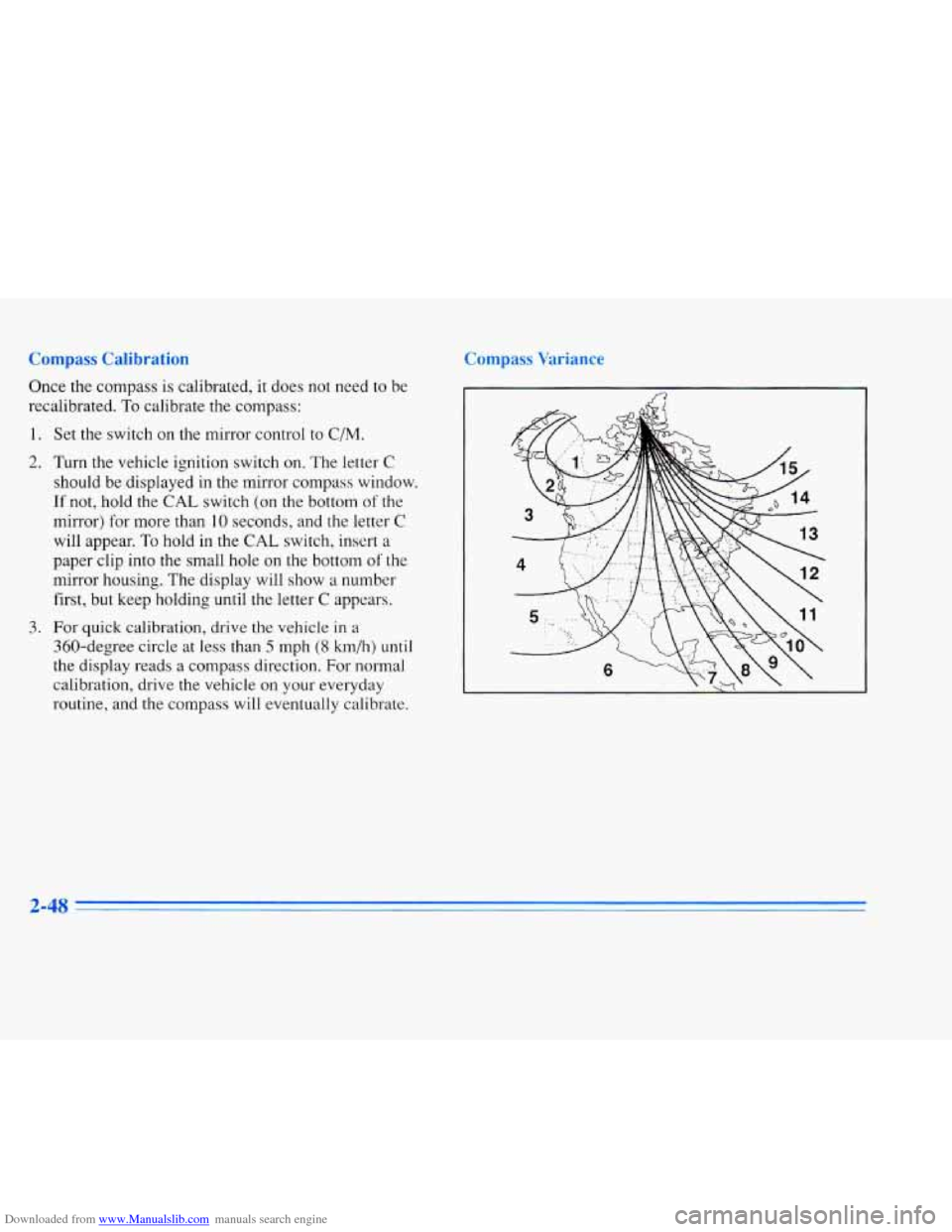

Downloaded from www.Manualslib.com manuals search engine Compass Calibration
Once the compass is calibrated, it does not need to be
recalibrated.
To calibrate the compass:
1. Set the switch on the mirror control to C/M.
2. Turn the vehicle ignition switch on. The letter C
should be displayed in the mirror compass window.
If not, hold the CAL switch (on the bottom of the
mirror) for more than 10 seconds, and the letter
C
will appear. To hold in the CAL switch, insert a
paper clip into the small hole on the bottom of the
mirror housing. The display will show a number
first, but keep holding until the letter
C appears.
3. For quick calibration, drive the vehicle in a
360-degree circle at less than
5 mph (8 km/h) until
the display reads a compass direction. For normal
calibration, drive the vehicle on your everyday
routine, and the compass will eventually calibrate.
Compass Variance
2-48

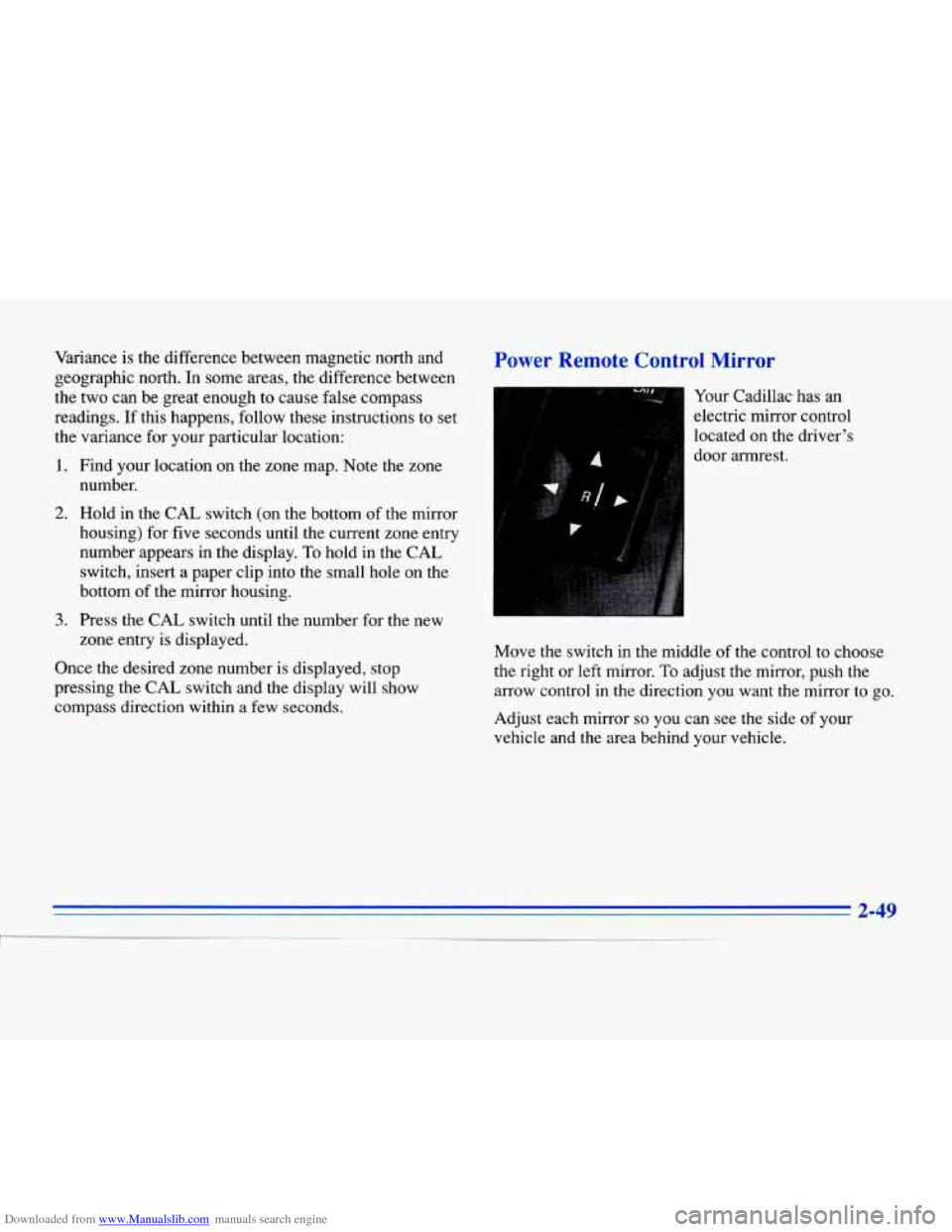

Downloaded from www.Manualslib.com manuals search engine Variance is the difference between magnetic north and
geographic north. In some areas, the difference between
the two can be great enough to cause false compass
readings. If this happens, follow these instructions to set
the variance for your particular location:
1.
2.
3.
Find your location on the zone map. Note the zone
number.
Hold in the CAL switch (on the bottom of the mirror
housing) for.five seconds until the current zone entry
number appears in the display.
To hold in the CAL
switch, insert a paper clip into the small hole on the
bottom of the mirror housing.
Press the
CAL switch until the number for the new
zone entry is displayed.
Once the desired zone number is displayed, stop
pressing the CAL switch and the display will show
compass direction within
a few seconds.
Power Remote Control Mirror
located on the driver’s
door armrest.
Move the switch in the middle of the control to choose
the right or left mirror.
To adjust the mirror, push the
arrow control in the direction you want the mirror to go.
Adjust each mirror
so you can see the side of your
vehicle and the area behind your vehicle.
2-49
I
