Downloaded from www.Manualslib.com manuals search engine When you press this symbol to unlock the
driver’s door, the parking lamps on your vehicle will
blink twice. (You can program your vehicle
so the
parking lamps will not flash. For more information,
see “Remote Confirmation” later
in this section.)
Pressing it again within five seconds will unlock the
other doors. Pressing this button will also disarm
the
optional theft-deterrent system and turn on the interior
lamps at night.
When you press
this symbol to lock the doors, the
parking
lamps will blink once. (You can program your
vehicle so the parking lamps will not flash. For more
information,
see “Remote Confirmation” later in this
section.)
This also arms the optional theft-deterrent system
when the ignition
is off.
Press this symbol to open the trunk.
Press ths button to open the fuel door.
The
pu(E transmitter can also be used to recall. the
memory settings for up
to two drivers. For more
information, see “Memory Seat
and Mirrors” in the Index.
Note that pressing the transmitter buttons numerous times (approximately
500 times) out of the vehicle‘s operating
range may cause the transmitter not
to work. Replacing
the battery and pressing the transmitter buttons 10 or
more times out
of range will also cause the transmitter
not to work. To reset the transmitter, you must be within
the vehicle’s operating range. Press and hold the trunk
button, and within one second, press and hold the lock
button. Continue
to hold both buttons for approximately
three seconds. See your Cadillac dealer for service if your
transmitter still doesn’t work properly.
This personalization feature allows the driver to program
the parlung lamps to blink or to remain off when the lock
or unlock buttons om the RISE transmitter are pressed.
Press the
SET (TIRIIP RESET) button to answer
“yes,” press the
WESET’ (INFO RESET) button to
indicate “no” or press the INFORMATION (INFO)
button to “skip” to the next personalization feature.
To begin programming, press the unlock button of the
RKE transmitter for the appropriate driver (1 or 2).
The ignition must be in the RUN position. Press and
hold the
INFORMATION (INFO) and RESET (INFO
RESET) buttons at the same time. The first message to
appear refers to
the programmable automatic door locks.
To skip this prompt, press the ‘I[NFQWMATION
(INFO) button.

Downloaded from www.Manualslib.com manuals search engine When REMOTE FLASH LIGHTS appears on the DIC
display, press the yes button to program the parking
lamps to blink once when the lock button on the
RKE
transmitter is pressed and to blink twice when the
unlock button
is pressed. If you don’t want the parking
lamps to blink when using the RKE transmitter, press
the no button.
FEATURE ON will display if REMOTE FLASH
LIGHTS was selected and FEATURE OFF will show if
you answer no.
For a list of the other personalization features available,
see “Memory and Personalization Features” later in
this section.
This personalization feature enables the driver to
program the exterior lamps to
turn on for 20 seconds
or
to remain off when using the RKE transmitter to
unlock your vehicle.
If exterior lighting is selected, the parking lamps,
taillamps, sidemarker lamps, license plate lamps,
low-beam headlamps, etc. will turn on for about
20 seconds or until the ignition key is turned to RUN.
Check the back of the RKE transmitter to verify that the
correct driver is selected before you start programming.
To begin programming, press the INFORMATION
(INFO) and RESET (INFO RESET) buttons at the same
time for about two seconds. Exterior fighting is the third
feature to display. Press the WOWMATION (INFO)
button to “skip” past the first two features -- DOOR
LOCKS IN GEAR and REMOTE FLASH LIGHTS.
When EXT LIGHTS AT UNLOCK appears, a “yes” or
“no” response
is required. Press the TRIP SET (TRIP
RESET) button to answer yes or press the RESET
(INFO RESET) button to indicate a no response.
FEATURE ON displays when a yes response is made
and
FEATURE OFF shows after a no response.
For a list of the other personalization features available,
see
“Memory and Personalization Features” later in
this section.
Your vehicle
may have memory personalization. If it
does, REMOTE RECALL MEMORY will be the fourth
personalization feature to display on the
DIC system.
Memory settings that
have been previously programmed
(HVAC settings, radio preset settings, exterior lighting
choices, remote confirmation choices and programmable
automatic
door 1oc.k choices) can be recalled by using
either the
RICE transmitter or by placing the key in your
vehicle’s ignition.

Downloaded from www.Manualslib.com manuals search engine To begin programming, check the back of the RKE
transmitter to verify that the correct driver is selected.
Press the
INFORMATION (INFO) and RESET (INFO
RESET) buttons at the same time for about two seconds.
As mentioned, memory recall is the fourth feature to
appear. To “skip” past the first three personalization
features, press the
INFORMATION (INFO) button.
When
REMOTE RECALL MEMORY appears, the
driver is able to recall memory settings when
the unlock
button on the
RKE transmitter is pressed with the
ignition in
LOCK. Press the TRIP SET (TRIP RESET)
button to select or press the RESET (INFO RESET)
button to answer no and to continue on to the next
prompt.
(FEATURE ON displays when a yes response
is made and FEATURE OFF shows when a no response
is made.)
If a no response was made, the KEY IN RECALL
MEMORY prompt will show next. This choice recalls
memory settings when the key is placed
in your
vehicle’s ignition.
A yes or no response is required.
For a list
of the other personalization features available,
see “Memory and Personalization Features” later
in
this section. Each
RKE transmitter is coded
to prevent another
transmitter from unlocking your vehicle. If
a transmitter
is lost or stolen,
a replacement can be purchased through
your dealer. Once your dealer has coded the new
transmitter, the lost transmitter will
not unlock your
vehicle. Each vehicle can have only two transmitters
matched to it.
Under
normal use, the battery in your RKE transmitter
should Bast about four years.
You can tell the battery is weak if the transmitter won’t
work at the normal range in any location.
If you have to
get close
to your vehicle before the transmitter works,
it’s probably time to change the battery.
When replacing the battery, use care not to touch
any of the circuitry. Static from your body
transferred to these surfaces may damage

Downloaded from www.Manualslib.com manuals search engine 2. Remove the battery and replace it with a CR2032
battery. Using the wrong size battery can damage th
transmitter. Make
sure the battery is positioned witk
the “plus”
(+) facing down.
3. Align the internal pieces of the transmitter, includin
the cover. Snap together to reinstall.
1. Use the round end of the door key or a coin to pry
open the transmitter.
I

Downloaded from www.Manualslib.com manuals search engine .. , ....
-A.. CAUTION: .
.. .. .... ...... .. ..
It can be dangerous to drive with the trunk lid
open because carbon monoxide
(CB) gas can
come into your vehicle.
You cm9t see 81- smell
CO. It can cause unconsciousness and even death.
If you must drive with the trunk lid open or if
electrical wiring or other cable connections must
pass through the seal between the body and the
trunk Bid:
Q) Make sure all windows are shut.
0 Tbrn the fan on your heating or cooling
system to its highest speed with
the setting
on AUTO or ECON and the temperature
between
65°F (18OC) and 85°F (29°C).
That will force outside air into your vehicle.
See
“Comfort ControI[s” in the Index.
If you have air outlets on or under the
instrument anel, open them all the way.
See “Engine Exhaust9’ in the Index.
.... .................. : ........................... To use this feature,
your vehicle must be in
PARK (P). Press the
TRUNK release button
located above the radio
on
the DIC to open the trunk.
You can also press the trunk button
on the WKE
transmitter to access the trunk compartment. If you do
not have the full console, press the trunk button on the
RKE transmitter.

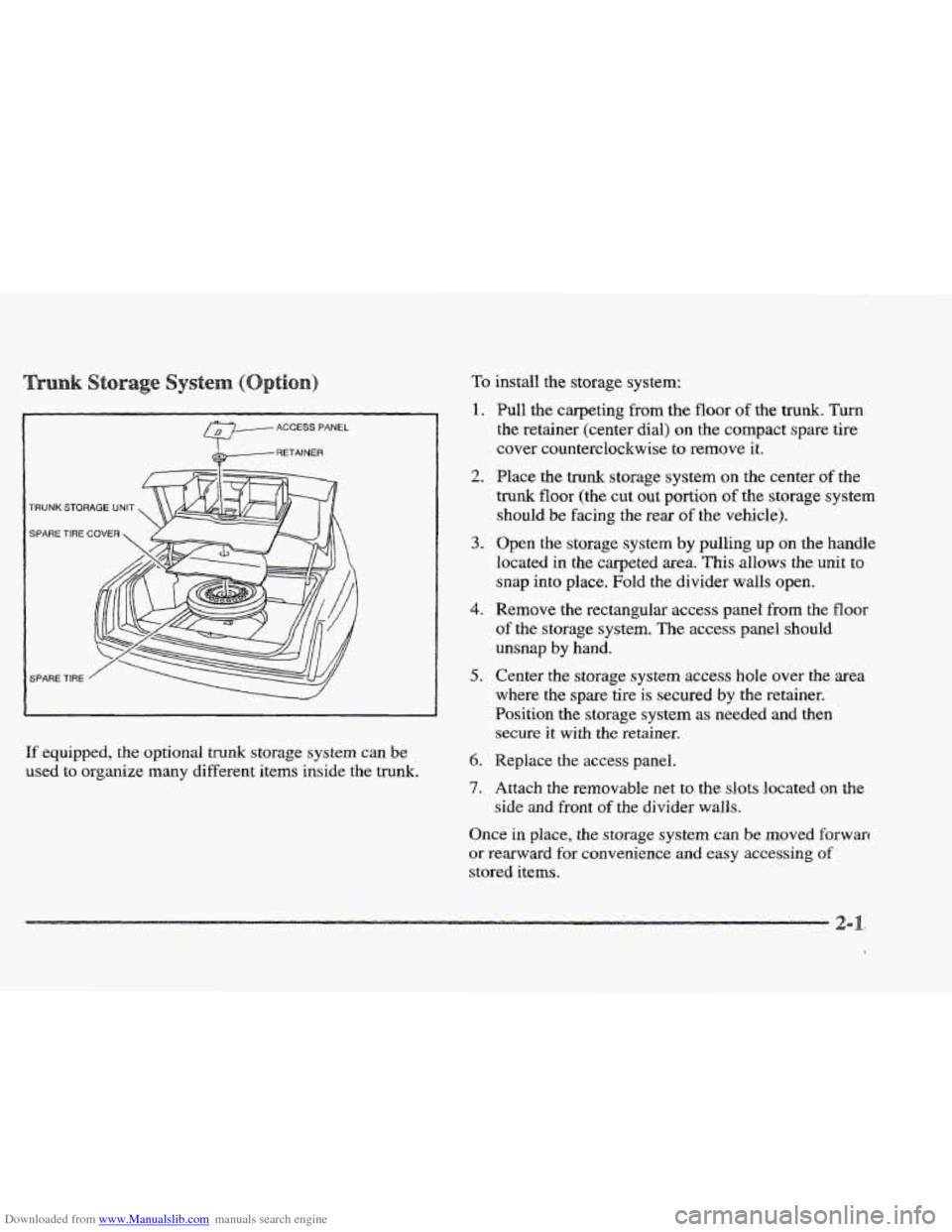

Downloaded from www.Manualslib.com manuals search engine ACCESS PANEL RETAINER
TRUNK
SPARE
SPARE
If equipped, the optional trunk storage system can De
used to organize many different items inside the trunk.
To install the storage system:
1.
2.
3.
4.
5.
6.
7.
Pull the carpeting from the floor of the trunk. Turn
the retainer (center dial) on the compact spare tire
cover counterclockwise to remove it.
Place the trunk storage system
on the center of the
trunk floor (the cut out portion of the storage system
should
be facing the rear of the vehicle).
Open the storage system
by pulling up on the handle
located in the carpeted area. This allows the
unit to
snap
into place. Fold the divider walls open.
Remove the rectangular access panel
from the floor
of the storage system. The access panel should
unsnap
by hand.
Center the storage
system access hole over the area
where the spare tire
is secured by the retainer.
Position the storage system
as needed and then
secure it with the retainer.
Replace the access panel.
Attach the removable net
to the slots located on the
side and front of the divider walls.
Once in place, the storage system can be moved forwarr
or rearward for convenience and easy accessing of
stored items.

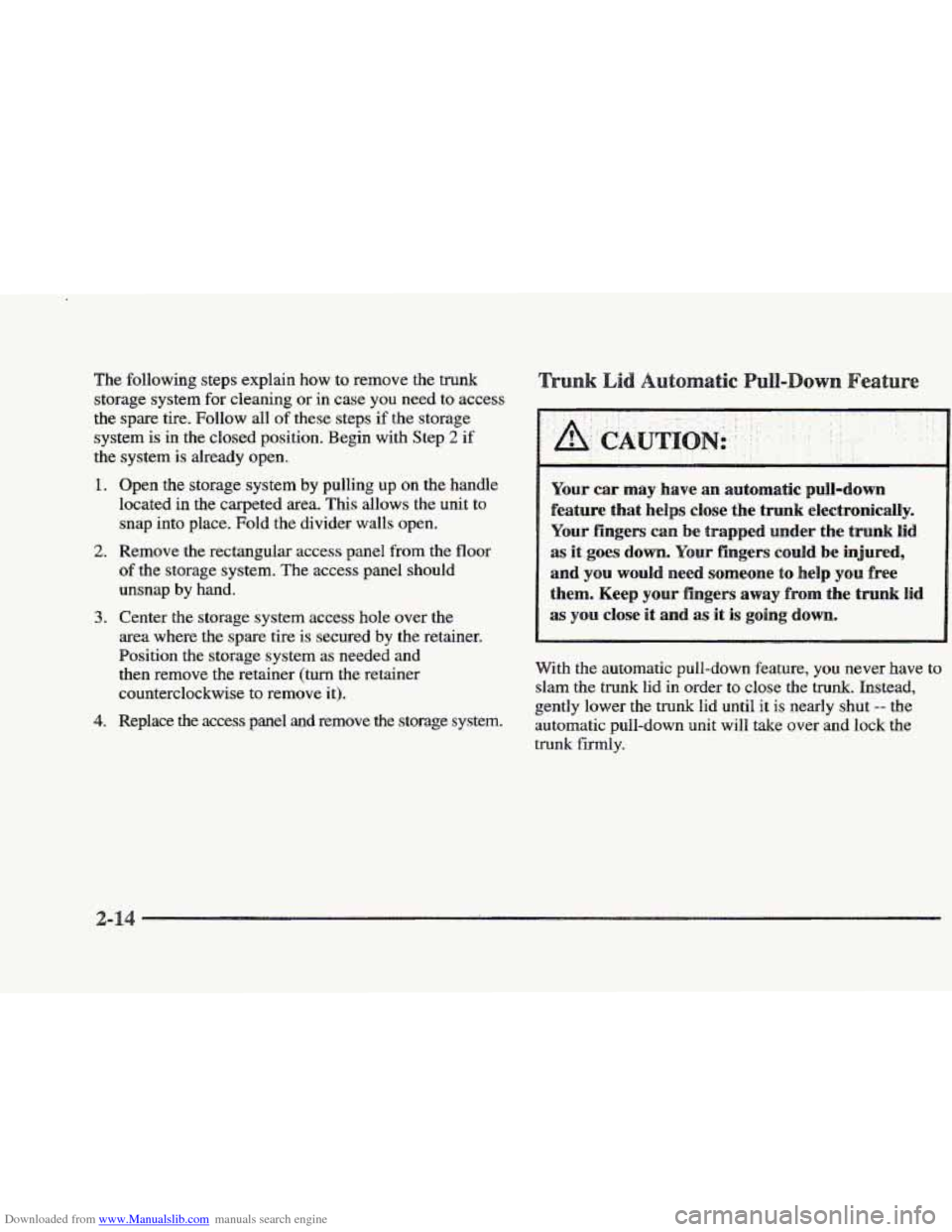

Downloaded from www.Manualslib.com manuals search engine The following steps explain how to remove the trunk
storage system for cleaning or in case you need to access
the spare tire. Follow all
of these steps if the storage
system
is in the closed position. Begin with Step 2 if
the system is already open.
1. Open the storage system by pulling up on the handle
located in the carpeted area. This allows
the unit to
snap into place. Fold the divider walls open.
2. Remove the rectangular access panel from the floor
of the storage system. The access panel should
unsnap
by hand.
3. Center the storage system access hole over the
area where the spare tire
is secured by the retainer.
Position the storage system
as needed and
then remove the retainer
(turn the retainer
counterclockwise to remove
it).
4. Replace the access panel and remove the storage system.
Your car may have an automatic pull-down
feature that helps close the trunk electronically.
Your fingers
can be trapped under the trunk lid
as it goes down. Your fingers could be injured,
and
you would need someone to help you free
them. Keep your fingers
away from the trunk lid
as you close it and as it is going down.
With the automatic pull-down feature, you never have to
slam
the trunk lid in order to close the trunk. Instead,
gently lower the trunk lid until it
is nearly shut -- the
automatic pull-down unit will take over and lock the
trunk firmly.

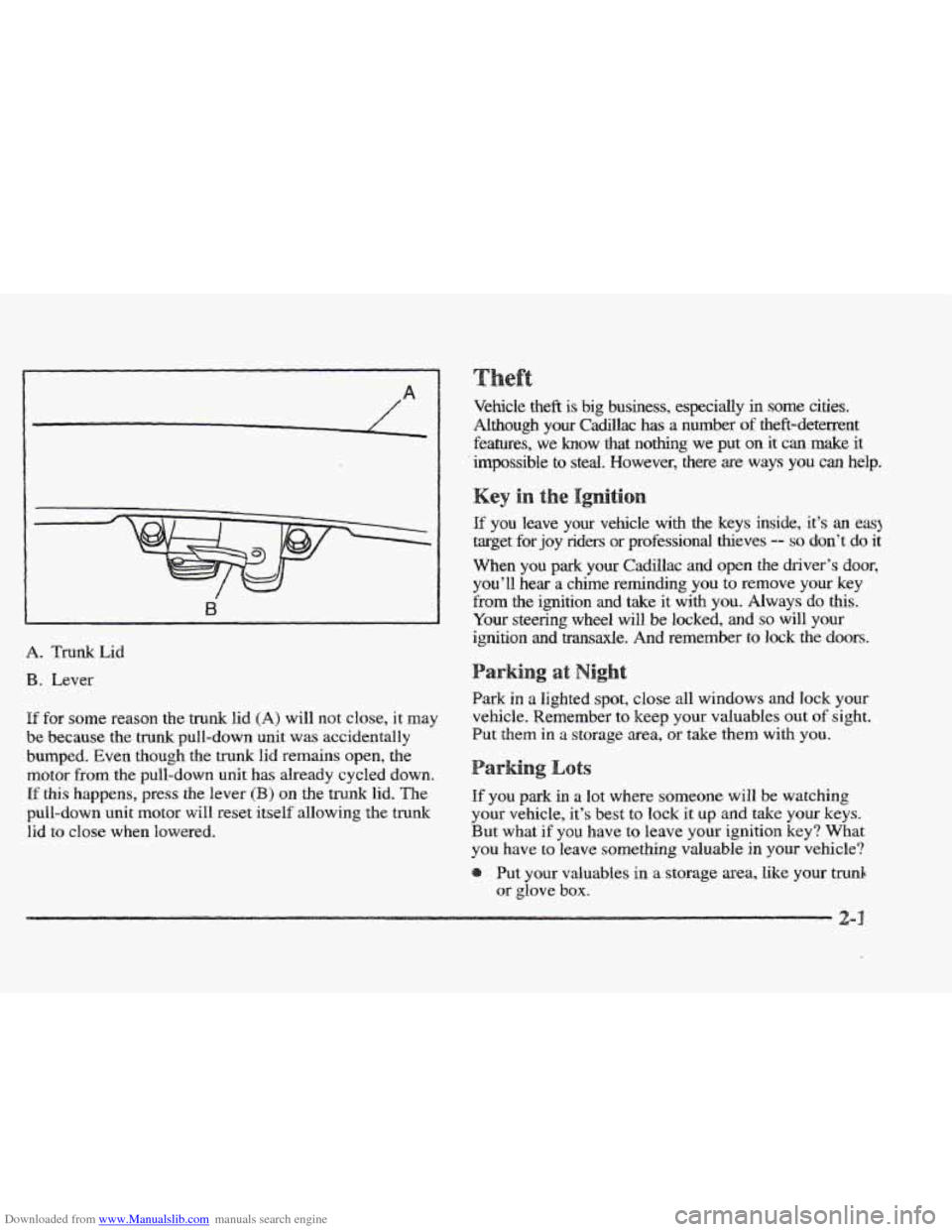

Downloaded from www.Manualslib.com manuals search engine /
\. Trunk kid
B. Lever
If for some reason the trunk lid (A) will not close, it may
be because the trunk pull-down unit was accidentally
bumped. Even though the
trunk lid remains open, the
motor from the pull-down unit has already cycled down.
If this happens, press the lever (B) on the trunk lid. The
pull-down unit motor will reset itself allowing the
trunk
lid to close when lowered.
e
Vehicle theft is big business, especially in some cities.
Although your Cadillac has a number of theft-deterrent
features,
we know that nothing we put on it can make it
impossible to steal.
However, there are ways you can help.
If you leave your vehicle with the keys inside, it’s an eaq
target for joy riders or professional heves -- so don’t do it
When
YOU park your Cadillac and open the driver’s door,
you’ll hear a chime reminding you
to remove your key
from
the ignition and take it with you. Always do this.
Your steering wheel will be locked,
and so will your
ignition and transaxle.
And remember to lock the doors.
Park in a lighted spot, close all windows and lock your
vehicle. Remember
to keep your valuables out of sight.
Put
them in a storage area, or take them with you.
ots
If you park in a lot where someone will be watching
your vehicle, it’s best to
lock it up and take your keys.
But what
if you have to leave your ignition key? What
you have
to leave something valuable in your vehicle?
Put
your valuables in a storage area, like your trunk
or glove
box.
2-

Downloaded from www.Manualslib.com manuals search engine e Lock the glove box.
Lock all the doors except the driver’s.
@ Then take the door key and remote keyless entry
transmitter with
you.
SECURITY
If the ignition is off and
either door is open, the
SECURITY light will flash,
reminding
you to activate
the system (the light will
also flash
if the battery
has been disconnected and reconnected)
.
To arm the system, do the following:
1. Open the door.
2. Lock the door using the power door lock or the RKE
system. The SECURITY light should come on and
stay on.
3. Close both doors. The SECURITY light should go
off within approximately 30 seconds.
The horn will sound and the lamps will flash for about
30 seconds when the door or trunk is opened without the
key or RKE system. The horn also sounds if the locks
are damaged.
Remember, the theft-deterrent system won’t activate
if
you lock the doors with a key or use the manual door
lock. It activates only if you use a power door lock
switch
or the RKE system.
To avoid activating the alarm by accident:
8 The vehicle should be locked with the door key or
the manual door lock switch after the doors are
closed if you don’t want to activate the
theft-deterrent system.
Always unlock
a door with a key or use the RKE
system. (Pressing the unlock button on the RKE
transmitter disables the theft-deterrent system.)
Unlocking a door any other way will activate the
alarm. Turning the ignition key to
RUN without
disarming the theft-deterrent system will also
activate the alarm.
If you activate the alarm by accident, unlock either door
with your key. You can also turn off the alarm by using
the unlock button
of the RKE system. The alarm won’t
stop if you
try to unlock a door any other way.
2-

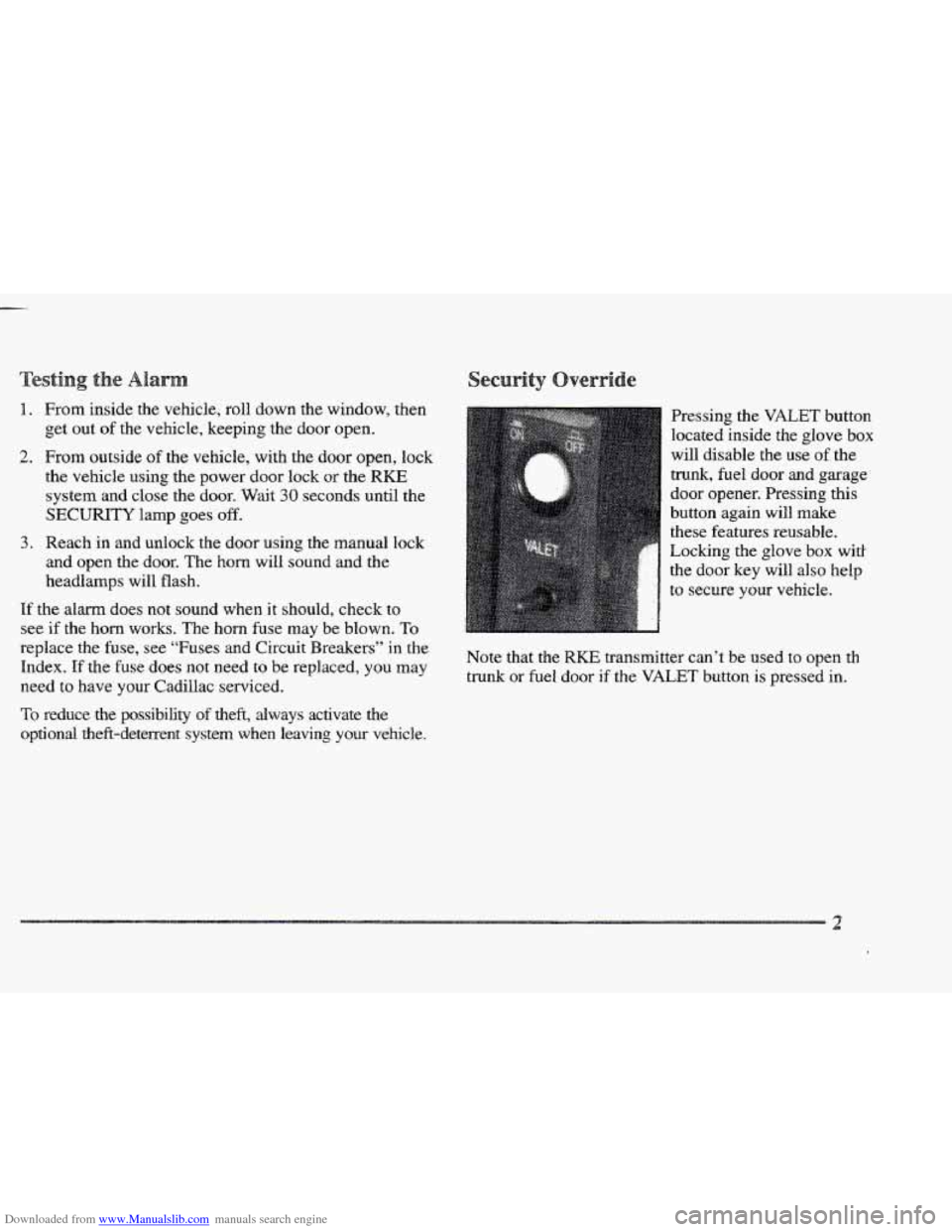

Downloaded from www.Manualslib.com manuals search engine 1. From inside the vehcie, roll down the window, then
b Get out of the vehicle, keeping the door open.
2. From outside of the vehicle, with the door open, lock
the vehicle using the power
door lock or the RKE
system and close the door. Wait 30 seconds until the
SECURITY lamp goes off.
3. Reach in and unlock the door using the manual lock
and open the door. The horn will sound and the
headlamps will flash.
If the alarm does not sound when it should, check to
see
if the horn works. The horn fuse may be blown. TO
replace the fuse, see “Fuses and Circuit Breakers” in the
Index.
If the fuse does not need to be replaced, YOU may
need to have your Cadillac serviced.
To reduce the possibility of theft, always activate the
optional theft-deterrent system when leaving your vehicle. Pressing
the VALET button
located inside the glove
box
will disable the use of. the
trunk, fuel door and garage’
~ door opener. Pressing this
button again will make
these features reusable.
’ ’ Locking the glove box witk
the door key
will also help
to secure your vehicle.
Note
that the RKE transmitter can’t be used to open th
trunk or fuel door if the VALET button is pressed in.
2
