Page 61 of 361
Downloaded from www.Manualslib.com manuals search engine _. .. , . ,

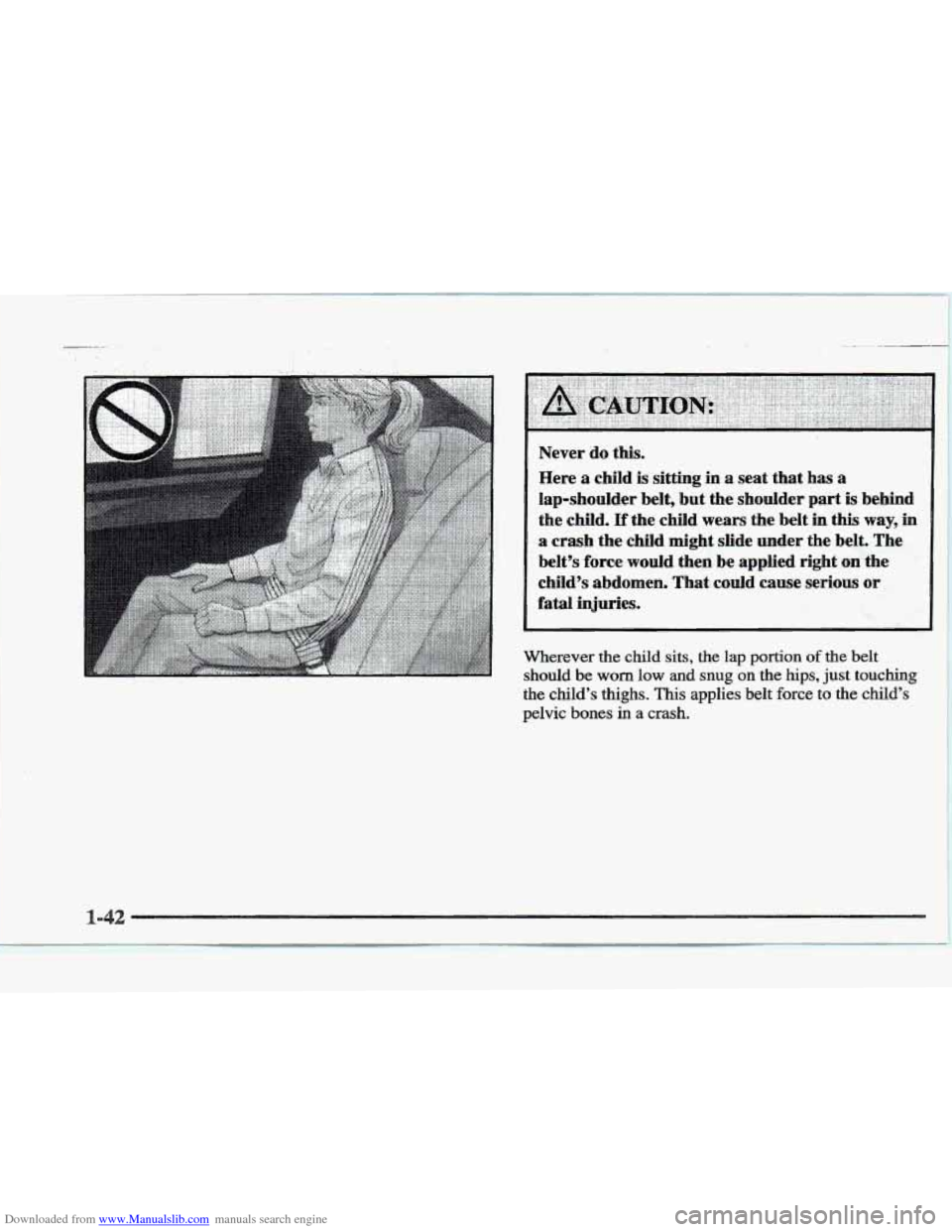

Never do this.
Here a child
is sitting in a seat that has a
lap-shoulder belt, but the shoulder part
is behind
the
child. If the child wears the belt in this way, in
a crash the child might slide under the belt. The
belt’s force would then be applied right on.the
child’s abdomen. That could cause serious or
fatal injuries.
Wherever the child sits, the lap portion of the belt
should be
worn low and snug on the hips, just touching
the child’s thighs. This applies belt force to the child’s
pelvic bones in a crash.
Page 62 of 361

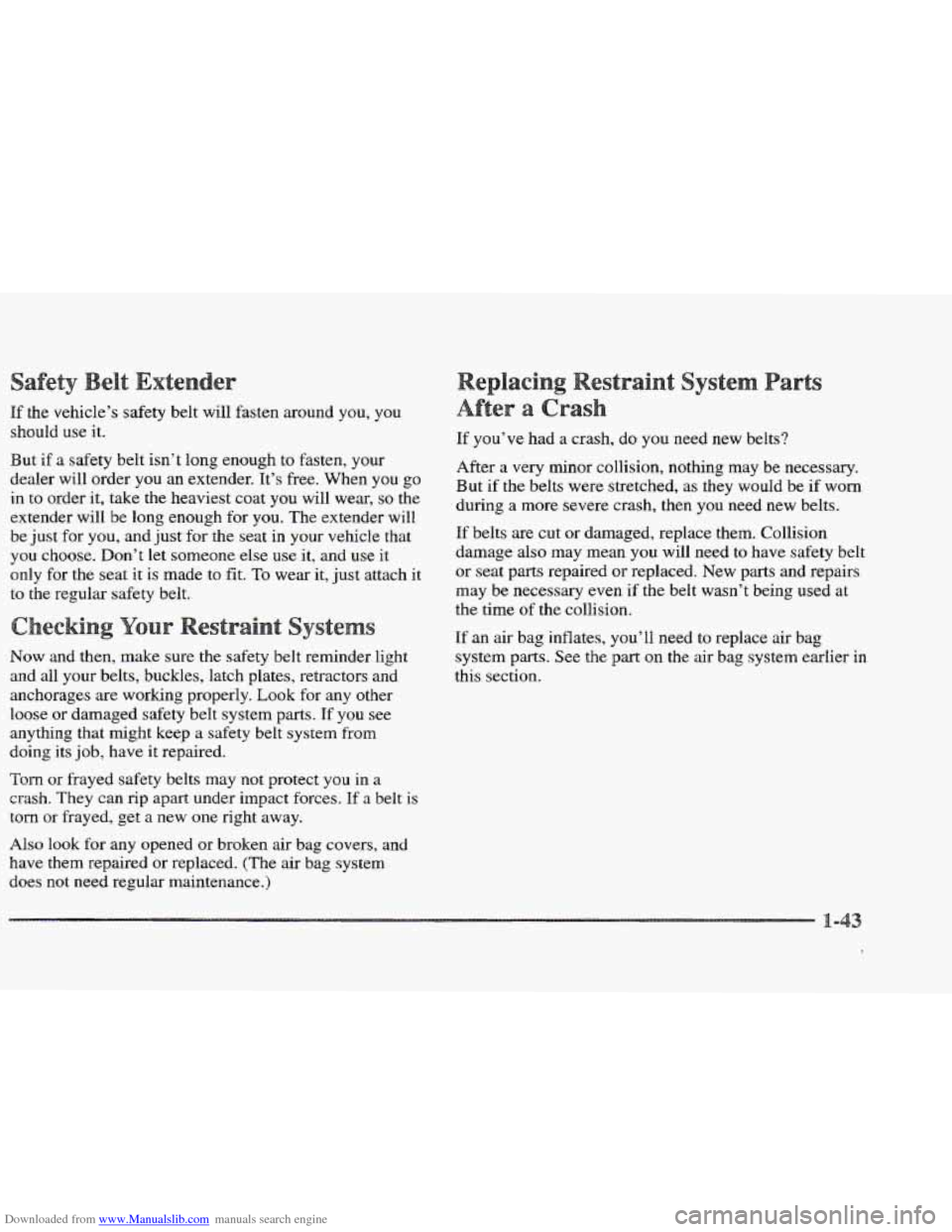

Downloaded from www.Manualslib.com manuals search engine If the vehicle’s safety belt will fasten around you, you
should use it.
But
if a safety belt isn’t Bong enough to fasten, your
dealer will order you an extender. It’s free. When you go
in to order
it, take the heaviest coat you will wear, SO the
extender will be long enough for you. The extender will
be just for you, and just for the seat
in your vehicle that
you choose.
Don’t let someone else use it, and use it
only for the seat it is made to fit. To wear it, just attach it
to the regular safety belt.
s
Now and then, make sure the safety belt reminder light
and all your belts, buckles, latch plates, retractors and
anchorages are working properly.
Look for any other
loose or damaged safety belt system parts. If you see
anything that
might keep a safety belt system from
doing its job, have it repaired.
TQ~ or frayed safety belts may not protect you in a
crash. They can rip apart under impact forces. Hf a belt is
torn or frayed, get a new one right away.
Also
look for any opened or broken air bag covers, and
have them repaired or replaced. (The air bag system
does not
need regular maintenance.) If
you’ve had a crash, do you need new belts?
After
a very minor collision, nothing may be necessary.
But if the belts were stretched, as they would
be if worn
during
a more severe crash, then you need new belts.
If belts are cut or damaged, replace them. Collision
damage also may mean you will need to have safety belt
or seat
parts repaired or replaced. New parts and repairs
may be necessary even if
the belt wasn’t being used at
the time of the collision.
If an
air bag inflates, you’ll need to replace air bag
system parts. See
the part on the air bag system earlier in
this section.
Page 63 of 361
Downloaded from www.Manualslib.com manuals search engine
Page 64 of 361

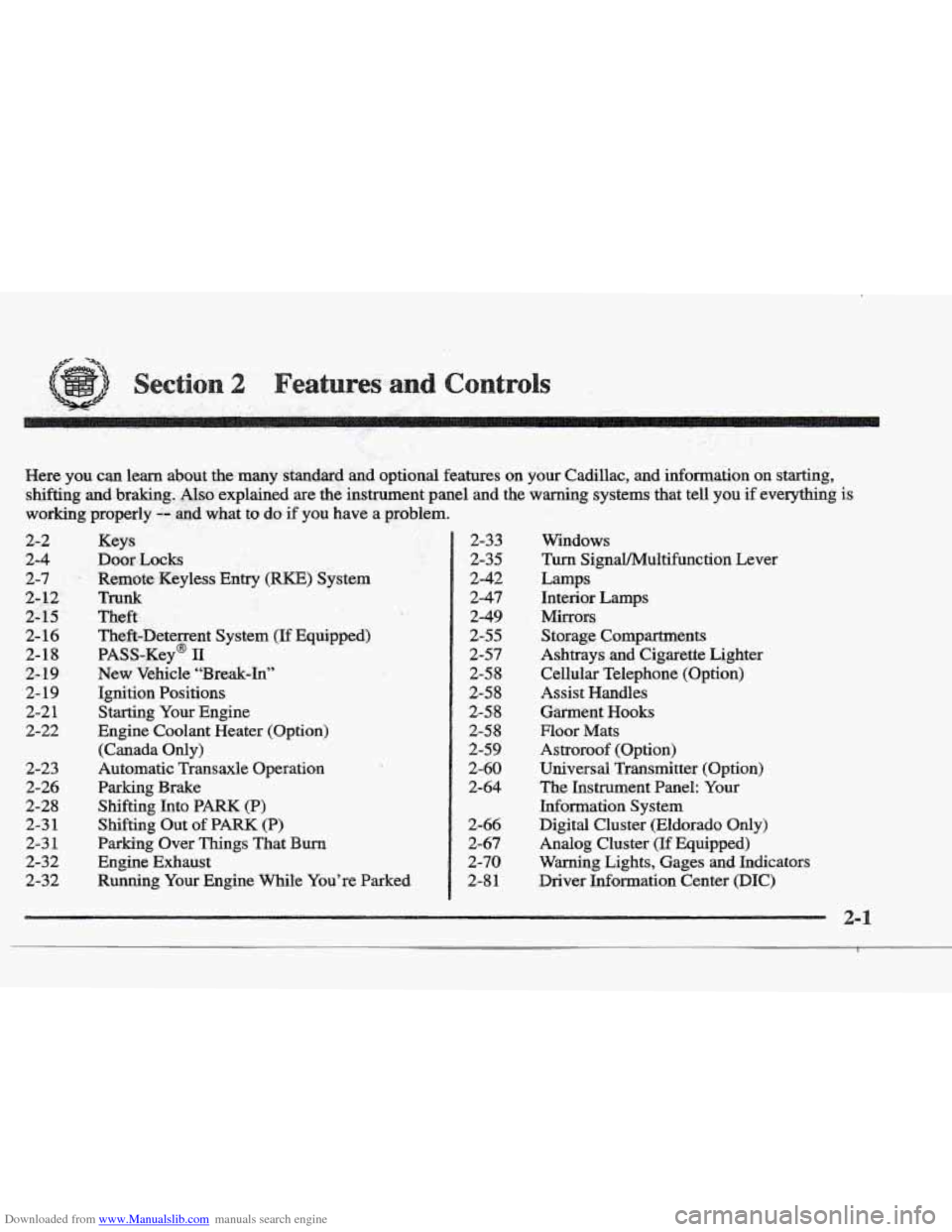

Downloaded from www.Manualslib.com manuals search engine Here you can leam about the many standard and option,al features on your Cadillac, and information on starting,
shifting
and braking. Also explained are the instrument panel and the warning systems that tell you if everything is
working properly,-- and what to do if you have a problem.
2-2
2-4
2-7.
2- 12
2-15
2- 16
2-18
2- 19
2- 19
2-2 1
2-22
2-23
2-26
2-28 2-3
1
2-3 1
2-32
2-32
Keys
Door Locks
Remote Keyless
Entry (RKE) System
Td
Theft
Theft-Deterrent System (If Equipped)
PASS-Key@
11
New Vehicle “Break-In”
Ignition Positions
Starting
Your Engine
Engine Coolant Heater (Option)
(Canada
Only)
Automatic Transaxle Operation
Parking Brake
Shifting Into
PARK (P)
Shifting Out of PARK (P)
Parking Over Things That Burn
Engine Exhaust
Running
Your Engine While You’re Parked
2-33
2-35
2-42
2-47
2-49
2-55
2-57
2-5 8
2-5 8
2-5 8
2-58
2-59
2-60
2-64
2-66
2-67
2-70
2-8
1
Windows
Turn SignaYMultifunction Lever
Lamps Interior
Lamps
Mirrors
Storage Compartments
Ashtrays and Cigarette Lighter
Cellular Telephone (Option)
Assist
Handles
Garment Hooks
Floor Mats
Astroroof (Option)
Universal Transmitter (Option)
The Instrument Panel:
Your
Information System
Digital Cluster (Eldorado Only)
Analog Cluster (If Equipped)
Warning Lights, Gages and Indicators
Driver Infomation Center
(DIC)
Page 65 of 361
Downloaded from www.Manualslib.com manuals search engine L

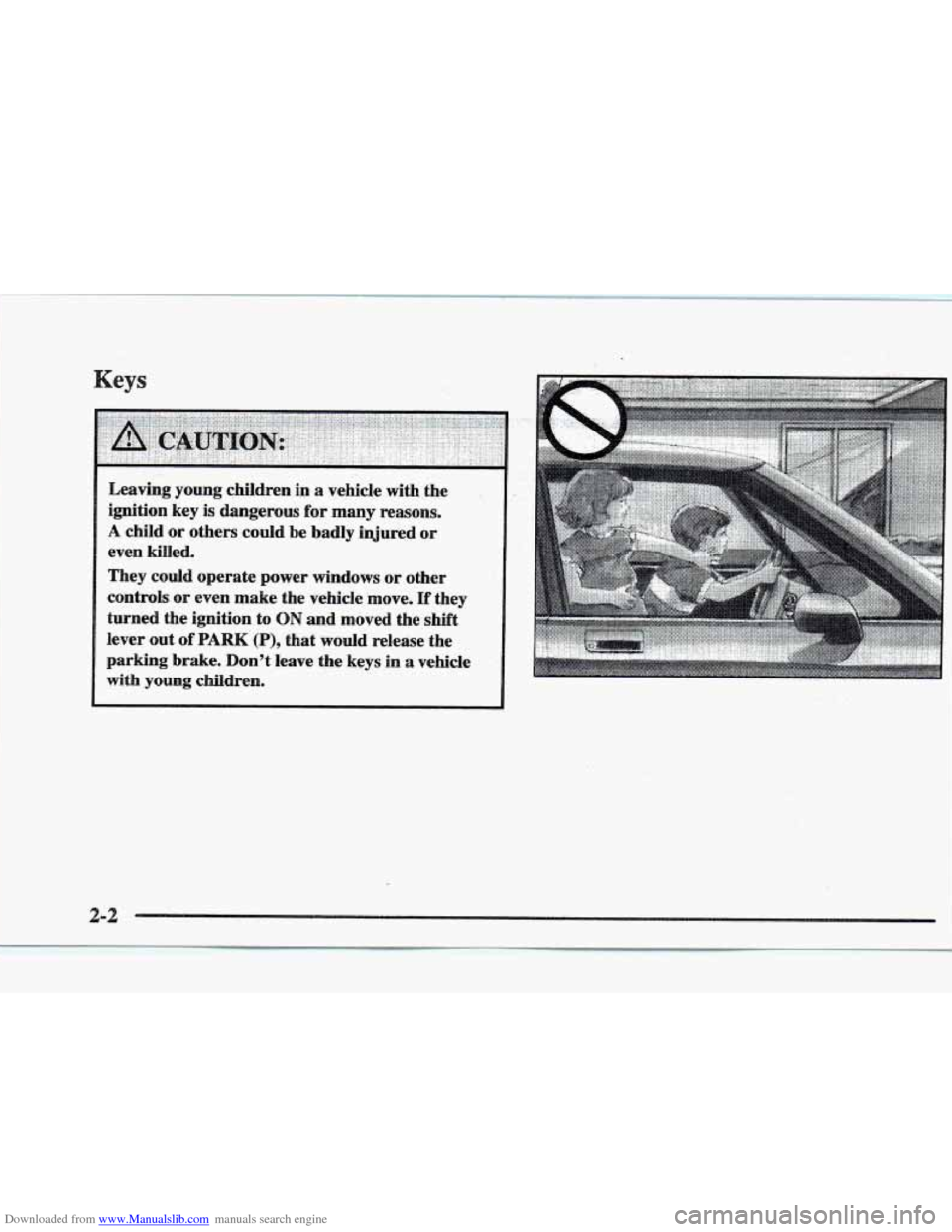

Leaving young children in a vehicle with the
ignition key
is dangerous for many reasons.
A child or others could be badly injured or
even killed.
They could operate power windows or other
controls or even make the vehicle move.
If they
turned the ignition to
ON and moved the shift
lever out
of PARK (P), that would release the
parking brake. Don't leave the-keys in a vehicle
with young children.
Page 66 of 361

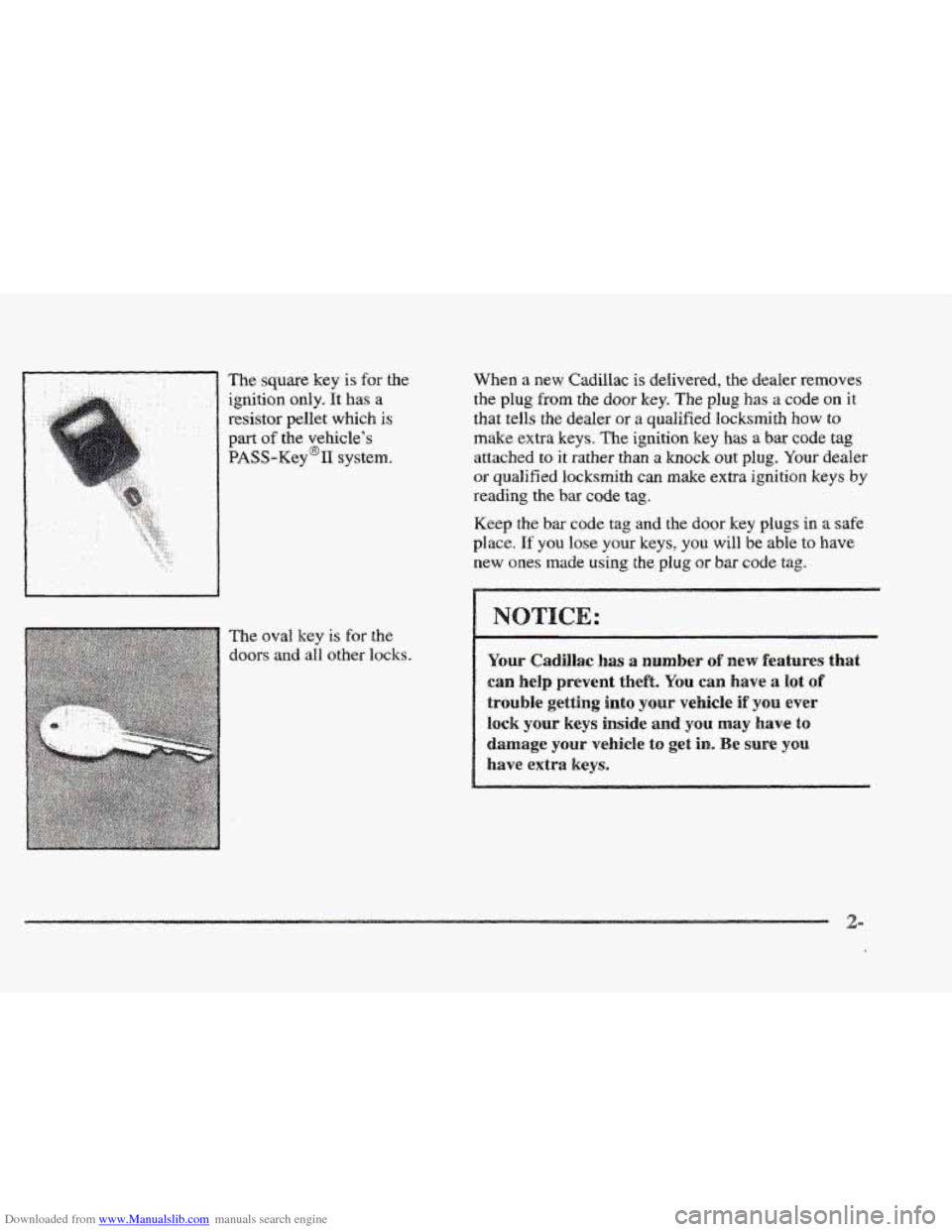

Downloaded from www.Manualslib.com manuals search engine The square key is for the
ignition only. It has a
resistor pellet which is
part of the vehicle’s
PASS-K~Y@IT system.
The oval key is for the
doors
and all other locks.
When a new CadilIac is delivered, the dealer removes
the plug
from the door key. The plug has a code on it
that tells the dealer or a qualified locksmith how to
make extra keys. The ignition key has a bar code tag
attached to it rather than a bock out plug. Your dealer
qualified
locksmith can make extra ignition keys by
reading the bar code tag.
Keep the bar code tag and the door key plugs in a safe
place. If you lose your keys: you will be able to have
new ones
made using the plug or bar code tag.
Page 67 of 361
Downloaded from www.Manualslib.com manuals search engine I. ..
N’:

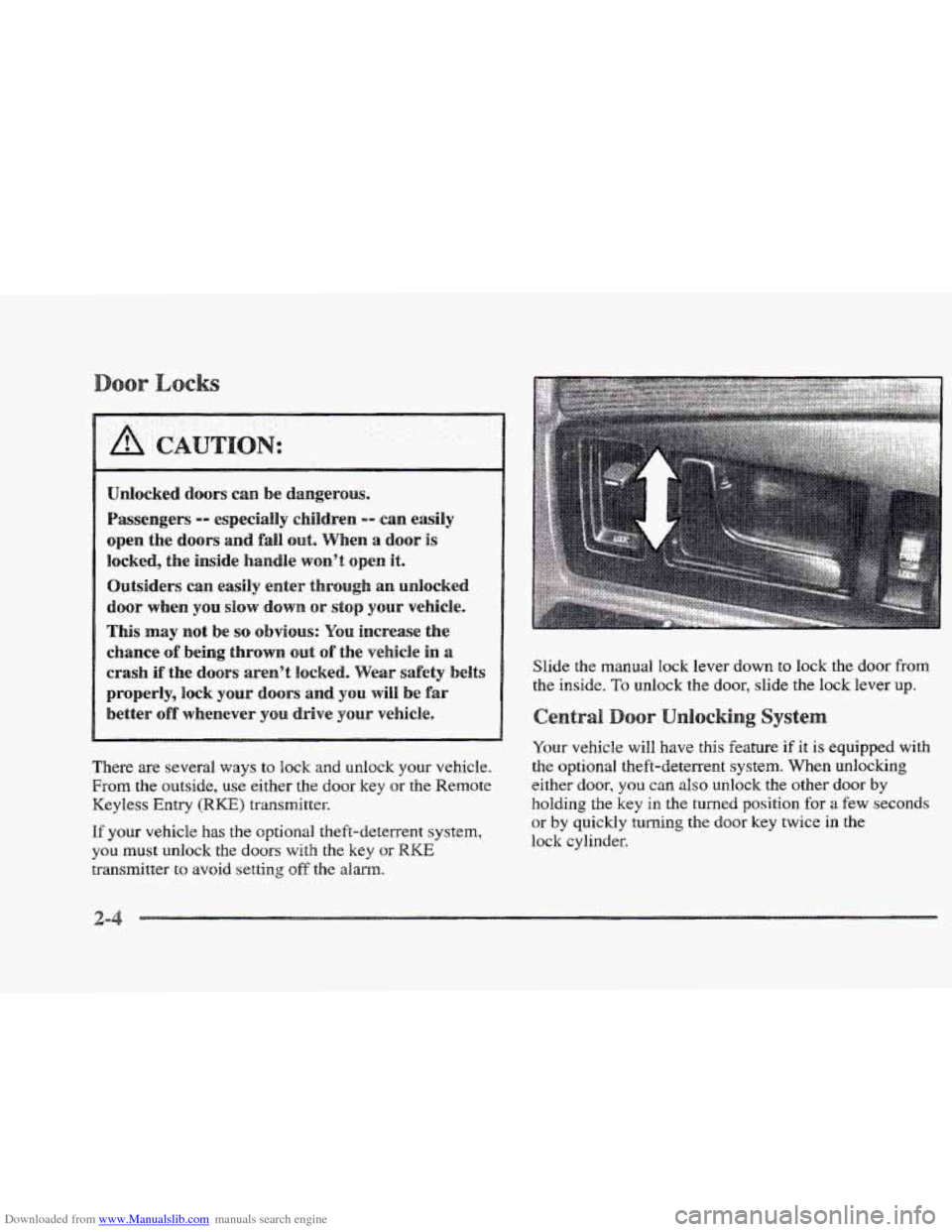

Unlocked doors can e dangerous.
Passengers
-- especially sc ildren -- can easily
open the doors asld fall out. When a door is
locked, the inside le won’t open it.
Outsiders can easily enter through an unlocked
door when
you sllow down or stop your vehicle.
This may not be so obvious: You increase the
crash if the doors aren’t locked. Wear safety belts
properly, lock your doors and you will be far
better off whenever you drive your vehicle.
chance of being thrown out of the vehicle in a
There are several ways to lock and unlock your vehicle.
From the outside, use either the door key or the Remote
Keyless
Entry (RKE) transmitter.
If your vehicle has the optional theft-deterrent system,
YOU must unlock the doors with the key or RME
transmitter t~ avoid setting off the aIa1-m.
Slide the manual lock lever down to lock the door from
the inside. To unlock the door, slide the lock lever up.
Your vehicle will have this feature if it is equipped with
the optional theft-deterrent system. When unlocking
either
door, you can also unlock the other door by
holding the key in the turned position for a few seconds
or by quickly turning the door key twice in the
lock cylinder.
Page 68 of 361
Downloaded from www.Manualslib.com manuals search engine out of PARK (P), use the manual or power lock button
to
lock the doors.

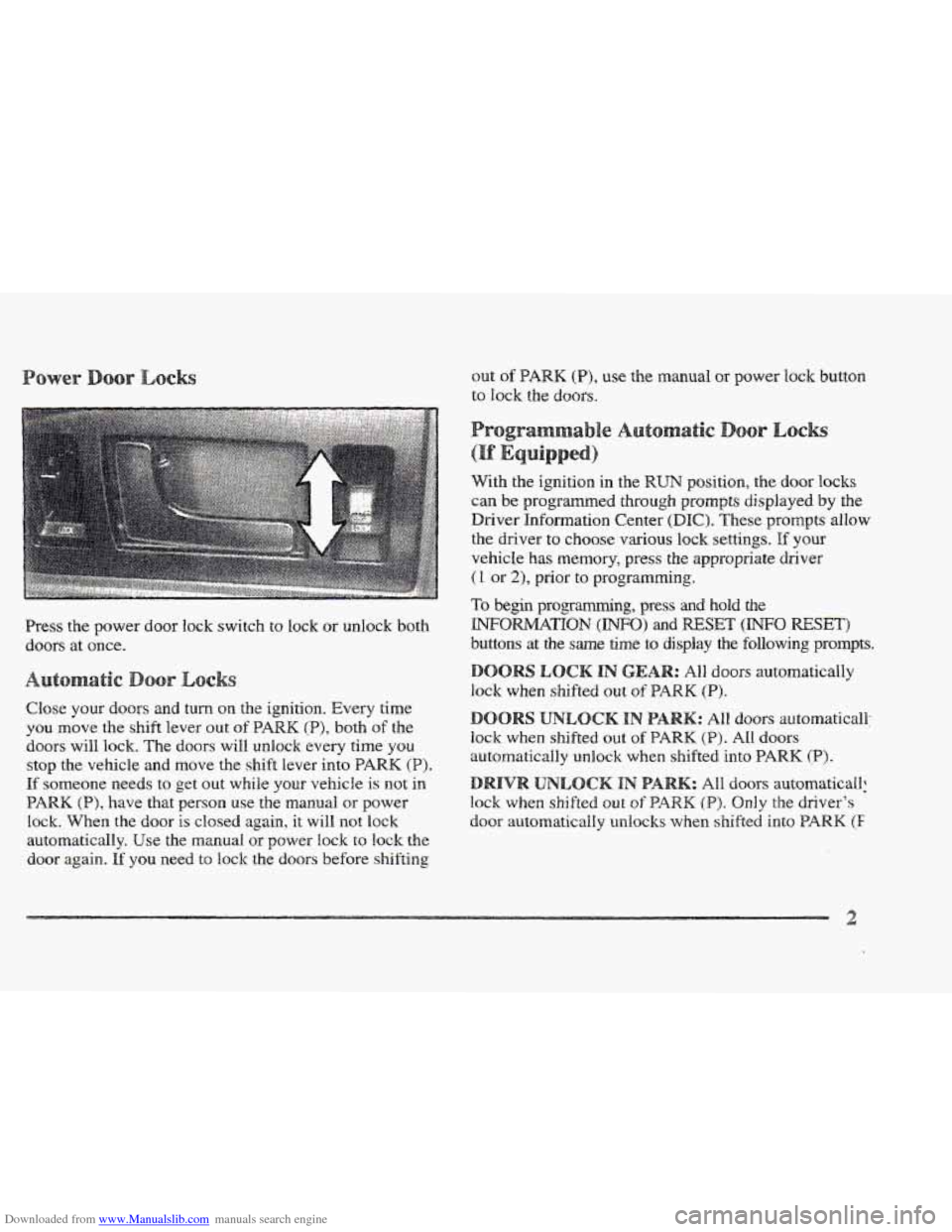

Press the power door lock switch. to lock or unlock both
doors at once.
Close your doors and turn on the ignition. Every time
you move the shift lever out of PARK (P), both of the
doors will lock. The doors will unlock every time you
stop the vehicle and move the shift lever into PARK (P).
If someone needs to get out while your vehicle is not in
PARK (P), have that person use the manual OF power
lock. When the door
is closed again, it will not lock
automatically. Use
the manual or power lock to lock the
door again.
If YOU need to 'lock the doors before shifting With the ignition
in the
RUN position, the door locks
can
be programed through prompts displayed by the
Driver Information Center (DE). These prompts allow
the driver to choose various lock settings. If your
vehicle
has memory, press the appropriate driver
(1 or 21, prior to programming.
To begin programming, press and hold the
buttons at the same time to display the following prompts.
WomnoN (INFO) and RESET (INFO RESET)
s LOCK IN GI3 ors automatically
lock when shifted out
sf
doors automaticall:
lock when shifted out of PARK (P). All doors
automatically unlock when shifted into PARK (P).
: A11 doors automaticall;
lock when shifted out of PARK (P). Only the driver's
door automatically unlscks when shifted into PARK (E
Page 69 of 361
Downloaded from www.Manualslib.com manuals search engine A “yes” or “no” response must be made after each
prompt is displayed
in order to continue on to the next
prompt or personalization feature. Press the TRIP
SET
(TRIP RESET) button to choose yes, press the RESET
(INFO RESET) button to choose no or press the
INFORMATION
(INFO) button to “skip” to the next
personalization feature.
FEATURE
ON appears when a yes response is made
and FEATURE
OFF appears with a no response.
If a no response is made after the DOQRS LOCK IN
GEAR prompt is displayed, FEATURE OFF will appear.
The automatic door locking system has been disabled
and
no other door lock messages will be displayed.
REMOTE
FLASH LIGHTS, which is the next available
personalization
feature to display, will appear next.
See “Remote Confirmation”
in the Index for
more information.
If a yes response is made after the DQORS LOCK IN
GEAR prompt is displayed, %;EA’ ON appears.
The automatic door locking system is enabled and allows
the DOORS UNLOCK IN PARK prompt to zppear.
Choosing this prompt advances you to REMOTE FLASH
LIGHTS whereas a no response will display the DRIVR
UJYLOCK IN PARK prompt. A yes or no response
here automatically brings up the
REMOTE FLASH
LIGHTS feature.
Leaving your key in any igmtion position
with either door
open will disable
the use of the power door lock switches.
The anti-lockout feature is disabled when the ignition is
on.
If you close the doors, you can lock them using the
RKE system. It is always recommended that you remove
your ignition
key when lockmg your vehicle.
Note that the anti-lockout feature can be overridden by
holding the power door
lock switch for three seconds
or longer.
If you are leaving the vehicle, open the door, set the
locks from the inside, get out and close
the door.
Page 70 of 361
Downloaded from www.Manualslib.com manuals search engine e
With this feature, you
can lock and unlock the
doors, un%ock the trunk,
open the fuel door and turn
on your vehicle’s interior
lamps from about
10 feet
(3 m) away using the RlKE
transmitter supplied with
your vehicle.
Your
RKE system operates on a radio frequency subject
to Federal Communications Commission (FCC) Rules
and with Industry and Science Canada.
This device complies with Part 15 of the FCC Rules.
Operation is subject
to the following two conditions:
(1) this device may not cause hml interference, and
(2) this device must accept any interference received,
including interference that
may cause undesired operation
of the device.
Changes or modifications
to this system by other than
an authorized service facility could void authorization
to use this equipment.
This device complies with RSS-210 of Industry and
Science Canada. Operation is subject to the following
two conditions: (1) this device rnay not cause
interference, and
(2) this device must accept any
interference received, including interference that may
cause undesired operation
of the device.
The range of this system is about 10 feet (3 rn). At times
you may notice a decrease in range. This is
norrnal for
any remote keyless entry system. If the transmitter does
not work 81- if you have to stand closer to your vehicle
for
the transmitter to work, try this:
Check to determine if battery replacement is
necessary. See the instructions that follow.
Check the distance. You may be too far from your
vehicle. YOU may need to stand closer during rainy
or
snowy weather.
Check the location. Other vehicles
81- objects rnay
be blocking the signal.
Fdke a few steps to the left
or right, hold the transmitter higher, and try again.
If you’re still having trouble, see your Cadillac
dealer
QP a qualified technician for service.
