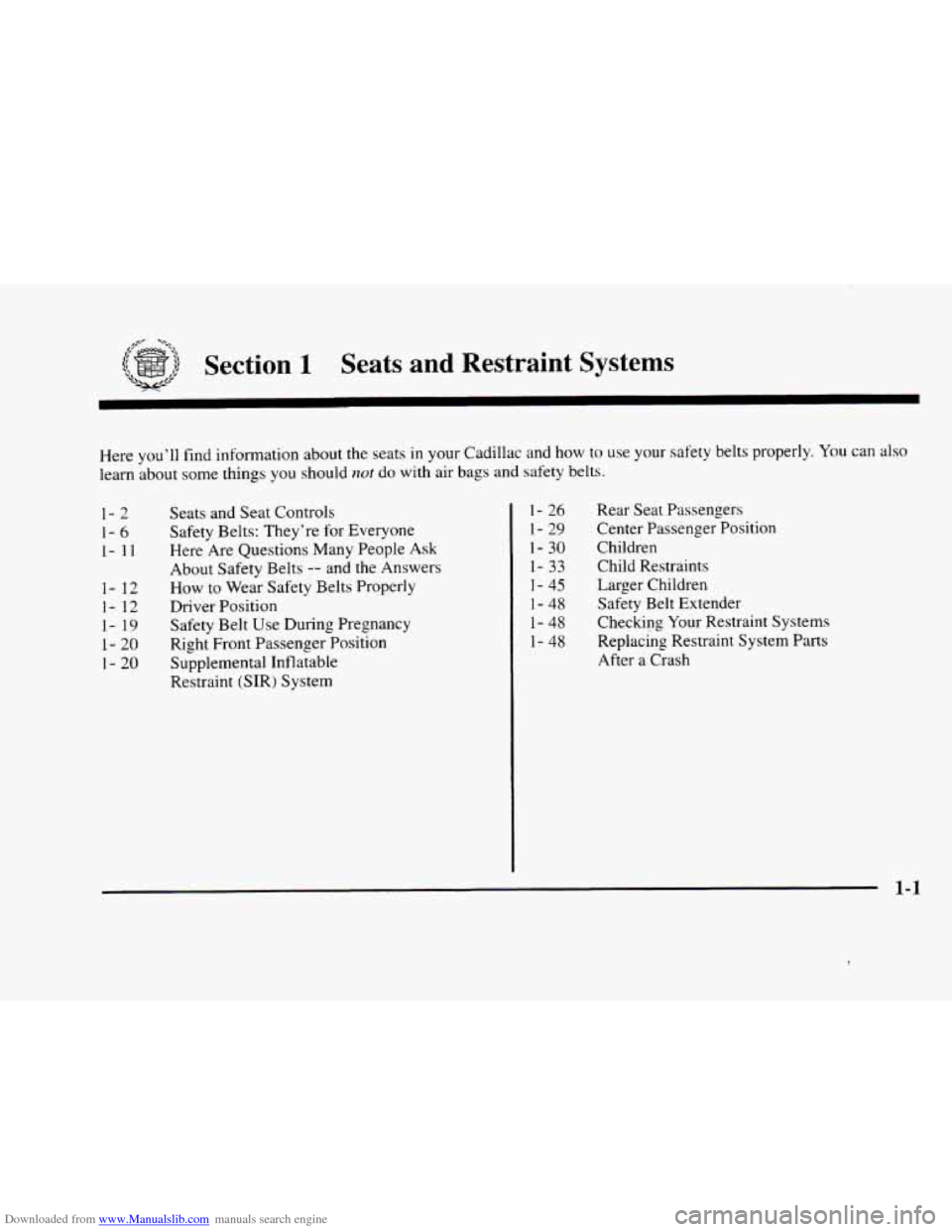

Downloaded from www.Manualslib.com manuals search engine Section 1 Seats and Restraint Systems
Here you’ll find information about the seats in your Cadillac and how to use your safety belts properly. You can also
learn about some things you should
not do with air bags and safety belts.
1- 2
1- 6
1- 11
1- 12
1- 12
1-
19
1- 20
1- 20
Seats and Seat Controls
Safety Belts: They’re for Everyone
Here Are Questions Many People Ask
About Safety Belts
-- and the Answers
How
to Wear Safety Belts Properly
Driver Position
Safety Belt Use During Pregnancy
Right Front Passenger Position
Supplemental Inflatable
Restraint
(SIR) System
1- 26
I- 29
I- 30
1- 33
1- 45
1- 48
1- 48
1- 48 Rear Seat
Passengers
Center Passenger Position
Children
Child Restraints
Larger Children
Safety Belt Extender
Checking Your Restraint Systems
Repiacing Restraint System Parts
After a Crash
1-1
Page 22 of 380

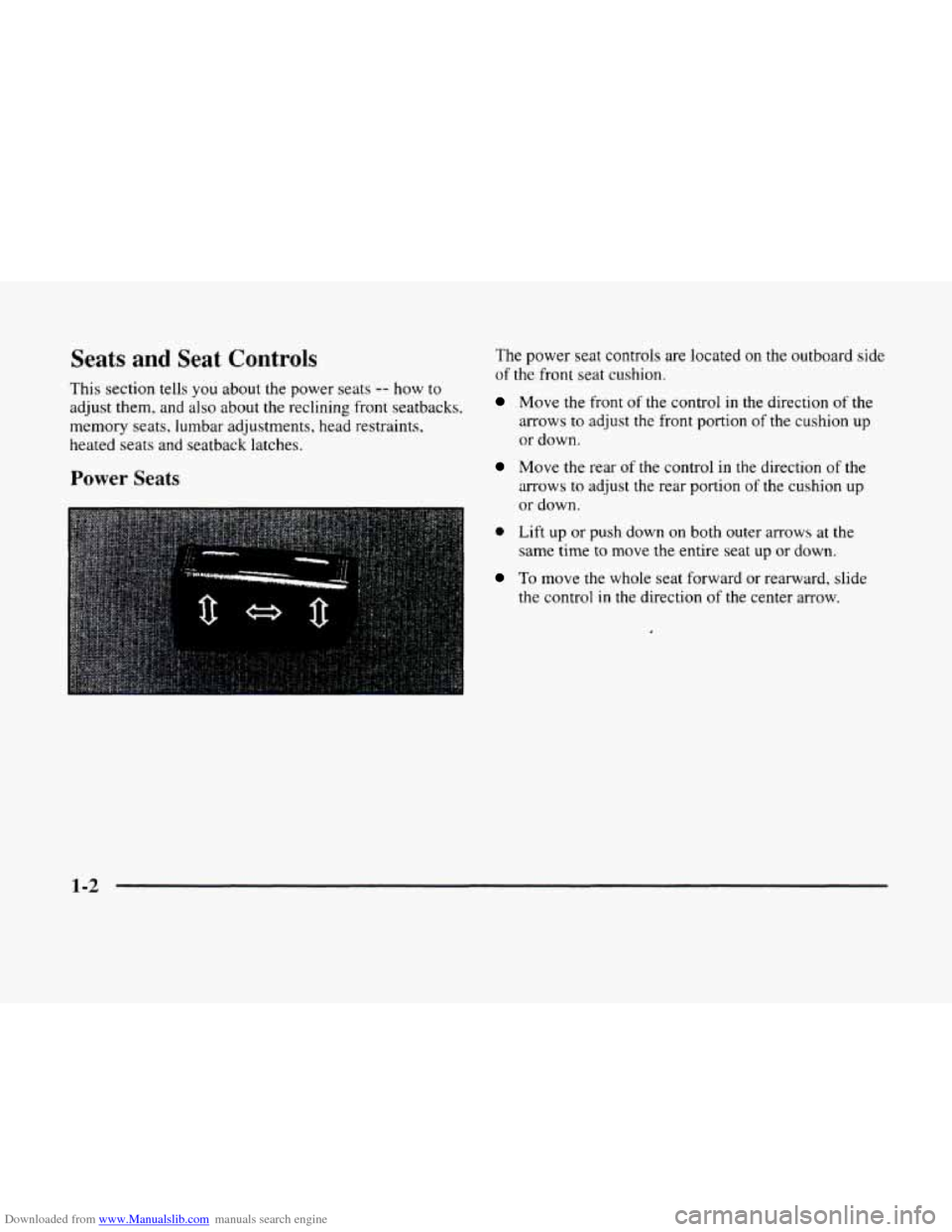

Downloaded from www.Manualslib.com manuals search engine Seats and Seat Controls
This section tells you about the power seats -- how to
adjust them, and also about the reclining front seatbacks.
memory seats, lumbar adjustments, head restraints,
heated seats and seatback latches.
Power Seats
The power seat controls are located on the outboard side
of the front seat cushion.
Move the front of the control in the direction of the
arrows to adjust the front portion of the cushion up
or down.
Move the rear of the control in the direction of the
arrows
to adjust the rear portion of the cushion up
or down.
0 Lift up or push down on both outer arrows at the
same time to
move the entire seat up or down.
To move the whole seat forward or rearward, slide
the control in the direction
of the center arrow.
1-2
Page 23 of 380

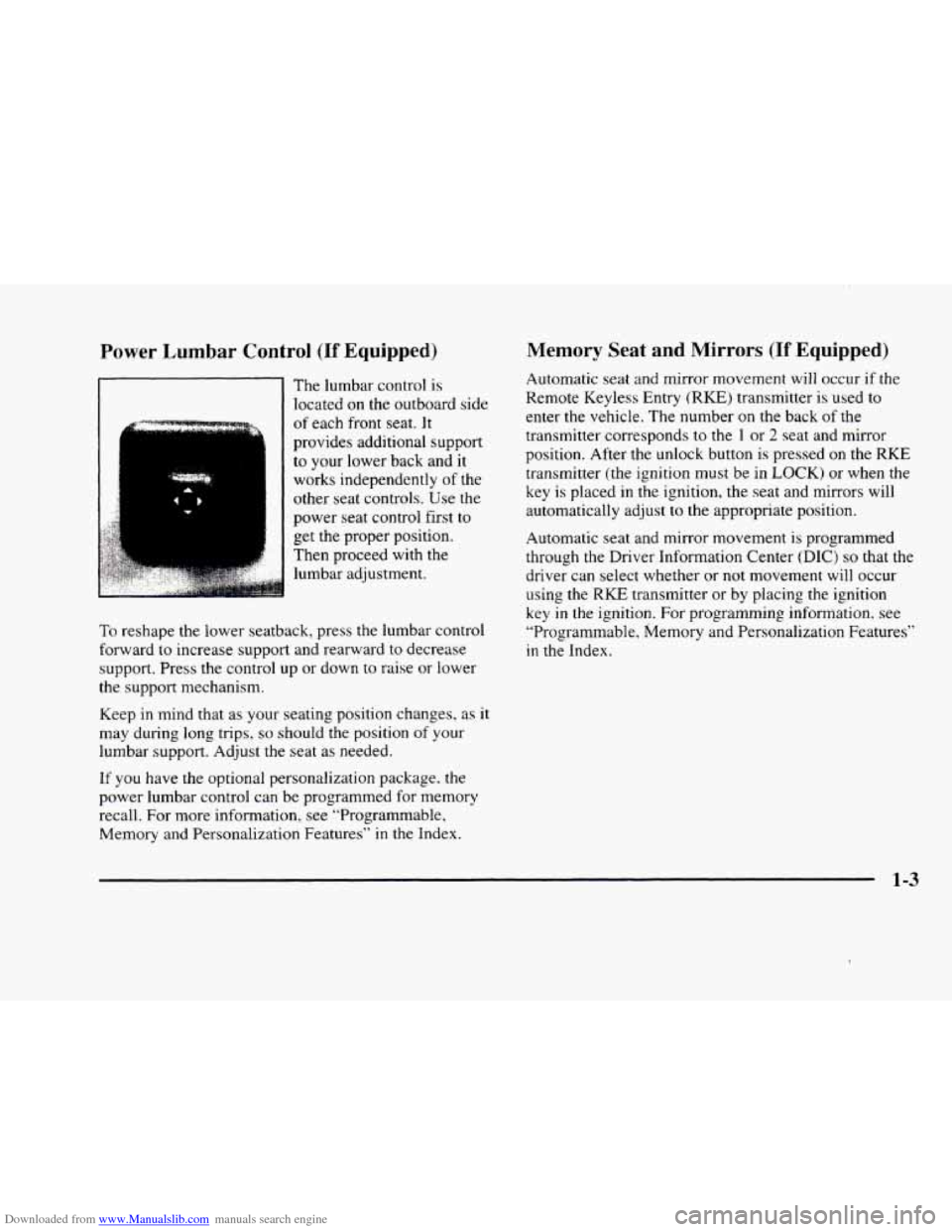

Downloaded from www.Manualslib.com manuals search engine Power Lumbar Control (If Equipped)
The lumbar control is
located
on the outboard side
I I
of each front seat. It
provides additional support
to your lower back and it
works independently
of the
other seat controls. Use the
power seat control first
to
get the proper position.
Then proceed with the
lumbar adjustment.
To reshape the lower seatback, press the lumbar control
forward to increase support and rearward to decrease
support. Press the control up or down
to raise or lower
the support mechanism.
Keep in mind that as your seating position changes,
as it
may during long trips,
so should the position of your
lumbar support. Adjust
the seat as needed.
If you have the optional personalization package, the
power lumbar control can be programmed for memory
recall. For more information. see “Programmable,
Memory and Personalization Features”
in the Index.
Memory Seat and Mirrors (If Equipped)
Automatic seat and mirror movement will occur if the
Remote Keyless Entry
(RKE) transmitter is used to
enter the vehicle. The number
on the back of the
transmitter corresponds to the
1 or 2 seat and mirror
position. After the unlock button is pressed on the
RKE
transmitter (the ignition must be in LOCK) or when the
key is placed in the ignition, the seat and mirrors will
automatically adjust
to the appropriate position.
Automatic seat and mirror movement
is programmed
through the Driver Information Center
(DIC) so that the
driver can select whether or not movement will occur
using the
RKE transmitter or by placing the ignition
key in the ignition. For programming information, see
“Pragrammable, Memory and Personalization Features”
in the Index.
1-3
Page 24 of 380

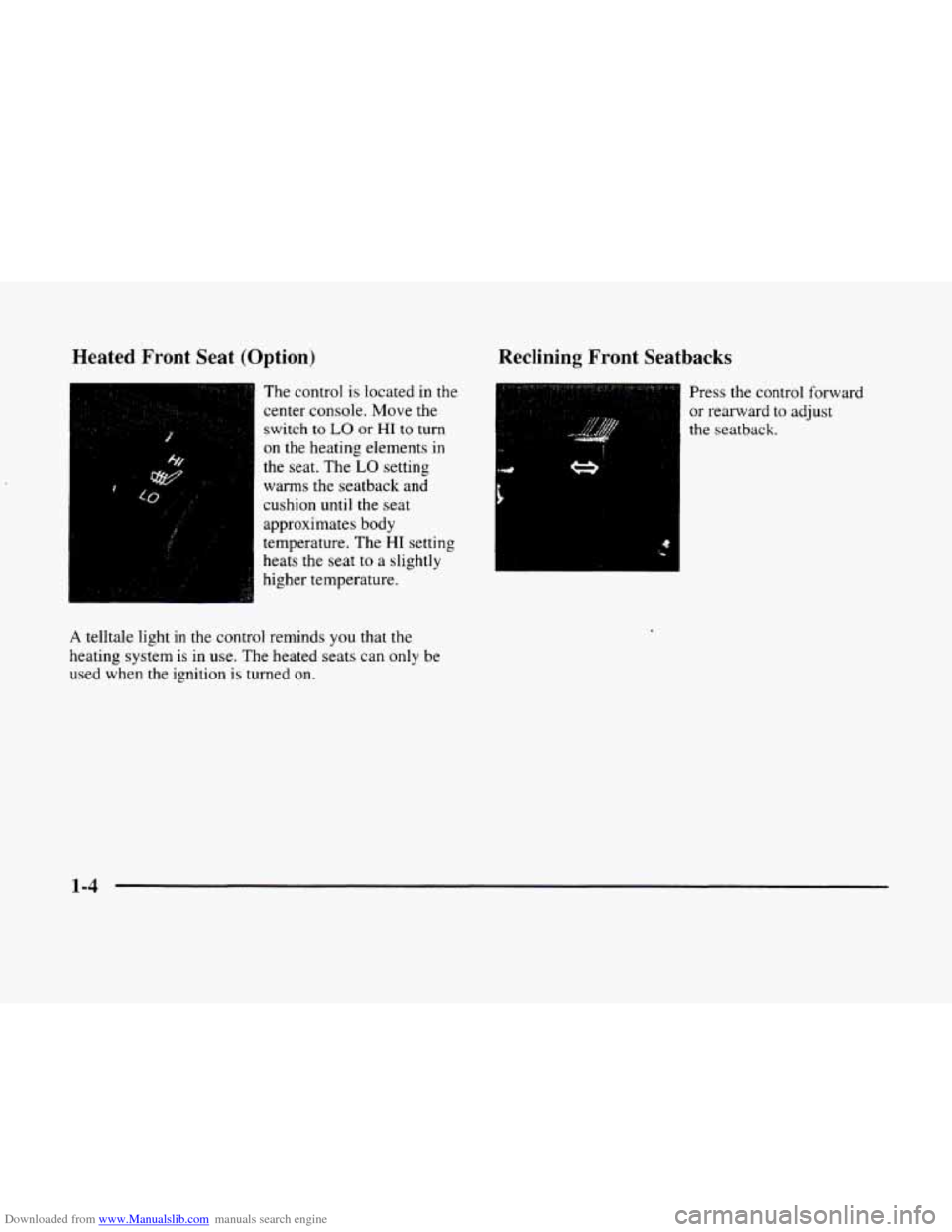

Downloaded from www.Manualslib.com manuals search engine Heated Front Seat (Option)
The control is located in the
center console. Move the
switch to
LO or HI to turn
on the heating elements in
the seat. The
LO setting
warms the seatback and
cushion until the seat
approximates body
temperature.
The HI setting
heats the seat to
a slightly
higher temperature.
A telltale light in the control reminds you that the
heating system is in use. The heated seats can only be
used when the ignition
is turned on.
Reclining Front Seatbacks
Press the control forward
or rearward
to adjust
the seatback.
1-4
Page 25 of 380
Downloaded from www.Manualslib.com manuals search engine L

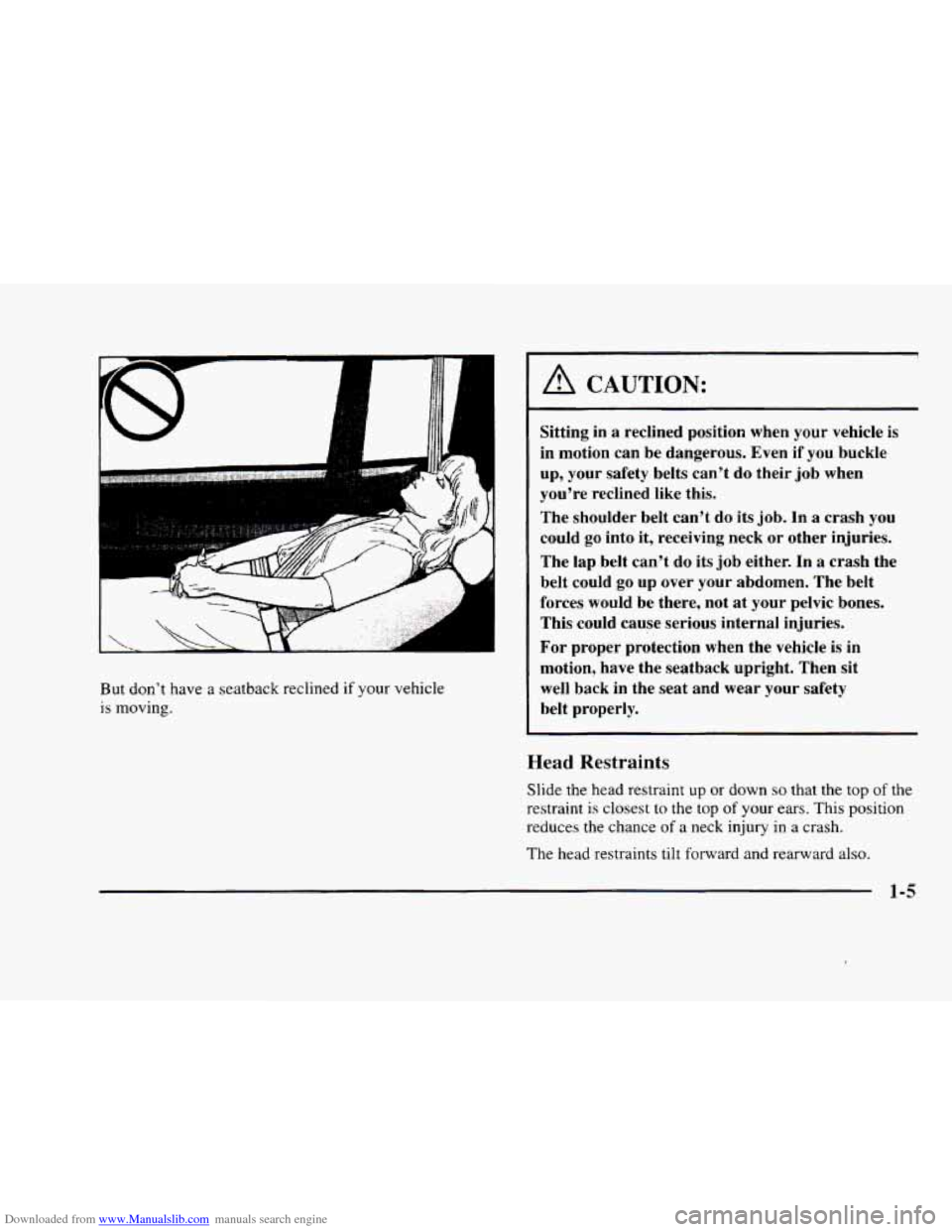

But don’t have a seatback reclined if your vehicle
is moving.
A CAUTION:
Sitting in a reclined position when your vehicle is
in motion can be dangerous. Even if you buckle
up, your safety belts can’t do their job when
you’re reclined like this.
The shoulder belt can’t do
its job. In a crash you
could
go into it, receiving neck or other injuries.
The lap belt can’t do its job either. In
a crash the
belt could
go up over your abdomen. The belt
forces would be there, not at your pelvic bones.
This could cause serious internal injuries.
For proper protection when the vehicle is in
motion, have the seatback upright. Then sit
, well back in the seat and wear your safety
~ belt properly.
Head Restraints
Slide the head restraint up or down so that the top of the
restraint
is closest to the top of your ears. This position
reduces the chance
of a neck injury in a crash.
The head restraints tilt forward and rearward also.
1 -5
Page 26 of 380

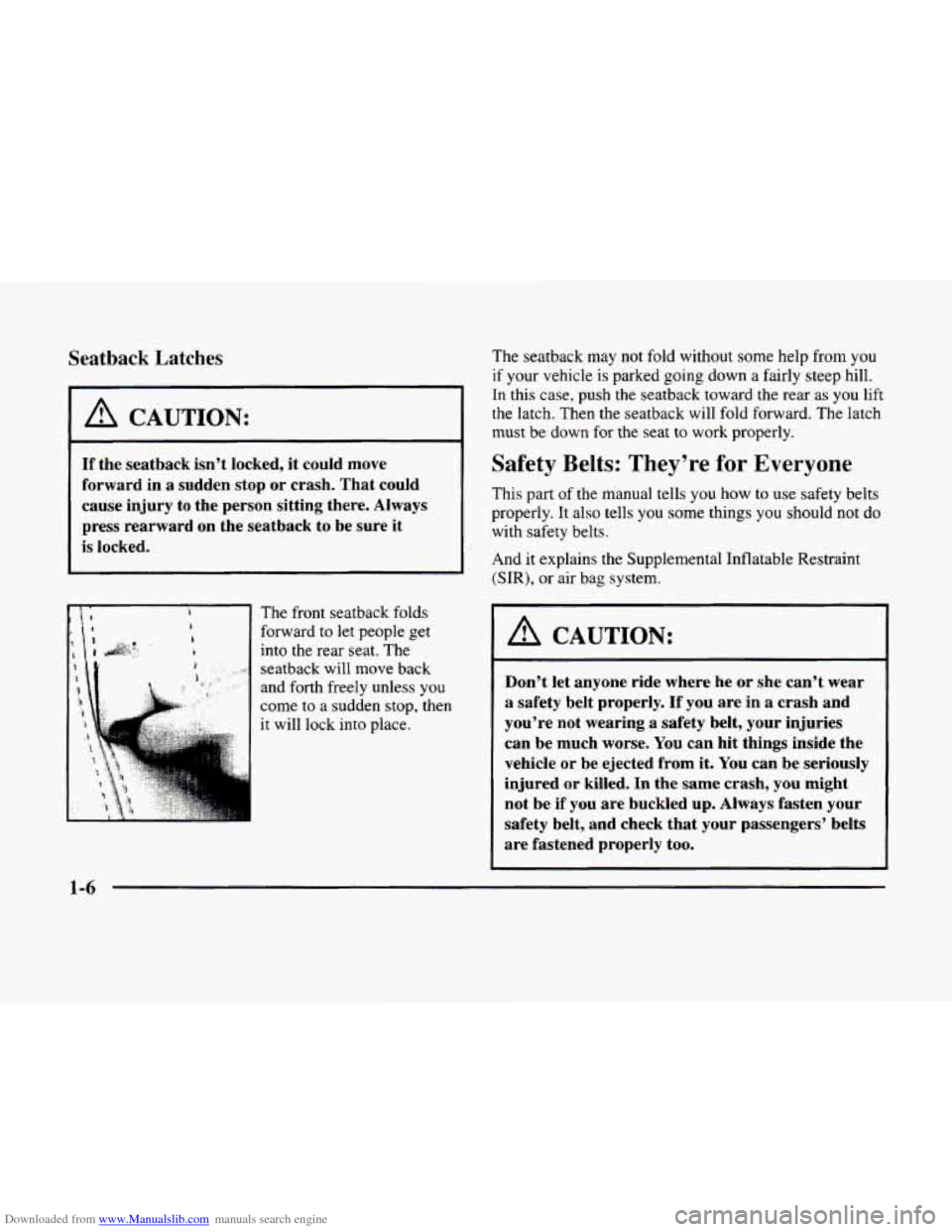

Downloaded from www.Manualslib.com manuals search engine Seatback Latches
I A CAUTION:
If the seatback isn’t locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
press rearward on the seatback to be sure it
is locked.
The front seatback folds
forward to
let people get
into the rear seat. The
seatback will move back
and forth freely unless you
come to a sudden stop, then
it will lock into place. The
seatback may not fold without some help from
you
if your vehicle is parked going down a fairly steep hill.
In this case, push the seatback toward the rear as you lift
the latch. Then the seatback will fold forward. The latch
must be
down for the seat to work properly.
Safety Belts: They’re for Everyone
This part of the manual tells you how to use safety belts
properly. It also tells you some things
you should not do
with safety belts.
And it explains the Supplemental Inflatable Restraint
(SIR), or air bag system.
A CAUTION:
Don’t let anyone ride where he or she can’t wear
a safety belt properly.
If you are in a crash and
you’re not wearing a safety belt, your injuries
can be much worse.
You can hit things inside the
vehicle
or be ejected from it. You can be seriously
injured
or killed. In the same crash, you might
not be
if you are buckled up. Always fasten your
safety belt, and check that your passengers’ belts
are fastened properly too.
1-6
Page 27 of 380

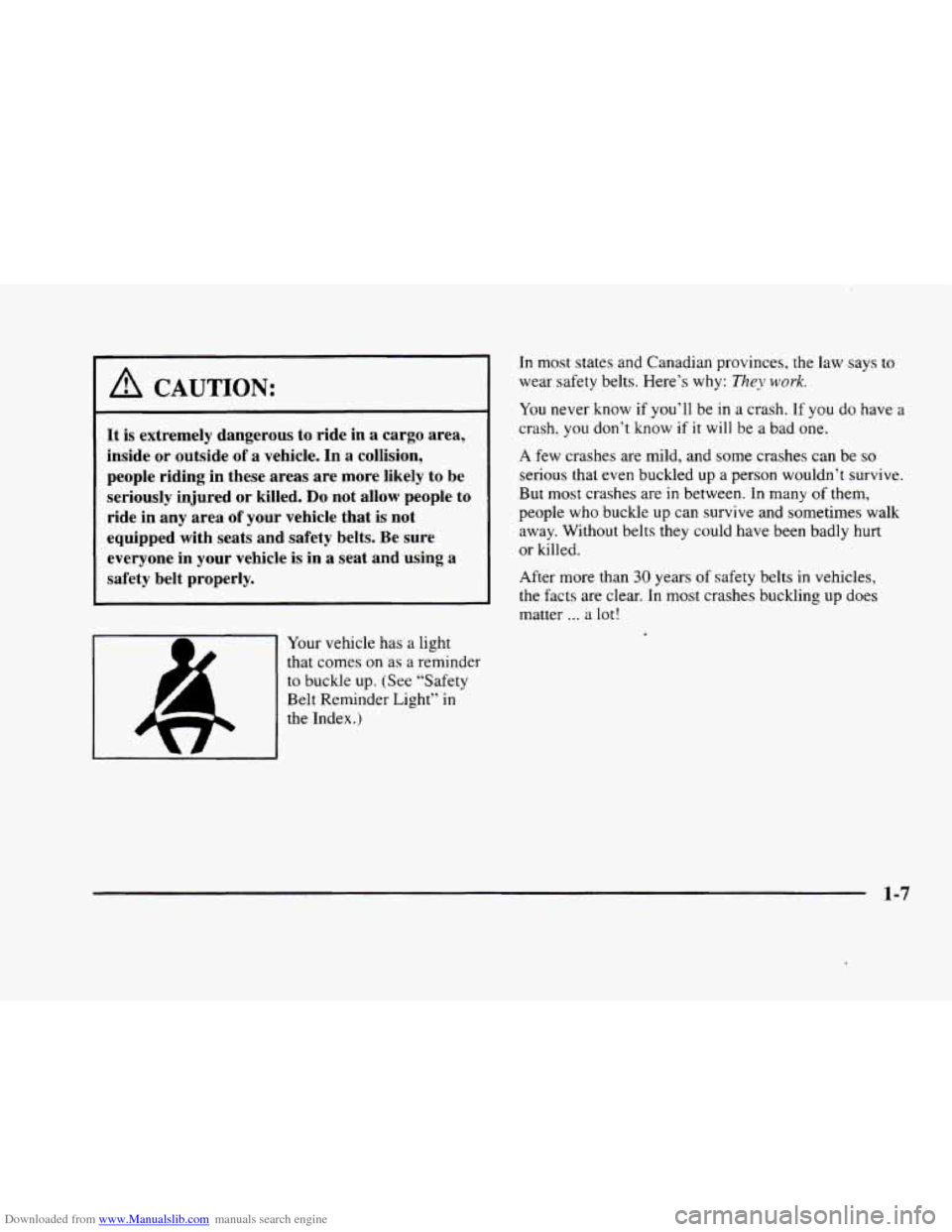

Downloaded from www.Manualslib.com manuals search engine A CAUTION:
It is extremely dangerous to ride in a cargo area,
inside
or outside of a vehicle. In a collision,
people riding in these areas are more likely to be
seriously injured or killed.
Do not allow people to
ride in any area of your vehicle that is not
equipped with seats and safety belts. Be sure
everyone in your vehicle
is in a seat and using a
safety belt properly.
Your vehicle has a light
that comes on as a reminder
to buckle up. (See “Safety
Belt Reminder Light”
in
the Index.) In
most states and Canadian provinces, the law says
to
wear safety belts. Here’s why: They work.
You never know if you’ll be in a crash. If you do have a
crash, you don’t know
if it will be a bad one.
A few crashes are mild, and some crashes can be so
serious that even buckled up a person wouldn’t survive.
But most crashes are
in between. In many of them,
people who buckle up can survive and sometimes walk
away. Without belts they could have been badly hurt
or killed.
After more than
30 years of safety belts in vehicles,
the facts are clear. In most crashes buckling up does
matter
... a lot!
1-7
Page 28 of 380

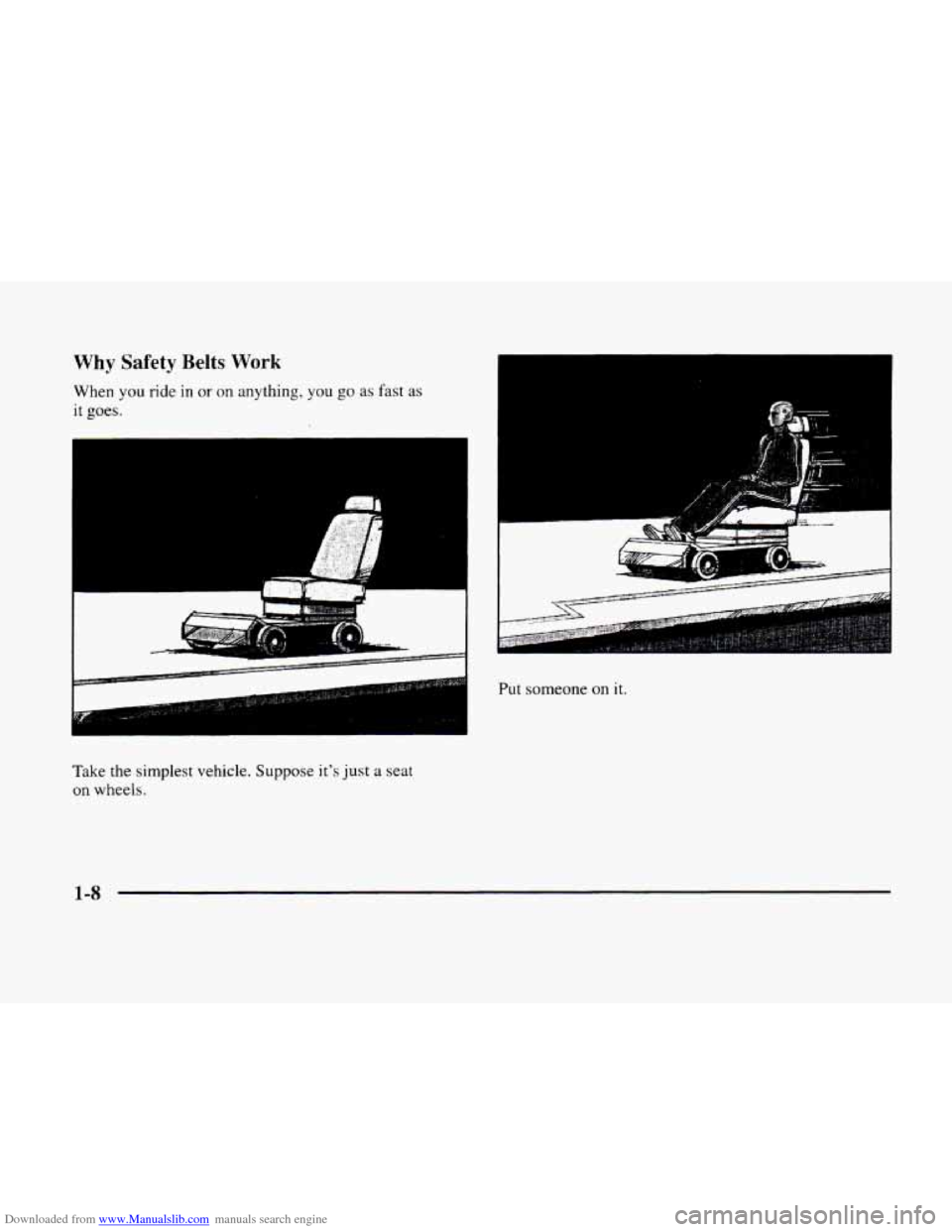

Downloaded from www.Manualslib.com manuals search engine Why Safety Belts Work
When you ride in or on anything, you go as fast as
it goes.
i
k-
Take the simplest vehicle. Suppose it's just a seat
on wheels.
Put someone on it.
I
1-8
Page 29 of 380

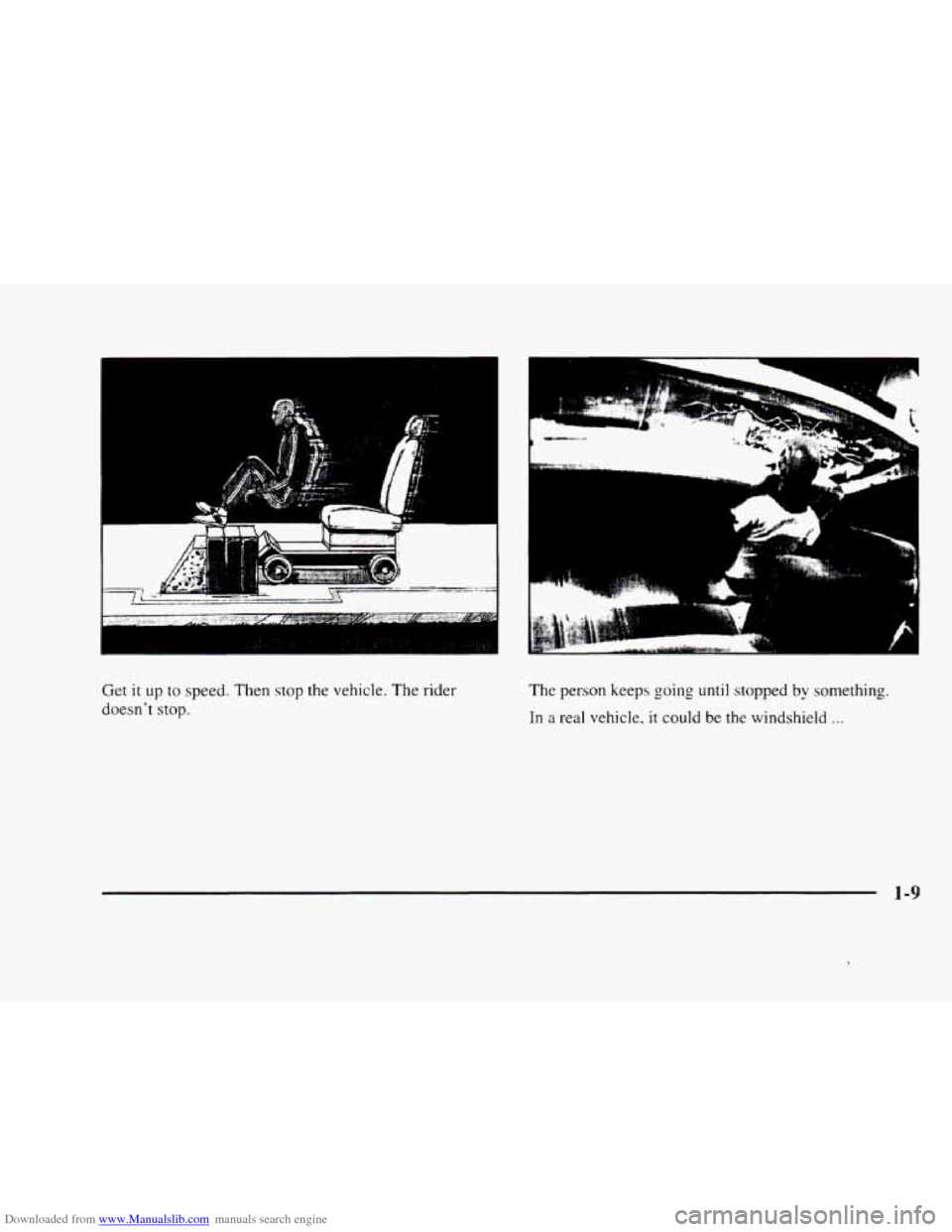

Downloaded from www.Manualslib.com manuals search engine Get it up to speed. Then stop the vehicle. The rider
doesn't stop.
.;::;-*
The person keeps going until stopped by something.
In
a real vehicle, it could be the windshield ...
1-9
Page 30 of 380

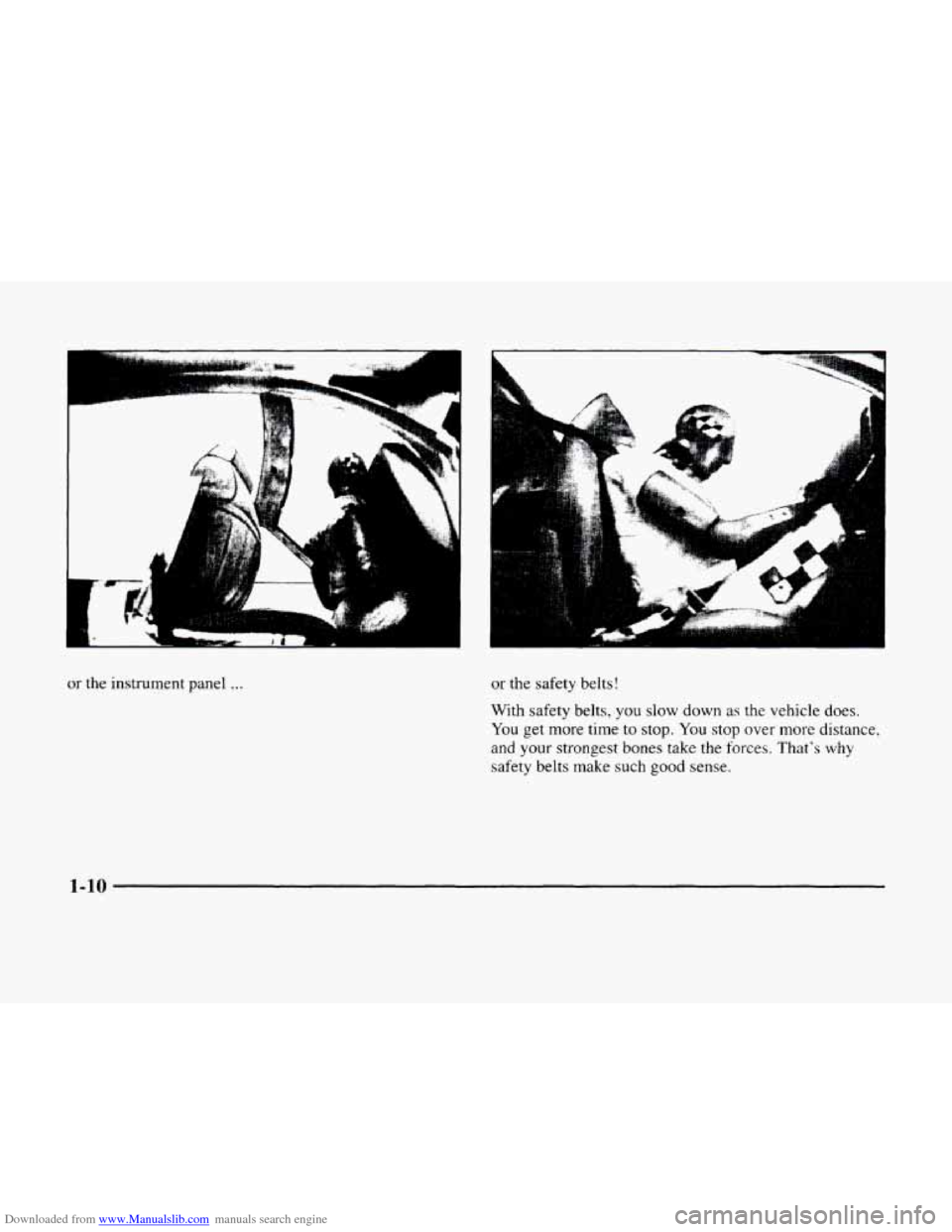

Downloaded from www.Manualslib.com manuals search engine or the instrument panel ... or the safety belts!
With safety belts,
you slow down as the vehicle does.
You get more time to stop. You stop over more distance,
and
your strongest bones take the forces. That's why
safety belts make
such good sense.
1-10
