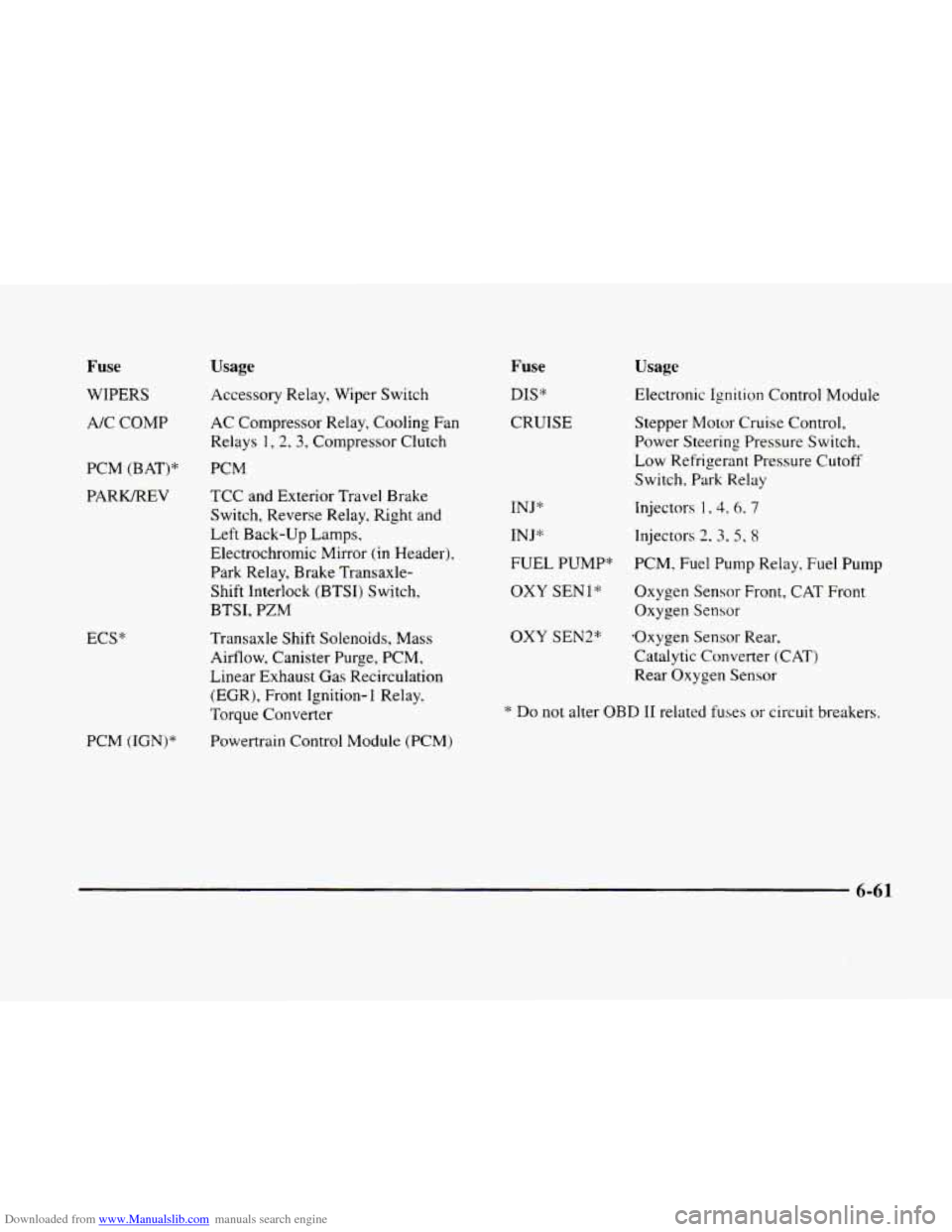

Downloaded from www.Manualslib.com manuals search engine Fuse
WIPERS A/C COMP
PCM
(BAT)*
PARWREV
ECS*
PCM (IGN)*
Usage
Accessory Relay, Wiper Switch
AC Compressor Relay, Cooling Fan
Relays
I, 2.3, Compressor Clutch
PCM
TCC and Exterior Travel Brake
Switch, Reverse Relay, Right and
Left Back-up Lamps,
Electrochromic Mirror
(in Header).
Park Relay, Brake Transaxle- Shift Interlock (BTSI) Switch,
BTSI, PZM
Transaxle Shift Solenoids, Mass
Aifflow, Canister Purge, PCM,
Linear Exhaust Gas Recirculation
(EGR), Front Ignition-
1 Relay,
Torque Converter
Powertrain Control
Module (PCM)
Fuse
DIS *
CRUISE
INJ*
INJ*
Usage
Electronic Ignition Control Module
Stepper Motor Cruise Control,
Power Steering Pressure Switch,
Low Refrigerant Pressure Cutoff
Switch, Park
Relay
Injectors 1,4. 6, 7
Injectors 2. 3. 5, 8
FUEL PUMP* PCM, Fuel Pump Relay, Fuel Pump
OXY SEN1 * Oxygen Sensor Front, CAT Front
Oxygen Sensor
OXY SEN2* *Oxygen Sensor Rear.
Catalytic Converter (CAT)
Rear Oxygen Sensor
* Do not alter OBD I1 related fuses or circuit breakers.
6-61
Page 342 of 380

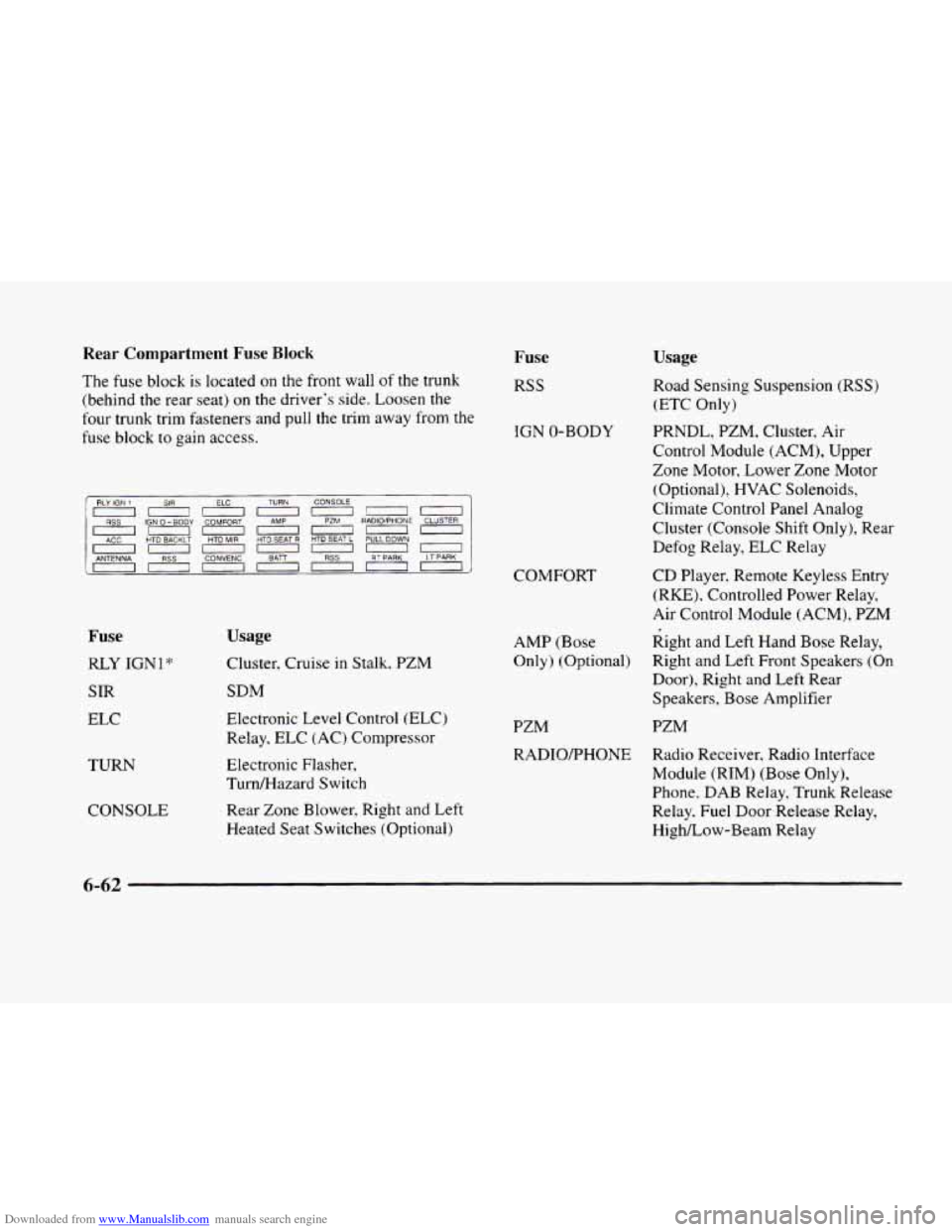

Downloaded from www.Manualslib.com manuals search engine Rear Compartment Fuse Block
The fuse block is located on the front wall of the trunk
(behind the rear seat) on the driver’s side. Loosen the
four trunk trim fasteners and pull the trim away from the
fuse block
to gain access.
Fuse
RSS
IGN 0-BODY
1 RLY ~~~ IGN 1 SIR ELC TU:: CO:;: n~nn~n~
0~~0~0~
0~~~00~
IGN 0-BODY COMFORT
HTO BACKLT HTD MIR HTD SEAT R HTD SEAT L PULL DOWN
ANTENNA , , RSS , lCONVENCl , BAn I I RSS , , RT PARK I I LT PPRK ,
RADIO’PHONE CLJSTER
Fuse
RLY IGNl*
SIR
ELC
TURN
CONSOLE
Usage
Cluster, Cruise in Stalk, PZM
SDM
Electronic Level Control (ELC)
Relay, ELC (AC) Compressor
Electronic Flasher,
Turn/Hazard Switch
Rear Zone Blower, Right and Left
Heated Seat Switches (Optional)
Usage
Road Sensing Suspension (RSS)
(ETC Only)
PRNDL, PZM, Cluster, Air
Control Module (ACM), Upper
Zone Motor, Lower Zone Motor
(Optional),
HVAC Solenoids,
Climate Control Panel Analog
Cluster (Console Shift Only), Rear
Defog Relay, ELC Relay
COMFORT CD
Player, Remote Keyless Entry
(RE), Controlled Power Relay,
Air Control Module (ACM),
PZM
AMP (Bose Right and
Left Hand Bose Relay,
Only) (Optional) Right and
Left Front Speakers (On
Door), Right and
Left Rear
Speakers, Bose Amplifier
PZM PZM
RADIOmHONE Radio Receiver, Radio Interface
Module
(RIM) (Bose Only),
Phone.
DAB Relay, Trunk Release
Relay. Fuel Door Release Relay,
HighLow-Beam Relay
6-62
Page 343 of 380

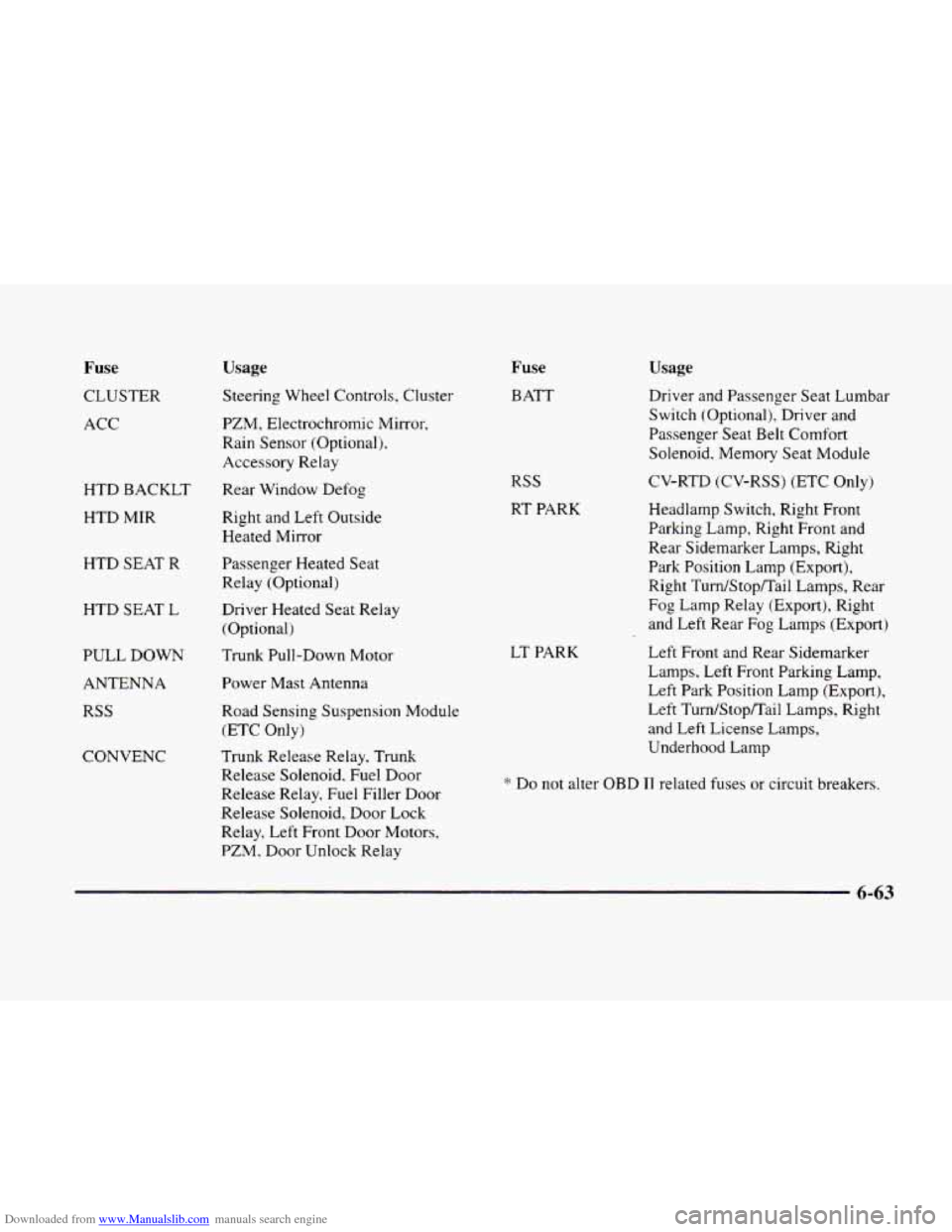

Downloaded from www.Manualslib.com manuals search engine Fuse
CLUSTER ACC
Usage
Steering Wheel Controls, Cluster
PZM, Electrochromic Mirror,
Rain Sensor (Optional
j.
Accessory Relay
HTD BACKLT Rear Window Defog
HTD MIR
HTD SEAT
R
HTD SEAT'L
PULL DOWN
ANTENNA
RSS
CONVENC Right
and Left Outside
Heated Mirror
Passenger Heated Seat
Relay (Optional)
Driver Heated Seat Relay
(Optional)
Trunk Pull-Down Motor
Power Mast Antenna
Road Sensing Suspension Module
(ETC Only)
Trunk Release Relay. Trunk
Release Solenoid,
Fuel Door
Release Relay. Fuel Filler Door
Release Solenoid, Door Lock
Relay, Left Front Door Motors,
PZM, Door Unlock Relay
Fuse
BATT
RSS
RT PARK
LT PARK
Usage
Driver and Passenger Seat Lumbar
Switch (Optional
jl. Driver and
Passenger Seat Belt Comfort
Solenoid, Memory Seat Module
CV-RTD (CV-RSS) (ETC Only)
Headlamp Switch, Right Front
Parking Lamp, Right Front and
Rear Sidemarker Lamps, Right
Park Position Lamp
(Export),
Right Turn/Stop/TTail Lamps, Rear
Fog Lamp Relay (Export), Right
and Left Rear Fog Lamps (Export)
Left Front and Rear Sidemarker
Lamps, Left Front Parking Lamp,
Left Park Position Lamp (Export),
Left Turn/Stopi'"ail Lamps, Right
and Left License Lamps,
Underhood
Lamp
* Do not alter OBD I1 related fuses or circuit breakers.
6-63
Page 344 of 380
Downloaded from www.Manualslib.com manuals search engine Replacement Bulbs
Application Number
Headlamps Composite Inner High Beam
....................... 9005
Outer Low Beam ....................... 9006
Front Turn Signal ..................... 2357 NA
Center High-Mounted Stoplamp (CHMSL) ... 1156
Rear Turn Signal and Taillamp ............. 2057
Capacities and Specifications
Displacement ......... 279 cubic inches (4 565 cc)
Engine Specifications
Type .......................... 4.6L DOHC V8
Eldorado ............................... Y
ETC .................................. 9
VIN Engine Code
Horsepower Eldorado
.............. 275 (bhp) @ 5600 rpm
ETC ................. 300 (bhp) @ 6000 rpm
205 (kWj @ 5600 rprn
224 (kWj @ 6000 rpm Torque
Eldorado
............. 300 (lb-ft) @ 4000 rpm
ETC ................ 295 (lb-ft) @ 4400 rpm
Firing Order
................... 1-2-7-3-4-5-6-8
407
(N-m)
@ 4000 rpm
400 (N-m) @ 4400 rpm
Thermostat Starts
To Open . . 177-184°F (81-85°C)
Capacities
Crankcase (Engine Oil
Transaxle (4T80-E) .......... 15 quarts (14.2 Lj
with Filter Change) ........... 7.5 quarts (7.1 L)
Engine Cooling System
........ 12.5 quarts ( 1 1.8 L)
R- 134a Refrigerant .............. 2 lbs. (0.91 kg)
Wheel Base
............... 108 inches (274.3 cm)
Length
................. 200.2 inches (508.6 cm)
Height
................... 53.6 inches ( 136.2 cm)
Fuel Tank
....... : ........... 20 gallons
(75.7 L)
Vehicle Dimensions
Width ................... 75.5 inches (191.8 cmj
Front Tread
............... 60.9 inches (154.7 cm)
6-64
Page 345 of 380
Downloaded from www.Manualslib.com manuals search engine Rear Tread ........................ 60.9 inches
(154.7 cm)
Wheel Nut Torque ................... 100 lb-ft
(140 N-m)
Air Conditioning Refrigerants
Not all air conditioning refrigerants are the same.
If the air conditioning system in your vehicle needs
refrigerant, be sure the proper refrigerant is used.
If
you’re not sure, ask your dealer.
Normal Maintenance
Replacement Parts
Air Filter Element ............. AC Type A 1096C
Fuel Filter Element
............ AC Type GF-580
Engine Oil Filter ................ AC Type PF-58
PCV Valve .................. AC Type CV-774C
Spark Plugs
................... AC Type 41 -900
Thermostat .................... AC Type 13 1-66
Windshield Wiper Blade (Pin Type)
................ .22 inches (56.5 ern)
6-65
Page 346 of 380
Downloaded from www.Manualslib.com manuals search engine 6-66
Page 347 of 380
Downloaded from www.Manualslib.com manuals search engine ,/= --. .

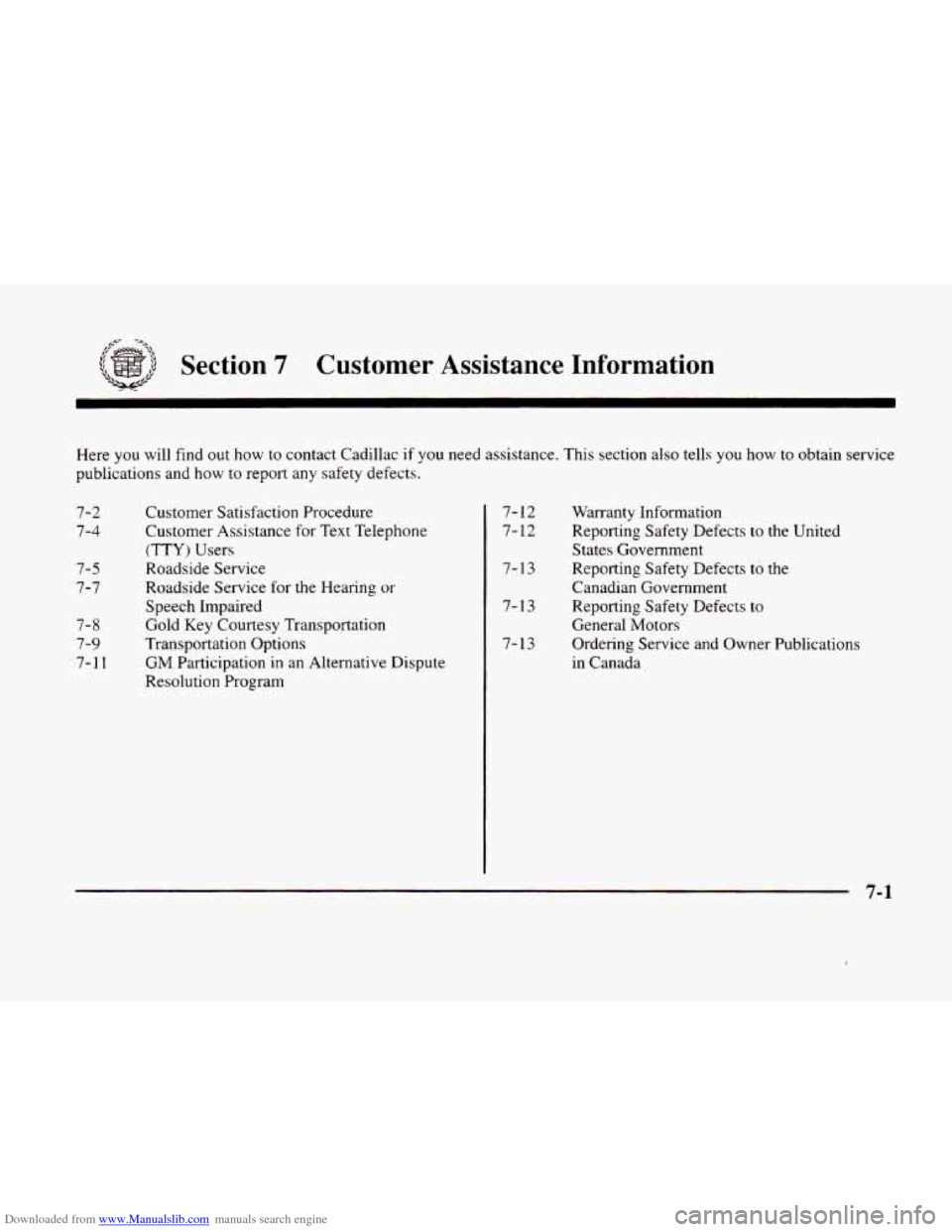

Section 7 Customer Assistance Information
Here you will find out how to contact Cadillac if you need assistance. This section also tells you how to obtain service
publications and how
to report any safety defects.
7-2
7-4
7-5
7-7
7-8
7-9
7-1 1
Customer Satisfaction Procedure
Customer Assistance
for Text Telephone
(TTY) Users
Roadside Service
Roadside Service for the Hearing or
Speech Impaired
Gold Key Courtesy Transportation
Transportation Options
GM Participation in an Alternative Dispute
Resolution Program
7-12
7- 12
7-13
7-13
7-13 Warranty Information
Reporting Safety Defects to
the United
States Government
Reporting Safety Defects to the
Canadian Government
Reporting Safety Defects
to
General Motors
Ordering Service and Owner Publications
in Canada
7-1
Page 348 of 380
Downloaded from www.Manualslib.com manuals search engine Customer Satisfaction Procedure Cadillac dealers have the facilities, trained technicians
and up-to-date information
to promptly address any
concerns
you may have. However, if a concern has not
been resolved to your complete satisfaction, take the
following steps:
STEP ONE -- Discuss your concern with a member
of dealership management. Normally, concerns can
be quickly resolved at that level.
If the matter has
already been reviewed with the sales, service or parts
manager, contact
the owner of the dealership or the
general manager.
. .---
t
t
I
7-2
Page 349 of 380

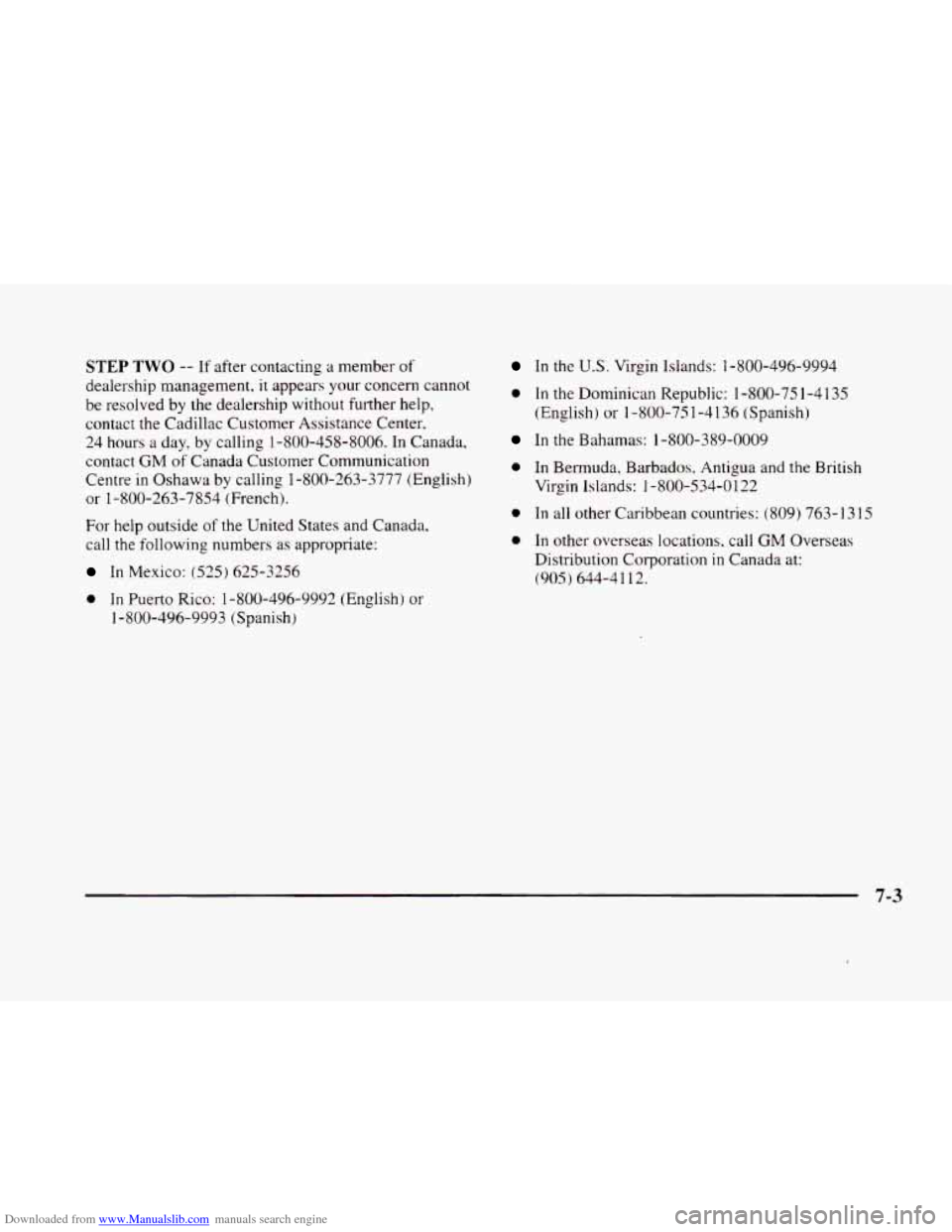

Downloaded from www.Manualslib.com manuals search engine STEP TWO -- If after contacting a member of
dealership management. it appears your concern cannot
be resolved
by the dealership without further help,
contact the Cadillac Customer Assistance Center.
24 hours a day, by calling 1-800-458-8006. In Canada,
contact
GM of Canada Customer Communication
Centre in Oshawa
by calling 1-800-263-3777 (English)
or 1-800-263-7854 (French).
For help outside of the United States and Canada,
call the following numbers
as appropriate:
In Mexico: (525) 625-3256
a In Puerto Rico: 1-800-496-9992 (English) or
1-800-496-9993 (Spanish)
In the U.S. Virgin Islands: 1-800-496-9994
0 In the Dominican Republic: 1-800-75 1-41 35
(English) or 1-800-75 1-4 136 (Spanish)
In the Bahamas: 1-800-389-0009
0 In Bermuda, Barbados, Antigua and the British
Virgin Islands: 1-800-534-01 22
0 In all other Caribbean countries: (809) 763- 13 15
0 In other overseas locations, call GM Overseas
Distribution Corporation in Canada at:
(905 ) 644-4 1 1 2.
7-3
Page 350 of 380

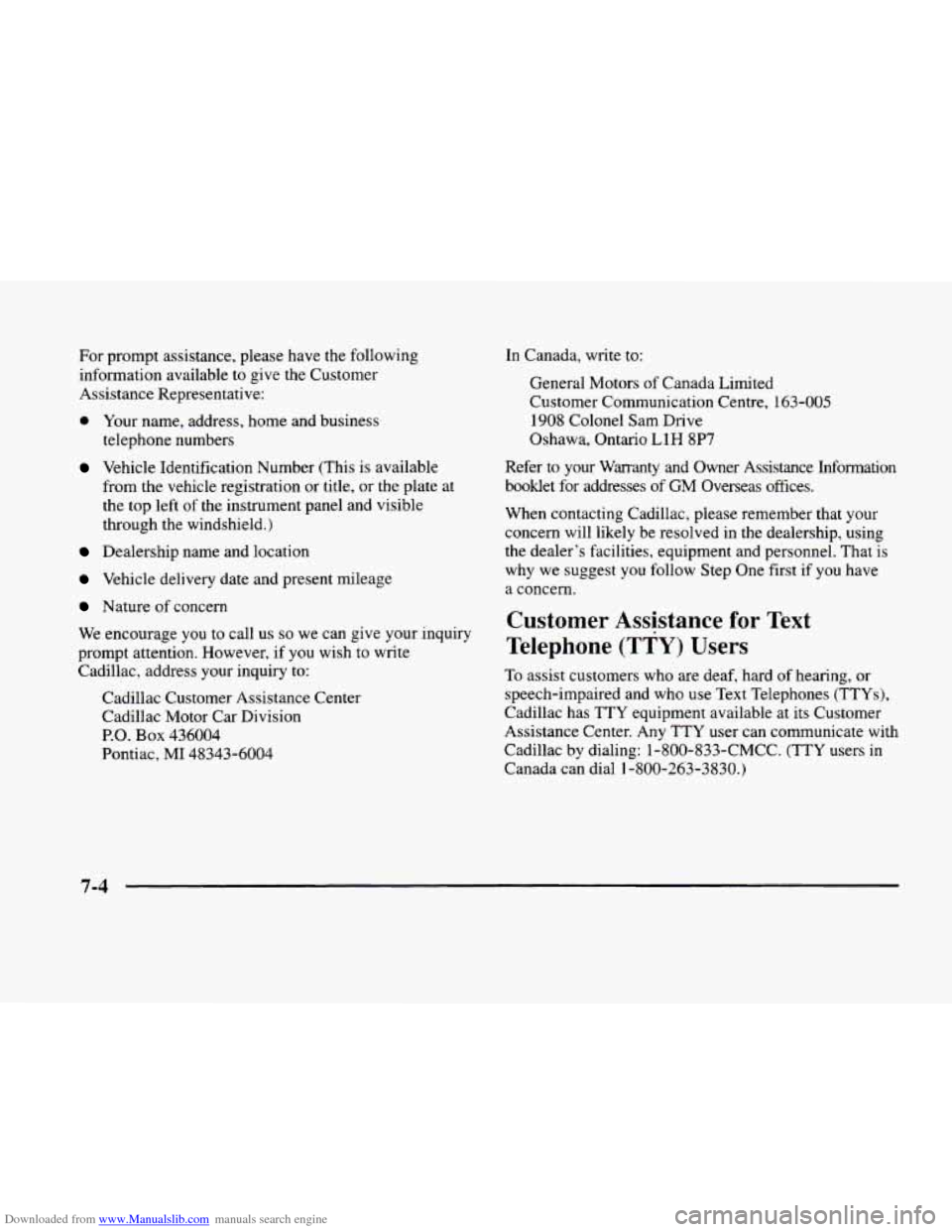

Downloaded from www.Manualslib.com manuals search engine For prompt assistance, please have the following
information available to give the Customer
Assistance Representative:
0 Your name, address, home and business
telephone numbers
Vehicle Identification Number (This is available
from the vehicle registration or title,
or the plate at
the top left of the instrument panel and visible
through the windshield.)
Dealership name and location
Vehicle delivery date and present mileage
Nature of concern
We encourage you to call us
so we can give your inquiry
prompt attention. However, if you wish
to write
Cadillac, address your inquiry to:
Cadillac Customer Assistance Center
Cadillac Motor Car Division
P.O. Box 436004
Pontiac,
MI 48343-6004 In
Canada, write to:
General Motors of Canada Limited
Customer Communication Centre, 163-005
1908 Colonel Sam Drive
Oshawa, Ontario
L1H 8P7
Refer to your Warranty and Owner Assistance Information
booklet for addresses
of GM Overseas offices.
When contacting Cadillac, please remember that your
concern will likely be resolved in the dealership, using
the dealer’s facilities, equipment and personnel. That is
why we suggest you follow Step One first if you have
a concern.
Customer Assistance for Text
Telephone
(TTY) Users
To assist customers who are deaf, hard of hearing, or
speech-impaired and who use Text Telephones (TTYs),
Cadillac has TTY equipment available at its Customer
Assistance Center.
Any TTY user can communicate with
Cadillac by dialing: 1-800-833-CMCC. (TTY users
in
Canada can dial 1-800-263-3830.)
7-4
