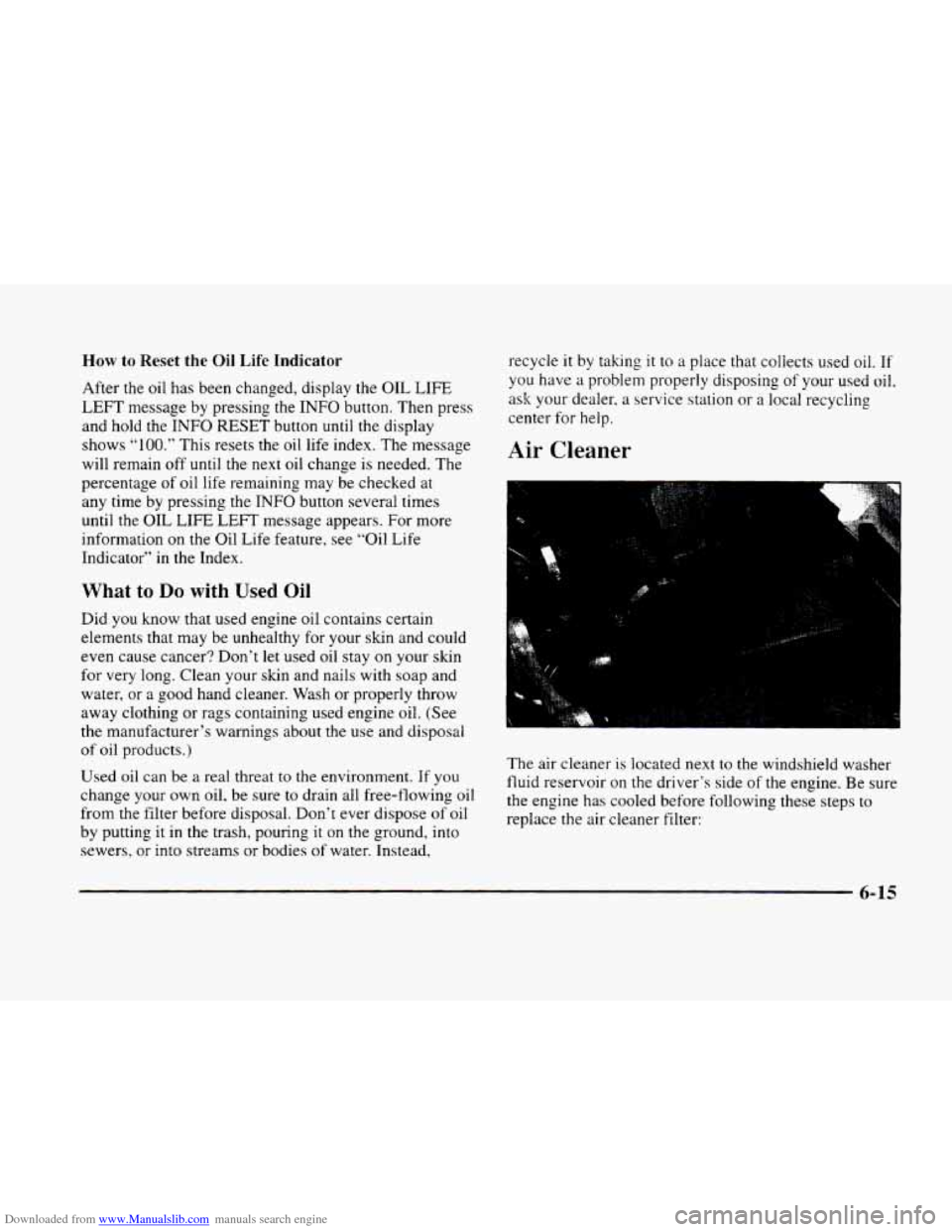

Downloaded from www.Manualslib.com manuals search engine How to Reset the Oil Life Indicator
After the oil has been changed, display the OIL LIFE
LEFT message by pressing the INFO button. Then press
and hold the INFO
RESET button until the display
shows
“100.” This resets the oil life index. The message
will remain off until the next oil change is needed. The
percentage of oil life remaining may be checked at
any time by pressing
the INFO button several times
until the
OIL LIFE LEFT message appears. For more
information on the Oil Life feature, see “Oil Life
Indicator”
in the Index.
What to Do with Used Oil
Did you know that used engine oil contains certain
elements that may be unhealthy for your skin and could
even cause cancer? Don‘t let used oil stay on your
skin
for very long. Clean your skin and nails with soap and
water, or
a good hand cleaner. Wash or properly throw
away clothing or rags containing used engine
oil. (See
the manufacturer’s warnings about the use and disposal
of oil products.)
Used oil can be a real threat to the environment. If you
change your own oil, be sure
to drain all free-flowing oil
from the filter before disposal. Don’t ever dispose of oiI
by putting it in the trash, pouring it on the ground, into
sewers, or into streams or bodies
of water. Instead, recycle
it by taking
it to a place that collects used oil. If
you have a problem properly disposing of your used oil.
ask your dealer,
a service station or a local recycling
center for help.
Air Cleaner
The air cleaner is located next to the windshield washer
fluid reservoir on the driver’s side
of the engine. Be sure
the engine has cooled before following these steps to
replace
the air cleaner filter:
6-15
Page 297 of 380

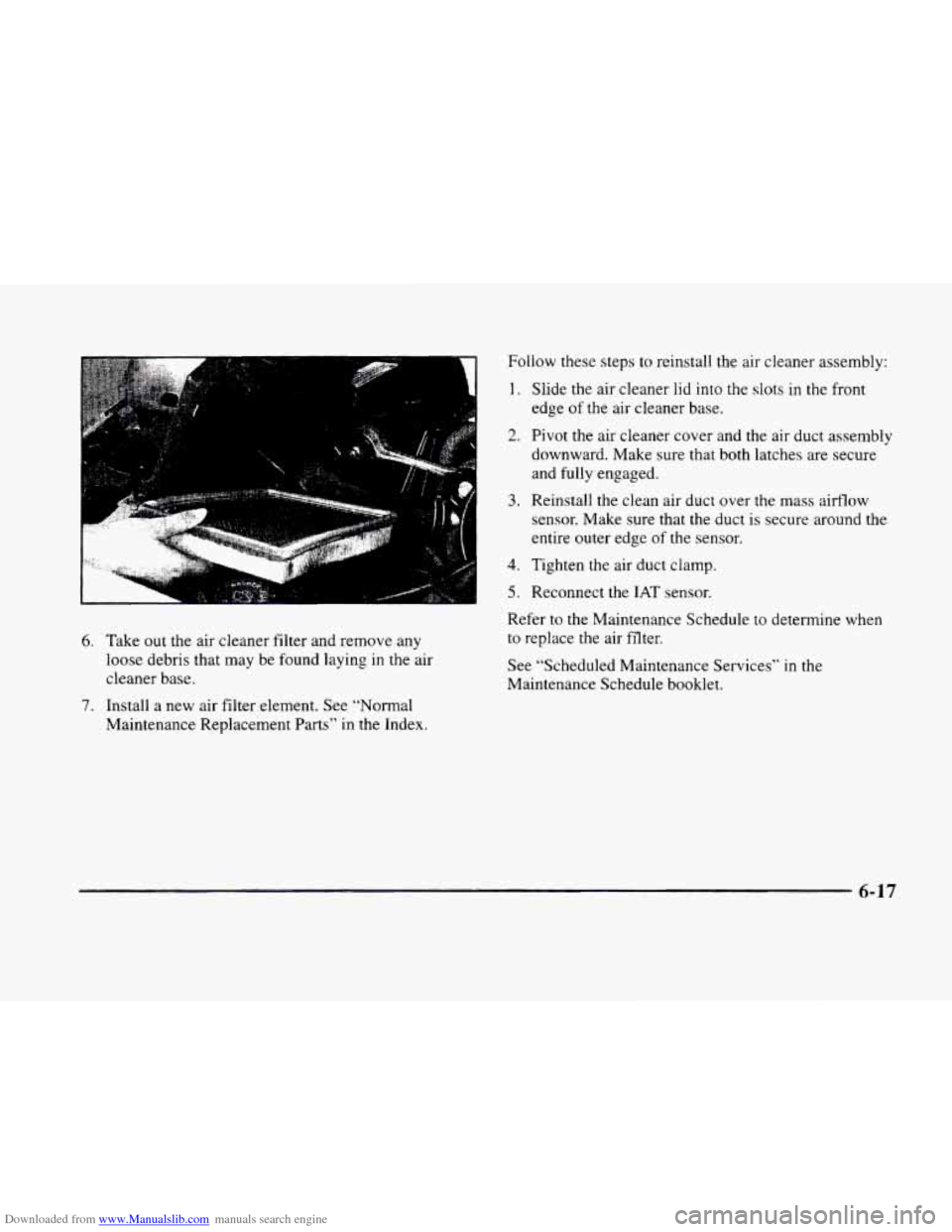

Downloaded from www.Manualslib.com manuals search engine 6. Take out the air cleaner filter and remove any
loose debris that may be found laying in the air
cleaner base.
7. Install a new air filter element. See "Normal
Maintenance Replacement Parts" in
the Index. Follow these
steps
to reinstall the air cleaner assembly:
1.
2.
3.
4.
5.
Slide the air cleaner lid into the slots in the front
edge
of the air cleaner base.
Pivot the air cleaner cover and the air duct assembly
downward. Make sure that both latches are secure
and fully engaged.
Reinstall
the clean air duct over the mass airflow
sensor. Make sure that the duct is secure around
the
entire outer edge of the sensor.
Tighten the air duct clamp.
Reconnect
the IAT sensor.
Refer to the Maintenance Schedule to determine when
to replace
the air filter.
See "Scheduled Maintenance Services" in the
Maintenance Schedule booklet.
6-17
Page 298 of 380
Downloaded from www.Manualslib.com manuals search engine A CAUTION:
Operating the engine with the air cleaner off can
cause you or others to be burned. The air cleaner
not only cleans the air, it stops flame
if the engine
backfires.
If it isn’t there, and the engine
backfires,
you could be burned. Don’t drive with
it
off, and be careful working on the engine with
the air cleaner off.
NOTICE:
If the air cleaner is off, a backfire can cause a
damaging engine fire. And, dirt can easily get
into your engine, which will damage it. Always
have the air cleaner in place when you’re driving.
Automatic Transaxle Fluid
When to Check and Change
A good time to check your automatic transaxle fluid
level is when the engine oil is changed.
Change both the fluid and filter every
50,000 miles
(83 000 km) if the vehicle is mainly driven under one
or more
of these conditions:
0 In heavy city traffic where the outside temperature
0 In hilly or mountainous terrain.
0 When doing frequent trailer towing.
0 Uses such as found in taxi, police or delivery service.
If you do not use your vehicle under any
of these
conditions, the fluid and filter do not require change
until the message
CHANGE TRANS FLUID appears
on the Driver Information Center.
See “Scheduled Maintenance Services” in the
Maintenance Schedule booklet.
regularly
reaches
90” F (32 O C j or higher.
6-18
Page 345 of 380

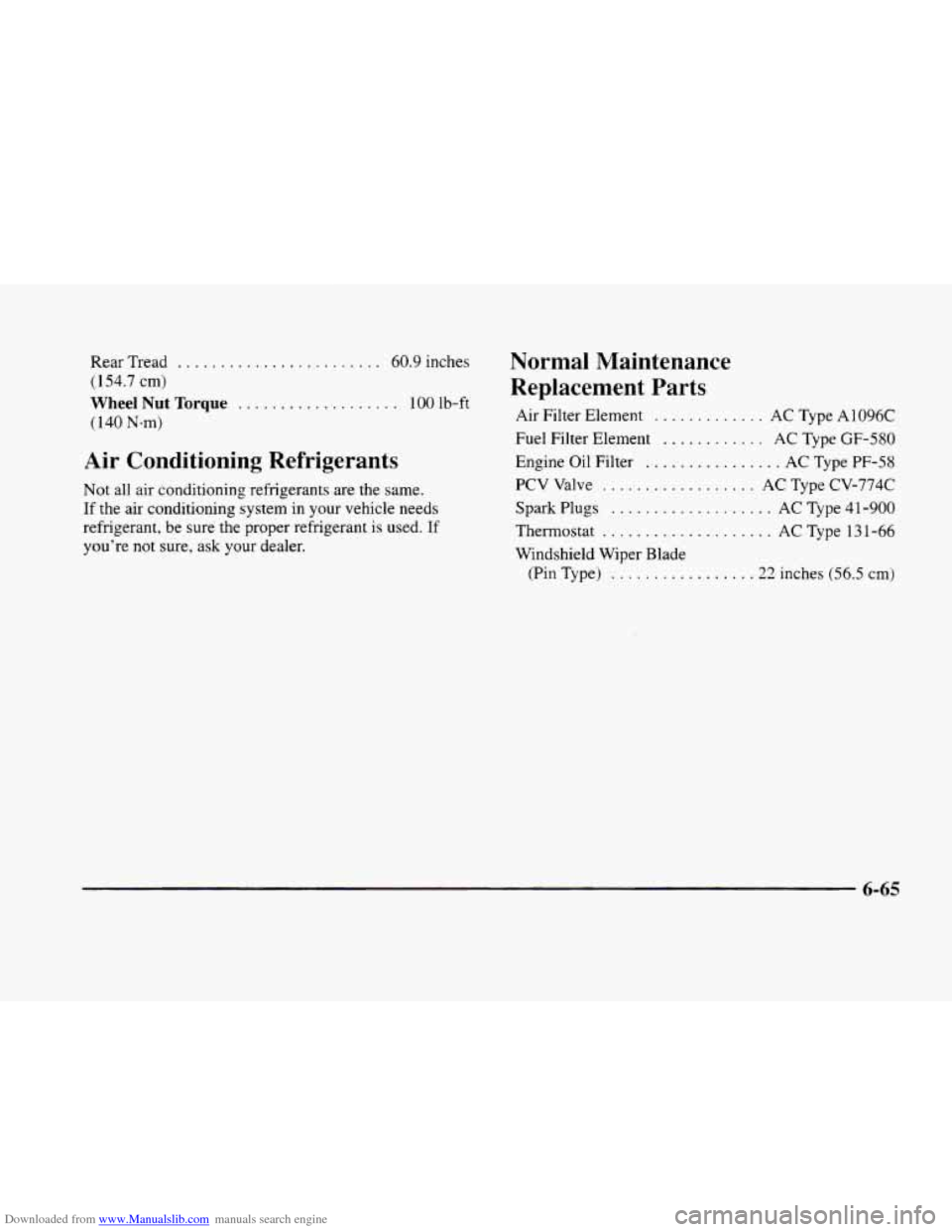

Downloaded from www.Manualslib.com manuals search engine Rear Tread ........................ 60.9 inches
(154.7 cm)
Wheel Nut Torque ................... 100 lb-ft
(140 N-m)
Air Conditioning Refrigerants
Not all air conditioning refrigerants are the same.
If the air conditioning system in your vehicle needs
refrigerant, be sure the proper refrigerant is used.
If
you’re not sure, ask your dealer.
Normal Maintenance
Replacement Parts
Air Filter Element ............. AC Type A 1096C
Fuel Filter Element
............ AC Type GF-580
Engine Oil Filter ................ AC Type PF-58
PCV Valve .................. AC Type CV-774C
Spark Plugs
................... AC Type 41 -900
Thermostat .................... AC Type 13 1-66
Windshield Wiper Blade (Pin Type)
................ .22 inches (56.5 ern)
6-65
Page 367 of 380
Downloaded from www.Manualslib.com manuals search engine Fabric cleaning ............................... 6-48
FanButton
..................................... 3-2
Filling Your Tank
................................ 6-5
Filter.Air
..................................... 6-15
Finish Care
.................................... 6-5 1
Finish Damage ................................. 6-52
First Gear. Automatic Transaxle
................... 2-24
Flash-To-Pass Feature ........................... 2-33
Flat Tire. Changing
............................. 5-23
Floor Mats .................................... 2-52
Fluid Capacities ................................ 6-64
FogLamps
.................................... 2-41
Foreign Countries. Fuel ........................... 6-5
French Language Manual 11
Front Towing .............................. 5-9.5-1 1
Fuel .......................................... 6- 3
Data Display ................................. 2-69
Door Lock Release ............................. 6-6
Filling Your Tank
.............................. 6-5
Gage
....................................... 2-69
In Foreign Countries
........................... 6-5
Level Low Message ........................... 2-74
Fuses and Circuit Breakers ....................... 6-58
Flashers . Hazard Warning ......................... 5-2
.. ...........................
Front Turn Signal Lamps . Bulb Replacement ......... 6-35
Gages
Engine Coolant Temperature
.................... 2-65
Fuel
....................................... 2-69
Speedometer
................................. 2-59
Tachometer .................................. 2-60 GarmentHooks
................................ 2-51
Gear
Positions . Automatic Transaxle ................ 3-21
GloveBox .................................... 2-49
Gold Key Courtesy Transportation .................. 7-8
Gross Axle Weight Rating
........................ 4-30
Gross Vehicle Weight Ratlng ...................... 4-30
Guide en Franpis ................................. 11 ..
GVWR ....................................... 4-30
GAWR
....................................... 4-30
Halogen Bulbs
................................ 6-32
Handles
. Assist ................................. 2-51
Hazard Warning Flashers .......................... 5-2
Head Restraints ................................. 1-5
Headlamps .................................... 2-39
Bulb Replacement
............................ 6-32
HighLow
Beam Changer ...................... 2-33
On Reminder
................................ 2-40
Wiper Activated
.............................. 2-39
Headlamps Suggested
Message .................... 2-74
Wiring
..................................... 6-56
Hearing
. Damage ............................... 3-35
Hearing Impaired. Customer Assistance
.............. 7-4
Heating ........................................ 3-6
Heatedseats
.................................... 1-4
High-Beam Headlamps
.......................... 2-33
Highway Hypnosis
.............................. 4-23
Hill and Mountain Roads ......................... 4-24
Hitches, Trailer
................................. 4-35
Hood Checking Things Under
......................... 6-8
Release
...................................... 6-9
