3-20
Playing a Cassette Tape
With the radio on, insert a cassette tape. The tape will
begin playing as soon as it is inserted. When one side of
your cassette tape is done playing, auto reverse plays the
other side of your cassette tape. Cassette tapes may be
loaded with the radio off but they will not start playing
until the radio is on. If you want to insert a cassette tape
when the ignition is off, first press the eject button.
While the tape is playing, use the VOL, TONE, LEVEL
and DSP controls just as you do for the radio. Other
controls may have different functions when a tape is
inserted. The display will show an underlined tape
symbol. TAPE PLAY will appear on the display when a
tape is playing, with an arrow to indicate which side of
the tape is playing.
If an error occurs while trying to play a cassette tape, it
could be that:

The cassette tape is tight and the cassette player
cannot turn the hubs of the tape. Hold the cassette
tape with the open end down and try turning the right
hub counterclockwise with a pencil. Flip the tape
over and repeat. If the hubs do not turn easily, your
cassette tape may be damaged and should not be
used in the player. Try a new tape to be sure your
player is working properly.
The cassette tape is broken. (Check to see if your
tape is broken. Try a new tape.)
RW: Press the left arrow to rewind the tape rapidly.
The radio will play while the tape rewinds. You may use
your station pushbuttons to tune to another radio station
while in RW mode. Press the left arrow again to return
to playing speed.
FF: Press the right arrow to fast forward to another part
of the tape. The radio will play while the tape advances.
You may use your station pushbuttons to tune to another
radio station while in FF mode. Press the right arrow
again to return to playing speed.
TUNE SEEK: When this button is pressed, it has
two positions. This button works the same, whether it is
pressed to the first or second position. Press this button
to seek to the next or previous selection on the tape.
Your tape must have at least three seconds of silence
between each selection for TUNE SEEK to work.
The sound will mute while seeking.
SCAN: Press this button to listen to selections for a few
seconds. The tape will go to a selection, stop for a few
seconds, then go on to the next selection. Press this
button again to stop scanning.
SIDE: Press this button to change the side of the tape
that is playing.

3-21
EJECT: Press the upward triangle button to the
right of the cassette tape player to remove a tape. The
radio will play. Eject may be activated with the radio off
and/or the ignition off.
CLEAN TAPE: If this message appears on the display,
the cassette tape player needs to be cleaned. It will still
play tapes, but you should clean it as soon as possible to
prevent damage to the tapes and player. See ªCare of
Your Cassette Tape Playerº in the Index. After you clean
the player, press and hold the eject button for three
seconds to reset the CLEAN TAPE indicator. The radio
will display CLEAN TAPE MSG CLEARED to show
that the indicator was reset.
Your cassette tape player automatically reduces
background noise. Dolby Noise Reduction is
manufactured under a license from Dolby Laboratories
Licensing Corporation. Dolby and the double
-D
symbol are trademarks of Dolby Laboratories
Licensing Corporation.
Auto CrO
2 allows the cassette tape player to adjust to
the type of cassette tape for clearer sound for CrO
2cassette tapes.Playing a Compact Disc
Insert a disc partway into the slot, label side up. The
player will pull it in. If the ignition and the radio are on
and the underlined compact disc symbol appears on the
display, the disc will begin playing. Compact discs may
be loaded with the radio off but they will not start
playing until the radio is on. If you want to insert a disc
when the ignition is off, first press the eject button.
The integral CD player can play the smaller 8 cm
compact discs. Full
-size compact discs and the smaller
compact discs are loaded in the same manner.
If you're driving on a very rough road or if it's very hot,
the disc may not play. If the disc comes out, it could
be that:

The disc is upside down.

It is dirty, scratched or wet.

The air is very humid. (If so, wait about an hour
and try again.)
If any error occurs repeatedly or if an error can't be
corrected, please contact your dealer.
RW: Press and hold the left arrow to reverse the
compact disc. Release it to return to playing speed.

3-22
FF: Press and hold the right arrow to fast forward to
another part of the compact disc. Release it to return to
playing speed.
TUNE SEEK: When this button is pressed, it has two
positions. This button works the same, whether it is
pressed to the first or second position. Press this button
to seek to the next or previous selection on the
compact disc.
SCAN: Press this button to listen to selections for a few
seconds. The compact disc will go to a selection, stop
for a few seconds, then go on to the next selection.
Press this button again to stop scanning.
RDM: Press this button to hear the tracks in random,
rather than sequential, order. Press RDM again to turn
off random play.
EJECT: Press the upward triangle button to the
right of the compact disc player to remove a compact
disc. The radio will play. Eject may be activated with the
radio off and/or the ignition off.
Radio Data Systems (RDS) Program Type
(PTY) Selections
PTY List Description
Adlt Hit Adult Hits. . . . . . . . . . . . . . . . . . . . . . . . . . .
Any Any. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Classicl Classical. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cls Rock Classical Rock. . . . . . . . . . . . . . . . . . . . . . .
College College. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Country Country. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Info Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Jazz Jazz. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Language Language. . . . . . . . . . . . . . . . . . . . . . . . . . .
News News. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Nostalga Nostalgia. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Oldies Oldies. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Persnlty Personality. . . . . . . . . . . . . . . . . . . . . . . . . .
Public Public. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
R & B Rhythm and Blues. . . . . . . . . . . . . . . . . . . . . . .
Rel Musc Religious Music. . . . . . . . . . . . . . . . . . . . .
Rel Talk Religious Talk. . . . . . . . . . . . . . . . . . . . . . . .

3-23
PTY List Description
Rock M Rock Music. . . . . . . . . . . . . . . . . . . . . . . . . . .
Soft Soft. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Soft Rock Soft Rock. . . . . . . . . . . . . . . . . . . . . . . . . .
Sports Sports. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Talk Talk. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Top 40 Top 40. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Weather Weather. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Factory PTY Presets
PresetFM1FM2
Preset 1Adult HitsJazz
Preset 2ClassicalOldies
Preset 3NewsReligious Music
Preset 4PublicSoft Rock
Preset 5RockR & B
Preset 6CountryTop 40
CD Adapter Kits
It is possible to use a portable CD player adapter kit
with your cassette tape player after activating the bypass
feature on your tape player.
To activate the bypass feature, use the following steps:
1. Turn the ignition to RUN or ACCESSORY.
2. Turn the radio off.
3. Press and hold the SOURCE button for two seconds.
The tape symbol on the display will flash three
times, indicating the feature is active.
4. Insert the adapter into the cassette slot.
This override routine will remain active until the eject
button is pressed.
Trunk-Mounted CD Changer (Option)
With the compact disc changer, you can play up to
12 discs continuously. Normal size discs may be played
using the trays supplied in the magazine. The smaller
discs (8 cm) can be played only with specially
designed trays.

3-24
NOTICE:
Objects in the trunk which may shift or slide
during driving could damage your CD changer.
Protect your CD changer by using the
convenience net whenever possible. Place large
objects in the trunk appropriately so that they
will not come into contact with the CD changer.

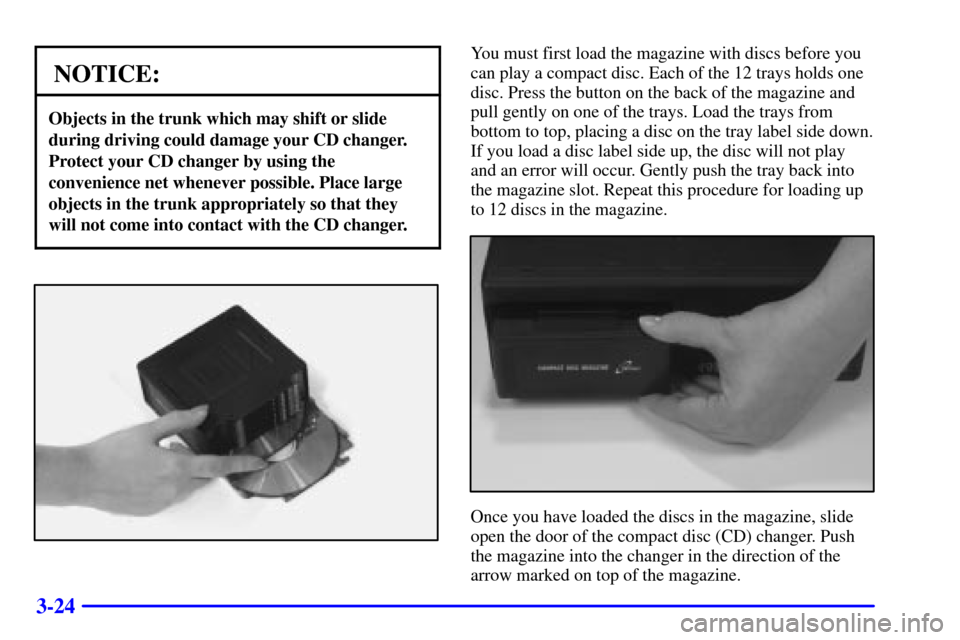

You must first load the magazine with discs before you
can play a compact disc. Each of the 12 trays holds one
disc. Press the button on the back of the magazine and
pull gently on one of the trays. Load the trays from
bottom to top, placing a disc on the tray label side down.
If you load a disc label side up, the disc will not play
and an error will occur. Gently push the tray back into
the magazine slot. Repeat this procedure for loading up
to 12 discs in the magazine.
Once you have loaded the discs in the magazine, slide
open the door of the compact disc (CD) changer. Push
the magazine into the changer in the direction of the
arrow marked on top of the magazine.

3-25

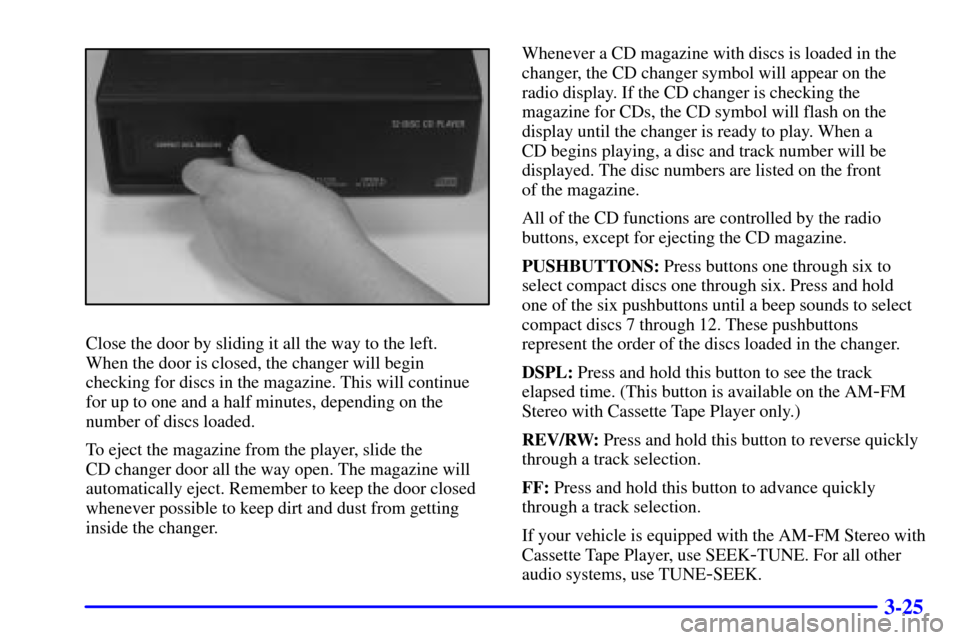

Close the door by sliding it all the way to the left.
When the door is closed, the changer will begin
checking for discs in the magazine. This will continue
for up to one and a half minutes, depending on the
number of discs loaded.
To eject the magazine from the player, slide the
CD changer door all the way open. The magazine will
automatically eject. Remember to keep the door closed
whenever possible to keep dirt and dust from getting
inside the changer.Whenever a CD magazine with discs is loaded in the
changer, the CD changer symbol will appear on the
radio display. If the CD changer is checking the
magazine for CDs, the CD symbol will flash on the
display until the changer is ready to play. When a
CD begins playing, a disc and track number will be
displayed. The disc numbers are listed on the front
of the magazine.
All of the CD functions are controlled by the radio
buttons, except for ejecting the CD magazine.
PUSHBUTTONS: Press buttons one through six to
select compact discs one through six. Press and hold
one of the six pushbuttons until a beep sounds to select
compact discs 7 through 12. These pushbuttons
represent the order of the discs loaded in the changer.
DSPL: Press and hold this button to see the track
elapsed time. (This button is available on the AM
-FM
Stereo with Cassette Tape Player only.)
REV/RW: Press and hold this button to reverse quickly
through a track selection.
FF: Press and hold this button to advance quickly
through a track selection.
If your vehicle is equipped with the AM
-FM Stereo with
Cassette Tape Player, use SEEK
-TUNE. For all other
audio systems, use TUNE
-SEEK.

3-26
SEEK-TUNE: Press the right arrow to seek to the next
selection. Press the left arrow to search for the previous
track selection. The sound will mute while seeking.
TUNE
-SEEK: When this button is pressed, it has two
positions. This button works the same, whether it is
pressed to the first or second position. Press this button
to seek to the next or previous selection on the
compact disc.
SCAN: Press this button. You will hear the first few
seconds of the first track on each disc. Press this button
again to stop scanning. (This button is available on the
AM
-FM Stereo with Cassette Tape Player only.)
TRACK SCAN: Press SCAN for less than two seconds.
You will hear the first few seconds of each track on a
disc. Press SCAN again to stop TRACK SCAN. The CD
will mute while scanning and SCAN will appear on the
display. (This function is not available on the AM
-FM
Stereo with Cassette Tape Player.)
DISC SCAN: Press SCAN for more than two seconds.
You will hear the first few seconds of the first track on
each disc. Press SCAN again to stop DISC SCAN.
The CD will mute while scanning and SCAN will
appear on the display. (This function is not available on
the AM
-FM Stereo with Cassette Tape Player.)RDM: Press this button to hear the tracks in random,
rather than sequential, order. RANDOM will appear on
the display. Press TUNE
-SEEK while RDM is on the
display to randomly seek through discs. Press RDM
again to turn off random play. (This button is not
available on the AM
-FM Stereo with Cassette
Tape Player.)
SIDE: Press this button to select the next disc in the
changer. If your vehicle is equipped with the AM
-FM
Stereo with Cassette Tape Player, CD and the disc
number will appear on the display each time you press
this button. If your vehicle is equipped with any other
audio system, DISC LOADING will appear on the
display and the disc number on the radio display will go
to that of the next available CD each time you press
this button.
SOURCE: Press this button to select a source. The
audio source must be loaded to play. If none of the audio
sources are loaded, NO SOURCE LOADED will appear
on the display. Press this button again or press BAND to
switch back to the radio. (CD will be displayed for a few
seconds instead on the AM
-FM Stereo with Cassette
Tape Player, then the radio will play.)
EJECT: Slide the CD changer door all the way open
and the disc holder will automatically eject.

3-27
Compact Disc Changer Errors
CD CHANGER ERROR could be displayed for
the following:

The road is too rough. The disc should play when the
road is smoother.

The disc is dirty, scratched, wet or loaded label
side up.

The air is very humid. If so, wait about an hour and
try again.
CD CHANGER DOOR OPEN is displayed when the
CD changer door is left open. (CHEK DOOR will be
displayed instead on the AM
-FM Stereo with Cassette
Tape Player.) Completely close the changer door to
restore normal operation.
If any error occurs repeatedly or if an error cannot be
corrected, please contact your dealer.
Radio Personalization with Home and Away
Feature (If Equipped)
If DRIVER 1 (HOME or AWAY) PRESETS or
DRIVER 2 (HOME or AWAY) PRESETS appears in the
display when the radio is first turned on, your vehicle is
equipped with this feature.With this feature, your vehicle will recall the latest radio
settings as adjusted the last time your vehicle was
operated. This feature allows two different drivers to
store and recall their own radio settings. The settings
recalled by the radio are determined by which RKE
transmitter (ª1º or ª2º) was used to enter the vehicle.
The number on the back of the RKE transmitter
corresponds to driver 1 or to driver 2. The radio settings
will automatically adjust to where they were last set by
the identified driver. The settings can also be recalled by
briefly pressing the MEMORY seat buttons 1 or 2
located on the driver's door.
Your radio can store home and away presets. Home and
away presets allow you to use one set of preset radio
settings in the area where you live, and another set when
you go out of town. That way, you will not need to
reprogram your presets every time you travel. With the
radio off and the clock displayed, use FF and RW to
select home or away presets. To select the away presets,
press and hold FF for five counts until you hear a beep.
The next time the radio comes on, the away presets will
be active. To select the home presets, press and hold RW
for five counts until you hear a beep. The next time the
radio comes on, the home presets will be active.

3-28
When battery power is removed and later applied, you
will not have to reset your home radio presets because
the radio remembers them. However, you will have to
reset your away radio presets.
Theft-Deterrent Feature
THEFTLOCK
is designed to discourage theft of your
radio. Your vehicle has a ªbuilt
-inº theft-deterrent
feature on each radio that is automatic
-- there is no
programming required. The radio in your vehicle cannot
be used in any other vehicle. When the radio was
originally installed in your vehicle at the factory, it
stored the Vehicle Identification Number (VIN). Each
time the ignition is turned on, the VIN is verified. If the
vehicle's VIN does not match the VIN stored in the
radio, THEFTLOCK will be activated and the audio
system will not play. If the radio is removed from your
vehicle, the original VIN in the radio can be used to
trace the radio back to your vehicle.
Audio Steering Wheel Controls
Some audio controls
can be adjusted at the
steering wheel. They
include the following:
VOLUME: Press the up arrow lever to increase volume
and the down arrow lever to decrease volume.

3-29
SELECT: When listening to the radio, press the up or
down arrow lever to tune to the next or previous preset
radio station. (If your vehicle is equipped with the
AM
-FM Stereo with Cassette Tape Player, factory
presets which have not been reprogrammed with your
stations will be ignored). When listening to a cassette
tape, the up or down arrow lever can be used to SEEK
forward and rearward through the tape. Pressing the up
or down arrow lever when listening to a CD will cause
the player to go to the next or previous selection. When
in Radio Data Systems (RDS) Program Type (PTY)
mode, the up or down arrow lever can be used to
perform a PTY preset seek. PSEEK will appear on the
display while the PTY preset seek is performed. The
radio will seek all of the PTYs stored in presets, except
for the PTY Any.
Understanding Radio Reception
AM
The range for most AM stations is greater than for FM,
especially at night. The longer range, however, can
cause stations to interfere with each other. AM can pick
up noise from things like storms and power lines. Try
reducing the treble to reduce this noise if you ever get it.FM Stereo
FM stereo will give you the best sound, but FM signals
will reach only about 10 to 40 miles (16 to 65 km). Tall
buildings or hills can interfere with FM signals, causing
the sound to come and go.
Weather Band (If Equipped)
Weather band is restricted to speech and the audio
quality is not as good as with the AM or FM bands.
Depending on location, the radio should receive one or
two channels.
Tips About Your Audio System
Hearing damage from loud noise is almost undetectable
until it is too late. Your hearing can adapt to higher
volumes of sound. Sound that seems normal can be
loud and harmful to your hearing. Take precautions by
adjusting the volume control on your radio to a safe
sound level before your hearing adapts to it.
To help avoid hearing loss or damage:

Adjust the volume control to the lowest setting.

Increase volume slowly until you hear comfortably
and clearly.
