trunk CADILLAC ELDORADO 2002 10.G Owners Manual

2-
2-1
Section 2 Features and Controls
Here you can learn about the many standard and optional features on your vehicle, and information on starting,
shifting and braking. Also explained are the instrument panel and the warning systems that tell you if everything is
working properly
-- and what to do if you have a problem.
2
-2 Windows
2
-4 Keys
2
-6 Door Locks
2
-8 Remote Keyless Entry System
2
-12 Trunk
2
-15 Theft
2
-16 Theft-Deterrent System
2
-18 PASS-Key
II
2
-19 New Vehicle ªBreak-Inº
2
-19 Ignition Positions
2
-21 Starting Your Engine
2
-22 Engine Coolant Heater (If Equipped)
2
-24 Automatic Transaxle Operation
2
-27 Parking Brake
2
-29 Shifting Into PARK (P)
2
-31 Shifting Out of PARK (P)
2
-31 Parking Over Things That Burn2
-32 Engine Exhaust
2
-32 Running Your Engine While You're Parked
2
-33 Tilt Wheel
2
-34 Turn Signal/Multifunction Lever
2
-42 Exterior Lamps
2
-46 Interior Lamps
2
-48 Mirrors
2
-51 Storage Compartments
2
-53 Sun Visors
2
-54 OnStar
System (If Equipped)
2
-57 Sunroof (Option)
2
-58 HomeLink
Transmitter (Option)
2
-62 The Instrument Panel -- Your
Information System
2
-66 Warning Lights, Gages and Indicators
2
-78 Driver Information Center (DIC)

2-8 Anti-Lockout Feature
Leaving your key in any ignition position with either
door open will disable the use of the power door lock
switches as well as the lock button on the remote keyless
entry transmitter. If you close the doors, you can lock
them using the remote keyless entry transmitter. It is
always recommended that you remove your ignition key
when locking your vehicle.
The anti
-lockout feature can be overridden by
holding the driver's power door lock switch for
three seconds or longer.
Leaving Your Vehicle
If you are leaving the vehicle, open the door, set the
locks from the inside, get out and close the door.
Remote Keyless Entry System
With this feature, you can lock and unlock the doors,
unlock the trunk, open the fuel door and turn on your
vehicle's interior lamps from about 10 feet (3 m) away
using the remote keyless entry transmitter supplied with
your vehicle.
Your remote keyless entry system operates on a
radio frequency subject to Federal Communications
Commission (FCC) Rules and with Industry Canada.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
This device complies with RSS
-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation of
the device.

2-10
(Unlock): When you press the button with
the unlock symbol on it to unlock the driver's door,
the parking lamps on your vehicle will flash twice.
You can program your vehicle so the parking lamps
will not flash. For more information, see ªLock/Unlock
Confirmationº in the Index.
Pressing the button with the unlock symbol on it again
within five seconds will unlock the other doors. Pressing
this button will also disarm the theft
-deterrent system
and turn on the interior lamps at night.
(Fuel Door): Press the button with the fuel door
symbol on it to open the fuel door. The VALET lockout
button must be off for this feature to work.
(Trunk): Press the button with the trunk symbol
on it to open the trunk. The VALET lockout button
must be off for this feature to work.
The remote keyless entry transmitter can also be
used to recall the memory seats for up to two drivers.
For more information, see ªMemory Seat and Mirrorsº
in the Index.
Matching Transmitter(s) to Your Vehicle
Each remote keyless entry transmitter is coded to
prevent another transmitter from unlocking your vehicle.
If a transmitter is lost or stolen, a replacement can be
purchased through your dealer. Remember to bring any
remaining transmitters with you when you go to your
dealer. When the dealer matches the replacement
transmitter to your vehicle, any remaining transmitters
must also be matched. Once your dealer has coded the
new transmitter, the lost transmitter will not unlock your
vehicle. Each vehicle can have a maximum of four
transmitters matched to it.
Battery Replacement
Under normal use, the battery in your remote keyless
entry transmitter should last about four years.
You can tell the battery is weak if the transmitter won't
work at the normal range in any location. If you have to
get close to your vehicle before the transmitter works,
it's probably time to change the battery.

2-12

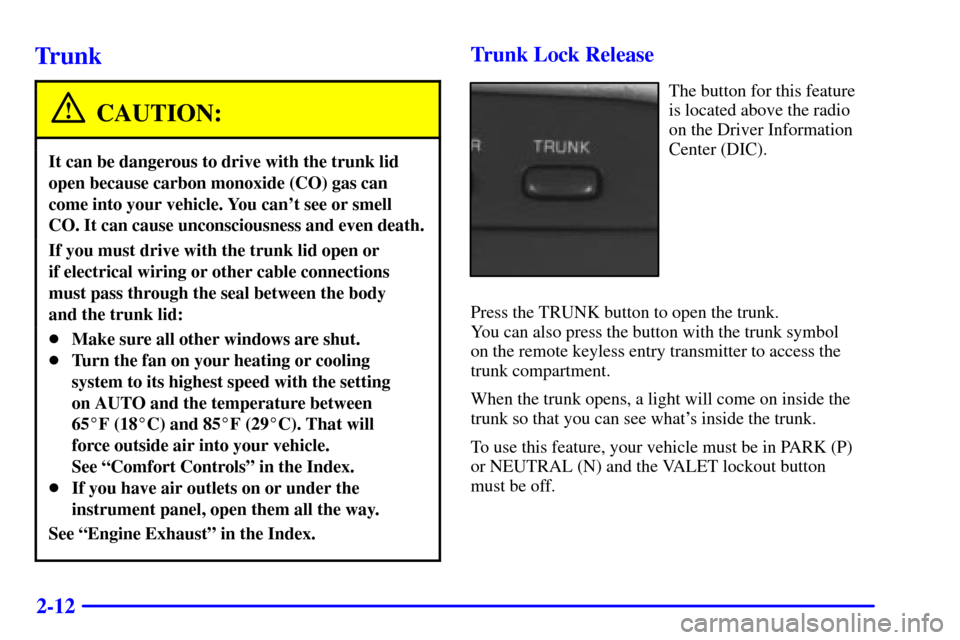

Trunk
CAUTION:
It can be dangerous to drive with the trunk lid
open because carbon monoxide (CO) gas can
come into your vehicle. You can't see or smell
CO. It can cause unconsciousness and even death.
If you must drive with the trunk lid open or
if electrical wiring or other cable connections
must pass through the seal between the body
and the trunk lid:

Make sure all other windows are shut.

Turn the fan on your heating or cooling
system to its highest speed with the setting
on AUTO and the temperature between
65F (18C) and 85F (29C). That will
force outside air into your vehicle.
See ªComfort Controlsº in the Index.

If you have air outlets on or under the
instrument panel, open them all the way.
See ªEngine Exhaustº in the Index.
Trunk Lock Release
The button for this feature
is located above the radio
on the Driver Information
Center (DIC).
Press the TRUNK button to open the trunk.
You can also press the button with the trunk symbol
on the remote keyless entry transmitter to access the
trunk compartment.
When the trunk opens, a light will come on inside the
trunk so that you can see what's inside the trunk.
To use this feature, your vehicle must be in PARK (P)
or NEUTRAL (N) and the VALET lockout button
must be off.

2-13 Trunk Lid Automatic Pull-Down Feature
With the automatic pull-down feature, you never have to
slam the trunk lid in order to close the trunk. Instead,
gently lower the trunk lid until it is nearly shut
-- the
automatic pull
-down unit will take over and lock the
trunk firmly.
A. Trunk Lid
B. LeverIf for some reason the trunk lid (A) will not close, it may
be because the trunk pull
-down unit was accidentally
bumped. Even though the trunk lid remains open, the
motor from the pull
-down unit has already cycled down.
If this happens, press the lever (B) on the trunk lid.
The pull
-down unit motor will reset itself, allowing the
trunk lid to close when lowered.
CAUTION:
Your car may have an automatic pull-down
feature that helps close the trunk electronically.
Your fingers can be trapped under the trunk lid
as it goes down. Your fingers could be injured,
and you would need someone to help you free
them. Keep your fingers away from the trunk lid
as you close it and as it is going down.

2-14 Trunk Release Handle
NOTICE:
The trunk release handle was not designed to
be used to tie down the trunk lid or as an anchor
point when securing items in the trunk. Improper
use of the trunk release handle could damage it.
There is a glow-in-the-dark trunk release handle
located inside the trunk near the latch. This handle will
glow following exposure to light. Pull the release handle
up to open the trunk from the inside.

2-15
Theft
Vehicle theft is big business, especially in some cities.
Although your vehicle has a number of theft
-deterrent
features, we know that nothing we put on it can make
it impossible to steal. However, there are ways you
can help.
Key in the Ignition
If you leave your vehicle with the keys inside, it's an
easy target for joy riders or professional thieves
-- so
don't do it.
When you park your vehicle and open the driver's door,
you'll hear a chime reminding you to remove your key
from the ignition and take it with you. Always do this.
Your steering wheel will be locked, and so will your
ignition and transaxle. And remember to lock the doors.
Parking at Night
Park in a lighted spot, close all windows and lock your
vehicle. Remember to keep your valuables out of sight.
Put them in a storage area, or take them with you.
Parking Lots
Even if you park in a lot where someone will be
watching your vehicle, it's still best to lock it up
and take your keys. But what if you have to leave
your ignition key?

If possible, park in a busy, well
-lit area.

Put your valuables in a storage area, like your
trunk or glove box.

Be sure to close and lock the storage area.

Close all windows.

Press the valet lockout button to ON.

Lock the glove box.

Lock all the doors except the driver's.

Then take the door key and remote keyless
entry transmitter with you.

2-16
Theft-Deterrent System
The SECURITY light is
located on the instrument
panel cluster.
If the ignition is off and either door is open, the
SECURITY light will flash, reminding you to activate
the system. The light will also flash if the battery has
been disconnected and reconnected.
To activate the theft
-deterrent system, do the following:
1. Open the door.
2. Lock the door using the power door lock or the
remote keyless entry transmitter. The SECURITY
light should come on and stay on.
3. Close both doors. The SECURITY light should
go off within about 30 seconds.
The horn will sound and the lamps will flash for about
30 seconds when a door or the trunk is opened without
the key or the remote keyless entry transmitter. The horn
also sounds if the locks are damaged.Remember, the theft
-deterrent system won't activate if
you lock a door with a key or use the manual door lock.
It activates only if you use a power door lock switch or
the remote keyless entry transmitter.
To avoid activating the alarm by accident,
do the following:

Always unlock a door with a key or use the remote
keyless entry transmitter. (Pressing the button with
the unlock symbol on the remote keyless entry
transmitter disables the theft
-deterrent system.)
Unlocking a door any other way will activate the
alarm. Cycling the ignition without disarming the
theft
-deterrent system will also activate the alarm.

The vehicle should be locked with the door key after
the doors are closed if you don't want to activate the
theft
-deterrent system.
If you activate the alarm by accident, unlock either
door with your key. You can also turn off the alarm
by using the unlock button of the remote keyless entry
transmitter. The alarm won't stop if you try to unlock
a door any other way.

2-17 Testing the Alarm
1. From inside the vehicle, roll down the window,
then get out of the vehicle, keeping the door open.
2. From outside of the vehicle, with the door open,
lock the vehicle using the power door lock or the
remote keyless entry transmitter and close the door.
Wait 30 seconds until the SECURITY light goes off.
3. Reach in and unlock the door using the manual lock
and open the door. The horn will sound and the
headlamps will flash.
If the alarm does not sound when it should, check to
see if the horn works. The horn fuse may be blown.
To replace the fuse, see ªFuses and Circuit Breakersº
in the Index. If the fuse does not need to be replaced,
you may need to have your vehicle serviced.
To reduce the possibility of theft, always activate the
theft
-deterrent system when leaving your vehicle.
Valet Lockout Button
The VALET lockout
button is located inside
the glove box.
Press the button to disable the use of the power trunk,
fuel door and garage door openers.
Press the button again to restore normal function to
these features. Locking the glove box with the door key
will also help to secure your vehicle.
The remote keyless entry transmitter can't be used to
open the trunk or fuel door if the VALET lockout button
is pressed in.

2-47 Parade Dimming
This feature prohibits the dimming of the instrument
panel lights during daylight while the headlamps
are on. This feature operates with the light sensor for
the Twilight Sentinel and is fully automatic. When the
light sensor reads darkness outside, the instrument
panel lights can be adjusted by turning the exterior
lamp knob counterclockwise to dim and clockwise to
brighten lighting. Backlighting to the instrument panel
will turn on, regardless of light conditions.
Reading Lights
The front reading lights are located either in the
headliner or above the windows if you have a sunroof.
The two rear lights above the rear side windows.
To turn them on, turn the exterior lamp knob all the way
clockwise. These lights and the interior courtesy lights
automatically come on when either door is opened and
it is dark outside.
Press the lens to turn on the lights manually. Press it
again to turn them off.
If the reading lights are left on, they automatically shut
off 10 minutes after the ignition has been turned off.
Inadvertent Power Battery Saver
This feature is designed to protect your vehicle's battery
against drainage from the interior lamps, trunk lamp,
glove box lamp, cigarette lighters or the garage door
opener. When the ignition is turned off, the power to
these features will automatically turn off after 10 minutes
(three minutes if a new car has 15 miles (24 km) or less).
Power will be restored for an additional 10 minutes
if either door is opened, the trunk is opened or the
courtesy lamps are turned on.
Storage Mode Personalization
This feature is for long-term use and must be
programmed through the Driver Information
Center (DIC). This feature protects the battery by
placing your vehicle in a storage mode so that the radio,
amplifiers, instrument panel cluster and remote keyless
entry will not drain the battery over a long period of
time. For programming information, see ªMemory
and Personalization Featuresº in the Index.
