318 Service and Maintenance
frequent checks and services. The
Additional Required Services -
Normal are for vehicles that:
.Carry passengers and cargo
within recommended limits on
the Tire and Loading Information
label. See Vehicle Load
Limits 0179.
. Are driven on reasonable road
surfaces within legal driving
limits.
. Use the recommended fuel. See
Fuel 0230.
Refer to the information in the
Maintenance Schedule Additional
Required Services - Normal chart.
The Additional Required Services -
Severe are for vehicles that are:
. Mainly driven in heavy city traffic
in hot weather.
. Mainly driven in hilly or
mountainous terrain.
. Used for high speed or
competitive driving.
. Used for taxi, police, or delivery
service. Refer to the information in the
Maintenance Schedule Additional
Required Services - Severe chart.
{Warning
Performing maintenance work can
be dangerous and can cause
serious injury. Perform
maintenance work only if the
required information, proper tools,
and equipment are available.
If they are not, see your dealer to
have a trained technician do the
work. See
Doing Your Own
Service Work 0239.
Maintenance
Schedule
Owner Checks and Services
At Each Fuel Stop
.
Check the engine oil level. See
Engine Oil 0243.
Once a Month
. Check the tire inflation
pressures. See Tire
Pressure 0278.
. Inspect the tires for wear. See
Tire Inspection 0283.
. Check the windshield washer
fluid level. See Washer
Fluid 0253.
. Engine, power electronics, and
high voltage battery pack
coolant level checks. See
Cooling System (High Voltage
Battery) 0248 orCooling
System (Power Electronics and
Charger Modules) 0249 or
Cooling System (Engine) 0248.
ProCarManuals.com
Page 320 of 368
Cadillac ELR Owner Manual (GMNA-Localizing-U.S/Canada-9087644) -
2016 - crc - 9/17/15
Service and Maintenance 319
Engine Oil Change
Every 24 months or when the
CHANGE ENGINE OIL SOON
message displays, change the
engine oil and filter as soon as
possible, within the next 1 000 km/
600 mi. The engine oil and filter
must be changed at least once
every 24 months. After each oil and
filter change, the oil life system must
be reset. SeeEngine Oil Life
System 0245. More frequent
changes may be required when the
vehicle is exposed to a corrosive
environment, such as areas of high
humidity, along an ocean coast,
and/or areas that apply road salt
during winter.
Your trained dealer technician can
perform this work. If the engine oil
life system is reset accidentally,
service the vehicle within 5 000 km/
3,000 mi since the last service.
Reset the oil life system when the
oil is changed.
Tire Rotation and Required
Services Every 12 000 km/
7,500 mi
Rotate the tires, if recommended for
the vehicle, and perform the
following services. See Tire
Rotation 0284.
. Check engine oil level and oil
life percentage. If needed,
change engine oil and filter, and
reset oil life system. See Engine
Oil 0243 andEngine Oil Life
System 0245.
. Check engine coolant level. See
Engine Coolant 0250.
. Check windshield washer fluid
level. See Washer Fluid 0253.
. Visually inspect windshield wiper
blades for wear, cracking,
or contamination. See Exterior
Care 0308. Replace worn or
damaged wiper blades. See
Wiper Blade
Replacement 0259. .
Check tire inflation pressures.
See Tire Pressure 0278.
. Inspect tire wear. See Tire
Inspection 0283.
. Visually check for fluid leaks.
. Inspect engine air cleaner filter.
See Engine Air Cleaner/
Filter 0246.
. Inspect brake system. See
Exterior Care 0308.
. Visually inspect steering,
suspension, and chassis
components for damaged, loose,
or missing parts or signs of
wear. See Exterior Care 0308.
. Check restraint system
components. See Safety System
Check 063.
. Visually inspect fuel system for
damage or leaks.
. Visually inspect exhaust system
and nearby heat shields for
loose or damaged parts.
ProCarManuals.com
Page 322 of 368
Cadillac ELR Owner Manual (GMNA-Localizing-U.S/Canada-9087644) -
2016 - crc - 9/17/15
Service and Maintenance 321
Maintenance Schedule
Additional Required
Services - Normal12 000 km/7,500 mi
24 000 km/15,000 mi
36 000 km/22,500 mi
48 000 km/30,000 mi
60 000 km/37,500 mi
72 000 km/45,000 mi
84 000 km/52,500 mi
96 000 km/60,000 mi
108 000 km/67,500 mi
120 000 km/75,000 mi
132 000 km/82,500 mi
144 000 km/90,000 mi
156 000 km/97,500 mi
168 000 km/105,000 mi 180 000 km/112,500 mi
192 000 km/120,000 mi
204 000 km/127,500 mi
216 000 km/135,000 mi
228 000 km/142,500 mi
240 000 km/150,000 mi
Rotate tires and perform Required Services.
Check engine oil level and oil life percentage.
Change engine oil and filter, if needed.@ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @
Replace passenger compartment air filter. (1)@ @@@@@
Inspect evaporative control system. (2)@ @@
Replace engine air cleaner filter. (3)@@@
Replace spark plugs. Inspect spark plug wires.@
Replace Manual Service Disconnect (MSD).@@
Drain and fill engine, power electronics, and high
voltage battery cooling systems. (4)@
Visually inspect accessory drive belts. (5)@
Replace brake fluid. (6)
ProCarManuals.com
Page 323 of 368
Cadillac ELR Owner Manual (GMNA-Localizing-U.S/Canada-9087644) -
2016 - crc - 9/17/15
322 Service and Maintenance
Footnotes—Maintenance
Schedule Additional Required
Services - Normal
(1) Or every two years, whichever
comes first. More frequent
passenger compartment air filter
replacement may be needed if
driving in areas with heavy traffic,
poor air quality, high dust levels,
or environmental allergens.
Passenger compartment air filter
replacement may also be needed if
there is reduced airflow, window
fogging, or odors. Your GM dealer
can help determine when to replace
the filter.
(2) Check all fuel and vapor lines
and hoses for proper hook-up,
routing, and condition.
(3) Or every four years, whichever
comes first. If driving in dusty
conditions, inspect the filter at each
oil change or more often as needed.
(4) Or every five years, whichever
comes first. See Cooling System
(High Voltage Battery) 0248 or
Cooling System (Power Electronics
and Charger Modules) 0249 or
Cooling System (Engine) 0248. (5)
Or every 10 years, whichever
comes first. Inspect for fraying,
excessive cracking, or damage;
replace, if needed.
(6) Replace brake fluid every five
years. See Brake Fluid 0255.
ProCarManuals.com
Page 324 of 368
Cadillac ELR Owner Manual (GMNA-Localizing-U.S/Canada-9087644) -
2016 - crc - 9/17/15
Service and Maintenance 323
Maintenance Schedule
Additional Required
Services - Severe12 000 km/7,500 mi
24 000 km/15,000 mi
36 000 km/22,500 mi
48 000 km/30,000 mi
60 000 km/37,500 mi
72 000 km/45,000 mi
84 000 km/52,500 mi
96 000 km/60,000 mi
108 000 km/67,500 mi
120 000 km/75,000 mi
132 000 km/82,500 mi
144 000 km/90,000 mi
156 000 km/97,500 mi
168 000 km/105,000 mi 180 000 km/112,500 mi
192 000 km/120,000 mi
204 000 km/127,500 mi
216 000 km/135,000 mi
228 000 km/142,500 mi
240 000 km/150,000 mi
Rotate tires and perform Required Services.
Check engine oil level and oil life percentage.
Change engine oil and filter, if needed.@ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @
Replace passenger compartment air filter. (1)@ @@@@@
Inspect evaporative control system. (2)@ @@
Replace engine air cleaner filter. (3)@@@
Change electric drive unit fluid.@@@
Replace spark plugs. Inspect spark plug wires.@
Replace Manual Service Disconnect (MSD).@@
Drain and fill engine, power electronics, and high
voltage battery cooling systems. (4)@
Visually inspect accessory drive belts. (5)@
Replace brake fluid. (6)
Footnotes—Maintenance
Schedule Additional Required
Services - Severe
(1) Or every two years, whichever
comes first. More frequent
passenger compartment air filter
replacement may be needed if
driving in areas with heavy traffic, poor air quality, high dust levels,
or environmental allergens.
Passenger compartment air filter
replacement may also be needed if
there is reduced airflow, window
fogging, or odors. Your GM dealer
can help determine when to replace
the filter.
(2)
Check all fuel and vapor lines
and hoses for proper hook-up,
routing, and condition.
(3) Or every four years, whichever
comes first. If driving in dusty
conditions, inspect the filter at each
oil change or more often as needed.
ProCarManuals.com
Page 326 of 368
Cadillac ELR Owner Manual (GMNA-Localizing-U.S/Canada-9087644) -
2016 - crc - 9/17/15

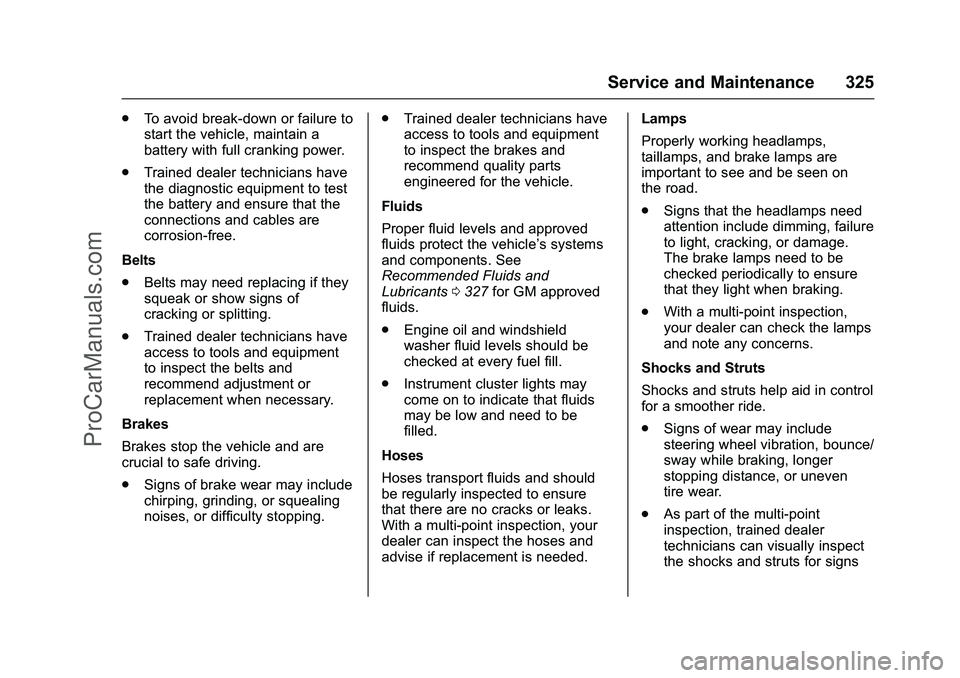

Service and Maintenance 325
.To avoid break-down or failure to
start the vehicle, maintain a
battery with full cranking power.
. Trained dealer technicians have
the diagnostic equipment to test
the battery and ensure that the
connections and cables are
corrosion-free.
Belts
. Belts may need replacing if they
squeak or show signs of
cracking or splitting.
. Trained dealer technicians have
access to tools and equipment
to inspect the belts and
recommend adjustment or
replacement when necessary.
Brakes
Brakes stop the vehicle and are
crucial to safe driving.
. Signs of brake wear may include
chirping, grinding, or squealing
noises, or difficulty stopping. .
Trained dealer technicians have
access to tools and equipment
to inspect the brakes and
recommend quality parts
engineered for the vehicle.
Fluids
Proper fluid levels and approved
fluids protect the vehicle’s systems
and components. See
Recommended Fluids and
Lubricants 0327 for GM approved
fluids.
. Engine oil and windshield
washer fluid levels should be
checked at every fuel fill.
. Instrument cluster lights may
come on to indicate that fluids
may be low and need to be
filled.
Hoses
Hoses transport fluids and should
be regularly inspected to ensure
that there are no cracks or leaks.
With a multi-point inspection, your
dealer can inspect the hoses and
advise if replacement is needed. Lamps
Properly working headlamps,
taillamps, and brake lamps are
important to see and be seen on
the road.
.
Signs that the headlamps need
attention include dimming, failure
to light, cracking, or damage.
The brake lamps need to be
checked periodically to ensure
that they light when braking.
. With a multi-point inspection,
your dealer can check the lamps
and note any concerns.
Shocks and Struts
Shocks and struts help aid in control
for a smoother ride.
. Signs of wear may include
steering wheel vibration, bounce/
sway while braking, longer
stopping distance, or uneven
tire wear.
. As part of the multi-point
inspection, trained dealer
technicians can visually inspect
the shocks and struts for signs
ProCarManuals.com
Page 349 of 368
Cadillac ELR Owner Manual (GMNA-Localizing-U.S/Canada-9087644) -
2016 - crc - 9/17/15
348 OnStar
.Obtain the Wi-Fi®hotspot name
or SSID and password,
if equipped.
Press
Qto connect to an
Advisor to:
. Verify account information or
update contact information.
. Get driving directions.
. Receive a Diagnostic check of
the vehicle's key operating
systems.
. Receive Roadside Assistance.
. Manage Wi-Fi Settings,
if equipped.
Press
>to get a priority connection
to an OnStar Advisor available 24/
7 to:
. Get help for an emergency.
. Be a Good Samaritan or
respond to an AMBER Alert.
. Get assistance in severe
weather or other crisis situations
and find evacuation routes.
OnStar Services
Emergency
Emergency Services require an
active, OnStar subscription plan
(excludes Basic Plan). With
Automatic Crash Response, built-in
sensors can automatically alert a
specially trained OnStar Advisor
who is immediately connected in to
the vehicle to help.
Press
>for a priority connection to
an OnStar Advisor who can contact
emergency service providers, direct
them to your exact location, and
relay important information.
With OnStar Crisis Assist, specially
trained Advisors are available
24 hours a day, 7 days a week, to
provide a central point of contact,
assistance, and information during a
crisis.
With Roadside Assistance, Advisors
can locate a nearby service provider
to help with a flat tire, a battery
jump, or an empty gas tank.
Security
If equipped, OnStar provides these
services:
. With Stolen Vehicle Assistance,
OnStar Advisors can use GPS to
pinpoint the vehicle and help
authorities quickly recover it.
. With Remote Ignition Block,
if equipped, OnStar can block
the engine from being restarted.
. With Stolen Vehicle Slowdown,
if equipped, OnStar can work
with law enforcement to
gradually slow the vehicle down.
Navigation
OnStar navigation requires a
specific OnStar subscription plan.
Press
Qto receive Turn-by-Turn
directions or have them sent to the
vehicle’s navigation screen,
if equipped.
Turn-by-Turn Navigation
1. PressQto connect to an
Advisor.
ProCarManuals.com
Page 358 of 368
Cadillac ELR Owner Manual (GMNA-Localizing-U.S/Canada-9087644) -
2016 - crc - 9/17/15
Index 357
IndexA
Accessories andModifications . . . . . . . . . . . . . . . . . . 236
Accessory Power . . . . . . . . . . . . . . . 185
Adaptive Cruise Control . . . . . . . . 204
Add-On Electrical Equipment . . . 234
Additional Information OnStar
®. . . . . . . . . . . . . . . . . . . . . . 351
Additional Maintenance and Care . . . . . . . . . . . . . . . . . . . . . . 324
Adjustments Lumbar, Front Seats . . . . . . . . . . . . 52
Thigh Support . . . . . . . . . . . . . . . . . . 53
Air Cleaner/Filter, Engine . . . . . . . 246
Air Filter, Passenger
Compartment . . . . . . . . . . . . . . . . . 170
Air Vents . . . . . . . . . . . . . . . . . . . . . . . 169
Airbag System Check . . . . . . . . . . . . . . . . . . . . . . . . . . 76
How Does an Airbag
Restrain? . . . . . . . . . . . . . . . . . . . . . 68
Passenger Sensing System . . . . 70
What Makes an Airbag Inflate? . . . . . . . . . . . . . . . . . . . . . . . . 68
What Will You See after an Airbag Inflates? . . . . . . . . . . . . . . . 69
When Should an Airbag Inflate? . . . . . . . . . . . . . . . . . . . . . . . . 67 Airbag System (cont'd)
Where Are the Airbags? . . . . . . . . 66
Airbags Adding Equipment to the
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . 75
Passenger Status Indicator . . . .112
Readiness Light . . . . . . . . . . . . . . . 111
Servicing Airbag-Equipped Vehicles . . . . . . . . . . . . . . . . . . . . . . . 75
System Check . . . . . . . . . . . . . . . . . . 64
Alarm Vehicle Security . . . . . . . . . . . . . . . . 43
Alert Lane Change . . . . . . . . . . . . . . . . . 218
Side Blind Zone (SBZA) . . . . . . 218
All-Season Tires . . . . . . . . . . . . . . . . 273
Antilock Brake System (ABS) . . . 195 Warning Light . . . . . . . . . . . . . . . . . .116
Appearance Care Exterior . . . . . . . . . . . . . . . . . . . . . . . 308
Interior . . . . . . . . . . . . . . . . . . . . . . . . 313
Assistance Systems for Driving . . . . . . . . . . . . . . . . . . . . . . . . 214
Assistance Systems for Parking and Backing . . . . . . . . . . 212
Automatic Door Locks . . . . . . . . . . . . . . . . . . . . . 40
Headlamp System . . . . . . . . . . . . 158
ProCarManuals.com
Page 359 of 368
Cadillac ELR Owner Manual (GMNA-Localizing-U.S/Canada-9087644) -
2016 - crc - 9/17/15
358 Index
B
Battery . . . . . . . . . . . . . . . . . . . . . . . . . 108Exterior Lighting BatterySaver . . . . . . . . . . . . . . . . . . . . . . . 162
Power Protection . . . . . . . . . . . . . 162
Battery - North America . . . . 256, 299
Battery and Charging Messages. . . . . . . . . . . . . . . . . . . . . 135
Battery Gauge High Voltage . . . . . . . . . . . . . . . . . . 108
Blade Replacement, Wiper . . . . . 259
Brake Parking, Electric . . . . . . . . . . . . . . 195
System Warning Light . . . . . . . . .114
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . 254 Antilock . . . . . . . . . . . . . . . . . . . . . . . 195
Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . 255
Regenerative Braking . . . . . . . . . 197
System Messages . . . . . . . . . . . . 135
Braking . . . . . . . . . . . . . . . . . . . . . . . . . 174
Break-In, New Vehicle . . . . . . . . . . 182
Bulb Replacement . . . . . . . . . . . . . . 261 Back-up Lamps . . . . . . . . . . . . . . . 260
Headlamp Aiming . . . . . . . . . . . . . 260
Headlamps . . . . . . . . . . . . . . . . . . . 260
License Plate Lamps . . . . . . . . . 261
Buying New Tires . . . . . . . . . . . . . . . 286
C
Calibration . . . . . . . . . . . . . . . . . . . . . . 101
California Fuel Requirements . . . . . . . . . . . 230
Perchlorate MaterialsRequirements . . . . . . . . . . . . . . . 236
California Proposition
65 Warning . . . . . . . . . .236, 256, 299
Canadian Vehicle Owners . . . . . . . . 2
Capacities and
Specifications . . . . . . . . . . . . . . . . . 331
Carbon Monoxide Engine Exhaust . . . . . . . . . . . . . . . 192
Trunk . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Winter Driving . . . . . . . . . . . . . . . . 177
Caution, Danger, and Warning . . . . 2
Center Console Storage . . . . . . . . . 96
Center Stack Display . . . . . . . . . . . 121
Chains, Tire . . . . . . . . . . . . . . . . . . . . 290
Charge Cord . . . . . . . . . . . . . . . . . . . . 227
Charging Delay Override . . . . . . . . . . . . . . . 223
Electrical Requirements . . . . . . 229
Plug-In . . . . . . . . . . . . . . . . . . . . . . . 222
Programmable . . . . . . . . . . . . . . . . 123
Utility Interruption . . . . . . . . . . . . . 228
Wireless . . . . . . . . . . . . . . . . . . . . . . 103 Charging Status Screens . . . . . . . 223
Charging System Light . . . . . . . . . 112
Check
Malfunction IndicatorEngine Light . . . . . . . . . . . . . . . . .113
Child Restraints Infants and Young Children . . . . . 78
Lower Anchors and Tethers
for Children . . . . . . . . . . . . . . . . . . . 83
Older Children . . . . . . . . . . . . . . . . . . 77
Securing . . . . . . . . . . . . . . . . . . . . 89, 91
Systems . . . . . . . . . . . . . . . . . . . . . . . . 81
Cleaning Exterior Care . . . . . . . . . . . . . . . . . 308
Interior Care . . . . . . . . . . . . . . . . . . 313
Climate Control Systems
Dual Automatic . . . . . . . . . . . . . . . 164
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Cluster, Instrument . . . . . . . . . . . . . 104
Collision Damage Repair . . . . . . . 340
Compartments Storage . . . . . . . . . . . . . . . . . . . . . . . . . 95
Compass . . . . . . . . . . . . . . . . . . . . . . . 101 Messages . . . . . . . . . . . . . . . . . . . . 136
Competitive Driving Mode . . . . . . 201
Compressor Kit, Tire Sealant . . . 292
Connections
OnStar
®. . . . . . . . . . . . . . . . . . . . . . 349
ProCarManuals.com
Page 360 of 368
Cadillac ELR Owner Manual (GMNA-Localizing-U.S/Canada-9087644) -
2016 - crc - 9/17/15
Index 359
Continuous DampingControl (CDC) . . . . . . . . . . . . . . . . . 201
Control Traction and ElectronicStability . . . . . . . . . . . . . . . . . . . . . 198
Control of a Vehicle . . . . . . . . . . . . . 174
Convex Mirrors . . . . . . . . . . . . . . . . . . 45
Coolant Engine . . . . . . . . . . . . . . . . . . . . . . . . 250
Engine TemperatureWarning Light . . . . . . . . . . . . . . . .118
Cooling System . . . . . . . . . . . . 248, 249 Engine Messages . . . . . . . . . . . . 137
Courtesy Lamps . . . . . . . . . . . . . . . . 160
Courtesy Transportation Program . . . . . . . . . . . . . . . . . . . . . . . 339
Cruise Control . . . . . . . . . . . . . . . . . . 202 Light . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Messages . . . . . . . . . . . . . . . . . . . . 136
Cruise Control, Adaptive . . . . . . . . 204
Cupholders . . . . . . . . . . . . . . . . . . . . . . 96
Customer Assistance . . . . . . . . . . . 335 Offices . . . . . . . . . . . . . . . . . . . . . . . . 335
Text Telephone (TTY)Users . . . . . . . . . . . . . . . . . . . . . . . 335
Customer Information Service PublicationsOrdering Information . . . . . . . . 342 Customer Satisfaction
Procedure . . . . . . . . . . . . . . . . . . . . . 333
D
Damage Repair, Collision . . . . . . . 340
Danger, Warning, and Caution . . . . 2
Data Recorders, Event . . . . . . . . . 345
Daytime Running
Lamps (DRL) . . . . . . . . . . . . . . . . . . 158
Defensive Driving . . . . . . . . . . . . . . . 174
Delayed Charging Override . . . . . 223
Delayed Locking . . . . . . . . . . . . . . . . . 40
Diagnostics OnStar
®. . . . . . . . . . . . . . . . . . . . . . 351
Display Center Stack . . . . . . . . . . . . . . . . . 121
Distracted Driving . . . . . . . . . . . . . . . 173
Dome Lamps . . . . . . . . . . . . . . . . . . . 160
Door
Ajar Light . . . . . . . . . . . . . . . . . . . . . 121
Ajar Messages . . . . . . . . . . . . . . . 137
Delayed Locking . . . . . . . . . . . . . . . . 40
Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Power Locks . . . . . . . . . . . . . . . . . . . . 39
Drive Belt Routing, Engine . . . . . . 332
Drive Mode Messages . . . . . . . . . . 137
Drive Unit Electric . . . . . . . . . . . . . . . . . . . . . . . 193
Driver Assistance Systems . . . . . 211 Driver Efficiency Gauge . . . . . . . . 109
Driver Information
Center (DIC) . . . . . . . . . . . . . . . . . . 132
Driver Mode Control . . . . . . . . . . . . 200
Driver Selected Operating Modes . . . . . . . . . . . . . . . . . . . . . . . . 188
Driving
Assistance Systems . . . . . . . . . . 214
Competitive . . . . . . . . . . . . . . . . . . . 201
Defensive . . . . . . . . . . . . . . . . . . . . . 174
Drunk . . . . . . . . . . . . . . . . . . . . . . . . . 174
Hill and Mountain Roads . . . . . . 177
If the Vehicle is Stuck . . . . . . . . . 179
Loss of Control . . . . . . . . . . . . . . . 176
Off-Road Recovery . . . . . . . . . . . 175
Vehicle Load Limits . . . . . . . . . . . 179
Wet Roads . . . . . . . . . . . . . . . . . . . 176
Winter . . . . . . . . . . . . . . . . . . . . . . . . 177
Driving for Better Energy Efficiency . . . . . . . . . . . . . . . . . . . . . . 27
Dual Automatic Climate
Control System . . . . . . . . . . . . . . . . 164
E
Easy Entry Seat . . . . . . . . . . . . . . . . . 51
Electric Drive Unit . . . . . . . . . . . . . . 193
Electric Drive Unit Messages . . . 137
Electric Drive Unit Shift LockControl Function Check . . . . . . . 258
ProCarManuals.com
