2-3
Your vehicle has one
double
-sided key for the
ignition and all door locks.
If you ever lose your key, your dealer will be able to
assist you with obtaining a new one.
Your vehicle also has a key
that locks and unlocks the
center floor console only.Your vehicle also has an emergency key that operates
the ignition and all door locks. Store the key in a safe
place outside of the vehicle.

2-4

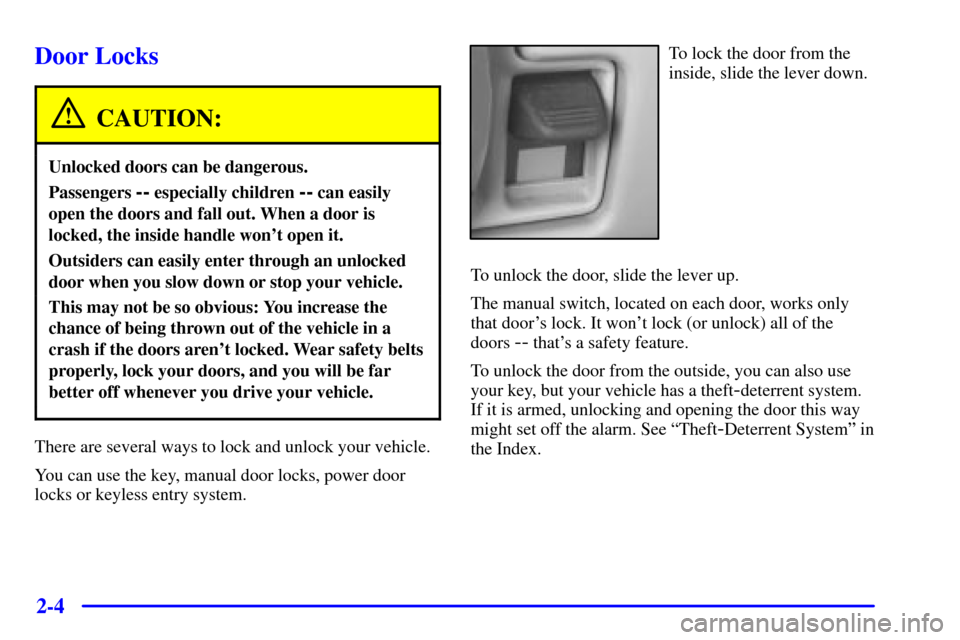

Door Locks
CAUTION:
Unlocked doors can be dangerous.
Passengers -- especially children -- can easily
open the doors and fall out. When a door is
locked, the inside handle won't open it.
Outsiders can easily enter through an unlocked
door when you slow down or stop your vehicle.
This may not be so obvious: You increase the
chance of being thrown out of the vehicle in a
crash if the doors aren't locked. Wear safety belts
properly, lock your doors, and you will be far
better off whenever you drive your vehicle.
There are several ways to lock and unlock your vehicle.
You can use the key, manual door locks, power door
locks or keyless entry system.
To lock the door from the
inside, slide the lever down.
To unlock the door, slide the lever up.
The manual switch, located on each door, works only
that door's lock. It won't lock (or unlock) all of the
doors
-- that's a safety feature.
To unlock the door from the outside, you can also use
your key, but your vehicle has a theft
-deterrent system.
If it is armed, unlocking and opening the door this way
might set off the alarm. See ªTheft
-Deterrent Systemº in
the Index.

2-5 Power Door Locks
Press the side of the power
door lock switch marked
LOCK located on either
front door to lock all the
doors at once.
Press the ribbed side of the switch to unlock all the
doors at once. The power door locks will operate at
any time.
Operating the power locks may affect the theft
-deterrent
system. See ªTheft
-Deterrent Systemº in the Index.
On the passenger side of the
rear panel door or tailgate,
there is a power lock switch
which can be used to lock or
unlock all of the doors.
On vehicles with panel doors, if the power lock switch is
pressed with the panel doors open, all of the doors will
lock three seconds after the panel doors are closed. If the
panel doors are closed, the vehicle doors will lock when
a power door lock switch is pressed. The theft
-deterrent
system will not re
-arm after the panel doors are closed
unless the power lock switch is pressed first.

2-6 Rear Door Security Locks
With this feature, you can
lock the rear side doors so
they can't be opened from
the inside by passengers.
Move the switch upward to engage the security feature.
Move the switch downward to return the door locks to
normal operation.
See ªFeature Customizationº in the Index for further
information on turning this feature on and off.
Lockout Prevention
This feature protects you from locking your key in the
vehicle, by stopping the power door locks from locking
when the key is in the ignition in OFF and a door
is open.
If the power door lock switch is pressed when a door is
open and the key is in the ignition, none of the doors
will lock.
Leaving Your Vehicle
If you are leaving the vehicle, take your keys, open your
door and set the locks from inside. Then get out and
close the door. For information on how to set the door
locks, see ªTheft
-Deterrent Systemº and ªFeature
Customizationº in the Index.

2-7
Keyless Entry System
You can lock and unlock your doors, tailgate or panel
doors from about 3 feet (1 m) up to 30 feet (9 m) away
using the remote keyless entry transmitter supplied with
your vehicle.
Your keyless entry system operates on a radio frequency
subject to Federal Communications Commission (FCC)
Rules and with Industry Canada.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference,
and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This device complies with RSS
-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation of
the device.
Changes or modifications to this system by other than an
authorized service facility could void authorization to
use this equipment.At times you may notice a decrease in range. This is
normal for any remote keyless entry system. If the
transmitter does not work or if you have to stand closer
to your vehicle for the transmitter to work, try this:

Check the distance. You may be too far from your
vehicle. You may need to stand closer during rainy
or snowy weather.

Check the location. Other vehicles or objects may be
blocking the signal. Take a few steps to the left or
right, hold the transmitter higher, and try again.

Check to determine if battery replacement or
transmitter resynchronization is necessary. See the
instructions that follow.

If you're still having trouble, see your dealer or a
qualified technician for service.

2-8 Operation
The driver's door will unlock automatically when
UNLOCK is pressed. If UNLOCK is pressed again
within five seconds, the passenger's doors will also
unlock. All doors will lock when LOCK is pressed.
The tailgate or panel doors will unlock when the REAR
2X button is pressed twice within five seconds, as long
as the ignition is turned to OFF or the transmission is in
PARK (P).
The system will turn on the interior lamps for about
40 seconds, when you unlock the doors, tailgate or panel
doors. The interior lamps will go off when you lock the
doors using the keyless entry transmitter or a power
door lock switch. The interior lamps will also go off if
the ignition is turned to RUN.
Operating the keyless entry transmitter may interact
with the theft
-deterrent system. See ªTheft-Deterrent
Systemº in the Index.Alarm/Panic Mode
The theft
-deterrent system provides a fourth button on
your transmitter. This button is the alarm/panic button.
If you are involved in a panic situation, press this button
and your vehicle's horn will sound and the headlamps
will flash. This will draw needed attention to you and
your vehicle. To turn this feature off, either push the
panic button again or turn the ignition to RUN. The
alarm will stop by itself after two minutes. This feature
will not work if your ignition is on or if the transmitter
is 30 feet (9 m) or more away from your vehicle.
Transmitter Verification
This feature provides feedback to the holder of the
keyless entry transmitter that a command has been
received by the keyless entry receiver. The headlamps
and parking lamps will flash on every lock and unlock
command and the horn will sound only if the LOCK
button is pressed twice within five seconds. This allows
for silent operation of locking and unlocking, unless a
confirming horn chirp is desired. Other options may be
selected for this feature (see ªFeature Customizationº in
the Index).

2-9 Matching Transmitter(s) To Your Vehicle
Each remote keyless entry transmitter is coded to
prevent another transmitter from unlocking your vehicle.
If a transmitter is lost or stolen, a replacement can be
purchased through your dealer. Remember to bring any
remaining transmitters with you when you go to your
dealer. When the dealer matches the replacement
transmitter to your vehicle, any remaining transmitters
must also be matched. Once your dealer has coded the
new transmitter, the lost transmitter will not unlock your
vehicle. Each vehicle can have only four transmitters
matched to it.
Have each transmitter you intend to match ready for the
next steps. To match transmitters to your vehicle:
1. Turn the ignition to RUN, then to OFF. This will
disarm the theft
-deterrent system.
2. Remove fuse 17 in the main fuse block, which is
located on the left side of your main instrument
panel. When the fuse block is open, the radio fuse is
located on the lower right corner of your instrument
panel. See ªFuses and Circuit Breakersº in the Index.3. Turn the ignition from OFF to RUN three times
quickly (within five seconds). The vehicle will
respond by locking the doors, unlocking the driver's
doors and releasing the tailgate or panel doors. Your
transmitter is now ready to match the vehicle.
4. Press and hold the LOCK and UNLOCK buttons on
the first transmitter for 15 seconds. The vehicle will
respond as in Step 3.
5. Repeat Step 4 for the remaining transmitters.
6. When you have finished matching all of your
transmitters, replace fuse 17.
7. Check that all transmitters work by pressing
their buttons.
If the transmitters don't work, or if you'd rather not
match the transmitters yourself, see your dealer.

2-10 Battery Replacement
Under normal use, the battery in your remote keyless
entry transmitter should last about two years.
You can tell the battery is weak if the transmitter won't
work at the normal range in any location. If you have to
get close to your vehicle before the transmitter works,
it's probably time to change the battery.
NOTICE:
When replacing the battery, use care not to touch
any of the circuitry. Static from your body
transferred to these surfaces may damage the
transmitter.
Use one three-volt, type CR2032, or equivalent battery.To replace the battery:
1. Insert a small coin, or flathead screwdriver, to
separate the bottom of the transmitter from the top.
2. Remove the battery and replace it with a new one,
making sure the positive (+) side of the battery is
facing down.
3. Snap the top and bottom together.
4. Test the operation of the transmitter with your
vehicle. If the transmitter does not work, try
synchronizing the transmitter with the receiver.

2-11 Resynchronization
Resynchronization may be necessary due to the security
method used by this system. The transmitter does not
send the same signal twice to the receiver. The receiver
will not respond to a signal it has been sent previously.
This prevents anyone from recording and playing back
the signal from the transmitter.
To resynchronize your transmitter, stand close to your
vehicle and simultaneously press and hold the LOCK
and UNLOCK buttons on the transmitter for at least
eight seconds. The door locks should cycle and the
parking lamps and headlamps should flash to confirm
synchronization. If this does not happen, you may need
to replace the battery in your transmitter or match the
transmitter to your vehicle. If the locks still do not cycle,
see your dealer for service.
Rear Doors
CAUTION:
It can be dangerous to drive with the tailgate
glass, tailgate or rear doors open because carbon
monoxide (CO) gas can come into your vehicle.
You can't see or smell CO. It can cause
unconsciousness and even death.
If you must drive with the tailgate glass, tailgate
or rear doors open or if electrical wiring or other
cable connections must pass through the seal
between the body and the tailgate glass, tailgate
or rear doors:

Make sure all other windows are shut.

Turn the fan on your heating or cooling
system to its highest speed with the setting
on VENT. That will force outside air into
your vehicle. See ªComfort Controlsº in
the Index.

If you have air outlets on or under the
instrument panel, open them all the way.
See ªEngine Exhaustº in the Index.

2-12 Tailgate Glass and Tailgate (If Equipped)
If your vehicle has a tailgate, you must raise the rear
glass before lowering the tailgate.
Use your key to open the glass from the outside. Then
lift the glass up.
To release the glass from the inside, use the electric
tailgate glass release switch on the instrument panel. For
more information, see ªTailgate, Glass Releaseº in
the Index.
To open the tailgate, lift up on the handle while pulling
the tailgate toward you.
Close the tailgate before closing the rear glass. After
closing the tailgate, make sure the tailgate is securely
latched by pulling it toward you. After closing the rear
glass, pull up on its handle to make sure it is locked.
Panel Doors (If Equipped)
To open the rear panel doors, you must open the
passenger's side panel door first. If the door is locked,
use your key to unlock it.
To open the passenger's side panel door, pull up on the
handle and pull the door open.To open the driver's side door, first open the passenger's
side panel door. Then, pull the handle on the left door
edge outward and pull the door open.
The rear doors have a check assembly to keep them
from fully opening during normal use.
To fully open either rear door, you must release the check
strap. Use the following steps to release the check strap:
1. Open the door part way until the white mark on the
check strap is fully outside the door edge. If the end
of the strap catches the pin on the door, the door is
open too far.
2. Then, hold the strap at
the white mark, pull the
strap toward you and
open the door all
the way.
To r e
-engage the door check strap, just close the door
and the strap will catch the pin.
