ESP CADILLAC ESCALADE 2002 2.G Owners Manual

1-21
Here Are Questions Many People Ask
About Safety Belts
-- and the Answers
Q:
Won't I be trapped in the vehicle after an
accident if I'm wearing a safety belt?
A:You could be -- whether you're wearing a safety
belt or not. But you can unbuckle a safety belt,
even if you're upside down. And your chance of
being conscious during and after an accident, so
you can unbuckle and get out, is much greater
if you are belted.
Q:If my vehicle has air bags, why should I have
to wear safety belts?
A:Air bags are in many vehicles today and will
be in most of them in the future. But they are
supplemental systems only; so they work with
safety belts
-- not instead of them. Every air bag
system ever offered for sale has required the use of
safety belts. Even if you're in a vehicle that has air
bags, you still have to buckle up to get the most
protection. That's true not only in frontal collisions,
but especially in side and other collisions.
Q:If I'm a good driver, and I never drive far from
home, why should I wear safety belts?
A:You may be an excellent driver, but if you're in an
accident
-- even one that isn't your fault -- you
and your passengers can be hurt. Being a good
driver doesn't protect you from things beyond
your control, such as bad drivers.
Most accidents occur within 25 miles (40 km) of home.
And the greatest number of serious injuries and deaths
occur at speeds of less than 40 mph (65 km/h).
Safety belts are for everyone.

1-34
When should an air bag inflate?
The driver's and right front passenger's frontal air bags
are designed to inflate in moderate to severe frontal or
near
-frontal crashes. But they are designed to inflate
only if the impact speed is above the system's designed
ªthreshold level.º
If your vehicle goes straight into a wall that doesn't
move or deform, the threshold level is about 9 to 16 mph
(14 to 26 km/h). The threshold level can vary, however,
with specific vehicle design, so that it can be somewhat
above or below this range.
If your vehicle strikes something that will move or
deform, such as a parked car, the threshold level will be
higher. The driver's and right front passenger's frontal
air bags are not designed to inflate in rollovers, side
impacts, or rear impacts, because inflation would not
help the occupant.The side impact air bags are designed to inflate in
moderate to severe side crashes. A side impact air bag
will inflate if the crash severity is above the system's
designed ªthreshold level.º The threshold level can
vary with specific vehicle design. Side impact air bags
are not designed to inflate in frontal or near
-frontal
impacts, rollovers or rear impacts, because inflation
would not help the occupant. A side impact air bag
will only deploy on the side of the vehicle that is struck.
In any particular crash, no one can say whether an air
bag should have inflated simply because of the damage
to a vehicle or because of what the repair costs were.
For frontal air bags, inflation is determined by the angle
of the impact and how quickly the vehicle slows down
in frontal and near
-frontal impacts. For side impact air
bags, inflation is determined by the location and severity
of the impact.
The air bag system is designed to work properly under
a wide range of conditions, including off
-road usage.
Observe safe driving speeds, especially on rough terrain.
As always, wear your safety belt. See ªOff
-Road
Drivingº in the Index for more tips on off
-road driving.

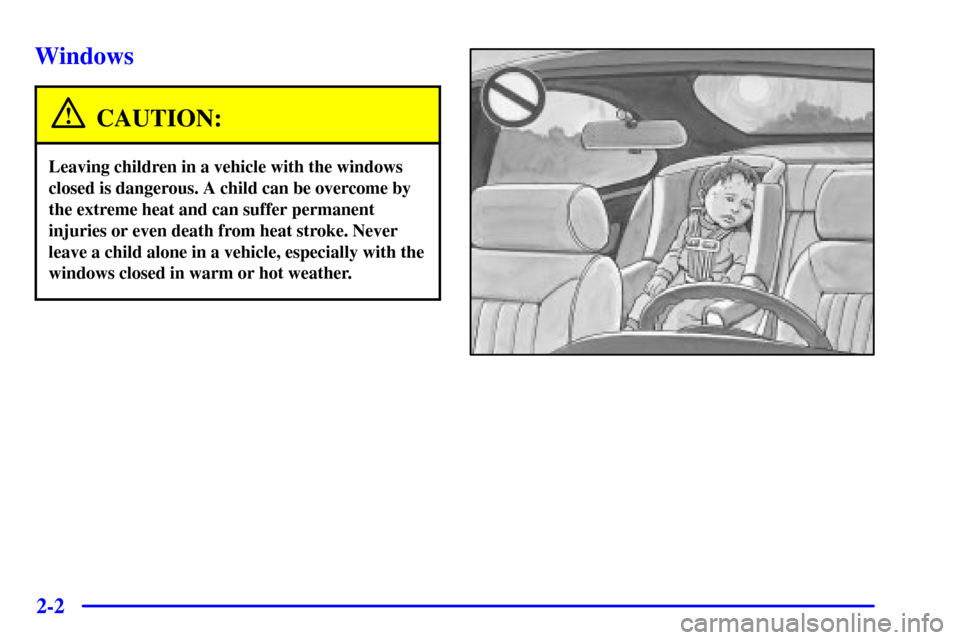

2-2
Windows
CAUTION:
Leaving children in a vehicle with the windows
closed is dangerous. A child can be overcome by
the extreme heat and can suffer permanent
injuries or even death from heat stroke. Never
leave a child alone in a vehicle, especially with the
windows closed in warm or hot weather.

2-6
Door Locks
CAUTION:
Unlocked doors can be dangerous.

Passengers -- especially children -- can
easily open the doors and fall out of a
moving vehicle. When a door is locked,
the handle won't open it. You increase the
chance of being thrown out of the vehicle
in a crash if the doors aren't locked.
So, wear safety belts properly and lock
the doors whenever you drive.

Young children who get into unlocked
vehicles may be unable to get out. A child
can be overcome by extreme heat and can
suffer permanent injuries or even death
from heat stroke. Always lock your vehicle
whenever you leave it.

Outsiders can easily enter through an
unlocked door when you slow down or stop
your vehicle. Locking your doors can help
prevent this from happening.
There are several ways to lock and unlock your vehicle.
Use the keyless entry system.
You can also use your key.
To lock the doors from the
inside, slide the manual
lever rearward. To unlock
the door, slide the manual
lever forward.

2-13
Theft
Vehicle theft is big business, especially in some cities.
Although your vehicle has a number of theft
-deterrent
features, we know that nothing we put on it can make
it impossible to steal. However, there are ways you
can help.
Key in the Ignition
If you leave your vehicle with the keys inside, it's an
easy target for joy riders or professional thieves
-- so
don't do it.
When you park your vehicle and open the driver's door,
you'll hear a chime reminding you to remove your key
from the ignition and take it with you. Always do this.
Your ignition and transmission will be locked. Also
remember to lock the doors.
If the key is in the ignition, with any door open, and you
try to lock your doors with the power door locks, the
driver's door will not stay locked. This will help to keep
you from locking your keys in the vehicle.
Parking at Night
Park in a lighted spot, close all windows and lock your
vehicle. Remember to keep your valuables out of sight.
Put them in a storage area, or take them with you.
Parking Lots
Even if you park in a lot where someone will be
watching your vehicle, it's still best to lock it up and
take your keys. But what if you have to leave your
ignition key? What if you have to leave something
valuable in your vehicle?

Put your valuables in a storage area, like your
glove box.

Valuables can be locked in the center floor console.

Take the remote keyless entry system transmitter
with you.

Lock all the doors except the driver's.

2-39 Lamps On Reminder
A reminder chime will sound when your headlamps or
parking lamps are manually turned on and your ignition
is in OFF, LOCK or ACCESSORY. To disable the
chime, turn the thumbwheel all the way down. In the
automatic mode, the headlamps turn off once the
ignition key is in OFF.
Puddle Lamps
Your vehicle is equipped with puddle lamps to help you
see the area near the base of the front doors when it is
dark out. The puddle lamps will illuminate when a door
is opened or when you press the UNLOCK button on the
keyless entry transmitter. You can program the puddle
lamps not to come on if you choose. See ªSecondary
Information Centerº in the Index for more information.
Daytime Running Lamps
Daytime Running Lamps (DRL) can make it easier
for others to see the front of your vehicle during
the day. DRL can be helpful in many different driving
conditions, but they can be especially helpful in the
short periods after dawn and before sunset. Fully
functional daytime running lamps are required on all
vehicles first sold in Canada.
The DRL system will come on when the following
conditions are met:

The ignition is on,

the headlamp switch is in automatic headlamp mode,

the automatic transmission is not in PARK (P),

the light sensor determines it is daytime and

the parking brake is released.

2-61

subject to limitations caused by atmospheric
conditions, such as severe weather or topographical
conditions, such as mountainous terrain;

subject to cellular carrier equipment limitations.
Global positioning capabilities used to deliver
OnStar service will not be available if satellite signals
are obstructed.
OnStar will not function if the vehicle's battery is
discharged or disconnected. It may also be inoperative
if the vehicle is in an accident and the OnStar or vehicle
electrical system components are damaged.
Safety and security services are provided by existing
governmental emergency service providers. OnStar
will use reasonable efforts to contact the appropriate
emergency service provider and request assistance but
cannot promise that they will respond to the call in a
timely manner or at all.Sunroof (If Equipped)
Your vehicle may be equipped with a power sliding
sunroof. To open or close your sunroof, the ignition
or RAP needs to be active. See ªRetained Accessory
Powerº in the Index.
Press and release the rear side of the button located in
the front overhead console to express
-open the glass
panel and sunshade. To close the glass panel, press and
hold the front of the button. The glass will not be fully
seated unless the button is held until the glass stops
moving. With the sunroof closed, press the forward side
of the button to open the sunroof to the vent position.

2-76 Low Traction Light (If Equipped)
If you have the Traction
Control System, this light
will come on when the
system is limiting wheel
spin. See ªTraction Control
Systemº in the Index.
You may feel or hear the system working or notice a
lack of accelerator response, but this is normal.
The LOW TRAC light also comes on briefly when you
turn your ignition to RUN. If the light doesn't come on
then, the system may require service; have it fixed so
it will be there to tell you when the Traction Control
System is active. Slippery road conditions may exist if
this light comes on, so adjust your driving accordingly.
Traction Off Light (If Equipped)
If you have the Traction
Control System, this light
should come on briefly
when you turn the ignition
to RUN.
If the light doesn't come on then, the system may
require service; have it fixed so it will be there to warn
you if the system is turned off.
If the light stays on, or comes on when you're driving,
there may be a problem with your Traction Control
System and your vehicle may need service. When this
light is on, the system will not limit wheel spin. Adjust
your driving accordingly.

3-17
VOL: Press this knob lightly so it extends. Turn
the knob clockwise to increase volume and
counterclockwise to decrease volume. Push the knob
back into its stored position when you're not using it.
The upper VOL knob controls the upper headphone and
the lower VOL knob controls the lower headphone.
TAPE CD: Press this button to switch between the tape
and CD changer if all are loaded. Press AM FM to
return to the radio when a cassette tape or CD is playing.
The inactive tape or CD will remain safely inside the
radio for future listening.
P.SET PROG: The front passengers must be listening
to something different for each of these functions
to work:

Press this button to seek through the preset radio
stations set on the pushbuttons on the main radio.

When a cassette tape is playing, press this button to
go to the other side of the tape.

When a CD is playing in the CD changer, press this
button to select a disc.Compact Disc Changer
The compact disc changer plays up to six standard size
CDs continuously. Individual CDs may be loaded into or
ejected from any position.
A green light on each numbered button indicates a CD is
loaded in the respective position. An amber light on a
numbered button indicates that a CD is playing. When
loading CDs, the loading slot indicators turn amber to
indicate that the player is ready to accept a CD. CDs can
be loaded or ejected with the radio or the ignition being
on or off.

3-23
If a cassette tape or compact disc is playing, the player
will advance with the up arrow and reverse with the
down arrow.
MUTE: Press this button to
silence the system. Press it
again to turn on the sound.
VOL: Press the up or down arrow to increase or
decrease volume.
Understanding Radio Reception
AM
The range for most AM stations is greater than for FM,
especially at night. The longer range, however, can
cause stations to interfere with each other. AM can pick
up noise from things like storms and power lines. Try
reducing the treble to reduce this noise if you ever get it.
FM Stereo
FM stereo will give you the best sound, but FM signals
will reach only about 10 to 40 miles (16 to 65 km). Tall
buildings or hills can interfere with FM signals, causing
the sound to come and go.
Tips About Your Audio System
Hearing damage from loud noise is almost undetectable
until it is too late. Your hearing can adapt to higher
volumes of sound. Sound that seems normal can be loud
and harmful to your hearing. Take precautions by
adjusting the volume control on your radio to a safe
sound level before your hearing adapts to it.
