CADILLAC ESCALADE 2007 3.G User Guide

Heated Seats
If the front seats have
the heated seat feature,
the buttons used to
control this feature are
located on the climate
control panel.
+(Heated Seatback):To heat only the
seatback, press the top button with the heated
seatback symbol.
This symbol will appear on the climate control
display to indicate that the feature is on. Press the
button to cycle through the temperature settings
of high, medium and low and to turn the
heated seatback off. Indicator bars next to the
symbol designate the level of heat selected:
three for high, two for medium, and one for low.
z(Heated Seat and Seatback):To heat the
entire seat, press the bottom button with the
heated seat and seatback symbol.
This symbol will appear on the climate control
display to indicate that the feature is on. Press the
button to cycle through the temperature settings
of high, medium and low and to turn the
heated seat off. Indicator bars next to the symbol
designate the level of heat selected: three for
high, two for medium, and one for low.
The heated seats will be canceled ten seconds
after the ignition is turned off. If you want to
use the heated seat feature after you restart the
vehicle, you will need to press the appropriate
heated seat button again.
If your vehicle has heated and cooled seats, see
Heated and Cooled Seats on page 12.
11

Heated and Cooled Seats
If the front seats have
the heated and cooled
seat feature, the
buttons used to control
this feature are
located on the climate
control panel.
{(Cooled Seat):To cool the entire seat, press
the button with the cooled seat symbol.
This symbol will appear on the climate control
display to indicate that the feature is on. Press the
button to cycle through the temperature settings
of high, medium and low and to turn the cooled
seat off. Indicator bars next to the symbol
designate the level of cooling selected: three for
high, two for medium, and one for low.
+(Heated Seatback):To heat only the
seatback, press the button with the heated
seatback symbol.
This symbol will appear on the climate control
display to indicate that the feature is on. Press the
button to cycle through the temperature settings of
high, medium and low and to turn the heated
seatback off. Indicator bars next to the symbol
designate the level of heat selected: three for high,
two for medium, and one for low.
z(Heated Seat and Seatback):To heat the
entire seat, press the button with the heated seat
and seatback symbol.
This symbol will appear on the climate control
display to indicate that the feature is on. Press the
button to cycle through the temperature settings of
high, medium and low and to turn the heated seat
off. Indicator bars next to the symbol designate the
level of heat selected: three for high, two for
medium, and one for low.
The heated and cooled seats will be canceled
after the ignition is turned off. If you want to use
the heated and cooled seat feature after you
restart your vehicle, you will need to press
the appropriate seat button again.
12

Memory Seat, Mirrors, and Pedals
Your vehicle has the memory package.
The controls for this
feature are located on
the driver’s door
panel, and are used to
program and recall
memory settings for the
driver’s seat, outside
mirrors, and the
adjustable throttle and
brake pedal feature
if your vehicle has it.
To save your positions in memory, do the
following:
1. Adjust the driver’s seat, including the seatback
recliner and lumbar, both outside mirrors, and
the throttle and brake pedals to a comfortable
position.SeeOutside Power Foldaway Mirrors on
page 162andAdjustable Throttle and Brake
Pedal on page 142for more information.
Not all mirrors will have the ability to save and
recall the mirror positions.
2. Press and hold button 1 until two beeps let
you know that the position has been stored.
A second seating, mirror, and throttle and brake
pedal position can be programmed by repeating
the above steps and pressing button 2.
To recall the memory positions, the vehicle must be
in PARK (P). Press and release either button 1 or
button 2 corresponding to the desired driving
position. The seat, outside mirrors, and adjustable
throttle and brake pedals will move to the position
previously stored. You will hear a single beep.
13

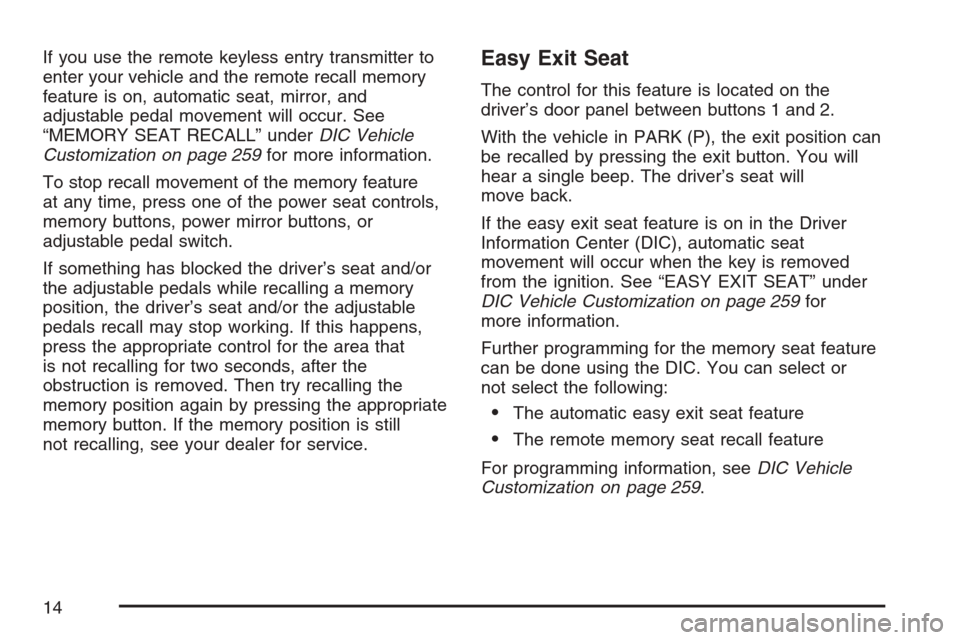

If you use the remote keyless entry transmitter to
enter your vehicle and the remote recall memory
feature is on, automatic seat, mirror, and
adjustable pedal movement will occur. See
“MEMORY SEAT RECALL” underDIC Vehicle
Customization on page 259for more information.
To stop recall movement of the memory feature
at any time, press one of the power seat controls,
memory buttons, power mirror buttons, or
adjustable pedal switch.
If something has blocked the driver’s seat and/or
the adjustable pedals while recalling a memory
position, the driver’s seat and/or the adjustable
pedals recall may stop working. If this happens,
press the appropriate control for the area that
is not recalling for two seconds, after the
obstruction is removed. Then try recalling the
memory position again by pressing the appropriate
memory button. If the memory position is still
not recalling, see your dealer for service.Easy Exit Seat
The control for this feature is located on the
driver’s door panel between buttons 1 and 2.
With the vehicle in PARK (P), the exit position can
be recalled by pressing the exit button. You will
hear a single beep. The driver’s seat will
move back.
If the easy exit seat feature is on in the Driver
Information Center (DIC), automatic seat
movement will occur when the key is removed
from the ignition. See “EASY EXIT SEAT” under
DIC Vehicle Customization on page 259for
more information.
Further programming for the memory seat feature
can be done using the DIC. You can select or
not select the following:
The automatic easy exit seat feature
The remote memory seat recall feature
For programming information, seeDIC Vehicle
Customization on page 259.
14

Power Reclining SeatbacksThe controls for the power reclining seatback are
located on the outboard side of the front seats
behind the power seat control.
To recline the seatback, tilt the top of the
control rearward.
To bring the seatback forward, tilt the top of
the control forward.
Driver’s Seat with Power Seat Control, Power
Recline, and Power Lumbar shown
15

{CAUTION:
Sitting in a reclined position when your
vehicle is in motion can be dangerous.
Even if you buckle up, your safety belts
cannot do their job when you are reclined
like this.
CAUTION: (Continued)
CAUTION: (Continued)
The shoulder belt cannot do its job. In a
crash, you could go into it, receiving neck
or other injuries.
The lap belt cannot do its job either. In a
crash the belt could go up over your
abdomen. The belt forces would be there,
not at your pelvic bones. This could cause
serious internal injuries.
For proper protection when the vehicle is
in motion, have the seatback upright.
Then sit well back in the seat and wear
your safety belt properly.
Do not have a seatback reclined if your vehicle is
moving.
Your vehicle has a memory function which allows
seat settings to be saved and recalled. See
Memory Seat, Mirrors, and Pedals on page 13.
16

Head Restraints
Adjust the head restraint so that the top of the
restraint is at the same height as the top of
the occupant’s head. This position reduces the
chance of a neck injury in a crash.Pull the head restraint
up to raise it. To lower
the head restraint,
press the release
button (A), located on
the top of the seatback,
while you push the
head restraint down.
The front seats may have head restraints that also
tilt forward and rearward.
To tilt the head restraint, grasp the top of the
restraint while pressing the button (B), located on
the right hand side of the head restraint, and
move it forward or rearward until the desired
locking position is reached. Try to move the head
restraint after the button is released to make
sure that it is locked in place.
The second row seats may have head restraints
that can be adjusted up and down, but they
do not tilt.
17

Center Seat
Your vehicle may have a front center seat. The
seatback doubles as an armrest and cupholder/
storage area for the driver and passenger when the
center seat is not used. Do not use it as a seating
position when the seatback is folded down.
For information on safety belts for this position,
seeCenter Front Passenger Position on page 52.
Rear Seats
Heated Seats
The rear seats have
the heated seat feature,
the buttons used to
control this feature are
located on the Rear
Seat Audio (RSA) panel.
M(Heated Seat):To heat the seat cushion,
press the button with the heated seat symbol.
A heated seat symbol will be shown in the RSA
display to indicate that the feature is on. Press the
button to cycle through the temperature settings
of high, medium, and low, and to turn it off.
Driver’s Side RSA
Heated Seat Button
Only shown
18

Indicator bars next to the symbol will designate
the level of heat selected: three for high,
two for medium, and one for low.
The heated seats will be canceled ten seconds
after the ignition is turned off. If the vehicle
is restarted, the heated seat button will need to
be pressed again to restart the feature.
60/40 Split Bench Seat
(Second Row)
If your vehicle has a 60/40 split bench, the seat(s)
can be folded for additional cargo space or
folded and tumbled for easy entry and exit to the
third row seats, if your vehicle has them. These
seats will have either the manual fold and tumble
feature or the automatic seat release fold and
tumble feature.
Manual Fold and Tumble Feature
Folding and Tumbling the Seat(s)
To fold and tumble the seat, do the following:
1. Make sure that there is nothing under, in front
of, or on the seat.
Notice:Folding a rear seat with the safety
belts still fastened may cause damage to the
seat or the safety belts. Always unbuckle
the safety belts and return them to their normal
stowed position before folding a rear seat.
2. Lift the lever, located on the outboard side of
the seat, to release the seatback.
19

The seatback will fold forward automatically.
Leaving the seatback in this position creates a
at load oor.
If the seatback cannot fold at, try moving
the front seat forward and/or put the front
seatback in the upright position.3. Lift the same lever
again to release the
rear of the seat
from the oor. The
seat will tumble
forward.
