Underhood Fuse BlockThe underhood fuse block is located in the engine
compartment, on the driver’s side of the vehicle.
To access the fuse/relay block, push in on the tabs
on the end of the fuse/relay block cover and lift.
To remove fuses, hold the end of the fuse between
your thumb and index nger and pull straight out.
511

Fuses Usage
1 Not Used
2Electronic Stability Suspension
Control, Automatic Level Control
Exhaust
3 Left Trailer Stop/Turn LampFuses Usage
4 Engine Controls
5Engine Control Module, Throttle
Control
6 Right Trailer Stop/Turn Lamp
7 Front Washer
512

Fuses Usage
8 Oxygen Sensors
9 Anti-lock Brakes System 2
10 Trailer Back-up Lamps
11Driver’s High Intensity Discharge
Lamp
12 Engine Control Module (Battery)
13Fuel Injectors, Ignition Coils
(Right Side)
14Transmission Control Module
(Battery)
15 Vehicle Back-up Lamps
16Passenger’s Side High Intensity
Discharge Lamp
17 Air Conditioning Compressor
18 Oxygen Sensors
19 Transmission Controls (Ignition)
20 Fuel Pump
21 Not Used
22 Rear Washer
23Fuel Injectors, Ignition Coils
(Left Side)
24 Trailer Park Lamps
25 Driver’s Side Park Lamps
26 Passenger’s Side Park Lamps
27 Fog LampsFuses Usage
28 Horn
29Passenger’s Side High-Beam
Headlamp Solenoid
30 Daytime Running Lamps
31Driver’s Side High-Beam Headlamp
Solenoid
32 Not Used
33 Sunroof
34Key Ignition System, Theft Deterrent
System
35 Windshield Wiper
36 SEO B2 Uptter Usage (Battery)
37 Electric Adjustable Pedals
38 Climate Controls (Battery)
39 Airbag System (Ignition)
40 Amplier
41 Audio System
42 Not Used
43Miscellaneous (Ignition), Rear Vision
Camera (If Equipped), Cooled
Seats, Cruise Control
44 Liftgate Release
45OnStar
®, Rear Seat Entertainment
Display
46 Instrument Panel Cluster
513

Fuses Usage
47 Not Used
48 Heated Steering Wheel
49Auxiliary Climate Control (Ignition),
Compass-Temperature Mirror
50 Rear Defogger
51 Airbag System (Battery)
52 SEO B1 Uptter Usage (Battery)
53Cigarette Lighter, Auxiliary Power
Outlet
54Automatic Level Control Compressor
Relay, SEO Uptter Usage
55 Climate Controls (Ignition)
56Engine Control Module, Secondary
Fuel Pump (Ignition)
J-Case Fuses Usage
60 Cooling Fan 1
61 Automatic Level Control Compressor
62 Not Used
63 Cooling Fan 2
64 Anti-lock Brake System 1
65 Starter
66 Stud 2 (Trailer Brakes)
67 Left Bussed Electrical Center 1
68 Electric Running Boards
J-Case Fuses Usage
69 Heated Windshield Washer System
70 Not Used
71Stud 1 (Trailer Connector Battery
Power)
72 Mid-Bussed Electrical Center 1
73 Climate Control Blower
74 Power Liftgate Module
75 Left Bussed Electrical Center 2
Relays Usage
FAN HI Cooling Fan High Speed
FAN LO Cooling Fan Low Speed
ENG EXH VLV Not Used
FAN CNTRL Cooling Fan Control
HDLP LO/HID Hi Intensity Discharge Headlamp
FOG LAMP Front Fog Lamps
A/C CMPRSR Air Conditioning Compressor
STRTR Starter
PWR/TRN Powertrain
FUEL PMP Fuel Pump
PRK LAMP Parking Lamps
REAR DEFOG Rear Defogger
RUN/CRANK Switched Power
514

Capacities and Specications
The following approximate capacities are given in English and metric conversions. SeeRecommended
Fluids and Lubricants on page 531for more information.
ApplicationCapacities
English Metric
Air Conditioning Refrigerant
Regular 2.5 lbs 1.130 kg
Extended 3.0 lbs 1.36 kg
Cooling System 17.6 qt 16.7 L
Engine Oil with Filter 6.0 qt† 5.7 L†
Fuel Tank
Regular 26.0 gal 98.4 L
Extended 31.5 gal 119.2 L
Transmission Fluid (Pan Removal and Replacement) 6.0 qt 5.7 L
Transfer Case Fluid 1.5 qt 1.4 L
Wheel Nut Torque 140 lb ft
190Y
†Oil lter should be changed at every oil change.
After rell, the level must be rechecked. Add enough engine coolant so that the uid is within the proper
operating range.
Engine Specications
Engine VIN Code Transmission Spark Plug Gap
6.2L V8 8 Automatic 0.040 in (1.01 mm)
515

✍NOTES
516

Maintenance Schedule................................ 518
Introduction............................................... 518
Maintenance Requirements........................ 518
Your Vehicle and the Environment............ 518
Using the Maintenance Schedule............... 519
Scheduled Maintenance............................. 521
Additional Required Services..................... 524
Maintenance Footnotes.............................. 525Owner Checks and Services..................... 527
At Each Fuel Fill....................................... 528
At Least Once a Month............................. 528
At Least Once a Year............................... 529
Recommended Fluids and Lubricants........ 531
Normal Maintenance Replacement Parts ... 533
Engine Drive Belt Routing......................... 534
Maintenance Record.................................. 535
Section 6 Maintenance Schedule
517

Maintenance Schedule
Introduction
Important: Keep engine oil at the proper level
and change as recommended.
Have you purchased the GM Protection Plan? The
Plan supplements your new vehicle warranties.
See your Warranty and Owner Assistance booklet
or your dealer for details.
Maintenance Requirements
Notice:Maintenance intervals, checks,
inspections, replacement parts, and
recommended uids and lubricants as
prescribed in this manual are necessary to
keep your vehicle in good working condition.
Any damage caused by failure to follow
scheduled maintenance may not be covered by
warranty.
Your Vehicle and the Environment
Proper vehicle maintenance not only helps to keep
your vehicle in good working condition, but also
helps the environment. All recommended
maintenance is important. Improper vehicle
maintenance can even affect the quality of the air
we breathe. Improper uid levels or the wrong
tire ination can increase the level of emissions
from your vehicle. To help protect our environment,
and to keep your vehicle in good condition, be
sure to maintain your vehicle properly.
518

Using the Maintenance Schedule
We at General Motors want to help you keep your
vehicle in good working condition. But we do
not know exactly how you will drive it. You may
drive very short distances only a few times a week.
Or you may drive long distances all the time in
very hot, dusty weather. You may use your vehicle
in making deliveries. Or you may drive it to
work, to do errands, or in many other ways.
Because of all the different ways people use their
vehicles, maintenance needs vary. You may
need more frequent checks and replacements.
So please read the following and note how
you drive. If you have any questions on how to
keep your vehicle in good condition, see your
GM Goodwrench
®dealer.This schedule is for vehicles that:
carry passengers and cargo within
recommended limits. You will nd these limits
on the Tire and Loading Information label.
SeeLoading Your Vehicle on page 370.
are driven on reasonable road surfaces within
legal driving limits.
are driven off-road in the recommended
manner. SeeOff-Road Driving on page 338.
use the recommended fuel. SeeGasoline
Octane on page 398.
The services inScheduled Maintenance on
page 521should be performed when indicated.
SeeAdditional Required Services on page 524and
Maintenance Footnotes on page 525for further
information.
519

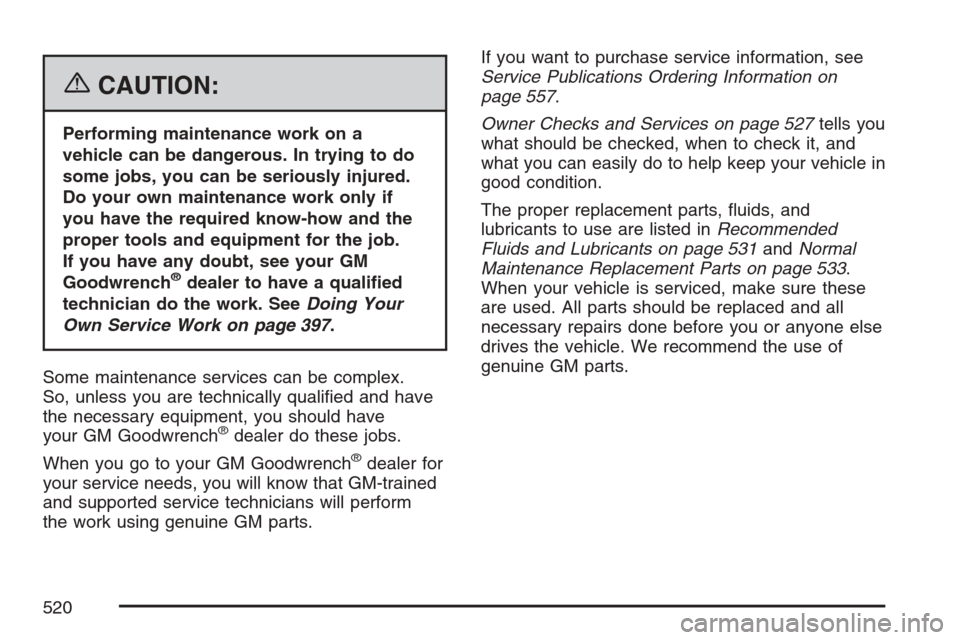

{CAUTION:
Performing maintenance work on a
vehicle can be dangerous. In trying to do
some jobs, you can be seriously injured.
Do your own maintenance work only if
you have the required know-how and the
proper tools and equipment for the job.
If you have any doubt, see your GM
Goodwrench
®dealer to have a qualied
technician do the work. SeeDoing Your
Own Service Work on page 397.
Some maintenance services can be complex.
So, unless you are technically qualied and have
the necessary equipment, you should have
your GM Goodwrench
®dealer do these jobs.
When you go to your GM Goodwrench
®dealer for
your service needs, you will know that GM-trained
and supported service technicians will perform
the work using genuine GM parts.If you want to purchase service information, see
Service Publications Ordering Information on
page 557.
Owner Checks and Services on page 527tells you
what should be checked, when to check it, and
what you can easily do to help keep your vehicle in
good condition.
The proper replacement parts, uids, and
lubricants to use are listed inRecommended
Fluids and Lubricants on page 531andNormal
Maintenance Replacement Parts on page 533.
When your vehicle is serviced, make sure these
are used. All parts should be replaced and all
necessary repairs done before you or anyone else
drives the vehicle. We recommend the use of
genuine GM parts.
520
