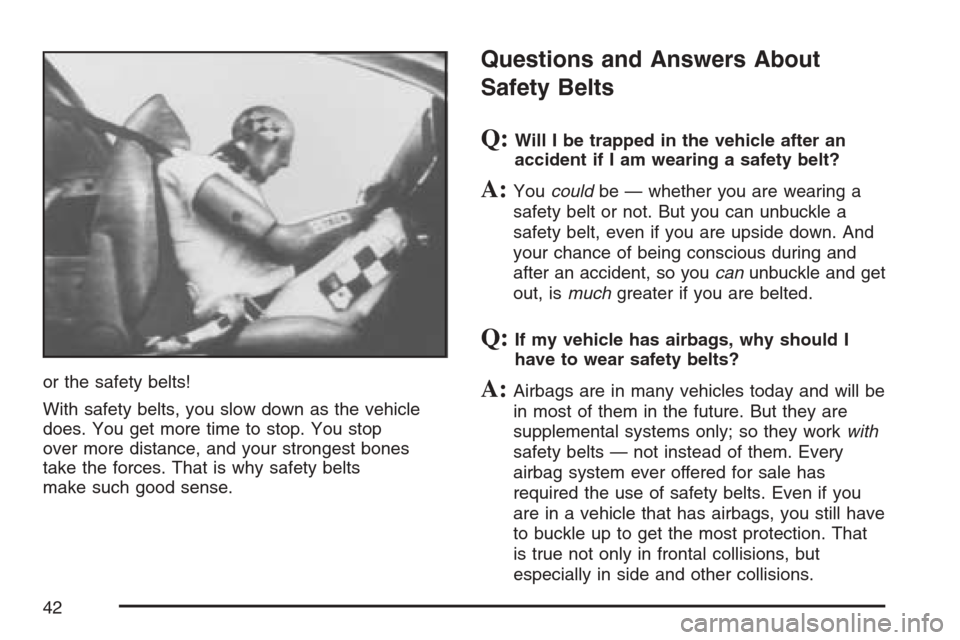

Page 42 of 574
or the safety belts!
With safety belts, you slow down as the vehicle
does. You get more time to stop. You stop
over more distance, and your strongest bones
take the forces. That is why safety belts
make such good sense.
Questions and Answers About
Safety Belts
Q:Will I be trapped in the vehicle after an
accident if I am wearing a safety belt?
A:Youcouldbe — whether you are wearing a
safety belt or not. But you can unbuckle a
safety belt, even if you are upside down. And
your chance of being conscious during and
after an accident, so youcanunbuckle and get
out, ismuchgreater if you are belted.
Q:If my vehicle has airbags, why should I
have to wear safety belts?
A:Airbags are in many vehicles today and will be
in most of them in the future. But they are
supplemental systems only; so they workwith
safety belts — not instead of them. Every
airbag system ever offered for sale has
required the use of safety belts. Even if you
are in a vehicle that has airbags, you still have
to buckle up to get the most protection. That
is true not only in frontal collisions, but
especially in side and other collisions.
42
Page 51 of 574
Safety Belt Use During Pregnancy
Safety belts work for everyone, including pregnant
women. Like all occupants, they are more likely
to be seriously injured if they do not wear
safety belts.
A pregnant woman should wear a lap-shoulder
belt, and the lap portion should be worn as low as
possible, below the rounding, throughout the
pregnancy.The best way to protect the fetus is to protect the
mother. When a safety belt is worn properly, it
is more likely that the fetus will not be hurt
in a crash. For pregnant women, as for anyone,
the key to making safety belts effective is wearing
them properly.
Right Front Passenger Position
To learn how to wear the right front passenger’s
safety belt properly, seeDriver Position on
page 43.
The right front passenger’s safety belt works the
same way as the driver’s safety belt — except
for one thing. If you ever pull the shoulder portion
of the belt out all the way, you will engage the
child restraint locking feature which may turn off
the passenger’s frontal airbag. If this happens, just
let the belt go back all the way and start again.
51
Page 65 of 574
{CAUTION:
Children who are up against, or very close
to, any airbag when it in ates can be
seriously injured or killed. Airbags plus
lap-shoulder belts offer protection for
adults and older children, but not for
young children and infants. Neither the
vehicle’s safety belt system nor its airbag
system is designed for them. Young
children and infants need the protection
that a child restraint system can provide.
65

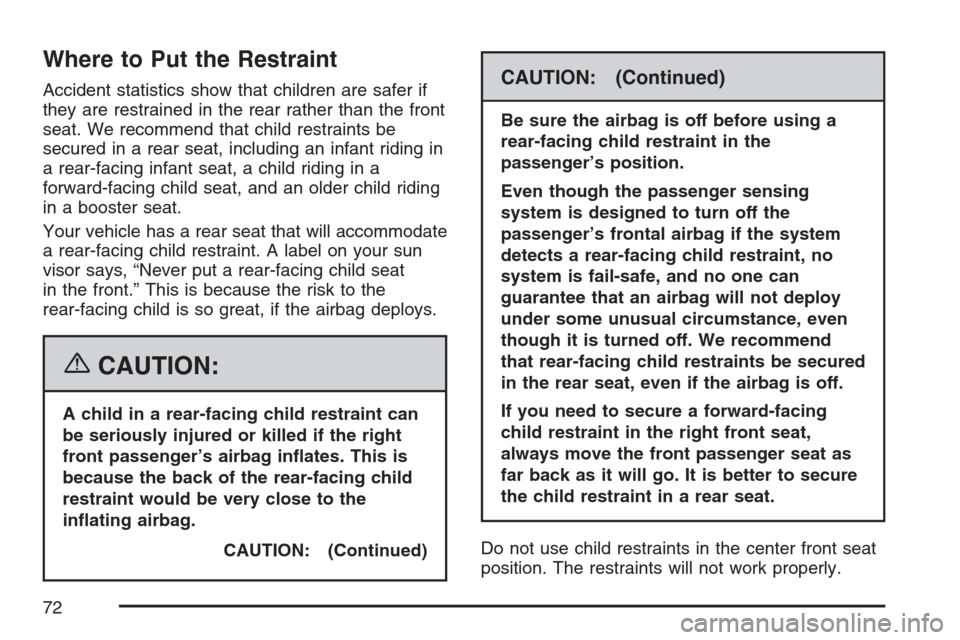

Page 72 of 574
Where to Put the Restraint
Accident statistics show that children are safer if
they are restrained in the rear rather than the front
seat. We recommend that child restraints be
secured in a rear seat, including an infant riding in
a rear-facing infant seat, a child riding in a
forward-facing child seat, and an older child riding
in a booster seat.
Your vehicle has a rear seat that will accommodate
a rear-facing child restraint. A label on your sun
visor says, “Never put a rear-facing child seat
in the front.” This is because the risk to the
rear-facing child is so great, if the airbag deploys.
{CAUTION:
A child in a rear-facing child restraint can
be seriously injured or killed if the right
front passenger’s airbag in ates. This is
because the back of the rear-facing child
restraint would be very close to the
in ating airbag.
CAUTION: (Continued)
CAUTION: (Continued)
Be sure the airbag is off before using a
rear-facing child restraint in the
passenger’s position.
Even though the passenger sensing
system is designed to turn off the
passenger’s frontal airbag if the system
detects a rear-facing child restraint, no
system is fail-safe, and no one can
guarantee that an airbag will not deploy
under some unusual circumstance, even
though it is turned off. We recommend
that rear-facing child restraints be secured
in the rear seat, even if the airbag is off.
If you need to secure a forward-facing
child restraint in the right front seat,
always move the front passenger seat as
far back as it will go. It is better to secure
the child restraint in a rear seat.
Do not use child restraints in the center front seat
position. The restraints will not work properly.
72
Page 86 of 574
Securing a Child Restraint in the
Right Front Seat Position
Your vehicle has a right front passenger’s
airbag. A rear seat is a safer place to secure a
forward-facing child restraint. SeeWhere to
Put the Restraint on page 72.
In addition, your vehicle has a passenger sensing
system. The passenger sensing system is
designed to turn off the right front passenger’s
frontal airbag when an infant in a rear-facing infant
seat or a small child in a forward-facing child
restraint or booster seat is detected. See
Passenger Sensing System on page 101and
Passenger Airbag Status Indicator on page 233for
more information on this including important
safety information.
A label on your sun visor says, “Never put a
rear-facing child seat in the front.” This is because
the risk to the rear-facing child is so great, if the
airbag deploys.
{CAUTION:
A child in a rear-facing child restraint can
be seriously injured or killed if the right
front passenger’s airbag in ates. This is
because the back of the rear-facing child
restraint would be very close to the
in ating airbag. Be sure the airbag is off
before using a rear-facing child restraint
in the passenger’s position.
Even though the passenger sensing
system is designed to turn off the
passenger’s frontal airbag if the system
detects a rear-facing child restraint, no
system is fail-safe, and no one can
guarantee that an airbag will not deploy
under some unusual circumstance, even
though it is turned off. We recommend
that rear-facing child restraints be secured
in the rear seat, even if the airbag is off.
86

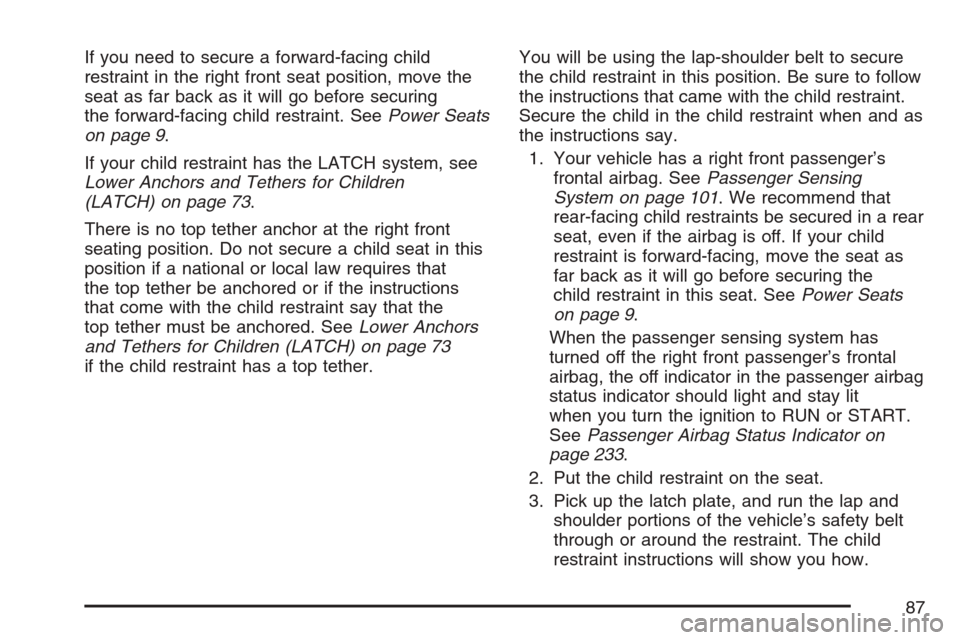

Page 87 of 574
If you need to secure a forward-facing child
restraint in the right front seat position, move the
seat as far back as it will go before securing
the forward-facing child restraint. SeePower Seats
on page 9.
If your child restraint has the LATCH system, see
Lower Anchors and Tethers for Children
(LATCH) on page 73.
There is no top tether anchor at the right front
seating position. Do not secure a child seat in this
position if a national or local law requires that
the top tether be anchored or if the instructions
that come with the child restraint say that the
top tether must be anchored. SeeLower Anchors
and Tethers for Children (LATCH) on page 73
if the child restraint has a top tether.You will be using the lap-shoulder belt to secure
the child restraint in this position. Be sure to follow
the instructions that came with the child restraint.
Secure the child in the child restraint when and as
the instructions say.
1. Your vehicle has a right front passenger’s
frontal airbag. SeePassenger Sensing
System on page 101. We recommend that
rear-facing child restraints be secured in a rear
seat, even if the airbag is off. If your child
restraint is forward-facing, move the seat as
far back as it will go before securing the
child restraint in this seat. SeePower Seats
on page 9.
When the passenger sensing system has
turned off the right front passenger’s frontal
airbag, the off indicator in the passenger airbag
status indicator should light and stay lit
when you turn the ignition to RUN or START.
SeePassenger Airbag Status Indicator on
page 233.
2. Put the child restraint on the seat.
3. Pick up the latch plate, and run the lap and
shoulder portions of the vehicle’s safety belt
through or around the restraint. The child
restraint instructions will show you how.
87
Page 89 of 574
6. To tighten the belt, push down on the child
restraint, pull the shoulder portion of the belt
to tighten the lap portion of the belt, and
feed the shoulder belt back into the retractor.
If you are using a forward-facing child
restraint, you may nd it helpful to use your
knee to push down on the child restraint
as you tighten the belt. You should not be able
to pull more of the belt from the retractor
once the lock has been set.7. Push and pull the child restraint in different
directions to be sure it is secure.
8. If the airbag is off, the off indicator will come
on and stay on when the key is turned to
RUN or START.
If a child restraint has been installed and the on
indicator is lit, turn the vehicle off. Remove
the child restraint from the vehicle and reinstall the
child restraint.
If, after reinstalling the child restraint and restarting
the vehicle, the on indicator is still lit, check to make
sure that the vehicle’s seatback is not pressing the
child restraint into the seat cushion. If this happens,
slightly recline the vehicle’s seatback and adjust the
seat cushion if possible. Also make sure the child
restraint is not trapped under the vehicle head
restraint. If this happens, adjust the head restraint.
If the on indicator is still lit, secure the child in the
child restraint in a rear seat position in the
vehicle and check with your dealer.
To remove the child restraint, just unbuckle the
vehicle’s safety belt and let it go back all the way.
The safety belt will move freely again and be ready
to work for an adult or larger child passenger.
89
Page 92 of 574
{CAUTION:
Anyone who is up against, or very close
to, any airbag when it in ates can be
seriously injured or killed. Airbags
plus lap-shoulder belts offer the best
protection for adults, but not for young
children and infants. Neither the vehicle’s
safety belt system nor its airbag system is
designed for them. Young children and
infants need the protection that a child
restraint system can provide. Always
secure children properly in your vehicle.
To read how, seeOlder Children on
page 60orInfants and Young Children on
page 63.
Occupants should not lean on or sleep
against the door in the rst or second row
seats, or the rear windows in the third row
seat, if your vehicle has roof-mounted
rollover airbags.There is an airbag
readiness light on the
instrument panel cluster,
which shows the
airbag symbol.
The system checks the airbag electrical system
for malfunctions. The light tells you if there is
an electrical problem. SeeAirbag Readiness Light
on page 232for more information.
92
Page 98 of 574
Your vehicle has roof-mounted rollover airbags
and a rollover sensor. SeeAirbag System on
page 90. These “rollover capable” airbags
are intended to in ate in moderate to severe side
crashes, during a rollover or in a severe frontal
impact. A roof-mounted rollover airbag will in ate if
the crash severity is above the system’s designed
“threshold level.” The threshold level can vary
with speci c vehicle design. Roof-mounted rollover
airbags are not intended to in ate in rear
impacts. Both roof-mounted rollover airbags will
deploy when either side of the vehicle is struck or
during a rollover, or in a severe frontal impact.In any particular crash, no one can say whether
an airbag should have in ated simply because
of the damage to a vehicle or because of what the
repair costs were. For frontal airbags, in ation is
determined by what the vehicle hits, the angle
of the impact, and how quickly the vehicle
slows down. For roof-mounted rollover airbags,
in ation is determined by the location and severity
of the impact or a rollover event.
The airbag system is designed to work properly
under a wide range of conditions, including off-road
usage. Observe safe driving speeds, especially
on rough terrain. As always, wear your safety belt.
SeeOff-Road Driving on page 338for tips on
off-road driving.
98
Page 100 of 574

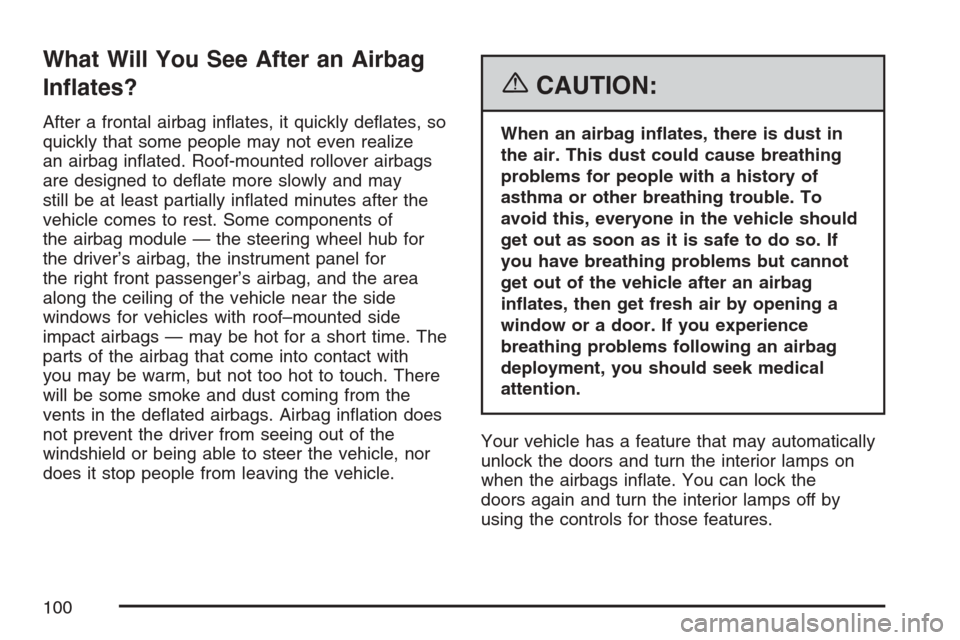

What Will You See After an Airbag
In ates?
After a frontal airbag in ates, it quickly de ates, so
quickly that some people may not even realize
an airbag in ated. Roof-mounted rollover airbags
are designed to de ate more slowly and may
still be at least partially in ated minutes after the
vehicle comes to rest. Some components of
the airbag module — the steering wheel hub for
the driver’s airbag, the instrument panel for
the right front passenger’s airbag, and the area
along the ceiling of the vehicle near the side
windows for vehicles with roof–mounted side
impact airbags — may be hot for a short time. The
parts of the airbag that come into contact with
you may be warm, but not too hot to touch. There
will be some smoke and dust coming from the
vents in the de ated airbags. Airbag in ation does
not prevent the driver from seeing out of the
windshield or being able to steer the vehicle, nor
does it stop people from leaving the vehicle.
{CAUTION:
When an airbag in ates, there is dust in
the air. This dust could cause breathing
problems for people with a history of
asthma or other breathing trouble. To
avoid this, everyone in the vehicle should
get out as soon as it is safe to do so. If
you have breathing problems but cannot
get out of the vehicle after an airbag
in ates, then get fresh air by opening a
window or a door. If you experience
breathing problems following an airbag
deployment, you should seek medical
attention.
Your vehicle has a feature that may automatically
unlock the doors and turn the interior lamps on
when the airbags in ate. You can lock the
doors again and turn the interior lamps off by
using the controls for those features.
100
