Roadside Service
U.S. or Canada:1-800-882-1112
TTY Users:1-888-889-2438
As the owner of a new Cadillac, you are automaticallyenrolled in the Roadside Service program which isavailable 24 hours a day, 365 days a year.
Roadside Service and OnStar
If you have a current OnStar subscription, press theOnStar button and the current GPS location will be sentto an OnStar Advisor who will assess your problem,contact Roadside Service, and relay exact location toget you the help you need.
Online Owner Center
The Online Owner Center is a complimentary servicethat includes online service reminders, vehiclemaintenance tips, online owner manual, specialprivileges and more.
Sign up today at:www.gmownercenter.com/cadillac(U.S.) orwww.gm.ca(Canada).
OnStar®
OnStar®uses several innovative technologies and liveadvisors to provide a wide range of safety, security,navigation, diagnostics, and calling services.
Automatic Crash Response
In a crash, built in sensors can automatically alert anOnStar advisor who is immediately connected to thevehicle to see if you need help.
1-24

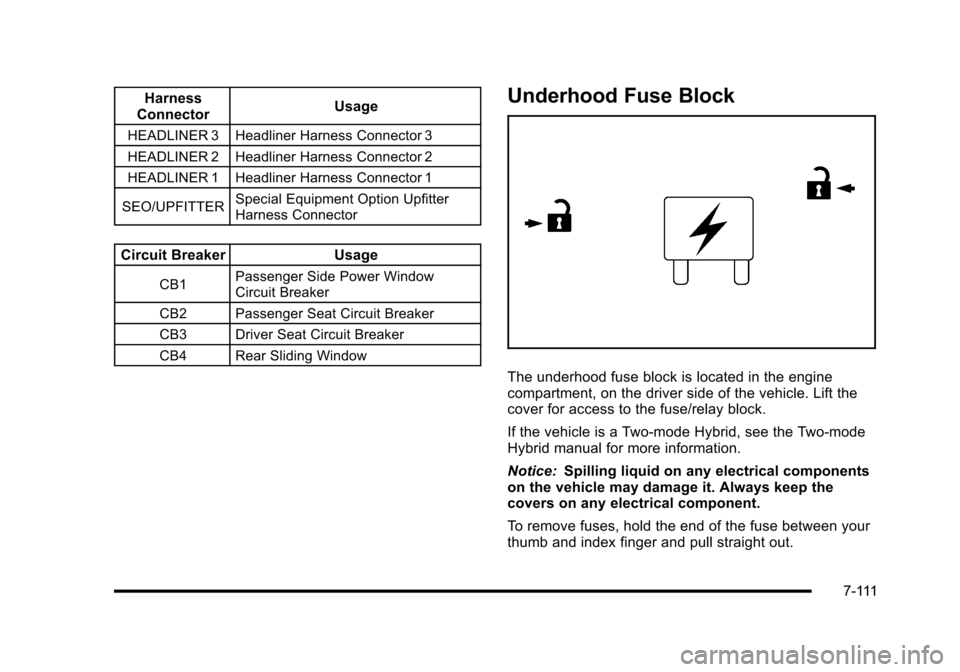

HarnessConnectorUsage
HEADLINER 3 Headliner Harness Connector 3
HEADLINER 2 Headliner Harness Connector 2
HEADLINER 1 Headliner Harness Connector 1
SEO/UPFITTERSpecial Equipment Option UpfitterHarness Connector
Circuit BreakerUsage
CB1Passenger Side Power WindowCircuit Breaker
CB2Passenger Seat Circuit Breaker
CB3Driver Seat Circuit Breaker
CB4Rear Sliding Window
Underhood Fuse Block
The underhood fuse block is located in the enginecompartment, on the driver side of the vehicle. Lift thecover for access to the fuse/relay block.
If the vehicle is a Two-mode Hybrid, see the Two-modeHybrid manual for more information.
Notice:Spilling liquid on any electrical componentson the vehicle may damage it. Always keep thecovers on any electrical component.
To remove fuses, hold the end of the fuse between yourthumb and index finger and pull straight out.
7-111

FusesUsage
52SEO B1 Upfitter Usage (Battery)
53Cigarette Lighter, Auxiliary PowerOutlet
54Automatic Level Control CompressorRelay
55Climate Controls (Ignition)
56Engine Control Module, SecondaryFuel Pump (Ignition)
J-Case FusesUsage
57Cooling Fan 1
58Automatic Level Control Compressor
59Heavy Duty Antilock Braking System
60Cooling Fan 2
61Antilock Brake System 1
62Starter
63Stud 2 (Trailer Brakes)
64Left Bussed Electrical Center 1
65Electric Running Boards
66Heated Windshield Washer System
67Transfer Case
J-Case FusesUsage
68Stud 1 (Trailer Connector BatteryPower)
69Mid-Bussed Electrical Center 1
70Climate Control Blower
71Power Liftgate Module
72Left Bussed Electrical Center 2
RelaysUsage
FAN HICooling Fan High Speed
FAN LOCooling Fan Low Speed
FAN CNTRL Cooling Fan Control
HDLP LO/HID Low-Beam Headlamp
FOG LAMPFront Fog Lamps
A/C CMPRSR Air Conditioning Compressor
STRTRStarter
PWR/TRNPowertrain
FUEL PMPFuel Pump
PRK LAMPParking Lamps
REAR DEFOG Rear Defogger
RUN/CRANK Switched Power
