Black plate (63,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
Vehicle Care 10-63
To decrease air-pressure out of a
tire you can use the pointed end of
the valve cap, a pencil-style air
pressure gauge, or a key.
You have two minutes to match
the first tire/wheel position, and
five minutes overall to match all
four tire/wheel positions. If it takes
longer than two minutes, to match
the first tire and wheel, or more than
five minutes to match all four tire
and wheel positions the matching
process stops and you need to
start over.
The TPMS sensor matching process
is outlined below:
1. Set the parking brake.
2. Turn the ignition switch toON/RUN with the engine off. 3. PressQandKon the
Remote Keyless Entry (RKE)
transmitter at the same time
for approximately five seconds.
The horn sounds twice to signal
the receiver is in relearn mode
and TIRE LEARNING ACTIVE
message displays on the DIC
screen.
4. Start with the driver side front tire.
5. Remove the valve cap from the valve cap stem. Activate the
TPMS sensor by increasing
or decreasing the tire's air
pressure for five seconds,
or until a horn chirp sounds.
The horn chirp, which may
take up to 30 seconds to
sound, confirms that the sensor
identification code has been
matched to this tire and wheel
position.
6. Proceed to the passenger side front tire, and repeat the
procedure in Step 5. 7. Proceed to the passenger
side rear tire, and repeat the
procedure in Step 5.
8. Proceed to the driver side rear tire, and repeat the procedure in
Step 5. The horn sounds two
times to indicate the sensor
identification code has been
matched to the driver side rear
tire, and the TPMS sensor
matching process is no longer
active. The TIRE LEARNING
ACTIVE message on the DIC
display screen goes off.
9. Turn the ignition switch to LOCK/OFF.
10. Set all four tires to the recommended air pressure
level as indicated on the Tire
and Loading Information label.
11. Put the valve caps back on the valve stems.

Black plate (90,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
10-90 Vehicle Care
Notice:Only use vehicles with
12-volt systems with negative
grounds to jump start your
vehicle. If the other vehicle's
system is not a 12-volt system
with a negative ground, both
vehicles can be damaged.
2. Get the vehicles close enough so the jumper cables can reach,
but be sure the vehicles are
not touching each other. If they
are, it could cause a ground
connection you do not want.
You would not be able to start
your vehicle, and the bad
grounding could damage the
electrical systems.
To avoid the possibility of the
vehicles rolling, set the parking
brake firmly on both vehicles
involved in the jump start
procedure. Put the automatic
transmission in P (Park) or
a manual transmission in N (Neutral) before setting the
parking brake. If you have a
four-wheel-drive vehicle, be sure
that the transfer case is in a
drive gear, not in N (Neutral).
Notice: If you leave the radio or
other accessories on during the
jump starting procedure, they
could be damaged. The repairs
would not be covered by the
warranty. Always turn off the
radio and other accessories
when jump starting the vehicle.
3. Turn off the ignition on both vehicles. Unplug unnecessary
accessories plugged into the
cigarette lighter or the accessory
power outlets. Turn off the radio
and all the lamps that are not
needed. This avoids sparks and
helps save both batteries. And it
could save the radio! 4. Open the hood on the other
vehicle and locate the
positive (+) and negative (−)
terminal locations on that
vehicle.
Your vehicle has a remote
positive (+) jump starting
terminal and a remote
negative (−) jump starting
terminal. You should always use
these remote terminals instead
of the terminals on the battery.

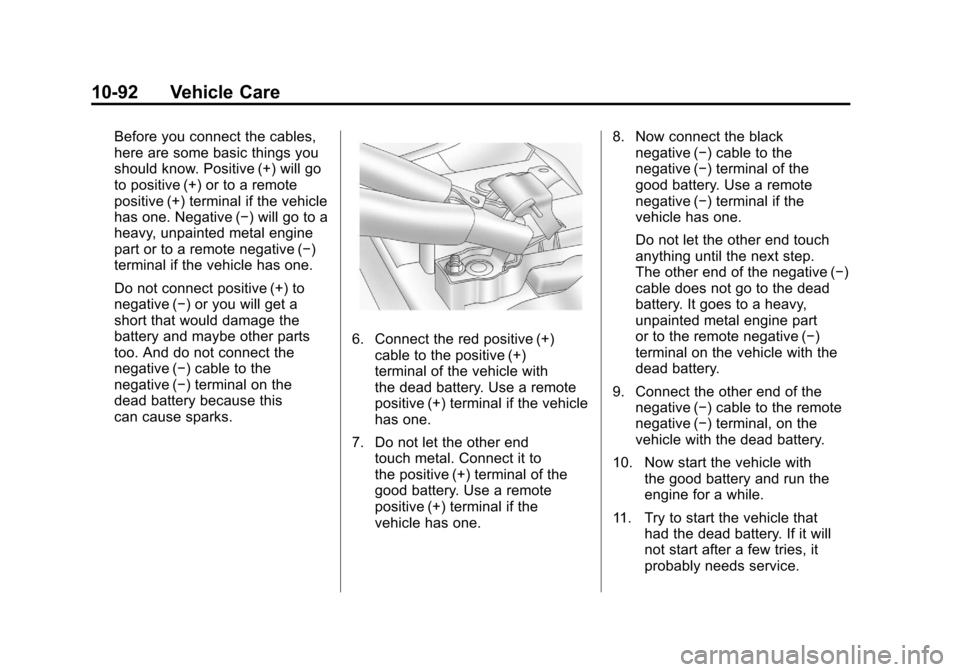

If the vehicle has a remote
positive (+) terminal, it is located
under a red plastic cover at the
positive battery post. To uncover
the remote positive (+) terminal,
open the red plastic cover.

Black plate (91,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
Vehicle Care 10-91
The remote negative (−) terminal
is a stud located on the right
front of the engine, where the
negative battery cable attaches.
SeeEngine Compartment
Overview on page 10‑6 for more
information on the location of the
remote positive (+) and remote
negative (−) terminals.
{WARNING
An electric fan can start up even
when the engine is not running
and can injure you. Keep hands,
clothing and tools away from any
underhood electric fan.
{WARNING
Using an open flame near a
battery can cause battery gas to
explode. People have been hurt
doing this, and some have been
blinded. Use a flashlight if you
need more light.
Be sure the battery has enough
water. You do not need to add
water to the battery installed in
your new vehicle. But if a battery
has filler caps, be sure the right
amount of fluid is there. If it is low,
(Continued)
WARNING (Continued)
add water to take care of that
first. If you do not, explosive gas
could be present.
Battery fluid contains acid that
can burn you. Do not get it on
you. If you accidentally get it in
your eyes or on your skin, flush
the place with water and get
medical help immediately.
{WARNING
Fans or other moving engine
parts can injure you badly. Keep
your hands away from moving
parts once the engine is running.
5. Check that the jumper cables do not have loose or missing
insulation. If they do, you could
get a shock. The vehicles could
be damaged too.

Black plate (92,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
10-92 Vehicle Care
Before you connect the cables,
here are some basic things you
should know. Positive (+) will go
to positive (+) or to a remote
positive (+) terminal if the vehicle
has one. Negative (−) will go to a
heavy, unpainted metal engine
part or to a remote negative (−)
terminal if the vehicle has one.
Do not connect positive (+) to
negative (−) or you will get a
short that would damage the
battery and maybe other parts
too. And do not connect the
negative (−) cable to the
negative (−) terminal on the
dead battery because this
can cause sparks.
6. Connect the red positive (+)cable to the positive (+)
terminal of the vehicle with
the dead battery. Use a remote
positive (+) terminal if the vehicle
has one.
7. Do not let the other end touch metal. Connect it to
the positive (+) terminal of the
good battery. Use a remote
positive (+) terminal if the
vehicle has one. 8. Now connect the black
negative (−) cable to the
negative (−) terminal of the
good battery. Use a remote
negative (−) terminal if the
vehicle has one.
Do not let the other end touch
anything until the next step.
The other end of the negative (−)
cable does not go to the dead
battery. It goes to a heavy,
unpainted metal engine part
or to the remote negative (−)
terminal on the vehicle with the
dead battery.
9. Connect the other end of the negative (−) cable to the remote
negative (−) terminal, on the
vehicle with the dead battery.
10. Now start the vehicle with the good battery and run the
engine for a while.
11. Try to start the vehicle that had the dead battery. If it will
not start after a few tries, it
probably needs service.

Black plate (19,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
Customer Information 13-19
OnStar®
If your vehicle is equipped with
an active OnStar system, that
system may also record data in
crash or near crash‐like situations.
The OnStar Terms and Conditions
provides information on data
collection and use and is available
in the OnStar glove box kit,
at www.onstar.com (U.S.) or
www.onstar.ca (Canada), or
by pressing the
Qbutton and
speaking to an advisor.
Navigation System
If the vehicle has a navigation
system, use of the system may
result in the storage of destinations,
addresses, telephone numbers, and
other trip information. See Using the
Navigation System on page 7‑60 for
information on stored data and for
deletion instructions.
Radio Frequency
Identification (RFID)
RFID technology is used in some
vehicles for functions such as tire
pressure monitoring and ignition
system security, as well as in
connection with conveniences
such as key fobs for remote door
locking/unlocking and starting,
and in-vehicle transmitters for
garage door openers. RFID
technology in GM vehicles does
not use or record personal
information or link with any other
GM system containing personal
information.
Radio Frequency
Statement
This vehicle has systems that
operate on a radio frequency that
comply with Part 15 of the Federal
Communications Commission (FCC)
rules and with Industry Canada
Standards RSS‐210/220/310.
Operation is subject to the following
two conditions:
1. The device may not cause interference.
2. The device must accept any interference received, including
interference that may cause
undesired operation of the
device.
Changes or modifications to any
of these systems by other than an
authorized service facility could void
authorization to use this equipment.

Black plate (6,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
i-6 INDEX
HeatedRear Seats . . . . . . . . . . . . . . . . . . . . 3-9
Steering Wheel . . . . . . . . . . . . . . . . 5-5
Heated and Ventilated Front Seats . . . . . . . . . . . . . . . . . . . . . . . . . 3-8
Heated Mirrors . . . . . . . . . . . . . . . . . 2-17
High-Beam On Light . . . . . . . . . . . 5-25
High-Speed Operation . . . . . . . . 10-58
Highway Hypnosis . . . . . . . . . . . . . 9-20
Hill and Mountain Roads . . . . . . . 9-20
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . 10-5
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5
How to Wear Safety Belts Properly . . . . . . . . . . . . . . . . . . . . . . 3-25
I
Ignition Positions . . . . . . . . . . . . . . 9-32
Ignition Transmission LockCheck . . . . . . . . . . . . . . . . . . . . . . . 10-34
Immobilizer . . . . . . . . . . . . . . . . . . . . 2-14
Infants and Young Children, Restraints . . . . . . . . . . . . . . . . . . . . 3-57
Instrument Cluster . . . . . . . . . . . . . 5-12
Introduction . . . . . . . . . . . . . . . . . . .iii, 7-2
J
Jump Starting . . . . . . . . . . . . . . . . . 10-89
K
Key and Lock Messages . . . . . . . 5-35
Keyless Entry
Remote (RKE) System . . . . . . . . 2-3
Keyless Entry System . . . . . . . . . . 2-2
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
L
Labeling, Tire Sidewall . . . . . . . . 10-52
Lamp Messages . . . . . . . . . . . . . . . 5-35
Lamps Daytime Running (DRL) . . . . . . . 6-6
Dome . . . . . . . . . . . . . . . . . . . . . . . . . 6-10
Exterior Controls . . . . . . . . . . . . . . . 6-1
Exterior Lamps Off
Reminder . . . . . . . . . . . . . . . . . . . . 6-5
License Plate . . . . . . . . . . . . . . . 10-41
Malfunction Indicator . . . . . . . . . 5-18
On Reminder . . . . . . . . . . . . . . . . . 5-25
Reading . . . . . . . . . . . . . . . . . . . . . . 6-10 Lap Belt . . . . . . . . . . . . . . . . . . . . . . . 3-37
Lap-Shoulder Belt . . . . . . . . . . . . . 3-31
LATCH System
Replacing Parts After aCrash . . . . . . . . . . . . . . . . . . . . . . . 3-71
Latch, Lower Anchors and Tethers for Children . . . . . . . . . . 3-63
LED Lighting . . . . . . . . . . . . . . . . . . 10-39
Level Control Automatic . . . . . . . . . . . . . . . . . . . . . 9-50
Liftgate
Carbon Monoxide . . . . . . . . 2-9, 2-10
Lighter, Cigarette . . . . . . . . . . . . . . 5-10
Lighting Entry . . . . . . . . . . . . . . . . . . . . . . . . . 6-11
Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-11
Illumination Control . . . . . . . . . . . . 6-9
LED . . . . . . . . . . . . . . . . . . . . . . . . 10-39
Lights Airbag Readiness . . . . . . . . . . . . . 5-16
Antilock Brake System(ABS) Warning . . . . . . . . . . . . . . 5-22
Charging System . . . . . . . . . . . . . 5-18
Cruise Control . . . . . . . . . . . . . . . . 5-25

Black plate (9,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
INDEX i-9
R
Radio FrequencyIdentification (RFID) . . . . . . . . 13-19
Statement . . . . . . . . . . . . . . . . . . 13-19
Radios AM-FM Radio . . . . . . . . . . . . . . . . . 7-10
CD/DVD Player . . . . . . . . . . . . . . . 7-19
Reception . . . . . . . . . . . . . . . . . . . . 7-17
Satellite . . . . . . . . . . . . . . . . . . . . . . . 7-16
Reading Lamps . . . . . . . . . . . . . . . . 6-10
Rear Axle . . . . . . . . . . . . . . . . . . . . . 10-32 Locking . . . . . . . . . . . . . . . . . . . . . . . 9-49
Rear Climate Control System . . . 8-6
Rear Seat Audio (RSA) System . . . . . . . . . . . . . . . . . . . . . . . 7-58
Rear Seat
Entertainment
System . . . . . . . . . . . . . . . . . 7-33, 7-43
Rear Seat Audio (RSA) . . . . . . . 7-58
Rear Seats
Heated . . . . . . . . . . . . . . . . . . . . . . . . 3-9
Rear Side Window Antenna . . . 7-18
Rear Storage . . . . . . . . . . . . . . . . . . . 4-2
Rear Vision Camera (RVC) . . . . 9-59
Rear Window Washer/Wiper . . . . 5-6 Rearview Mirrors
Automatic Dimming . . . . . . . . . . . 2-18
Reclining Seatbacks . . . . . . . . . . . . 3-6
Recommended Fluids and Lubricants . . . . . . . . . . . . . . . . . . . . 11-7
Recommended Fuel . . . . . . . . . . . 9-64
Records Maintenance . . . . . . . . . . . . . . . . .11-10
Recreational Vehicle Towing . . . . . . . . . . . . . . . . . . . . . . 10-94
Reimbursement Program,
GM Mobility . . . . . . . . . . . . . . . . . . 13-7
Remote Keyless Entry (RKE) System . . . . . . . . . . . . . 2-2, 2-3
Remote Vehicle Start . . . . . . . . . . . 2-5
Replacement Glass . . . . . . . . . . . . . . . . . . . . . . . 10-36
Replacement Bulbs . . . . . . . . . . . 10-41
Replacement Parts Airbags . . . . . . . . . . . . . . . . . . . . . . . 3-54
Maintenance . . . . . . . . . . . . . . . . . . 11-9
Replacing Airbag System . . . . . . 3-54
Replacing LATCH System Parts After a Crash . . . . . . . . . . . 3-71 Replacing Safety Belt
System Parts After a
Crash . . . . . . . . . . . . . . . . . . . . . . . . 3-39
Reporting Safety Defects Canadian Government . . . . . . 13-17
General Motors . . . . . . . . . . . . . 13-17
U.S. Government . . . . . . . . . . . 13-16
Restraints Where to Put . . . . . . . . . . . . . . . . . 3-62
Retained Accessory Power (RAP) . . . . . . . . . . . . . . . . . 9-35
Ride Control Systems Messages . . . . . . . . . . . . . . . . . . . . 5-37
Road Sensing Suspension . . . 9-50
Road Sensing Suspension . . . . 9-50
Roadside Service . . . . . . . 13-7, 13-10
Roof Sunroof . . . . . . . . . . . . . . . . . . . . . . . 2-22
Roof Rack System . . . . . . . . . . . . . . 4-3
Rotation, Tires . . . . . . . . . . . . . . . . 10-64
Routing, Engine Drive Belt . . . . . 12-3
Running the Vehicle While Parked . . . . . . . . . . . . . . . . . . . . . . . 9-39

Black plate (10,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
i-10 INDEX
S
Safety Belts . . . . . . . . . . . . . . . . . . . 3-22Care . . . . . . . . . . . . . . . . . . . . . . . . . . 3-38
Extender . . . . . . . . . . . . . . . . . . . . . . 3-38
How to Wear Safety BeltsProperly . . . . . . . . . . . . . . . . . . . . . 3-25
Lap Belt . . . . . . . . . . . . . . . . . . . . . . 3-37
Lap-Shoulder Belt . . . . . . . . . . . . 3-31
Reminders . . . . . . . . . . . . . . . . . . . . 5-15
Replacing After a Crash . . . . . . 3-39
Use During Pregnancy . . . . . . . . 3-36
Safety Defects Reporting Canadian Government . . . . . . 13-17
General Motors . . . . . . . . . . . . . 13-17
U.S. Government . . . . . . . . . . . 13-16
Safety Locks . . . . . . . . . . . . . . . . . . . . 2-8
Safety System Check . . . . . . . . . . 3-38
Satellite Radio . . . . . . . . . . . . . . . . . 7-16
Scheduled Maintenance . . . . . . . 11-2
Scheduling Appointments . . . . . 13-10
Seats
Head Restraints . . . . . . . . . . . . . . . 3-2
Heated and Ventilated Front . . . 3-8
Heated, Rear . . . . . . . . . . . . . . . . . . 3-9
Lumbar Adjustment, Front . . . . . 3-6
Power Adjustment, Front . . . . . . 3-3 Seats (cont.)
Reclining Seatbacks . . . . . . . . . . . 3-6
Second Row . . . . . . . . . . . . 3-10, 3-13
Third Row Seat . . . . . . . . . . . . . . . 3-18
Second Row Seats . . . . . . 3-10, 3-13
Secondary Latch System . . . . . 10-86
Securing Child Restraints . . . . . . . . . . . . . . 3-72, 3-75
Security
Light . . . . . . . . . . . . . . . . . . . . . . . . . . 5-25
Vehicle . . . . . . . . . . . . . . . . . . . . . . . 2-13
Service Accessories andModifications . . . . . . . . . . . . . . . . 10-3
Doing Your Own Work . . . . . . . . 10-4
Engine Soon Light . . . . . . . . . . . . 5-18
Maintenance Records . . . . . . .11-10
Maintenance, General Information . . . . . . . . . . . . . . . . . . 11-1
Parts Identification Label . . . . . 12-1
Publications Ordering Information . . . . . . . . . . . . . . . . 13-15
Scheduling Appointments . . . 13-10
Servicing the Airbag-Equipped Vehicle . . . . . 3-52 Shift Lock Control Function
Check, Automatic
Transmission . . . . . . . . . . . . . . . . 10-34
Shifting Into Park . . . . . . . . . . . . . . . . . . . . . . 9-36
Out of Park . . . . . . . . . . . . . . . . . . . 9-37
Side Blind Zone Alert . . . . . . . . . . 9-56
Signals, Turn and
Lane-Change . . . . . . . . . . . . . . . . . 6-8
Specifications and Capacities . . . . . . . . . . . . . . . . . . . . 12-2
Speedometer . . . . . . . . . . . . . . . . . . 5-13
StabiliTrak
®Indicator Light . . . . 5-23
StabiliTrak®System . . . . . . . . . . . 9-47
Start Vehicle, Remote . . . . . . . . . . 2-5
Starter Switch Check . . . . . . . . . 10-33
Starting the Engine . . . . . . . . . . . . 9-33
Steering . . . . . . . . . . . . . . . . . . . . . . . . 9-5 Fluid, Power . . . . . . . . . . . . . . . . 10-25
Heated Wheel . . . . . . . . . . . . . . . . . 5-5
Wheel Adjustment . . . . . . . . . . . . . 5-2
Wheel Controls . . . . . . . . . . . . . . . . 5-3
Steps Power Assist . . . . . . . . . . . . . . . . . 2-13
Storage
Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2

Black plate (12,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
i-12 INDEX
U
Ultrasonic Parking Assist . . . . . . 9-54
Uniform Tire QualityGrading . . . . . . . . . . . . . . . . . . . . . 10-69
Universal Remote System . . . . . 5-50 Operation . . . . . . . . . . . . . . . . . . . . . 5-55
Programming . . . . . . . . . . . . . . . . . 5-50
Updates Map Data . . . . . . . . . . . . . . . . . . . . . 7-98
Using this Manual . . . . . . . . . . . . . . . . iv
V
Vehicle Canadian Owners . . . . . . . . . . . . . . . iii
Control . . . . . . . . . . . . . . . . . . . . . . . . 9-3
Load Limits . . . . . . . . . . . . . . . . . . . 9-24
Messages . . . . . . . . . . . . . . . . . . . . 5-31
Personalization . . . . . . . . . . . . . . . 5-40
Remote Start . . . . . . . . . . . . . . . . . . 2-5
Security . . . . . . . . . . . . . . . . . . . . . . 2-13
Towing . . . . . . . . . . . . . . . . . . . . . . 10-94 Vehicle Care
Tire Pressure . . . . . . . . . . . . . . . 10-57
Vehicle Identification Number (VIN) . . . . . . . . . . . . . . . . . 12-1
Service Parts IdentificationLabel . . . . . . . . . . . . . . . . . . . . . . . . 12-1
Vehicle Positioning . . . . . . . . . . . . 7-97
Vehicle Reminder
Messages . . . . . . . . . . . . . . . . . . . . 5-40
Ventilation, Air . . . . . . . . . . . . . . . . . . 8-8
Visors . . . . . . . . . . . . . . . . . . . . . . . . . 2-22
Voice Recognition . . . . . . . . . . . . . 7-99W
Warning Lights, Gauges, and Indicators . . . . . . . . . . . . . . . . 5-11
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . iv Cautions and Danger . . . . . . . . . . . .iv
Hazard Flashers . . . . . . . . . . . . . . . 6-8
Washer Fluid . . . . . . . . . . . . . . . . . 10-26
Washer Fluid Messages . . . . . . . 5-40 Wheels
Alignment and Tire
Balance . . . . . . . . . . . . . . . . . . . 10-71
Different Size . . . . . . . . . . . . . . . 10-68
Replacement . . . . . . . . . . . . . . . 10-71
When It Is Time for New Tires . . . . . . . . . . . . . . . . . . . . . . . . 10-65
Where to Put the Restraint . . . . 3-62
Windows . . . . . . . . . . . . . . . . . . . . . . 2-19 Power . . . . . . . . . . . . . . . . . . . . . . . . 2-20
Windshield
Wiper/Washer . . . . . . . . . . . . . . . . . 5-5
Winter Driving . . . . . . . . . . . . . . . . . 9-21
Wiper Blade Replacement . . . . 10-35
Wipers Rear Washer . . . . . . . . . . . . . . . . . . 5-6
