odometer CADILLAC ESCALADE 2018 Owner's Manual

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11349344) - 2018 - crc - 11/7/17
120 INSTRUMENTS AND CONTROLS
Instruments and
Controls
Controls
Steering Wheel Adjustment . . . . . 121
Steering Wheel Controls . . . . . . . . . 121
Heated Steering Wheel . . . . . . . . . . 121
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Windshield Wiper/Washer . . . . . . . 121
Rear Window Wiper/Washer . . . . 123
Compass . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Power Outlets . . . . . . . . . . . . . . . . . . . . . 125
Wireless Charging . . . . . . . . . . . . . . . . 127
Cigarette Lighter . . . . . . . . . . . . . . . . . . 129
Ashtrays . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Warning Lights, Gauges, and
Indicators
Warning Lights, Gauges, andIndicators . . . . . . . . . . . . . . . . . . . . . . . 129
Instrument Cluster . . . . . . . . . . . . . . . 130
Speedometer . . . . . . . . . . . . . . . . . . . . . . 132
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . 132
Trip Odometer . . . . . . . . . . . . . . . . . . . . 133
Tachometer . . . . . . . . . . . . . . . . . . . . . . . 133
Fuel Gauge . . . . . . . . . . . . . . . . . . . . . . . . 133 Engine Coolant Temperature
Gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Seat Belt Reminders . . . . . . . . . . . . . . 134
Airbag Readiness Light . . . . . . . . . . 135
Passenger Airbag Status Indicator . . . . . . . . . . . . . . . . . . . . . . . . . 135
Charging System Light . . . . . . . . . . . 136
Malfunction Indicator Lamp (Check Engine Light) . . . . . . . . . . . 137
Brake System Warning Light . . . . 138
Electric Parking Brake Light . . . . . 139
Service Electric Parking Brake Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Antilock Brake System (ABS) Warning Light . . . . . . . . . . . . . . . . . . 140
Sport Mode Light . . . . . . . . . . . . . . . . . 140
Tow/Haul Mode Light . . . . . . . . . . . . 140
Winter Driving Mode Light . . . . . . 140
Lane Keep Assist (LKA) Light . . . 140
Vehicle Ahead Indicator . . . . . . . . . 141
Traction Off Light . . . . . . . . . . . . . . . . 141
StabiliTrak OFF Light . . . . . . . . . . . . 141
Traction Control System (TCS)/ StabiliTrak Light . . . . . . . . . . . . . . . . 142
Engine Coolant Temperature Warning Light . . . . . . . . . . . . . . . . . . 142
Tire Pressure Light . . . . . . . . . . . . . . . 142
Engine Oil Pressure Light . . . . . . . . 143
Low Fuel Warning Light . . . . . . . . . 143
Security Light . . . . . . . . . . . . . . . . . . . . . 143 High-Beam On Light . . . . . . . . . . . . . 144
Lamps On Reminder . . . . . . . . . . . . . 144
Cruise Control Light . . . . . . . . . . . . . . 144
Door Ajar Light . . . . . . . . . . . . . . . . . . . 145
Information Displays
Driver Information
Center (DIC) . . . . . . . . . . . . . . . . . . . . . 145
Head-Up Display (HUD) . . . . . . . . . 147
Vehicle Messages
Vehicle Messages . . . . . . . . . . . . . . . . . 151
Engine Power Messages . . . . . . . . . . 151
Vehicle Speed Messages . . . . . . . . . 152
Vehicle Personalization
Vehicle Personalization . . . . . . . . . . 152
Universal Remote System
Universal Remote System . . . . . . . . 160
Universal Remote System Programming . . . . . . . . . . . . . . . . . . . 160
Universal Remote System Operation . . . . . . . . . . . . . . . . . . . . . . . . 163

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11349344) - 2018 - crc - 11/7/17
132 INSTRUMENTS AND CONTROLS
Phone
While the Phone application page is
displayed, press SEL to enter the
Phone menu. In the Phone menu,
if there is no active phone call, view
recent calls, select from favorites,
or scroll through contacts. If there is
an active call, mute the phone or
switch to handset operation.
Cluster Options Menu
To enter the cluster Options menu:1. Use the five-way control on the right side of the steering wheel
to find the Options page in one
of the interactive display zones
on the cluster.
2. Press SEL on the center of the five-way control to enter the
Options menu.
Units : Press SEL while Units is
highlighted to enter the Unit menu.
Choose US or metric units by pressing
SEL while the desired item is
highlighted. A checkmark will be
displayed next to the selected item. Info Pages :
Press SEL while Info
Pages is highlighted to select the
items to be displayed in the DIC info
displays. See Driver Information Center
(DIC) 0145.
Fav Button Options : Press SEL while
Fav Button Options is highlighted to
select between FAV Primary and SEEK
Primary. This selection allows for
configuration of the
CandB
steering wheel controls. When FAV
Primary is selected, pressing
Cand
Bwill go to the next or previous
favorite and pressing and holding
C
andBwill seek. When SEEK Primary
is selected, pressing
CandBwill
seek and pressing and holding
Cand
Bwill go to the next or previous
favorite.
Display Layout : Press SEL while
Display Layout is highlighted to
change the configuration of the
cluster. See “Reconfigurable
Instrument Cluster” earlier in this
section. Head-up Display (HUD) Rotation :
This feature allows for adjusting the
angle of the HUD image. Press SEL on
the steering wheel controls while
Head-up Display Rotation is
highlighted to enter Adjust Mode.
Press
yorzto adjust the angle of
the HUD display. Press
SorTto
highlight OK, then press SEL to save
the setting. Cancel can also be
selected to cancel the setting. The
vehicle must be in P (Park).
Open Source Software : Press SEL
while Open Source Software is
highlighted to display open source
software information.
Speedometer
The speedometer shows the vehicle's
speed in either kilometers per hour
(km/h) or miles per hour (mph).
Odometer
The odometer shows how far the
vehicle has been driven, in either
kilometers or miles.

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11349344) - 2018 - crc - 11/7/17

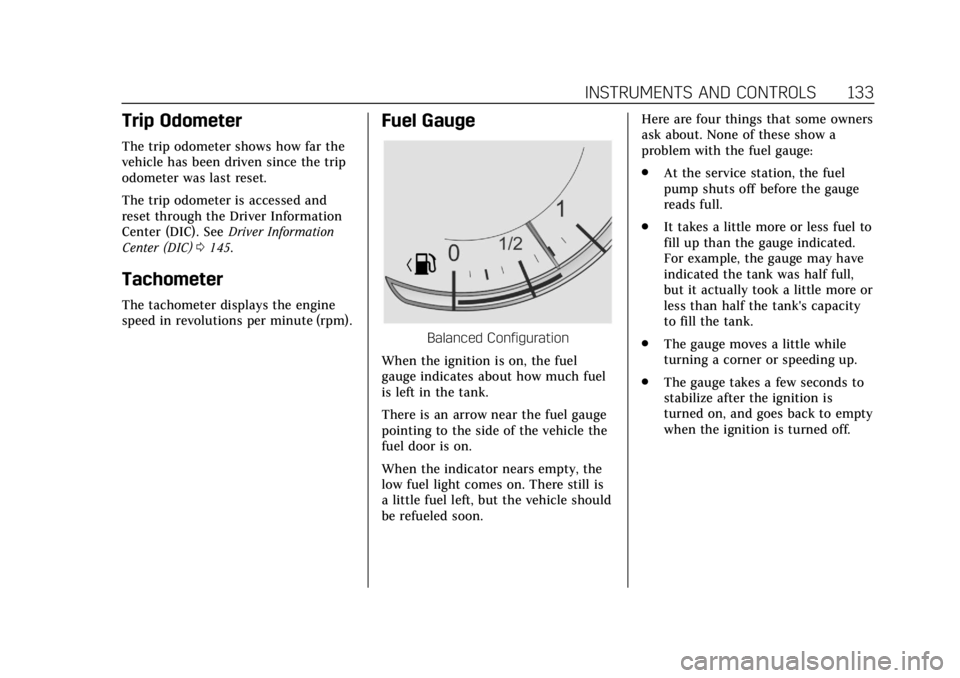

INSTRUMENTS AND CONTROLS 133
Trip Odometer
The trip odometer shows how far the
vehicle has been driven since the trip
odometer was last reset.
The trip odometer is accessed and
reset through the Driver Information
Center (DIC). SeeDriver Information
Center (DIC) 0145.
Tachometer
The tachometer displays the engine
speed in revolutions per minute (rpm).
Fuel Gauge
Balanced Configuration
When the ignition is on, the fuel
gauge indicates about how much fuel
is left in the tank.
There is an arrow near the fuel gauge
pointing to the side of the vehicle the
fuel door is on.
When the indicator nears empty, the
low fuel light comes on. There still is
a little fuel left, but the vehicle should
be refueled soon. Here are four things that some owners
ask about. None of these show a
problem with the fuel gauge:
.
At the service station, the fuel
pump shuts off before the gauge
reads full.
. It takes a little more or less fuel to
fill up than the gauge indicated.
For example, the gauge may have
indicated the tank was half full,
but it actually took a little more or
less than half the tank's capacity
to fill the tank.
. The gauge moves a little while
turning a corner or speeding up.
. The gauge takes a few seconds to
stabilize after the ignition is
turned on, and goes back to empty
when the ignition is turned off.

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11349344) - 2018 - crc - 11/7/17

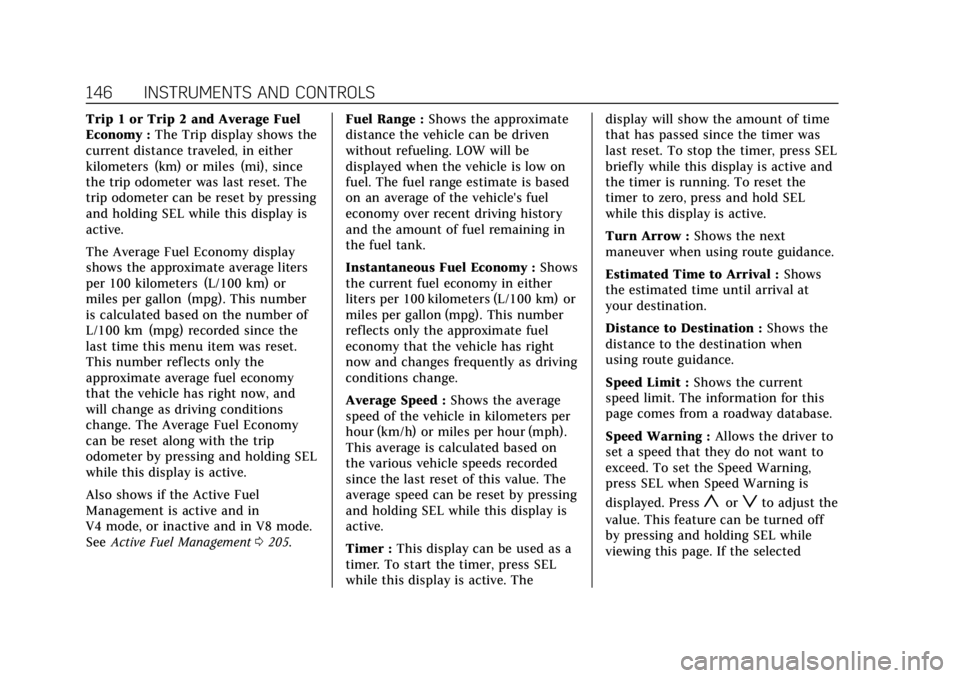

146 INSTRUMENTS AND CONTROLS
Trip 1 or Trip 2 and Average Fuel
Economy :The Trip display shows the
current distance traveled, in either
kilometers (km) or miles (mi), since
the trip odometer was last reset. The
trip odometer can be reset by pressing
and holding SEL while this display is
active.
The Average Fuel Economy display
shows the approximate average liters
per 100 kilometers (L/100 km) or
miles per gallon (mpg). This number
is calculated based on the number of
L/100 km (mpg) recorded since the
last time this menu item was reset.
This number reflects only the
approximate average fuel economy
that the vehicle has right now, and
will change as driving conditions
change. The Average Fuel Economy
can be reset along with the trip
odometer by pressing and holding SEL
while this display is active.
Also shows if the Active Fuel
Management is active and in
V4 mode, or inactive and in V8 mode.
See Active Fuel Management 0205. Fuel Range :
Shows the approximate
distance the vehicle can be driven
without refueling. LOW will be
displayed when the vehicle is low on
fuel. The fuel range estimate is based
on an average of the vehicle's fuel
economy over recent driving history
and the amount of fuel remaining in
the fuel tank.
Instantaneous Fuel Economy : Shows
the current fuel economy in either
liters per 100 kilometers (L/100 km) or
miles per gallon (mpg). This number
reflects only the approximate fuel
economy that the vehicle has right
now and changes frequently as driving
conditions change.
Average Speed : Shows the average
speed of the vehicle in kilometers per
hour (km/h) or miles per hour (mph).
This average is calculated based on
the various vehicle speeds recorded
since the last reset of this value. The
average speed can be reset by pressing
and holding SEL while this display is
active.
Timer : This display can be used as a
timer. To start the timer, press SEL
while this display is active. The display will show the amount of time
that has passed since the timer was
last reset. To stop the timer, press SEL
briefly while this display is active and
the timer is running. To reset the
timer to zero, press and hold SEL
while this display is active.
Turn Arrow :
Shows the next
maneuver when using route guidance.
Estimated Time to Arrival : Shows
the estimated time until arrival at
your destination.
Distance to Destination : Shows the
distance to the destination when
using route guidance.
Speed Limit : Shows the current
speed limit. The information for this
page comes from a roadway database.
Speed Warning : Allows the driver to
set a speed that they do not want to
exceed. To set the Speed Warning,
press SEL when Speed Warning is
displayed. Press
yorzto adjust the
value. This feature can be turned off
by pressing and holding SEL while
viewing this page. If the selected

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11349344) - 2018 - crc - 11/7/17
318 VEHICLE CARE
{Warning
Using the wrong replacement
wheels, wheel bolts, or wheel nuts
can be dangerous. It could affect
the braking and handling of the
vehicle. Tires can lose air, and
cause loss of control, causing a
crash. Always use the correct wheel,
wheel bolts, and wheel nuts for
replacement.
Caution
The wrong wheel can also cause
problems with bearing life, brake
cooling, speedometer or odometer
calibration, headlamp aim, bumper
height, vehicle ground clearance,
and tire or tire chain clearance to
the body and chassis.
Used Replacement Wheels
{Warning
Replacing a wheel with a used one
is dangerous. How it has been used
or how far it has been driven may
be unknown. It could fail suddenly
and cause a crash. When replacing
wheels, use a new GM original
equipment wheel.
Tire Chains
{Warning
Do not use tire chains. There is not
enough clearance. Tire chains used
on a vehicle without the proper
amount of clearance can cause
damage to the brakes, suspension,
or other vehicle parts. The area
damaged by the tire chains could
cause loss of control and a crash.
Use another type of traction device
only if its manufacturer(Continued)
Warning (Continued)
recommends it for the vehicle's tire
size combination and road
conditions. Follow that
manufacturer's instructions. To
avoid vehicle damage, drive slowly
and readjust or remove the traction
device if it contacts the vehicle. Do
not spin the wheels. If traction
devices are used, install them on
the rear tires.
If a Tire Goes Flat
It is unusual for a tire to blowout
while driving, especially if the tires are
maintained properly. If air goes out of
a tire, it is much more likely to leak
out slowly. But if there ever is a
blowout, here are a few tips about
what to expect and what to do:
If a front tire fails, the flat tire creates
a drag that pulls the vehicle toward
that side. Take your foot off the
accelerator pedal and grip the steering

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11349344) - 2018 - crc - 11/7/17
SERVICE AND MAINTENANCE 357

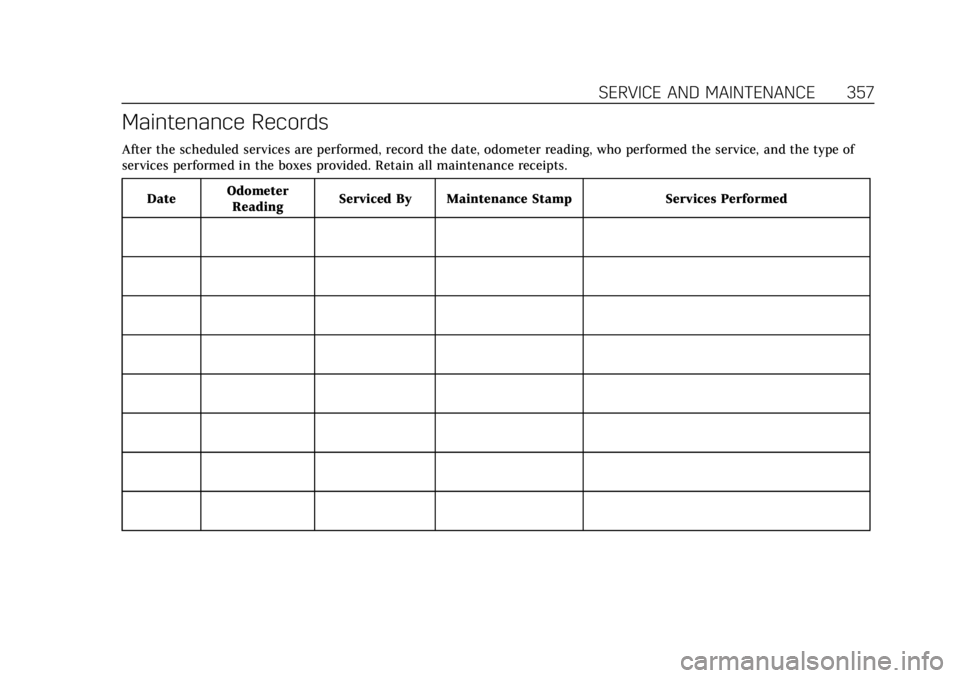

Maintenance Records
After the scheduled services are performed, record the date, odometer reading, who performed the service, and the type of
services performed in the boxes provided. Retain all maintenance receipts.Date Odometer
Reading Serviced By Maintenance Stamp Services Performed

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11349344) - 2018 - crc - 11/7/17
366 CUSTOMER INFORMATION
This program is available to qualified
applicants for cost reimbursement, up
to certain limits, of eligible
aftermarket adaptive equipment
required for the vehicle, such as hand
controls or a wheelchair/scooter lift
for the vehicle.
To learn about the GM Mobility
program, see www.gmmobility.com or
call the GM Mobility Assistance
Center at 1-800-323-9935. Text
Telephone (TTY) users, call
1-800-833-9935.
General Motors of Canada also has a
Mobility program. See www.gm.ca or
call 1-800-GM-DRIVE (800-463-7483)
for details. TTY users call
1-800-263-3830.
Roadside Service
U.S.: 1-800-224-1400.
Canada: 1-800-882-1112.
Text Telephone (TTY) Users (U.S.
Only): 1-888-889-2438.
Service is available 24 hours a day,
365 days a year.
Calling for Service
When calling Roadside Service, have
the following information ready:
.Your name, home address, and
home telephone number
. Telephone number of your
location
. Location of the vehicle
. Model, year, color, and license
plate number of the vehicle
. Odometer reading, Vehicle
Identification Number (VIN), and
delivery date of the vehicle
. Description of the problem
Coverage
Services are provided for the duration
of the vehicle’s powertrain warranty.
In the U.S., anyone driving the vehicle
is covered. In Canada, a person driving
the vehicle without permission from
the owner is not covered.
Roadside Service is not a part of the
New Vehicle Limited Warranty.
General Motors North America and
Cadillac reserve the right to make any changes or discontinue the Roadside
Service program at any time without
notification.
General Motors North America and
Cadillac reserve the right to limit
services or payment to an owner or
driver if they decide the claims are
made too often, or the same type of
claim is made many times.
Cadillac Owner Privileges
™
.
Emergency Fuel Delivery:
Delivery of enough fuel for the
vehicle to get to the nearest
service station.
. Lock-Out Service: Service to
unlock the vehicle if you are
locked out. A remote unlock may
be available if you have OnStar.
For security reasons, the driver
must present identification before
this service is given.
. Emergency Tow from a Public
Road or Highway: Tow to the
nearest Cadillac dealer for
warranty service, or if the vehicle
was in a crash and cannot be

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11349344) - 2018 - crc - 11/7/17
INDEX 391
Full-Size Spare Tire . . . . . . . . . . . . . . . . . 328
FusesEngine Compartment FuseBlock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 289
Fuses and Circuit Breakers . . . . . . . 288
Instrument Panel Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 293, 296
Rear Compartment Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 298
G
Garage Door Opener . . . . . . . . . . . . . . . . 160Programming . . . . . . . . . . . . . . . . . . . . . . 160
Gas Strut(s) . . . . . . . . . . . . . . . . . . . . . . . . . 285
Gauges Engine Coolant Temperature . . . . 134
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . 132
Speedometer . . . . . . . . . . . . . . . . . . . . . . 132
Tachometer . . . . . . . . . . . . . . . . . . . . . . . 133
Trip Odometer . . . . . . . . . . . . . . . . . . . . 133
Warning Lights andIndicators . . . . . . . . . . . . . . . . . . . . . . . . 129
General Information Service and Maintenance . . . . . . . . 345
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 252
Vehicle Care . . . . . . . . . . . . . . . . . . . . . . . 264
Glass Replacement . . . . . . . . . . . . . . . . . 285 Glove Box . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
GM Mobility Reimbursement
Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . 365
H
Hazard Warning Flashers . . . . . . . . . . 168
Head Restraints . . . . . . . . . . . . . . . . . . . . . . 59
Head-up Display . . . . . . . . . . . . . . . . . . . . 147
HeadlampsAiming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 287
Automatic . . . . . . . . . . . . . . . . . . . . . . . . . 167
Bulb Replacement . . . . . . . . . . . . . . . . 287
Daytime RunningLamps (DRL) . . . . . . . . . . . . . . . . . . . . 166
Flash-to-Pass . . . . . . . . . . . . . . . . . . . . . . 166
High-Beam On Light . . . . . . . . . . . . . . 144
High/Low Beam Changer . . . . . . . . . 166
Lamps On Reminder . . . . . . . . . . . . . . 144
Heated Rear Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Steering Wheel . . . . . . . . . . . . . . . . . . . . 121
Heated and Cooled Front Seats . . . . . 67
Heated Mirrors . . . . . . . . . . . . . . . . . . . . . . . 51
Heater Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
Heating . . . . . . . . . . . . . . . . . . . . . . . . .173, 178
High-Beam On Light . . . . . . . . . . . . . . . . 144
High-Speed Operation . . . . . . . . . . . . . . 307 Hill and Mountain Roads . . . . . . . . . . 191
Hill Start Assist (HSA) . . . . . . . . . . . . . 218
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 266
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
How to Wear Seat Belts Properly . . . 76
HVAC . . . . . . . . . . . . . . . . . . . . . . . . . . .173, 178
I
Ignition Positions . . . . . . . . . . . . . . . . . . . 199
Immobilizer . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Indicator
Vehicle Ahead . . . . . . . . . . . . . . . . . . . . . 141
Infants and Young Children, Restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Infotainment . . . . . . . . . . . . . . . . . . . . . . . . 172
Infotainment System . . . . . . . . . . . . . . . 375
Instrument Cluster . . . . . . . . . . . . . . . . . 130
Instrument Panel Storage Area . . . . . . . . . . . . . . . . . . . . . . 116
Interior Rearview Mirrors . . . . . . . . . . . 51
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
J
Jump Starting - North America . . . . 329
K
Keyless Entry Remote (RKE) System . . . . . . . . . . . . . . 29
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11349344) - 2018 - crc - 11/7/17
INDEX 393
MaintenanceRecords . . . . . . . . . . . . . . . . . . . . . . . . . . . . 357
Maintenance and Care Additional . . . . . . . . . . . . . . . . . . . . . . . . . 352
Maintenance Schedule . . . . . . . . . . . . . 347 Recommended Fluids andLubricants . . . . . . . . . . . . . . . . . . . . . . . 355
Transfer Case . . . . . . . . . . . . . . . . . . . . . 211
Malfunction Indicator Lamp . . . . . . . 137
Manual Mode . . . . . . . . . . . . . . . . . . . . . . . 209
Massage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Memory Features . . . . . . . . . . . . . . . . . . . . 13
Memory Seats . . . . . . . . . . . . . . . . . . . . . . . . 63
Messages Engine Power . . . . . . . . . . . . . . . . . . . . . 151
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
Vehicle Speed . . . . . . . . . . . . . . . . . . . . . 152
Mirror Child-View . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Rear Camera . . . . . . . . . . . . . . . . . . . . . . . . 52
Mirrors
Automatic Dimming Rearview . . . . . 51
Convex . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Folding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Heated . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Tilt in Reverse . . . . . . . . . . . . . . . . . . . . . . 51
Mirrors, Interior Rearview . . . . . . . . . . . 51 Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220
Driver Control . . . . . . . . . . . . . . . . . . . . . 220
Monitor System, Tire Pressure . . . . . 307
N
Navigation OnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 378
Net, Convenience . . . . . . . . . . . . . . . . . . . 118
New Vehicle Break-In . . . . . . . . . . . . . . . 198
O
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132 Trip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
Off-Road . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186 Driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Recovery . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
Oil
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 268
Engine Oil Life System . . . . . . . . . . . 270
Pressure Light . . . . . . . . . . . . . . . . . . . . . 143
Older Children, Restraints . . . . . . . . . . . 96
Online Owner Center . . . . . . . . . . . . . . . 365
OnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 375
OnStar Additional Information . . . . 382
OnStar Connections . . . . . . . . . . . . . . . . 379
OnStar Diagnostics . . . . . . . . . . . . . . . . . 381
OnStar Emergency . . . . . . . . . . . . . . . . . . 377
OnStar Navigation . . . . . . . . . . . . . . . . . . 378
OnStar Overview . . . . . . . . . . . . . . . . . . . . 376 OnStar Security . . . . . . . . . . . . . . . . . . . . . 378
Ordering
Service Publications . . . . . . . . . . . . . . 371
Outlets Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Overheating, Engine . . . . . . . . . . . . . . . . 276
P
Park Shifting Into . . . . . . . . . . . . . . . . . . . . . . 203
Shifting Out of . . . . . . . . . . . . . . . . . . . . 204
Parking
Brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215
Brake and P (Park)Mechanism Check . . . . . . . . . . . . . . . 284
Extended . . . . . . . . . . . . . . . . . . . . . . . . . . 205
Over Things That Burn . . . . . . . . . . . 205
Parking Assist . . . . . . . . . . . . . . . . . . . . . . . 233
Parking or Backing Assistance Systems . . . . . . . . . . . . . . . 233
Passenger Airbag Status
Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
Passenger Compartment Air Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
Passenger Sensing System . . . . . . . . . . 90
Perchlorate Materials Requirements, California . . . . . . . . . 265

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11349344) - 2018 - crc - 11/7/17
396 INDEX
Storage Compartments . . . . . . . . . . . . . 116
StrutsGas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 285
Stuck Vehicle . . . . . . . . . . . . . . . . . . . . . . . 193
Sun Visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Sunglass Storage . . . . . . . . . . . . . . . . . . . . 117
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
System Forward Collision Alert (FCA) . . . . 240
Infotainment . . . . . . . . . . . . . . . . . 172, 375
Roof Rack . . . . . . . . . . . . . . . . . . . . . . . . . 119
Systems Driver Assistance . . . . . . . . . . . . . . . . . 233
T
Tachometer . . . . . . . . . . . . . . . . . . . . . . . . . 133
Text Telephone (TTY) Users . . . . . . . 365
Theft-Deterrent Systems . . . . . . . . . . . . 48Immobilizer . . . . . . . . . . . . . . . . . . . . . . . . . 48
Third-Row Seats . . . . . . . . . . . . . . . . . . . . . 73
Throttle, Adjustable . . . . . . . . . . . . . . . . 198
Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 299
All-Season . . . . . . . . . . . . . . . . . . . . . . . . . 300
All-Terrain . . . . . . . . . . . . . . . . . . . . . . . . . 301
Buying New Tires . . . . . . . . . . . . . . . . . 314
Chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 318 Tires (cont'd)
Changing . . . . . . . . . . . . . . . . . . . . . . . . . . 320
Designations . . . . . . . . . . . . . . . . . . . . . . 302
Different Size . . . . . . . . . . . . . . . . . . . . . . 315
Full-Size Spare . . . . . . . . . . . . . . . . . . . . 328
If a Tire Goes Flat . . . . . . . . . . . . . . . . 318
Inspection . . . . . . . . . . . . . . . . . . . . . . . . . 312
Low Profile . . . . . . . . . . . . . . . . . . . . . . . . 301
Pressure . . . . . . . . . . . . . . . . . . . . . . 305, 307
Pressure Light . . . . . . . . . . . . . . . . . . . . . 142
Pressure Monitor Operation . . . . . . 308
Pressure Monitor System . . . . . . . . 307
Rotation . . . . . . . . . . . . . . . . . . . . . . . . . . . 312
Sidewall Labeling . . . . . . . . . . . . . . . . . 301
Terminology and Definitions . . . . 303
Uniform Tire Quality Grading . . . . 316
Wheel Alignment and Tire
Balance . . . . . . . . . . . . . . . . . . . . . . . . . . 317
Wheel Replacement . . . . . . . . . . . . . . 317
When It Is Time for New Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 313
Winter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 300
Tow/Haul Mode . . . . . . . . . . . . . . . . . . . . . 210
Tow/Haul Mode Light . . . . . . . . . . . . . . 140
Towing
Driving Characteristics . . . . . . . . . . . 252
Equipment . . . . . . . . . . . . . . . . . . . . . . . . 258
General Information . . . . . . . . . . . . . . 252 Towing (cont'd)
Recreational Vehicle . . . . . . . . . . . . . . 333
Trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 255
Trailer Sway Control (TSC) . . . . . . . 260
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 332
Traction Control System (TCS)/StabiliTrak Light . . . . . . . . . . . . . . . . 142
Off Light . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
Traction Control/Electronic Stability Control . . . . . . . . . . . . . . . . . . . 218
Trailer Sway Control (TSC) . . . . . . . . . . . . . . . 260
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 255
Transfer Case . . . . . . . . . . . . . . . . . . . . . . . 211
Transmission Automatic . . . . . . . . . . . . . . . . . . . . . . . . . 206
Fluid, Automatic . . . . . . . . . . . . . . . . . . 271
Transportation Program, Courtesy . . . . . . . . . . . . . . . . . . . . . . . . . . . 368
Trip Odometer . . . . . . . . . . . . . . . . . . . . . . 133
Turn and Lane-Change Signals . . . . 168
U
Uniform Tire Quality Grading . . . . . . 316
Universal Remote System . . . . . . . . . . 160 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . 163
