6 KEYS, DOORS, AND WINDOWS
Keys, Doors, and
Windows
Keys and Locks
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Remote Keyless Entry (RKE)System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Remote Keyless Entry (RKE) System Operation . . . . . . . . . . . . . . . . . 7
Remote Vehicle Start . . . . . . . . . . . . . . 14
Door Locks . . . . . . . . . . . . . . . . . . . . . . . . . 15
Power Door Locks . . . . . . . . . . . . . . . . . 18
Delayed Locking . . . . . . . . . . . . . . . . . . . 19
Automatic Door Locks . . . . . . . . . . . . 19
Lockout Protection . . . . . . . . . . . . . . . . 19
Safety Locks . . . . . . . . . . . . . . . . . . . . . . . . 19
Doors
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Power Assist Steps . . . . . . . . . . . . . . . . . 28
Vehicle Security
Vehicle Security . . . . . . . . . . . . . . . . . . . . 28
Vehicle Alarm System . . . . . . . . . . . . . 28
Steering Column Lock . . . . . . . . . . . . . 30
Immobilizer . . . . . . . . . . . . . . . . . . . . . . . . 31
Immobilizer Operation . . . . . . . . . . . . 31
Exterior Mirrors
Convex Mirrors . . . . . . . . . . . . . . . . . . . . 31 Power Mirrors . . . . . . . . . . . . . . . . . . . . . . 32
Folding Mirrors . . . . . . . . . . . . . . . . . . . . 32
Heated Mirrors . . . . . . . . . . . . . . . . . . . . . 33
Automatic Dimming Mirror . . . . . . . 33
Reverse Tilt Mirrors . . . . . . . . . . . . . . . 33
Interior Mirrors
Interior Rearview Mirrors . . . . . . . . . 34
Automatic Dimming Rearview
Mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Rear Camera Mirror . . . . . . . . . . . . . . . 34
Windows
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Power Windows . . . . . . . . . . . . . . . . . . . . 36
Sun Visors . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Roof
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Keys and Locks
Keys
{Warning
Leaving children in a vehicle with a
remote key is dangerous and
children or others could be
seriously injured or killed. They
could operate the power windows
or other controls or make the
vehicle move. The windows will
function with the remote key in the
vehicle, and children or others
could be caught in the path of a
closing window. Do not leave
children in a vehicle with a
remote key.

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13690472) - 2021 - CRC - 8/10/21
KEYS, DOORS, AND WINDOWS 7
The mechanical key inside the remote
key can be used for all locks.
To remove the mechanical key, press
the button near the bottom of the
remote key, and pull the mechanical
key out. Never pull the mechanical
key out without pressing the button.
If it becomes difficult to turn a key,
inspect the key blade for debris.
Periodically clean with a brush
or pick.
See your dealer if a replacement key
or additional key is needed.
Contact Roadside Service if locked out
of the vehicle. SeeRoadside Service
0 462. With an active OnStar or connected
service plan, an OnStar Advisor may
remotely unlock the vehicle. See
OnStar Overview
0471.
Remote Keyless Entry
(RKE) System
See Radio Frequency Statement 0467.
If there is a decrease in the remote
key operating range:
.Check the distance. The remote key
may be too far from the vehicle.
.Check the location. Other vehicles
or objects may be blocking the
signal.
.Check the remote key’s battery. See
“Battery Replacement ”later in this
section.
.If the remote key is still not working
correctly, see your dealer or a
qualified technician for service.
Remote Keyless Entry
(RKE) System Operation
The Keyless Access system allows for
vehicle entry when the remote key is
within 1 m (3 ft). See “Keyless Access
Operation ”later in this section.

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13690472) - 2021 - CRC - 8/10/21

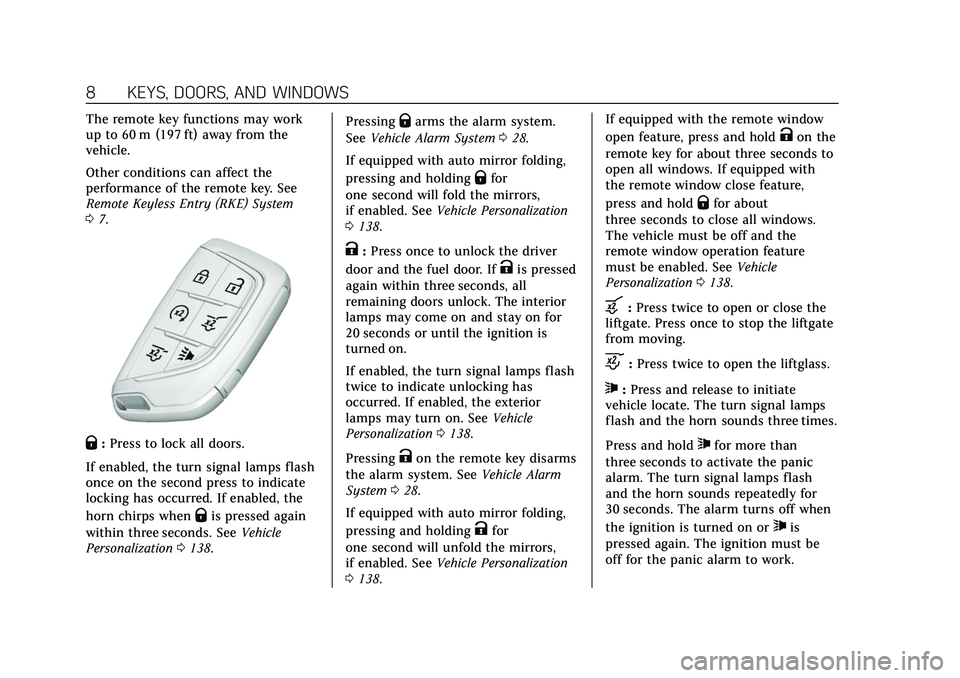

8 KEYS, DOORS, AND WINDOWS
The remote key functions may work
up to 60 m (197 ft) away from the
vehicle.
Other conditions can affect the
performance of the remote key. See
Remote Keyless Entry (RKE) System
07.
Q:Press to lock all doors.
If enabled, the turn signal lamps flash
once on the second press to indicate
locking has occurred. If enabled, the
horn chirps when
Qis pressed again
within three seconds. See Vehicle
Personalization 0138. Pressing
Qarms the alarm system.
See Vehicle Alarm System 028.
If equipped with auto mirror folding,
pressing and holding
Qfor
one second will fold the mirrors,
if enabled. See Vehicle Personalization
0 138.
K:Press once to unlock the driver
door and the fuel door. If
Kis pressed
again within three seconds, all
remaining doors unlock. The interior
lamps may come on and stay on for
20 seconds or until the ignition is
turned on.
If enabled, the turn signal lamps flash
twice to indicate unlocking has
occurred. If enabled, the exterior
lamps may turn on. See Vehicle
Personalization 0138.
Pressing
Kon the remote key disarms
the alarm system. See Vehicle Alarm
System 028.
If equipped with auto mirror folding,
pressing and holding
Kfor
one second will unfold the mirrors,
if enabled. See Vehicle Personalization
0 138. If equipped with the remote window
open feature, press and hold
Kon the
remote key for about three seconds to
open all windows. If equipped with
the remote window close feature,
press and hold
Qfor about
three seconds to close all windows.
The vehicle must be off and the
remote window operation feature
must be enabled. See Vehicle
Personalization 0138.
b:Press twice to open or close the
liftgate. Press once to stop the liftgate
from moving.
c: Press twice to open the liftglass.
7:Press and release to initiate
vehicle locate. The turn signal lamps
flash and the horn sounds three times.
Press and hold
7for more than
three seconds to activate the panic
alarm. The turn signal lamps flash
and the horn sounds repeatedly for
30 seconds. The alarm turns off when
the ignition is turned on or
7is
pressed again. The ignition must be
off for the panic alarm to work.

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13690472) - 2021 - CRC - 8/10/21
KEYS, DOORS, AND WINDOWS 9
S:PressStwice to start the engine
from outside the vehicle using the
remote key. See Remote Vehicle Start
0 14.
Keyless Access Operation
The Keyless Access system allows for
doors and the liftgate to be accessed
without removing the remote key from
your pocket, purse, briefcase, etc. The
remote key must be within 1 m (3 ft)
of the liftgate or door being opened.
If the vehicle has this feature, there
will be a button on the outside door
handles.
Keyless Access can be programmed to
unlock all doors on the first door
handle press from the driver door
button. Keyless unlocking can be
turned off. See Vehicle Personalization
0 138.
If equipped with memory seats,
remote keys 1 and 2 are linked to
seating positions of memory 1 or 2.
See Memory Seats 045. Keyless Unlocking/Locking from the
Driver Door
Driver Door Unlock Touchpad Shown,
Passenger Similar
When the doors are locked and the
remote key is within 1 m (3 ft) of the
door handle, touching the driver door
handle inside touchpad will unlock
the driver door. Touching the driver
door handle outside sensor will lock
the doors.
Driver Door Lock Sensor Shown, Passenger Similar
If equipped with remote folding
mirror, touching the driver door
handle sensor may fold and unfold the
mirrors. See Folding Mirrors 032.
Keyless Unlocking/Locking from the
Passenger Doors
When the doors are locked and the
remote key is within 1 m (3 ft) of the
door handle, touching the door handle
inside touchpad of the passenger door
will unlock all doors. Touching the
door handle outside sensor will lock
the doors.

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13690472) - 2021 - CRC - 8/10/21
10 KEYS, DOORS, AND WINDOWS
Disable/Enable Keyless Unlocking of
Exterior Door Handles and Liftgate
If equipped, keyless unlocking of the
exterior door handles and liftgate can
be disabled and enabled.
Disabling Keyless Unlocking:
With the vehicle off, press and hold
Q
andKon the remote key at the same
time for approximately four seconds.
The turn signal lamps will flash four
times quickly to indicate access is
disabled. Using any exterior handle to
unlock the doors or open the liftgate
will cause the turn signal lamps to
flash four times quickly, indicating
access is disabled. If disabled, disarm
the alarm system before starting the
vehicle.
Disabling Keyless Unlocking may also
be configured under Vehicle
Personalization. See Vehicle
Personalization 0138. Enabling Keyless Unlocking:
With the vehicle off, press and hold
Q
andKon the remote key at the same
time for approximately four seconds.
The turn signal lamps will flash twice
quickly to indicate access is enabled.
Enabling Keyless Unlocking may also
be configured under Vehicle
Personalization. See Vehicle
Personalization 0138.
Passive Locking
The Keyless Access system will lock
the vehicle several seconds after all
doors are closed, if the vehicle is off
and at least one remote key has been
removed or none remain in the
vehicle.
If equipped, the fuel door will
also lock.
If other electronic devices interfere
with the remote key signal, the vehicle
may not detect the remote key inside
the vehicle. If passive locking is
enabled, the doors may lock with the
remote key inside the vehicle. Do not
leave the remote key in an unattended
vehicle. To customize the doors to
automatically lock when exiting the
vehicle, see
Vehicle Personalization
0 138.
If equipped with remote folding
mirror, passive locking may fold and
unfold the mirrors. See Folding Mirrors
0 32.
Temporary Disable of Passive
Locking
Temporarily disable passive locking by
pressing and holding
Kon the
interior door switch with a door open
for at least four seconds, or until three
chimes are heard. Passive locking will
then remain disabled until
Qon the
interior door is pressed, or until the
vehicle is turned on.
Remote Left In Vehicle Alert
When the vehicle is turned off and a
remote key is left in the vehicle, the
horn will chirp three times after all
doors are closed. To turn on or off see
Vehicle Personalization 0138.

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13690472) - 2021 - CRC - 8/10/21
KEYS, DOORS, AND WINDOWS 11
Remote No Longer in Vehicle Alert
If the vehicle is on with a door open,
and then all doors are closed, the
vehicle will check for remote keys
inside. If a remote key is not detected,
the Driver Information Center (DIC)
will display NO REMOTE DETECTED
and the horn will chirp three times.
This occurs only once each time the
vehicle is driven. To turn on or off see
Vehicle Personalization0138.
Keyless Liftgate Opening
Press the touchpad on the underside
of the liftgate handle to open the
liftgate when all doors are unlocked,
or when the remote key is within
1 m (3 ft).
Keyless Liftglass Opening
Press the exterior liftglass button to
open the liftglass when all doors are
unlocked, or when the remote key is
within 1 m (3 ft).
See Liftgate 020.
Mechanical Key Access
To access a vehicle with a weak
remote key battery, see Door Locks
0 15.Programming Remote Keys to
the Vehicle
Only remote keys programmed to the
vehicle will work. If a remote key is
lost or stolen, a replacement can be
purchased and programmed through
your dealer. The vehicle can be
reprogrammed so that lost or stolen
remote keys no longer work. Each
vehicle can have up to eight remote
keys matched to it.
Programming with Recognized
Remote Keys
A new key can be programmed to the
vehicle when there are two
recognized keys.
To program, the vehicle must be in
RUN and all remote keys, both
currently recognized and new, must
be with you.
1. Place the two recognized remote keys on the passenger seat.
2. Scroll to the DIC menu to "Remote Key Learn" menu and select.
The DIC displays READY FOR
REMOTE #3, 4, 5, ETC.
3. Place the new remote key into thefront cupholder.
4. Press ENGINE START/STOP. When the remote key is learned, the DIC
display will show that it is ready to
program the next remote key.
5. Remove the remote key from the front cupholder and press
KorQ
on the remote key.
To program additional remote keys,
repeat Steps 3–5.
When all additional remote keys
are programmed, press and hold
ENGINE START/STOP for
approximately 12 seconds to exit
programming mode.

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13690472) - 2021 - CRC - 8/10/21
14 KEYS, DOORS, AND WINDOWS
3. Lift the battery with a flat object.
4. Remove the battery.
5. Insert the new battery, positiveside toward the back cover. Replace
with a CR2032 or equivalent
battery.
6. Push together the remote key.
7. Reinsert the mechanical key.
Remote Vehicle Start
This feature allows the engine to be
started from outside the vehicle.
S: This button on the remote key is
for remote start. The climate control system will use
the previous settings during a remote
start. The rear window defogger may
come on during remote start based on
cold ambient conditions. The rear
defog indicator light does not come on
during remote start.
If equipped, the heated and ventilated
front seats may also come on when
the vehicle personalization setting is
enabled. See
Heated and Ventilated
Front Seats 048.
If equipped with a remote start heated
steering wheel, it may come on during
a remote start. See Heated Steering
Wheel 0104.
Laws in some local communities may
restrict the use of remote starters. For
example, some laws may require a
person using remote start to have the
vehicle in view. Check local
regulations for any requirements.
If your vehicle is low on fuel, do not
use the remote start feature. The
vehicle may run out of fuel.
The remote key range may be shorter
while the vehicle is running. Other conditions can affect the
performance of the remote key. See
Remote Keyless Entry (RKE) System
0
7.
You are allowed multiple starts
totaling 30 minutes of engine run
time. The maximum run time of a
single start is 15 minutes, and it will
shut off automatically. You could do
three 10 minute starts, if you
manually shut off after 10 minutes.
The last 10 minute start would shut
off automatically as your total
30 minutes will have been used.
Starting the Engine Using Remote
Start
1. Press
Stwice on the remote key.
The turn signal lamps will flash.
The lamps flash to confirm the
request to remote start the vehicle
has been received. During the
remote start, the doors will be
locked and the parking lamps will
remain on as long as the engine is
running.
2. The engine will shut off after 15 minutes or after the remainder
of the 30 minute total running
time is used, unless you stop the

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13690472) - 2021 - CRC - 8/10/21
16 KEYS, DOORS, AND WINDOWS
.Pull the front door handle once to
unlock and open it. Pull the rear
door handle once to unlock it and
again to open it.
To lock or unlock the doors from
outside the vehicle:
.PressQorKon the remote key.
.Use the mechanical key in the
driver door. The key cylinder is
covered by a cap. See “Driver Door
Key Lock Cylinder Access” later in
this section.
Keyless Access
The remote key must be within 1 m
(3 ft) of the liftgate or door being
opened or locked. To unlock and open
any door, press the touchpad on the
inside grip area of the outside door
handle. Touch the sensor on the front
outside door handle to lock. See
“Keyless Access Operation ”in Remote
Keyless Entry (RKE) System Operation
0 7.
Driver Door Key Lock Cylinder
Access (In Case of Dead Battery)
To access the driver door key lock
cylinder and unlatch the door: 1. Remove the mechanical key from the remote key.2. Insert the mechanical key into theslot at the bottom of the handle
and push upward all the way until
the cover frees. Do not pry or pull
on the key.

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13690472) - 2021 - CRC - 8/10/21
18 KEYS, DOORS, AND WINDOWS
way closed and latches. Pull the
handle during a soft-close to cancel
the cinching and re-open the door.
Power Door Locks
PressQorKon the remote key. See
Remote Keyless Entry (RKE) System
Operation 07.
Q:Press to lock the doors. The
indicator light in the switch will
illuminate when locked.
K: Press to unlock the doors.
The fuel door is also locked or
unlocked using these features. Security Status indicator
A light on the upper surface of the
driver's door trim is used to indicate
vehicle security status.
This light will be OFF any time the
ignition is ON, except momentarily
when vehicle doors are locking.
Solid :
Indicates securing with doors
closed.
Fast Flash : Indicates securing with
doors open.
Slow Flash : Indicates battery
conserving secured state.
No light : Indicates unsecured state.

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13690472) - 2021 - CRC - 8/10/21
24 KEYS, DOORS, AND WINDOWS
The liftgate can be opened when
locked if the remote key is within 1 m
(3 ft) of the emblem. SeeRemote
Keyless Entry (RKE) System Operation
0 7.
The liftgate has an electric latch.
If the battery is disconnected or has
low voltage, the liftgate will not open.
The liftgate will resume operation
when the battery is reconnected and
charged.
Hands-Free Operation
If equipped, the liftgate may be
operated with a kicking motion near
the center of the rear bumper at the
location of the projected logo. The
remote key must be within 1 m (3 ft)
of the rear bumper to operate the
power liftgate hands-free.
The hands-free feature will not work
while the liftgate is moving. To stop
the liftgate while in motion use one of
the liftgate switches.
The hands-free feature can be
customized. See Vehicle Personalization
0 138. Choose from the following: On-Open and Close :
The kicking
motion is activated to both open and
close the liftgate.
On-Open Only : The kicking motion is
activated to only open the liftgate.
Off : The feature is disabled.
Kick Zone
To operate, move your foot in a
forward kicking motion near the
center of the rear bumper at the
location of the projected logo, then
pull it back. The kick must come
within 14 cm (6 in) of the rear
bumper to activate. Then step back.
.Do not sweep your foot side to side.
.Do not keep your foot under the
bumper; the liftgate will not
activate.
.Do not touch the liftgate until it has
stopped moving.
