CADILLAC ESCALADE ESV 2007 2.G Owners Manual

Rear Window Wiper/Washer
{CAUTION:
In freezing weather, do not use your
washer until the windshield is warmed.
Otherwise the washer uid can form ice
on the windshield, blocking your vision.
The rear wiper control is located on the turn
signal/multifunction lever.
To turn the rear wiper on, slide the lever to a
wiper position.
9(Off):To turn the wiper off, slide the lever to
this setting.
5(Rear Wiper Delay):To turn on the rear wiper
delay, slide the lever to this setting.
Z(Rear Wiper):To turn on the rear wiper, slide
the lever to this setting.
=(Rear Wiper Wash):To turn on the rear
wiper wash, push the button on the end of the turn
signal/multifunction lever to spray washer uid
on the rear window. The wipers will clear the rear
window and either stop or return to your preset
speed. For more washer cycles, press and
hold the button.
The rear window wiper/washer will not operate if
the liftgate or liftglass is open or ajar. If the liftgate
or liftglass is opened while the rear wiper is on,
the wiper will return to the parked position
and stop.
201

Cruise Control
{CAUTION:
Cruise control can be dangerous where
you cannot drive safely at a steady speed.
So, do not use your cruise control on
winding roads or in heavy traffic.
Cruise control can be dangerous on
slippery roads. On such roads, fast
changes in tire traction can cause
excessive wheel slip, and you could lose
control. Do not use cruise control on
slippery roads.
With cruise control, you can maintain a speed
of about 25 mph (40 km/h) or more without
keeping your foot on the accelerator. This can
really help on long trips. Cruise control does not
work at speeds below about 25 mph (40 km/h).
When you apply your brakes, cruise control
is turned off.If your vehicle has the StabiliTrak
®system and
begins to limit wheel spin while you are using cruise
control, the cruise control will automatically
disengage. SeeStabiliTrak
®System on page 330.
When road conditions allow you to safely use it
again, you may turn the cruise control back on.
The cruise control
buttons are located
on left side of the
steering wheel.
T(On/Off):This button can both activate and
turn off the system. The indicator light on the
button turns on when cruise control is on and turns
off when cruise control is off.
202

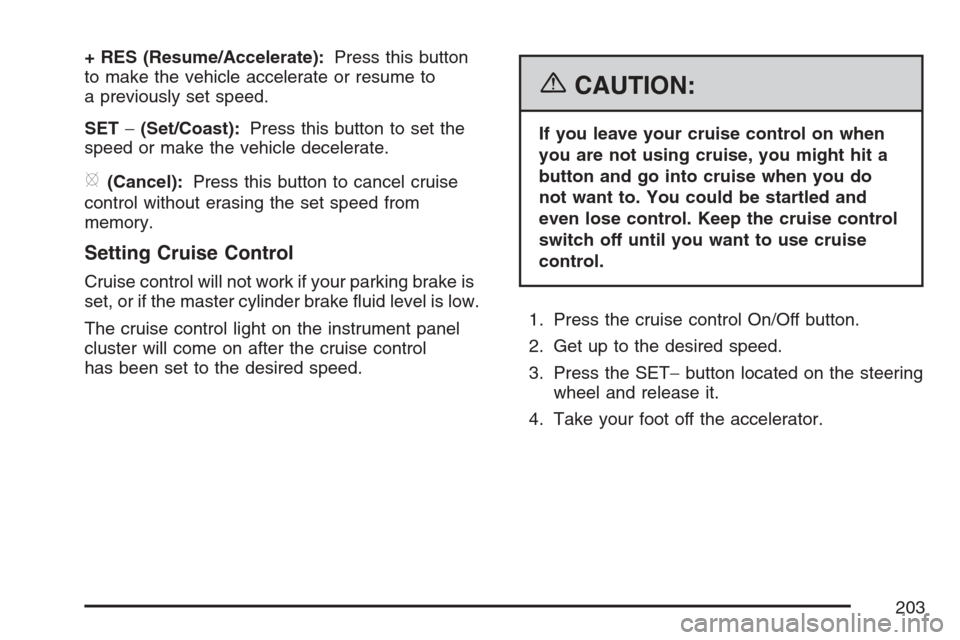

+ RES (Resume/Accelerate):Press this button
to make the vehicle accelerate or resume to
a previously set speed.
SET−(Set/Coast):Press this button to set the
speed or make the vehicle decelerate.
[(Cancel):Press this button to cancel cruise
control without erasing the set speed from
memory.
Setting Cruise Control
Cruise control will not work if your parking brake is
set, or if the master cylinder brake uid level is low.
The cruise control light on the instrument panel
cluster will come on after the cruise control
has been set to the desired speed.
{CAUTION:
If you leave your cruise control on when
you are not using cruise, you might hit a
button and go into cruise when you do
not want to. You could be startled and
even lose control. Keep the cruise control
switch off until you want to use cruise
control.
1. Press the cruise control On/Off button.
2. Get up to the desired speed.
3. Press the SET−button located on the steering
wheel and release it.
4. Take your foot off the accelerator.
203

Resuming a Set Speed
Suppose you set your cruise control at a desired
speed and then you apply the brake. This
shuts off the cruise control. But you do not need
to reset it.
Once you are driving about 25 mph (40 km/h) or
more, press the +RES button on your steering
wheel. The vehicle will go back to the previous set
speed and stay there.
Increasing Speed While Using
Cruise Control
To increase the cruise speed while using cruise
control:
Press and hold the +RES button on the
steering wheel until you reach your new
desired speed, then release it.
To increase vehicle speed in small increments,
press the +RES button. Each time you do this,
you will go about 1 mph (1.6 km/h) faster.
Reducing Speed While Using
Cruise Control
To reduce your speed while using cruise control:
Press and hold the SET– button on the
steering wheel until the desired lower speed is
reached, then release it.
To slow down in very small amounts, press
the SET– button on the steering wheel
briey. Each time you do this, the vehicle will
go about 1 mph (1.6 km/h) slower.
Passing Another Vehicle While Using
Cruise Control
Use the accelerator pedal to increase your speed.
When you take your foot off the pedal, your
vehicle will slow down to the previous set
cruise speed.
204

Using Cruise Control on Hills
How well your cruise control will work on hills
depends upon your speed, load, and the
steepness of the hills. When going up steep hills,
you may have to step on the accelerator pedal
to maintain the vehicle’s speed. When going
downhill, you may have to brake or shift to a lower
gear to keep the vehicle’s speed down. Of
course, applying the brake takes you out of cruise
control. Many drivers nd this to be too much
trouble and do not use cruise control on steep hills.
Ending Cruise Control
There are three ways to end cruise control:
Step lightly on the brake pedal.
Press the cancel button on the steering wheel.
Press the On/Off button on the steering
wheel.
Erasing Speed Memory
When you turn off the cruise control or the
ignition, the cruise control set speed memory is
erased.
Exterior Lamps
The exterior lamps
control is located on the
instrument panel to
the left of the steering
wheel.
It controls the following systems:
Headlamps
Taillamps
Parking Lamps
License Plate Lamps
Instrument Panel Lights
205

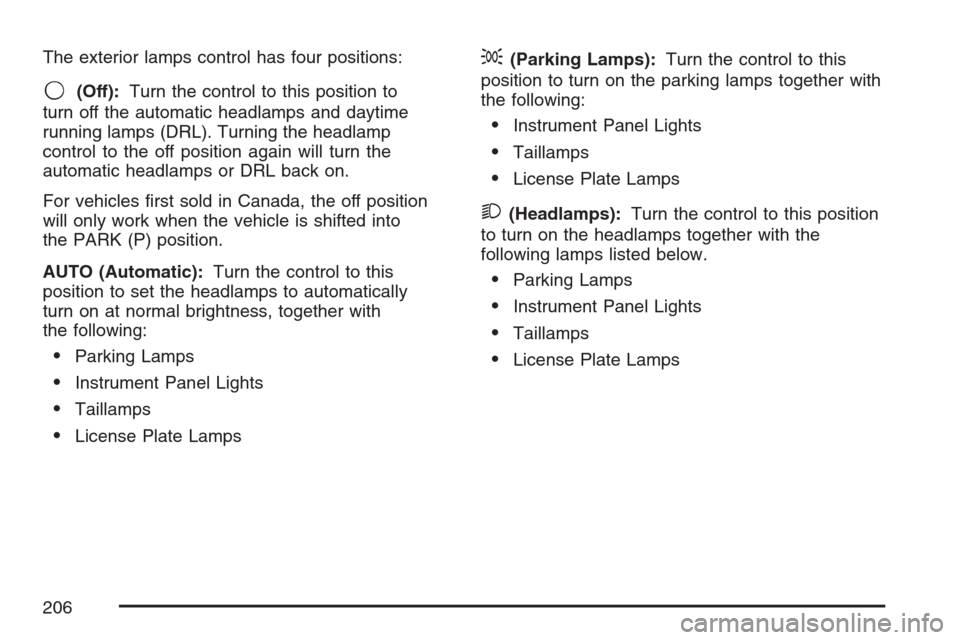

The exterior lamps control has four positions:
9(Off):Turn the control to this position to
turn off the automatic headlamps and daytime
running lamps (DRL). Turning the headlamp
control to the off position again will turn the
automatic headlamps or DRL back on.
For vehicles rst sold in Canada, the off position
will only work when the vehicle is shifted into
the PARK (P) position.
AUTO (Automatic):Turn the control to this
position to set the headlamps to automatically
turn on at normal brightness, together with
the following:
Parking Lamps
Instrument Panel Lights
Taillamps
License Plate Lamps
;(Parking Lamps):Turn the control to this
position to turn on the parking lamps together with
the following:
Instrument Panel Lights
Taillamps
License Plate Lamps
2(Headlamps):Turn the control to this position
to turn on the headlamps together with the
following lamps listed below.
Parking Lamps
Instrument Panel Lights
Taillamps
License Plate Lamps
206

IntellliBeam™ Intelligent High-Beam
Headlamp Control System
If your vehicle has this feature, be sure to read
this entire section before using it.
IntellliBeam™ is an enhancement to your vehicle’s
headlamp system. Using a digital light sensor
on your rearview mirror, this system will turn the
vehicle’s high-beam headlamps on and off
according to surrounding traffic conditions.
The IntellliBeam™ system will turn your high-beam
headlamps on when it is dark enough, there is
no other traffic present, and the IntellliBeam
system is enabled.
Turning On and Enabling IntellliBeam™
Press and release the IntellliBeam™ button on the
inside rear view mirror. The IntellliBeam™ indicator
on the mirror will turn on to let you know the system
has been turned on. Once the system has been
turned on, it will remain on each time the vehicle is
started. Additionally, the IntellliBeam system must
be enabled.To enable the IntellliBeam™ system, turn the
exterior lamp control to AUTO, with the turn
signal/multifunction lever in its neutral position.
The High-Beam On Light will appear on the
instrument panel cluster when the high-beams
are on. SeeHighbeam On Light on page 243.
Driving with IntellliBeam™
IntellliBeam™ will only activate your high-beams
when driving over 20 mph (32 km/h).
The high-beam headlamps will remain on, under
the automatic control of IntellliBeam™, until any of
the following situations occur:
The system detects an approaching vehicle’s
headlamps.
The system detects a preceding vehicle’s
taillamps.
The outside light is bright enough that
high-beam headlamps are not required.
The vehicle’s speed drops below
15 mph (24 km/h).
207

The headlamp stalk is moved forward to
the high-beam position. SeeHeadlamp
High/Low-Beam Changer on page 197.
When either of these conditions occur, the
IntellliBeam™ feature will be disabled and the
IntellliBeam™ light in the mirror will turn off
until the high-beam stalk is returned to
the neutral position.
If IntellliBeam™ was using low-beams prior to
this action, the IntellliBeam™ feature will be
temporarily disabled until the stalk is returned
to the neutral position.
The exterior lamp control is turned to any
setting except AUTO.
When this occurs, IntellliBeam™ will be
disabled until the control is turned back to the
AUTO position.
The IntellliBeam™ system is turned off at the
inside rearview mirror.IntellliBeam™ may not turn off the high-beams if
the system cannot detect other vehicle’s lamps
because of any of the following:
The others vehicle’s lamp(s) are missing,
damaged, obstructed from view or otherwise
undetected.
The other vehicle’s lamp(s) are covered with
dirt, snow and/or road spray.
The other vehicle’s lamp(s) cannot be detected
due to dense exhaust, smoke, fog, snow, road
spray, mist or other airborne obstructions.
Your vehicle’s windshield is dirty, cracked or
obstructed by something that blocks the
view of the IntellliBeam light sensor.
Your vehicle’s windshield is covered with ice,
dirt, haze or other obstructions.
Your vehicle is loaded such that the front end
of the vehicle points upward, causing the
IntellliBeam sensor to aim high and not detect
headlamps and taillamps.
You are driving on winding or hilly roads.
You may need to manually disable or cancel the
high-beam headlamps by turning the low-beam
headlamps on, if any of the above conditions exist.
208

Disabling and Resetting IntellliBeam™
at the Rearview Mirror
IntellliBeam™ can be disabled by using the
controls on the inside rearview mirror.
AUTO
3(On/Off):To disable the system, press
this button on the inside rearview mirror. The
IntellliBeam™ indicator will turn off and will
not come back on until the IntellliBeam™ button
is pressed again.
Stalk Disable:When IntellliBeam™ has turned
on the high-beams, pull or push the high-beam
stalk. This will disable IntellliBeam™. The
IntellliBeam™ indicator on the mirror will turn
off. To re-enable IntellliBeam™, press the
IntellliBeam™ button on the mirror.
A different sensitivity setting is available for dealer
diagnostics. This is done by pushing and holding
this button for 20 seconds until the IntellliBeam™
indicator light ashes three times. If you
accidentally activate this, the vehicle’s setting will
automatically be reset each time the ignition is
turned off and then on again.
Cleaning the IntellliBeam™ Light Sensor
The light sensor is
located on the inside of
the vehicle in front of
the inside rearview
mirror.
Clean the light sensor window, periodically, using
glass cleaner on a soft cloth. Gently wipe the
sensor window. Do not spray glass cleaner directly
on the surface of the sensor window.
209

Headlamps on Reminder
If a door is open, a reminder chime will sound
when your headlamps or parking lamps are
manually turned on and your key is out of the
ignition. To turn off the chime, turn the headlamp
switch to off or AUTO and then back on, or
close and re-open the door. In the AUTO mode,
the headlamps turn off once the ignition is in LOCK
or may remain on until the headlamp delay ends
(if enabled in the DIC). See “Exit Lighting”
underDIC Vehicle Customization on page 259.
Daytime Running Lamps (DRL)
Daytime Running Lamps (DRL) can make it easier
for others to see the front of your vehicle during
the day. DRL can be helpful in many different
driving conditions, but they can be especially
helpful in the short periods after dawn and before
sunset. Fully functional DRL are required on all
vehicles rst sold in Canada.The DRL system will come on when the following
conditions are met:
The ignition is on
The exterior lamps control is in AUTO
The light sensor determines it is daytime
When the DRL are on, only your DRL lamps will
be on. The taillamps, sidemarker and other
lamps will not be on. The instrument panel back
lighting will not be on either.
When it begins to get dark, the automatic
headlamp system will switch from DRL to the
headlamps.
When you turn the headlamp switch off, the
headlamps will go off.
210
