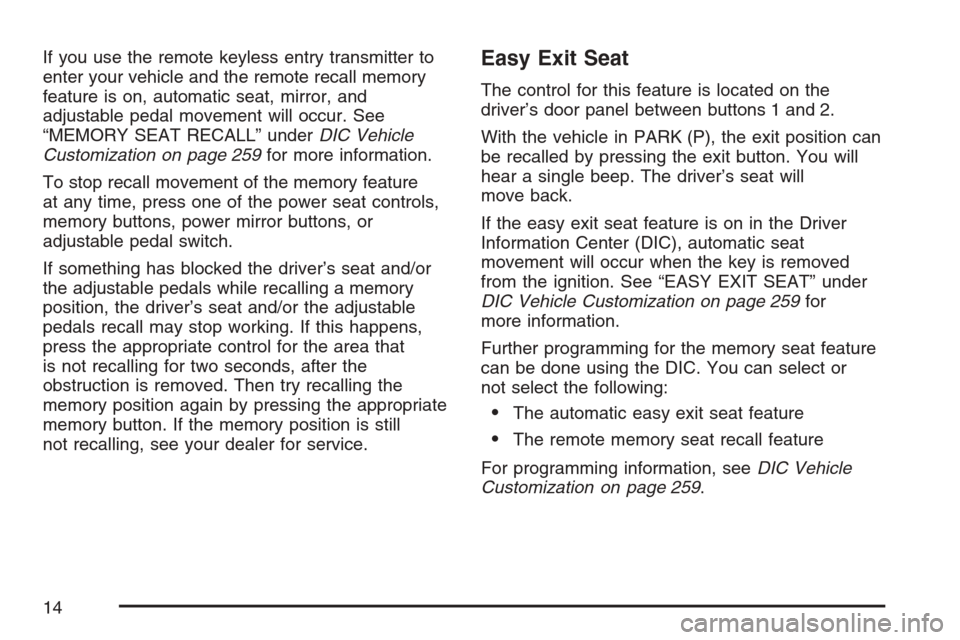

If you use the remote keyless entry transmitter to
enter your vehicle and the remote recall memory
feature is on, automatic seat, mirror, and
adjustable pedal movement will occur. See
“MEMORY SEAT RECALL” underDIC Vehicle
Customization on page 259for more information.
To stop recall movement of the memory feature
at any time, press one of the power seat controls,
memory buttons, power mirror buttons, or
adjustable pedal switch.
If something has blocked the driver’s seat and/or
the adjustable pedals while recalling a memory
position, the driver’s seat and/or the adjustable
pedals recall may stop working. If this happens,
press the appropriate control for the area that
is not recalling for two seconds, after the
obstruction is removed. Then try recalling the
memory position again by pressing the appropriate
memory button. If the memory position is still
not recalling, see your dealer for service.Easy Exit Seat
The control for this feature is located on the
driver’s door panel between buttons 1 and 2.
With the vehicle in PARK (P), the exit position can
be recalled by pressing the exit button. You will
hear a single beep. The driver’s seat will
move back.
If the easy exit seat feature is on in the Driver
Information Center (DIC), automatic seat
movement will occur when the key is removed
from the ignition. See “EASY EXIT SEAT” under
DIC Vehicle Customization on page 259for
more information.
Further programming for the memory seat feature
can be done using the DIC. You can select or
not select the following:
The automatic easy exit seat feature
The remote memory seat recall feature
For programming information, seeDIC Vehicle
Customization on page 259.
14

Keys............................................................ 113
Remote Keyless Entry System.................. 114
Remote Keyless Entry System
Operation............................................... 115
Doors and Locks........................................ 123
Door Locks................................................ 123
Power Door Locks..................................... 124
Delayed Locking........................................ 124
Programmable Automatic Door Locks........ 124
Rear Door Security Locks......................... 124
Lockout Protection..................................... 125
Liftgate/Liftglass......................................... 126
Power Liftgate........................................... 128
Power Running Boards.............................. 132
Windows...................................................... 133
Power Windows........................................ 134
Sun Visors................................................ 135
Theft-Deterrent Systems............................. 135
Content Theft-Deterrent............................. 135
PASS-Key
®III+......................................... 137
PASS-Key®III+ Operation......................... 137Starting and Operating Your Vehicle......... 139
New Vehicle Break-In................................ 139
Ignition Positions....................................... 140
Retained Accessory Power (RAP)............. 141
Starting the Engine.................................... 141
Adjustable Throttle and Brake Pedal.......... 142
Engine Coolant Heater.............................. 143
Automatic Transmission Operation............. 144
Tow/Haul Mode......................................... 150
Parking Brake........................................... 151
Shifting Into Park (P) ................................. 152
Shifting Out of Park (P)............................. 153
Parking Over Things That Burn................. 154
Engine Exhaust......................................... 155
Running the Engine While Parked............. 156
Mirrors......................................................... 157
Automatic Dimming Rearview Mirror with
Intellibeam™, OnStar
®, Compass, and
Temperature Display.............................. 157
Automatic Dimming Rearview Mirror with
OnStar
®, Compass and Temperature
Display................................................... 159
Outside Power Foldaway Mirrors............... 162
Section 2 Features and Controls
111

Your vehicle has a
double-sided key that
can be used for
the ignition and door
locks.
If you ever lose your keys, your dealer will be able
to assist you with obtaining replacements.
In an emergency contact Cadillac Roadside
Service
®. SeeRoadside Service on page 545for
more information.
Remote Keyless Entry System
Your keyless entry system operates on a radio
frequency subject to Federal Communications
Commission (FCC) Rules and with Industry
Canada.
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions:
1. This device may not cause interference.
2. This device must accept any interference
received, including interference that may
cause undesired operation of the device.
This device complies with RSS-210 of Industry
Canada. Operation is subject to the following
two conditions:
1. This device may not cause interference.
2. This device must accept any interference
received, including interference that may
cause undesired operation of the device.
Changes or modications to this system by other
than an authorized service facility could void
authorization to use this equipment.
114

At times you may notice a decrease in operating
range. This is normal for any remote keyless entry
system. If the transmitter does not work or if you
have to stand closer to your vehicle for the
transmitter to work, try this:
Check the distance. You may be too far from
your vehicle. You may need to stand closer
during rainy or snowy weather.
Check the location. Other vehicles or objects
may be blocking the signal. Take a few steps
to the left or right, hold the transmitter
higher, and try again.
Check to determine if battery replacement is
necessary. See “Battery Replacement”
underRemote Keyless Entry System
Operation on page 115.
If you are still having trouble, see your dealer
or a qualied technician for service.
Remote Keyless Entry System
Operation
The vehicle’s doors can be locked and unlocked
from about 3 feet (1 m) up to 65 feet (20 m)
away with the Remote Keyless Entry (RKE)
transmitter.
If your vehicle has the remote start feature you
can also start your vehicle with the RKE
transmitter. The RKE transmitter, with the remote
start button, provides an increased operating
range of 195 feet (60 m) away. However,
the operating range may be less while the vehicle
is running. As a result, you may need to be
closer to your vehicle to turn it off than you were
to start it.
There are other conditions which can affect the
performance of the transmitter. SeeRemote
Keyless Entry System on page 114.
You will have one of the RKE transmitters below.
115

Remote Vehicle Start
Your vehicle may have a remote starting feature.
This feature allows you to start the engine
from outside of the vehicle. It may also start up
the vehicle’s heating or air conditioning systems
and rear window defogger. Normal operation of the
system will return after the key is turned to the
RUN position.
If your vehicle has an automatic climate control
system, during remote start, the climate control
system will default to a heating mode during colder
outside temperatures and a cooling mode during
warmer outside temperatures. If your vehicle
does not have an automatic climate control
system, during remote start the climate control
system will turn on at the setting the vehicle was
set to when the vehicle was last turned off.Laws in some communities may restrict the use of
remote starters. For example, some laws may
require a person using the remote start to have the
vehicle in view when doing so. Check local
regulations for any requirements on remote starting
of vehicles.
Do not use the remote start feature if your vehicle
is low on fuel. Your vehicle may run out of fuel.
The RKE transmitter with the remote start button,
provides an increased range of operation.
However, the range may be less while the vehicle
is running. As a result, you may need to be
closer to your vehicle to turn it off, than you were
to turn it on.
There are other conditions which can affect the
performance of the transmitter, seeRemote
Keyless Entry System on page 114for additional
information.
120

Doors and Locks
Door Locks
{CAUTION:
Unlocked doors can be dangerous.
Passengers, especially children, can
easily open the doors and fall out of a
moving vehicle. When a door is
locked, the handle will not open it.
You increase the chance of being
thrown out of the vehicle in a crash if
the doors are not locked. So, wear
safety belts properly and lock the
doors whenever you drive.
CAUTION: (Continued)
CAUTION: (Continued)

Young children who get into unlocked
vehicles may be unable to get out.
A child can be overcome by extreme
heat and can suffer permanent injuries
or even death from heat stroke.
Always lock your vehicle whenever
you leave it.
Outsiders can easily enter through an
unlocked door when you slow down
or stop your vehicle. Locking your
doors can help prevent this from
happening.
There are several ways to lock and unlock your
vehicle.
From the outside, use the remote keyless
entry (RKE) transmitter or the key in the
driver’s door.
From the inside, use the power door locks or
manual door locks. To lock or unlock the door with
the manual locks, push down or pull up on the
manual lock knob.
123

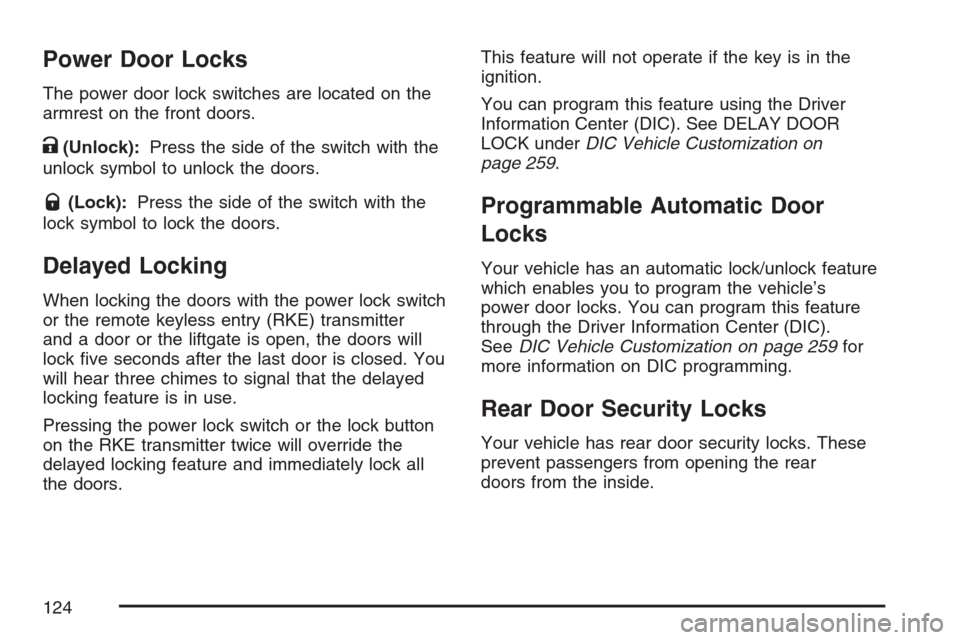

Power Door Locks
The power door lock switches are located on the
armrest on the front doors.
K(Unlock):Press the side of the switch with the
unlock symbol to unlock the doors.
Q(Lock):Press the side of the switch with the
lock symbol to lock the doors.
Delayed Locking
When locking the doors with the power lock switch
or the remote keyless entry (RKE) transmitter
and a door or the liftgate is open, the doors will
lock ve seconds after the last door is closed. You
will hear three chimes to signal that the delayed
locking feature is in use.
Pressing the power lock switch or the lock button
on the RKE transmitter twice will override the
delayed locking feature and immediately lock all
the doors.This feature will not operate if the key is in the
ignition.
You can program this feature using the Driver
Information Center (DIC). See DELAY DOOR
LOCK underDIC Vehicle Customization on
page 259.
Programmable Automatic Door
Locks
Your vehicle has an automatic lock/unlock feature
which enables you to program the vehicle’s
power door locks. You can program this feature
through the Driver Information Center (DIC).
SeeDIC Vehicle Customization on page 259for
more information on DIC programming.
Rear Door Security Locks
Your vehicle has rear door security locks. These
prevent passengers from opening the rear
doors from the inside.
124

The rear door security
locks are located on the
inside edge of each
rear door. You
must open the rear
doors to access them.
The label depicting
lock and unlock
positions is located near
the lock.
To set the locks, do the following:
1. Insert the key into the security lock slot and
turn it so the slot is in the horizontal position.
2. Close the door.
When you want to open a rear door when the
security lock is on, do the following:
1. Unlock the door using the remote keyless
entry transmitter, if the vehicle has one, the
power door lock switch, or by lifting the
rear door manual lock.
2. Open the door from the outside.To cancel the rear door security lock, do the
following:
1. Unlock the door and open it from the outside.
2. Insert the key into the security lock slot
and turn it so the slot is in the vertical position.
Lockout Protection
This feature protects you from locking the key in
the vehicle when the key is in the ignition and
a front door is open.
If the driver’s side power door lock switch is
pressed when the driver’s door is open and the
key is in the ignition, all of the doors will lock and
then the driver’s door will unlock.
If the passenger’s side power door lock switch is
pressed when the front passenger’s door is
open and the key is in the ignition, all of the doors
will lock and then the front passenger’s door
will unlock.
Security Lock Label
shown
125

Liftgate/Liftglass
{CAUTION:
It can be dangerous to drive with the
liftglass or liftgate open because carbon
monoxide (CO) gas can come into your
vehicle. You cannot see or smell CO. It can
cause unconsciousness and even death.
If you must drive with the liftglass or
liftgate open, or if electrical wiring or other
cable connections must pass through the
seal between the body and the liftglass or
liftgate:
Make sure all other windows are shut.
Turn the fan on your heating or cooling
system to its highest speed with the
recirculation mode off. That will force
outside air into your vehicle. SeeDual
Automatic Climate Control System on
page 220.
CAUTION: (Continued)
CAUTION: (Continued)

If you have air outlets on or under
the instrument panel, open them all
the way.
If your vehicle is equipped with a
power liftgate, disable the power
liftgate function.
SeeEngine Exhaust on page 155.
SeePower Liftgate on page 128for more
information on how to use the power liftgate.
To unlock the liftgate, use the power door lock
switch or press the door unlock button on
the Remote Keyless Entry (RKE) transmitter twice.
SeeRemote Keyless Entry System Operation
on page 115.
126

Power Liftgate
Your vehicle has a power liftgate. The vehicle
must be in PARK (P) to power open or close the
liftgate.
The liftgate must be completely closed to power
open or completely open to power close.
The taillamps will ash and a chime will sound at
the beginning of each power operation cycle.
{CAUTION:
You or others could be injured if caught in
the path of the power liftgate. Make sure
there is no one in the way of the liftgate
as it is closing.
Notice:If you open the liftgate without
checking for overhead obstructions such as a
garage door, you could break the liftgate
glass. Always check to make sure the area
above the liftgate is clear before opening it.To open and close the liftgate, press and hold the
power liftgate button on the Remote Keyless
Entry (RKE) transmitter until the liftgate starts
moving. Press the RKE button a second
time during liftgate operation to reverse that
operation. SeeRemote Keyless Entry System
Operation on page 115for more information.
The liftgate can also be
opened and closed by
pressing the power
liftgate button on
the overhead console.
Press the button a
second time during
liftgate operation
to reverse that
operation.
The liftgate can be power opened by pressing the
touchpad switch on the liftgate handle. Press
the button a second time during liftgate operation
to reverse that operation.
Power Liftgate Button
on Overhead Console
128
