CADILLAC ESCALADE ESV 2009 Owners Manual

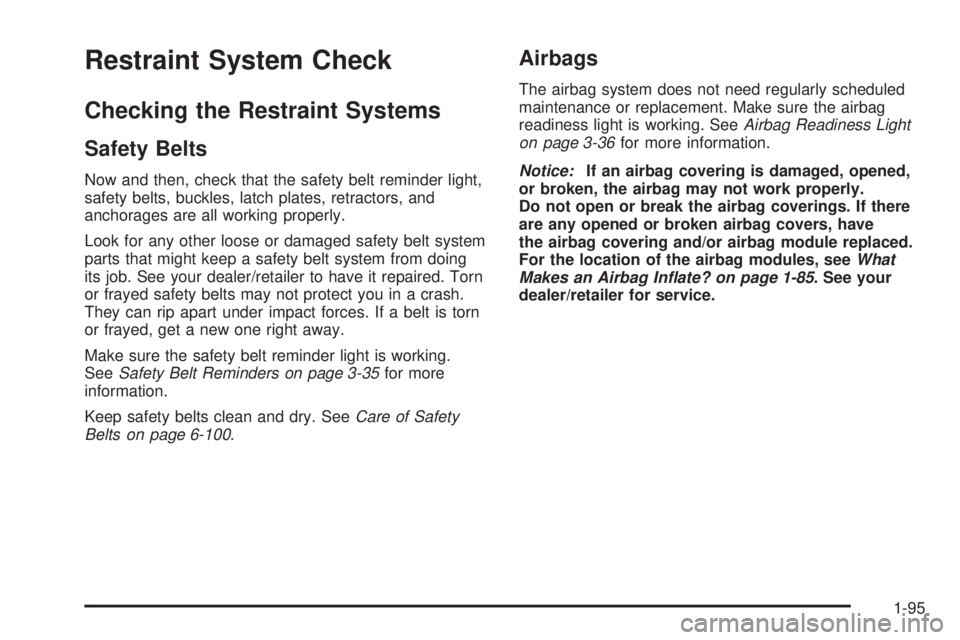

Restraint System Check Checking the Restraint Systems Safety Belts Now and then, check that the safety belt reminder light,
safety belts, buckles, latch plates, retractors, and
anchorages are all working properly.
Look for any other loose or damaged safety belt system
parts that might keep a safety belt system from doing
its job. See your dealer/retailer to have it repaired. Torn
or frayed safety belts may not protect you in a crash.
They can rip apart under impact forces. If a belt is torn
or frayed, get a new one right away.
Make sure the safety belt reminder light is working.
See Safety Belt Reminders on page 3-35 for more
information.
Keep safety belts clean and dry. See Care of Safety
Belts on page 6-100 . Airbags The airbag system does not need regularly scheduled
maintenance or replacement. Make sure the airbag
readiness light is working. See Airbag Readiness Light
on page 3-36 for more information.
Notice: If an airbag covering is damaged, opened,
or broken, the airbag may not work properly.
Do not open or break the airbag coverings. If there
are any opened or broken airbag covers, have
the airbag covering and/or airbag module replaced.
For the location of the airbag modules, see What
Makes an Airbag Inflate? on page 1-85 . See your
dealer/retailer for service.
1-95

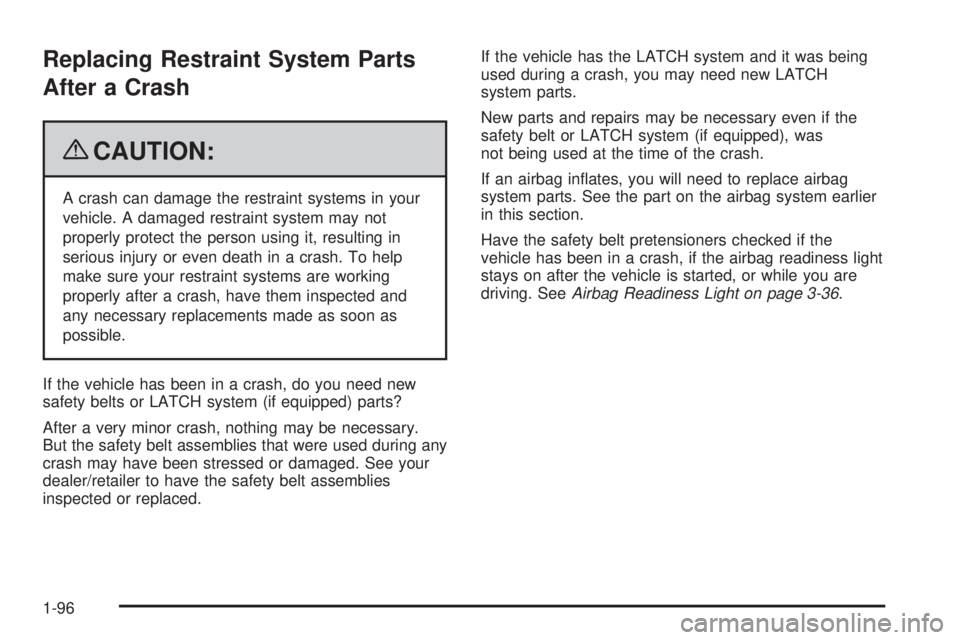

Replacing Restraint System Parts
After a Crash
{ CAUTION: A crash can damage the restraint systems in your
vehicle. A damaged restraint system may not
properly protect the person using it, resulting in
serious injury or even death in a crash. To help
make sure your restraint systems are working
properly after a crash, have them inspected and
any necessary replacements made as soon as
possible.
If the vehicle has been in a crash, do you need new
safety belts or LATCH system (if equipped) parts?
After a very minor crash, nothing may be necessary.
But the safety belt assemblies that were used during any
crash may have been stressed or damaged. See your
dealer/retailer to have the safety belt assemblies
inspected or replaced. If the vehicle has the LATCH system and it was being
used during a crash, you may need new LATCH
system parts.
New parts and repairs may be necessary even if the
safety belt or LATCH system (if equipped), was
not being used at the time of the crash.
If an airbag inates, you will need to replace airbag
system parts. See the part on the airbag system earlier
in this section.
Have the safety belt pretensioners checked if the
vehicle has been in a crash, if the airbag readiness light
stays on after the vehicle is started, or while you are
driving. See Airbag Readiness Light on page 3-36 .
1-96

Keys .............................................................. .2-3
Remote Keyless Entry (RKE) System ............... .2-4
Remote Keyless Entry (RKE) System
Operation .................................................. .2-5
Remote Vehicle Start ..................................... .2-8
Doors and Locks ........................................... .2-10
Door Locks ................................................. .2-10
Power Door Locks ....................................... .2-10
Delayed Locking .......................................... .2-10
Programmable Automatic Door Locks ............. .2-11
Rear Door Security Locks ............................. .2-11
Lockout Protection ....................................... .2-12
Liftgate/Liftglass ........................................... .2-12
Power Liftgate ............................................. .2-14
Power Assist Steps ...................................... .2-16
Windows ....................................................... .2-17
Power Windows ........................................... .2-18
Sun Visors .................................................. .2-20
Theft-Deterrent Systems ................................. .2-21
Content Theft-Deterrent ................................ .2-21
PASS-Key ®
III+ Electronic Immobilizer ............ .2-22
PASS-Key ®
III+ Electronic Immobilizer
Operation ................................................ .2-23 Starting and Operating Your Vehicle ............... .2-24
New Vehicle Break-In ................................... .2-24
Ignition Positions ......................................... .2-25
Retained Accessory Power (RAP) .................. .2-26
Starting the Engine ...................................... .2-26
Adjustable Throttle and Brake Pedal ............... .2-27
Engine Coolant Heater ................................. .2-28
Automatic Transmission Operation .................. .2-29
Tow/Haul Mode ........................................... .2-33
Parking Brake ............................................. .2-34
Shifting Into Park ......................................... .2-36
Shifting Out of Park ..................................... .2-37
Parking Over Things That Burn ...................... .2-38
Engine Exhaust ........................................... .2-38
Running the Vehicle While Parked ................. .2-39
Mirrors .......................................................... .2-40
Manual Rearview Mirror ................................ .2-40
Automatic Dimming Rearview Mirror ............... .2-40
Outside Power Foldaway Mirrors .................... .2-40
Park Tilt Mirrors ........................................... .2-41
Outside Convex Mirror .................................. .2-41
Outside Heated Mirrors ................................. .2-42Section 2 Features and Controls
2-1

Object Detection Systems .............................. .2-42
Ultrasonic Rear Parking Assist (URPA) ........... .2-42
Side Blind Zone Alert (SBZA) ........................ .2-44
Rear Vision Camera (RVC) ........................... .2-48
OnStar ®
System ............................................ .2-52
Universal Home Remote System ..................... .2-55
Universal Home Remote System
Operation (With Three Round LED) ............. .2-55 Storage Areas ............................................... .2-62
Glove Box .................................................. .2-62
Cupholders ................................................. .2-62
Center Console Storage ................................ .2-63
Assist Handles ............................................ .2-63
Garment Hooks ........................................... .2-63
Luggage Carrier .......................................... .2-64
Rear Storage Area ....................................... .2-65
Rear Seat Armrest ....................................... .2-65
Sunroof ........................................................ .2-65
Section 2 Features and Controls
2-2

Keys
{ CAUTION: Leaving children in a vehicle with the ignition key
is dangerous for many reasons, children or others
could be badly injured or even killed. They could
operate the power windows or other controls or
even make the vehicle move. The windows will
function with the keys in the ignition and children
could be seriously injured or killed if caught in the
path of a closing window. Do not leave the keys in
a vehicle with children.
The key can be used for the ignition and door locks.
See your dealer/retailer if a replacement key or
additional key is needed.
Notice: If you ever lock your keys in the vehicle,
you may have to damage the vehicle to get in.
Be sure you have spare keys.
If you are locked out of your vehicle, contact Roadside
Service. See Roadside Service on page 8-7 for more
information.
2-3

Remote Keyless Entry (RKE)
System The Remote Keyless Entry (RKE) system operates on a
radio frequency subject to Federal Communications
Commission (FCC) Rules and with Industry Canada.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference received,
including interference that may cause undesired
operation of the device.
This device complies with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference received,
including interference that may cause undesired
operation of the device. Changes or modications to this system by other than
an authorized service facility could void authorization to
use this equipment.
If there is a decrease in the RKE operating range, try this:
Check the distance. The transmitter may be too far
from the vehicle. Stand closer during rainy or snowy
weather.
Check the location. Other vehicles or objects may be
blocking the signal. Take a few steps to the left or
right, hold the transmitter higher, and try again.
Check the transmitter’s battery. See “Battery
Replacement” later in this section.
If the transmitter is still not working correctly, see
your dealer/retailer or a qualied technician for
service.
2-4

Remote Keyless Entry (RKE)
System Operation The Remote Keyless Entry (RKE) transmitter functions
work up to 195 feet (60 m) away from the vehicle.
There are other conditions which can affect the
performance of the transmitter. See Remote Keyless
Entry (RKE) System on page 2-4 . The following functions may be available if this vehicle
has the RKE system:
Q (Lock): Press to lock all the doors.
If enabled through the Driver Information Center (DIC),
the turn signal lamps ash once to indicate locking
has occurred. If enabled through the DIC, the horn
chirps when
Q is pressed again within three seconds.
See DIC Vehicle Customization on page 3-65 for
additional information.
Pressing
Q arms the content theft-deterrent system.
See Content Theft-Deterrent on page 2-21 .
K (Unlock): Press once to unlock only the driver door.
If
K is pressed again within three seconds, all
remaining doors unlock. The interior lamps may come
on and stay on for 20 seconds or until the ignition
is turned on.
If enabled through the DIC, the turn signal lamps ash
twice to indicate unlocking has occurred. See DIC
Vehicle Customization on page 3-65 . If enabled through
the DIC, the exterior lights turn on briey if it is dark
enough outside. See “APPROACH LIGHTING” under
DIC Vehicle Customization on page 3-65 .With Remote Start and
Power Liftgate and
Liftglass (Without
Remote Start Similar)
2-5

Pressing
K on the RKE transmitter disarms the content
theft-deterrent system. See Content Theft-Deterrent on
page 2-21 .
/ (Remote Vehicle Start): For vehicles with this
feature, press
/ to start the engine from outside the
vehicle using the RKE transmitter. See Remote Vehicle
Start on page 2-8 for additional information.
& (Power Liftgate): Press and hold to open and
close the liftgate. The taillamps ash and a chime
sounds to indicate when the liftgate is opening and
closing.
m (Liftglass): Press and hold to open the liftglass.
L (Vehicle Locator/Panic Alarm): Press and release
to locate the vehicle. The turn signal lamps ash and
the horn sounds three times.
Press and hold
L for more than two seconds to activate
the panic alarm. The turn signal lamps ash and the horn
sounds repeatedly for 30 seconds. The alarm turns off
when the ignition is moved to ON/RUN or
L is pressed
again. The ignition must be in LOCK/OFF for the panic
alarm to work. The vehicle comes with two transmitters. Each
transmitter will have a number on top of it, “1” or “2”.
These numbers correspond to the driver of the vehicle.
For example, the memory seat position for driver 1
will be recalled when using the transmitter labeled “1”, if
enabled through the DIC. See Memory Features on
page 1-7 and DIC Vehicle Customization on page 3-65
for more information.
Programming Transmitters to the
Vehicle Only RKE transmitters programmed to this vehicle
will work. If a transmitter is lost or stolen, a replacement
can be purchased and programmed through your
dealer/retailer. When the replacement transmitter is
programmed to this vehicle, all remaining transmitters
must also be reprogrammed. Any lost or stolen
transmitters will no longer work once the new transmitter
is programmed. Each vehicle can have up to eight
transmitters programmed to it. See “Relearn Remote
Key” under DIC Operation and Displays on page 3-48 for
instructions on how to match RKE transmitters to the
vehicle.
2-6

Battery Replacement Replace the battery if the REPLACE BATTERY IN
REMOTE KEY message displays in the DIC. See
“REPLACE BATTERY IN REMOTE KEY” under DIC
Warnings and Messages on page 3-56 for additional
information.
Notice: When replacing the battery, do not touch
any of the circuitry on the transmitter. Static
from your body could damage the transmitter.
To replace the battery:
1. Separate the transmitter with a at, thin object
inserted into the notch, located above the
metal base.
2. Remove the old battery. Do not use a metal object.
3. Insert the new battery, positive side facing up.
Replace with a CR2032 or equivalent battery.
4. Snap the transmitter back together.
2-7

Remote Vehicle Start This feature allows you to start the engine from outside of
the vehicle. It may also start up the vehicle’s heating or
air conditioning systems and rear window defogger.
Normal operation of the system will return after the key
is turned to the ON/RUN position.
During a remote start, the climate control system will
default to a heating or cooling mode depending on the
outside temperatures.
During a remote start, if your vehicle has an automatic
climate control system and heated seats, the heated
seats will turn on during colder outside temperatures and
will shut off when the key is turned to ON/RUN. If your
vehicle does not have an automatic climate control
system, during remote start, you will need to manually
turn the heated seats on and off. See Heated Seats on
page 1-5 for additional information.
Laws in some communities may restrict the use of
remote starters. For example, some laws may require a
person using the remote start to have the vehicle in
view when doing so. Check local regulations for
any requirements on remote starting of vehicles.
Do not use the remote start feature if your vehicle is low
on fuel. Your vehicle may run out of fuel. If your vehicle has the remote start feature, the RKE
transmitter functions will have an increased range
of operation. However, the range may be less while the
vehicle is running.
There are other conditions which can affect the
performance of the transmitter, see Remote Keyless
Entry (RKE) System on page 2-4 for additional
information.
/ (Remote Start): This button will be on the RKE
transmitter if you have remote start.
To start the vehicle using the remote start feature:
1. Aim the transmitter at the vehicle.
2. Press and release the transmitter’s lock button. The
vehicle’s doors will lock. Immediately press and hold
the transmitter’s remote start button until the turn
signal lights ash. If you cannot see the vehicle’s
lights, press and hold the remote start button for two
to four seconds. Pressing the remote start button
again after the vehicle has started will turn the
engine off.
When the vehicle starts, the parking lamps will turn
on and remain on while the vehicle is running.
If the vehicle is left running it will automatically shut
off after 10 minutes unless a time extension has
been done.
2-8
